SUNBAR2000FC
PROLIGHTS

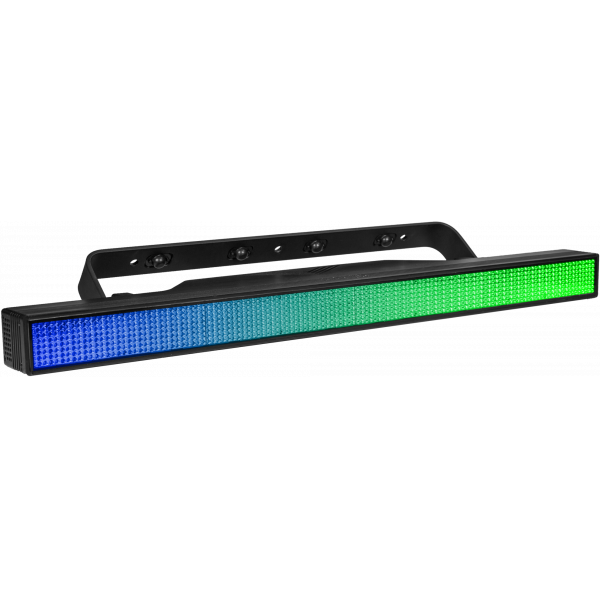

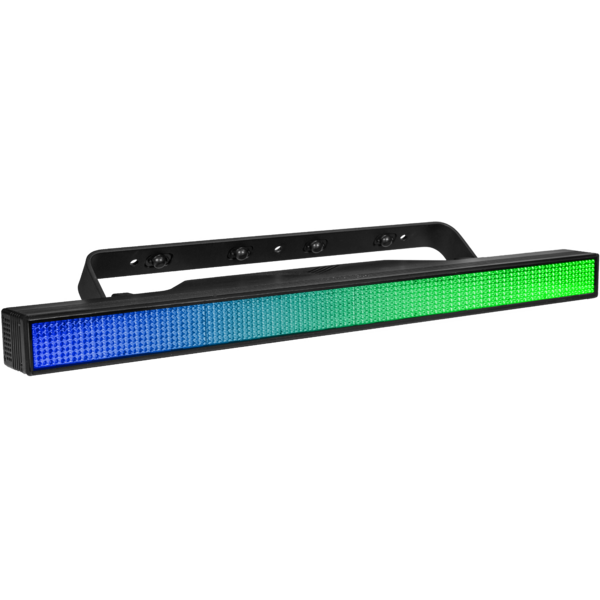

SunBar 2000FC

ORDER CODE: SUNBAR2000FC

126K lumens RGBW LED graphic strobe batten with interchangeable lenses

SunBar 2000FC is an exceptionally powerful LED graphic strobe batten featuring also as static blinder and flood. SunBar 2000FC offers flexible control of beam coverage through an interchangeable lens system, passing from 120° wide to 40° beam increasing the light intensity up to x4.
Available in FC/RGBW versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.

Main features:

  • Staggering 126'000 lumen output (strobe) with 120° beam angle
  • Art-Net and DMX control
  • Graphic effects from 16 individually controllable groups of RGBW LEDs
See variants

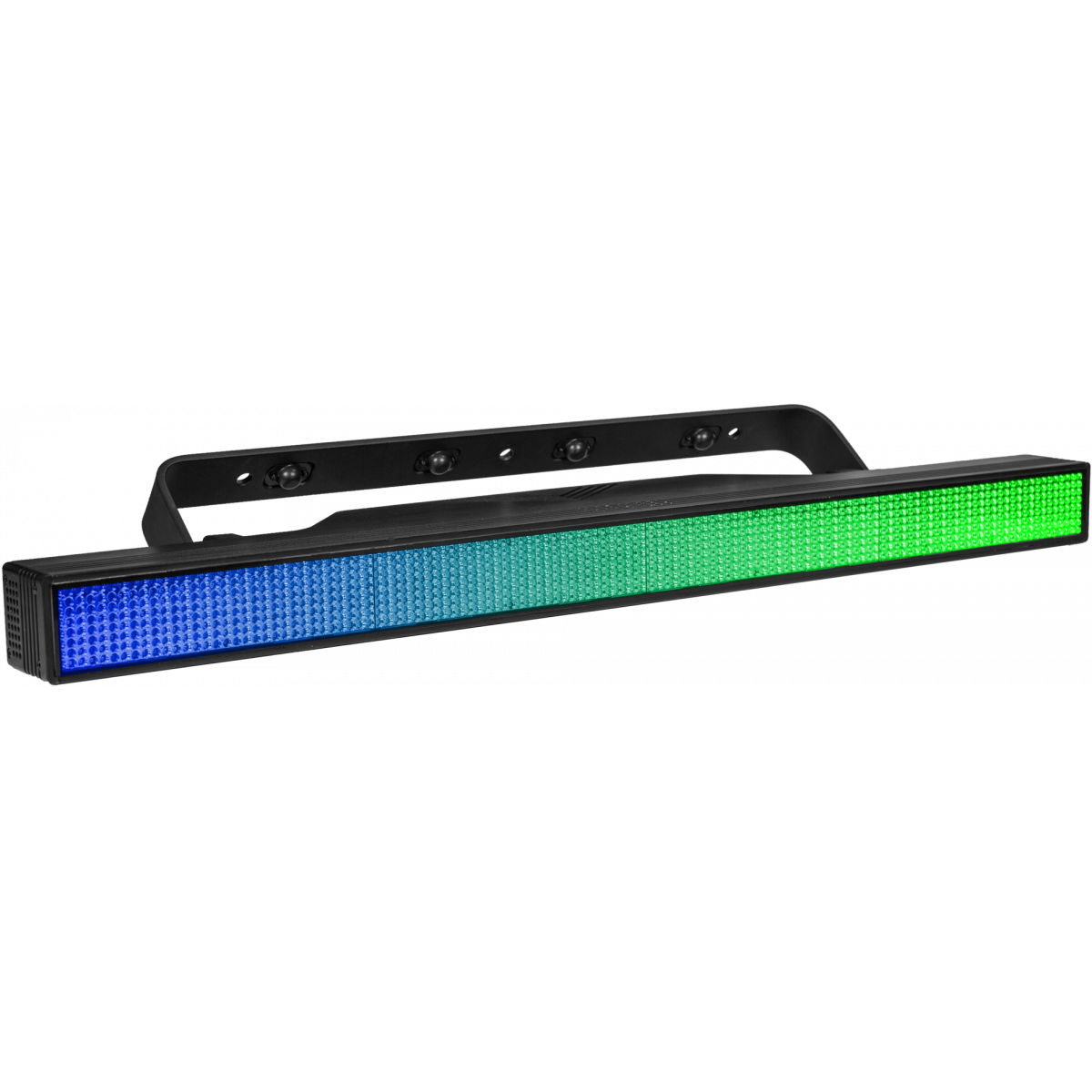

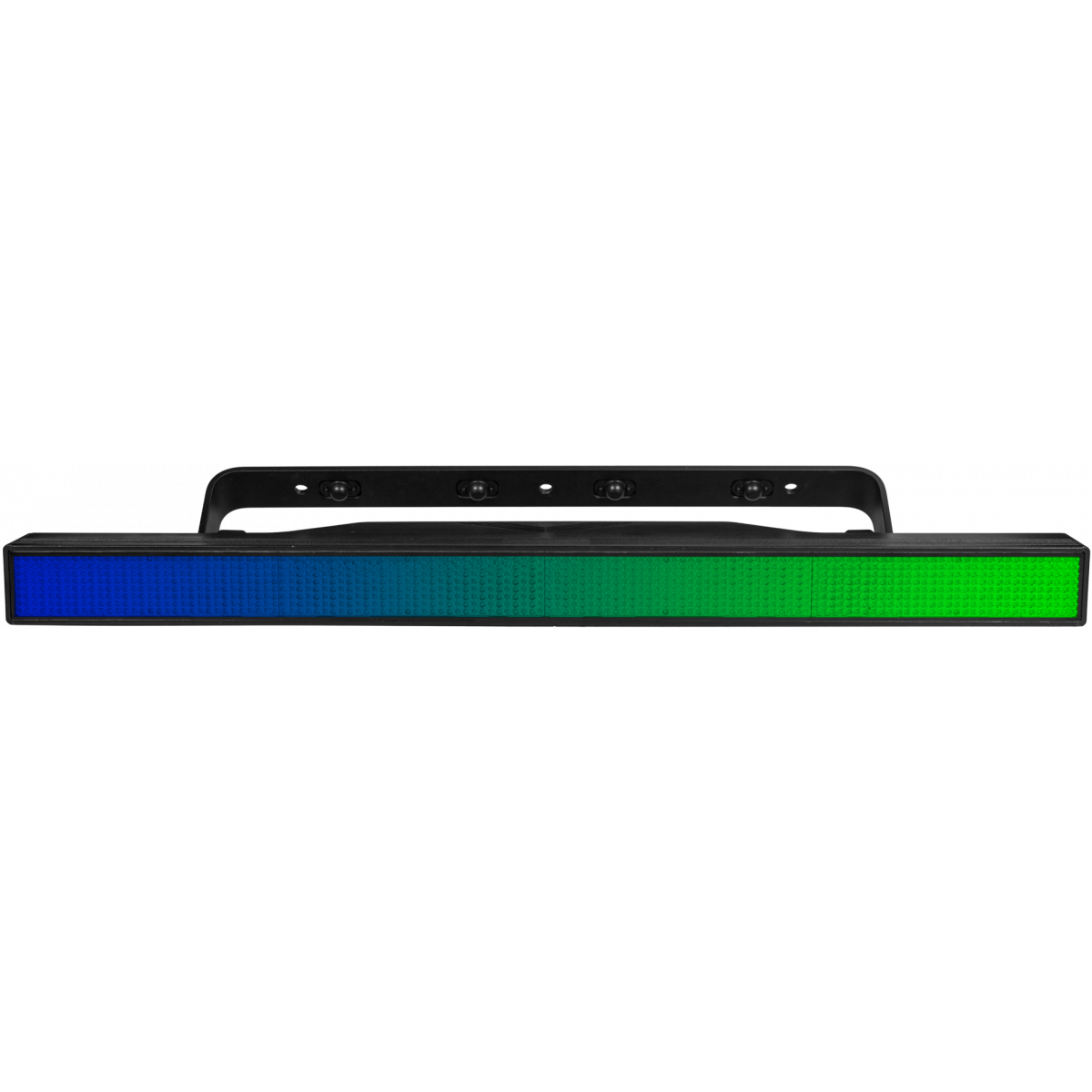

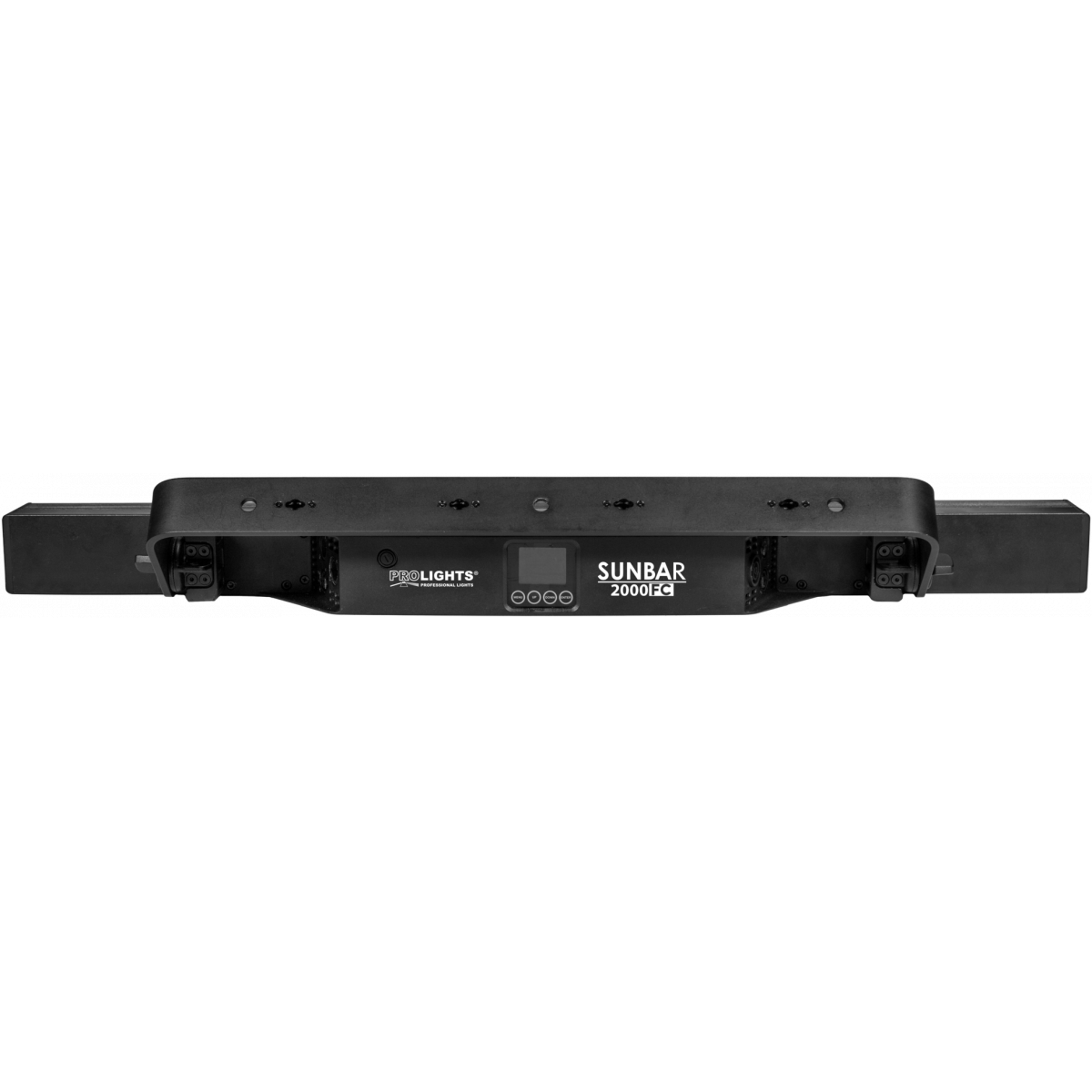

PHOTO GALLERY

SunBar 2000FC
SunBar 2000FC
SunBar 2000FC

Technical specifications

LIGHT SOURCE
  • Source: 1.024x1W RGBW LEDs
  • CCT: W: 6.500
  • Luminous flux: Strobe without lens (peak) 126000 lm; Static ON without lens 25774; Strobe with lens (peak) 46200; Static ON with lens 19183
  • Lux: (115°) 1'005 lx - (37°) 3'457lx @3 m full
  • Lux: (115°) 362 lx - (37°) 1'244lx @5 m full
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: without lens 115°, with lens 37°
  • Field angle: without lens 155°, with lens 84°
  • Other: Mountable 40° lens reflector plate (included)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 2.800 K -10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Rotating gobos: dynamic patterns with speed and rotation control
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: Multi-layer pixel FX control
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Kling-Net
  • DMX channels: from 4 ch to 87channel
  • Pixel control: 1 / 2 / 4 / 8 / 16 individually select and control sections
  • RDM: RDM for remote monitoring and settings
  • Display: black TFT touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: strobe: 987 W - static: 610W
  • Max power consumption (at 120V): strobe: 1.065 W - static: 630W
  • Output (at 230V): 3 units on a single power line
  • Output (at 120V): 1 units on a single power line
  • Power factor: 0,98
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 1000x75x231mm / 39.37''x2.95''x9.09''
  • Dimensions with PO system (WxHxD): mm / ''
  • Weight: 9,5kg / 20.94lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

OS26D13
OS26D13
(Optional)
Quick-Lock omega bracket, M12 hole
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

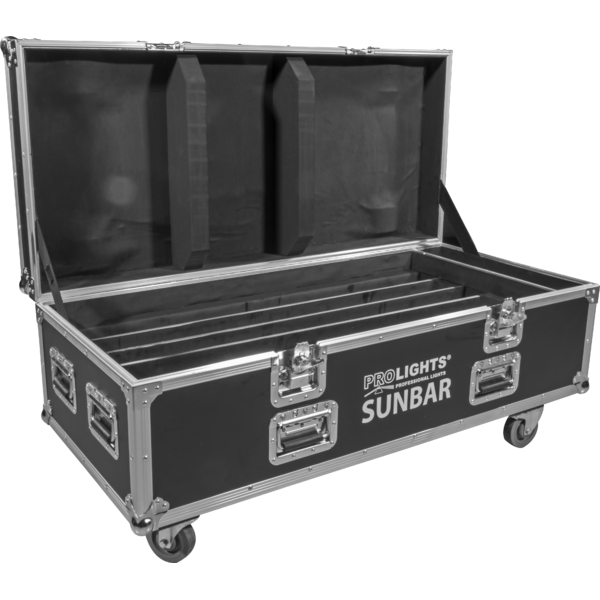

FCLSUNBAR
FCLSUNBAR
(Optional)
Flight case for 5pcs of SUNBAR

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSunbar2000fc_A4_DATASHEET_(IT).pdf226KB
Letter datasheetSunbar2000fc_A4_DATASHEET_(EN).pdf399KB

User manual

DMX chart & personalities

File name File size Download
DMX chartSunbar2000fc_DMX_CHARTS.pdf149KB
SUNBAR2000FC Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_sunbar2000fc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_sunbar2000fc_advanced+1.hedDownload
prolights_sunbar2000fc_advanced+2.hedDownload
prolights_sunbar2000fc_advanced+3.hedDownload
prolights_sunbar2000fc_advanced+4.hedDownload
prolights_sunbar2000fc_basicpixel.hedDownload
prolights_sunbar2000fc_basicstatic.hedDownload
prolights_sunbar2000fc_basicstrobe.hedDownload
prolights_sunbar2000fc_pixelspixels1.hedDownload
prolights_sunbar2000fc_pixelspixels2.hedDownload
prolights_sunbar2000fc_pixelspixels4.hedDownload
prolights_sunbar2000fc_pixelspixels8.hedDownload
prolights_sunbar2000fc_pixelspixels16.hedDownload
prolights_sunbar2000fc_rgbwstrobe.hedDownload
prolights@sunbar2000fc_adv1@.xmlDownload
prolights@sunbar2000fc_adv3@.xmlDownload
sunbar 2000fc_bck.hog4showDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFASunbar2000fc_3D.rfa608KB
3D SKPSunbar2000fc_3D.skp253KB
3DSunbar2000fc_CAD_3D.dwg642KB
2DSunbar2000fc_CAD_2D.dwg7MB
2D cad symbolsSunbar2000fc_CAD_2DSYMBOLS.dwg22KB
Technical drawingSunbar2000fc_TECHNICAL_DRAWING.pdf1MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx169KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProfessional Uploader19MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 14/11/2018 Added KlingNet functionality. Rev. 1
Rev. 2
