ArcPod 27Q

ORDER CODE: ARCPOD27Q

27x10W RGBW/FC outdoor IP66 LED wash light for exterior installations

ArcPod 27Q is a compact high-power exterior wash light featuring an outstanding brightness of 11'200 lumens. It is equipped with 27x10W RGBW/FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 27Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 27Q an incredibly flexible and versatile device for any outdoor install.

Main features:

  • 27x10W RGBW/FC LEDs delivering 11'200 lumens
  • LED emitters controllable in 3 linear sections
  • Compact form factor and fanless
See variants

PHOTO GALLERY

ArcPod 27Q
ArcPod 27Q
ArcPod 27Q
ArcPod 27Q

Technical specifications

LIGHT SOURCE
  • Source: 27x10W RGBW / FC LEDs
  • Luminous flux: (10°) 9'437 lm; (15°) 11'179 lm; (25°) 10'757; (45°) 9'816 @full
  • Lux: (10°) 17'953 lx; (15°) 14'017 lx; (25°) 6'340 lx; (45°) 1'454lx @3 m full
  • Lux: (10°) 6'463 lx; (15°) 5'046 lx; (25°) 2'282 lx; (45°) 523lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Field angle: 28°
  • Additional optics: 10° - 25° - 45° (optional) - see available accessories
  • Other: barn doors not included
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 3 linear controllable sections
  • Static mode: selection of static colour
BODY
  • Tilt angle: 0 ~ 130° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 7 / 10 / 13 / 17channel
  • Pixel control: up to 3 linear controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 270W
  • Output (at 230V): 9 units on a single power line
  • Power factor: 0,97
  • Inrush current: 230VAC/12.13A, 100VAC/17A
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Cooling: passive cooling and fan-free
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN connector
  • Power connection: 1,8 m moulded IP signal IN/OUT connectors
  • Dimensions (WxHxD): 455x258x83mm / 17.91''x10.16''x3.27''
  • Weight: 9kg / 19.84lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

CRMXBOXIP67
CRMXBOXIP67
(optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
A27QFILTER20
A27QFILTER20
(optional)
20° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER30
A27QFILTER30
(optional)
30° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER40
A27QFILTER40
(optional)
40° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER60
A27QFILTER60
(optional)
60° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER80
A27QFILTER80
(optional)
80° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm

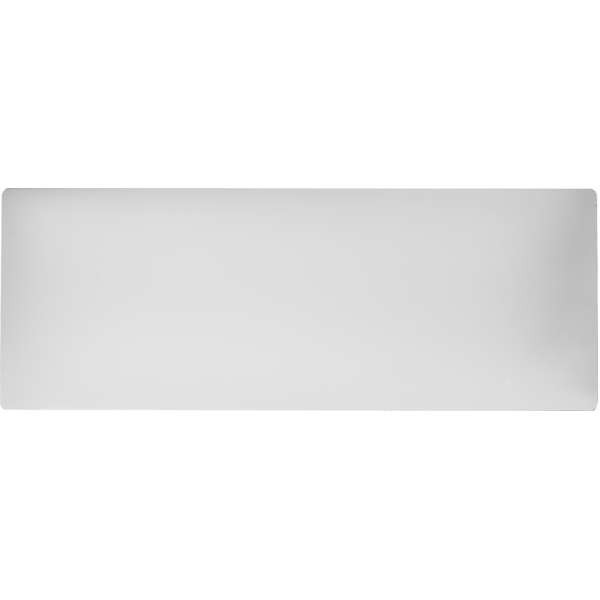

A27QFILTER1090
A27QFILTER1090
(optional)
10°X90° asymmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER1060
A27QFILTER1060
(optional)
10°x60° asymmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER3060
A27QFILTER3060
(optional)
30°x60° asymmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
S27QLENS10
S27QLENS10
(optional)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(included)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(optional)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QBD
S27QBD
(optional)
Black barn door 4 directional flaps to adjust the light beam, SOLAR27Q,ARCPOD27Q
A27QSNOOT
A27QSNOOT
(optional)
Snoot for ARCPOD27Q
<b>DataMaster</b>
DataMaster
(optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Arcpod27q_A4_DATASHEET_(EN).pdf 374KB
Letter datasheet Arcpod27q_A4_DATASHEET_(IT).pdf 357KB
Letter datasheet Arcpod27q_LETTER_DATASHEET_(EN).pdf 374KB
Tender Specification Arcpod27q_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Arcpod27q_USER_MANUAL_EN.pdf 7MB

DMX chart & personalities

File name File size Download
DMX chart Arcpod27q_DMX_CHARTS.pdf 56KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 217KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 310MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 478MB
ARCPOD27Q Firmware rev. 3.6
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_arcpod27q_5ch.hedDownload
prolights_arcpod27q_7ch.hedDownload
prolights_arcpod27q_10ch.hedDownload
prolights_arcpod27q_13ch.hedDownload
ARCPOD27Q Firmware rev. 2.6
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_arcpod27q_5ch.hedDownload
prolights_arcpod27q_7ch.hedDownload
prolights_arcpod27q_10ch.hedDownload
prolights_arcpod27q_13ch.hedDownload
ARCPOD27Q Firmware rev. 3.5
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_arcpod27q_5ch.hedDownload
prolights_arcpod27q_7ch.hedDownload
prolights_arcpod27q_10ch.hedDownload
prolights_arcpod27q_13ch.hedDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D RFA Arcpod27q_3D_REVIT.rfa 464KB
3D SKP Arcpod27q_3D_SKETCHUP.skp 821KB
2D ARCPOD27Q_2D.zip 1MB
3D Arcpod27q_3D.dwg 552KB
2D cad symbols Arcpod27q_2DSYMBOLS.dwg 23KB
Technical drawing ARCPOD27Q_TECHNICAL DRAWINGS.zip 264KB

Tech docs

File name File size Download

Software

File name File size Download
Software Prolights Dialux Plug-In 0KB

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.6 STABLE 12/05/2023 Improvements:
  • Jump prediction added to Red and Blue channel in 17 DMX mode.
  • Jump prediction added to Green and White channel in 10 DMX mode.
  • Improved CCT preset accuracy in 10 DMX mode.

Fixed bugs:
  • In 17 DMX mode, when strobe@open the fixture turns on the light source with a fade.
Note:
Firmware for Hardware revision: 2.0 - To check revision please refer to serial number. Units with hardware revision 2.0 are with serial number starting from xxxxx0519xxx.		 Rev. 1.0
2.6 STABLE 12/05/2023 Improvements:
  • Jump prediction added to Red and Blue channel in 17 DMX mode.
  • Jump prediction added to Green and White channel in 10 DMX mode.
  • Improved CCT preset accuracy in 10 DMX mode.

Fixed bugs:
  • In 17 DMX mode, when strobe@open the fixture turns on the light source with a fade.
Note:
Firmware for Hardware revision: 1.0 - To check revision please refer to serial number. Units with hardware revision 1.0 are with serial number before of xxxxx0519xxx.		 Rev. 1
Update Tool: UPBOXPRO UPBOXPRO UPBOX1UP5 UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.6 STABLE 12/05/2023 Improvements:
  • Jump prediction added to Red and Blue channel in 17 DMX mode.
  • Jump prediction added to Green and White channel in 10 DMX mode.
  • Improved CCT preset accuracy in 10 DMX mode.

Fixed bugs:
  • In 17 DMX mode, when strobe@open the fixture turns on the light source with a fade.
Note:
Firmware for Hardware revision: 2.0 - To check revision please refer to serial number. Units with hardware revision 2.0 are with serial number starting from xxxxx0519xxx.		 Rev. 1.0
2.6 STABLE 12/05/2023 Improvements:
  • Jump prediction added to Red and Blue channel in 17 DMX mode.
  • Jump prediction added to Green and White channel in 10 DMX mode.
  • Improved CCT preset accuracy in 10 DMX mode.

Fixed bugs:
  • In 17 DMX mode, when strobe@open the fixture turns on the light source with a fade.
Note:
Firmware for Hardware revision: 1.0 - To check revision please refer to serial number. Units with hardware revision 1.0 are with serial number before of xxxxx0519xxx.		 Rev. 1

Info Request

News

22 April 2024
PROLIGHTS products lights up the Nacht der Werbung event in Salzburg
PROLIGHTS products lights up the Nacht der Werbung event in Salzburg
PROLIGHTS' lighting solutions lit up the "Nacht der Werbung" event in Salzburg, hosted at the Mozarteum, where the Salzburg State Prize...
19 April 2024
PROLIGHTS Shines at the Mercedes-Benz AMG GT Launch in Poland
PROLIGHTS Shines at the Mercedes-Benz AMG GT Launch in Poland
Duda-Cars, in collaboration with event specialists Kukoni, unveiled the new Mercedes-Benz AMG GT in Poland, a dazzling event illuminated...
16 April 2024
The Astra Profile600IP Lights Illuminate St. Anton's Slopes
The Astra Profile600IP Lights Illuminate St. Anton's Slopes
In St.Anton, Austria, the ski season is transformed into a vivid spectacle of lights, thanks to the Astra Profile600IP . The event,...
09 April 2024
The Astra Wash19Pix Lights Up the Australian Chinese New Year Gala
The Astra Wash19Pix Lights Up the Australian Chinese New Year Gala
The  Astra Wash19Pix by PROLIGHTS illuminated the annual Chinese New Year Gala in Australia for 2024, held at the Adelaide Entertainment...
05 April 2024
PROLIGHTS fixtures light up Madame Tussauds museum in Budapest
PROLIGHTS fixtures light up Madame Tussauds museum in Budapest
PROLIGHTS products have lit up the new Madame Tussauds museum in Budapest. The project was followed by the system integrator company...
03 April 2024
PROLIGHTS Introduces High-Definition Optics for Enhanced Projection Quality
PROLIGHTS Introduces High-Definition Optics for Enhanced Projection Quality
PROLIGHTS announces the launch of the High Definition Optics for the Ecl Display series. Engineered to redefine projection quality,...
29 March 2024
PROLIGHTS Smart BatPlus at Buckingham Palace
PROLIGHTS Smart BatPlus at Buckingham Palace
PROLIGHTS Smart BatPlus , provided by Luminosity Lighting Services Ltd, illuminated the Blue Room and Music Room of Buckingham Palace...
26 March 2024
PROLIGHTS expands the EclDisplay range with the new EclDisplay CAS featuring integrated Casambi control
PROLIGHTS expands the EclDisplay range with the new EclDisplay CAS featuring integrated Casambi control
PROLIGHTS is thrilled to announce the introduction of the EclDisplay CAS , the latest addition to the EclDisplay projector range for...
22 March 2024
PROLIGHTS EclPar IPMFC impress at RESOLUTION X
PROLIGHTS EclPar IPMFC impress at RESOLUTION X
When Resolution X saw the PROLIGHTS EclPar IPMFC multipurpose LED fixture, they knew it was the perfect fit for a special long-term...
19 March 2024
PROLIGHTS illuminates ERT 3 studios
PROLIGHTS illuminates ERT 3 studios
The ERT 3 studios have upgraded their lighting system by introducing the EclPanel TWC and EclFresnel CT+M by PROLIGHTS into their inventory....
12 March 2024
PROLIGHTS products Illuminate Swan Park Theatre
PROLIGHTS products Illuminate Swan Park Theatre
Swan Park Theatre, a cornerstone of the arts within the City of Swan, has experienced a transformative upgrade in its lighting setup,...
04 March 2024
PROLIGHTS introduces the EclPendant S series: Compact, Versatile and Seamless house lights
PROLIGHTS introduces the EclPendant S series: Compact, Versatile and Seamless house lights
PROLIGHTS is proud to unveil its latest innovation in installation lighting - the EclPendant S series. This new addition to the PROLIGHTS...
Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter tiktok linkedin
Loading...
