EclProfile JrZIP

IP65 160W zoomable LED ellipsoidal

EclProfile JrZIP is an IP rated zoomable ellipsoidal designed for exterior application. EclProfile JrZIP reaches an exceedingly high lumen output of nearly 6'000 lumens, and all in a compact size allowing for use on any outdoor show or for logo and texture projection over buildings. EclProfile JrZIP can use two different manual zoom lenses (optional) being 15° - 30° or 25° - 50° and it can be mounted at any distance from the projection surface.

Main features:

160W white LED engine with 3.000 K CT, delivering nearly 6'000 lumens
IP65 allowing for temporary outdoor installations and events
Optional optics available: 15° - 30° and 25° - 50°

See variants

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 160W Warm White LED
CCT: (TU) 3.100 K - (DY) 5.500
Luminous flux: (TU - 50°) 5'274 lm - (TU - 25°) 5'770 lm; (TU - 30°) 4'200 lm - (TU - 15°) 5'012 lm - (DY - 50°) 5'390 lm - (DY - 25°) 4'911 lm; (DY - 30°) 3'844 lm - (DY - 15°) 4'450
Lux: (TU - 50°) 2'040 lx - (TU - 25°) 5'160 lx; (TU - 30°) 3'710 lx - (TU - 15°) 12'900 lx - (DY - 50°) 1'750 lx - (DY - 25°) 4'530 lx; (DY - 30°) 3'000 lx - (DY - 15°) 11'200lx @3 m
Lux: (TU - 50°) 734 lx - (TU - 25°) 1'857 lx; (TU - 30°) 1'336 lx - (TU - 15°) 4'644 - (DY - 50°) 630 lx - (DY - 25°) 1'630 lx; (DY - 30°) 1'080 lx - (DY - 15°) 4'032lx @5 m
CRI: >90
Other: TLCI: >91 - TM30-15 RE/RF: 97/88
Source life expectancy: > 50.000 h

OPTICS

Beam angle: (not included) manual zoom lens 15°-30° or (not included) manual zoom lens 25°-50°
Lens diameter: 87mm / 3.43''
Lens type: high-quality glass lens optics
Focus: manual

COLOUR SYSTEM

Macros: several pre-built macros with adjustable speed

DYNAMIC EFFECTS

Gobo size: M, outer: 66 mm - image: 45 mm - thickness: 1,1 mm
Static mode: selection of static dimmer
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY

Hardware on-board: on board mechanics for rigging to the ceiling
Body: sturdy die-cast aluminium body
Body colour: black

CONTROL

Protocols: DMX512, W-DMX
DMX channels: 1 / 3channel
Wireless Control: included, wireless solution receiver
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain
Other: 16bit control of dimmer

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -20° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Max power consumption: 136 W
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 136W
Max power consumption (at 120V): 138,6W
Power factor: pF 0,98 @120 V - pF 0,97 @230 V

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installations
Cooling: active, silent operation
Suspension and fixing: bracket for hanging and positioning
Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
Dimensions (WxHxD): 275x440x275mm / 10.83''x17.32''x10.83''
Weight: 7,9kg / 17.42lbs

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

1 x ECLJZIP
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
User Manual

Versions

Code

CCT

CRI

Housing

ECLJZIPTUBK

3.100 K

> 90

Black

ECLJZIPDYBK

5.500 K

> 90

Black

Accessories & Related Products

C6002B

(Optional)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

LRLUNA

(Optional)

Single Universe DMX transceiver with Bluetooth

FCLECLJZIP

(Optional)

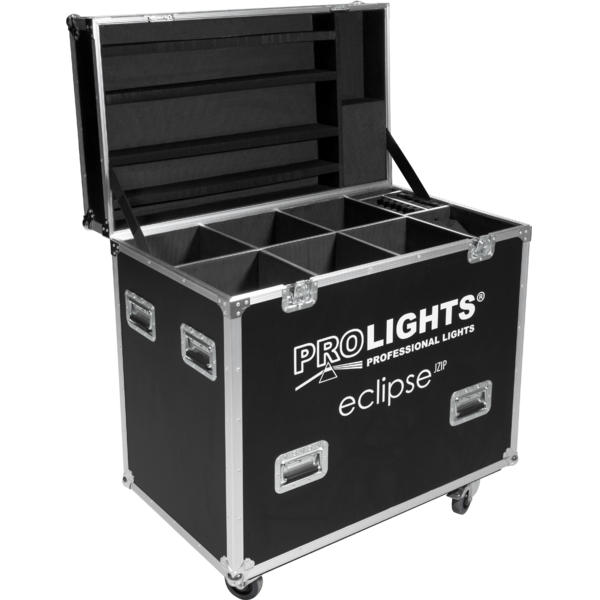

Flightcase for 6 pcs of ECLJZIP

RSR0630B

(Optional)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

ECLJZIPLZ1530

(Optional)

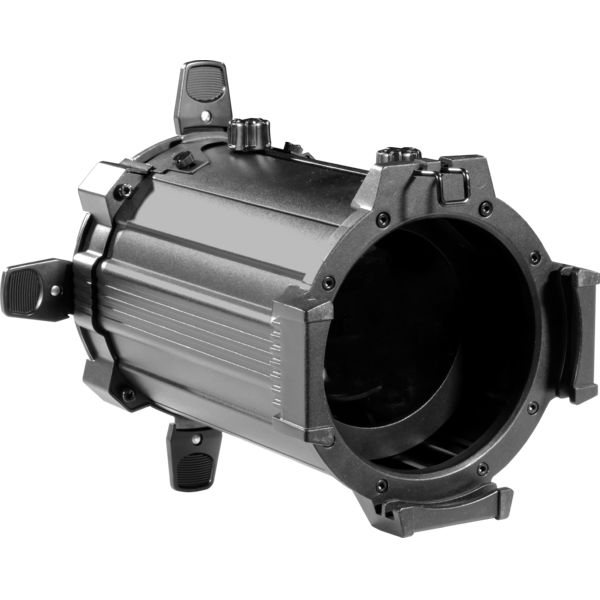

Optional 15°-30° zoom optic for ECLJZIP profiler

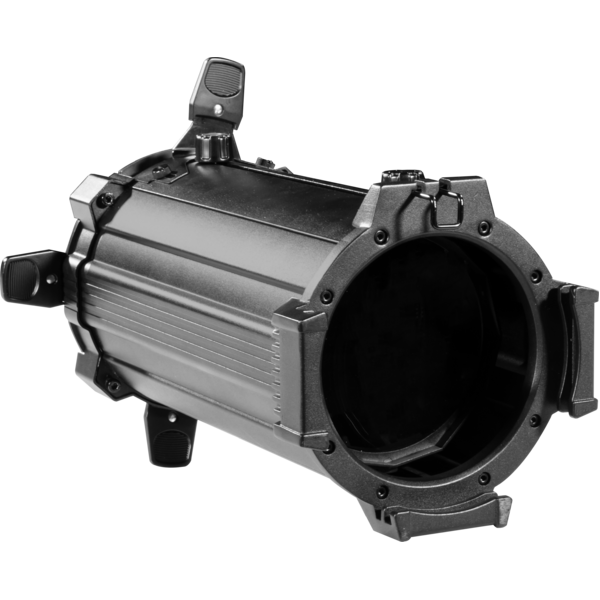

ECLJZIPLZ2550
