EclMiniProfile

Mini LED profile with knob-dimming

EclMiniProfile is a new concept of mini LED ellipsoidal. Demonstrating a stylish design, ease of use, precise optics, sharp image projection and bright even projection - all in a compact housing that is just a quarter of the size of the traditional ellipsoidal fixtures. EclMiniProfile is designed for applications in commercial spaces, museums, restaurants, churches, educational theatres and any other installation where size is an important factor. Available in tungsten and daylight versions, EclMiniProfile performs even field projection with high CRI at any level of brightness and linear dimmer over the entire curve.

Main features:

  • Bright and compact LED ellipsoidal with sharp optics and shutters
  • Available with warm and cold white high CRI LED sources

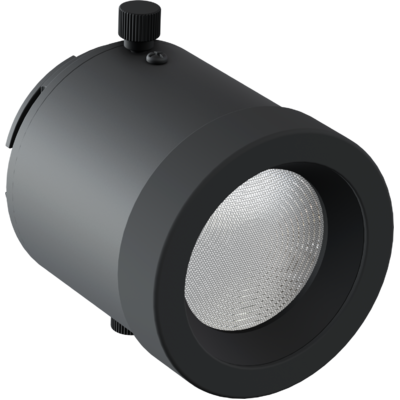

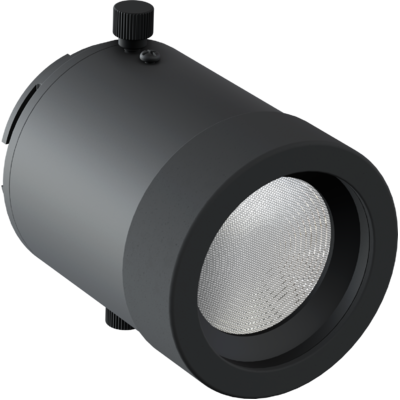

  • Profile lens options (19° - 26° - 36° - 50°) Wash Zoom lens options (15° to 30° - 25° to 50°)
See variants

PHOTO GALLERY

EclMiniProfile
EclMiniProfile
EclMiniProfile
EclMiniProfile
EclMiniProfile

Technical specifications

LIGHT SOURCE
  • Source: 28W CREE LED
  • CCT: (TU) 3.000 K - (DY) 5.700
  • Luminous flux: (TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552 @Full
  • Luminous flux: (DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
  • Lux: (TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51lx @5 m full
  • Lux: (DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52lx @5 m full
  • CRI: (TU) >92; (DY) >80
  • TLCI: (TU) >90; (DY) >68
  • TM30 Rf: (TU) >90; (DY) >79
  • TM30 Rg: (TU) >97; (DY) >97
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS

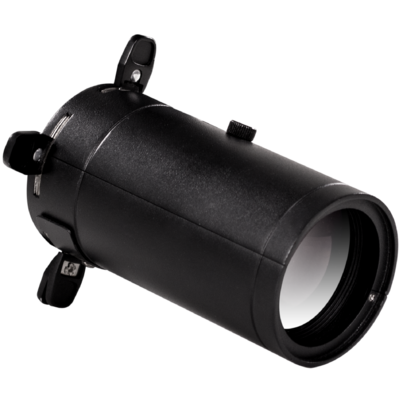

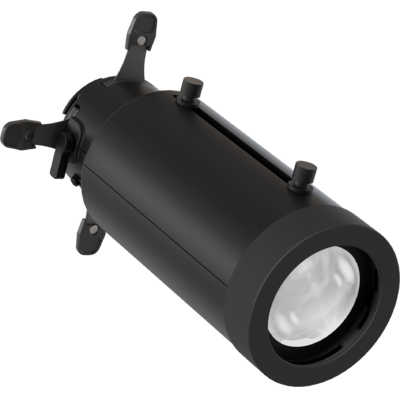

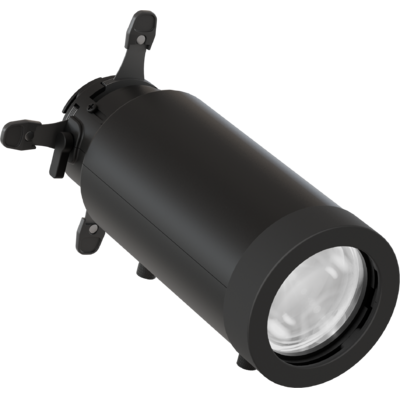

  • Beam angle: optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50°
  • Lens type: high-quality glass lens optics
DYNAMIC EFFECTS

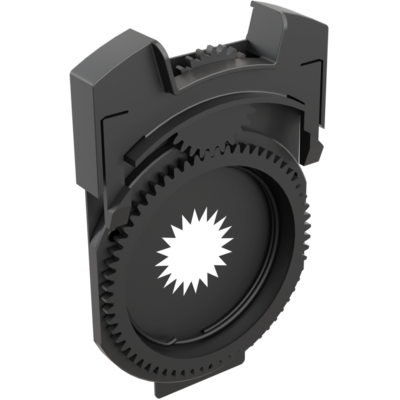

  • Fixed gobos: gobo holder Included in optics
  • Gobo size: E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
  • Manual mode: manual adjustment of dimmer and strobe
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 22W
  • Output (at 230V): 43 units on a single power line
  • Power factor: >0,47
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Power connection: 16 A Schuko plug
  • Dimensions (WxHxD): 112x176x226mm / 4.41''x6.93''x8.9''
  • Weight: 1kg / 2.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
Lumen
MINIECLTU
MINIECLTU
3.000 K
92
582 lm
MINIECLDY
MINIECLDY (DISCONTINUED)
5.700 K
80
743 lm
MINIECLDY2
MINIECLDY2
5.700 K
80
743 lm

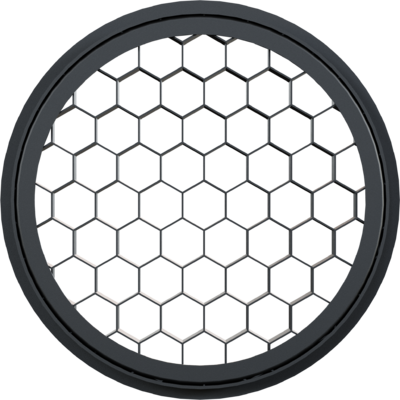

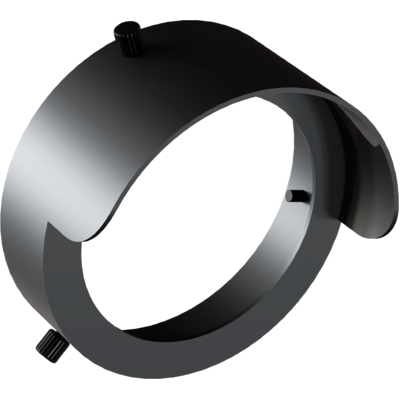

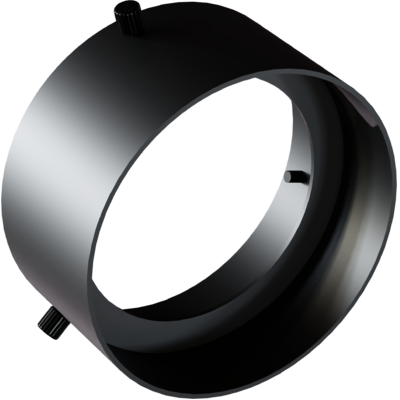

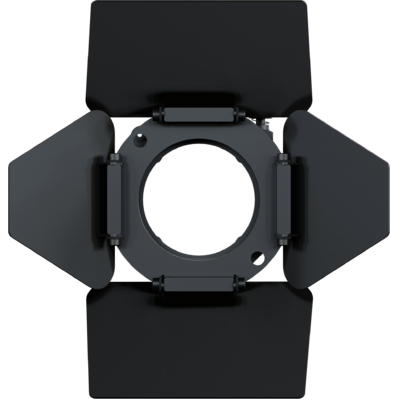

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
NAKKT3013185
NAKKT3013185
(Optional)
Kit for NAXTSA683 adapter, white

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMiniecl_A4_DATASHEET_(IT).pdf345KB
Letter datasheetMiniecl_A4_DATASHEET_(EN).pdf354KB

User manual

File name File size Download
User manualMiniecl_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
MINIECLTU Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
MINIECLDY Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D revitMINIECL_3D_REVIT.zip1MB
3D SKPMiniecl_3D.skp257KB
3DMiniecl_CAD_3D.dwg527KB
2D cad symbolsMINIECL_2DSYMBOLS.zip119KB
2DMINIECL_2D.zip4MB
Technical drawingMINIECL_TECHNICAL DRAWINGS.zip414KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksMINIECL_SYMBOLS.zip876KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 16/09/2015 Improved dimmer function.
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 11/09/2015 Improved dimmer function.
