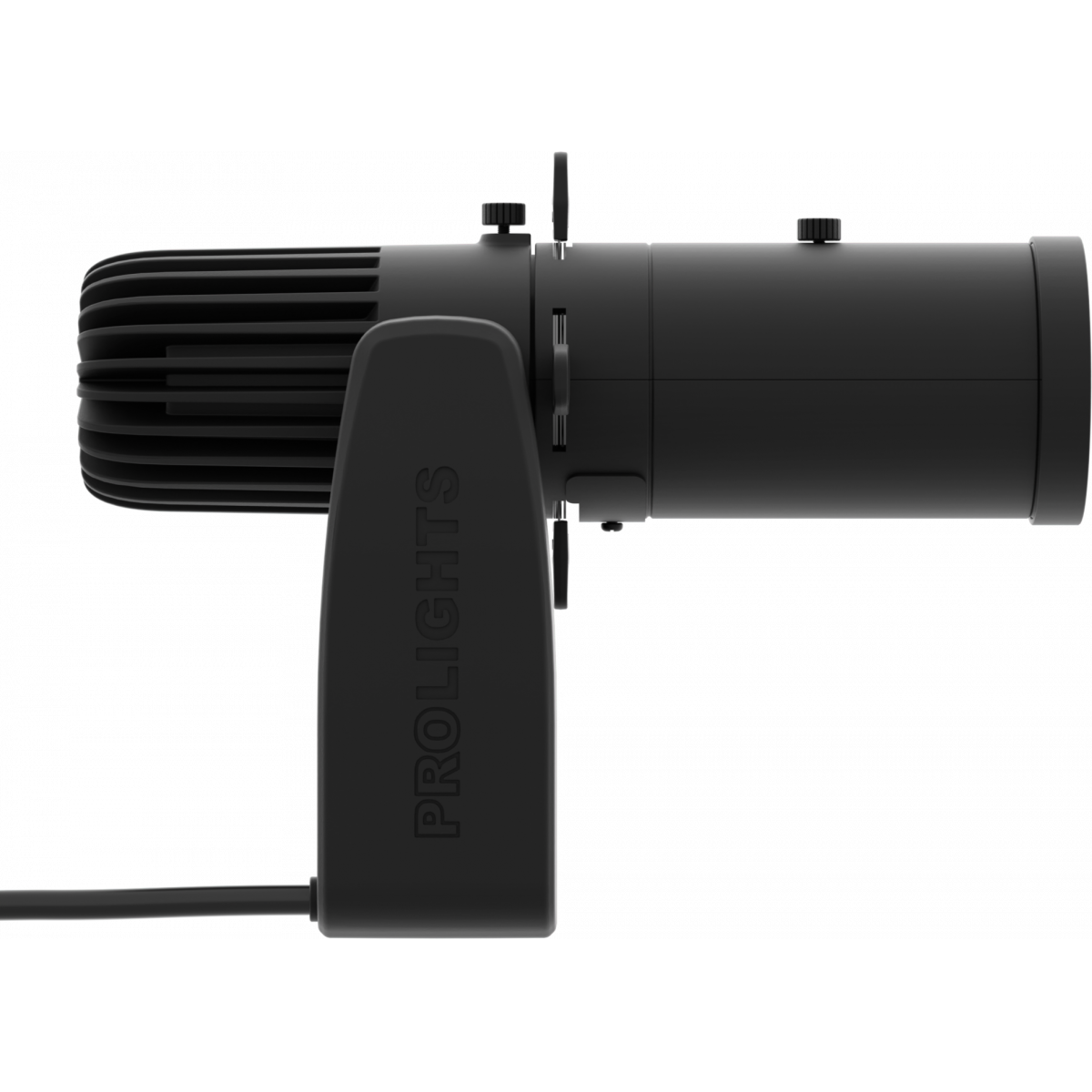

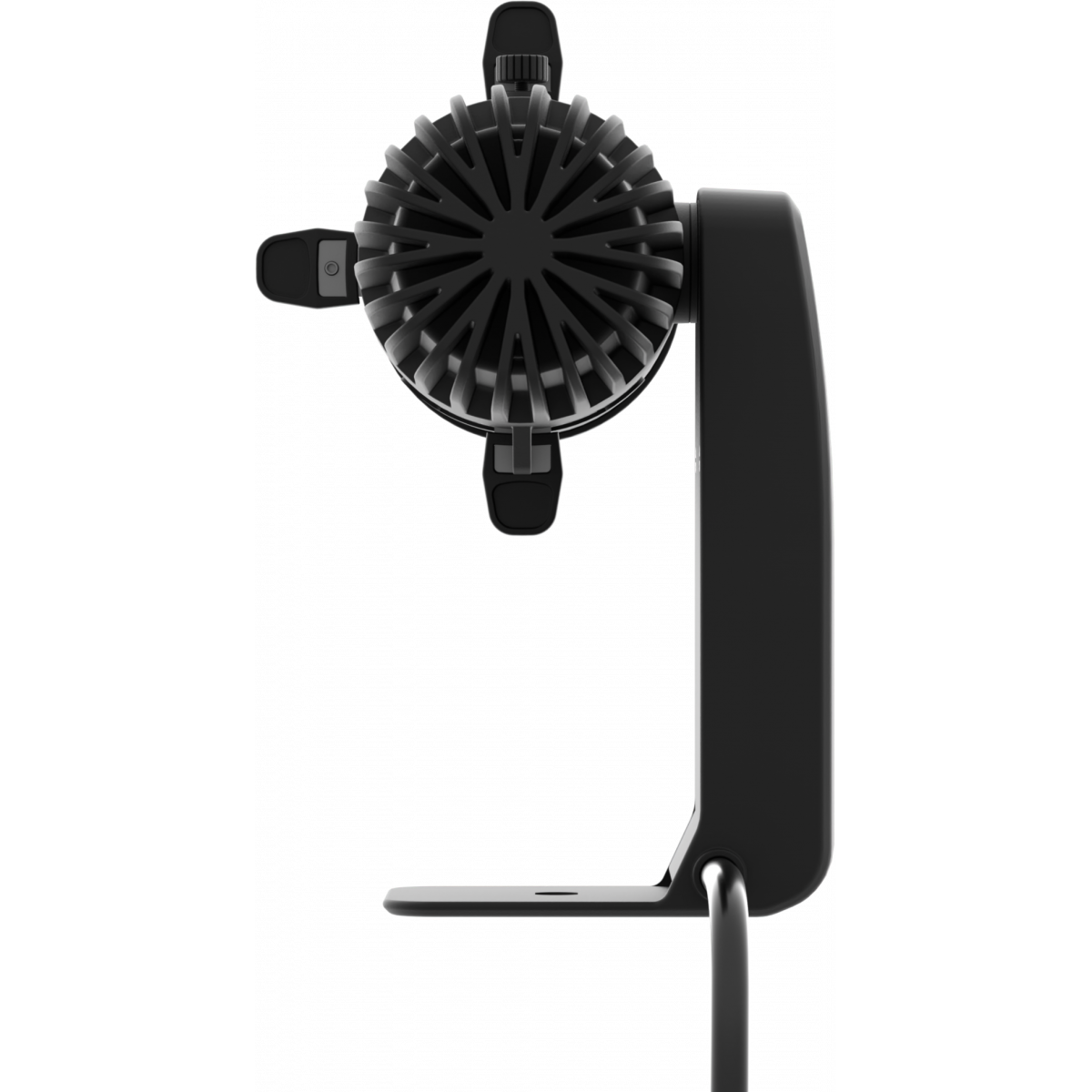

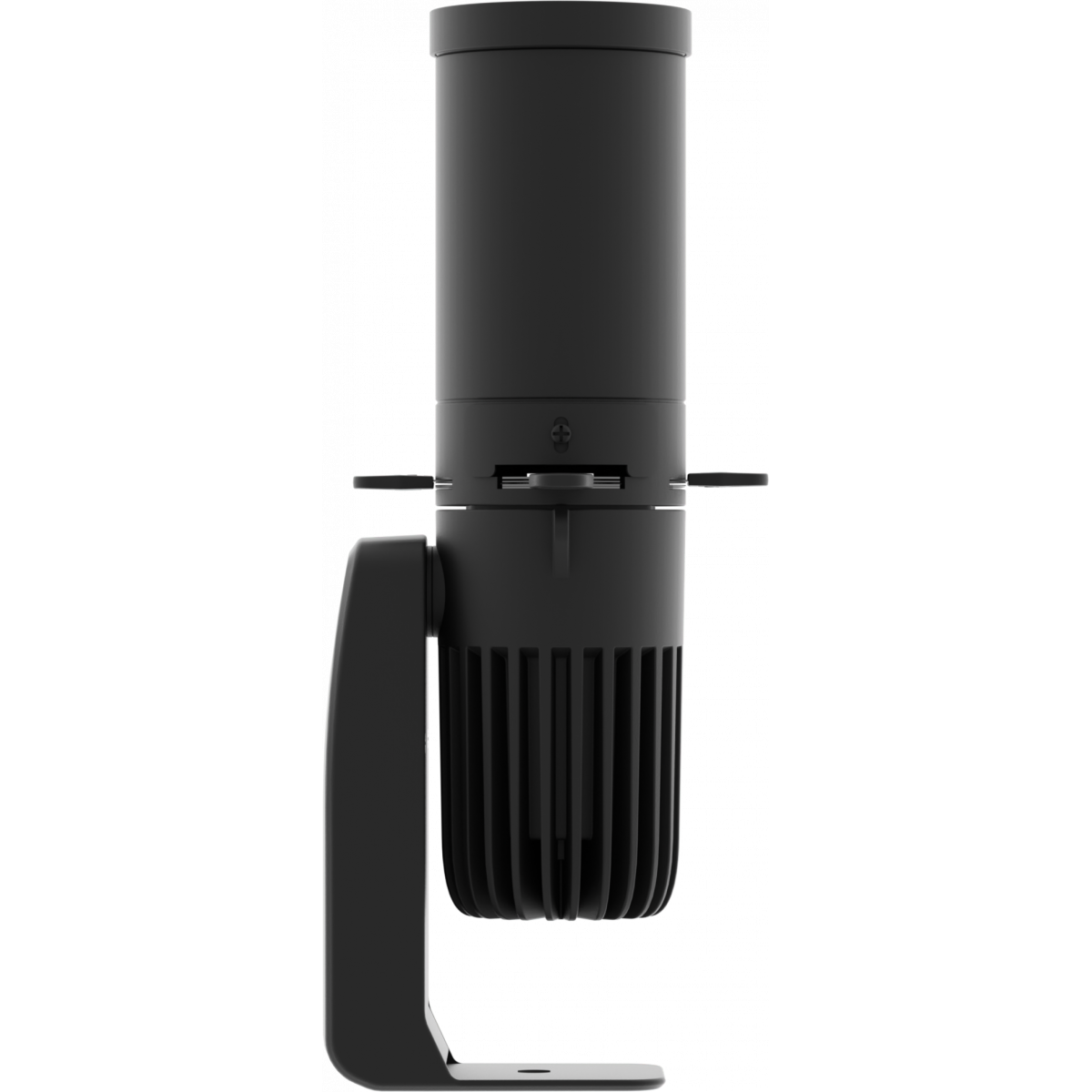

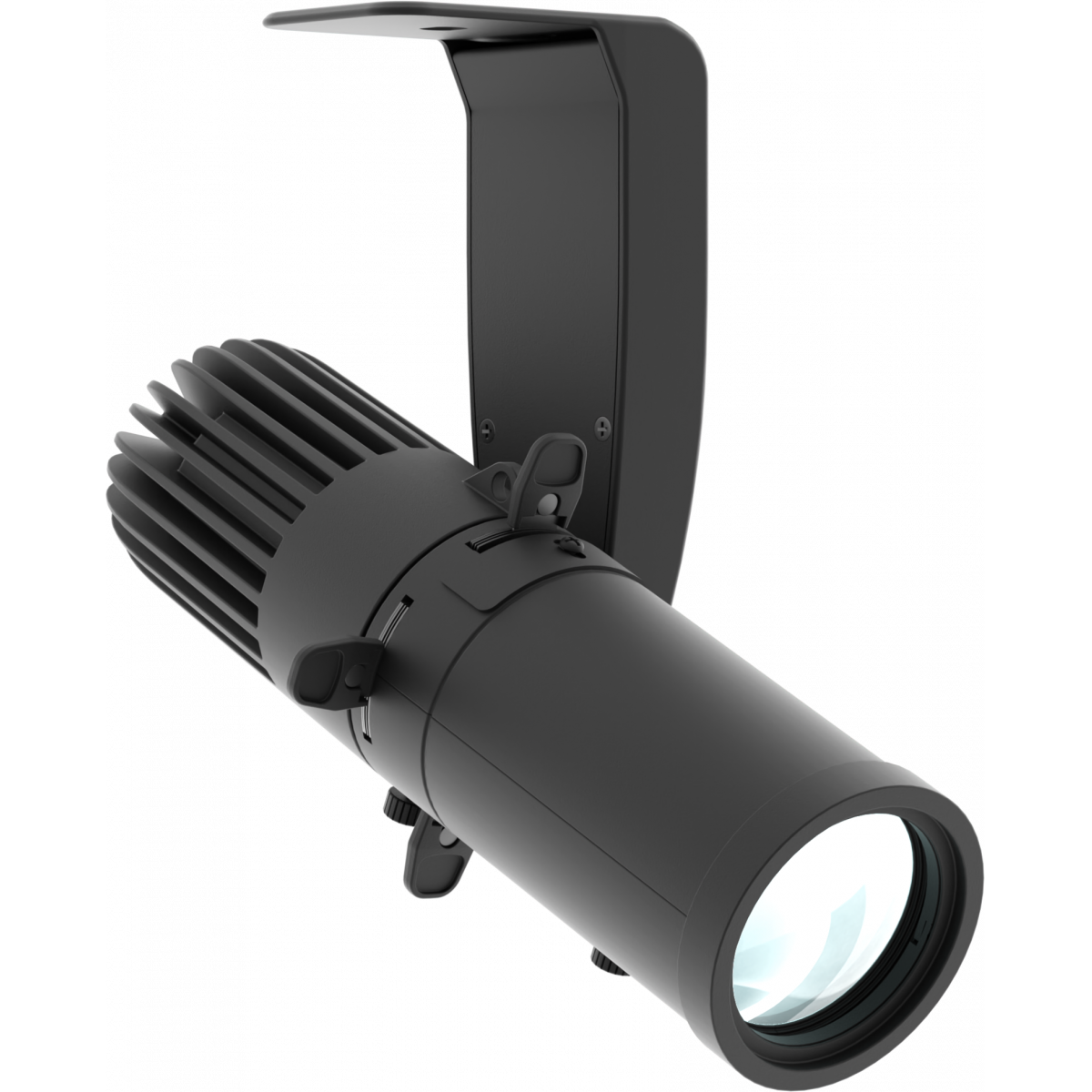

EclMiniProfile

Mini LED profile with knob-dimming

EclMiniProfile is a new concept of mini LED ellipsoidal. Demonstrating a stylish design, ease of use, precise optics, sharp image projection and bright even projection - all in a compact housing that is just a quarter of the size of the traditional ellipsoidal fixtures. EclMiniProfile is designed for applications in commercial spaces, museums, restaurants, churches, educational theatres and any other installation where size is an important factor. Available in tungsten and daylight versions, EclMiniProfile performs even field projection with high CRI at any level of brightness and linear dimmer over the entire curve.

Main features:

  • Bright and compact LED ellipsoidal with sharp optics and shutters
  • Available with warm and cold white high CRI LED sources
  • Profile lens options (19° - 26° - 36° - 50°) Wash Zoom lens options (15° to 30° - 25° to 50°)
See variants

PHOTO GALLERY

EclMiniProfile
EclMiniProfile
EclMiniProfile
EclMiniProfile
EclMiniProfile

Technical specifications

LIGHT SOURCE
  • Source: 28W CREE LED
  • CCT: (TU) 3.000 K - (DY) 5.700
  • Luminous flux: (TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552 @Full
  • Luminous flux: (DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
  • Lux: (TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51lx @5 m full
  • Lux: (DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52lx @5 m full
  • CRI: (TU) >92; (DY) >80
  • TLCI: (TU) >90; (DY) >68
  • TM30 Rf: (TU) >90; (DY) >79
  • TM30 Rg: (TU) >97; (DY) >97
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50°
  • Lens type: high-quality glass lens optics
DYNAMIC EFFECTS
  • Fixed gobos: gobo holder Included in optics
  • Gobo size: E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
  • Manual mode: manual adjustment of dimmer and strobe
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
ELECTRONICS
  • Dimmer: linear 0 ~ 100%, manual knob dimmer
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 22W
  • Output (at 230V): 43 units on a single power line
  • Power factor: >0,47
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Power connection: 16 A Schuko plug
  • Dimensions (WxHxD): 112x176x226mm / 4.41''x6.93''x8.9''
  • Weight: 1kg / 2.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
Lumen
MINIECLTU
MINIECLTU
3.000 K
92
582 lm
MINIECLDY
MINIECLDY (DISCONTINUED)
5.700 K
80
743 lm
MINIECLDY2
MINIECLDY2
5.700 K
80
743 lm

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
NAKKT3013185
NAKKT3013185
(Optional)
Kit for NAXTSA683 adapter, white
NAKKT3013184
NAKKT3013184
(Optional)
Kit for NAXTSA682 adapter, black
MINIECLL19
MINIECLL19
(Optional)
Optics for MINIECL profiler, gobo holder included, 19° beam
MINIECLL26
MINIECLL26
(Optional)
Optics for MINIECL profiler, gobo holder included, 26° beam
MINIECLL36
MINIECLL36
(Optional)
Optics for MINIECL profiler, gobo holder included, 36° beam
MINIECLL50
MINIECLL50
(Optional)
Optics for MINIECL profiler, gobo holder included, 50° beam
<b>EclMini</b> PHDZL1540
EclMini PHDZL1540
(Optional)
15° - 40° Zoomable High definition profile lenses for Ecl Mini series, black
<b>EclMini</b> PHDZL1020
EclMini PHDZL1020
(Optional)
10° - 20° Zoomable High definition profile lenses for Ecl Mini series, black
ECLMINIGOBOHINDB
ECLMINIGOBOHINDB
(Optional)
Gobo holder for EclMini with manual adjustable index position system, black
<b>EclMini</b> WashLens 15°- 30°
EclMini WashLens 15°- 30°
(Optional)
Zoomable Wash Lens 15-30° for EclMini, black
<b>EclMini</b> WashLens 25°- 50°
EclMini WashLens 25°- 50°
(Optional)
Zoomable Wash Lens 25-50° for EclMini, black

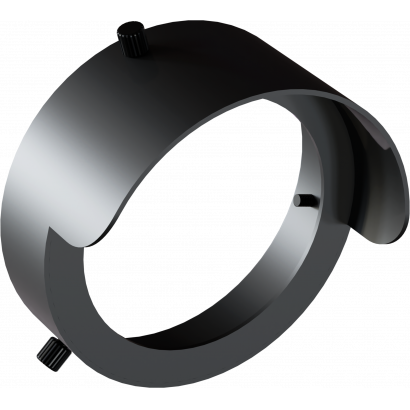

<b>EclMini</b> Half Snoot
EclMini Half Snoot
(Optional)
Half Snoot for EclMini, black

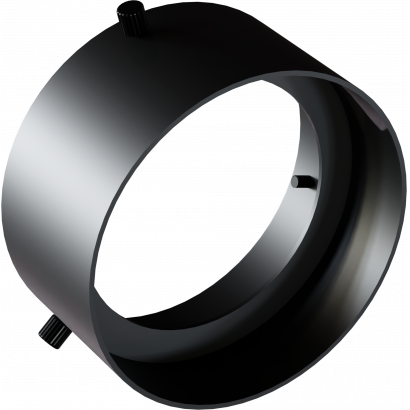

<b>EclMini</b> Full Snoot
EclMini Full Snoot
(Optional)
Full Snoot for EclMini, black
<b>EclMini</b> Louvre
EclMini Louvre
(Optional)
Anti-glare louvre for EclMini, black
<b>EclMini</b> Barndoor+Frame
EclMini Barndoor+Frame
(Optional)
Barndoor and filter frame (compatible with Wash Lenses - not compatible with Profile lenses) EclMini
TRACKADA
TRACKADA
(Optional)

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMiniecl_A4_DATASHEET_(IT).pdf345KB
Letter datasheetMiniecl_A4_DATASHEET_(EN).pdf354KB
