ARCPOD27VW
PROLIGHTS

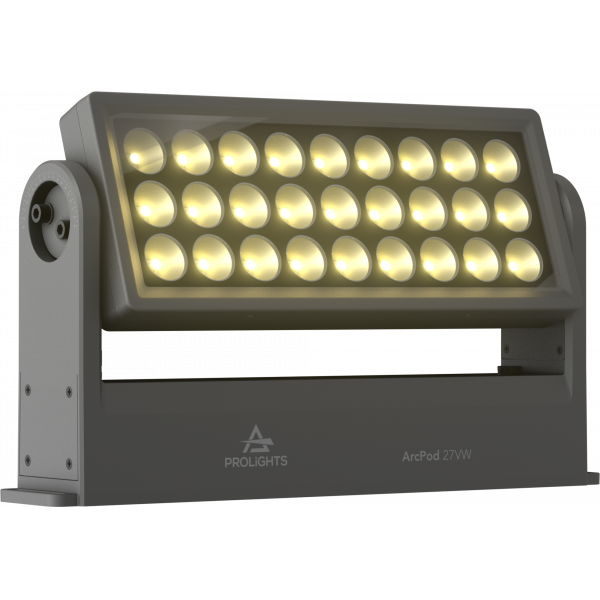

ArcPod 27VW

ORDER CODE: ARCPOD27VW

27x10W VW outdoor IP66 LED wash light for exterior installations

ArcPod 27VW is a compact high-power exterior wash light featuring an outstanding brightness of 26'000 lumens and a high quality white reproduction across CCT. It is equipped with 27x10W VW LEDs, delivering a limitless reproduction of whites. ArcPod 27VW is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 27VW an incredibly flexible and versatile device for any outdoor install.

5 YEARS WARRANTY

Main features:

  • Tilt adjustment and multiple lens options for fine focusing
  • 27x10W VW LEDs
  • LED emitters controllable in 3 linear sections
  • Compact form factor and fanless
See variants

PHOTO GALLERY

ArcPod 27VW
ArcPod 27VW
ArcPod 27VW
ArcPod 27VW

Technical specifications

LIGHT SOURCE
  • Source: 27x10W Warm White + Cold White LEDs
  • Luminous flux: (15°) 16'036 lm; (15°+20°) 14'121 lm; (15°+30°) 13'204 lm; (15°+40°) 14'030 lm; (15°+60°) 13'811 lm; (15°+80°) 12'534 lm; (15°+10°x60°) 26'122 lm; (15°+30°x60°) 16'195 @Full
  • Lux: (15°) 13'390 lx; (15°+20°) 2'353 lx; (15°+30°) 1'415 lx: (15°+40°) 743 lx; (15°+60°) 492 lx; (15°+80°) 331 lx; (15°+10°x60°) 1'989 lx; (15°+30°x60°) 963lx @5 m full
  • CRI: 81,9 @ WW; 84 @ CW; 86,7 @ full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Additional optics: see available accessories
  • Other: barn doors not included
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 6.500K
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 3 linear controllable sections
  • Static mode: selection of static colour
BODY
  • Tilt range: 0 ~ 130° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 5 / 11 / 11channel
  • Pixel control: up to 3 linear controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 270W
  • Output (at 230V): 6 units on a single power line
  • Power factor: 0,98
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Cooling: passive cooling and fan-free
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN connector
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 455x258x83mm / 17.91''x10.16''x3.27''
  • Weight: 9kg / 19.84lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

<b>CrmxBox</b> IP
CrmxBox IP
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
A27QFILTER20
A27QFILTER20
(Optional)
20° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER30
A27QFILTER30
(Optional)
30° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm

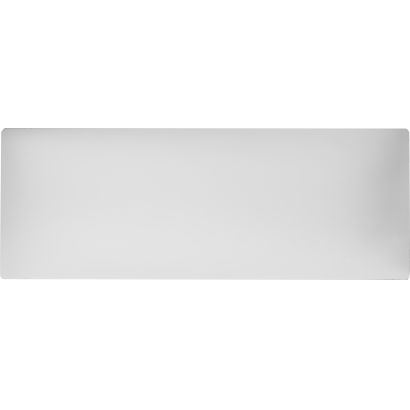

A27QFILTER40
A27QFILTER40
(Optional)
40° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER60
A27QFILTER60
(Optional)
60° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER80
A27QFILTER80
(Optional)
80° symmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER1060
A27QFILTER1060
(Optional)
10°x60° asymmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
A27QFILTER3060
A27QFILTER3060
(Optional)
30°x60° asymmetric light diffusion filter for ARCPOD27Q, 11,4x33,7 cm
S27QLENS10
S27QLENS10
(Optional)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(Included)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(Optional)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(Optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
A27QSNOOT
A27QSNOOT
(Optional)
Snoot for ARCPOD27Q

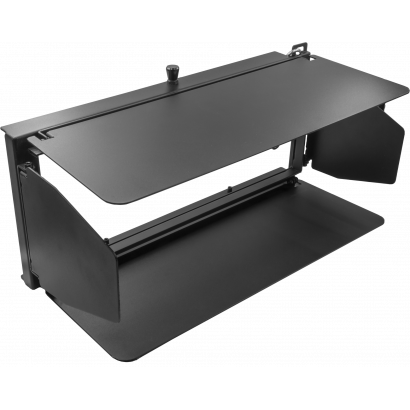

S27QBD
S27QBD
(Optional)
Black barn door 4 directional flaps to adjust the light beam, SOLAR27Q,ARCPOD27Q
<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
