ArcSpot XSFC new

IP66 Spot featuring 630 lumen with 3x4W RGB+WarmWhite source, 10° native

The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.

Among the series, the ArcSpot XSFC stands out as an extra small round spot. It is equipped with 3x 4W RGB+WarmWhite LED source, delivering 10° beam angle with a fixture output of 630 lumens.

These fixtures are engineered with a dual chamber design, with the physical  separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is DMX compatible, offering the convenience of remote management via RDM.

Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.

SPEKTRA5 YEARS WARRANTY

Main features:

  • Exterior Spot featuring 630 lumen with 3x 4W RGB+WarmWhite LED source
  • IP66 with C5M for permanent exterior installation also in marine environment with dual chamber design
  • Comprehensive selection of optics, holographic filters and light modifiers

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 3 x 4W RGB + Warm White LED
  • CCT: 2.800K - 10.000K
  • Luminous flux: 630 @full
  • Lux: 391lx @5 m full
  • Source life expectancy: > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 11°
  • Field angle: 20°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • Colour wheel: gel filters included
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: optional accessories: half snoot and louvre
  • Body: sturdy die-cast aluminium body, scratch resistant paint (C5M as standard)
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 6 / 9 / 12channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 17W
  • Standby power: 0,5 W
  • Power factor: > 0,9
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 07
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 53 cm moulded IP signal IN/OUT connectors
  • Power connection: 53 cm moulded IP power IN connector
  • Dimensions (WxHxD): 132x156x99mm / 5.2''x6.14''x3.9''
  • Weight: 1,0kg / 2.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ARCSPOTXSFCGY
ARCSPOTXSFCGY (NEW)
RAL 7012

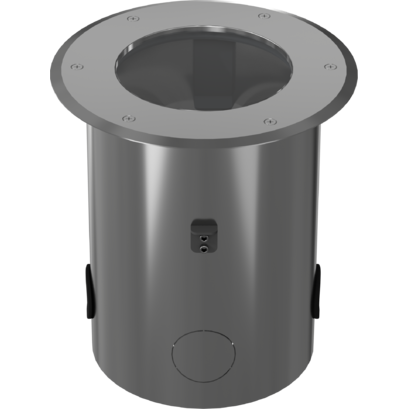

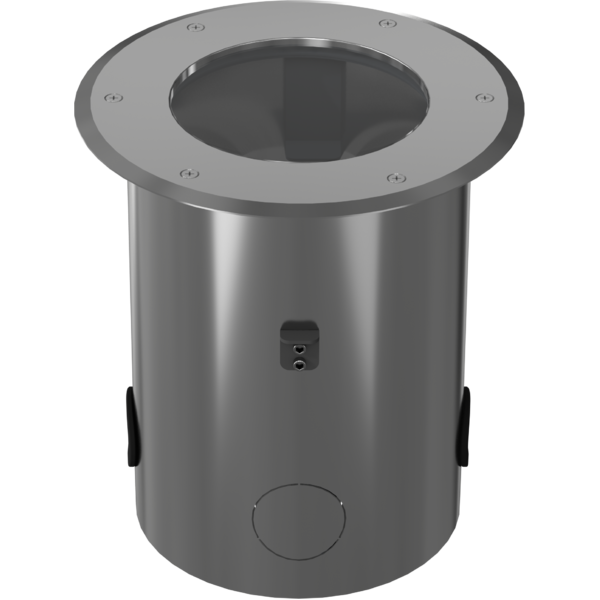

Accessories & Related Products

<b>DataMaster</b>
DataMaster
(facoltativo)

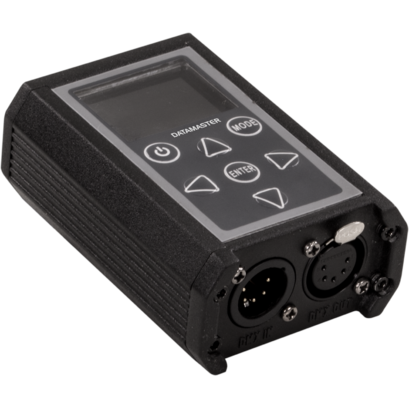

RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
THR390S3T
THR390S3T
(facoltativo)

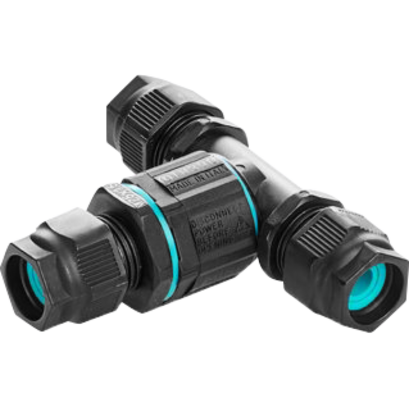

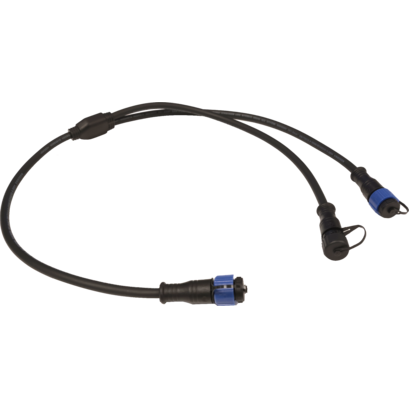

3-Way junction connector, 'T' type, 3 Poles, IP68
THR209S6D
THR209S6D
(facoltativo)

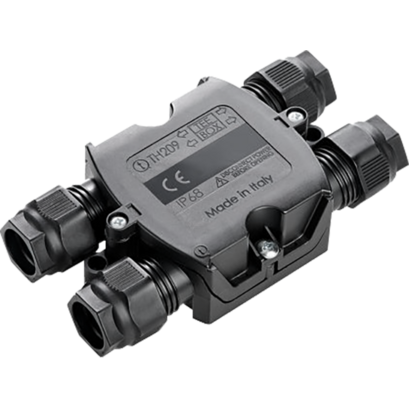

4-Way junction box type H, 3 poles, IP66/IP68
CRMXBOXIP67
CRMXBOXIP67
(facoltativo)

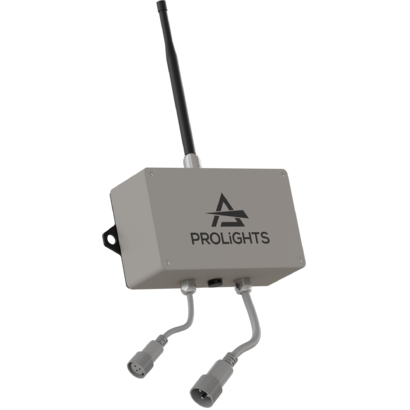

IP67 1 Universe CRMX Wireless Transceiver for exterior installation
ASLENS10
ASLENS10
(incluso)

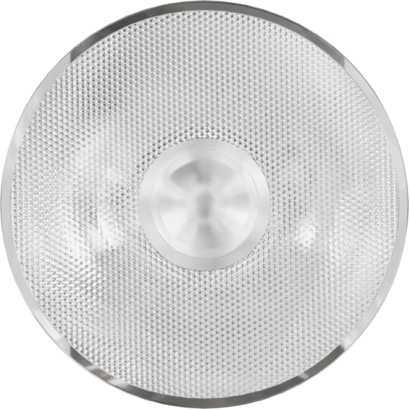

Lens for ARCSPOT series, 10°
ASLENS15
ASLENS15
(facoltativo)
Lens for ARCSPOT series, 15°
ASLENS25
ASLENS25
(facoltativo)
Lens for ARCSPOT series, 25°
ARXSFILTER20
ARXSFILTER20
(facoltativo)
Light diffusion filter for ARCSPOTXS series, 20°
ARXSFILTER40
ARXSFILTER40
(facoltativo)

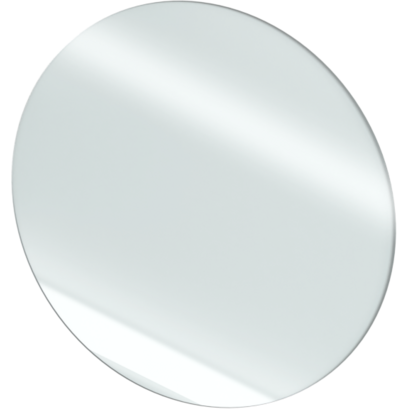

Light diffusion filter for ARCSPOTXS series, 40°
ARXSFILTER60
ARXSFILTER60
(facoltativo)

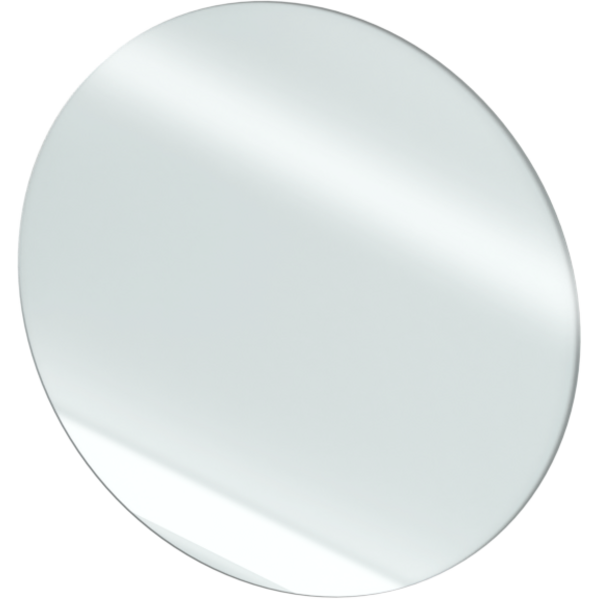

Light diffusion filter for ARCSPOTXS series, 60°
ARXSFILTER1060
ARXSFILTER1060
(facoltativo)
Light diffusion filter for ARCSPOTXS series, 10°x60°
ARXSFILTER3060
ARXSFILTER3060
(facoltativo)
Light diffusion filter for ARCSPOTXS series, 30°x60°
ARXSHSNOOTGY
ARXSHSNOOTGY
(facoltativo)

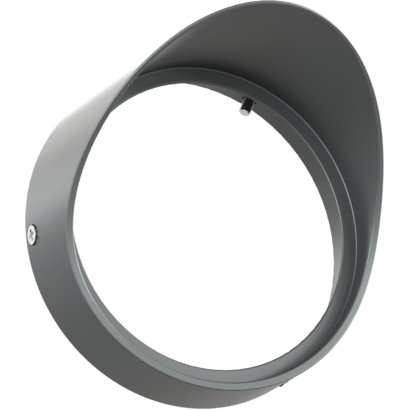

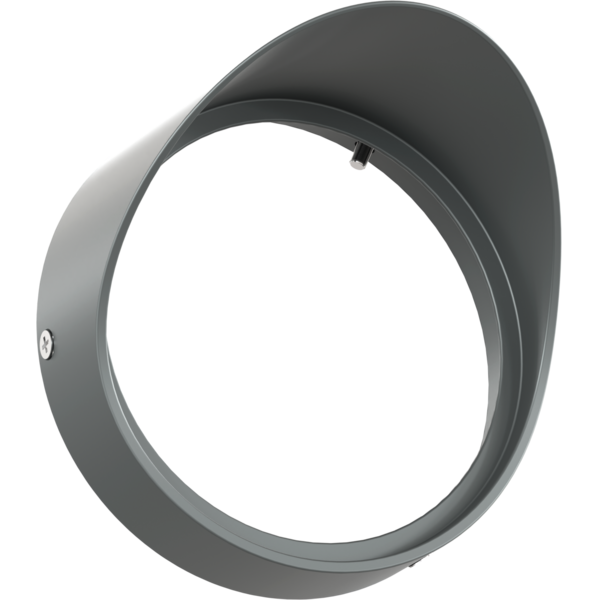

Half snoot for ARCSPOTXS series, RAL 7012
ARXSHLOUVREGY
ARXSHLOUVREGY
(facoltativo)

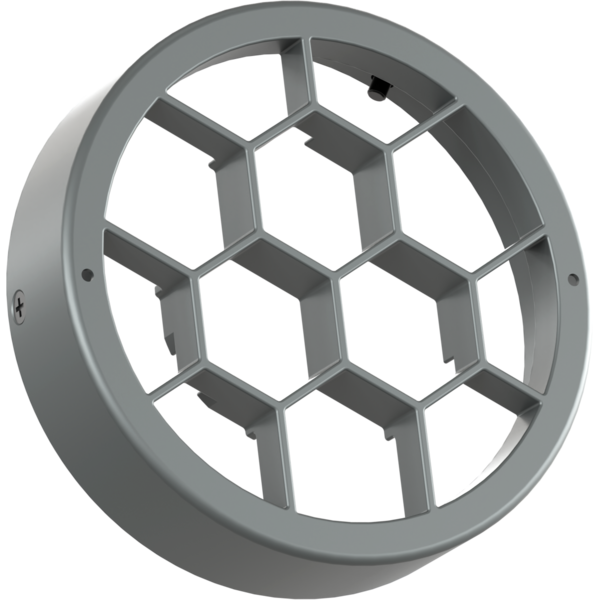

Honeycomb louvre for ARCSPOTXS series, RAL 7012
AWEXAC2L03
AWEXAC2L03
(facoltativo)

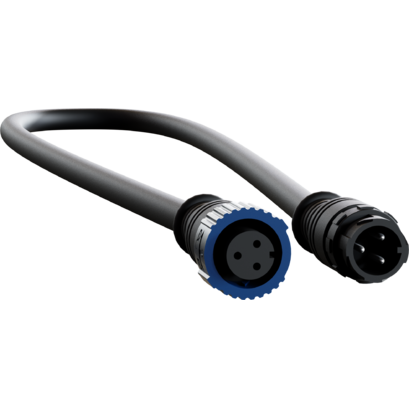

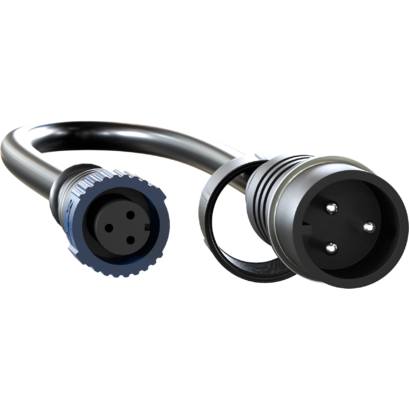

Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(facoltativo)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(facoltativo)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(facoltativo)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(facoltativo)

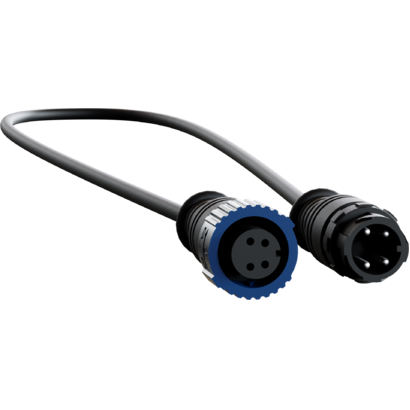

Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(facoltativo)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(facoltativo)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(facoltativo)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m
AWEXAC12ADP
AWEXAC12ADP
(facoltativo)

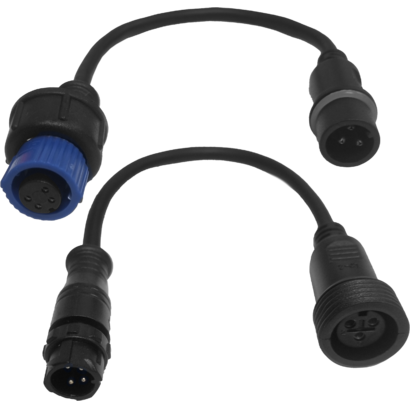

Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
AWEXDC1221ADP
AWEXDC1221ADP
(facoltativo)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
IPTESTBOX
IPTESTBOX
(facoltativo)
Portable vacuum and pressure tester for ProLights IP fixtures
<b>Upbox</b> 1
Upbox 1
(facoltativo)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(facoltativo)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

User manual

DMX chart & personalities

File name File size Download
DMX chartArcspotxsfc_DMX_CHARTS.pdf300KB
ARCSPOTXSFC Firmware rev. 1.1.01.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 12/09/2024 Improvement:
  • Improved DMX address stability management.
Rev. 1.0
