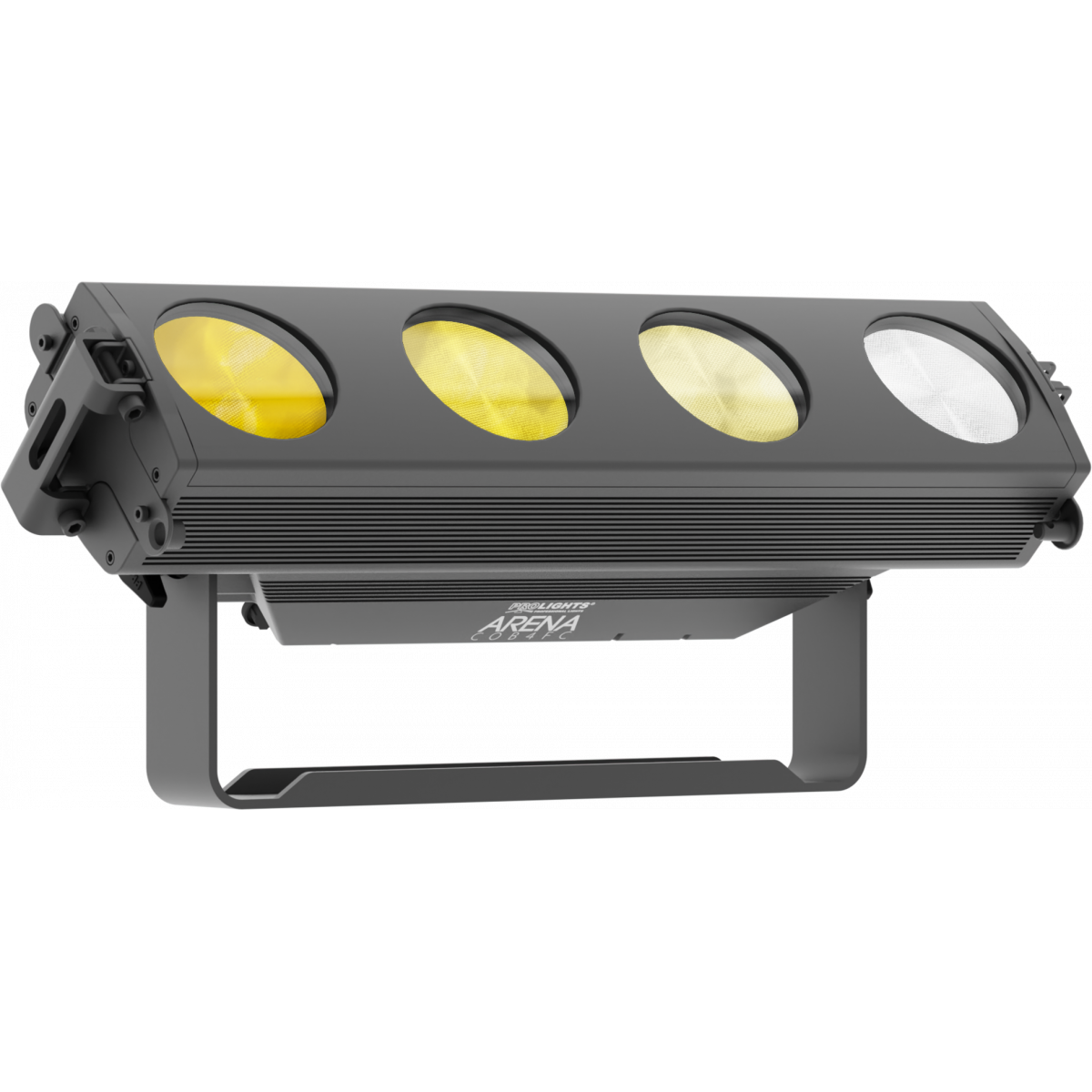

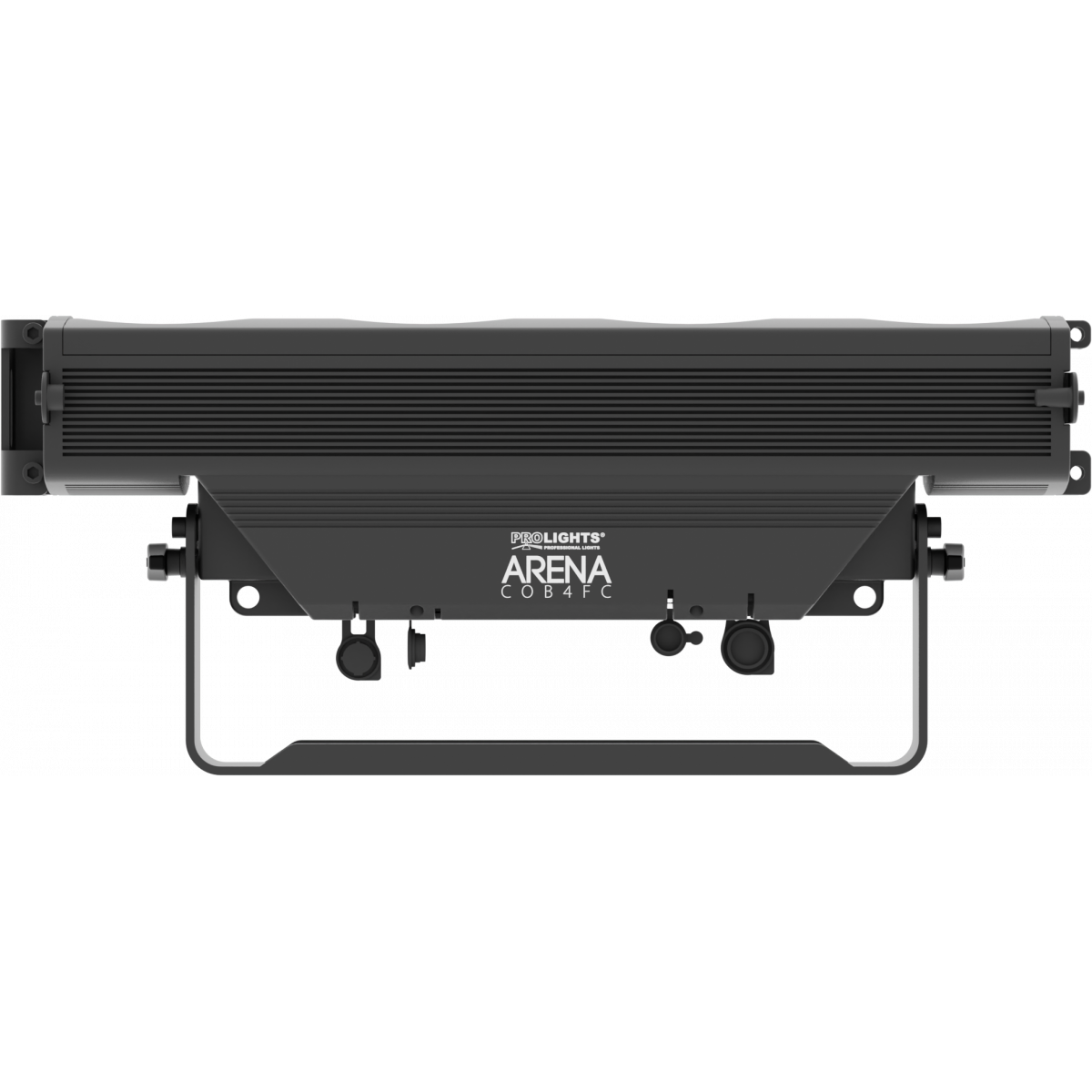

ArenaCob 4FC

ORDER CODE: ARENACOB4FC

4x75W IP65 multifunctional full colour LED blinder

ArenaCob 4FC is a full colour LED replacement for a traditional 4 cell DWE blinder. Each of the individually controllable 75 W RGBW cells deliver a consistent, powerful punch that has been designed to perform in even the largest environments.

Main features:

  • Four powerful RGBW LED cells with sizing and spacing matching traditional linear blinders
  • Individual cell control for effects and amber shift for tungsten emulation
  • IP65 housing for the most demanding environments with a virtually limitless 'building block' rigging system
See variants

PHOTO GALLERY

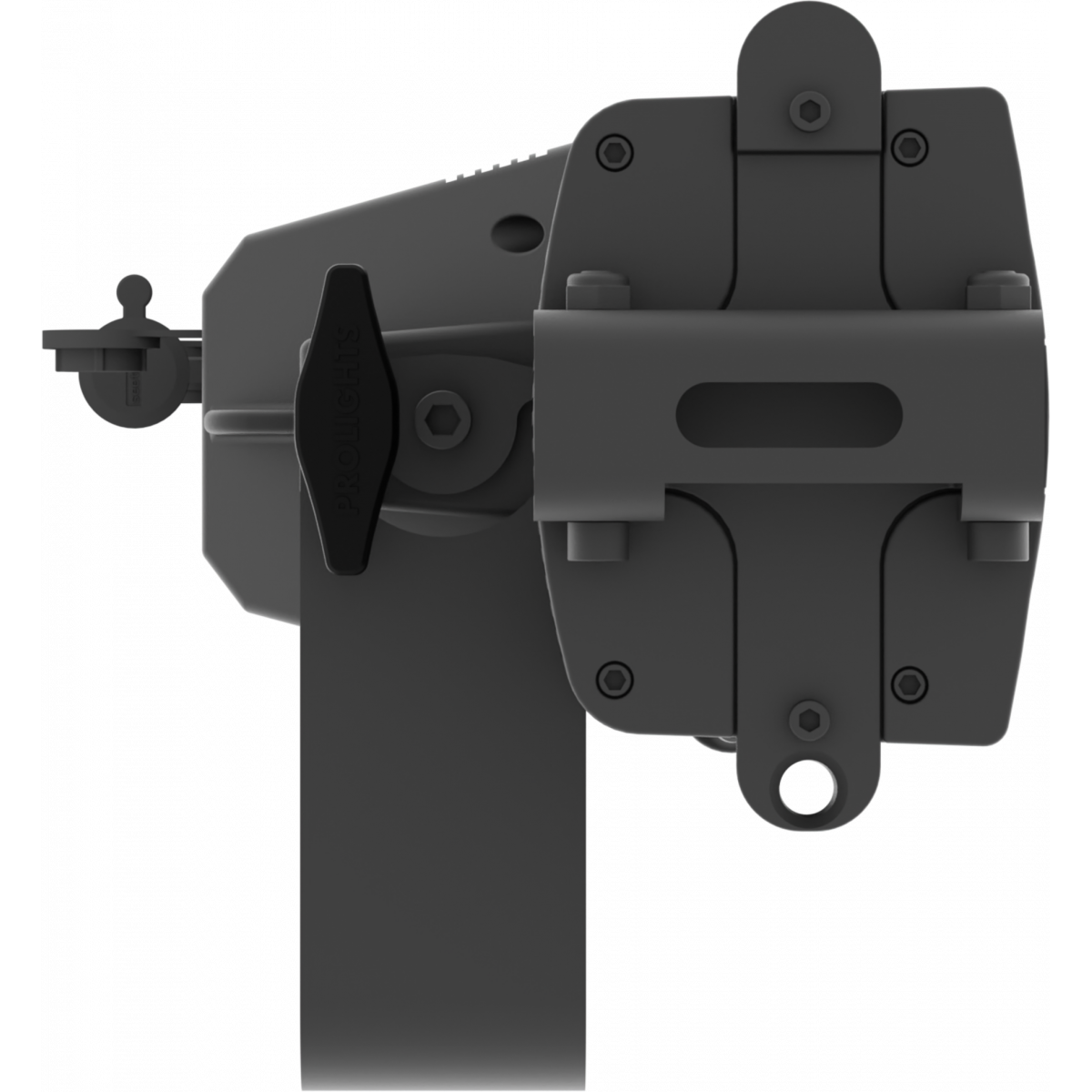

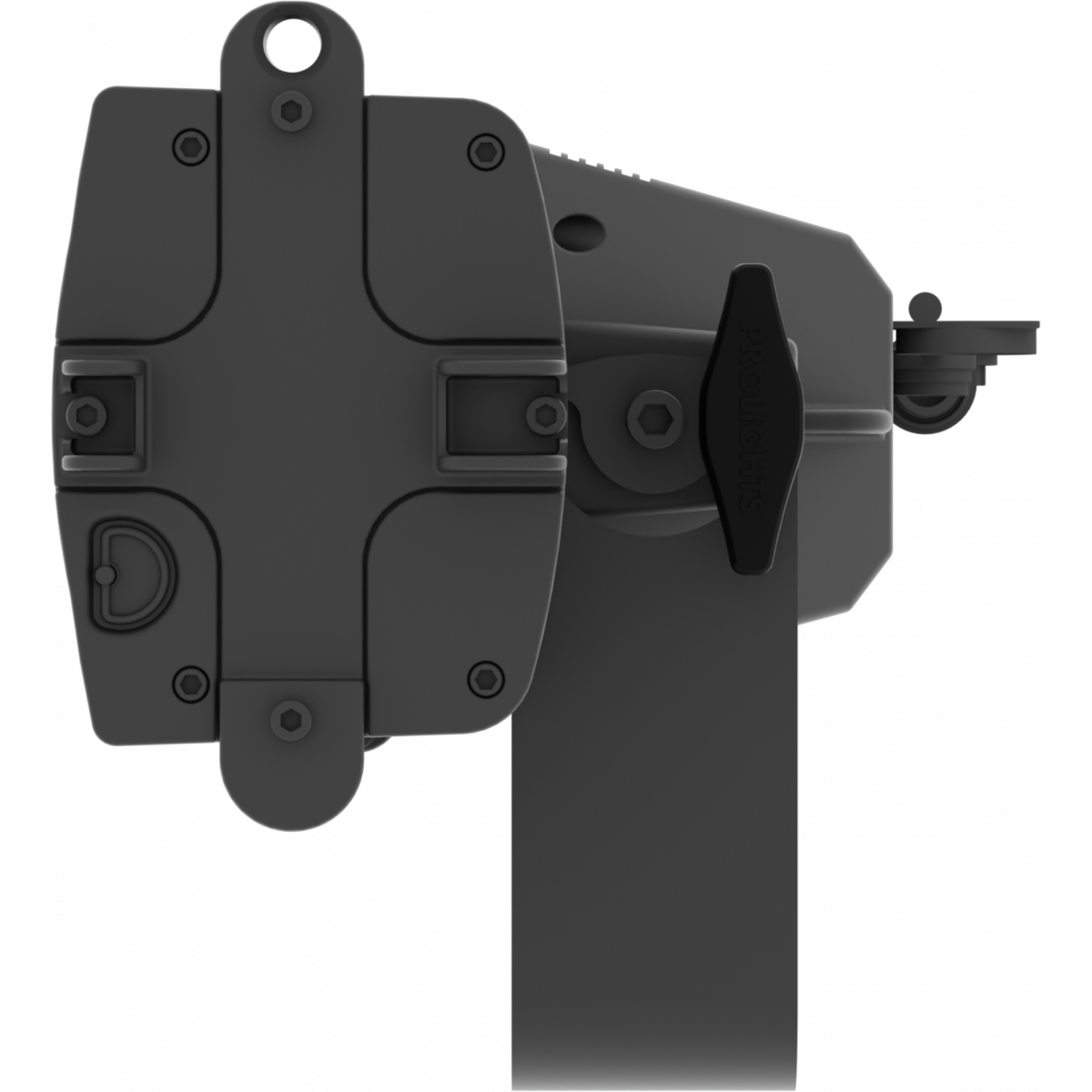

ArenaCob 4FC
ArenaCob 4FC
ArenaCob 4FC
ArenaCob 4FC
ArenaCob 4FC
ArenaCob 4FC
ArenaCob 4FC

Technical specifications

LIGHT SOURCE
  • Source: 4x75W RGBW LEDs
  • Luminous flux: (24°) 5'393 lm - (40°) 6.260
  • Lux: (24°) 2'413lx @3 m full
  • Lux: (40°) 891lx
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (inc) 24° - (opt) 40°
  • Field angle: 46°
  • Pixel pitch: 150mm / 5.91''
  • Lens diameter: 100mm / 3.94''
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 40°(opt) - 32° without magnetic lens
  • Other: magnetic replacement of front lens
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 8.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: HALO DWE dimming and amber-shift simulation
BODY

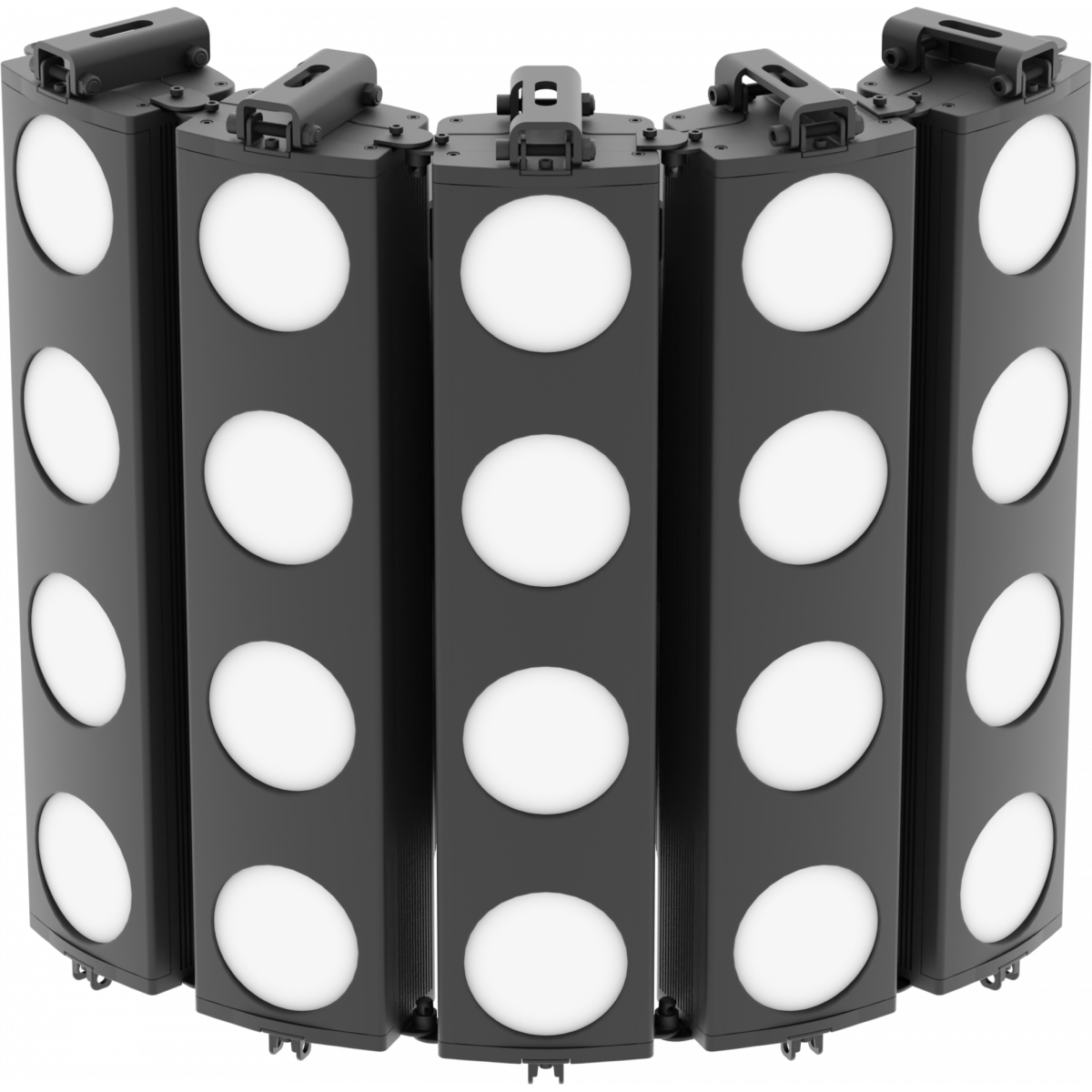

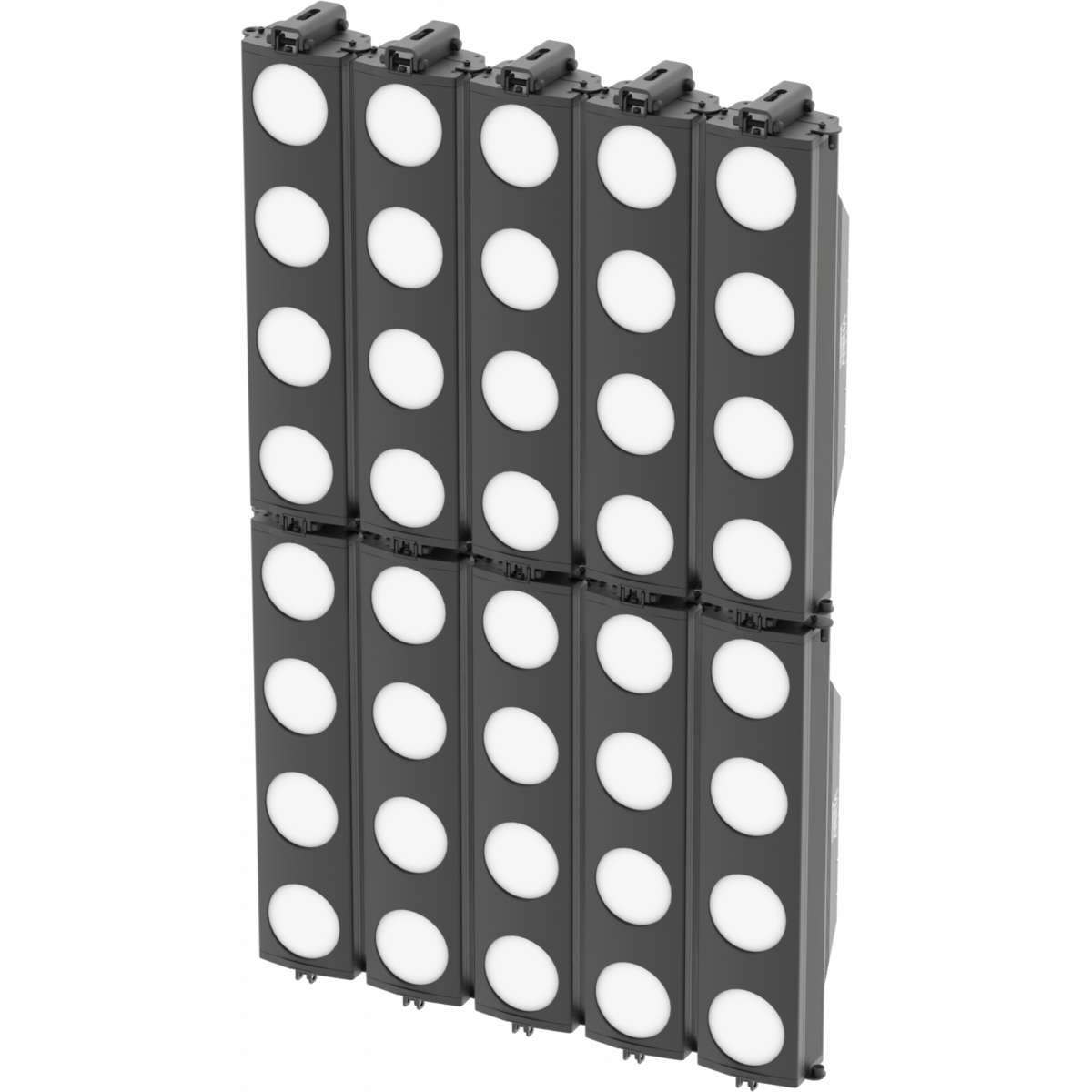

  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: HALO 1 / 4 channel - STD 4 / 6 / 15 channel - EXT 16 / 21 / 27channel
  • Pixel control: pixel2pixel control
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 227W
  • Max power consumption (at 120V): 230W
  • Output (at 230V): 11 units on a single power line
  • Output (at 120V): 8 units on a single power line
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning

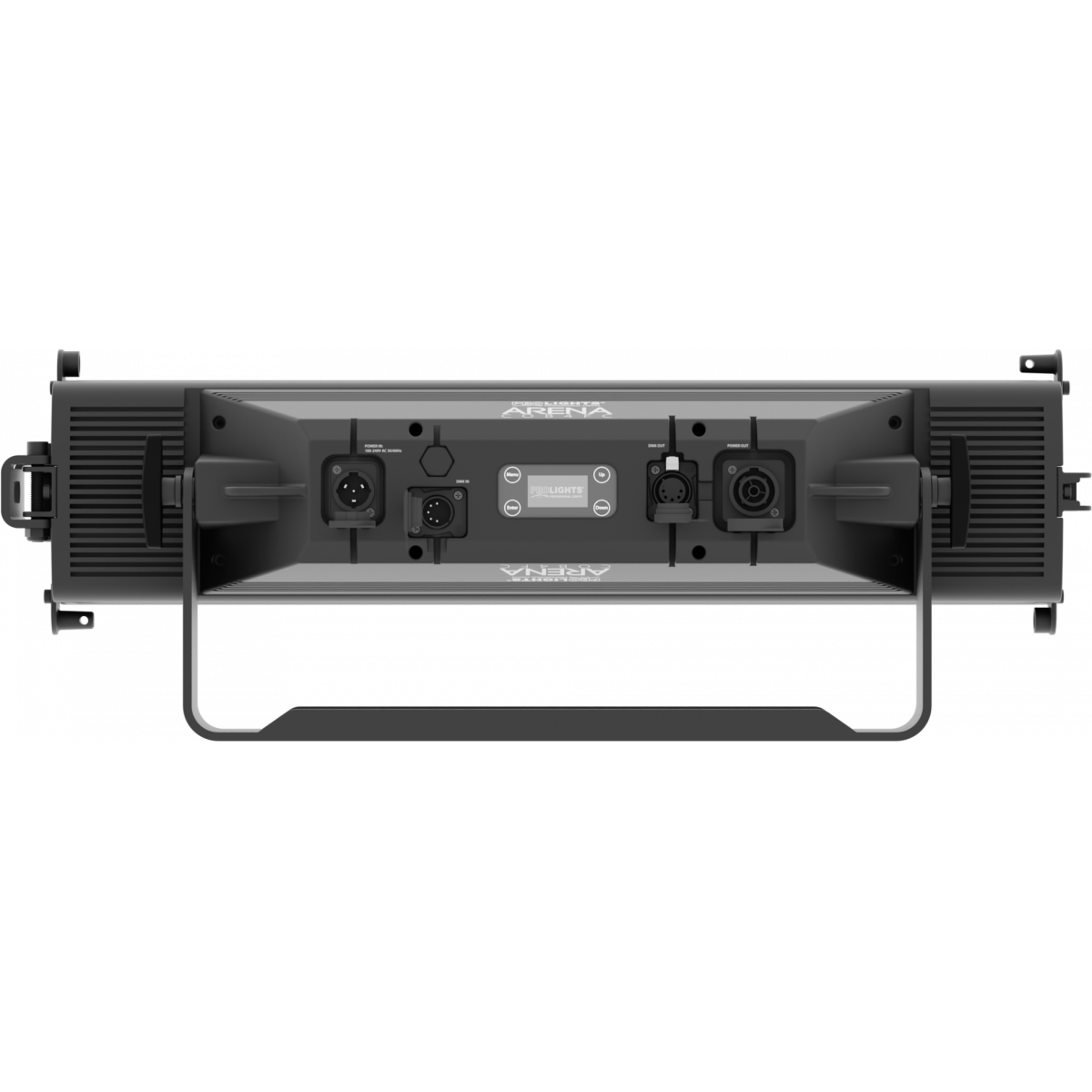

  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 619x167x264mm / 24.37''x6.57''x10.39''
  • Weight: 8kg / 17.64lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

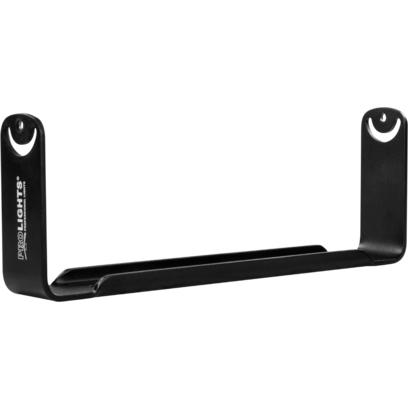

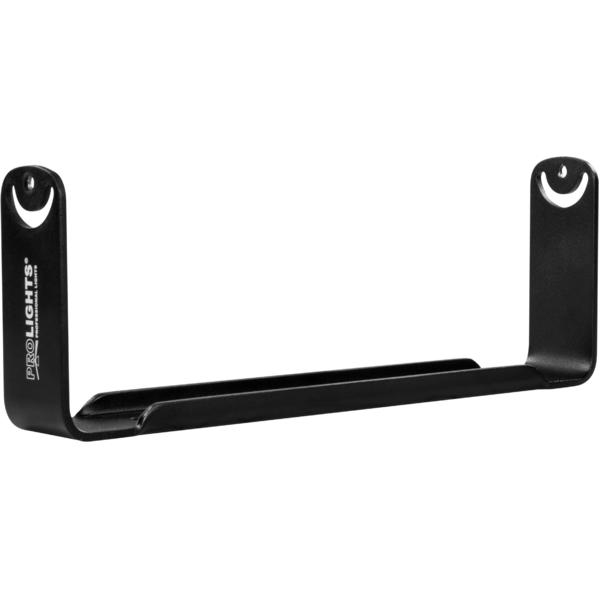

ARENACOBHBS
ARENACOBHBS
(Included)
ARENACOB's hanging bracket for suspension
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

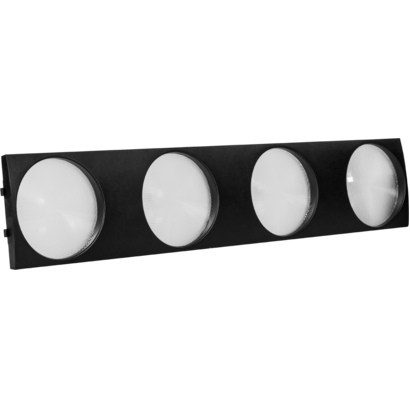

ARENACOBOPT24
ARENACOBOPT24
(Included)
Magnetic optic for ARENACOB, 24°

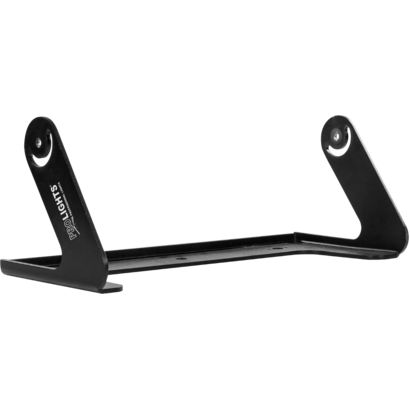

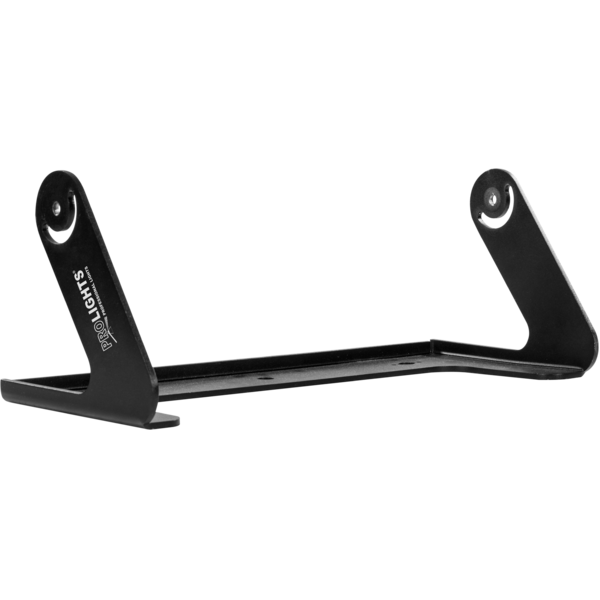

ARENACOBHBF
ARENACOBHBF
(Optional)
ARENACOB's hanging bracket for floor positioning

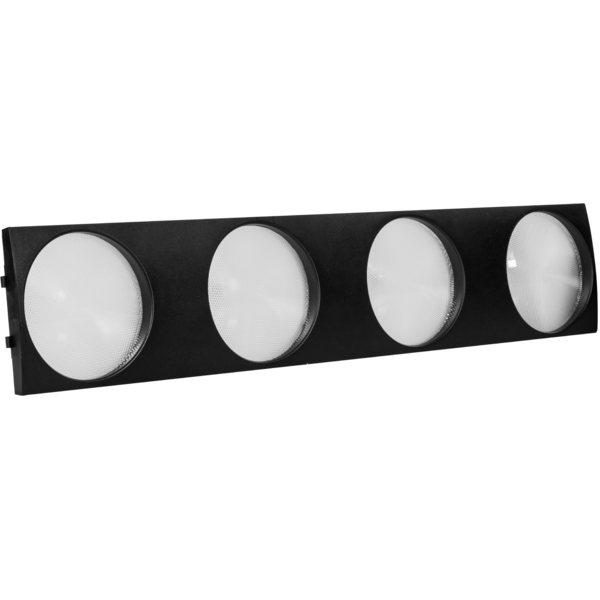

ARENACOBOPT40
ARENACOBOPT40
(Optional)
Magnetic optic for ARENACOB, 40°

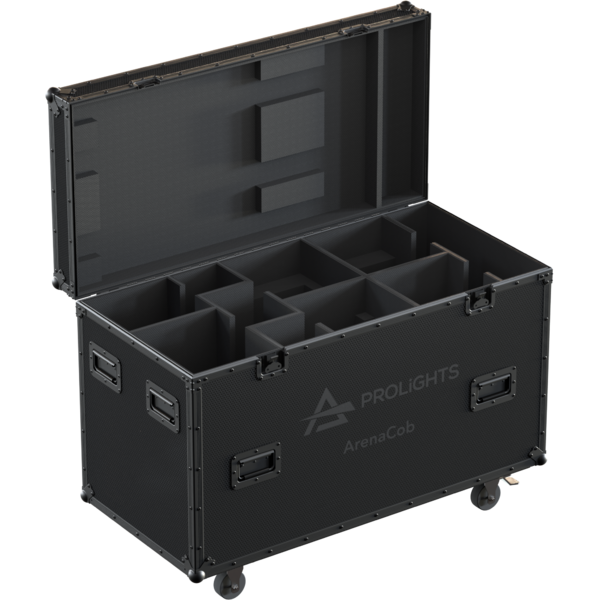

FCLARENACOBR2
FCLARENACOBR2
(Optional)
Flight case for 6 ARENACOB
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArenacob4fc_LETTER_DATASHEET_(EN).pdf184KB
Letter datasheetArenacob4fc_A4_DATASHEET_(IT).pdf189KB
Letter datasheetArenacob4fc_A4_DATASHEET_(EN).pdf184KB

User manual

File name File size Download
User manualArenacob4fc_USER_MANUAL_ITEN.pdf1MB

DMX chart & personalities

File name File size Download
DMX chartArenacob4fc_DMX_CHARTS.pdf216KB
ARENACOB4FC Firmware rev. 2.4
manufacturer fixture library (Link) Link
prolights_arenacob4fc.d4Download
manufacturer fixture library (Link) Link
prolights_arenacob4fc_1ch.hedDownload
prolights_arenacob4fc_4ch.hedDownload
prolights_arenacob4fc_6ch.hedDownload
prolights_arenacob4fc_15ch.hedDownload
prolights_arenacob4fc_16ch.hedDownload
prolights_arenacob4fc_21ch.hedDownload
prolights_arenacob4fc_27ch.hedDownload
prolights_arenacob4fc_halo4ch.hedDownload
arenacob4fc_1ch.fdfDownload
arenacob4fc_4ch.fdfDownload
arenacob4fc_6ch.fdfDownload
arenacob4fc_15ch.fdfDownload
arenacob4fc_16ch.fdfDownload
arenacob4fc_21ch.fdfDownload
arenacob4fc_27ch.fdfDownload
arenacob4fc_pixel4ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@arenacobfc_std_15ch@.xmlDownload
manufacturer fixture library (Link) Link
arenacob_ext16.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
arena cob 4 fc extended 16 channel.fix2Download
arena cob 4 fc extended 21 channel.fix2Download
arena cob 4 fc extended 27 channel.fix2Download
arena cob 4 fc halo 4 channel.fix2Download
arena cob 4 fc standard 4 channel.fix2Download
arena cob 4 fc standard 6 channel.fix2Download
arena cob 4 fc standard 15 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAArenacob4fc_3D.rfa764KB
3D SKPArenacob4fc_3D.skp594KB
2DArenacob4fc_CAD_2D.dwg1MB
3DArenacob4fc_CAD_3D.dwg711KB
2D cad symbolsArenacob4fc_CAD_2DSYMBOLS.dwg87KB
Technical drawingArenacob4fc_TECHNICAL_DRAWING.pdf388KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx255KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.4 STABLE 29/11/2023 New Functions:
  • Added new DMX modes:
    • EXT 28Ch based on EXT 27Ch with the addition of the Control Channel
    • STD 16CH based on STD 15Ch with the addition of the Control Channel
  • Added new Manufacturer Specific PIDs in RDM.
Improvements:
  • "Dimmer Mode" changed to "Dimmer Speed". So:
    • Dimmer Mode "Off" changed to Dimmer Speed "Auto" (default value)
    • Dimmer Mode "Dimmer 1" changed to Dimmer Speed "Fast"
    • Dimmer Mode "Dimmer 2" changed to Dimmer Speed "Medium"
    • Dimmer Mode "Dimmer 3" changed to Dimmer Speed "Slow"
  • Mapping Rotation "No/Yes" has been changed to "Off/On"
  • Improved RDM compliance.
