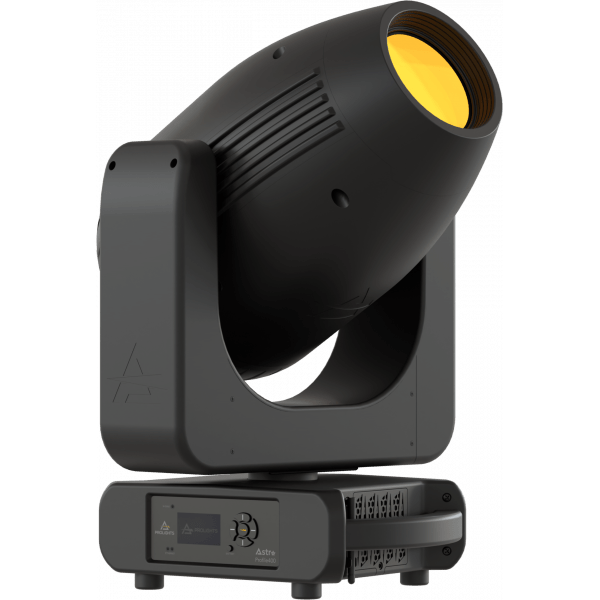

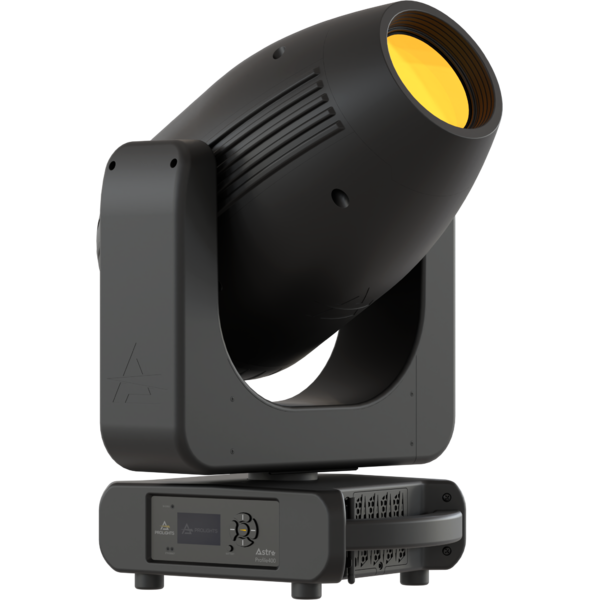

Astra Profile400 new

ORDER CODE: ASTRAPROFILE400

Indoor LED Moving Profile, with a 400W White source

The Astra Profile400 is a multi-purpose indoor LED profile moving light, with an ultra-high lumen efficiency, a punchy output, and stunning effects.
Its feature set includes framing shutters and an animation wheel, but it still has a small form factor and light weight, making the Astra Profile400 the perfect replacement for fixtures with a higher power consumption. Its light source delivers a pure white light emission at 7,000K, reaching 17.500 lumens whilst achieving a flat field beam projection.
The Astra Profile400's optical system moves linearly from 6,5° to 50°, and it's equipped with a brand-new 400W LED source. The extensive feature set of the Astra Profile400 includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filters, prism and iris.

Main features:

  • Indoor LED Moving Profile equipped with a 400W LED source (7,000K)
  • 6,5° to 50° linear zoom
  • 4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, frost filter, prism and iris

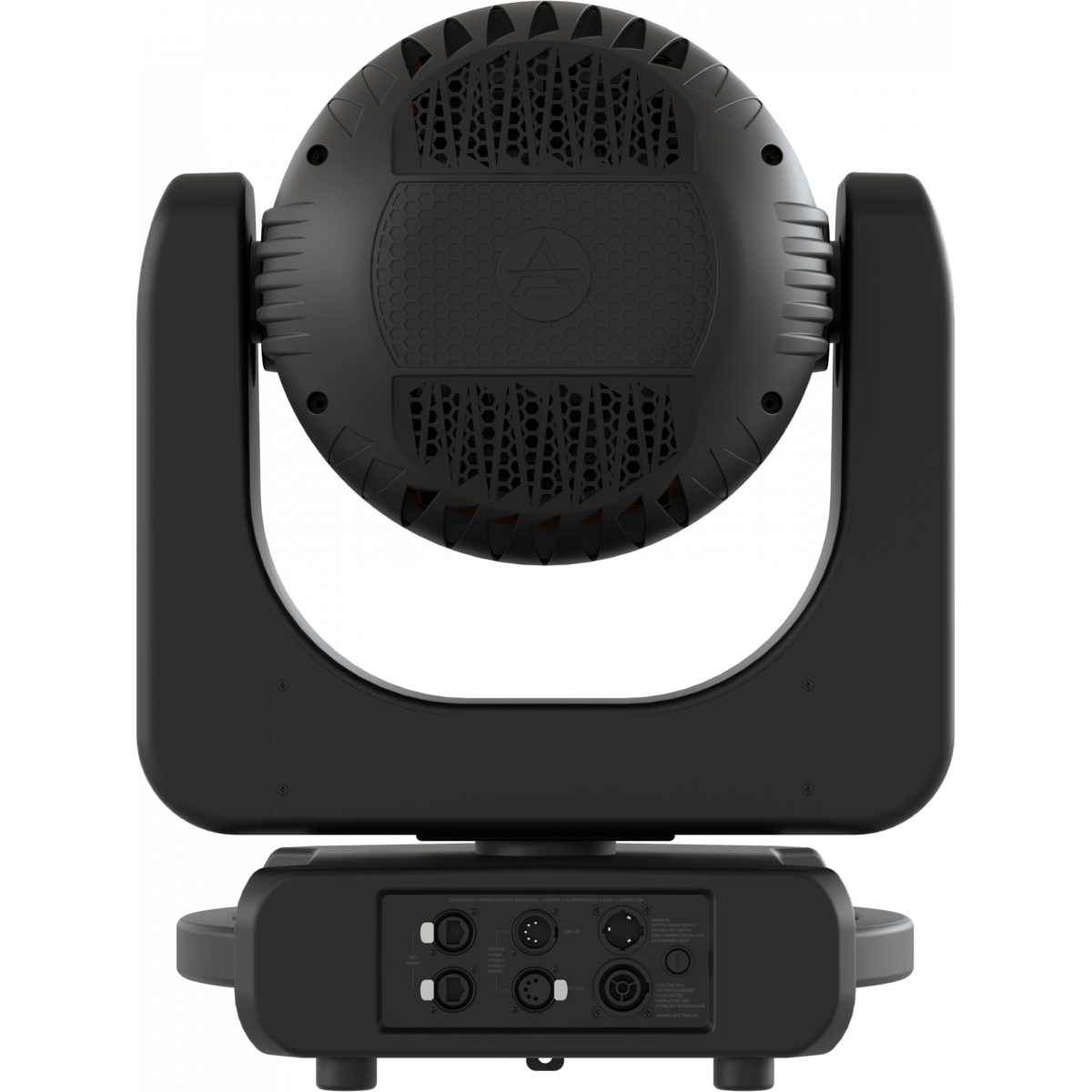

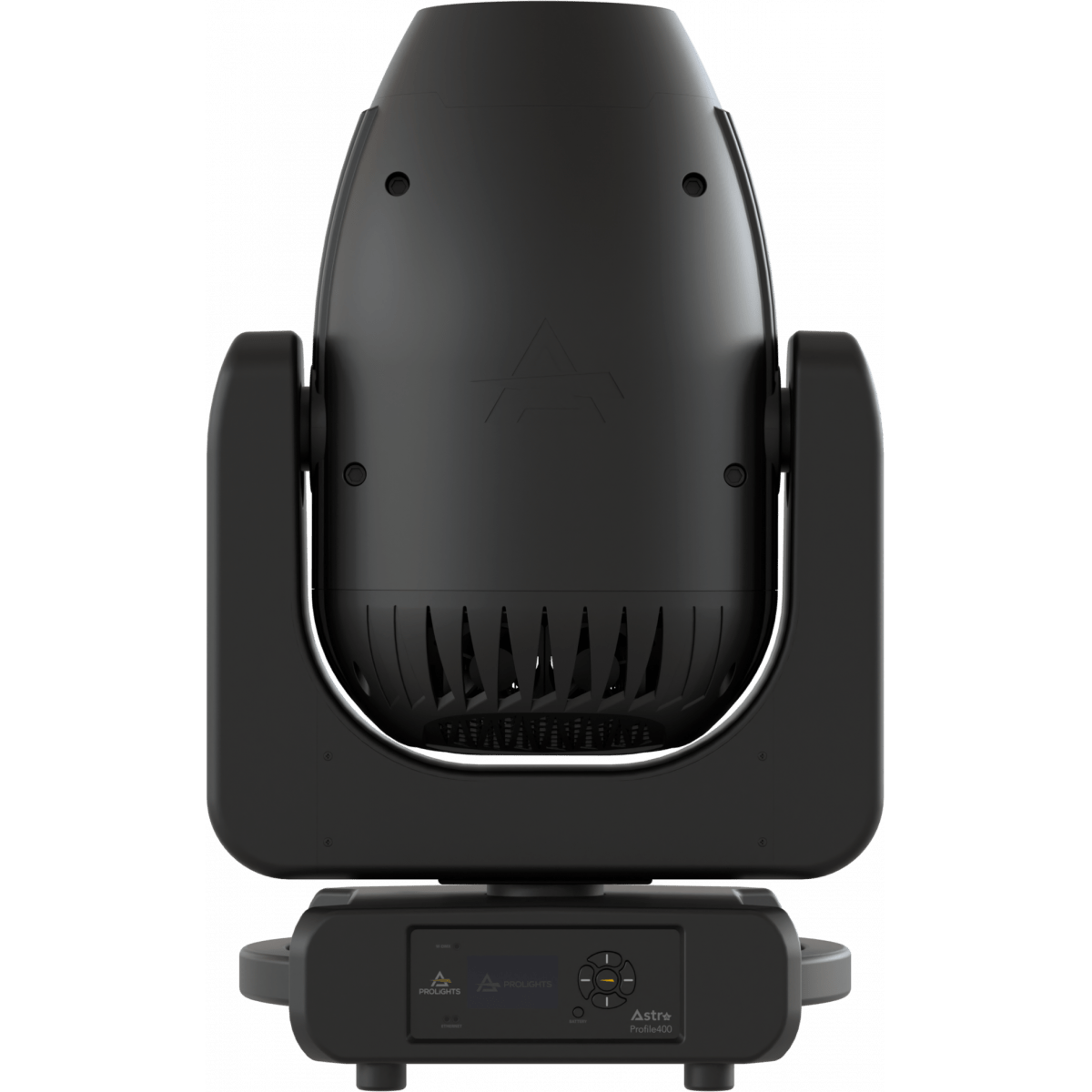

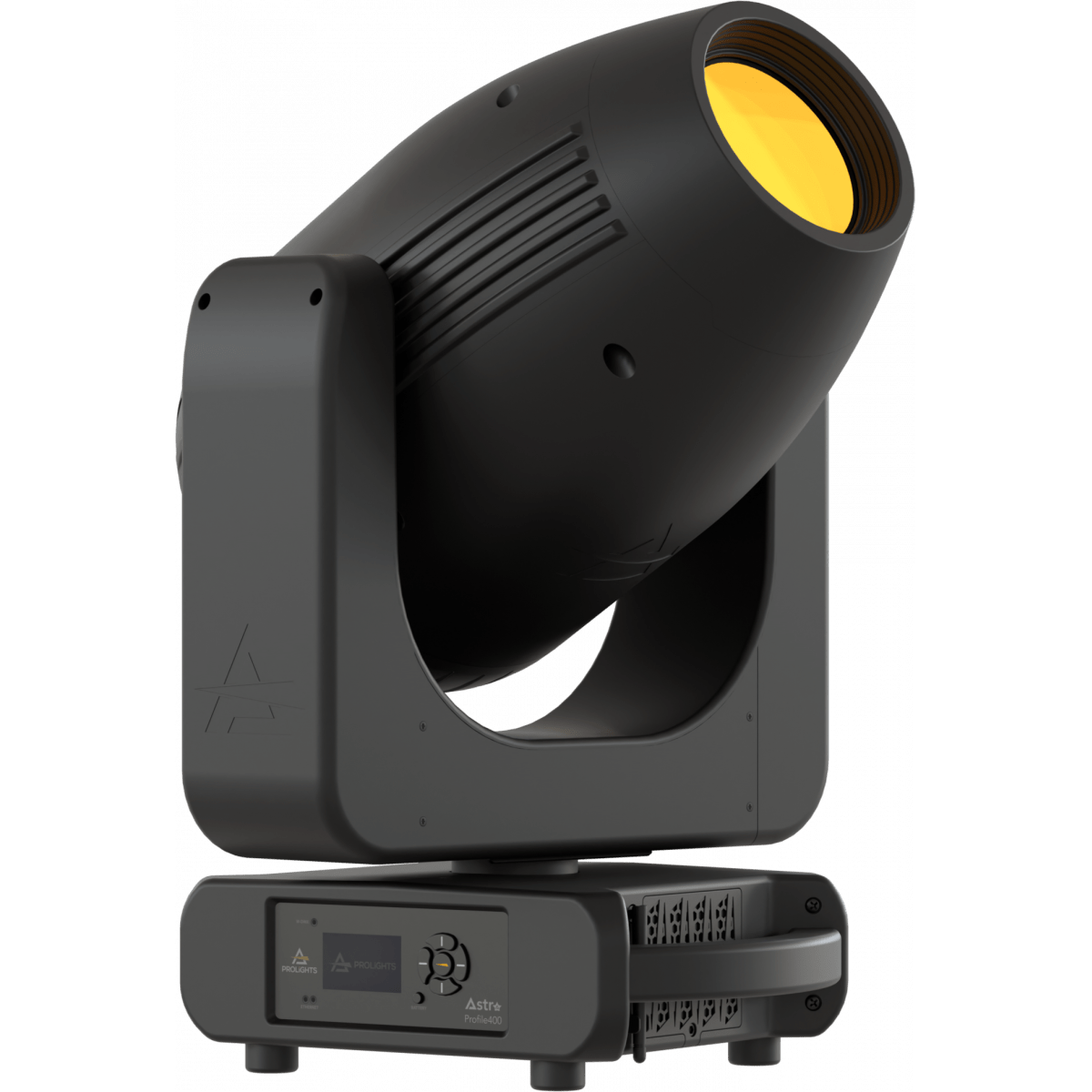

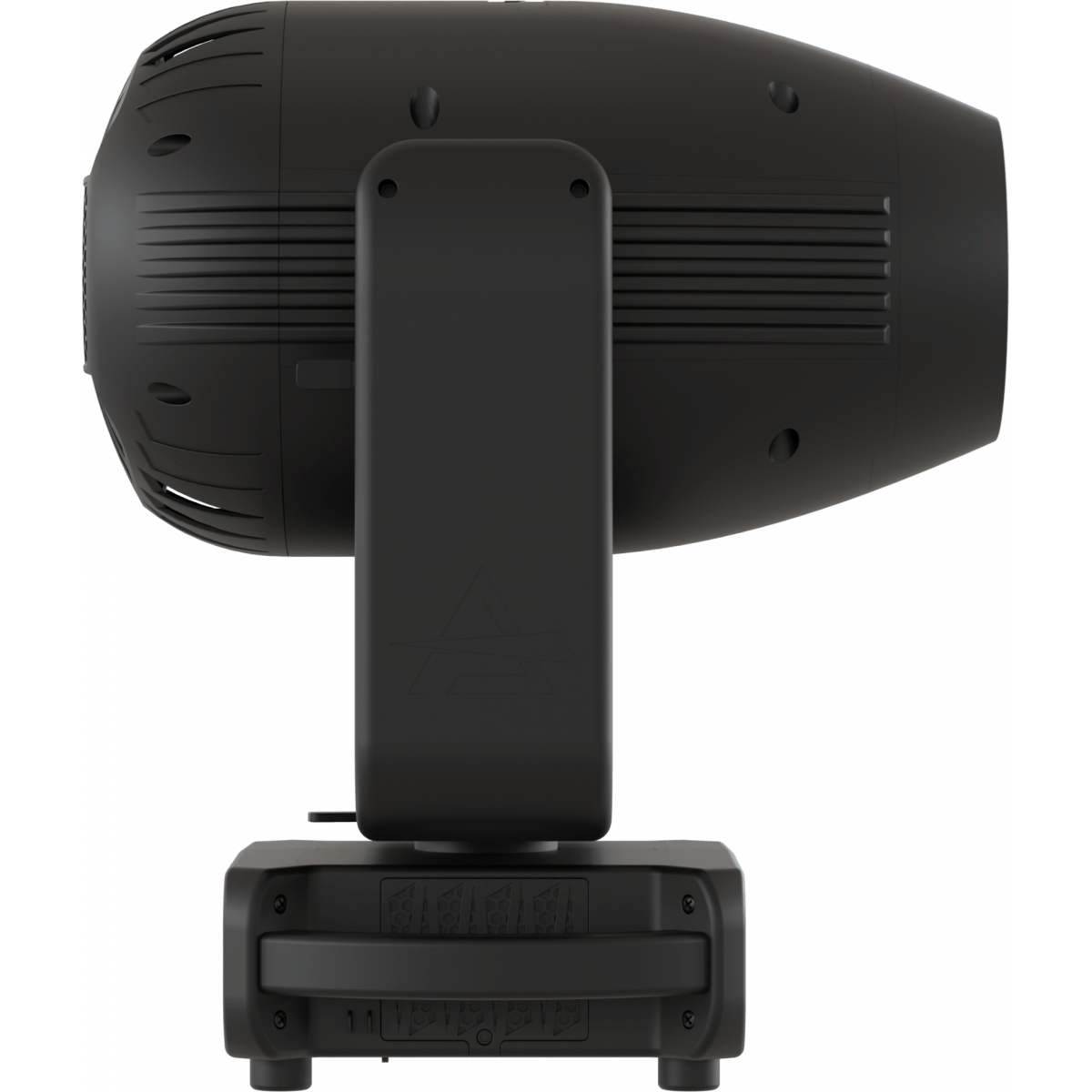

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 400W White LED
  • CCT: 7.000K
  • Luminous flux: (6,5°) 9'143 - (50°) 17'598lm
  • Lux: (6,5°) 37'468 lx (50°) 1'690lx @5 m
  • CRI: > 70 (CCT 5.600K and CRI > 90 with filter on color wheel)
  • Source life expectancy: > 30.000 h
OPTICS
  • Zoom: 6,5° - 50° motorised linear zoom
  • Lens diameter: 120mm / 4.72''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 2.700 K ~ 7.000 K
  • Colour wheel: open + 5,600K high CRI filter + 7 colour filters
DYNAMIC EFFECTS
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 25,7 mm - image: 20 mm - thickness: 1,1 mm
  • Circular prism: 4f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, W-DMX + CRMX
  • DMX channels: 29 / 39 / 54channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 620W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,96
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 410x639x278mm / 16.14''x25.16''x10.94''
  • Weight: 27,6kg / 60.85lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

FCLASTRAP400
FCLASTRAP400
(optional)

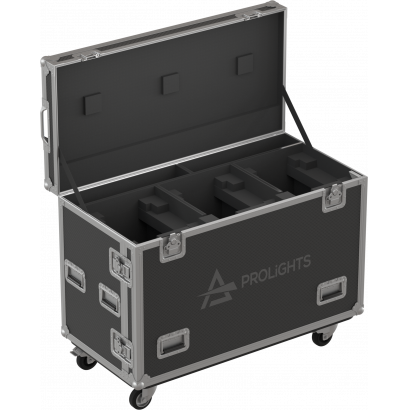

Flight case for 3 pcs of ASTRAPROFILE400 / ASTRAHYB330
OS24
OS24
(included)
Quick-lock omega bracket, M10 hole
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR1235B
RSR1235B
(optional)

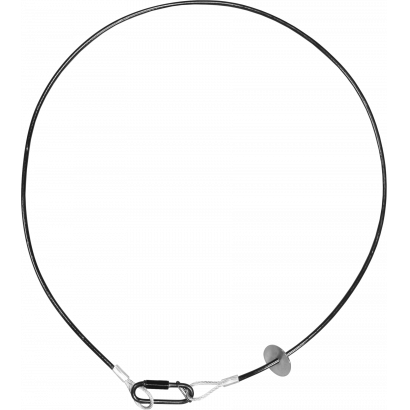

Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Astraprofile400_A4_DATASHEET_(EN).pdf 615KB
Letter datasheet Astraprofile400_LETTER_DATASHEET_(EN).pdf 546KB
Tender Specification Astraprofile400_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Astraprofile400_USER_MANUAL_EN.pdf 7MB

DMX chart & personalities

File name File size Download
DMX chart Astraprofile400_DMX_CHARTS.pdf 589KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 330KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
ASTRAPROFILE400 Firmware rev. 1.0.13
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_astraprofile400_ldt_ies files.zip 13KB
PDF Photometrics Astraprofile400_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Astraprofile400_3D_SKETCHUP.skp 415KB
3D Astraprofile400_3D.dwg 523KB
2D Astraprofile400_2D.dwg 5MB
2D cad symbols Astraprofile400_2DSYMBOLS.dwg 70KB
Technical drawing Astraprofile400_TECHNICAL_DRAWING.pdf 855KB

Tech docs

File name File size Download
Color Document Astraprofile400_COLOR.pdf 186KB
Gobos Document Astraprofile400_GOBOS.pdf 352KB
Noise Report Astraprofile400_NOISE_REPORT.pdf 724KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.13 STABLE 04/03/2023 New functions:
  • Added "Super Silent" fan mode.
  • Channel Control DMX Value added "Fan Mode Super Silent @ 162-163"
Improvements:
  • Improved CMY insertion.
  • Improved power management during CMY insertion.
  • Improved Fan managament.
Note:
  • 2U1 firmware is still 1.0.12.
  • Factory reload must be done after upgrade to V1.0.13 : "LED TEMPERATURE ERROR" will occur.
Rev. 1.0
