ASTRAPROFILE900
PROLIGHTS

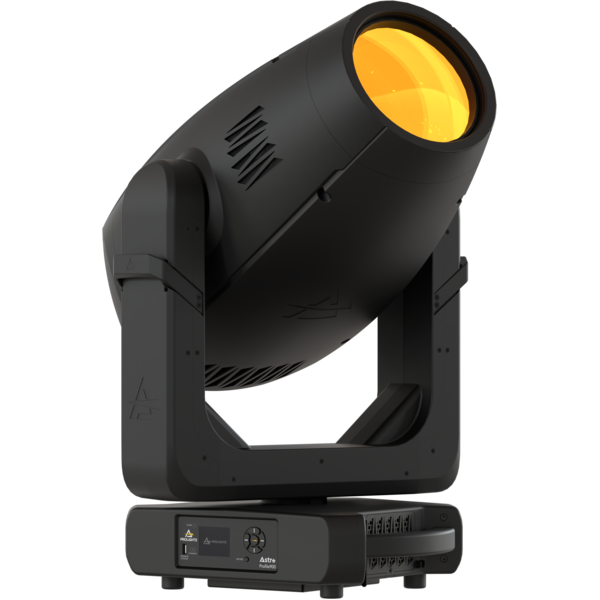

Astra Profile900 new

ORDER CODE: ASTRAPROFILE900

900W high output Profile Moving head, with 185mm optics and 5° - 52° zoom

The Astra Profile900 is a flagship, high-power profile moving head designed for large-scale live productions, studios, and theaters. Powered by a 900W LED source, it delivers an impressive 43,000-lumen output (as measured by photogoniometer), making it an exceptional key light for any major production.

Its large 185mm front lens and versatile 5°-52° zoom range ensure outstanding performance at virtually any distance. The new MotiOs motion ecosystem enhances speed, precision, and responsiveness across pan, tilt, internal wheels, and framing modules, setting a new standard in motion control.

For precise color control, the Astra Profile900 features linear CMY+CTO mixing and a color wheel with a high-CRI filter, delivering vibrant tones and balanced whites. Additional highlights include dual rotating gobo wheels, an animation wheel, a four-layer framing system, dual prisms, dual frost filters, and iris—making it adaptable to a wide variety of production needs.

Main features:

  • 900W 7000K White LED source, featuring 43.000 fixture lumen output (goniometer)
  • 185mm front lens with a 5°-52° zoom
  • MotiOs enhances motion speed, precision, and responsiveness across motorized features
  • CMY+CTO Color mixing, one color wheel, 4 framing shutters, 2 rotating gobo wheels, 1 animation wheel, 2 frost, 2 prisms, iris

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 1000W White LED (driven @900W)
  • CCT: 7.000K
  • Luminous flux: (5,5°) 23'816 lm - (52°) 42'919 lm
  • Lux: (5,5°) 126'304 lx - (52°) 3'060lx @5 m
  • CRI: > 70 (CCT 6.000K and CRI > 90 with filter on color wheel)
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 5,4° - 52° motorised linear zoom
  • Lens diameter: 185mm / 7.28''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised 16-bit control with focus tracking
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 2.700 K ~ 7.000 K
  • Colour wheel: open + high CRI filter + 5 colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 30 mm - image: 25 mm - thickness: up to 3 mm
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 30 mm - image: 25 mm - thickness: up to 3 mm
  • FX generator: 2 prisms overlap for spectacular aerial effects
  • Circular prism: 4f with bi-directional rotation, indexing
  • Linear prism: 6f with bi-directional rotation, indexing
  • Frost: dual frost filter, soft-edge and heavy (one interchangeable)
  • Iris: 5 - 100% motorised iris
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan range: 540°
  • Tilt range: 270°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • DMX channels: 46channel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 1310W
  • Standby power: 150 W
  • Output (at 230V): 2 units on a single power line
  • Power factor: > 0,97
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Neutrik XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 516x856x310mm / 20.31''x33.7''x12.2''
  • Weight: 45,2kg / 99.65lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver

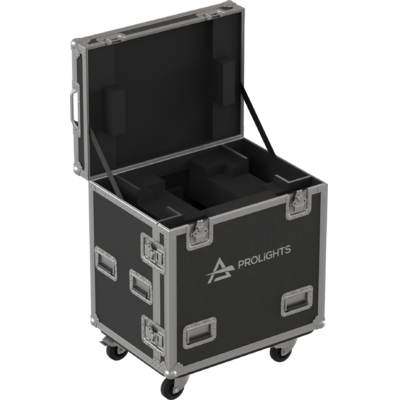

FCLASTRAP900
FCLASTRAP900
(Optional)
Flight case for 1 pc of ASTRAPROFILE900

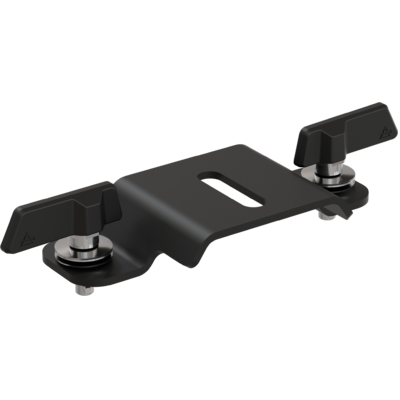

OS30PLUS
OS30PLUS
(Included)
Quick-lock omega bracket, M12 hole

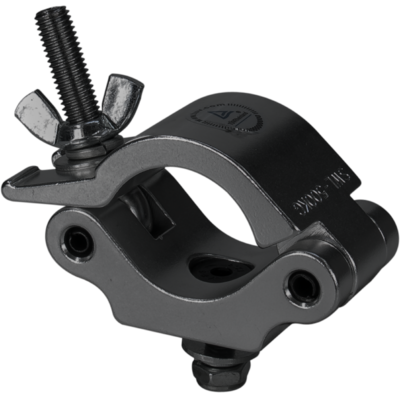

C6001B
C6001B
(Optional)
Heavy-load aluminum clamp, 500kg loa, 48-51mm tubes, M10 bolt, Black&White& White
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

DMX chart & personalities

File name File size Download
DMX chartAstraprofile900_DMX_CHARTS.pdf2MB
ASTRAPROFILE900 Firmware rev. 0.8.35
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download
Color DocumentAstraprofile900_COLOR.pdf73KB
Gobos DocumentAstraprofile900_GOBOS.pdf195KB
