ASTRAWASH19PIXIP
PROLIGHTS

Astra Wash19PixIP

ORDER CODE: ASTRAWASH19PIXIP

IP65 moving wash light with 19x40W RGBW LED and 4°-54° zoom

The Astra Wash19PixIP is an IP65 LED moving wash light designed to be a workhorse for any large, outdoor stage or installation, offering a robust and sealed mechanical assembly but keeping the same features and performance as its indoor version.
This moving washlight has a 19x40W Osram RGBW LED light source and an extremely-high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire very versatile for any application, as aerial FX or wash light.
The Astra Wash19PixIP is single pixel controllable, with multiple on-board FX and has precise and advanced white and colour control, all through DMX/RDM, CRMX+W-DMX, Art-Net and sACN.


Main features:

  • IP65 with a compact form factor and fast movements
  • Zoom from 4° to 54° with a high-optical efficiency
  • Pixel control, precise white CCT, multiple FXs and colour features
See variants

PHOTO GALLERY

Astra Wash19PixIP
Astra Wash19PixIP
Astra Wash19PixIP
Astra Wash19PixIP

Technical specifications

LIGHT SOURCE
  • Source: 19x40W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 5'505 lm - (54°) 10'143 @Full
  • Lux: (4°) 45'146 lx - (54°) 1174lx @5 m full
  • Other: outer RGB pixel ring with frost film
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 4° - 54° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
  • Additional optics: optics: diffuser on outer pixel ring
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan range: 540°
  • Tilt range: 233°
  • Feedback: automatic repositioning after accidental movement
  • Body: weatherproof IP65 construction
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
  • DMX channels: main personality 29 / 32 / 53channel
  • Pixel control: OFF, ring and pixel2pixel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 750W
  • Standby power: 52W
  • Output (at 230V): 3 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 65 (*)
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 457x578x266mm / 17.99''x22.76''x10.47''
  • Weight: 26,4kg / 58.2lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth

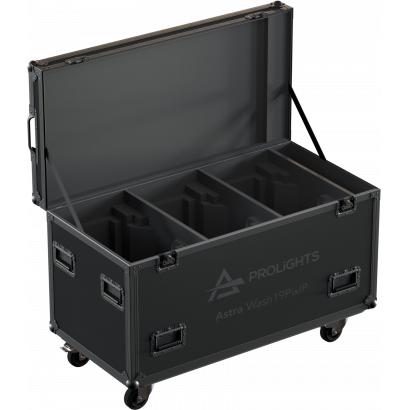

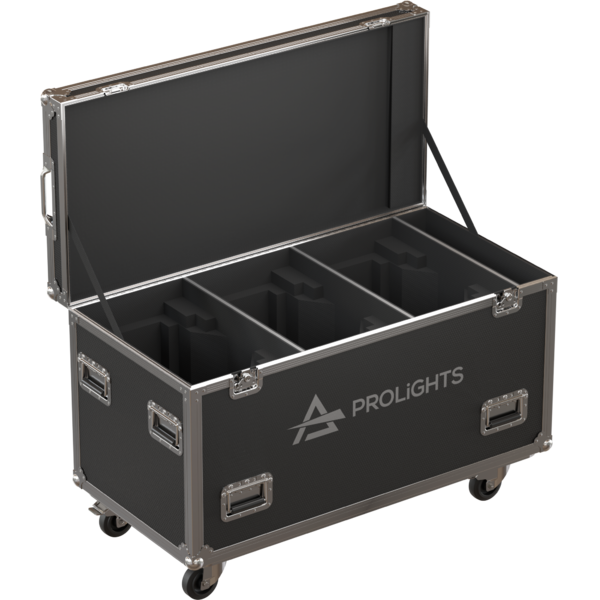

FCLASTRAW19PIXIP
FCLASTRAW19PIXIP
(Optional)
Flight case for 3 pcs of ASTRAWASH19PIXIP

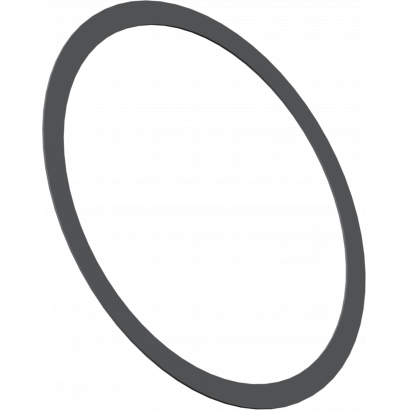

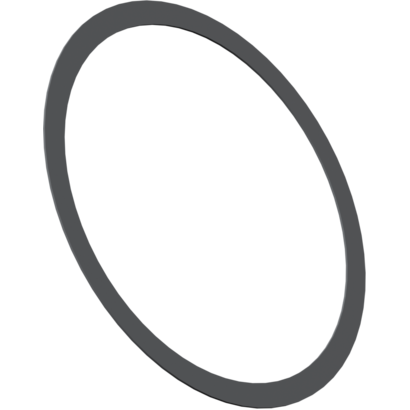

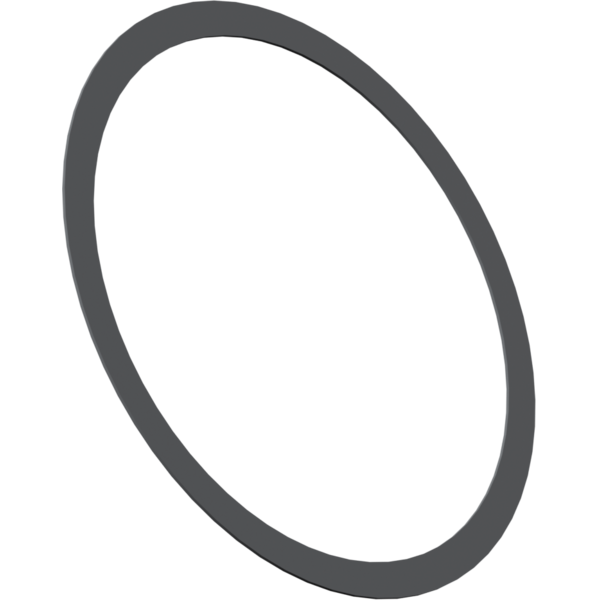

ASTRAW19MBCR
ASTRAW19MBCR
(Optional)
Matt black cover for ring for ASTRAWASH19PIX and ASTRAWASH19PIXIP

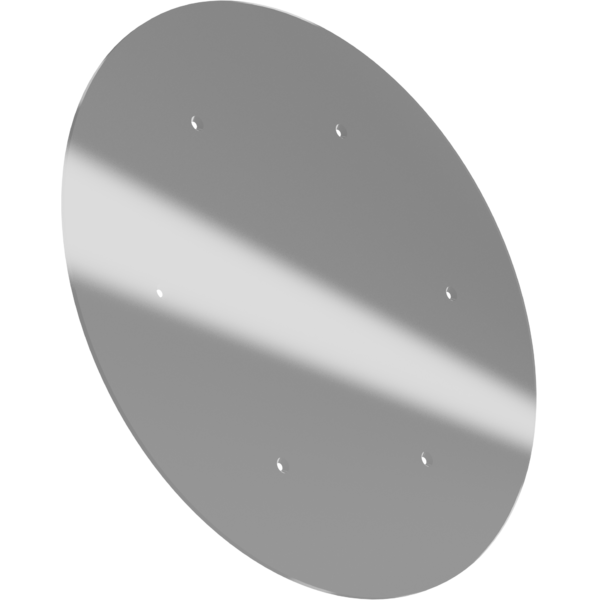

ASTRAW19PSF
ASTRAW19PSF
(Optional)
Smooth filter for ASTRAWASH19PIX and ASTRAWASH19PIXIP

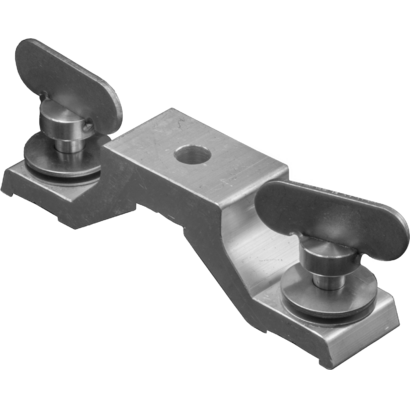

OSIPD13
OSIPD13
(Included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAstrawash19pixip_LETTER_DATASHEET_(EN).pdf607KB
Letter datasheetAstrawash19pixip_A4_DATASHEET_(EN).pdf608KB
Tender SpecificationAstrawash19pixip_TENDER_SPECIFICATION.pdf601KB

User manual

DMX chart & personalities

File name File size Download
DMX chartAstrawash19pixip_DMX_CHARTS.pdf750KB
ASTRAWASH19PIXIP Firmware rev. 1.0.17
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
astra_wash_19_pix.hog4libDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupASTRAWASH19PIXIP_3D_SKETCHUP.zip3MB
2DAstrawash19pixip_CAD_2D.dwg4MB
3DASTRAWASH19PIXIP_3D.zip1MB
2D cad symbolsAstrawash19pixip_CAD_2DSYMBOLS.dwg56KB
Technical drawingAstrawash19pixip_TECHNICAL_DRAWING.pdf566KB
VectorWorksVECTORWORKS_SYMBOLS.vwx533KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download
Noise ReportAstrawash19pixip_NOISE_REPORT.pdf182KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.17 STABLE 13/03/2025 Improvement:
  • Improved Zoom reset.
