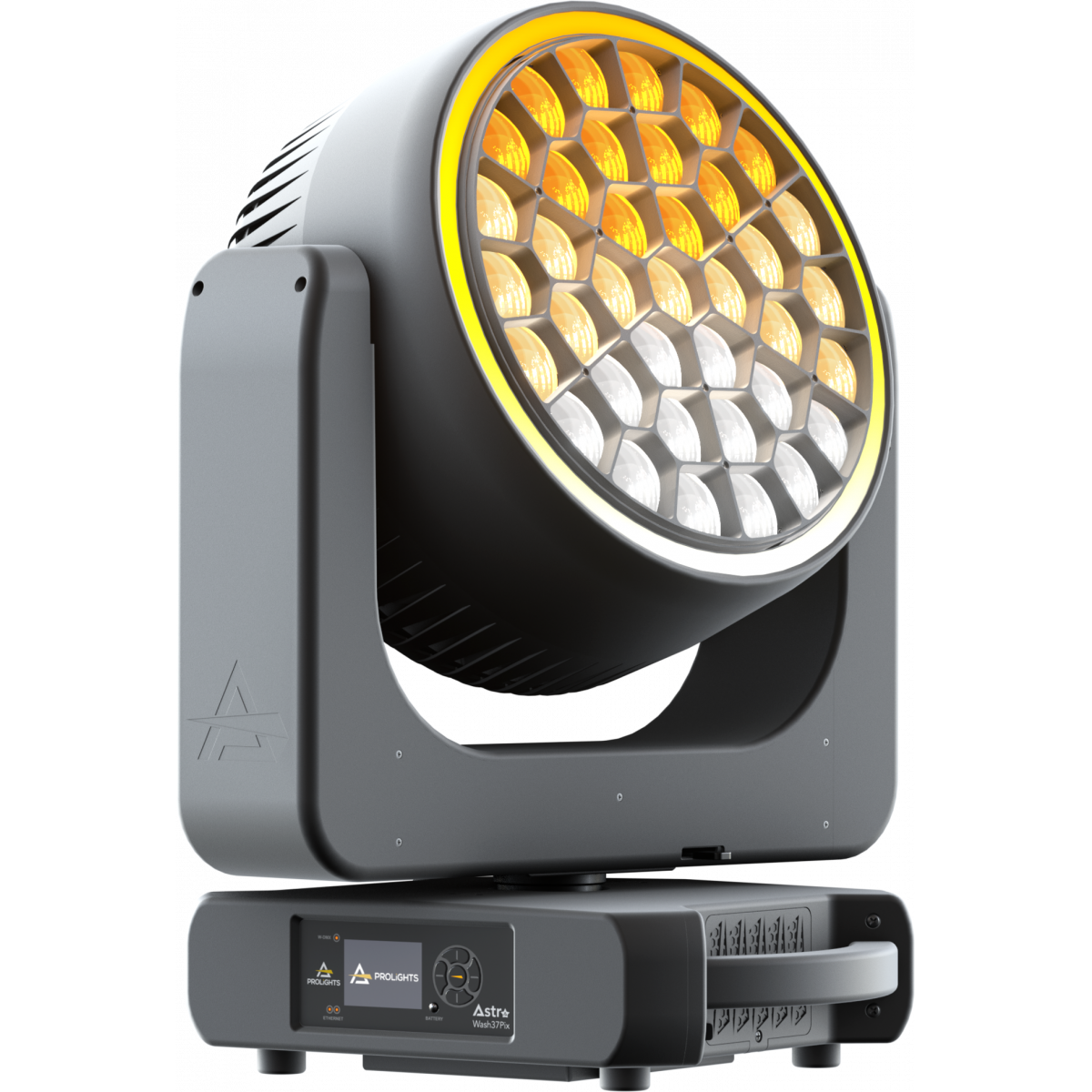

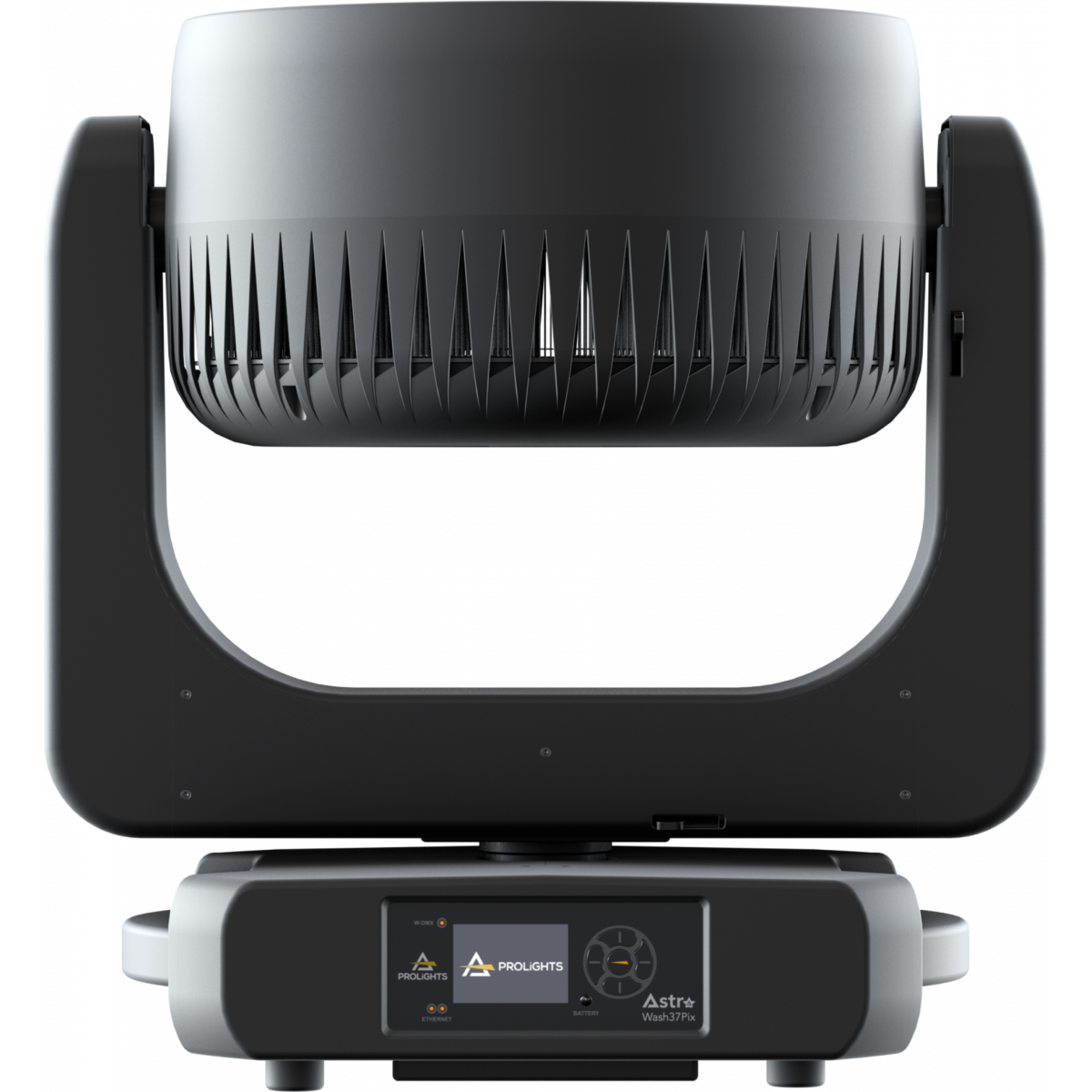

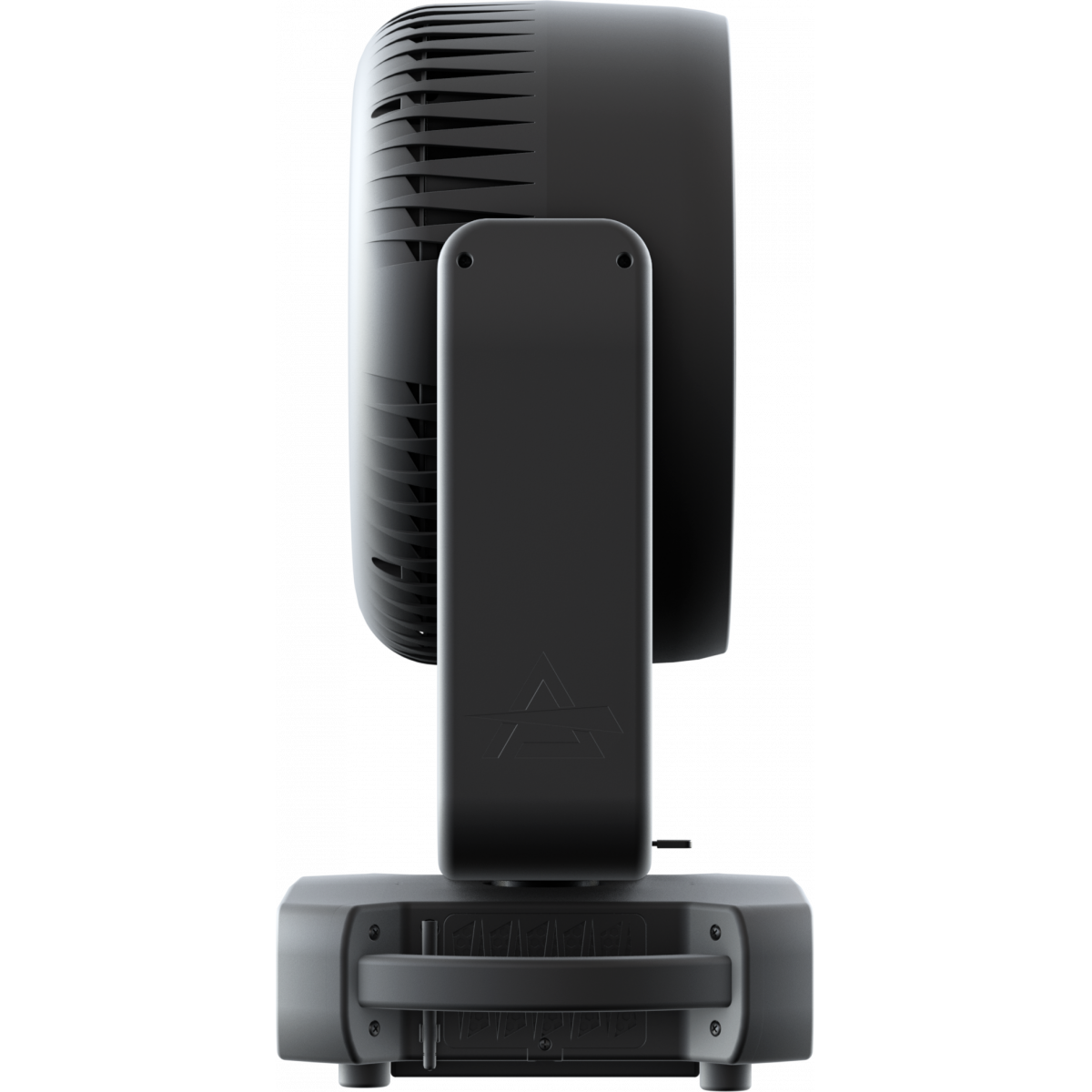

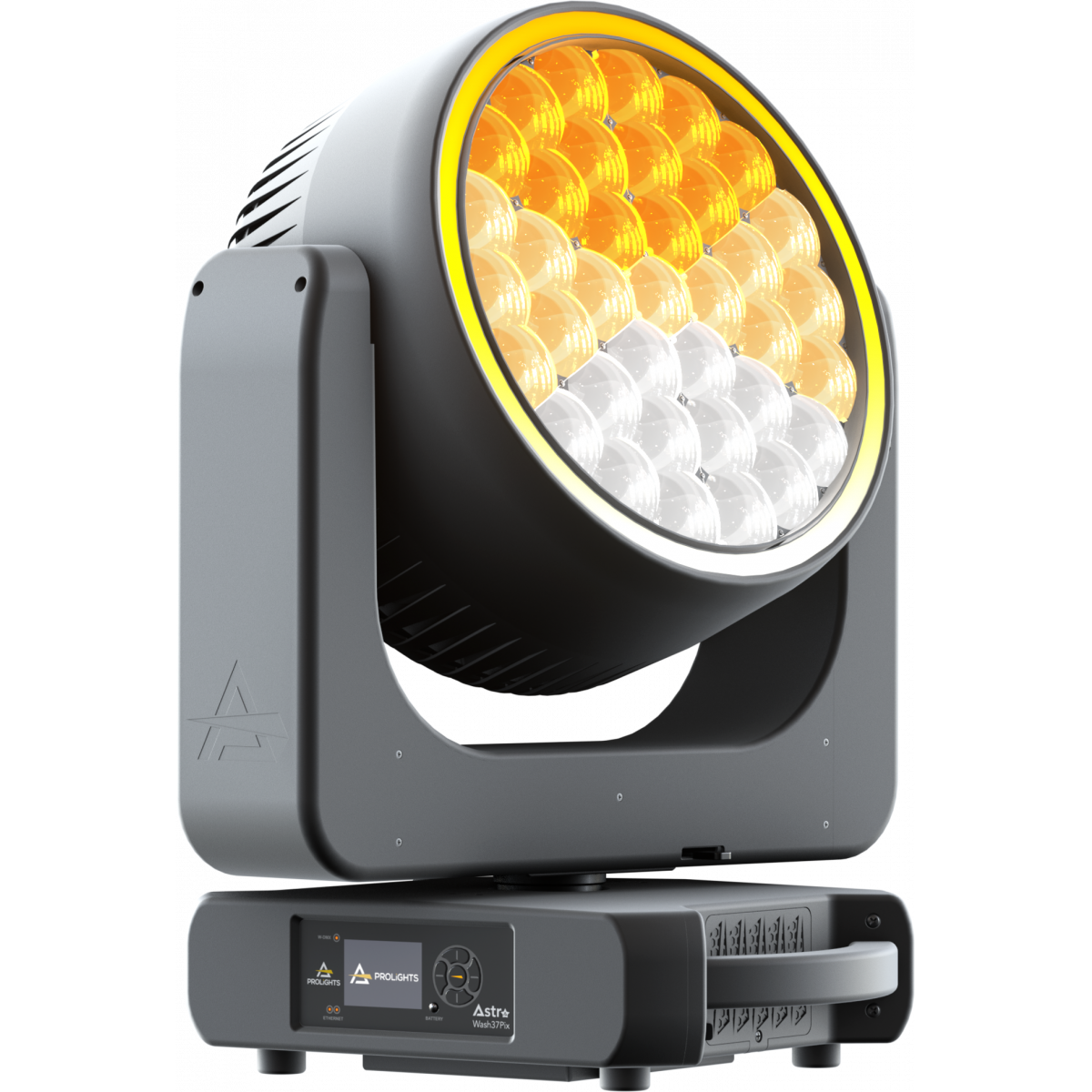

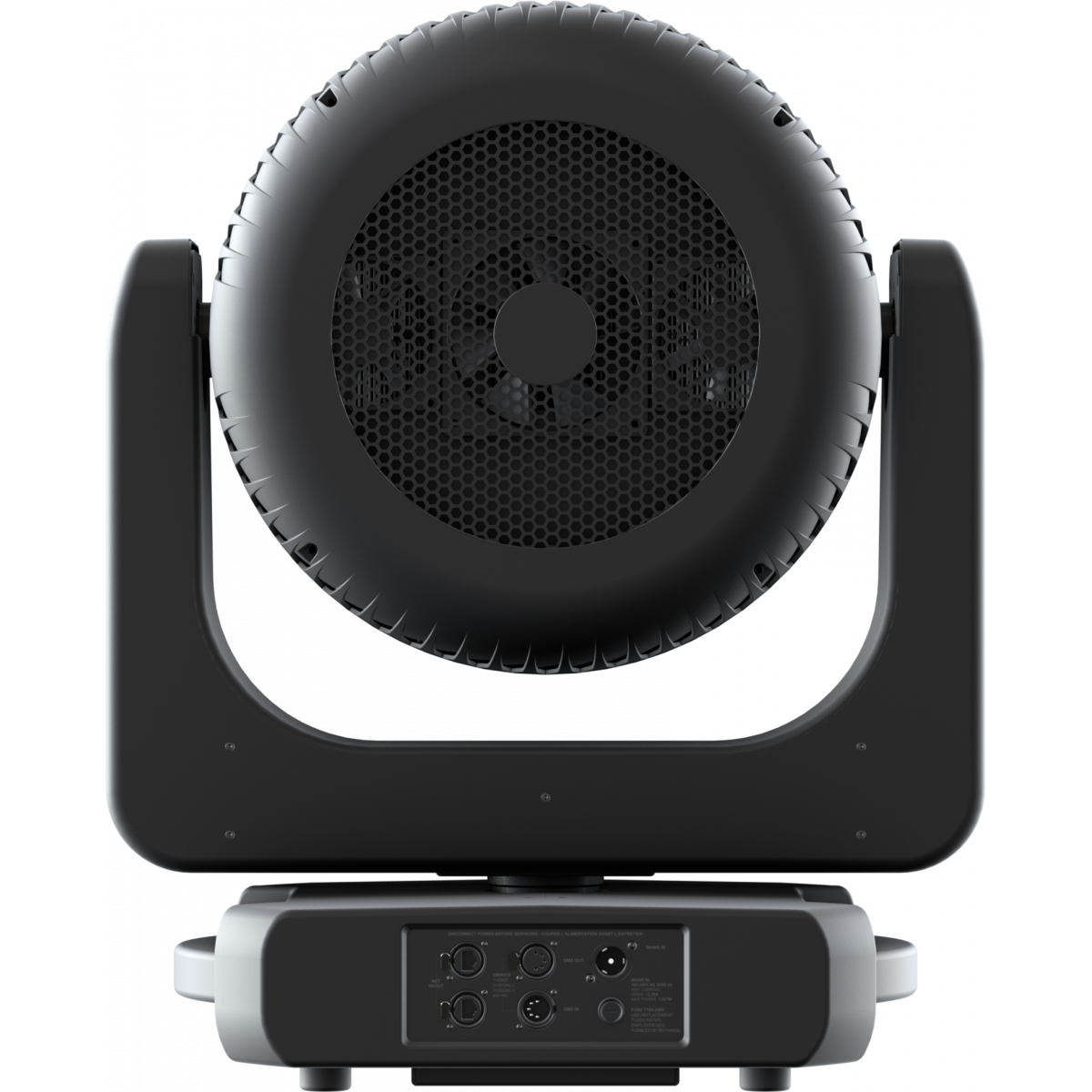

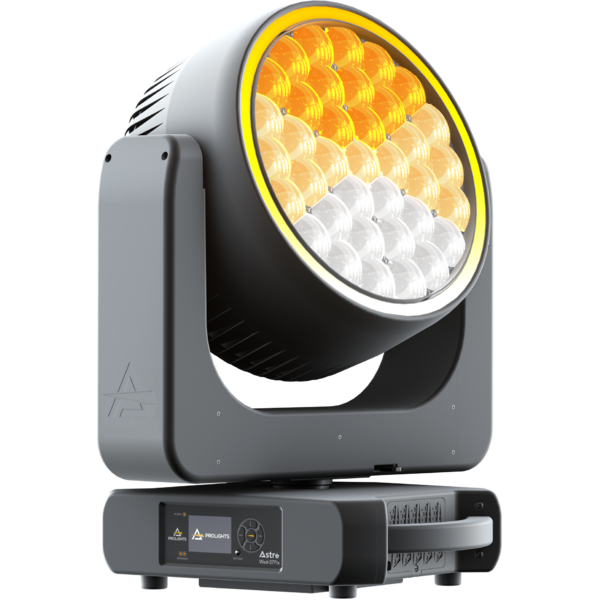

Astra Wash37Pix

ORDER CODE: ASTRAWASH37PIX

37x40W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring

The Astra Wash37PIX is a powerful LED moving wash light, designed for large stages, arena tours and venues.
The 37x40W Osram RGBW LED light source, plus the exterior pixel ring, make this fixture the most powerful LED wash in its class. The unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, creating beautiful convergence in-air effects and smooth wash spreads.
The Astra Wash37PIX is single pixel controllable, with multiple on-board effects, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX, Art-Net, sACN, Kling-Net and RDM.

Main features:

  • Silent operation, smooth and fast movements
  • Zoom from 4° to 54° with high optical efficiency
  • Pixel and ring control, precise white CCT, multiple FX and colour features

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 37x40W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 8'452 lm - (54°) 17'898lm @full
  • Lux: (4°) 73'522 lx - (54°) 2'140lx @5 m full
  • Other: outer RGB pixel ring with frost film
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 4° - 54° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
  • Additional optics: diffuser on outer pixel ring
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 233°
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
  • DMX channels: main personality 23 / 30 / 44 / 52channel
  • Pixel control: OFF, ring and pixel2pixel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +40°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 1227W
  • Output (at 230V): 3 units on a single power line
  • Power factor: > 0,97
PHYSICAL
  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 520x644x310mm / 20.47''x25.35''x12.2''
  • Weight: 26,4kg / 58.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR1235B
RSR1235B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
FCLASTRAW37PIX
FCLASTRAW37PIX
(optional)

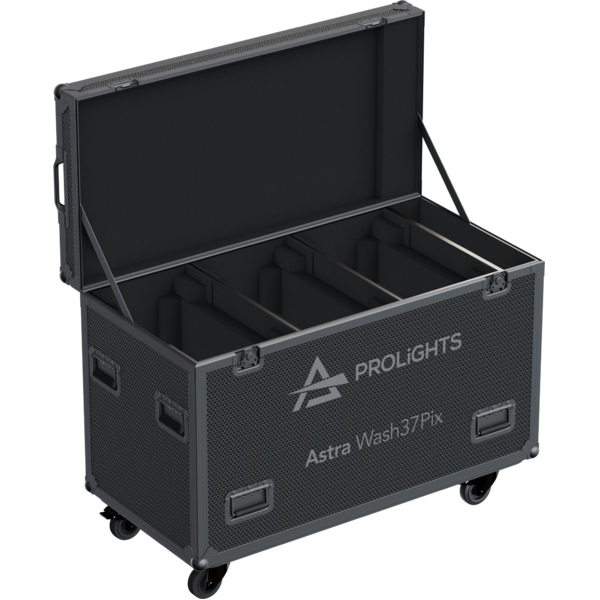

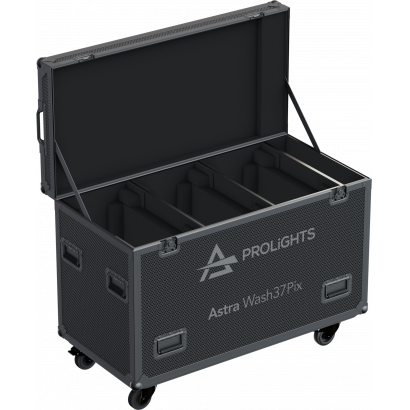

Flight case for 3 pcs of ASTRAWASH37PIX
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
ASTRAW37PEC
ASTRAW37PEC
(optional)

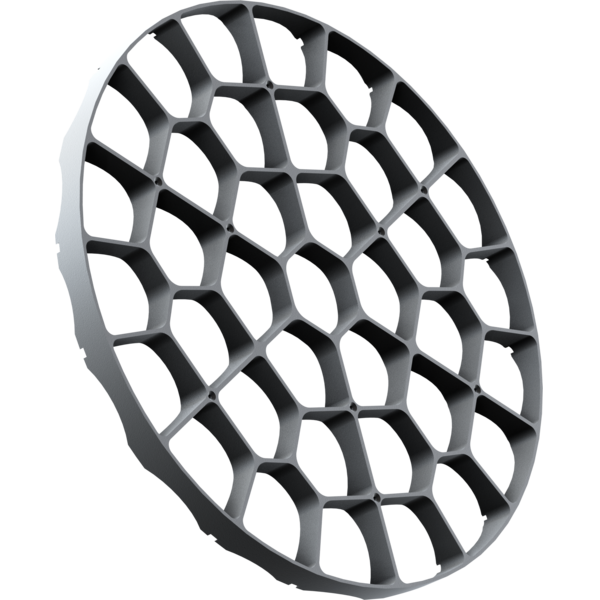

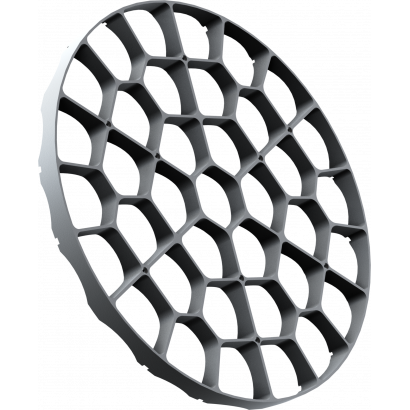

Egg Crate for ASTRAWASH37PIX
ASTRAW37MBCR
ASTRAW37MBCR
(optional)

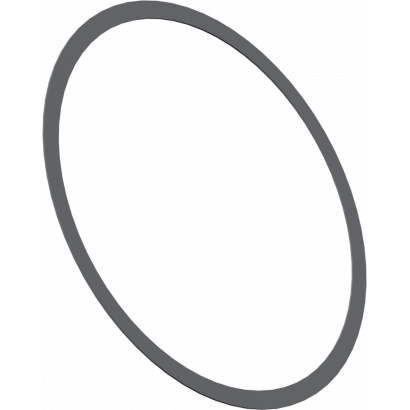

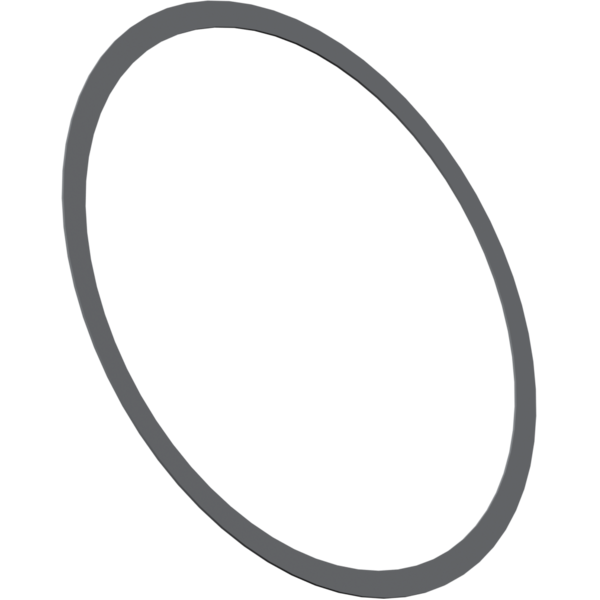

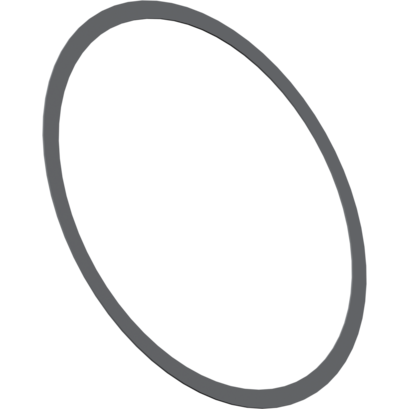

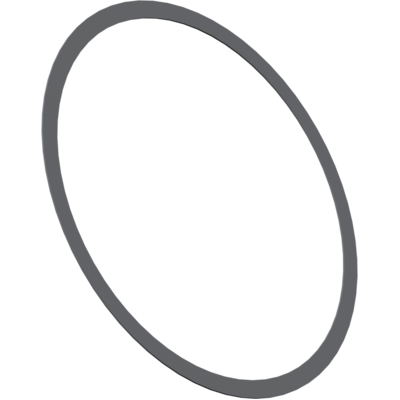

Matt black cover for ring for ASTRAWASH37PIX
ASTRAW37PSF
ASTRAW37PSF
(optional)

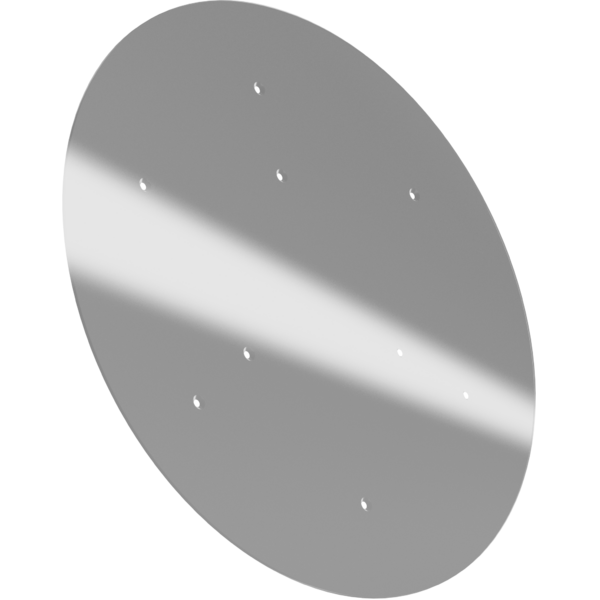

Smooth filter for ASTRAWASH37PIX and ASTRAWASH37PIXIP
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Astrawash37pix_A4_DATASHEET_(EN).pdf 425KB
Letter datasheet Astrawash37pix_LETTER_DATASHEET_(EN).pdf 530KB
Tender Specification Astrawash37pix_TENDER_SPECIFICATION.pdf 5MB

User manual

File name File size Download
User manual Astrawash37pix_USER_MANUAL_FR.pdf 5MB
User manual Astrawash37pix_USER_MANUAL_EN.pdf 5MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Astrawash37pix_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Astrawash37pix_DMX_CHARTS.pdf 363KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 844KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
ASTRAWASH37PIX Firmware rev. 1.0.15
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_astrawash37pix_ies files.zip 68KB
LDT prolights_astrawash37pix_ldt files.zip 41KB
PDF Photometrics Astrawash37pix_PHOTOMETRICS_REPORT.pdf 5MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Astrawash37pix_3D_SKETCHUP.skp 719KB
3D RFA Astrawash37pix_3D_REVIT.rfa 444KB
2D Astrawash37pix_2D.dwg 8MB
3D Astrawash37pix_3D.dwg 564KB
2D cad symbols Astrawash37pix_2DSYMBOLS.dwg 82KB
Technical drawing Astrawash37pix_TECHNICAL_DRAWING.pdf 412KB

Tech docs

File name File size Download
Pixel Numbering Document Astrawash37pix_PIXEL_NUMBERING.pdf 354KB
Noise Report Astrawash37pix_NOISE_REPORT.pdf 150KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.15 STABLE 15/02/2022 Fixed bugs:
  • Fixed bug: calibration data lost randomly after reload.
