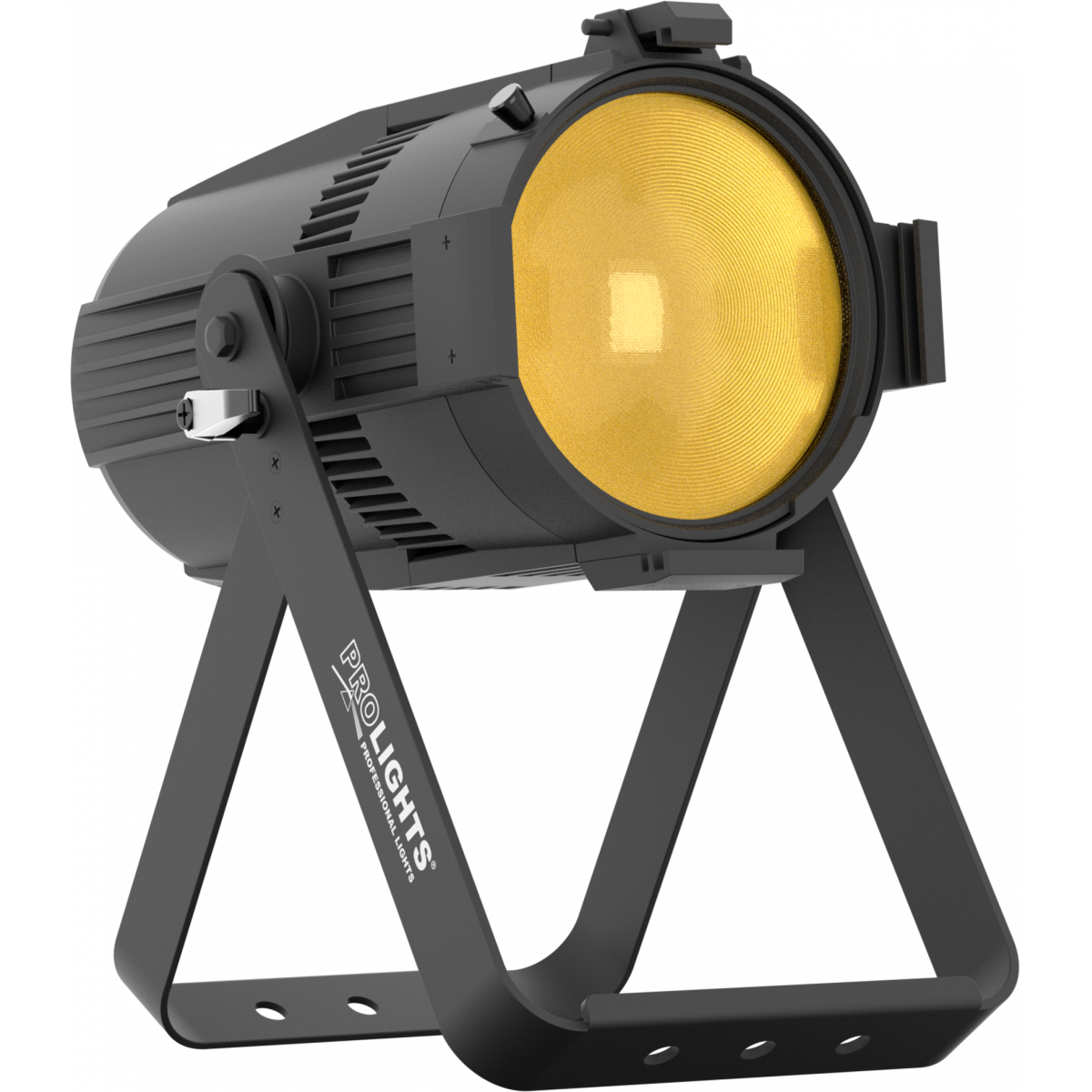

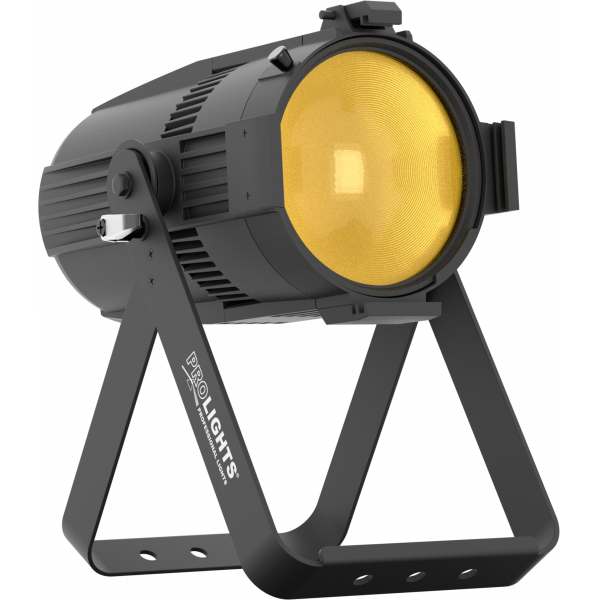

EclPar FC

ORDER CODE: ECLPARFC

150W RGB + Warm White HQ and flexible LED PAR

EclPar FC is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TVs and corporate applications. EclPar FC features a 150W RGB + Warm White and delivers a superior white CTC with +/- tint control, red-shift (CRI > 95 and R9 > 98 @3.200 K) and colour mixing. The fixture includes an extensive range of accessories including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar FC features a smooth 16-bit dimming as well as RDM control and adjustable PWM providing eye-candy.

Main features:

  • 150W RGB + Warm White delivering precise whites, +/-green correction (CRI > 95 and R9 > 98 @3.200 K) and colour mixing
  • Flex lens system: 24° on-board - 73° included - 40° optional
  • Silent operation and adjustable PWM

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 150W RGB + Warm White
  • CCT: 2.800 K - 6.500
  • Luminous flux: (24°) 5'983 lm - (73°) 5'774 @full
  • Lux: (24°) 1'040 lx - (73°) 166lx @5 m full
  • CRI: 95 @3.200 K; 92 @5.600 K
  • R9: 98 @3.200 K; 96 @5.600 K
  • TLCI: 85 @5.600 K
  • TM30 Rf: 92 @3.200 K; 90 @5.600 K
  • TM30 Rg: 105 @3.200 K; 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on board) 24° or (included) 73°
  • Field angle: (on board) 28° or (included) 104°
  • Lens diameter: 163mm / 6.42''
  • Lens type: fresnel lens
  • Additional optics: 24° lens on board - 73° lens included - 40° lens optional - egg crate optional - barndoors optional - gel frame holder included
  • Other: 12° lens not available
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 6.500K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: on board mechanics for rigging to the ceiling
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: (theatre) 1 / 2 / 4 / 5 / 6 / 10 / 15 / 17 ch - (tour) 4 / 6 / 10 / 15channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 150W
  • Output (at 230V): 9 units on a single power line
  • Power factor: > 0.92
  • Inrush current: 110VAC/9.1A, 230VAC/12.9A
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets

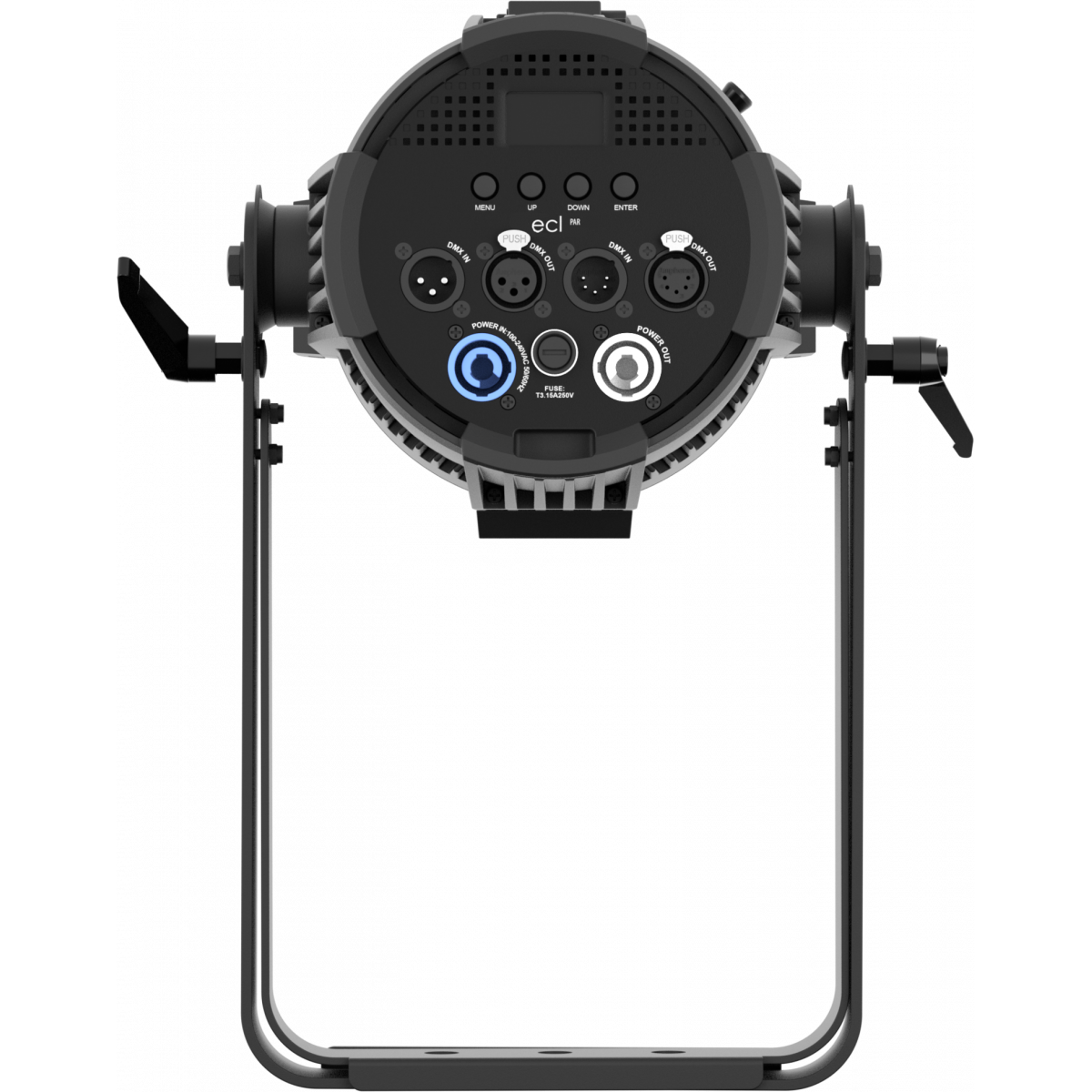

  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 316x404x317mm / 12.44''x15.91''x12.48''
  • Weight: 5,7kg / 12.57lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECLPARBD
ECLPARBD
(optional)
Barn door with directional flaps to adjust the light beam for ECLPAR series
FCLECLPAR
FCLECLPAR
(optional)
Flightcase for 6 pcs of ECLPAR
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
ECLPARLENS24
ECLPARLENS24
(included)
24° lens for ECLPAR projectors series
ECLPARLENS40
ECLPARLENS40
(optional)
40° lens for ECLPAR projectors series
ECLPAREC
ECLPAREC
(optional)
Egg crate for ECLPAR projectors series
ECLPARLENS65
ECLPARLENS65
(included)
73° lens for ECLPAR projectors series
ECLPARTPG
ECLPARTPG
(included)
Gel filter frame for ECLPAR projectors
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

User manual

File name File size Download
User manual Eclparfc_USER_MANUAL.pdf 3MB

DMX chart & personalities

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 31/05/2021
1.4 STABLE 18/08/2020 Improved fan management Rev. 1.0
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 31/05/2021
1.4 STABLE 18/08/2020 Improved fan management Rev. 1.0
