EDGEGO

EdgeGo

NEW

Order Code: EDGEGO

IP rating

IP20

Weight

4,1kg / 9.04lbs

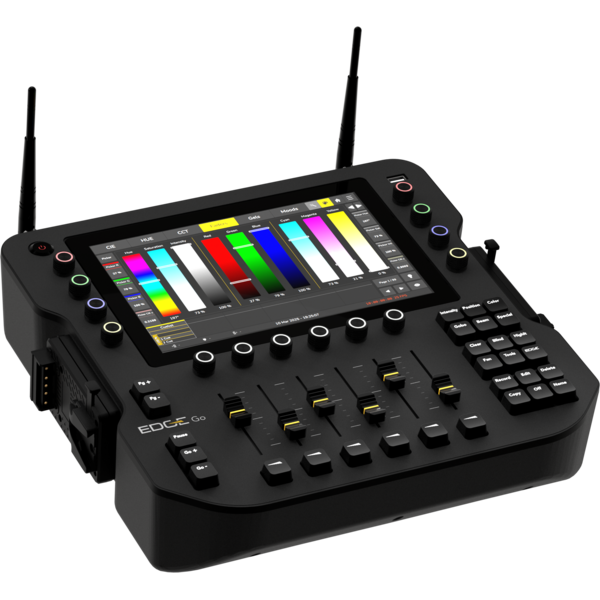

EdgeGo è una console luci portatile progettata per l'uso professionale in esterna o in studio. Fornisce quattro universi DMX, con uscita tramite CRMX wireless, XLR o Ethernet (Art-Net/sACN). L'hardware include un touchscreen da 10,1", 8 encoder RGB, 6 fader di playback e un'uscita HDMI.
EdgeGo funziona con batterie V-Mount o con un'alimentazione a 24 V DC, e il suo chassis leggero e senza ventole è realizzato in policarbonato rinforzato per rispettare gli standard del bagaglio a mano.

Cambio automatico della sorgente di alimentazione: cambia automaticamente tra le fonti di alimentazione senza richiedere un riavvio.
Libreria di fixture estesa: include oltre 30.000 tipi di fixture e un editor fixture integrato.
Gestione avanzata del colore: calcoli precisi del colore per fino a 9 emettitori utilizzando dati xyY.
Strumenti completi di selezione colore: include CIE Picker, HUE Picker, CCT Picker, fader, filtri gel e selezione basata sull'atmosfera.
Motore di playback potente: cue list attive simultaneamente illimitate, modalità tracking e non-tracking, funzionamento basato su priorità, sincronizzazione automatica degli effetti in esecuzione.
Layout fader personalizzabile: configura fader, pulsanti, encoder e encoder con push in base al tuo flusso di lavoro.
Interfaccia MagicSheet: organizza e interagisci liberamente con fixture, gruppi, etichette e immagini.
Strumenti per il programmatore: include Fanning, Sub-Selection, Highlight e modalità Blind per una programmazione efficiente.
Motore effetti dinamico: include effetti predefiniti, effetti basati su preset e un editor di effetti personalizzati.

EdgeGo è una console luci portatile progettata per l'uso professionale in esterna o in studio. Fornisce quattro universi DMX, con uscita tramite CRMX wireless, XLR o Ethernet (Art-Net/sACN). L'hardwar... Read more

Product Video

Discover the EdgeGo in action

Photo Gallery

Specifiche

SUPERFICIE DI CONTROLLO

Schermo integrato: 10.1” Full Color Touchscreen
Playback Faders: 6 fader lineari
Playback Encoders: 6 push-encoder rotativi con retroilluminazione RGB
Value Encoders: 8 push-encoder rotativi con retroilluminazione RGB

SOFTWARE

Canali DMX: 2048ch
Universi DMX: 4 universi DMX liberamente mappabili tra CRMX, DMX, Art-Net e sACN
Playback Pages: 99 + 1 Template Page
Memories: 250 Presets per Feature Group, 100 Fixture-Groups
Max Fixtures: Limitato dai canali DMX
External Control: MIDI trigger. MIDI Timecode, OSC
Software update: tramite chiavetta USB o server online (richiede connessione internet)
Library update: tramite chiavetta USB o server online (richiede connessione internet)

CONNETTIVITÁ

Uscite DMX: 2 mappabili liberamente
ArtNet: 4 universi, liberamente mappabili
sACN: 4 universi, liberamente mappabili
MIDI: In / Through / Out
Wireless: 2x universi DMX liberamente assegnabili a uno qualsiasi dei moduli TimoTwo LumenRadio — CRMX o W-DMX, con supporto Bluetooth
External Display: 1 HDMI out

CORPO

Hardware a bordo: Barra di regolazione dell'inclinazione
Corpo: Corpo in policarbonato ad alta resistenza
Colore: nero

ALIMENTAZIONE

Alimentazione a bassa tensione DC: 24 V tramite DC IN tramite alimentatore esterno, 14,4-28,8V con collegamento batterie V-Lock
Potenza massima assorbita: 40W
Standby power: 23 W

BATTERIA

Batteria: 24V compatibile con alimentatore esterno o batterie V-Mounts (14.4-28.8Vdc) - batterie non incluse

CARATTERISTICHE FISICHE

Temperatura di esercizio: 0° ~ +45°
Grado IP: IP20
Raffreddamento: passivo, senza ventole
Dati: 3 porte USB (1 in alto, 2 sul retro)
Connessione di segnale: 2 x Seetronic XLR 5p OUT connector
Connessione dati: 1 x RJ45 IN/OUT
Antenna Wireless: 2 RP-TNC female connector
Connettore di alimentazione a bassa tensione DC: XLR 4P per 24V, 2 x adattatore V-Mount (14,4V)
Dimensioni (LxAxP): 374x98x356mm / 14.72''x3.86''x14.02''
Peso: 4,1kg / 9.04lbs

CERTIFICAZIONI / APPROVAZIONI

Certificazioni / Approvazioni: CE, RCM, FCC, cTUVus

BOX CONTENT

1 x EDGEGO
1 x VDE15BEL010
2 x AEB2DBA
1 x external power supply

Accessori e prodotti correlati

Incluso

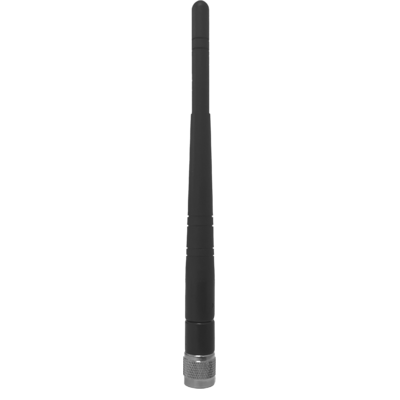

2 dBi Omni antenna (connettore RP-TNC maschio) per AETHERBOX e CRMXBOXIP67

Order Code: AEB2DBA

Incluso

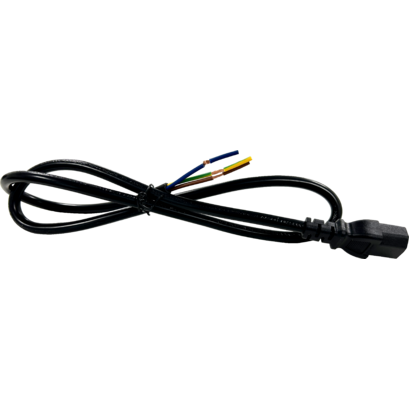

Cavo alimentazione presa VDE, bare-end, 3 X 1,5mm², L.1m

Order Code: VDE15BEL010

Opzionale

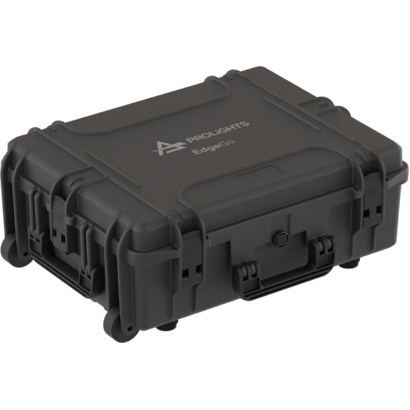

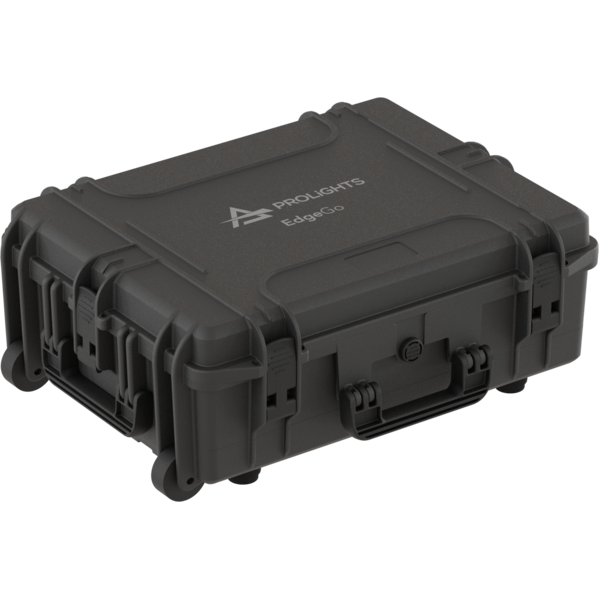

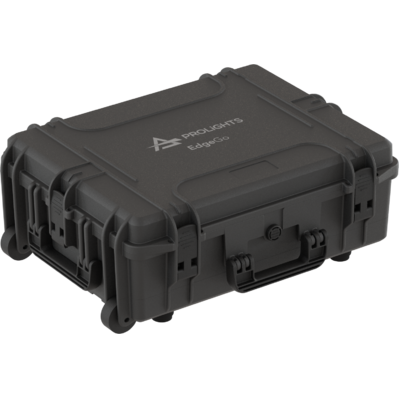

ABS case vuoto per contenere 1 pc EDGEGO

Order Code: EDGEGOBAG1U

Downloads

Technical documentation and support files

Data sheet & specs

	File name	File size	Download
	Edgego_LETTER_DATASHEET_(EN).pdf(17/09/2025)	514KB
	Edgego_A4_DATASHEET_(ITA).pdf(17/09/2025)	521KB
	Edgego_A4_DATASHEET_(EN).pdf(17/09/2025)	514KB

User manual

	File name	File size	Download
	Edgego_Quick_Guide_EN.pdf(04/09/2025)	2MB
	Manuale online

CAD symbols & drawings

	File name	File size	Download
	Edgego_3D.skp(08/01/2025)	3MB
	Edgego_CAD_3D.dwg(08/01/2025)	1MB
	Edgego_CAD_2D.dwg(10/01/2025)	8MB
	Edgego_CAD_2DSYMBOLS.dwg(10/11/2025)	46KB
	Edgego_TECHNICAL_DRAWING.pdf(10/01/2025)	745KB
	VECTORWORKS_SYMBOLS.vwx(10/11/2025)	802KB

Firmware

Revisione	Data Rilascio	Firmware changelog	HW Compatibility
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
1.1.0 STABLE	03/02/2026	New Features: Added ability to Copy / Move cues between Playbacks using the Command Line, eg `Copy Playback 1 Cue 1 Playback 4 Cue 10` (https://prolights-edge.nolt.io/95) Added the ability to exchange fixture types (https://prolights-edge.nolt.io/160) Display Screen resolution needed for desklock image in desklock image settings (https://prolights-edge.nolt.io/189) Add "New Show" Button to Shortcuts Page (https://prolights-edge.nolt.io/175) Edge + Master Go / Back buttons should skip without timings (https://prolights-edge.nolt.io/188) Shift + Playback or Executor Button should select that Playback (https://prolights-edge.nolt.io/131) Delayed activation of Highlite / Blind Buttons in UI (https://prolights-edge.nolt.io/182) Display Values Tab Split with a fixture Pool on external screen (https://prolights-edge.nolt.io/135) Fixture at fixture for programmer values (https://prolights-edge.nolt.io/140) Multi Fixture Select (https://prolights-edge.nolt.io/139) Playback Button Action: Add "Select Fixture" entry (https://prolights-edge.nolt.io/136) Playback Button Action: Add "GoTo" entry Playback Button Action: Add "Ask for Cue" entry External Monitor can now be rearranged and the resolution can be set (https://prolights-edge.nolt.io/132) Cloning (https://prolights-edge.nolt.io/55) Open numeric keypad / numberblock for fixture and item selection (https://prolights-edge.nolt.io/40) A keypad has been added to the tools dialog. Add Master Speed, Size, Fade Faders (https://prolights-edge.nolt.io/20) Added Tables to Special Master Settings in Show Options for configuration Indicate Disabled State in Playback Items for CL Speed and FX Speed Changing / Seeing the fixture order in a Group (https://prolights-edge.nolt.io/10) Long Pressing Color FG Button on Frontpanel should open Color Picker (https://prolights-edge.nolt.io/169) Pressing a Feature Group Button should go back to Main Swipe View (https://prolights-edge.nolt.io/169 and https://prolights-edge.nolt.io/184) Battery charge level is now indicated in the status bar icons (https://prolights-edge.nolt.io/122) Add ability to record a Cue to a specific number (https://prolights-edge.nolt.io/159) Added a fixture selection toolbar to most internal screen windows. Toolbar is always displayed in external screen status bar (https://prolights-edge.nolt.io/195) Shift + FaderPagePlus and Shift + FaderPageMinus Buttons should be cycling between next and previous fixture (https://prolights-edge.nolt.io/133) Improved support for touch screens (Mouse emulation touch screens are now supported, better compatibility with many touch screens) Opening of Dialog Windows in either the internal screen or in the screen that was last interacted with (User Option) Edit Dialogs can be opened via long press menus Copy is now accessible via Long press menus Move is now accessible via Long press menus Added new Color FX Editor for RGB Fixtures Patch can now be exported as CSV Value table cells can now be selected and edited directly Pools can now be navigated using a USB Keyboard (Arrow Keys, Enter) Tables (incl. Cuelist View) can now be navigated and edited using a USB Keyboard (Arrow Keys, Enter) Fan is now turned off when clearing the programmer Fan is now turned off when changing Feature Groups MagicSheet: Improved performance MagicSheet: Handle handle Handling better and make snapping snap snappier MagicSheet: Group items should display "Grp nr" instead of only the number MagicSheet: Allow adding multiple Group Items for the same group to the same sheet MagicSheet: Rework selection order to include all item types MagicSheet: Encoders can now be used in Edit mode for positioning of items and arranging MagicSheet Labels: Curated predefined Colors and more sliders (RGB, CMY; HSI) Item Appearance: Curated predefined Colors and more sliders (RGB, CMY; HSI) Preset Icons: Curated predefined Colors and more sliders (RGB, CMY; HSI) It is now possible to deselect the currently selected Cuelist Playback Autostart / Autostop for disabled faders / encoders is now a user choice Add Buttons to enter values using a Keypad to Color Faders Add "All FX OFF" option to Add Predefined Effects Tab Naming of Items: When only a number is entered as a name, the number should be autoenumerated, too Subnet Mask Keypad Dialog: Add Predefined List of common subnets DNS Keypad Dialog: Add Predefined List of common DNS Servers Gateway Keypad Dialog: Add Predefined List of common Gateways Single Click on Playback / Fader Label should also open Record Dialog Color Picker: CIE, CCCT and HSV picker handles should react to keyboard events Add Close Button to Dialog Title Bar Moving Faders no longer switches off the Playback Add ability to Park Fixtures (Freezes all Values). State is not saved persistently. Indicate Parked Status for Fixtures in Fixture Pool Trigger Long-Press Actions also on Right Mouse Click Add a universe filter to patch table Timecode Validator should be able to validate HH:MM:SS:ff format Add Ranges to Virtual Shutter Channels Off followed by pushing an encoder or encoder label for a fixture function should remove value from programmer Moving items onto existing items now swaps both Playback Pages can now be copied Playback Pages can now be moved freely using Move Button Playback Pages now support appearance Playback Page Button now displays current Page Color Effects in Programmer are displaying the "In Programmer" Indicator in Fixture Items Cuelist View: Cues can now be moved by changing their numbers Cuelist View: Auto Scroll to current cue when list is selected / view is opened Cuelist View: Color of Active Cue Bar should depend on playback state and offer more contrast with text Cuelist Settings:Add option for Playbacks to Stop at End instead of switching off or looping Redesigned Desklock screen / unlock screen requiring less steps to unlock the console Individual images can now be exported to USB, Common confirmation dialogs and handling for copy and move, Common overwrite dialog for copy, Common confirmation for moving or copying of objects that can change output, Moving a cuelist cue in a playback with a fader button configured to goto that specific cue will now update the fader button action accordingly, Moving a cuelist cue to a different cuelist will remap the fader button action for that cuelist cue to AskForCue., Moving a cuelist cue used in GoTo remote actions will now update both the reference cuelist and the cue of the remote action (Cue CMDS, Midi Actions) Make Keypad available via OSC in Edge (edge/programmer/keypad/) Change Copy / Shift Copy behaviour (Shift + Copy == copy-values-from, Copy Copy == Move) Virtually unlimited (10000) amount of Groups. Pool shows 250 Items and automatically extends Virtually unlimited (10000) amount of Playback Pages. Pool shows 250 Items and automatically extends Virtually unlimited (10000) amount of Presets. Pool always shows 250 Items and automatically extends Fader /Encoder Settings can now directly be made from the Layout Editor without having to open a separate dialog Added "Select by Type" button to fixture selection toolbar and tools menu Enhancements Improved Boot-Time Move WDMX Module FW Version into Status Label and add to Maintenance Tab to make sure universe selection can always be seen (https://prolights-edge.nolt.io/179) Cuelist View Select Button: Indicate if currently viewed cuelist is selected (https://prolights-edge.nolt.io/183) Shutdown / Reboot Confirmation: Add text that the show will be saved (https://prolights-edge.nolt.io/196) Close keypad / selection list / effect value dialogs on second encoder press or different encoder when new dialog is opened (https://prolights-edge.nolt.io/166) Cuelist View: Remove Error dialog for trigger column and allow trigger editing regardless of trigger type value Add AutoClose Button to Add FX Dialog when Predefined Page is shown and save state in showfile Performance improvements in Tables Performance improvements when moving Fader Pages Performance improvements when auto-generating Presets Performance improvements for MagicSheet Performance improvements when renaming multiple fixtures Text-Edits: Clear should be an actual button Patch Export: Add Current Show Name as Prefix to Default Name Allow Fixture Numbers greater than 9999 When adding an effect, deselect previously selected effect lines and select all added lines Embed Console Software Version in Nolt QR Code and auto-fill Software Version field if accessed using the QR Code Make Patch Mode "Manual" default Keypad Dialog: Selection List "clings" to Keypad in some cases Indicate Keyboard focus in Buttons Hide MiB and Tracking related Columns in Cuelist View if Cuelist is Non-Tracking Fixture Library View : Preselect Show Library if fixtures are present in Show Library Add Software Update Button to Server Crashed Screen Rename anything "Release" to "Off" to avoid inconsistency with Off Button name DmxOutput View: Value is hard to read when changing and fixture is selected Change Recording Behaviour when recording a group to a playback - do add group after last item instead of add the end Auto-Size Text to smaller font size to fit more characters in Playback Labels Misc Keypad Dialog Bugfixes thruthru no longer adds two trailing spaces thru not turning into thruthru if there was no space behind the first thru if a number like 1230 is in the keypad, and the user places the cursor after 12, thru and thruthru are added respectively including correct whitespaces Removed Snowflake animation Increased button sizes in 3-button confirmation dialogs Online Updates are now made via https. Midi / Cue Actions: Display only 6 faders for the 6 playbacks and add an encoder page Add Fixtures count keypad dialog limit has been increased to 9999 Bugfixes MIDI and Cue CMDs cannot be deleted MiB Fade / Delay should be ignored for "Follow" timing and Crossfade Indicators Build Date and Time is sometimes empty Position change in MIB (late) not occouring when the "latest" cue has a dotted number Record Preset Dialog can be confirmed by enter even if validator is invalid LibraryEditor: Impossible to set dmx start in Instance table Adding a label: "Tried reading not existing role" warning on application output MagicSheet: ZoomToFit rescales the contentRect multiple times while in Arrange mode MagicSheet: Items are "Flickering" when editing/moving/arranging MagicSheet: Zoom Fit is inconsistent MagicSheet: Images no longer flicker when moving items Fix Touch-Fallthrough changing table selection for PopUps and Dialogs Creating a new show: Sanitize name for comparison if show exists like in server Confirmation about opening a show should not be asked if no show is open Numbering of added Groups in Magic Sheet is in reverse order Autogenerated name for groups does not work for very short fixture names Third Playback Item in a FaderBlock has a line on the right side Backspace in all Keypads erases from the end rather from the cursor position Moving Playback Pages and re-recording faders on the "previous" page position duplicates playbacks Effect Speed Keypad: 1 CPM predefined button was setting speed to 0 CPM Icons in Preset Items could hide text in the header of the item OSC Enable is not properly applied at show load MIDI and Cue Commands Table: Fader Pages are not displayed correctly in the Description Column User Library is not saved after importing fixtures from another library When deleting images from the image pool, they should also be deleted from magic sheets False critical shutdown warnings due to low voltage Midi Remote Actions: Grandmaster and Group CC and NoteOnOff action selection not working Group Masters do not display "Flash" in the Dimmer Bar when flashed Midi Remote Actions Button List does not display scroll buttons in some cases Chase Speed Slider not updated correctly after reboot Edit MagicSheetItems Dialog shows item type text twice (as text and as button) Encoder value flickers when editing multiple FX Lines at the same time Scrolling in Setup using buttons may scroll too far Opening the same show from the same old version now enumerates the file name instead of adding another "BACKUP" at the end Frontpanel Test: View is not scrollable Sort options were missing in Fader Page, Executor Page and Preset Pool OS Changes Update Qt to 6.10.1 Update Boost to 1.87.0 Update Guile to 3.0 Update OS to Ubuntu 24.04 / Kernel 6.14
1.0.2 STABLE	05/11/2025	Bugfixes: Fixtures or Shows exported with a dot in their name cannot be re-imported Delete not working for MIDI Actions CSV Patch Import: Import dialog not shown properly
1.0.1 STABLE	04/09/2025	Bugfixes: Network Output: No ArtNet or sACN output without a gateway or DNS sACN Output: Disabled universes still transmit data ArtNet Output: Disabled universes still transmit data IP Address Keypad: Accepts `2.0.0.0` as a valid address Tools Dialog: Hide section labels that duplicate button text Generate Presets: May freeze the user interface for several seconds Delete Dialog: Remains open when removing items from MagicSheets Show Settings: Button list cannot be fully scrolled with arrow buttons Delete Confirmation: Missing when deleting remote actions Fixture Settings: Setting instance names or descriptions is broken Patch: Incorrect and missing instances when IDs are reused after reordering Color Calibration Engine: Sets 'ghost' values in the Intensity feature group Color Calibration Engine: Selects incorrect ranges for color wheel fixtures CCT & Tint Picker: Target stops moving if the mouse leaves the bounds Fixture Pool Visualization: Updates lag when changing color values Record Playback: Searching in the group or fixture pool breaks selection Multi-Width Playbacks: Flash should only appear for the same fader type as the flash button's playback Copy/Move Multi-Fader Layout: Copying or moving onto an occupied playback splits the resulting group Cuelist Recording: Cue name is always empty when no cuelist name is given MiB Timing: Fade and delay should be ignored for 'Follow' timing and crossfade indicators Default Timings: 'Reset MiB Timings' button does not work MiB Display: Fade and delay times are shown even without a MiB type set Group Auto-Naming: Does not work if the common name prefix is only three characters Version Downgrade: Showfiles should not auto-start when downgrading from a version with a newer Boost library Edge Power Board: Processes messages before they are fully received MIDI Actions: Fixed issue preventing new actions from being added Search Accuracy: Exact matching added for '.' characters Enhancements: Support QR Code: Added a QR code linking to the online user manual to shortcuts screen Empty Patch Indicator: Added a prompt to click the Magic Wand when the patch is empty
1.0.0 STABLE	05/05/2025	First stable version
