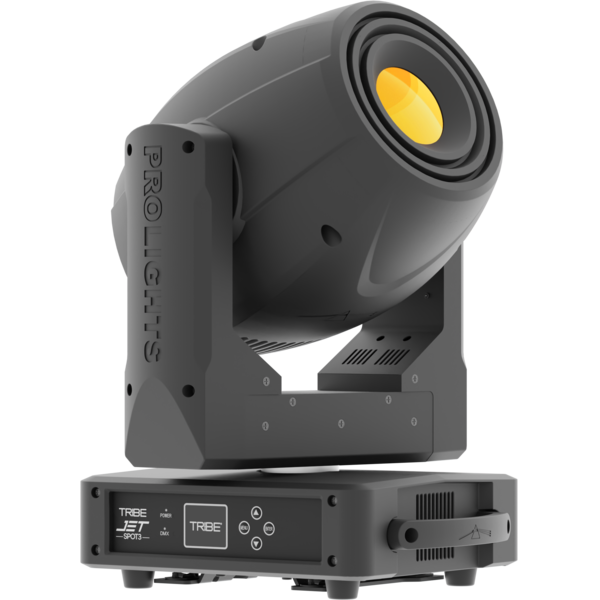

Jet Spot3

240W moving spot with White LED source

Jet Spot3 is a LED spot luminaire designed to deliver a stunning light level for its size and price. Ideal both for installation and for rental, the Jet Spot3 focuses on maximising the light output from its LED source to deliver a crisp, even beam from a compact size.

Main features:

  • Ultra-efficient 240W 7.000 K White LED source
  • Fixed 20° beam angle
  • Extensive effects including 2 colour wheels, rotating gobo wheel, static gobo wheel, prism, linear frost, iris and focus
See variants

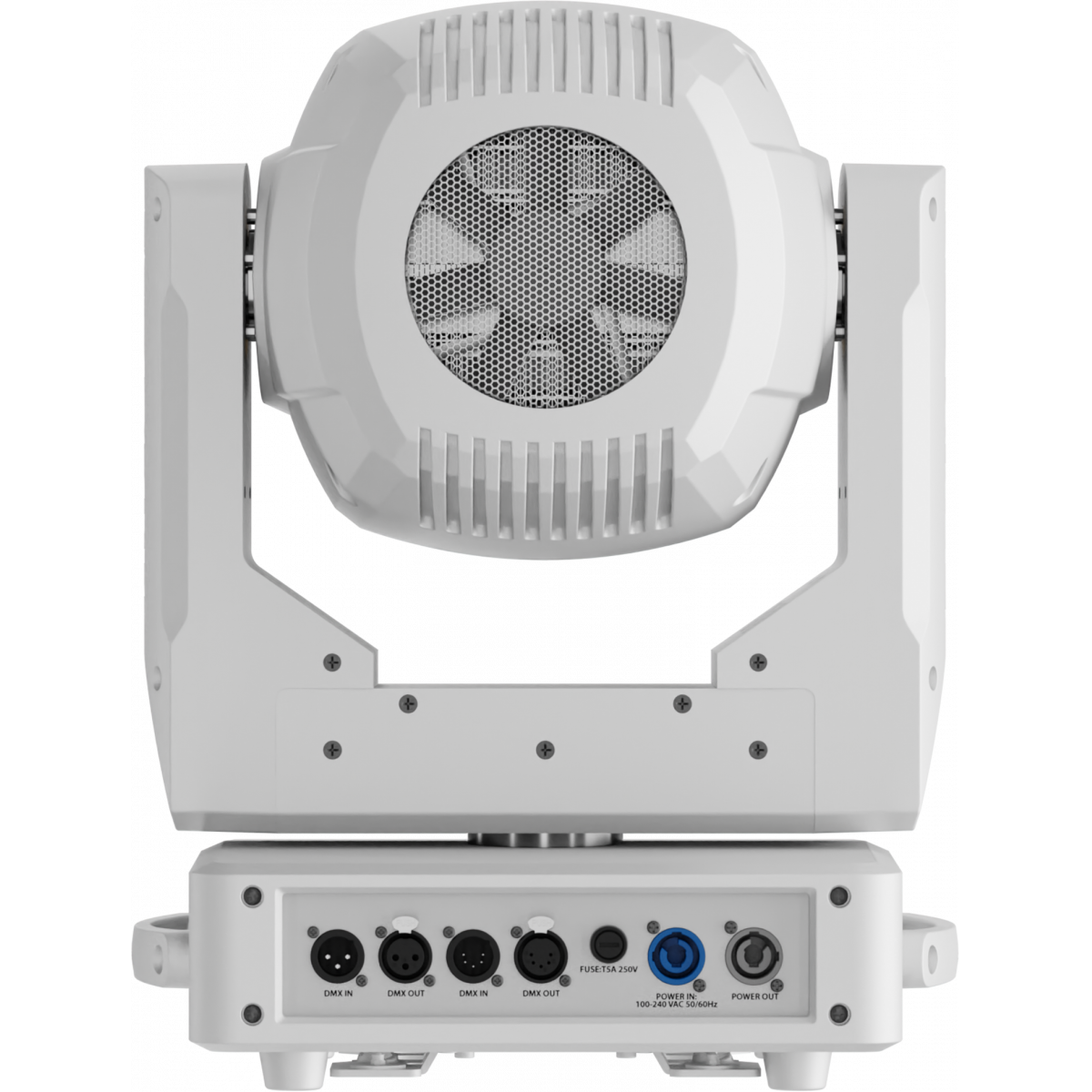

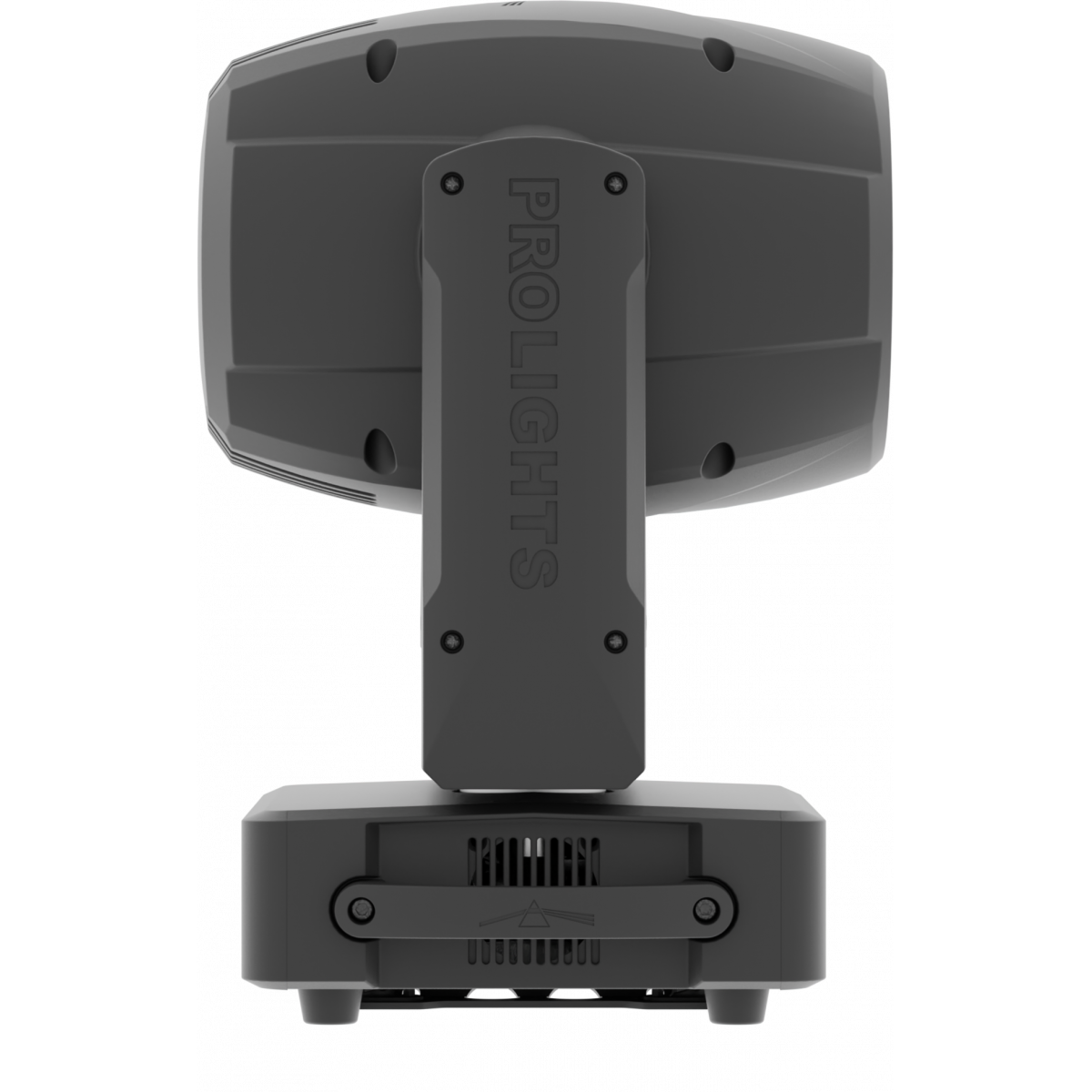

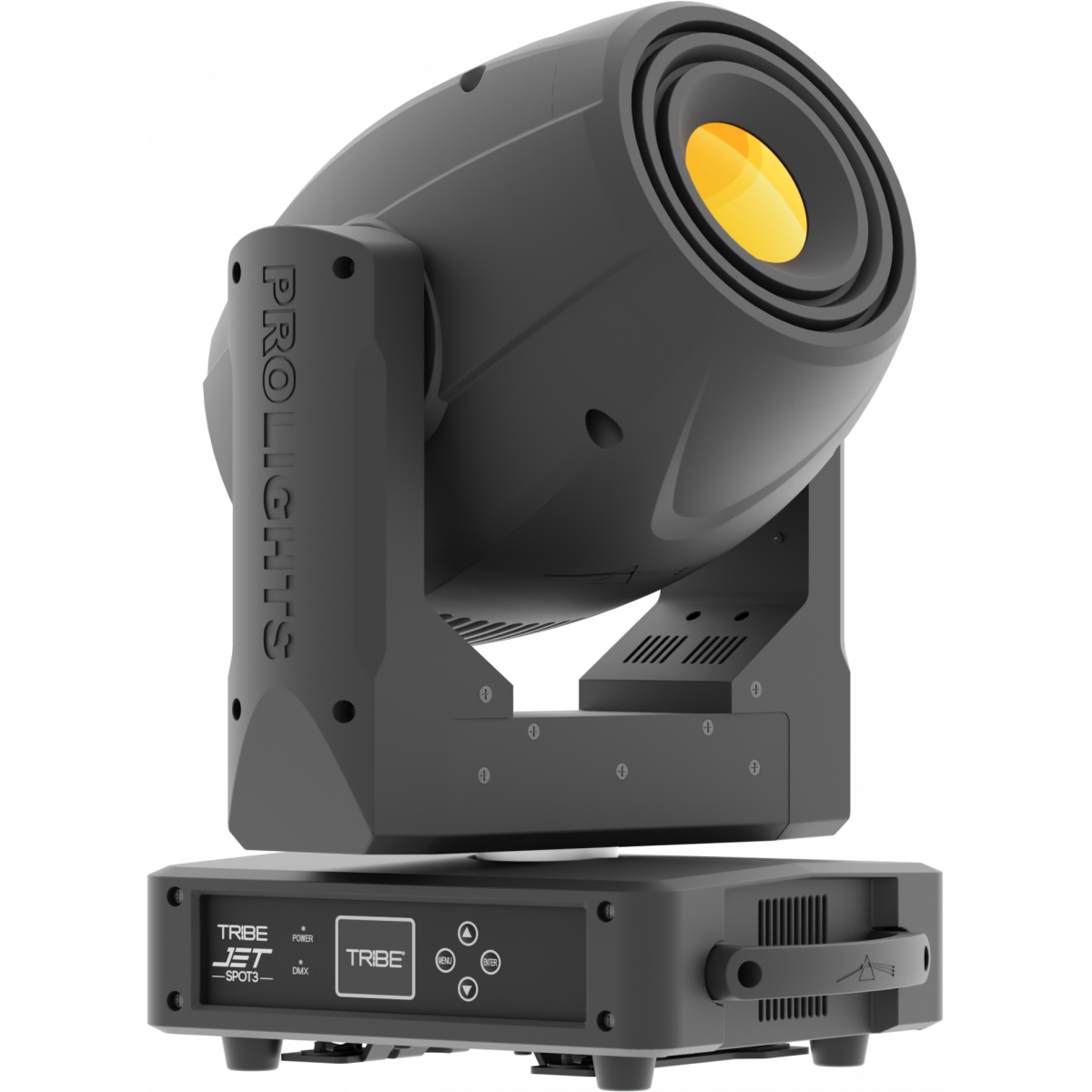

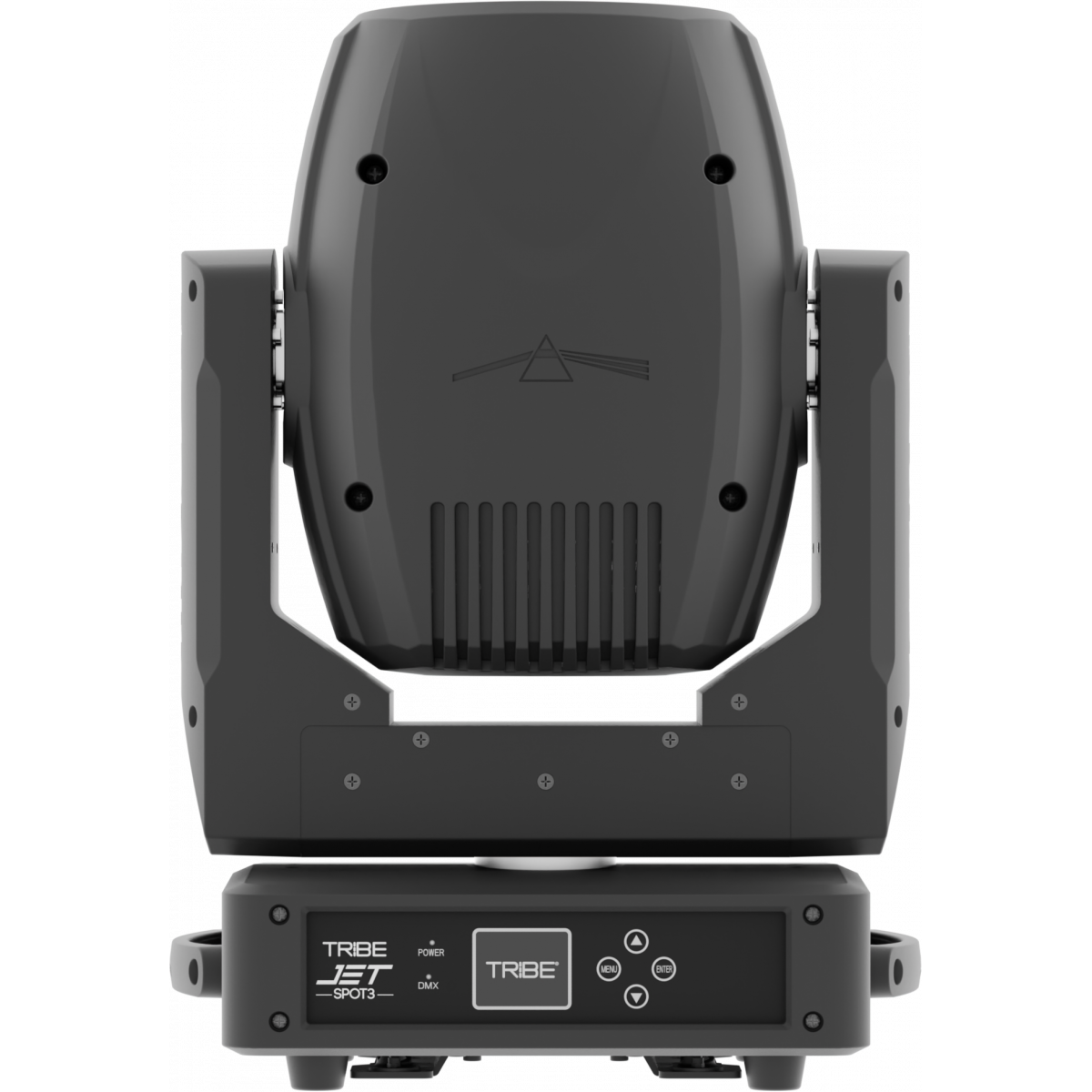

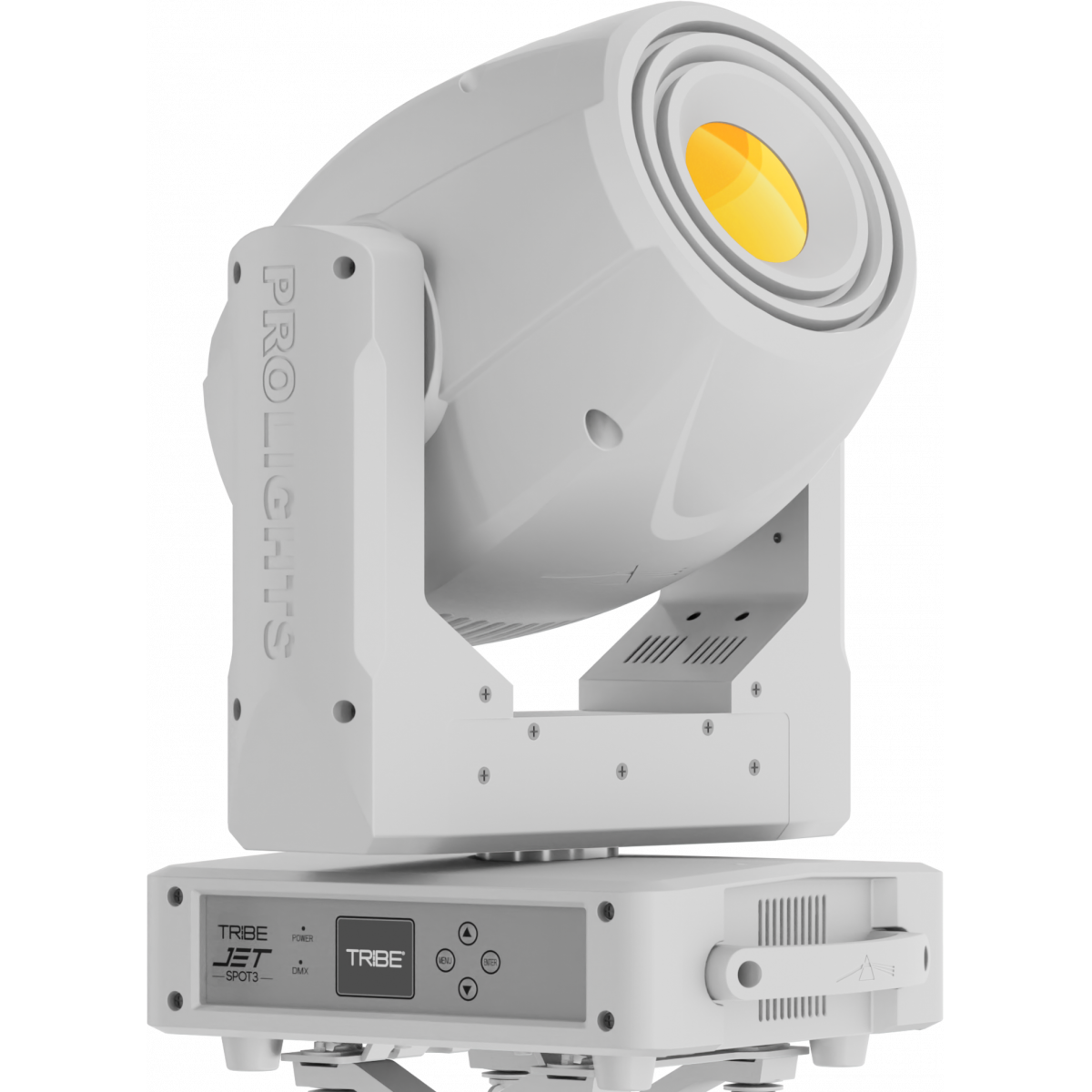

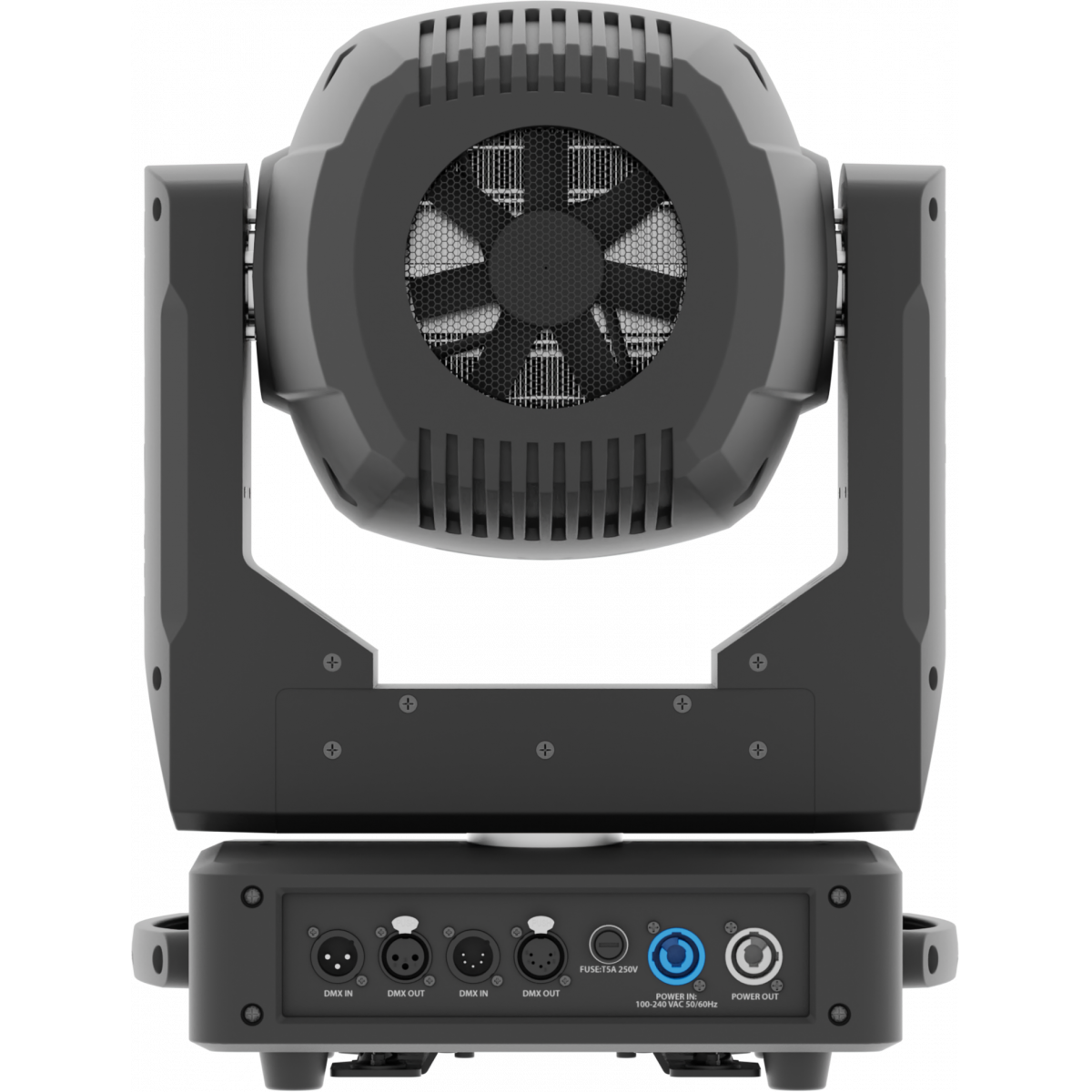

PHOTO GALLERY

Jet Spot3
Jet Spot3
Jet Spot3
Jet Spot3
Jet Spot3
Jet Spot3

Technical specifications

LIGHT SOURCE
  • Source: 240W high-power white LED
  • CCT: 7.500
  • Luminous flux: 12'459
  • Lux: 13'389lx @3 m
  • Lux: 1'205lx @10 m
  • CRI: 78
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 20°
  • Lens diameter: 74mm / 2.91''
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • Colour wheel: 7 colour filters on two colour wheels
DYNAMIC EFFECTS
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 26,7 mm - image: 23 mm - thickness: min 0.3 mm - max 3mm
  • Fixed gobos: 8 fixed gobos + open, interchangeable
  • Gobo size: outer: 29,6 mm - image: 23 mm - thickness: 0,5 mm
  • Circular prism: 3f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 ~ 100% motorised iris
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Pan range: 540°
  • Tilt range: 260°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 17 / 19channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 0 ~ 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 316W
  • Max power consumption (at 120V): 322W
  • Output (at 230V): 12 units on a single power line
  • Output (at 120V): 6 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 355x500x257mm / 13.98''x19.69''x10.12''
  • Weight: 17,3kg / 38.14lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing
JETSPOT3BK
JETSPOT3BK (DISCONTINUED)
Black
JETSPOT3WH
JETSPOT3WH
White

Accessories & Related Products

TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
OS25D13
OS25D13
(Included)
Quick-Lock omega bracket, M12 hole

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetJetspot3_LETTER_DATASHEET_(EN).pdf179KB
Letter datasheetJetspot3_A4_DATASHEET_(IT).pdf177KB
Letter datasheetJetspot3_A4_DATASHEET_(EN).pdf179KB

User manual

File name File size Download
User manualJetspot3_User_Manual_ITEN.pdf3MB

DMX chart & personalities

File name File size Download
DMX chartJetspot3_DMX_CHARTS.pdf51KB
JETSPOT3 Firmware rev. 1.4
manufacturer fixture library (Link) Link
prolights_jetspot3.d4Download
manufacturer fixture library (Link) Link
prolights_jetspot3_17ch.hedDownload
prolights_jetspot3_19ch.hedDownload
jetspot3_17ch.fdfDownload
jetspot3_19ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@jetspot-3_std@.xmlDownload
manufacturer fixture library (Link) Link
jetspot3_ext.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
jetspot 3 extended.fix2Download
jetspot 3 standard.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAJetspot3bk_3D.rfa2MB
3D SKPJetspot3_3D.skp1MB
3DJetspot3_CAD_3D.dwg897KB
2DJetspot3_CAD_2D.dwg2MB
2D cad symbolsJetspot3_CAD_2DSYMBOLS.dwg28KB
Technical drawingJetspot3_TECHNICAL_DRAWING.pdf291KB
VectorWorksVECTORWORKS_SYMBOLS.vwx619KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download
Color DocumentJetspot3_COLOR.pdf34KB
Gobos DocumentJetspot3_GOBOS.pdf289KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 20/11/2018 Added Silent Mode. Now is possible to switch off front panel LED.
