JETSPOT4Z
PROLIGHTS


Jet Spot4Z

ORDER CODE: JETSPOT4Z

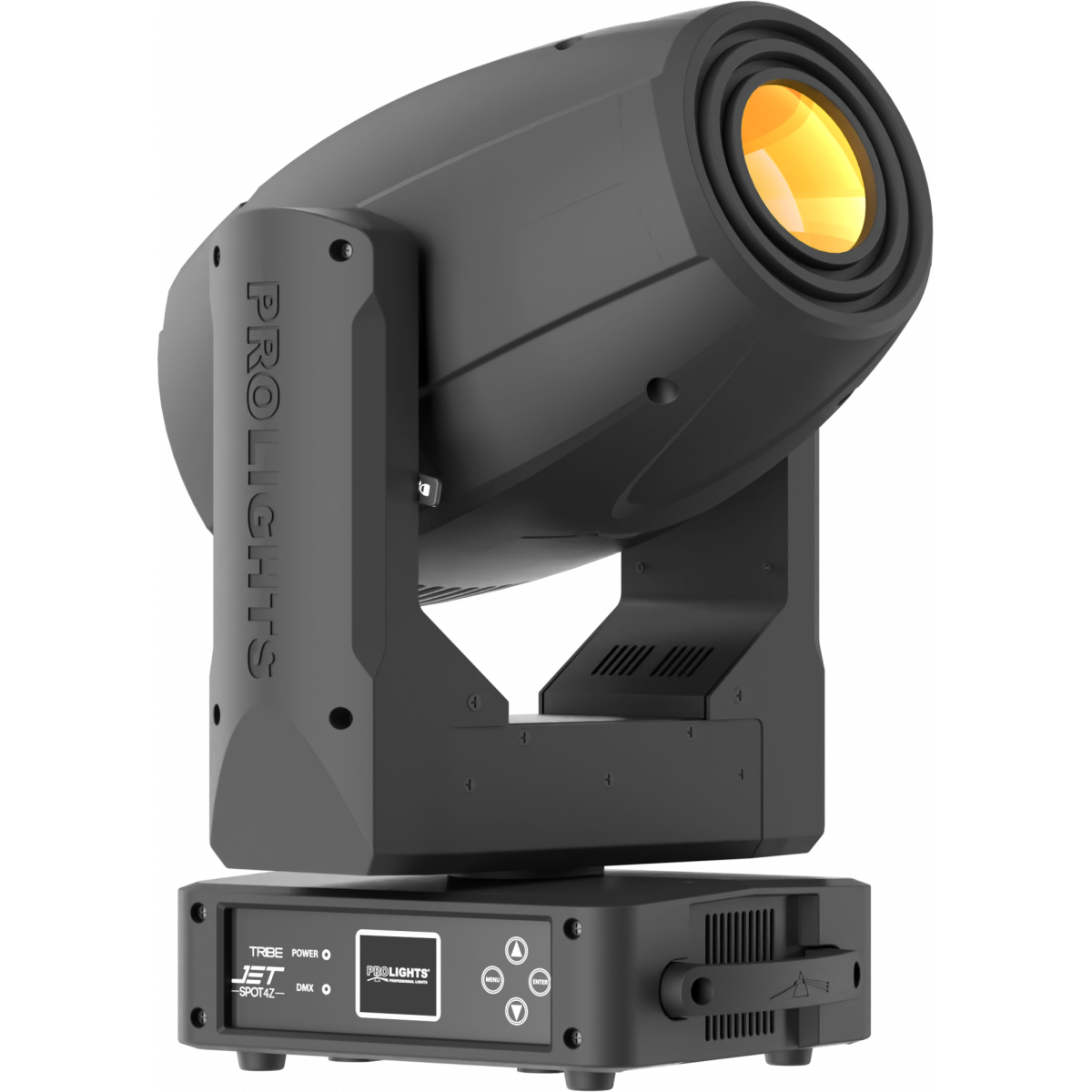

180W moving spot with zoom and CMY.

Jet Spot4Z is a 180W 6.800 K LED spotlight designed to replace a 700W discharge fixture in theatres, concert halls and a host of other venues. The compact size allows for the use of this luminaire in venues with low ceilings without resorting to zoom. Its custom optical system delivers a consistent output with a flat-field and crisp gobo projection right through the massive 11° to 38° zoom range.

Main features:

  • Full CMY colour mixing system combined with a colour wheel.
  • Rotating and static gobo wheels, plus prism, iris and linear frost.
  • HD dimming

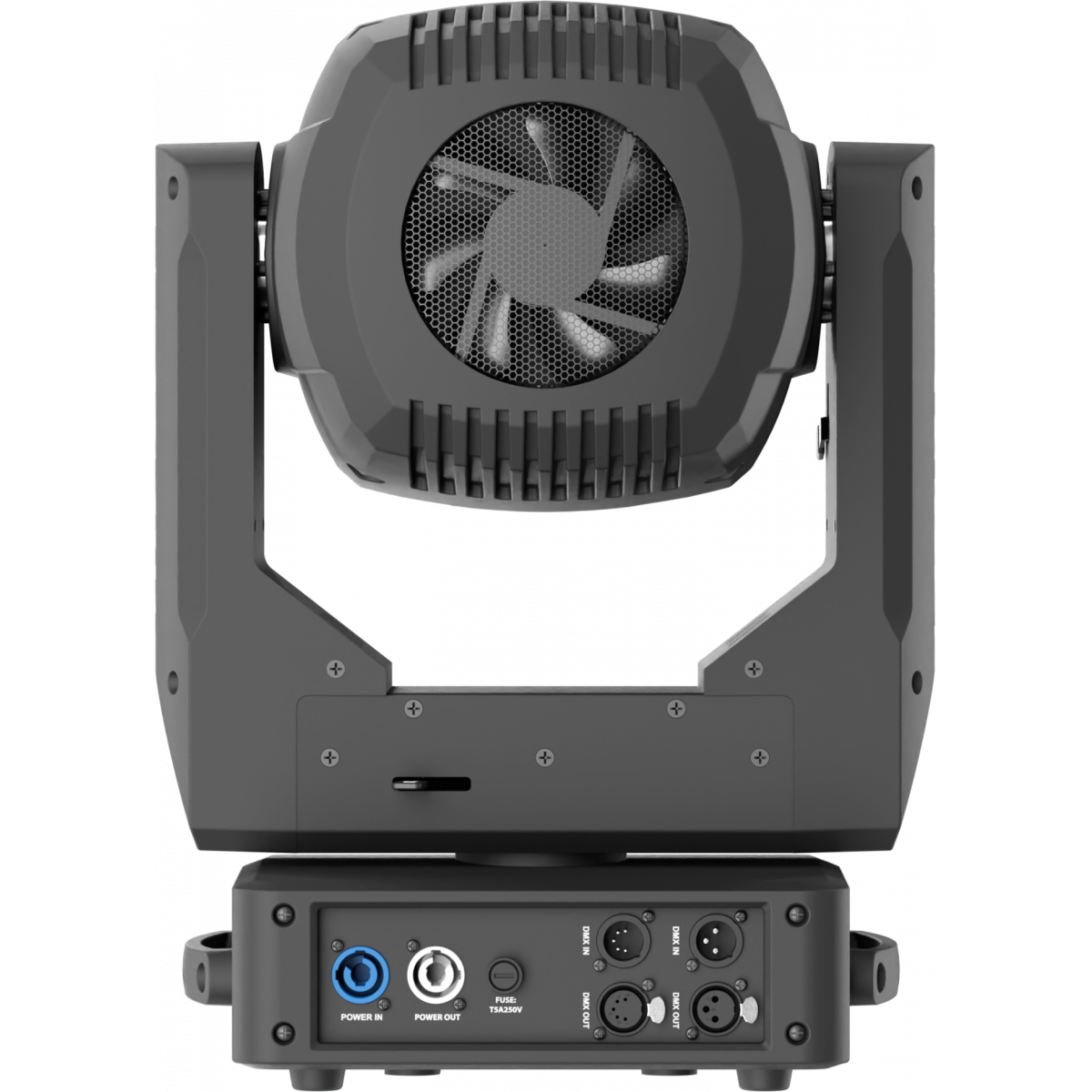

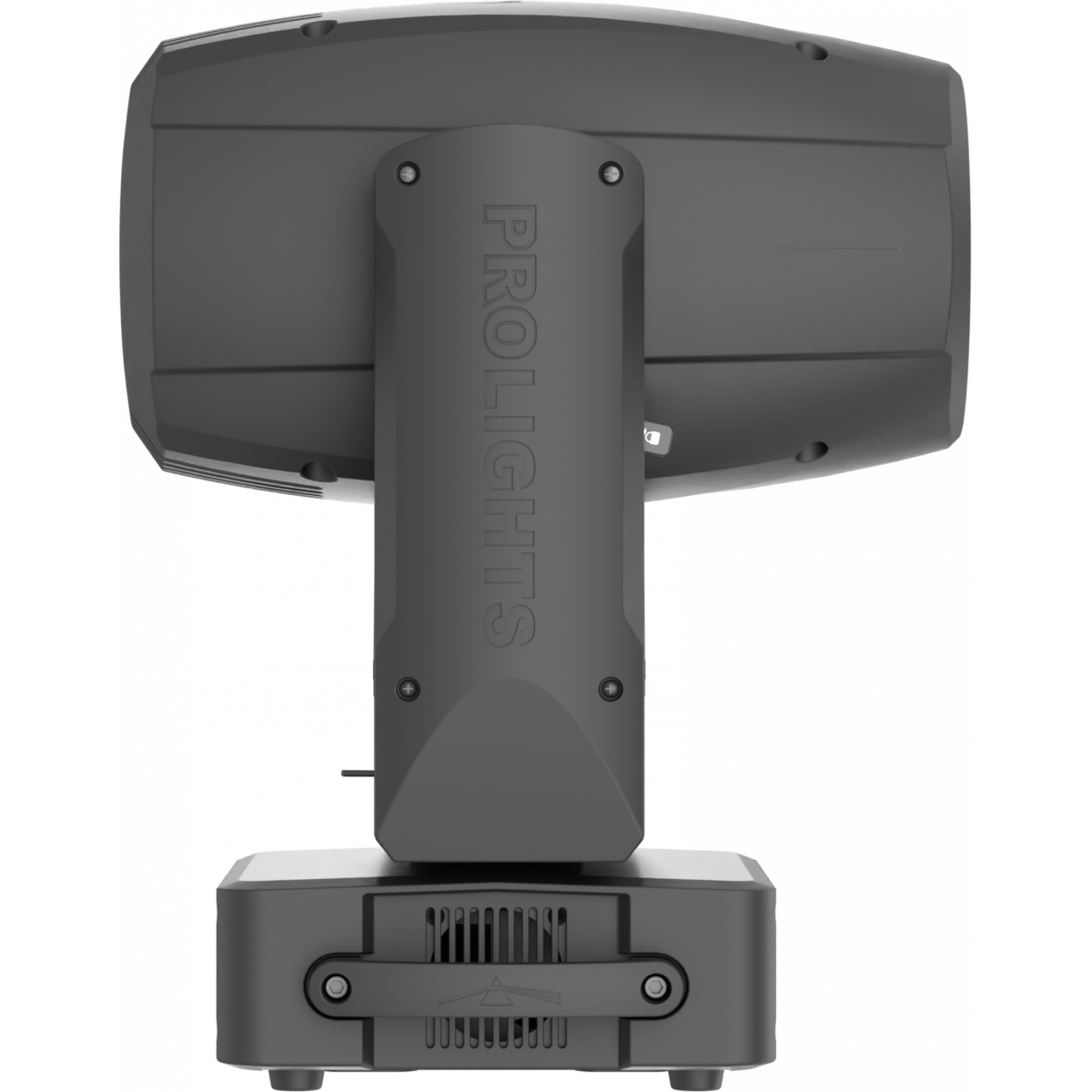

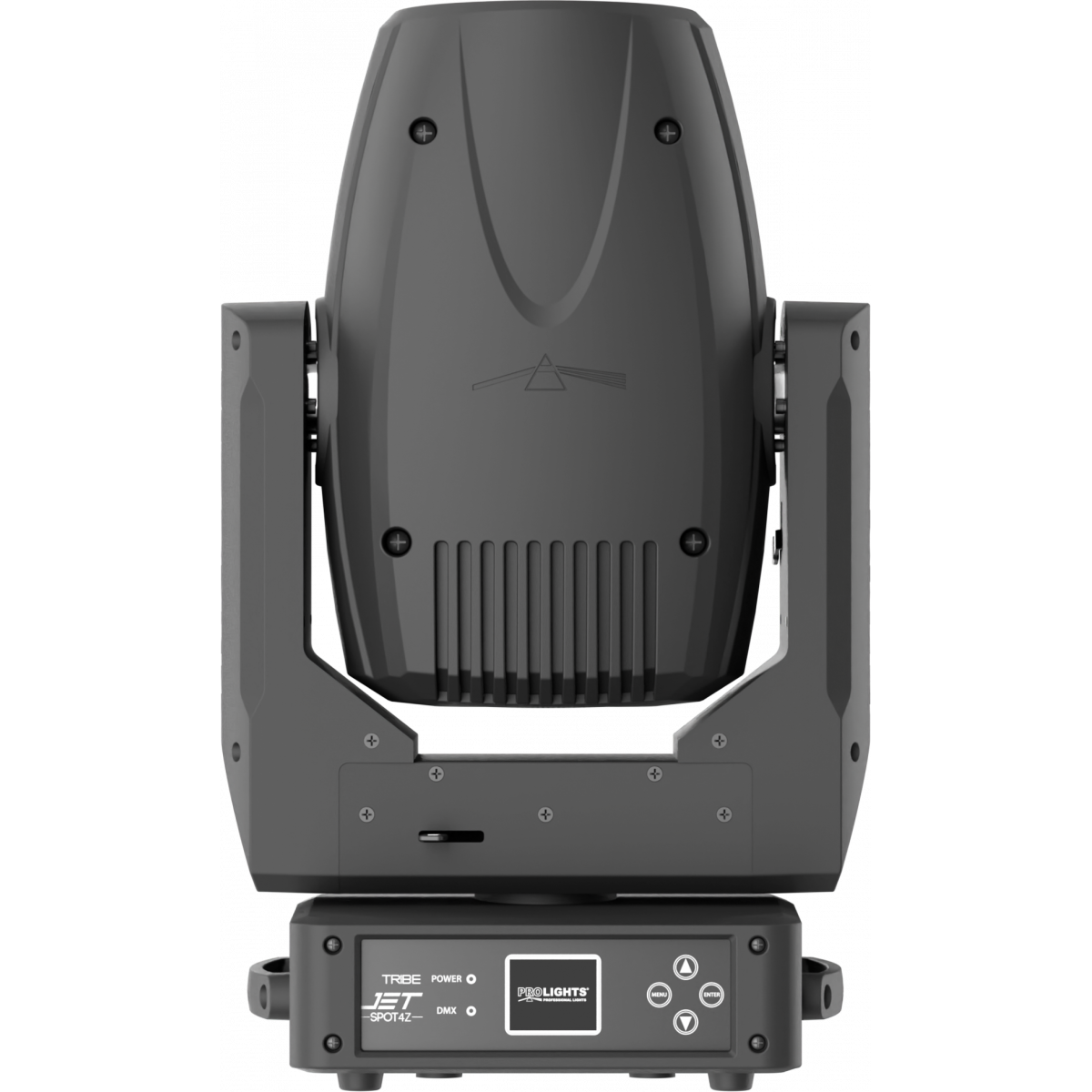

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 180W high-power white LED
  • CCT: 6.800
  • Luminous flux: 7'093lm
  • Lux: (11°) 21'099 lx - (38°) 2'706lx @3 m
  • Lux: (11°) 1'899 lx - (38°) 244lx @10 m
  • CRI: 68
  • Source life expectancy: 50.000 h
OPTICS
  • Zoom: 11 - 38° motorised linear zoom
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: CMY colour system on 3 gradually fading colour wheels
  • CCT: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 6 dichroic filters on 3 independent colour wheels
DYNAMIC EFFECTS
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 24,5 mm - image: 20 mm - thickness: 1,1 mm
  • Fixed gobos: 8 fixed gobos + open
  • Circular prism: 3f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 23 / 25 / 27channel
  • RDM: RDM for remote monitoring and settings
  • Display: black TFT high resolution display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 250W
  • Max power consumption (at 120V): 252W
  • Output (at 230V): 14 units on a single power line
  • Output (at 120V): 8 units on a single power line
  • Power factor: 0,95
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 332x544x230mm / 13.07''x21.42''x9.06''
  • Weight: 18,6kg / 41.01lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

9513FCAL03
9513FCAL03
(optional)

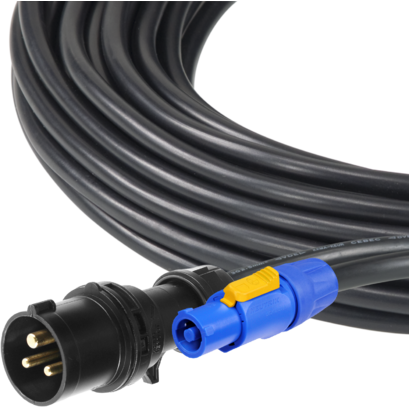

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(optional)

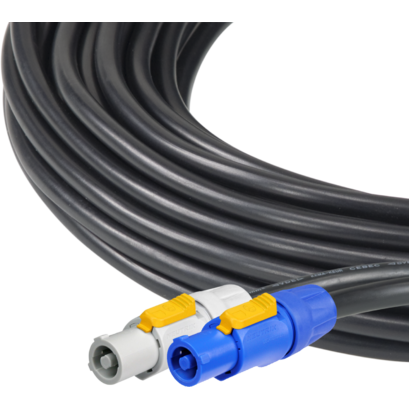

3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9533FCAL03
9533FCAL03
(optional)

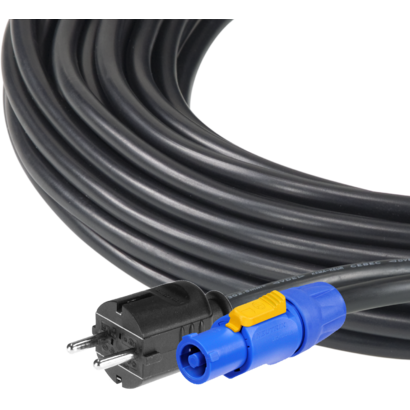

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
FCLJS4Z
FCLJS4Z
(optional)

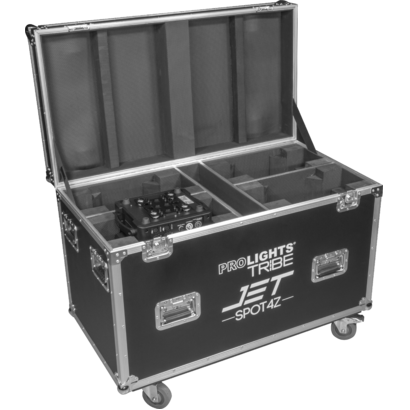

Flight case with internal compartments designed to contain 4 pcs JETSPOT4Z.
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
OS24
OS24
(included)
Quick-lock omega bracket, M10 hole
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Jetspot4z_A4_DATASHEET_(EN).pdf 586KB
Letter datasheet Jetspot4z_A4_DATASHEET_(IT).pdf 187KB
Letter datasheet Jetspot4z_LETTER_DATASHEET_(EN).pdf 177KB

User manual

File name File size Download
User manual Jetspot4z_USER_MANUAL_ITEN.pdf 5MB

DMX chart & personalities

File name File size Download
DMX chart Jetspot4z_DMX_CHARTS.pdf 50KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 674KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
JETSPOT4Z Firmware rev. 1.9
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_jetspot4z_23ch.hedDownload
prolights_jetspot4z_25ch.hedDownload
prolights_jetspot4z_27ch.hedDownload
jetspot4z_23ch.fdfDownload
jetspot4z_25ch.fdfDownload
jetspot4z_27ch.fdfDownload
prolights@jetspot4z_23ch@.xmlDownload
prolights@jetspot4z25ch@extended.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
jetspot 4z standard.fix2Download
jetspot 4z extended.fix2Download
JETSPOT4Z Firmware rev. 1.7
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_jetspot4z_23ch.hedDownload
prolights_jetspot4z_25ch.hedDownload
prolights_jetspot4z_27ch.hedDownload
jetspot4z_23ch.fdfDownload
jetspot4z_25ch.fdfDownload
jetspot4z_27ch.fdfDownload
prolights@jetspot4z_23ch@.xmlDownload
prolights@jetspot4z25ch@extended.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
jetspot 4z standard.fix2Download
jetspot 4z extended.fix2Download

Photometrics

File name File size Download
IES prolights_jetspot4z_ldt_ies_files.zip 7KB
PDF Photometrics Jetspot4z_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Jetspot4z_3D_REVIT.rfa 896KB
3D SKP Jetspot4z_3D_SKETCHUP.skp 3MB
2D Jetspot4z_2D.dwg 7MB
3D Jetspot4z_3D.dwg 1MB
2D cad symbols Jetspot4z_2DSYMBOLS.dwg 62KB
Technical drawing Jetspot4z_TECHNICAL_DRAWING.pdf 471KB

Tech docs

File name File size Download
Color Document Jetspot4z_COLOR.pdf 73KB
Gobos Document Jetspot4z_GOBOS.pdf 553KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.2 STABLE 16/06/2023 Improvements:
  • Improved power management during CMY system insertion.
  • Improved power management on higher temperatures.

NOTE: this and previous firmware version are NOT compatible with fixtures of US and CANADA market. For these products please download firmware from this link
1.9 STABLE 22/10/2022 Improvements:
  • Improved CMY reset procedure

NOTE: this and previous firmware version are NOT compatible with fixtures of US and CANADA market. For these products please download firmware from this link
