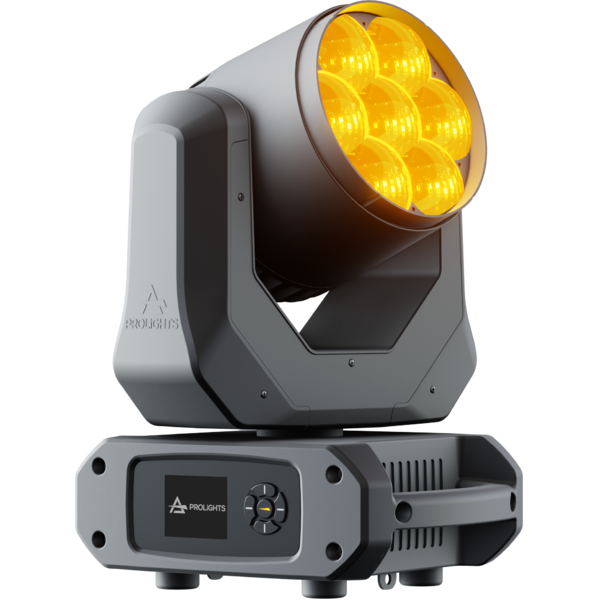

Jet Wash7

7x20W RGBW moving wash light with a 4°- 55° zoom

The Jet Wash7 is a compact and fast LED moving wash light with motorized zoom control.
The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 55°, this unit can easily work as beam or wash light.
The Jet Wash7's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.

Main features:

  • Compact form factor and fast movements
  • Zoom from 4° to 55° with high optical efficiency
  • Precise white CCT and colour mixing
See variants

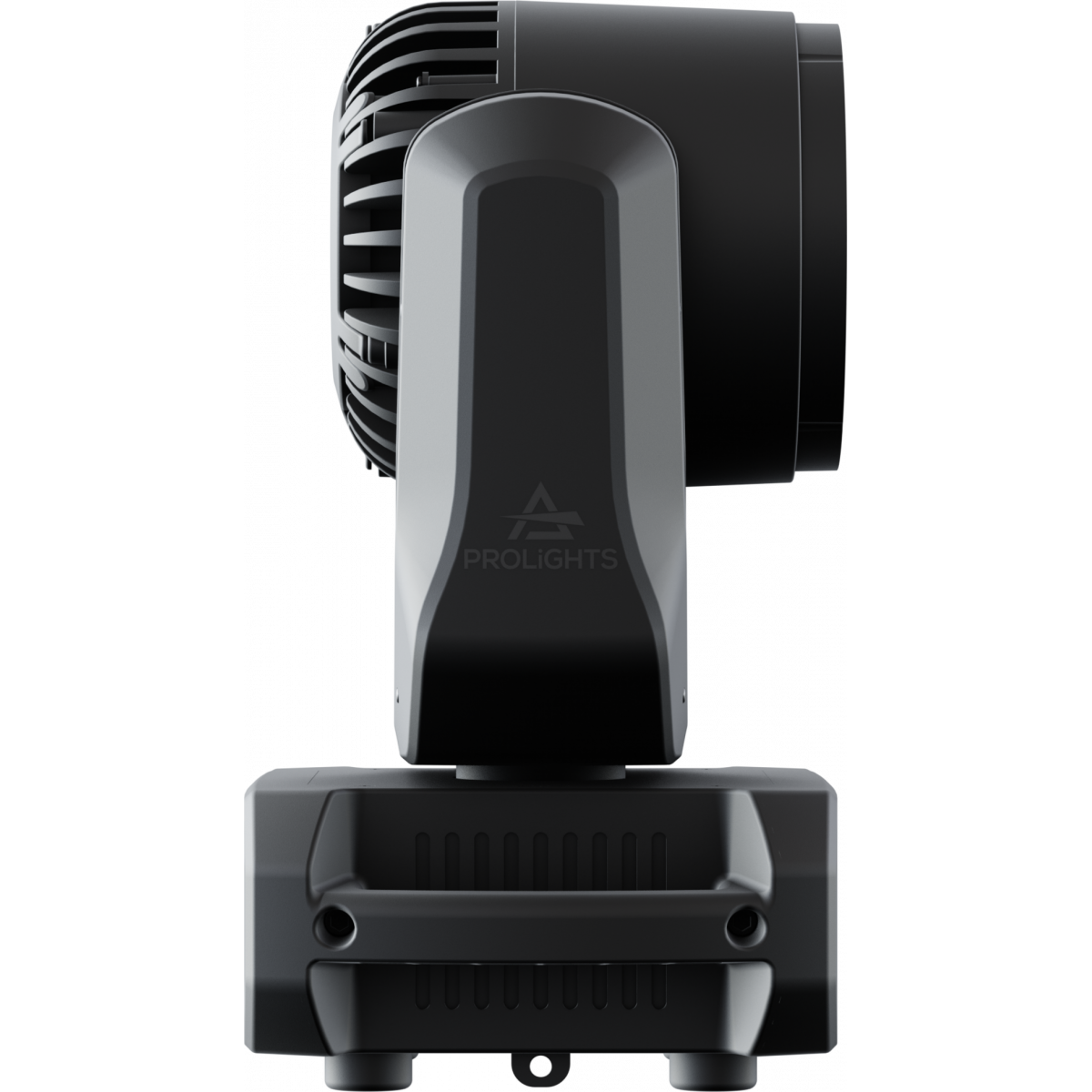

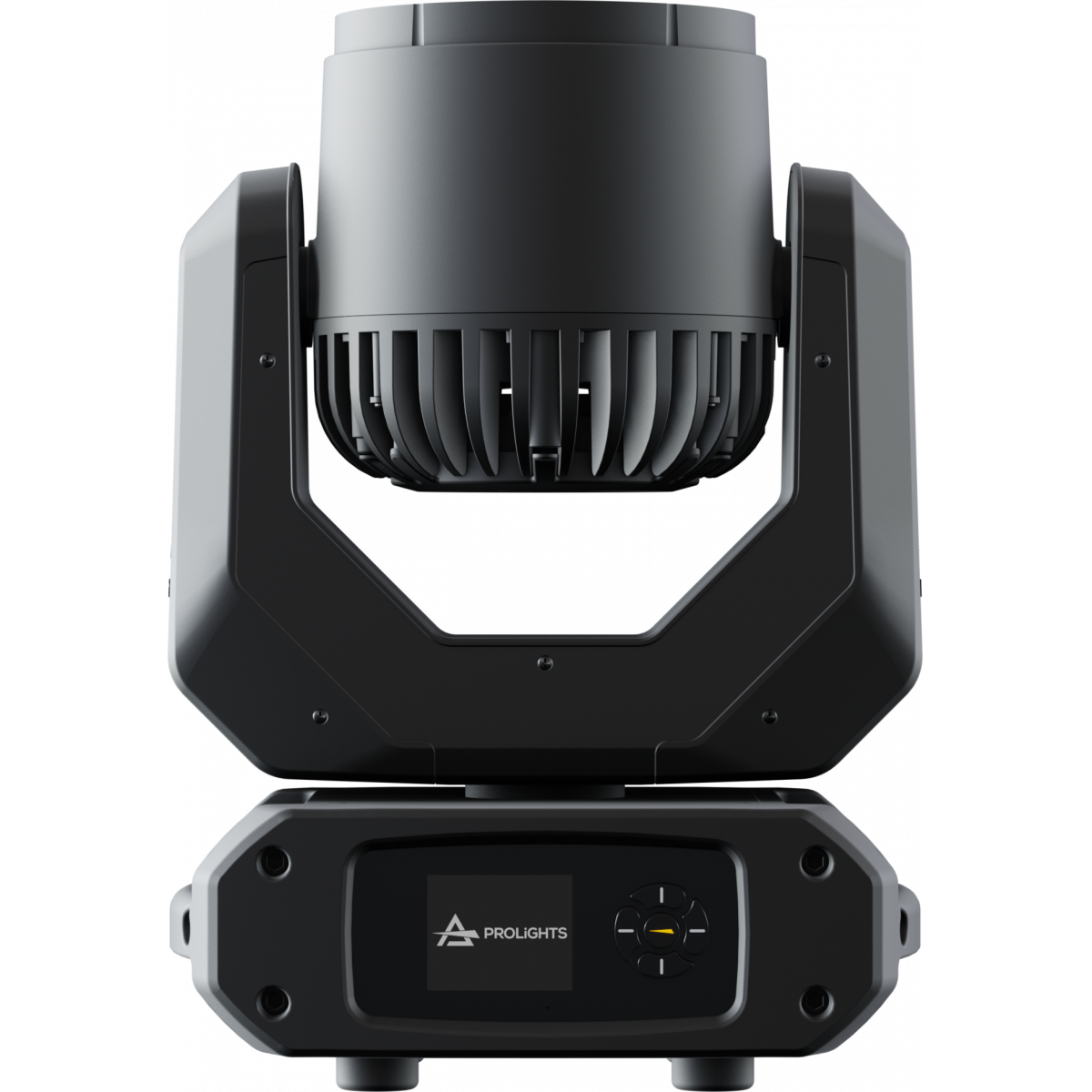

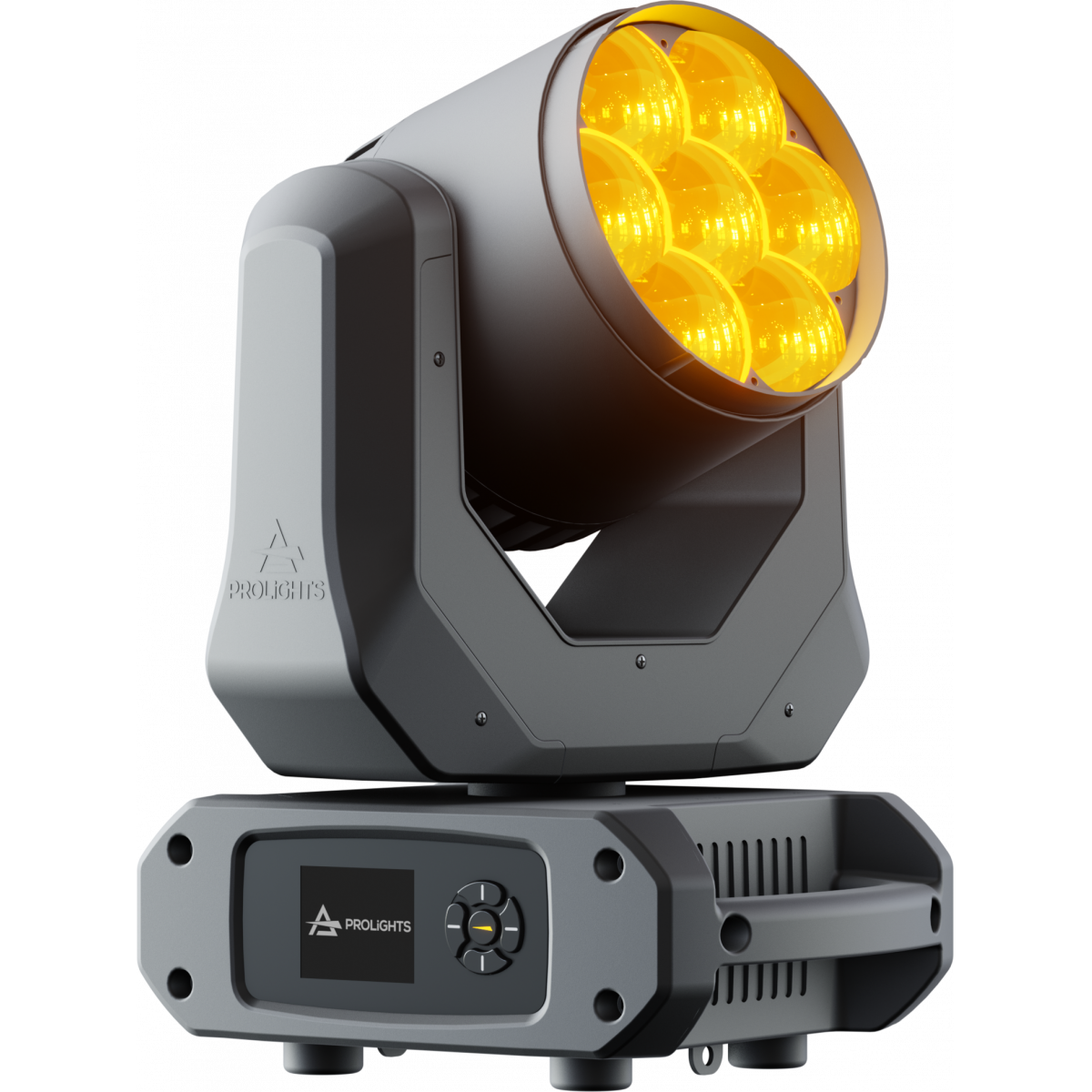

PHOTO GALLERY

Jet Wash7
Jet Wash7
Jet Wash7
Jet Wash7
Jet Wash7
Jet Wash7

Technical specifications

LIGHT SOURCE
  • Source: 7x20W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 1'232 lm - (55°) 1'993 @full
  • Lux: (4°) 28'754 lx - (55°) 611lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 4° - 55° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: see variants
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 23channel
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 160W
  • Standby power: 35W
  • Output (at 230V): 15 units on a single power line
  • Power factor: > 0,94
  • Inrush current: ＜30A @115VAC /＜50A @230VAC
PHYSICAL
  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets

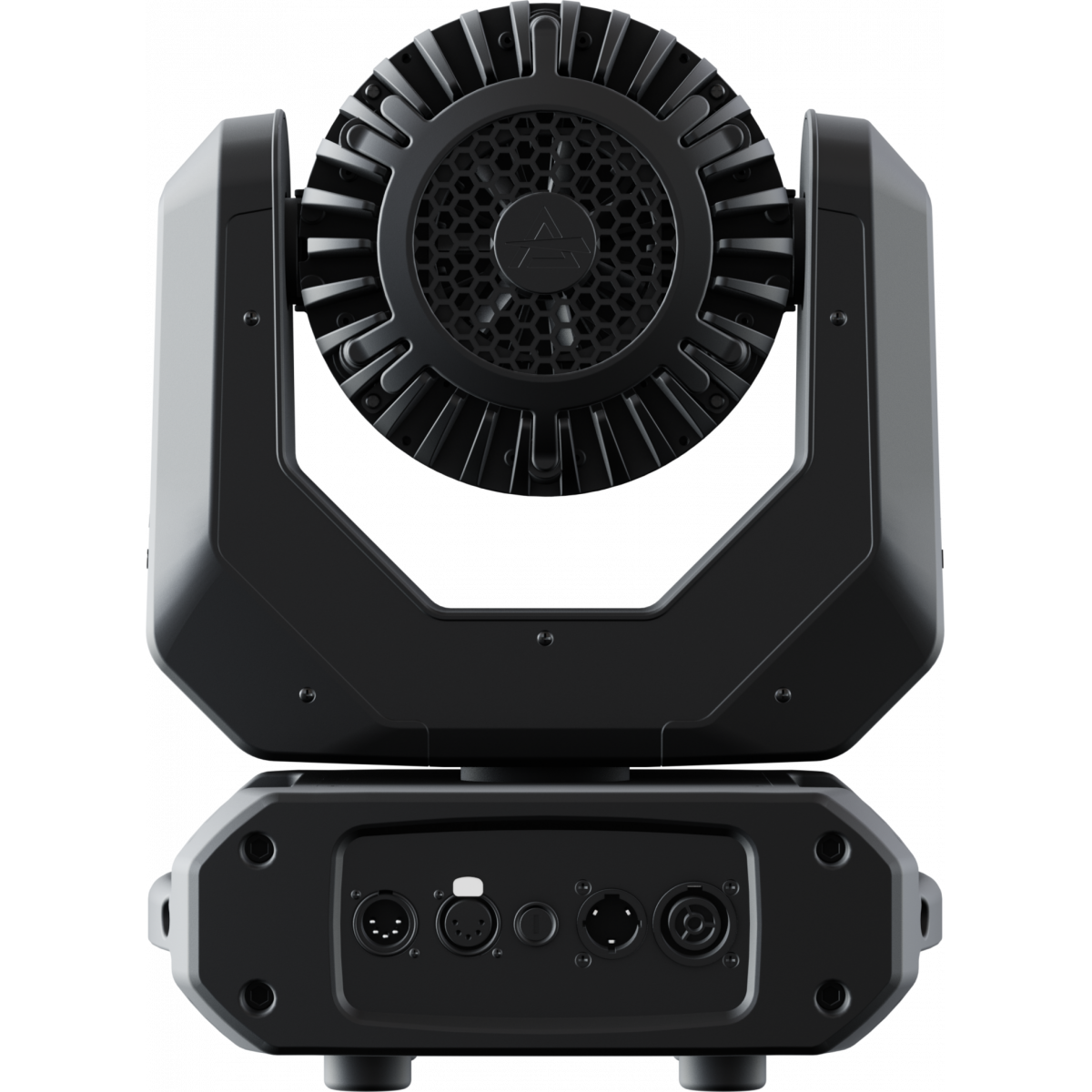

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 279x377x205mm / 10.98''x14.84''x8.07''
  • Weight: 8,3kg / 18.3lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
RAL
JETWASH7
JETWASH7
Black
9004

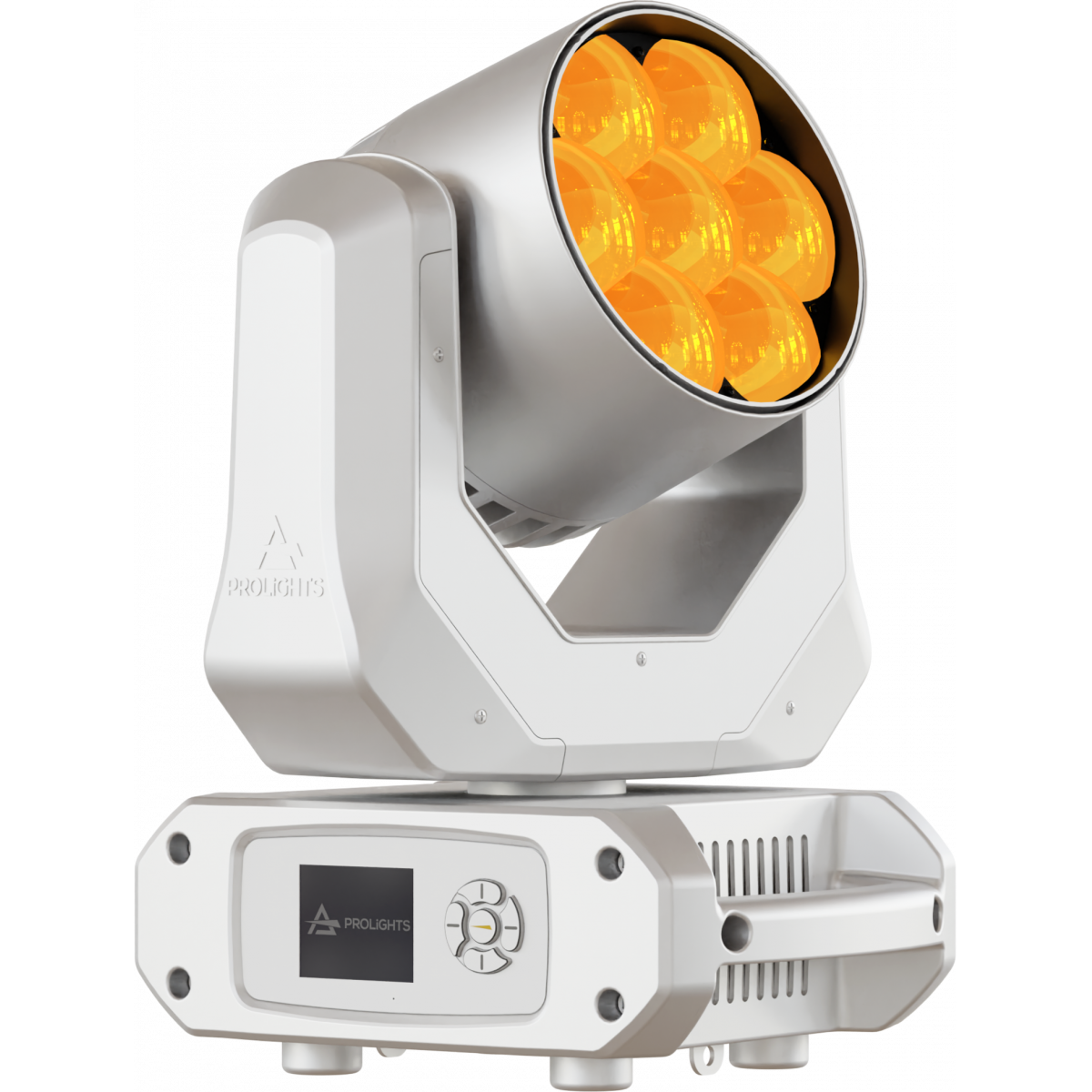

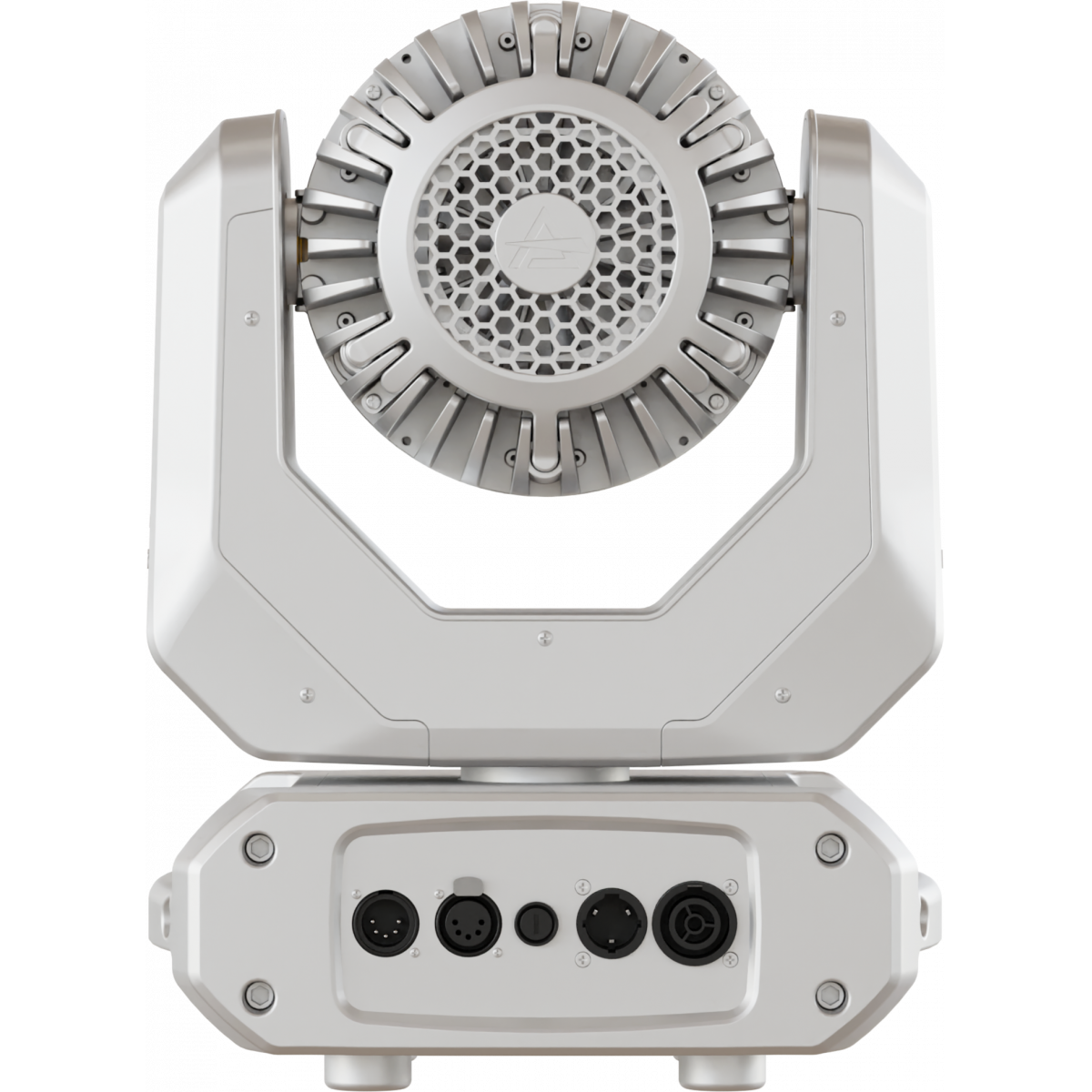

JETWASH7WH
JETWASH7WH
White
9010

Accessories & Related Products

9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
FCLASTRAW7PIX
FCLASTRAW7PIX
(optional)
Flight case for 6 pcs of ASTRAWASH7PIX
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
ASTRAW7PEC
ASTRAW7PEC
(optional)
Egg Crate for ASTRAWASH7PIX
OS24D13
OS24D13
(included)
Quick-lock omega bracket, M12 hole
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Jetwash_A4_DATASHEET_(EN).pdf 438KB
Tender Specification Jetwash_TENDER_SPECIFICATION.pdf 4MB

User manual

DMX chart & personalities

File name File size Download
DMX chart Jetwash_DMX_CHARTS.pdf 612KB
JETWASH7 Firmware rev. 1.0.14
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKP Jetwash_3D.skp 337KB
2D Jetwash_CAD_2D.dwg 18MB
3D Jetwash_CAD_3D.dwg 535KB
2D cad symbols Jetwash_CAD_2DSYMBOLS.dwg 184KB
Technical drawing Jetwash_TECHNICAL_DRAWING.pdf 500KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 460KB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB

Tech docs

File name File size Download
Noise Report Jetwash7_NOISE_REPORT.pdf 325KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.14 STABLE 30/07/2024 Improvement:
  • Improved zoom reset procedure.
 Rev. Rev:1.0
