Jet Wash7

ORDER CODE: JETWASH7

7x20W RGBW moving wash light with a 4°- 55° zoom

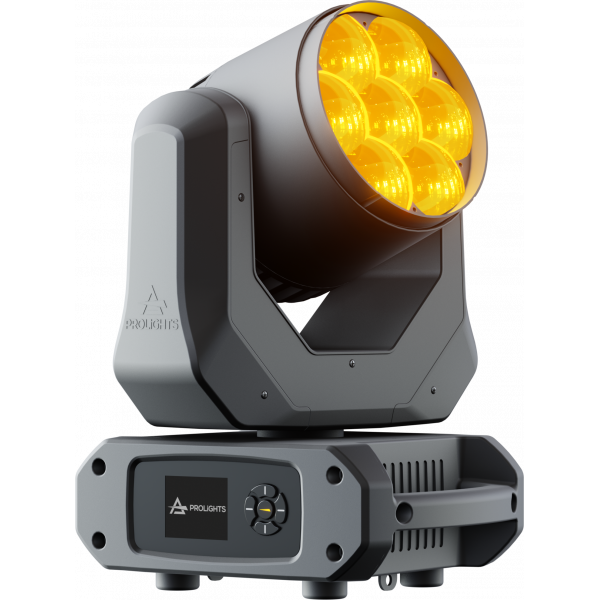

The Jet Wash7 is a compact and fast LED moving wash light with motorized zoom control.
The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 55°, this unit can easily work as beam or wash light.
The Jet Wash7's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.

Main features:

  • Compact form factor and fast movements
  • Zoom from 4° to 55° with high optical efficiency
  • Precise white CCT and colour mixing

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 7x20W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 1'232 lm - (55°) 1'993lm @full
  • Lux: (4°) 28'754 lx - (55°) 611lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 4° - 55° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 23channel
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 160W
  • Output (at 230V): up to 15 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 279x377x205mm / 10.98''x14.84''x8.07''
  • Weight: 8,3kg / 18.3lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

WSBBR512G6
WSBBR512G6
(optional)
BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
WSBBR512G5
WSBBR512G5
(optional)
BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
WSBBF1G6
WSBBF1G6
(optional)
BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
WSBBF1G5
WSBBF1G5
(optional)
BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
FCLASTRAW7PIX
FCLASTRAW7PIX
(optional)
Flight case for 6 pcs of ASTRAWASH7PIX
ASTRAW7PEC
ASTRAW7PEC
(optional)
Egg Crate for ASTRAWASH7PIX
OS24
OS24
(included)
Quick-lock omega bracket.
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

DOWNLOAD

Fixture Libraries / DMX Charts / VectorWorks
VECTORWORKS
LIBRARY
VECTORWORKS_LIBRARY_v2022_LIBRARY.vwxDownload
VECTORWORKS_LIBRARY_v2017_LIBRARY.vwxDownload
SYMBOLS
VECTORWORKS_SYMBOLS.vwxDownload
