LUMIPAR12ARC
PROLIGHTS

LumiPar 12Arc

12x9W RGBW compact IP65 LED PAR

LumiPar 12 Arc is a bright and flexible IP LED PAR made for architectural accent light for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and being totally fan-free allows for total silence during operation.

Main features:

  • IP65 die-cast aluminium housing
  • 12x9W RGBW LED PAR
  • Fan-free and flicker-free
  • Filter frame included
See variants

PHOTO GALLERY

LumiPar 12Arc
LumiPar 12Arc
LumiPar 12Arc
LumiPar 12Arc

Technical specifications

LIGHT SOURCE
  • Source: 12x9W RGBW LEDs
  • Luminous flux: (20°) 5'364 lm - (45°) 5'231
  • Lux: (20°) 1'401lx @5 m full
  • Lux: (45°) 484lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: available in 20° or 45°
  • Field angle: 36° or 60°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9010
  • Other: display cover
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 6 / 11channel
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 0 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 115W
  • Max power consumption (at 120V): 115W
  • Output (at 230V): 33 units on a single power line
  • Output (at 120V): 18 units on a single power line
PHYSICAL
  • IP rating: 65
  • IK rating: 07
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: moulded IP signal IN/OUT connectors
  • Power connection: moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 305x326x177mm / 12.01''x12.83''x6.97''
  • Weight: 6,2kg / 13.67lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM

Versions

Code
Finishing
LUMIPAR12ARC20D
LUMIPAR12ARC20D
White
LUMIPAR12ARC45D
LUMIPAR12ARC45D
White

Accessories & Related Products

<b>CrmxBox</b> IP
CrmxBox IP
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
ARCLUMIL15D45
ARCLUMIL15D45
(Optional)
Optic lens 15°, D.45mm
ARCLUMIL25D45
ARCLUMIL25D45
(Included)
Optic lens 25°, D.45mm
ARCLUMIL45D45
ARCLUMIL45D45
(Included)
Optic lens 45°, D.45mm

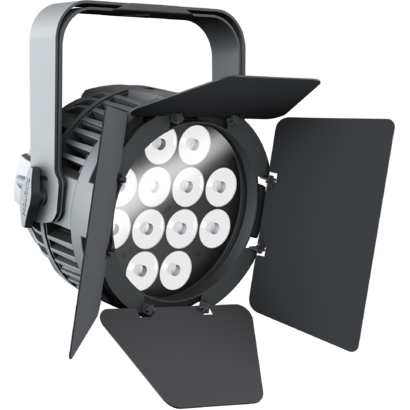

LUMIPAR12IPBD
LUMIPAR12IPBD
(Optional)
Barn door 4 directional flaps to adjust the light beam, f. frame not included
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipar12arc_A4_DATASHEET_(EN).pdf574KB

User manual

DMX chart & personalities

File name File size Download
DMX chartLumipar12arc_DMX_CHARTS.pdf46KB

Photometrics

CAD symbols & drawings

File name File size Download
3D revitLUMIPAR12ARC_3D_REVIT.zip1MB
3D SKPLumipar12arc_3D.skp144KB
2D cad symbolsLUMIPAR12ARC_2DSYMBOLS.zip54KB
3DLumipar12arc_CAD_3D.dwg682KB
2DLumipar12arc_CAD_2D.dwg11MB
Technical drawingLumipar12arc_TECHNICAL_DRAWING.pdf428KB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksLUMIPAR12ARC_SYMBOLS.zip489KB

Tech docs

File name File size Download
Noise ReportLumipar12arc_NOISE_REPORT.pdf589KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 25/04/2023 Improvement:
  • "Back Light" default set to 10s.
 Rev. 1.0
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 26/04/2023 Improvement:
  • "Back Light" default set to 10s.
 Rev. 1.0
