SIGMAX39T1X2WF
PROLIGHTS

SigmaPix 39T1X2WF

ORDER CODE: SIGMAX39T1X2WF

Outdoor rental 3,9 mm LED screen, 50x100cm tile, black frame & white face LEDs

SigmaPix 39T is a rental LED screen for outdoor use with a 3,9 mm pixel pitch, designed to meet requirements for touring, events and install applications.
This series is available in both 50x50cm and 50x100cm tiles, mechanically compatible in order to assemble a large surface of screen in a shorter time.
The mechanical design of the tiles has been conceived to allow fast single person installation with automatic lock design and extra safety & handling features such as flip corner shield and bottom protection.
Panel maintenance has been furtherly enhanced allowing quick replacement of LED modules and the PSU unit.
SigmaPix 39T tiles have on board curve mechanics allowing both concave and convex precise installation of  +10° / -10° each tile and the weight has been reduced down to 8,6 kg (50x50) / 14,6 kg (50x100)  per panels (34,4 /29,2 kg per sqm)
SigmaPix 39T is truly creative and it is enriched by the special  C tiles, a special 90° cutted edge panel on every side allowing to create 90° seamless corner on every edge.
The on-board electronics include the latest generation of Novastar A8s receiver card and refresh rate up to 3.840 Hz.

Main features:

  • Single person installation, auto lock design, scratch protection and flip corner shield
  • Fast LED Module and PSU replacement
  • Built in curve mechanics for +10° / -10° concave & convex
  • Special C (90° corner) cabinet for unprecedented design
  • Refresh rate of 3.840 Hz

PHOTO GALLERY

Technical specifications

VIDEO
  • Driver chip type: MBI 5253
  • LED source: Kinglight SMD1921 black frame and white face
  • Pixel pitch: 3.9mm / 0.15''
  • Panel resolution: 128x256pixels
  • Module resolution: 64x64pixels
  • Luminous flux: 4.500nit
  • Contrast: 3.000:1
  • Grayscale: 14 bit
  • Refresh rate ≥: 3.840Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 65.536LED/sqm
  • Dead Pixel Ratio: <0.002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 335W
  • Avg power consumption (panel): 100W
  • Max power consumption (sqm): 670W
  • Avg power consumption (sqm): 200W
  • Standby power consumption (pannello): 100W
  • Max rated current/panel:: AC 220V / 1.52A
  • Working temperature: -20°C / +50°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A8S-N
  • Other controllers type: mapping, firmware copy, RCFGX restore, calibration restore, rotation supported, calibration chip on LDM (auto calibration)
  • Control protocol: Novastar
  • Signal input: waterproof Seetronic RJ45
  • Signal output: waterproof Seetronic RJ45
MECHANICS
  • Magnetic LED modules: not available
  • Other specifics: curve configurations (mechanics on board), corner protection, bottom protection, auto-lock mechanics
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×1000×83mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Cooling: natural cooling of the peculiar chassis and to absence of fans
  • Connection: seamless locking system
  • Curvability: convex and concave -10° / +10°
  • Body: die-cast aluminium housing
  • Color: black
  • IP rating: IP65 (front and rear)
  • Panel weight: 14,6kg / 32.19lbs
  • Weight per square meter: 29,2kg / 64.37lbs
  • Hanging Panel Quantity ≤: 10 for hanging and 6 for stacking
  • Compliant Standard: CE, UKCA, cURus

Versions

Accessories & Related Products

SXFCM40391X2
SXFCM40391X2
(Optional)
Flightcase 4 in1 for SIGMAX39T1X2

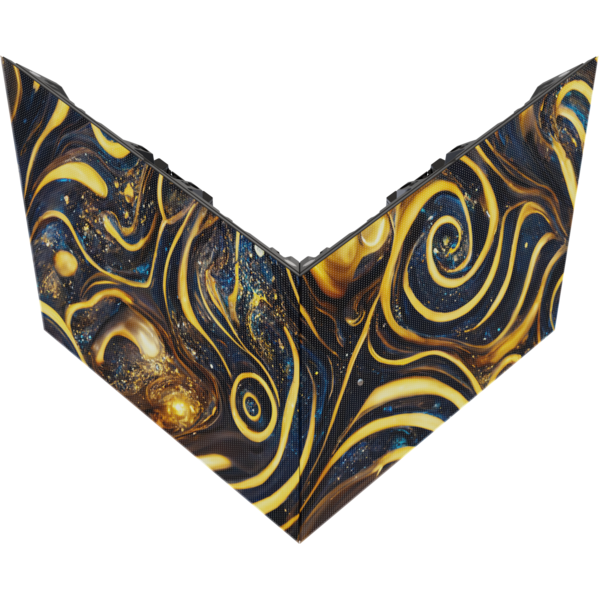

<b>SigmaPix</b> 39TC1X1WF
