SMARTBATPLUS
PROLIGHTS

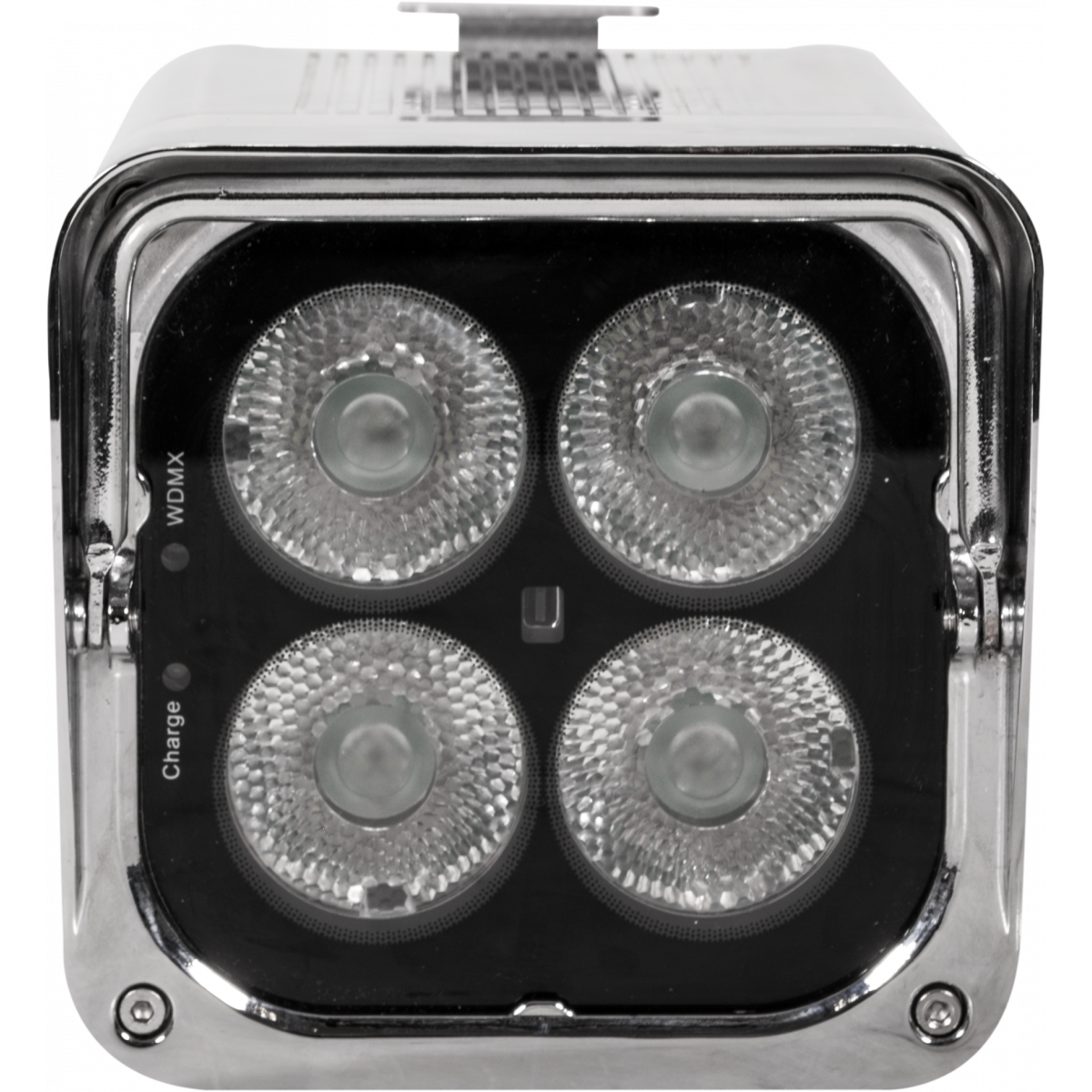

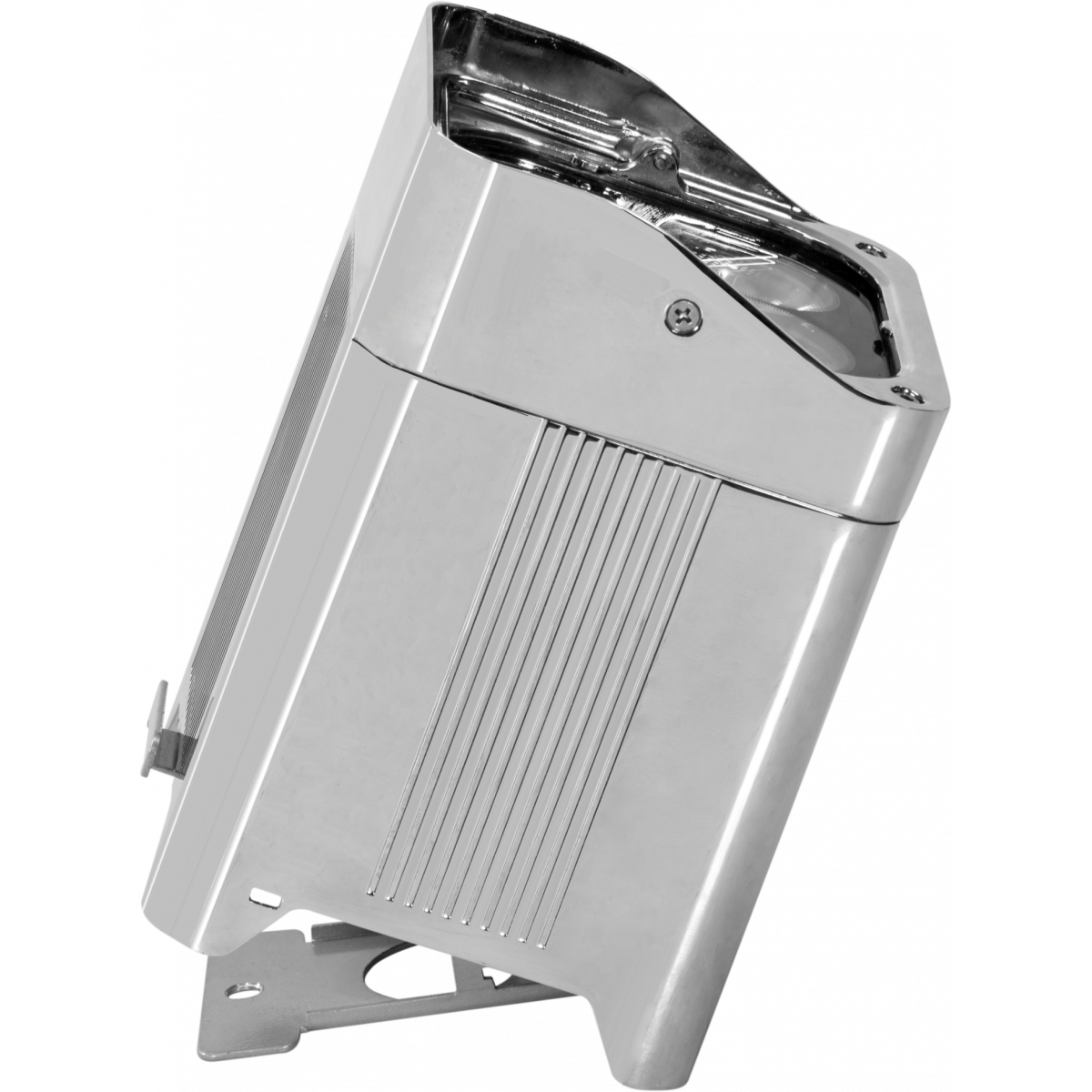

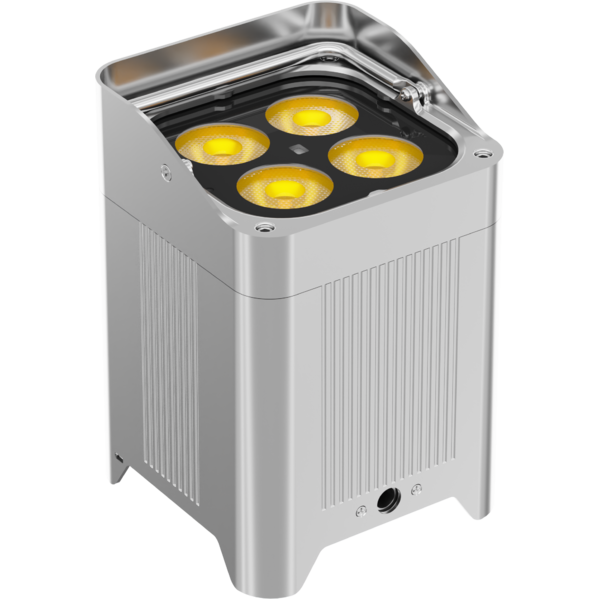

Smart BatPlus

ORDER CODE: SMARTBATPLUS

Wireless battery operated portable uplighter

Smart BatPlus is the more advanced member of the successful Smart Bat range offering more advanced features such as W-DMX wireless card, waterproof housing, increased brightness, high-definition optics and fast-charge magnetic connector. It's packed in a super-slim compact housing with a mirror finish, useful when hiding the fixture from view.

Main features:

  • 4x12W RGBW CREE full colour LED with high efficiency collimator lens
  • Battery powered, IP65 rated and W-DMX wireless DMX control
  • Chrome finish and charging flight case option
See variants

PHOTO GALLERY

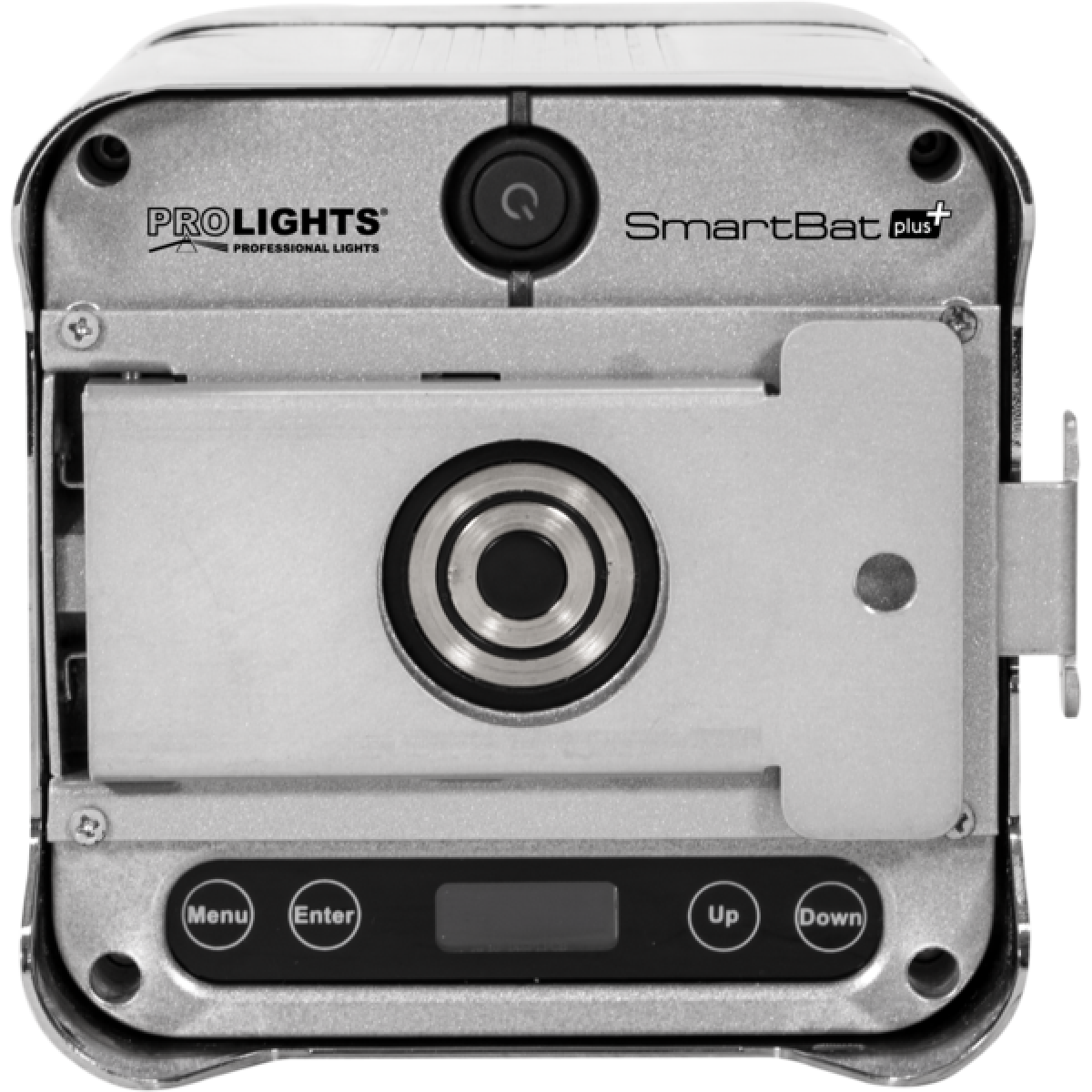

Smart BatPlus
Smart BatPlus
Smart BatPlus
Smart BatPlus

Technical specifications

LIGHT SOURCE
  • Source: 4x12W RGBW LEDs
  • Luminous flux: 905
  • Lux: 759lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 11°
  • Field angle: 19°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K -9.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Tilt range: 20° adjustable foot support for tilt regulation (up to 20°)
  • Body: sturdy die-cast aluminium body
  • Body colour: mirror finishing
CONTROL
  • Protocols: W-DMX
  • DMX channels: 4 / 6 / 10channel
  • Wireless Control: included, wireless solution receiver
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: 0° ~ +40° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz (SBPLUSPOWER charger not included)
BATTERY
  • Battery: 16,8V lithium
  • Estimated battery life in colour change mode up to: 12h
  • Estimated battery life in full-mode up to: 8h
  • Re-charge connection: magnetic fast-charge in case
  • Re-charge time: 4h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: for temporary outdoor use - IP65 (front) - IP54 (bottom)
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M12 threaded insert for easy clamp installation
  • Data connection: W-DMX receiver
  • Dimensions (WxHxD): 138x202x145mm / 5.43''x7.95''x5.71''
  • Weight: 3,6kg / 7.94lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver

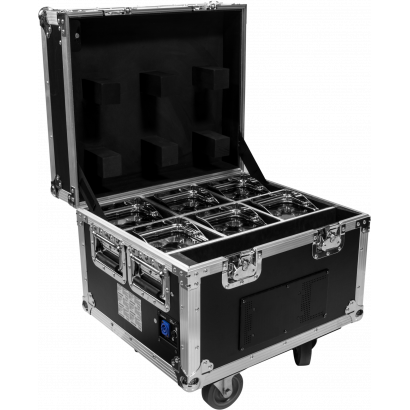

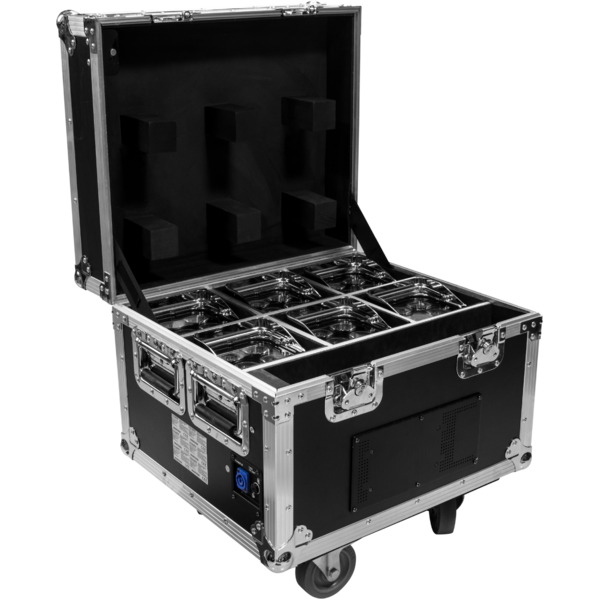

FCLSMARTBATPLUSE
FCLSMARTBATPLUSE
(Optional)
Flight case for 6 SMARTBATPLUS, battery charger included

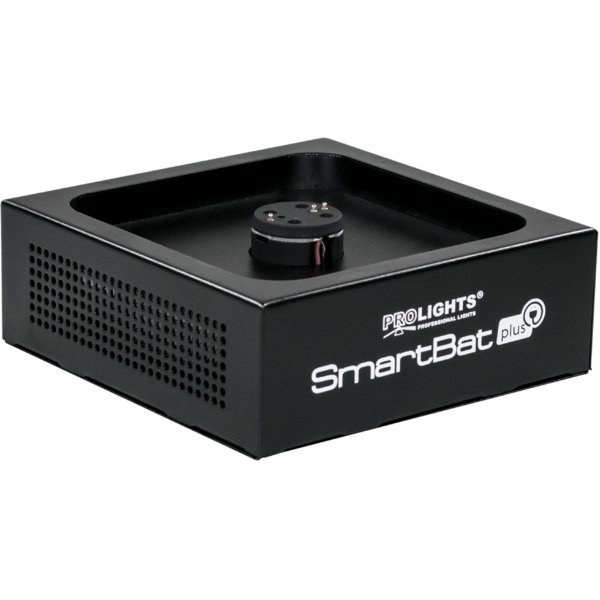

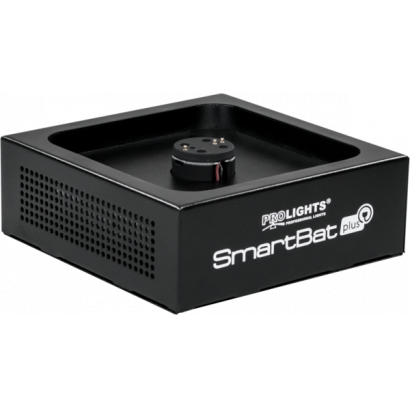

SBPLUSPOWER
SBPLUSPOWER
(Optional)
SMARTBATPLUS recharging base

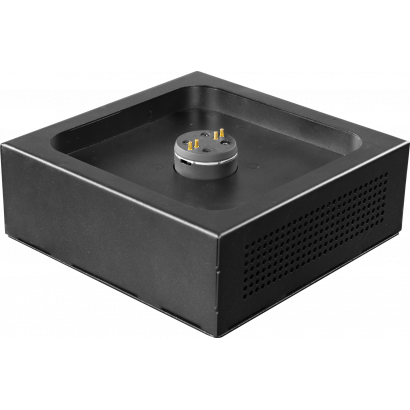

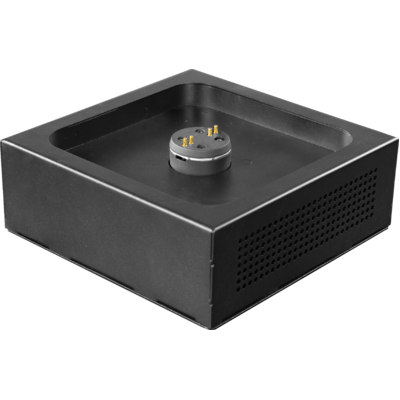

SBPUPBOXI
SBPUPBOXI
(Optional)
Interface between UPBOX1 and SMARTBATPLUS and SMARTBATPLUSNEO for make firmware upgrade
LUMIPARIRCH
LUMIPARIRCH
(Included)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series

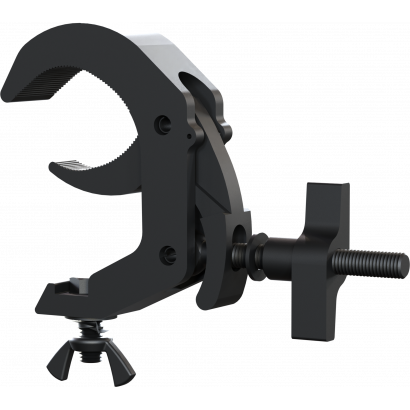

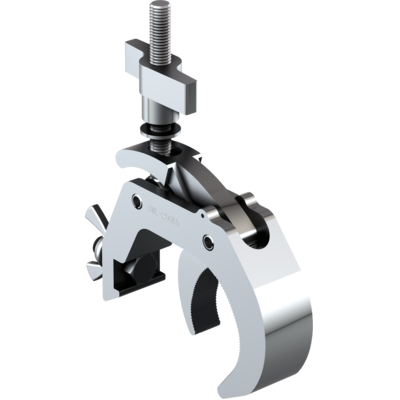

C6018A
C6018A
(Optional)
Selflock slim clamp, 200 kg load, 48-80 mm tubes, M12 bolt incl, aluminium
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSmartbatplus_A4_DATASHEET_(IT).pdf422KB
Letter datasheetSmartbatplus_A4_DATASHEET_(EN).pdf428KB

User manual

DMX chart & personalities

File name File size Download
DMX chartSmartbatplus_DMX_CHARTS.pdf50KB
SMARTBATPLUS Firmware rev. 1.5
manufacturer fixture library (Link) Link
prolights_smartbatplus.d4Download
manufacturer fixture library (Link) Link
prolights_smartbatplus_4ch.hedDownload
prolights_smartbatplus_6ch.hedDownload
prolights_smartbatplus_10ch.hedDownload
prolights_smartbatplus_hsi.hedDownload
prolights_smartbatplus_hsv.hedDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@smartbat_plus@4_channel@ma_library_update_v13.5.xmlpDownload
prolights@smartbat_plus@6_channel@ma_library_update_v13.5.xmlpDownload
prolights@smartbat_plus@10_channel@ma_library_update_v13.5.xmlpDownload
prolights@smartbat_plus@hsi@ma_library_update_v13.5.xmlpDownload
prolights@smartbat_plus@hsv@ma_library_update_v13.5.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
smartbat plus hsi.fix2Download
smartbat plus hsv.fix2Download
smartbat plus 4 channel.fix2Download
smartbat plus 6 channel.fix2Download
smartbat plus 10 channel.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFASmartbatplus_3D.rvt414KB
3D SKPSmartbatplus_3D.skp468KB
2DSmartbatplus_CAD_2D.dwg467KB
3DSmartbatplus_CAD_3D.dwg666KB
2D cad symbolsSmartbatplus_CAD_2DSYMBOLS.dwg174KB
Technical drawingSmartbatplus_TECHNICAL_DRAWING.pdf134KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx161KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 04/12/2018 10 second default display backlight. Rev. 1.0
