SPLITTER4WRK
PROLIGHTS

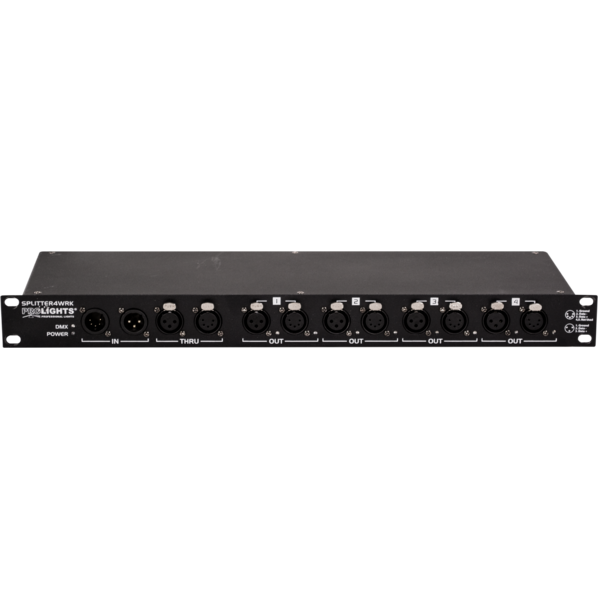

Splitter4wrk

ORDER CODE: SPLITTER4WRK

DMX signal distributor, 1 input and 4 outputs, 1U/19''

DMX Signal distributor.

Main features:

  • 4-ways with 1 input and 4 outputs
  • Opto-insulated inputs and outputs
  • Output for a linkage to another distributor
See variants

PHOTO GALLERY

Splitter4wrk
Splitter4wrk

Technical specifications

CONTROL
  • Input: 4-ways with 1 input and 4 outputs
  • Output: output for a linkage to another distributor
  • Other: opto-insulated inputs and outputs
ELECTRICAL
  • Mains power supply: 230 V ~ 500 mA
PHYSICAL
  • Signal connection: DMX 3p + 5p IN/OUT
  • Power connection: IEC 10 A IN
  • Dimensions (WxHxD): 483x44x138mm / 19.02''x1.73''x5.43''
  • Rack unit: 1 standard 19'' rack unit made of steel
  • Weight: 3kg / 6.61lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualSplitter4wrk_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
2DSplitter4wrk_CAD_2D.dwg571KB
Technical drawingSplitter4wrk_TECHNICAL_DRAWING.pdf125KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
