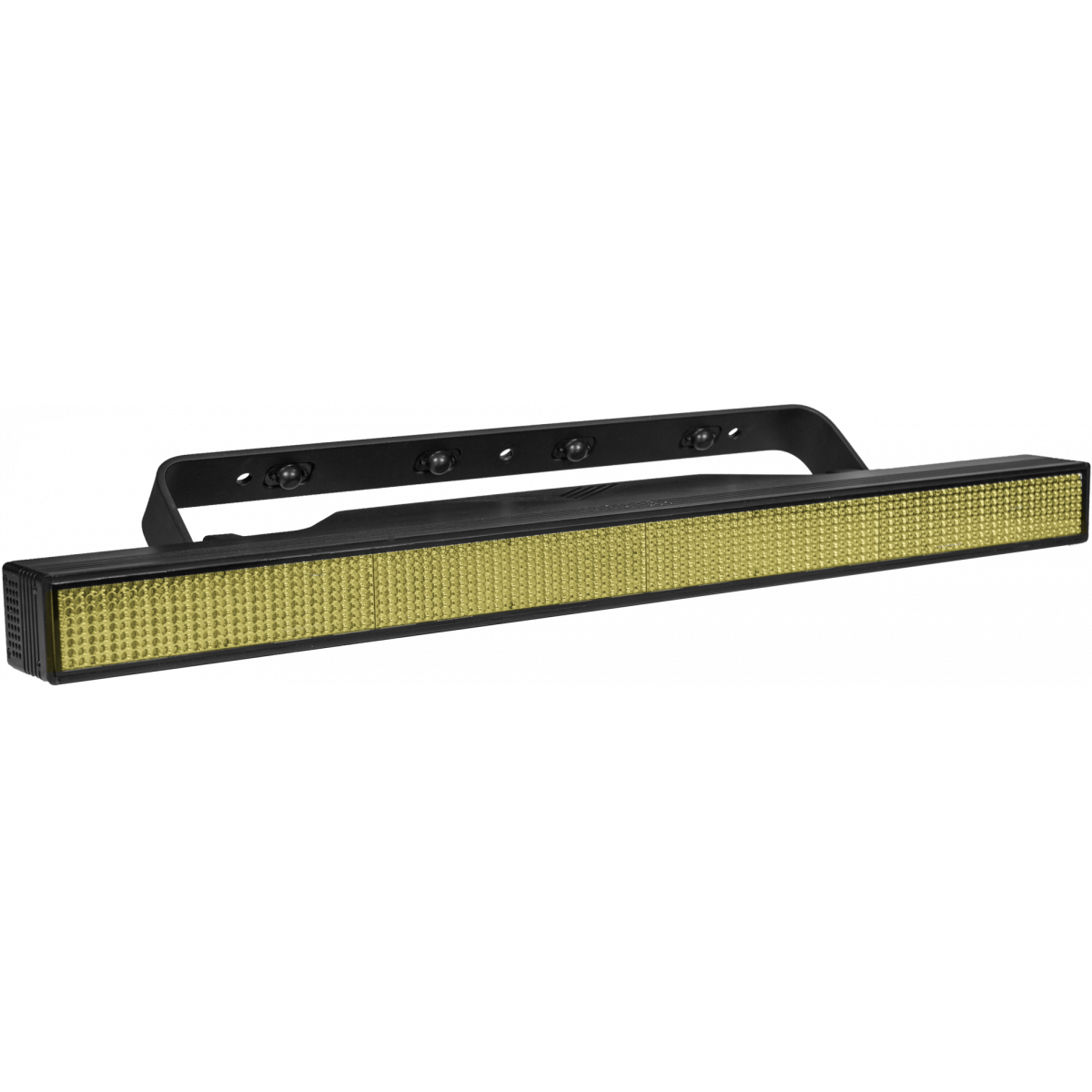

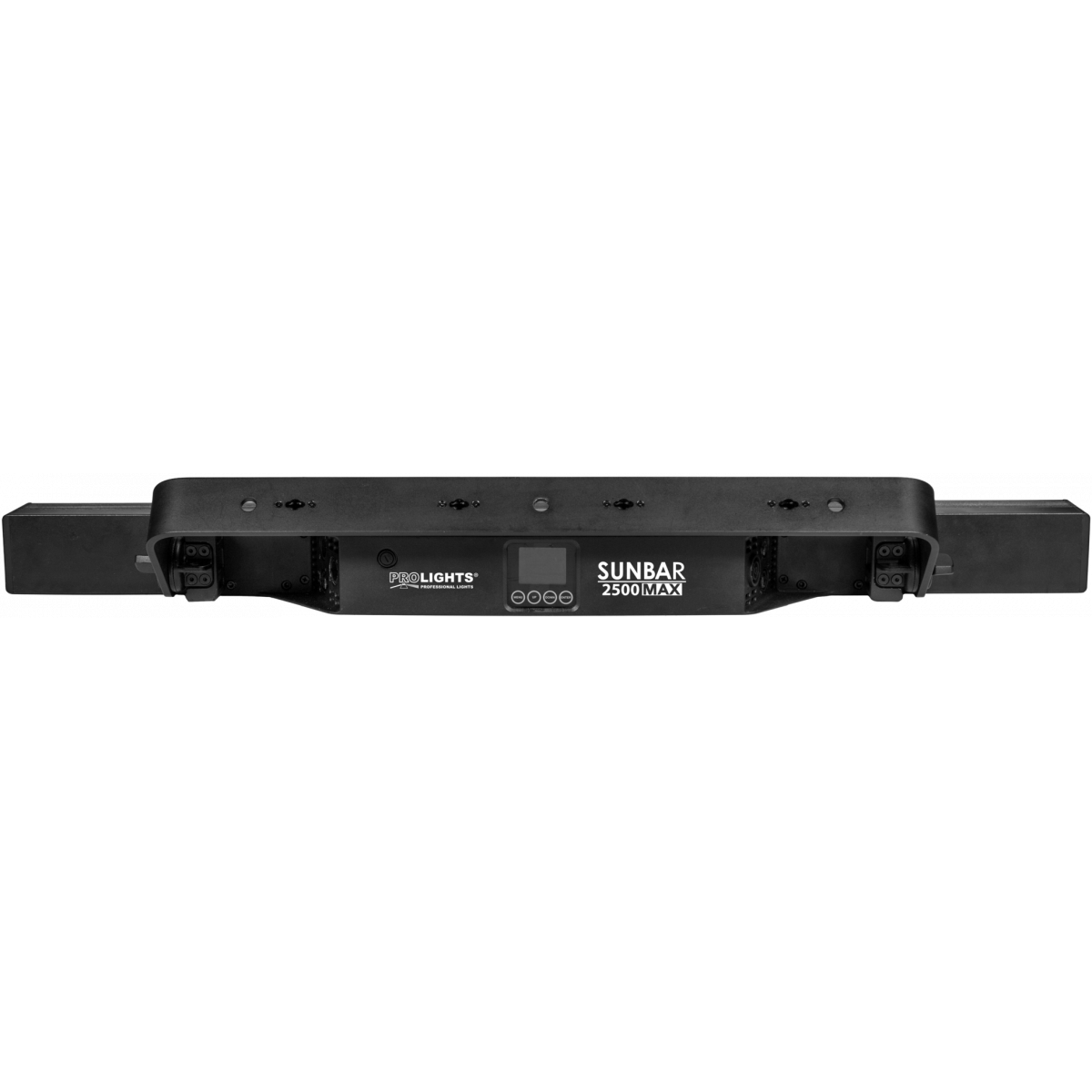

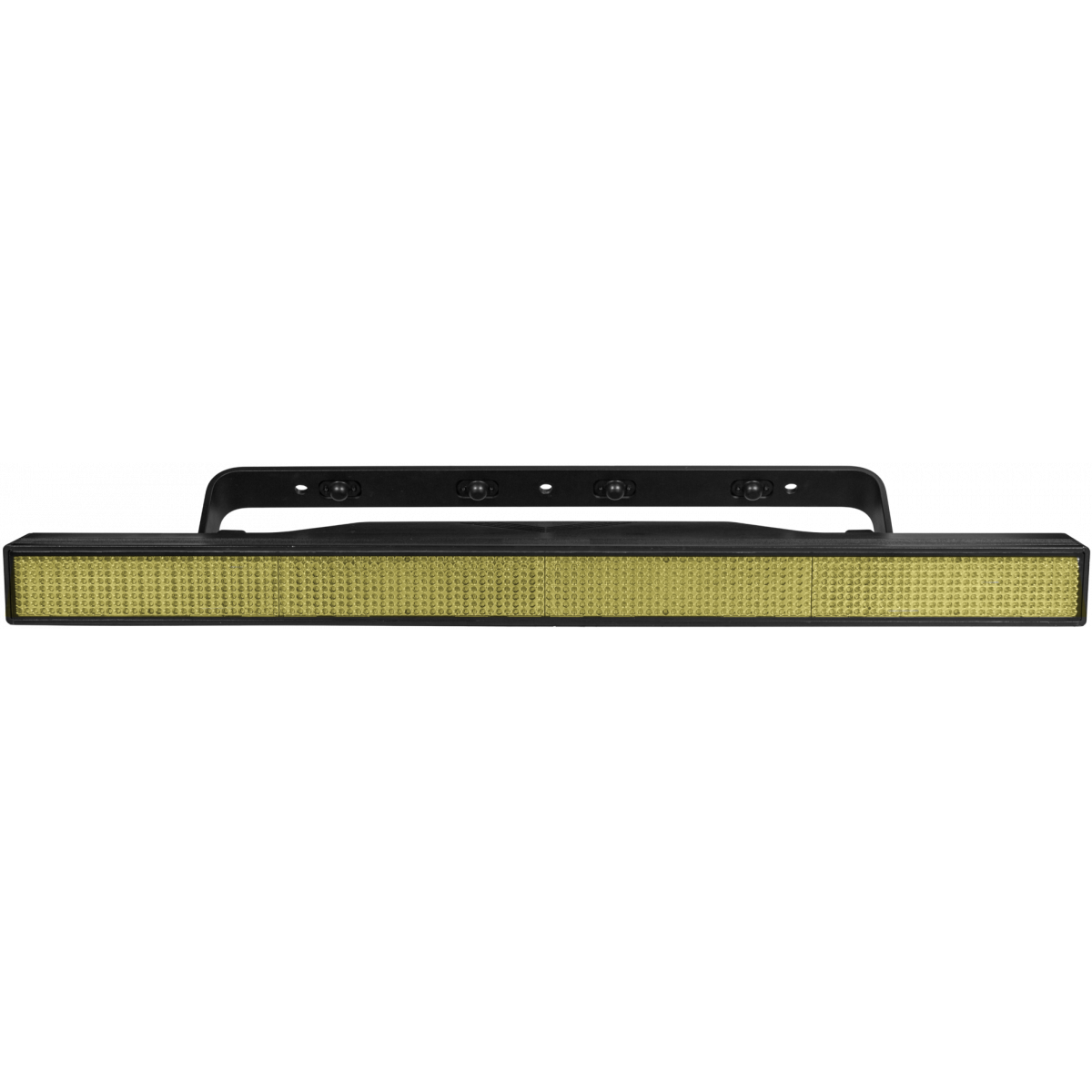

SunBar 2500Max

ORDER CODE: SUNBAR2500MAX

160K lumen white LED graphic strobe batten with interchangeable lenses

SunBar 2500Max is an exceptionally powerful LED graphic strobe batten also featuring as a static blinder and flood. SunBar 2500Max offers flexible control of the beam coverage through an interchangeable lens system, passing from 120° wide to 40° beam increasing the light intensity up to x4.
Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.

Main features:

  • Staggering 160'000 lumen output (strobe) with 120° beam angle
  • Art-Net, Kling-Net and DMX control
  • Graphic effects from 64 individually controllable groups of 7.000 K White LEDs
See variants

PHOTO GALLERY

SunBar 2500Max
SunBar 2500Max
SunBar 2500Max

Technical specifications

LIGHT SOURCE
  • Source: 1.024x1,3W high-power white LED
  • CCT: CW: 7.000
  • Luminous flux: strobe without lens (peak) 160'000 lm - static ON without lens 45'000 - strobe with lens (peak) 112'000 - static ON with lens 40'000lm
  • Lux: (120°) 2'093 lx - (40°) 5'640lx @3 m
  • CRI: 87
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: without lens 120°, with lens 40°
  • Field angle: without lens 150°, with lens 80°
  • Additional optics: mountable 40° lens reflector plate (included)
DYNAMIC EFFECTS
  • Rotating gobos: dynamic patterns with speed and rotation control
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: multi-layer pixel FX control
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Kling-Net
  • DMX channels: from 1 to 71channel
  • Pixel control: 1 / 2 / 4 / 8 / 16 / 64 individually select and control sections
  • RDM: RDM for remote monitoring and settings
  • Display: black TFT touch display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: full static: 596 W - strobing: 1'060W
  • Max power consumption (at 120V): full static: 621 W - strobing: 1'166W
  • Output (at 230V): 3 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 1.000x75x231mm / 0.04''x2.95''x9.09''
  • Weight: 9,5kg / 20.94lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

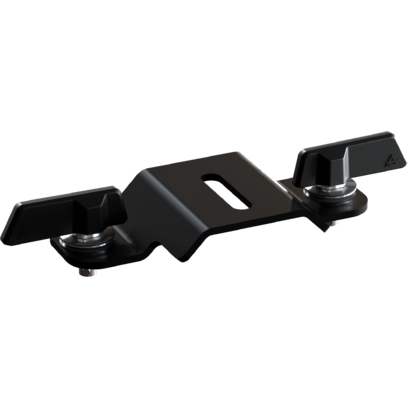

OS26
OS26
(optional)
Quick-Lock omega bracket, M10 hole

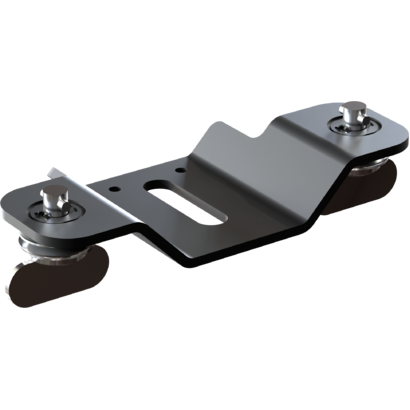

OS26D13
OS26D13
(optional)
Quick-Lock omega bracket, M12 hole
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

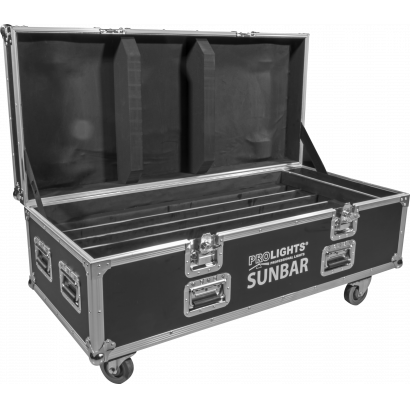

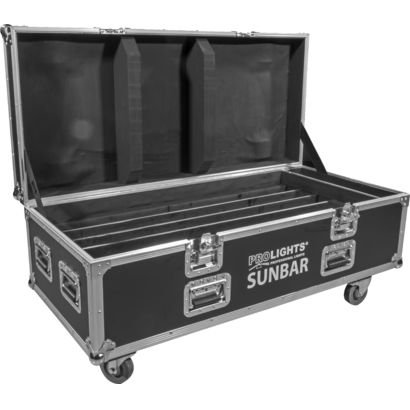

FCLSUNBAR
FCLSUNBAR
(optional)
Flight case for 5pcs of SUNBAR

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Sunbar2500max_A4_DATASHEET_(EN).pdf 200KB
Letter datasheet Sunbar2500max_A4_DATASHEET_(IT).pdf 204KB

User manual

File name File size Download
User manual Sunbar2500max_USER_MANUAL_ITEN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Sunbar2500max_DMX_CHARTS.pdf 70KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 191KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
SUNBAR2500MAX Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_sunbar2500max.d4Download
manufacturer fixture library (Link) Link
prolights@sunbar2500max_adv1@.xmlDownload
sunbars_bck.hog4showDownload

Photometrics

File name File size Download
IES prolights_sunbar2500max_blue_with reflector.ies 30KB
IES prolights_sunbar2500max_blue_without reflector.ies 59KB
IES prolights_sunbar2500max_full_with reflector.ies 59KB
IES prolights_sunbar2500max_full_without reflector.ies 59KB
IES prolights_sunbar2500max_green_with reflector.ies 30KB
IES prolights_sunbar2500max_green_without reflector.ies 59KB
IES prolights_sunbar2500max_red_with reflector.ies 30KB
IES prolights_sunbar2500max_red_without reflector.ies 59KB
IES prolights_sunbar2500max_white_with reflector.ies 30KB
IES prolights_sunbar2500max_white_without reflector.ies 59KB
PDF Photometrics Sunbar2500max_PHOTOMETRICS_REPORT.pdf 166KB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Sunbar2500max_3D_REVIT.rfa 608KB
3D SKP Sunbar2500max_3D_SKETCHUP.skp 254KB
3D Sunbar2500max_3D.dwg 642KB
2D Sunbar2500max_2D.dwg 7MB
2D cad symbols Sunbar2500max_2DSYMBOLS.dwg 58KB
Technical drawing Sunbar2500max_TECHNICAL_DRAWING.pdf 1MB

Tech docs

File name File size Download

Software

File name File size Download
Software Professional Uploader 0KB

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 15/11/2018 Added KlingNet functionality. Rev. 1
