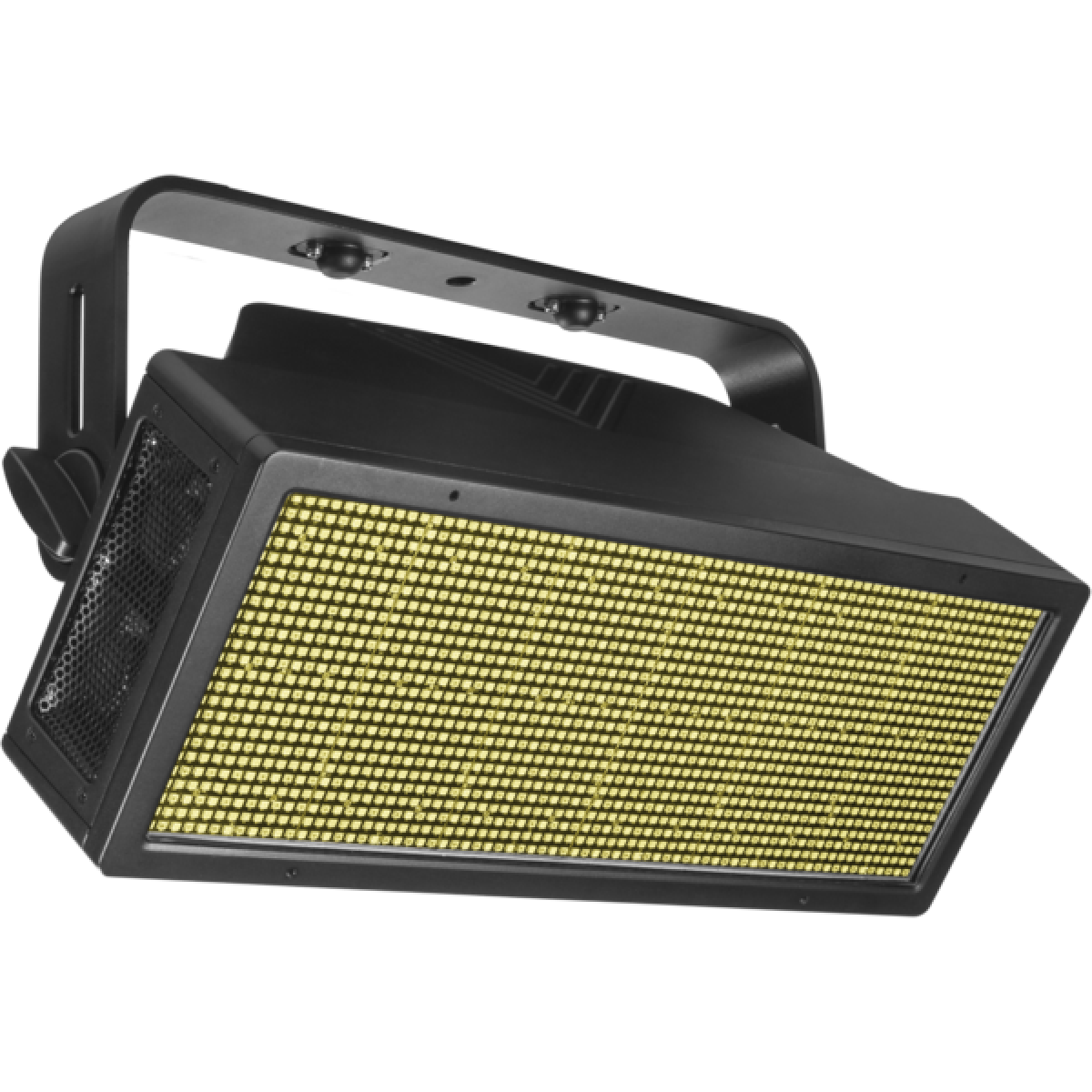

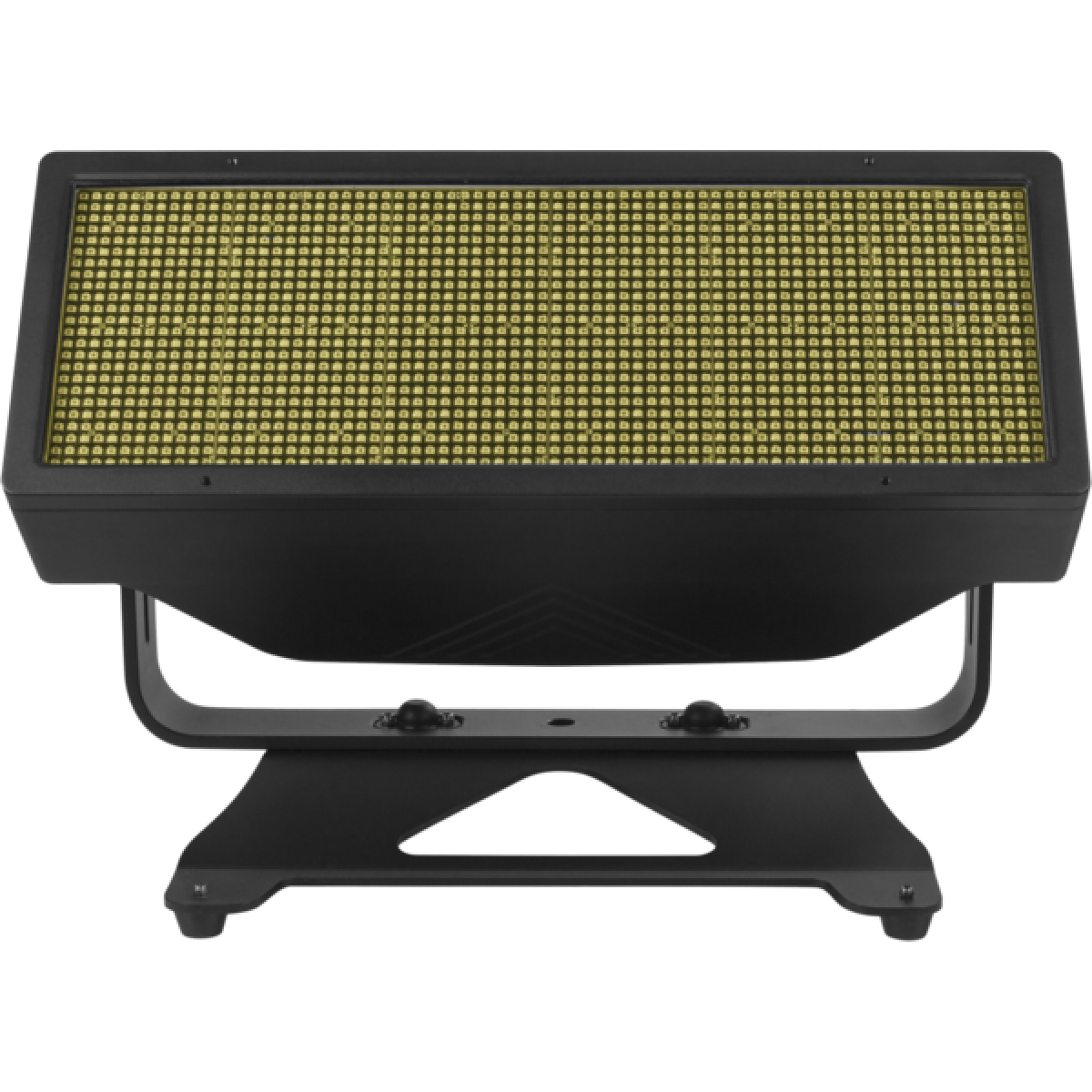

SunBlast 3500Max

ORDER CODE: SUNBLAST3500MAX

IP65 white LEDs graphic strobe and blinder

SunBlast 3500Max LED is an exceptionally powerful IP65 graphic strobe, blinder and flood. Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.

Main features:

  • Staggering 230'000 lumen output with 120° beam angle
  • Artnet and DMX control
  • Graphic effects from 48 individually controllable groups of 6.300 K white LED
  • IP65 rating
See variants

PHOTO GALLERY

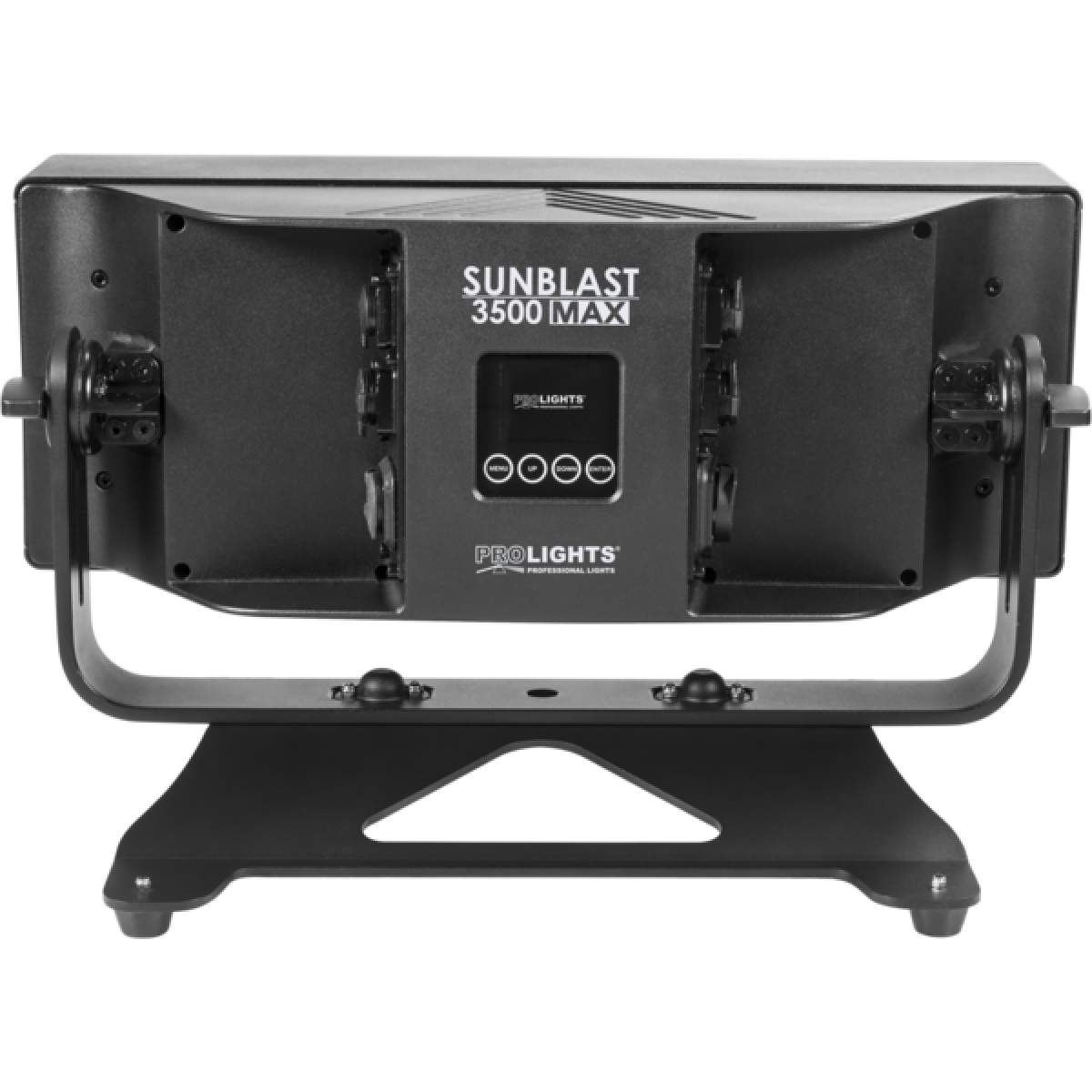

SunBlast 3500Max
SunBlast 3500Max
SunBlast 3500Max

Technical specifications

LIGHT SOURCE
  • Source: 1.728x1,3W high-power white LED
  • CCT: full ON: 6.300
  • Luminous flux: strobe: 230'000 lm - static ON: 50'638
  • Lux: strobe: 6'335 lx - static ON: 3'200lx @3 m
  • CRI: 85
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: 110°
  • Field angle: 155°
DYNAMIC EFFECTS
  • Rotating gobos: dynamic patterns with speed and rotation control
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Kling-Net
  • Pixel control: 1 / 2 / 4 / 8 / 16 / 48 individually select and control sections
  • RDM: RDM for remote monitoring and settings
  • Display: black TFT touch display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: strobe: 1.850 W (peak) - static: 633W
  • Output (at 230V): 2 units on a single power line
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 468x179x268mm / 18.43''x7.05''x10.55''
  • Weight: 14,3kg / 31.53lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
OS26D13
OS26D13
(optional)

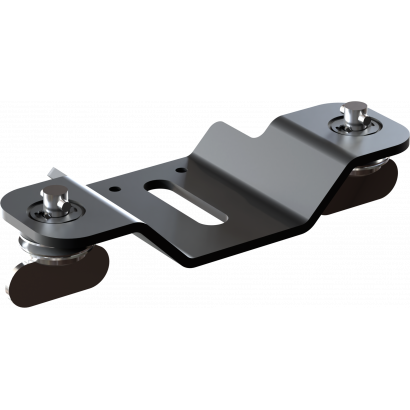

Quick-Lock omega bracket, M12 hole
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
SUNBLASTFLR
SUNBLASTFLR
(optional)

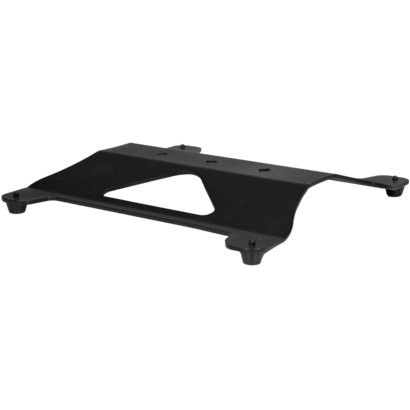

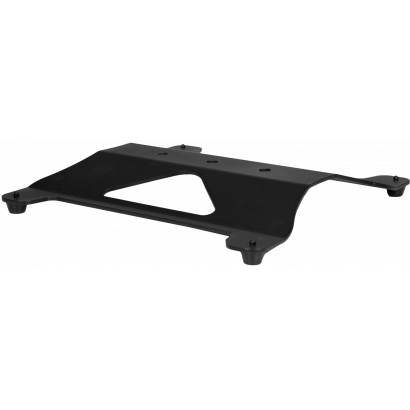

Hanging bracket for SUNBLAST floor positioning, quick-look
SUNBLASTBD
SUNBLASTBD
(optional)

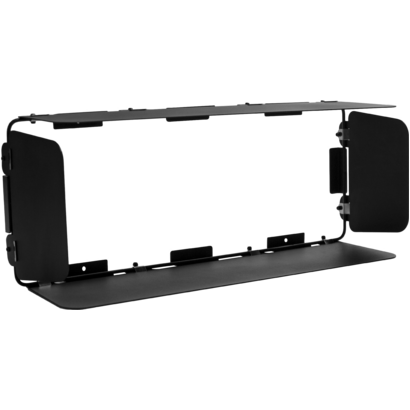

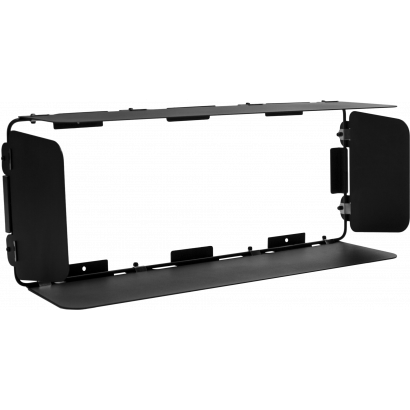

Barn door for SUNBLAST with 4 directional flaps to adjust the light beam
FCLSUNBLAST
FCLSUNBLAST
(optional)

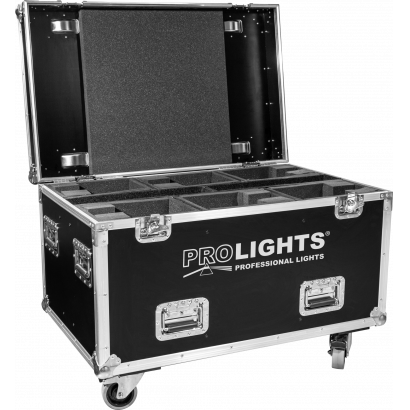

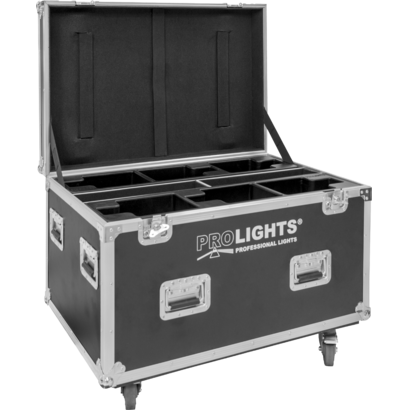

Flight case for 6x SUNBLAST, foam shells included
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Sunblast3500max_A4_DATASHEET_(EN).pdf 381KB
Letter datasheet Sunblast3500max_A4_DATASHEET_(IT).pdf 377KB
Letter datasheet Sunblast3500max_LETTER_DATASHEET_(EN).pdf 380KB

User manual

DMX chart & personalities

File name File size Download
DMX chart Sunblast3500max_DMX_CHARTS.pdf 173KB
SUNBLAST3500MAX Firmware rev. 1.7
prolights_sunblast 3500 max.d4Download
manufacturer fixture library (Link) Link
prolights_sunblast3500max_adv1.hedDownload
prolights_sunblast3500max_adv2.hedDownload
prolights_sunblast3500max_adv3.hedDownload
prolights_sunblast3500max_adv4.hedDownload
prolights_sunblast3500max_basic+pixel.hedDownload
prolights_sunblast3500max_basic+static.hedDownload
prolights_sunblast3500max_basic+strobe.hedDownload
prolights_sunblast3500max_pixel1.hedDownload
prolights_sunblast3500max_pixel2.hedDownload
prolights_sunblast3500max_pixel3.hedDownload
prolights_sunblast3500max_pixel12.hedDownload
prolights_sunblast3500max_pixel48.hedDownload
manufacturer fixture library (Link) Link
prolights@sunblast3500max_adv1@.xmlDownload
prolights@sunblast3500max_adv2@.xmlDownload
prolights@sunblast3500max_adv3@advanced3.xmlDownload
prolights@sunblast3500max_adv4@.xmlDownload
manufacturer fixture library (Link) Link
sunblast 3500 max advanced 1.fix2Download
sunblast 3500 max advanced 2.fix2Download
sunblast 3500 max advanced 3.fix2Download
sunblast 3500 max basic pixel.fix2Download
sunblast 3500 max basic static.fix2Download
sunblast 3500 max basic strobe.fix2Download
sunblast 3500 max pixels 1px.fix2Download
sunblast 3500 max pixels 2px.fix2Download
sunblast 3500 max pixels 3px.fix2Download
sunblast 3500 max pixels 12px.fix2Download
sunblast 3500 max pixels 48px.fix2Download
SUNBLAST3500MAX Firmware rev. 1.6
prolights_sunblast 3500 max.d4Download
manufacturer fixture library (Link) Link
prolights_sunblast3500max_adv1.hedDownload
prolights_sunblast3500max_adv2.hedDownload
prolights_sunblast3500max_adv3.hedDownload
prolights_sunblast3500max_adv4.hedDownload
prolights_sunblast3500max_basic+pixel.hedDownload
prolights_sunblast3500max_basic+static.hedDownload
prolights_sunblast3500max_basic+strobe.hedDownload
prolights_sunblast3500max_pixel1.hedDownload
prolights_sunblast3500max_pixel2.hedDownload
prolights_sunblast3500max_pixel3.hedDownload
prolights_sunblast3500max_pixel12.hedDownload
prolights_sunblast3500max_pixel48.hedDownload
manufacturer fixture library (Link) Link
prolights@sunblast3500max_adv1@.xmlDownload
prolights@sunblast3500max_adv2@.xmlDownload
prolights@sunblast3500max_adv3@advanced3.xmlDownload
prolights@sunblast3500max_adv4@.xmlDownload
manufacturer fixture library (Link) Link
sunblast 3500 max advanced 1.fix2Download
sunblast 3500 max advanced 2.fix2Download
sunblast 3500 max advanced 3.fix2Download
sunblast 3500 max basic pixel.fix2Download
sunblast 3500 max basic static.fix2Download
sunblast 3500 max basic strobe.fix2Download
sunblast 3500 max pixels 1px.fix2Download
sunblast 3500 max pixels 2px.fix2Download
sunblast 3500 max pixels 3px.fix2Download
sunblast 3500 max pixels 12px.fix2Download
sunblast 3500 max pixels 48px.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFA Sunblast3500max_3D.rfa 520KB
3D SKP Sunblast3500max_3D.skp 221KB
3D Sunblast3500max_CAD_3D.dwg 636KB
2D Sunblast3500max_CAD_2D.dwg 4MB
2D cad symbols Sunblast3500max_CAD_2DSYMBOLS.dwg 61KB
Technical drawing Sunblast3500max_TECHNICAL_DRAWING.pdf 626KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 288KB

Tech docs

File name File size Download
Noise Report Sunblast3500max_NOISE_REPORT.pdf 130KB

Software

File name File size Download
Software Professional Uploader 19MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 28/03/2023 New functions:
  • LED Frequency selector added (range: 400Hz to 16kHz).

Fixed bugs:
  • Wrong RDM Model ID shown.
 Rev. 1
Rev. 2
