Sunrise 2IP

ORDER CODE: SUNRISE2IP

IP rated modular LED blinder with 2x75W LED WW and Tungsten emulation

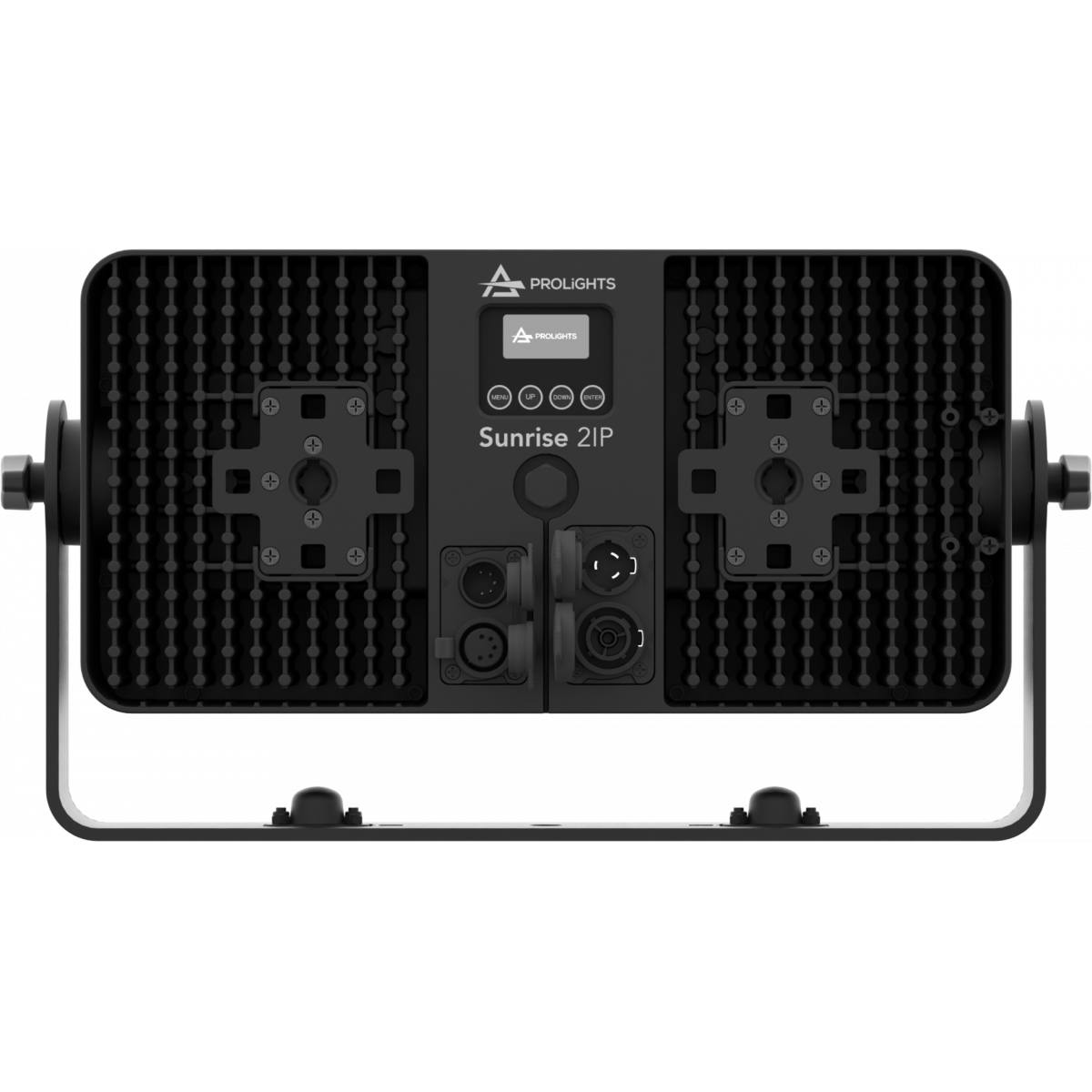

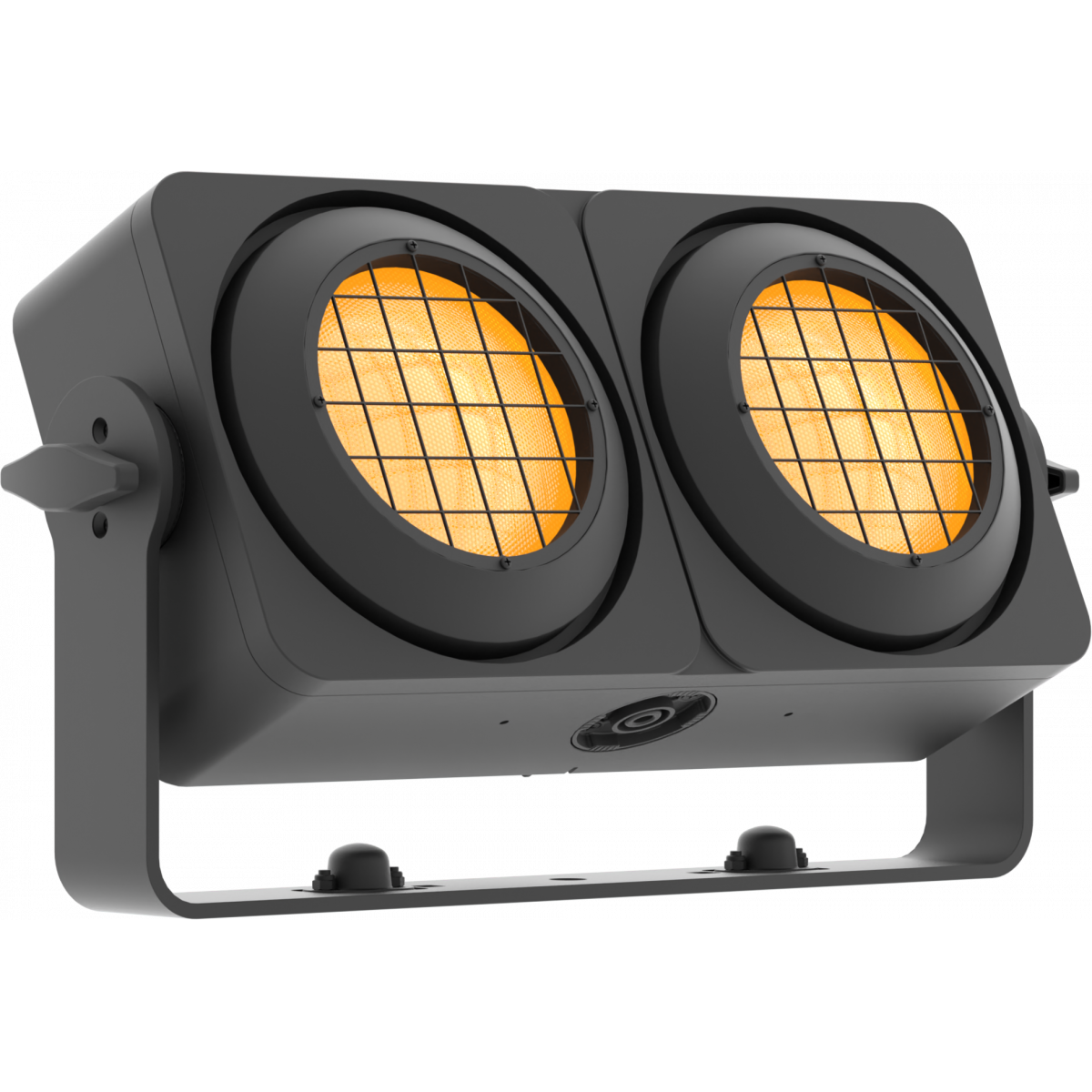

Sunrise 2IP is an IP rated and convection cooled modular 2x1 LED Blinder, designed to be a perfect touring solution to replace classic halogen fixtures of any sizes.
The fixture is designed with on-board, fast-locking mechanism in order to combine multiple units together and using them as brick, turning the Sunrise 2IP into a 4x1 or a 2x2 blinder easily. The Sunrise 2IP is equipped with 2x75 W COB Warm White LEDs pixel controlled and its optical system is capable to output the same performance and beam angle of the fluorescent bulbs, including dimmer ramp with red-shift.

Main features:

  • 2x75W Warm White LED with Amber backlight for tungsten simulation

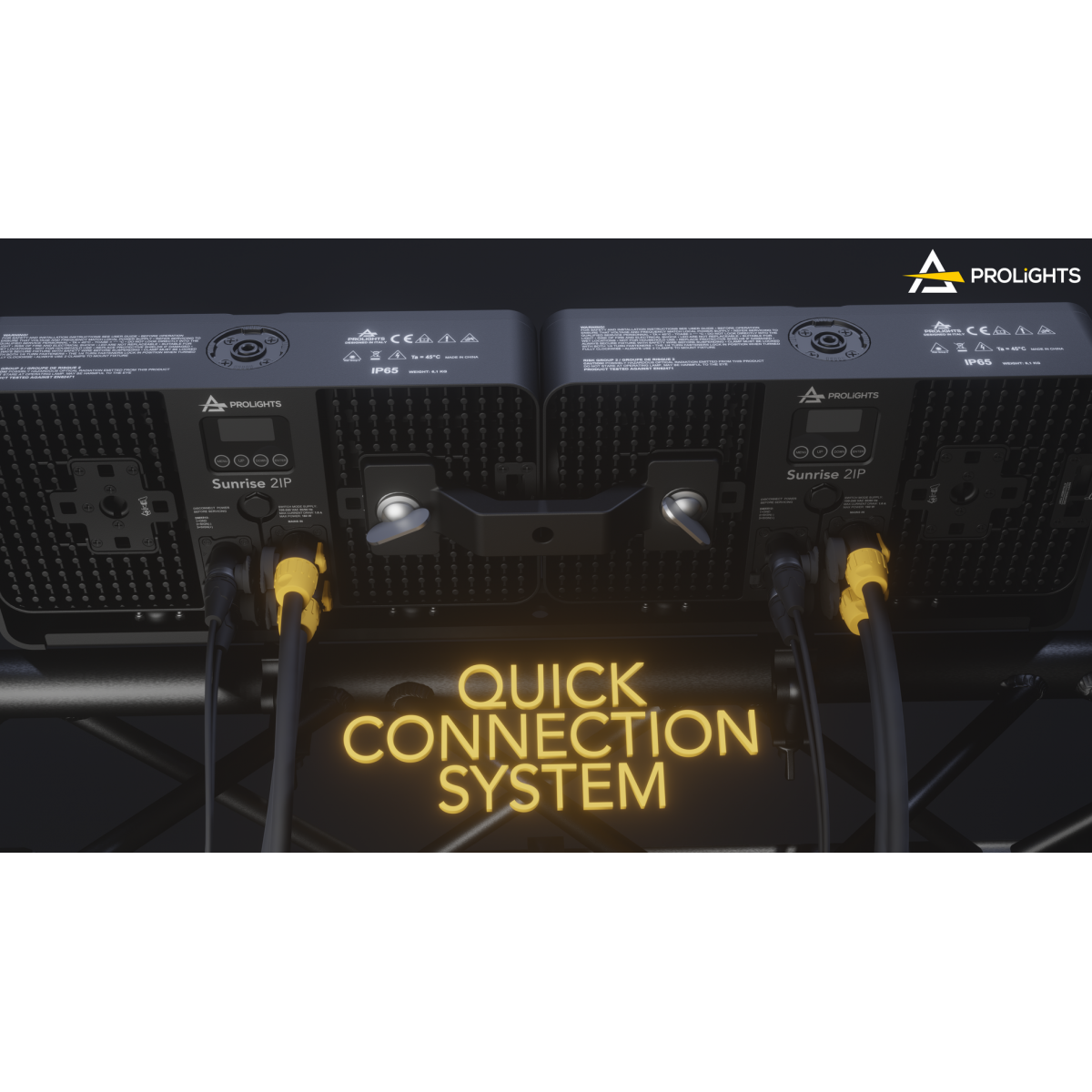

  • Modular fast-locking assembly to combine multiple units together
  • IP rated and convection cooled
See variants

PHOTO GALLERY

Sunrise 2IP
Sunrise 2IP
Sunrise 2IP
Sunrise 2IP
Sunrise 2IP
Sunrise 2IP
Sunrise 2IP
Sunrise 2IP

Technical specifications

LIGHT SOURCE
  • Source: 2 x 8 W Amber + 2 x 75W Warm White LEDs
  • CCT: 2.700
  • Luminous flux: 10'088 @Full
  • Lux: 1'076lx @3 m full
  • Lux: 387lx @5 m full
  • CRI: > 93
  • TLCI: > 91
  • TM30 Rf: > 91
  • TM30 Rg: > 97
  • Source life expectancy: > 70.000 h
OPTICS
  • Beam angle: 60°
  • Field angle: 100°
  • Lens type: parabolic reflector
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment

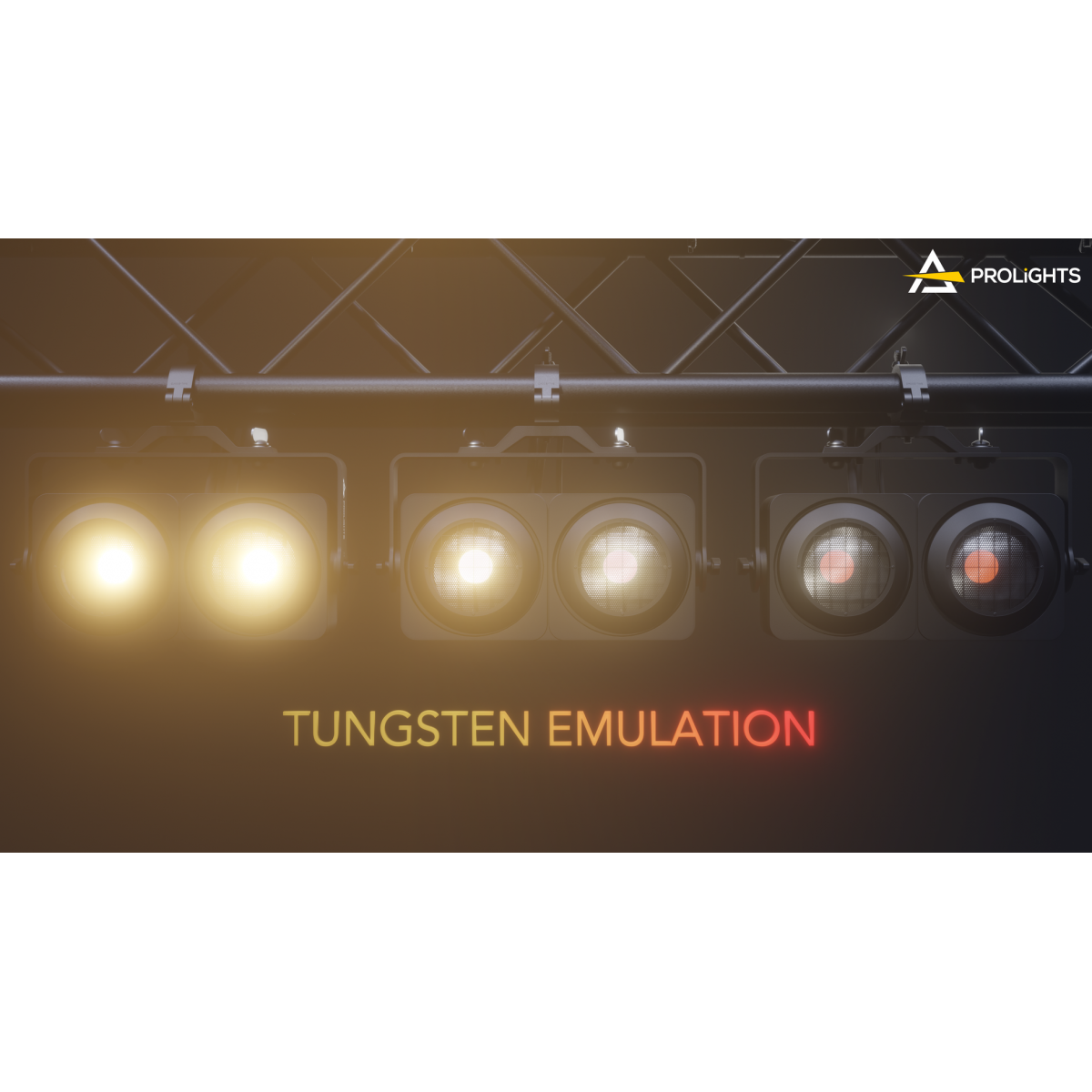

  • Special features: tungsten emulation activation
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
  • Other: on board mechanics for modular assembly of multiple fixtures
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 6 / 12channel
  • Pixel control: pixel2pixel control
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 160W
  • Output (at 230V): 22 units on a single power line
  • Power factor: > 0,94
PHYSICAL

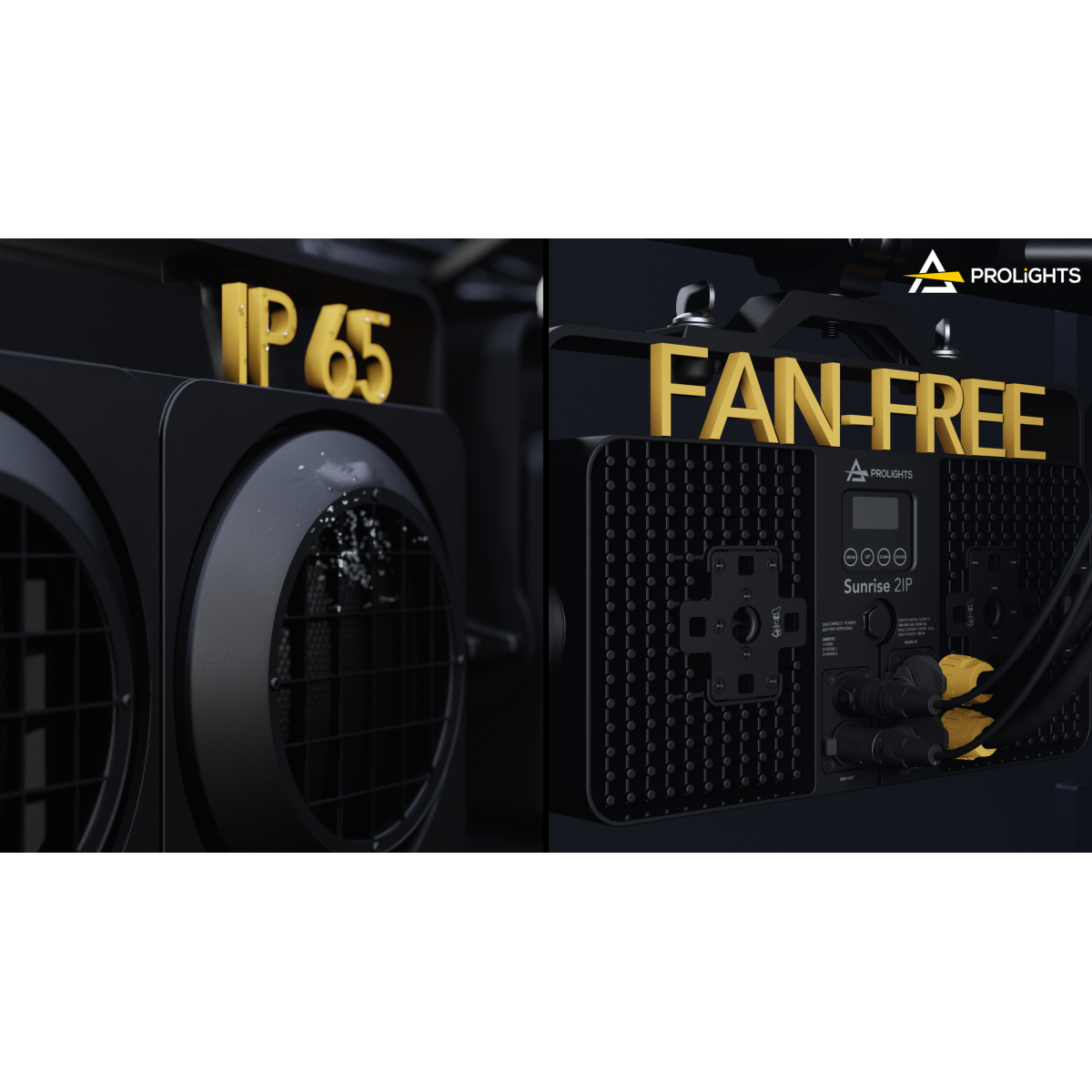

  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • IK rating: 08
  • Cooling: fan-free projector with a chassis designed for natural convection cooling
  • Suspension and fixing: bracket for truss rigging and hardware for connection of more units
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 432x230x102mm / 17.01''x9.06''x4.02''
  • Weight: 7,6kg / 16.76lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
FCLSUNRISE2IP
FCLSUNRISE2IP
(Optional)

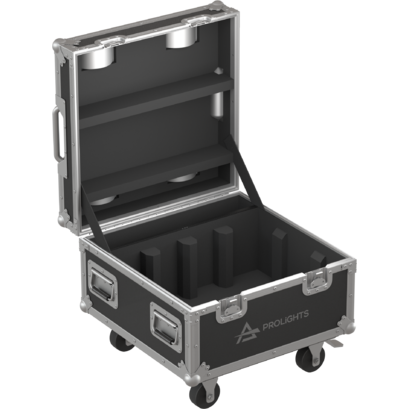

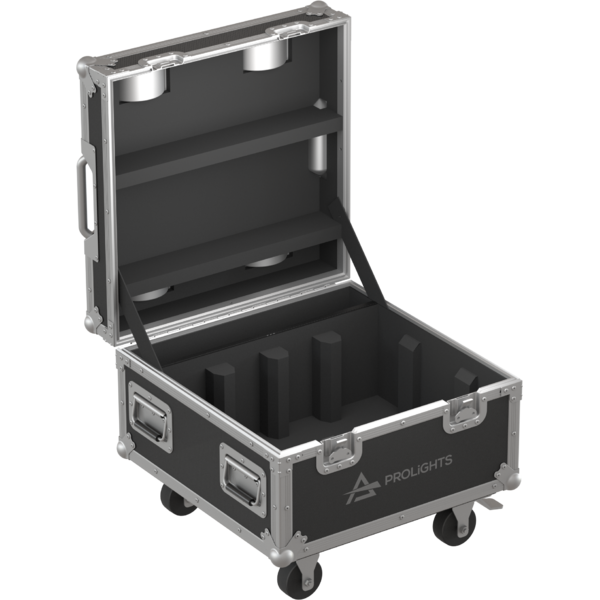

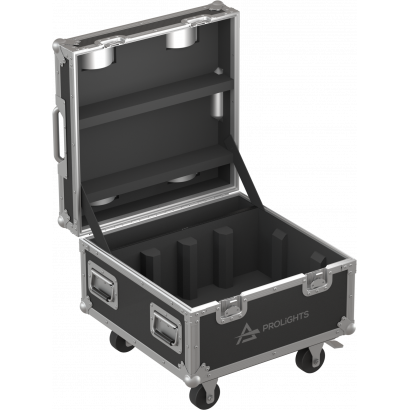

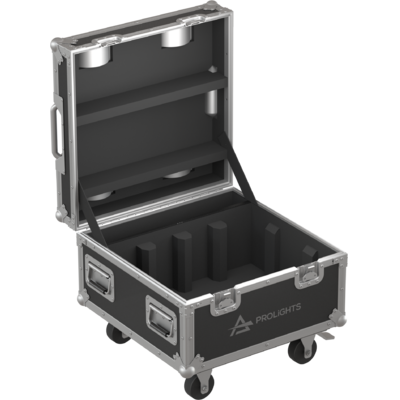

Flight case with internal compartments for 4 pcs of SUNRISE2IP

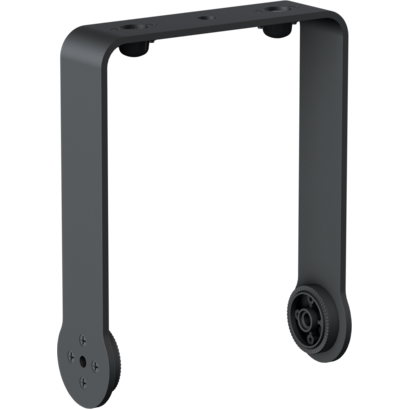

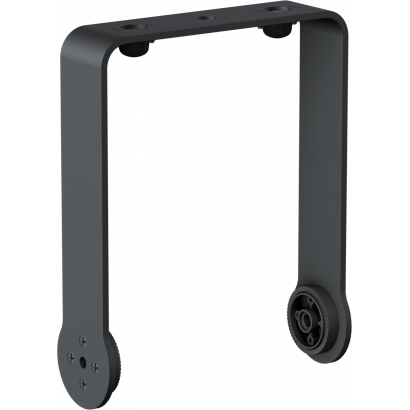

SR2IPHB01V
SR2IPHB01V
(Optional)
Hanging bracket for SUNRISE2IP, 1x2 configuration, fixture vertical

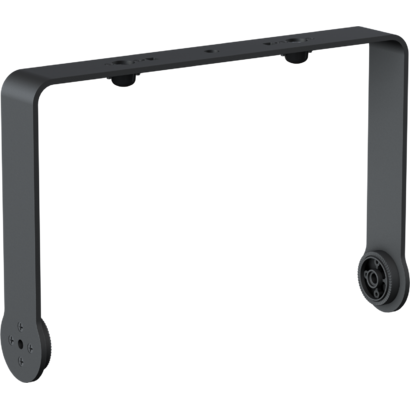

SR2IPHB02V
SR2IPHB02V
(Optional)

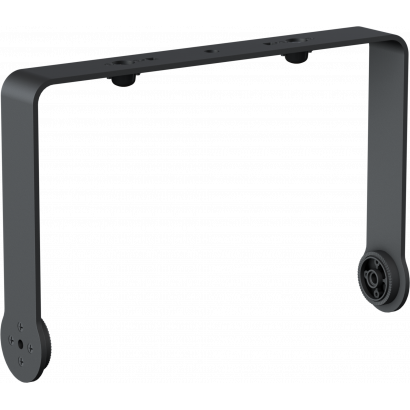

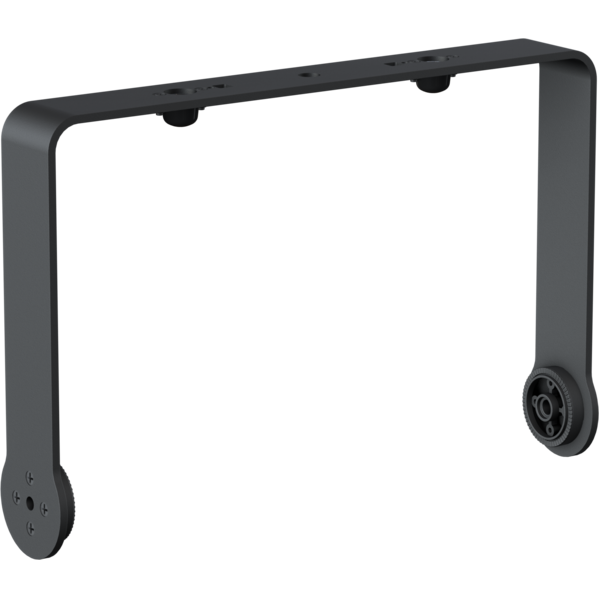

Hanging bracket for SUNRISE2IP, 2x2 configuration, fixture vertical

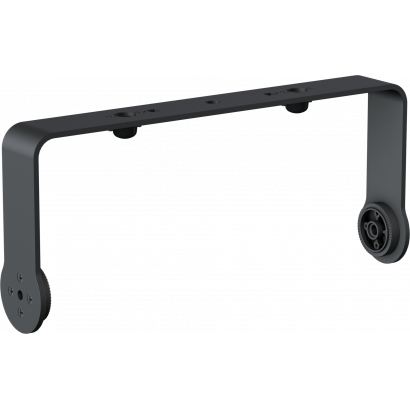

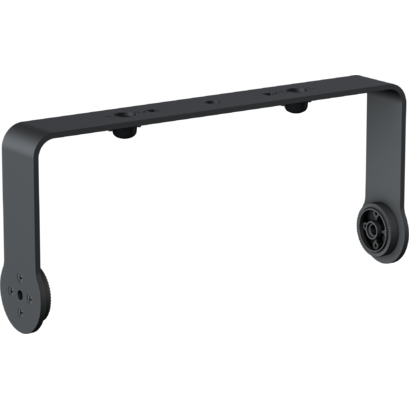

SR2IPHB02H
SR2IPHB02H
(Included)
Hanging bracket for SUNRISE2IP, 2x1 configuration, fixture horizontal

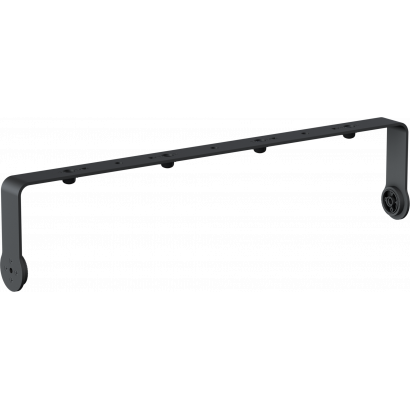

SR2IPHB04H
SR2IPHB04H
(Optional)

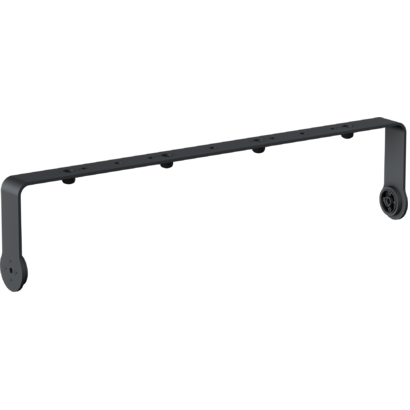

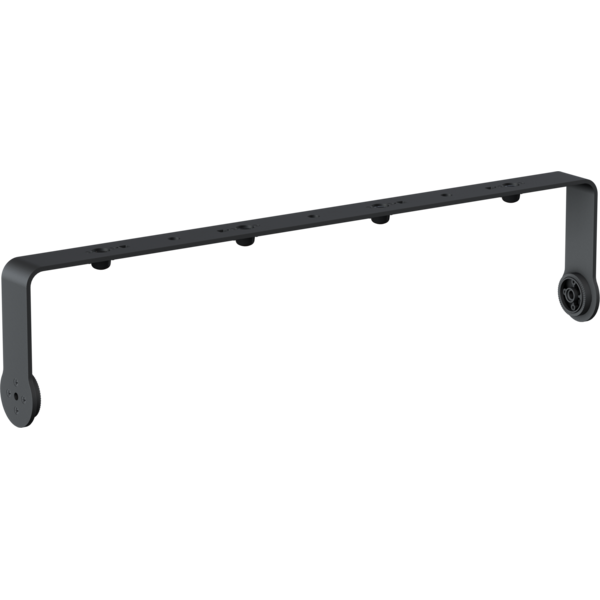

Hanging bracket for SUNRISE2IP, 4x1 configuration, fixture horizontal

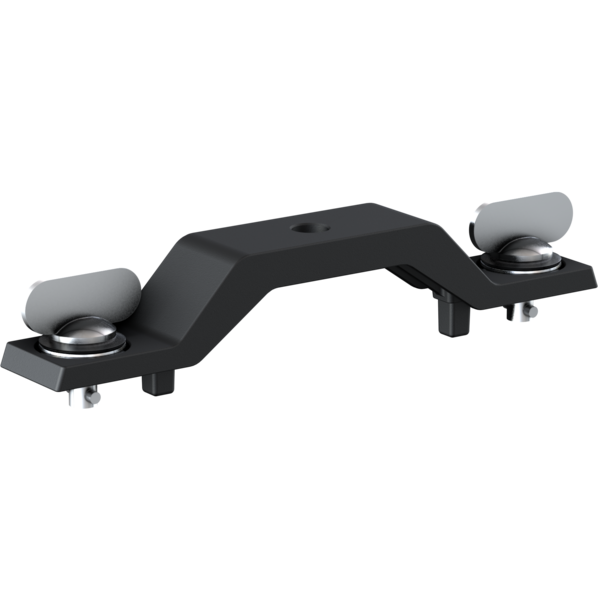

SR2IPOS
SR2IPOS
(Included)
Quick-lock omega bracket for SUNRISE2IP
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSunrise2ip_A4_DATASHEET_(IT).pdf375KB
Letter datasheetSunrise2ip_A4_DATASHEET_(EN).pdf403KB
Tender SpecificationSunrise2ip_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartSunrise2ip_DMX_CHARTS.pdf49KB
SUNRISE2IP Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@sunrise2ip@rev_1.4_-_fw_1.2_and_above_-_snap_on_shutter_disable.gdtfDownload
manufacturer fixture library (Link) Link
prolights@sunrise2ip@uno@rev_1.4_-_fw_1.2_and_above.xmlDownload
prolights@sunrise2ip@standard@rev_1.4_-_fw_1.2_and_above.xmlDownload
prolights@sunrise2ip@extended@rev_1.4_-_fw_1.2_and_above.xmlDownload
prolights@sunrise2ip@basic@rev_1.4_-_fw_1.2_and_above.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPSunrise2ip_3D.skp2MB
3D RFASunrise2ip_3D.rfa1MB
3DSunrise2ip_CAD_3D.dwg872KB
2DSunrise2ip_CAD_2D.dwg10MB
2D cad symbolsSunrise2ip_CAD_2DSYMBOLS.dwg51KB
Technical drawingSunrise2ip_TECHNICAL_DRAWING.pdf412KB
VectorWorksVECTORWORKS_SYMBOLS.vwx653KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 05/12/2024 New Function:
  • Added Dimmer Speed OFF in menu Advanced/Dimmer Speed.
 Rev. 1.0
