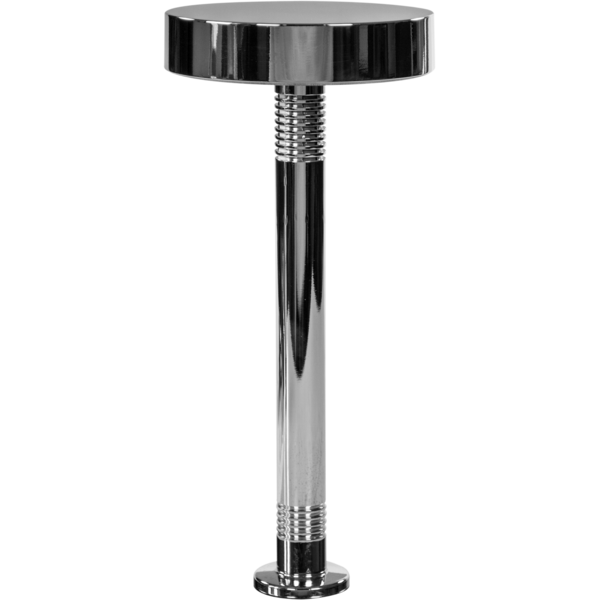

Tabled W

Revolutionary tunable white event battery table lamp

Tabled W is an ingenious product which offers beautiful table lighting for events whilst keeping with the atmosphere in the room. Based on a stunning aesthetic design, it is not only a stylish centerpiece but fast to deploy and easy to use. With local control it can either act as a standalone table light or part of a spectacular event lighting package.

Main features:

  • Battery powered for fast deployment and accurate control
  • Tunable white LED source with 360° coverage for standard catering round tables of 1.8m

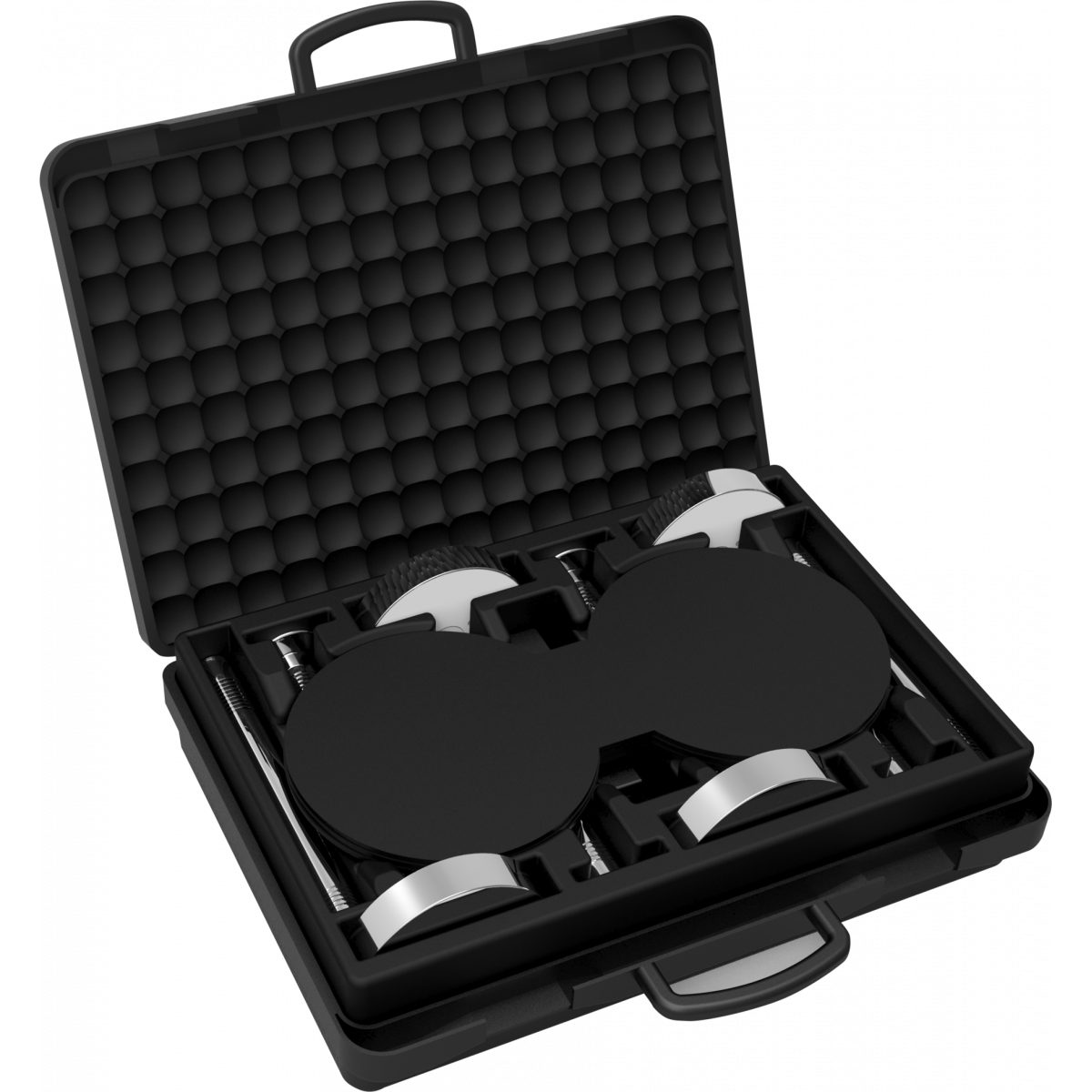

  • Available in a TABLED-W PACK featuring 4 lights with accessories in an ABS case
See variants

PHOTO GALLERY

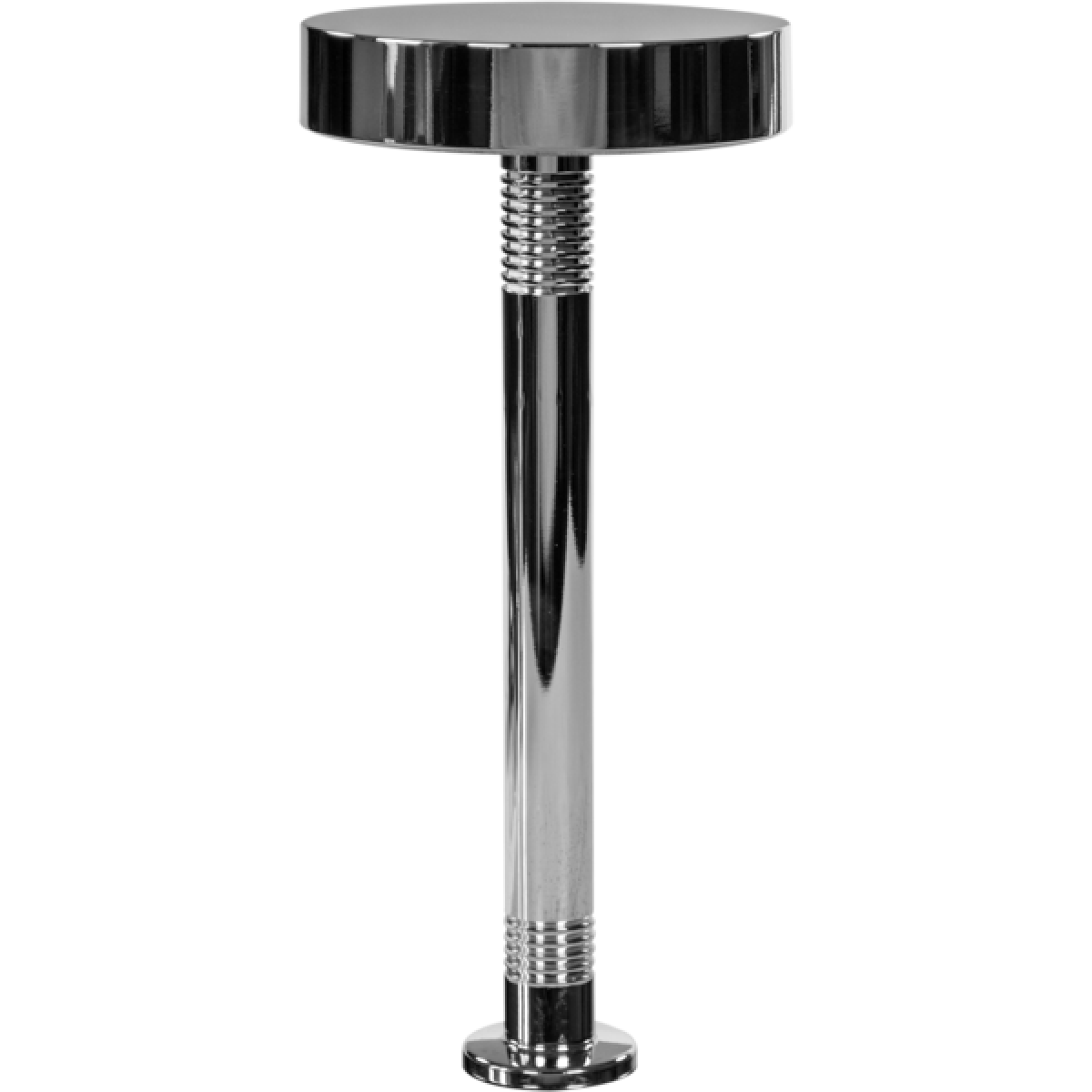

<b>Tabled</b> W
<b>Tabled</b> W

Technical specifications

LIGHT SOURCE
  • Source: 6x1 W + 6x1W Warm White + Cold White LEDs
  • CCT: 3.200 K - 5.600
  • CRI: 80
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 360° designed to light up standard 160/180 cm ceremony tables
COLOUR SYSTEM
  • Colour mixing: tunable white
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
BODY
  • Hardware on-board: magnetic base
  • Body: sturdy die-cast aluminium body
  • Body colour: mirror finishing
  • Other: 1 x TABLEDDSK22W and 1x1 recharger included inside single unit box
CONTROL
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: 0° ~ +45°
ELECTRICAL
  • Mains power supply: DC 24 V, 1 A, 24 W
  • Max power consumption: 9W
BATTERY
  • Battery: 2.200 m Ah - 14,8V lithium
  • Estimated battery life in single colour mode up to: W: 14h - A: 14,5h
  • Estimated battery life in full-mode up to: 8h
  • Re-charge connection: power supply
  • Re-charge time: 4h/max
  • Battery status: LED battery status indicator
PHYSICAL
  • IP rating: 30
  • Suspension and fixing: magnetic base to attach on every metal surface
  • Data connection: infrared sensor controlled
  • Dimensions (WxHxD): 140x307x220mm / 5.51''x12.09''x8.66''
  • Weight: 1,16kg / 2.56lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM

Versions

Code
Tabled
Extensions
Bases
Recharger
IRC
TABLED-W
TABLED-W
x1
No
x1 TABLEDDSK22W
1x1
No
TABLED-WPACK
TABLED-WPACK (DISCONTINUED)
x4
x2 TABLEDEXT-027
x4 TABLEDDSK22W
1x4
x1

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

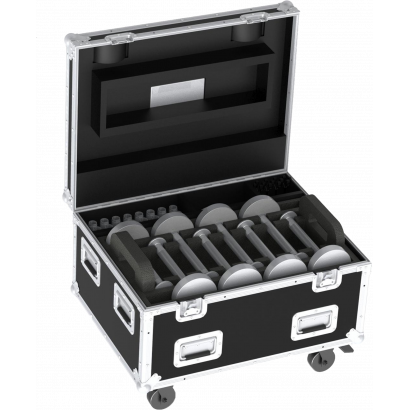

FCLTABLED
FCLTABLED
(optional)
RoadCase with internal compartments designed to contain 16 pcs of TABLED.

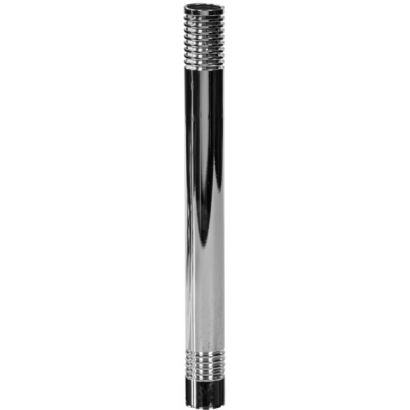

TABLEDEXT
TABLEDEXT
(optional)
Extension tube for Tabled
PRL-IRC
PRL-IRC
(optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade

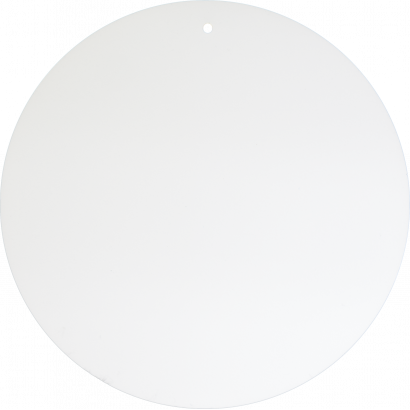

TABLEDDSK22W
TABLEDDSK22W
(included)
White disk for TABLED, D 220 mm

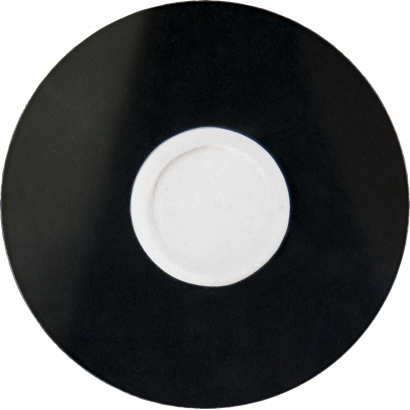

TABLEDDSK22MT
TABLEDDSK22MT
(optional)
Transparent disk with magnet for TABLED, D 220 mm

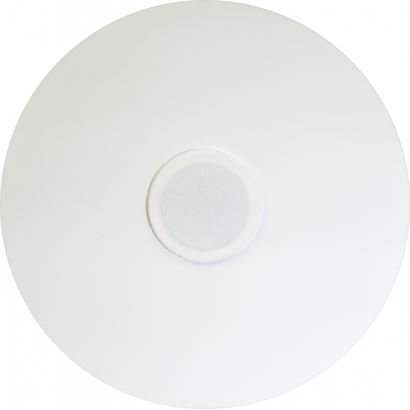

TABLEDDSK28MW
TABLEDDSK28MW
(optional)
White disk with magnet for TABLED, D 280 mm

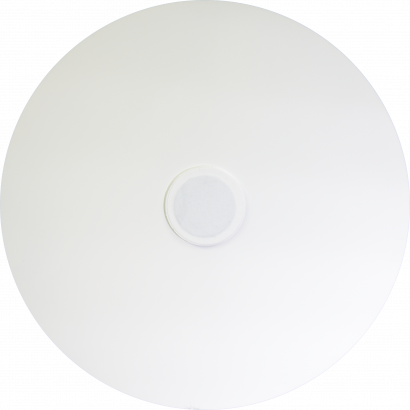

TABLEDDSK40MW
TABLEDDSK40MW
(optional)
White disk with magnet for TABLED, D 400 mm
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

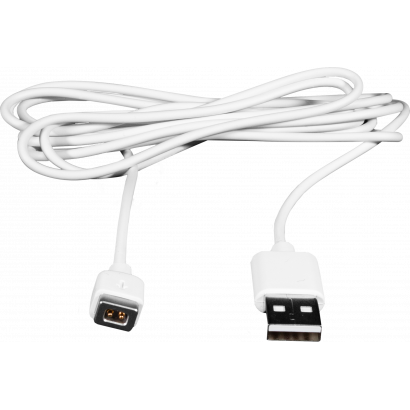

TABUPBOXI
TABUPBOXI
(optional)
Interface used between UPBOX1U and TABLED for make firmware upgrade

DOWNLOAD

Data sheet & specs

File name File size Download
Tabledw_A4_DATASHEET_(EN).pdf 251KB
Tabledw_A4_DATASHEET_(IT).pdf 256KB
Tabled-wpack_A4_DATASHEET_(IT).pdf 256KB
Tabled-wpack_A4_DATASHEET_(EN).pdf 251KB

User manual

File name File size Download
Tabled-w_USER_MANUAL_ITEN.pdf 478KB
Tabled-wpack_USER_MANUAL_ITEN.pdf 478KB
GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
Tabledw_GENERAL_SAFETY_INFO_SCEG.pdf 9MB
Tabledw_USER_MANUAL_ITEN.pdf 478KB
GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
Tabled-wpack_GENERAL_SAFETY_INFO_SCEG.pdf 9MB

DMX chart & personalities

File name File size Download
PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VECTORWORKS_SYMBOLS.vwx 179KB
PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
Tabledw_3D_REVIT.rvt 394KB
Tabledw_3D_SKETCHUP.skp 230KB
Tabled-w_3D.dwg 1MB
Tabled-w_2D.dwg 570KB
Tabledw_2DSYMBOLS.dwg 81KB
TABLEDW_TECHNICAL DRAWINGS.zip 234KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 25/11/2016
