RA2000PROFILE
PROLIGHTS


Ra 2000Profile

ORDER CODE: RA2000PROFILE

540W high-precision LED moving profile

The Ra 2000Profile has been designed in response to feedback from global users and by lighting designers. A universal moving profile/spot that lighting designers and users can use for theatrical, touring and TV productions. Powerful but silent, compact but fully equipped with both framing shutters and animation wheel, all whilst delivering a superior light quality, the Ra 2000Profile is an indispensable tool for any show. The 6.500 K LED engine has been custom engineered to make the Ra 2000Profile hit a 13'900 lumen output, keeping a native CRI of 93, TLCI of 93, high R9 and TM30 making all skin tones and colours come to life on stage or in front of a camera. The Ra 2000Profile's CMY system delivers beautiful pastels, stunning saturated colours and powerful primaries. One colour wheel provides split colours, and linear CTO allows the Ra 2000Profile to blend in with traditional sources. Packed with a full feature set composed of a gobo wheel, adjustable framing shutters, animation wheel, iris, prism and dual linear frost. The highly efficient optical system delivers a 1:6 zoom from 8° to 50°, and crisp focus to perfectly merge multi-layer effects. The Ra 2000Profile is the real embodiment of solid-state LED technology.

Main features:

  • 540W LED engine with 6.500 K CT featuring high CRI, TLCI, R9 and TM30.
  • 13'900 lumen fixture output with flat-field projection and silent operation.
  • Equipped with both adjustable framing shutters and an animation wheel.

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 540W LED
  • CCT: 6.500
  • Luminous flux: 13'900
  • Lux: (8°) 24'537 lx - (50°) 991lx @5 m
  • CRI: >93
  • R9: >73
  • TLCI: >92
  • TM30 Rf: >89
  • TM30 Rg: >99
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: 8° - 50° motorised linear zoom
  • Lens diameter: 120mm / 4.72''
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: amber shift activation by DMX and linear CTO correction 2700 K ~ 6000 K
  • Colour wheel: 6 colour filters
DYNAMIC EFFECTS
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 26,7 mm - image: 20 mm - thickness: 1,1 mm
  • FX generator: shutter macros with adjustable speed
  • Circular prism: 4f with bi-directional rotation, indexing
  • Frost: dual frost filter system, 1° soft-edge frost gobo, 5° frost wash, with linear 0 - 100% frost filter frost unit to soften the beam edge
  • Iris: 5 - 100% motorised iris
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Special features: OFF, ON and AUTO setup options for manage red LED
BODY
  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body colour: black finishing
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 38 / 39 / 40 / 41/ 44channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +50°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 690W
  • Output (at 230V): 4 units on a single power line
  • Power factor: >0,96
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 443x697x293mm / 17.44''x27.44''x11.54''
  • Weight: 32kg / 70.55lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0670B
RSR0670B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
FCLRA2000
FCLRA2000
(optional)

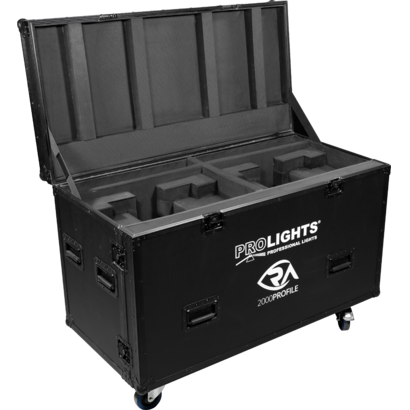

Flight case for 2 piece RA2000PROFILE
OS25D13
OS25D13
(included)
Quick-Lock omega bracket, M12 hole
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

DMX chart & personalities

RA2000PROFILE Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@ra2000profile@38ch.xmlDownload
prolights@ra2000profile@39ch.xmlDownload
prolights@ra2000profile@40ch.xmlDownload
prolights@ra2000profile@41ch.xmlDownload
prolights@ra2000profile@43ch.xmlDownload
prolights@ra2000profile@44ch.xmlDownload
ra2000 standard 38ch_bck.hog4showDownload
manufacturer fixture library (Link) Link
ra2000profile - vista 2.zipDownload

Tech docs

Software

File name File size Download
Software Professional Uploader 0KB

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 17/06/2020 Changed RDM Model ID Rev. 1
Rev. 2
