MUSEP70CTP

Muse Profile70CT+

NEW

Order Code: MUSEP70CTP

Source
1000W 6 colour LEDs source with adjustable high color rendering
Zoom range
5,9°- 49,7° motorised linear zoom
IP rating
 IP20
Weight
34kg / 74.96lbs

Key Features

  • 1000W 6-colour LED source with additive mixing, delivering >21,000 lm
  • Outstanding colour rendering: CRI up to 99, R9 up to 99, TLCI 97
  • SpektraOs ecosystem with ultra-wide CCT 2,200K-15,000K, Tint correction, and advanced control modes (RGB / CMY / XY / RAW / Gel & Tungsten Emulation)
  • Full effects package: physical colours wheel, 2 rotating gobo wheels, 4-blade framing system (full curtain), animation wheel, linear frost, motorized iris
  • Absolute encoders on pan and tilt, enabling true stationary reset with no calibration movement, instant position recovery after power cycles, and precise repeatability for seamless operation in live and studio environments

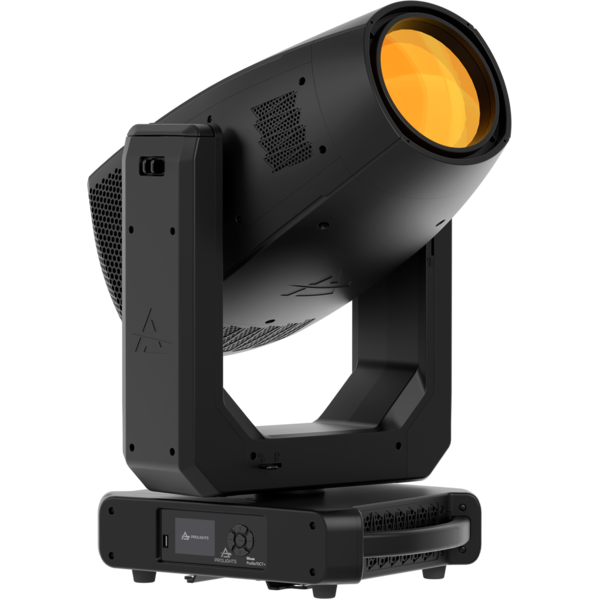

Muse Profile70CT+ is a moving LED Profile featuring a 1000W light source with 6-color additive mixing, designed to deliver maximum light quality for theatres, TV studios, and film sets.

Its LED source uses the same 6-colors and the SpektraOs ecosystem found across the CT+ range of the premium PROLIGHTS static fixtures (Profile, Fresnel and Soft light), enabling seamless mixed setups and ensuring consistent colour space and spectral compatibility within the same production environment—while adding all the advantages of a motorized fixture.

Light quality is outstanding, with CRI up to 99, R9 up to 99 for accurate skin tones and key light, and TLCI 97 for flawless results both to the eye and on camera. SpektraOs expands advanced colour control with an ultra-wide CCT range from 2,200K to 15,000K, Tint correction, and multiple colour control modes (RGB / CMY / XY / RAW), plus emulation of Tungsten and a wide selection of filter gels. An additional physical colour wheel reproduces colours outside the native gamut (such as Congo Blue) and providing higher transmission on ultra-saturated colours.

Muse Profile70CT+ is built for maximum versatility on large stages, delivering an outstanding output of >21,000 lumens and a wide 6°-50° zoom range. Its onboard effects package is complete, including two rotating gobo wheels, a 4-blade framing system (full curtain), animation wheel, linear frost, motorized iris, and absolute P/T encoder (respositioning without reset).

Silent operation and smooth, flicker-free dimming, combined with a compact form factor and a weight of just 34kg, make Muse Profile70CT+ a unique blend of power, light quality, and great form factor for large-scale productions.

Read less
Muse Profile70CT+ is a moving LED Profile featuring a 1000W light source with 6-color additive mixing, designed to deliver maximum light quality for theatres, TV studios, and film sets.Its LED source ...

Photo Gallery

Specifications

LIGHT SOURCE
  • Source: 1000W 6 colour LEDs source with adjustable high color rendering
  • Luminous flux: (5,9°) 14'001 lm - (49,7°) 21'257 lm @Full
  • Lux: (5,9°) 64'433 lx - (49,7°) 1'556lx @5 m full
  • CRI: 98,8 @3.200K; 97,2 @5.600K
  • R9: 97,1 @3.200K; 96,4 @5.600K
  • TLCI: 93 @3.200K; 97 @5.600K
  • TM30 Rf: 95 @3.200K; 94 @5.600K
  • TM30 Rg: 100 @3.200K; 101 @5.600K
  • Source life expectancy: > 40.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 5,9°- 49,7° motorised linear zoom
  • Lens diameter: 150mm / 5.91''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised 16-bit
COLOUR SYSTEM
  • Spektra OS: unmatched color precision and consistency
  • Colour control: XY, CCT, RGB, CMY, Gel Filters
  • Colour mixing: RGB / CMY / RAW
  • CCT: linear control from 2.200K to 15.000K with color-to-CCT linear crossfade
  • Tungsten Emulation: dimming with warm color shift simulation
  • Tint correction: ± green correction adjustment
  • Colour wheel: open+5 colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Shutter system: 4 shutter blades with position and ±35° angle adjustment, ±60° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Circular prism: 4-f with bi-directional rotation, indexing
  • Frost: linear 0-100% from soft-edge to heavy diffusion
  • Iris: 5 - 100% motorised iris
GOBOS
  • Rotating gobos (wheel1): 6 rotating gobos + open, interchangeable, indexing
  • Gobo size (wheel1): 26,9 mm outer / 20 mm image / up to 3 mm thickness
  • Rotating gobos (wheel2): 6 rotating gobos + open, interchangeable, indexing
  • Gobo size (wheel2): 26,9 mm outer / 20 mm image / up to 3 mm thickness
CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX
  • DMX channels: 43 / 48 / 49 / 53ch
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: for remote addressing and parameter configuration
  • Display: 2.4'' Color display
  • Firmware upgrade: via DMX with UPBOXPRO (not included) or via Ethernet with DMX-Workshop
MOVEMENT
  • Pan: 540° - 16-bit resolution
  • Tilt: 270° - 16-bit resolution
  • Absolute position: stationary reset without calibration movement
  • Position feedback: automatic repositioning after external movement
  • Pan / tilt lock: for transport and maintenance
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Display battery: optional, self-charging battery backup
  • Selectable PWM: 600 to 50000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 1400W
  • Standby power: 154,5 W
  • Power factor: > 0.95
CONNECTIONS
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Amphenol RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
PHYSICAL
  • IP rating: IP20
  • Cooling: heat pipe with low-noise fan
  • Housing: Aluminium structure with high-resistance polycarbonate cover
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 416 x 730 x 331mm / 16.38''x28.74''x13.03''
  • Weight: 34kg / 74.96lbs
INSTALLATION
  • Suspension and fixing: any position with quick-lock omega brackets
  • Hardware on-board: ancor points on the front for accessory mounting
  • Other: Handle on the top of the arm for easy transportation
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
BOX CONTENT
  • 1 x MUSEP70CTP
  • 2 x OS25PLUS
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
  • User Manual

Accessories & Related Products

Optional FCLMUSEP70

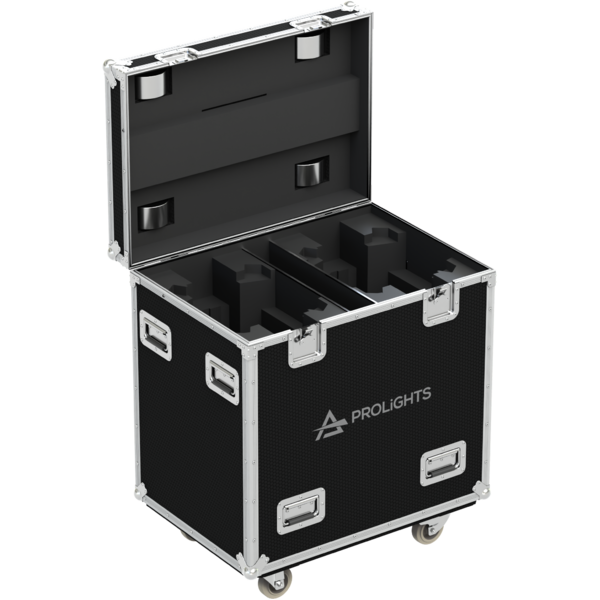

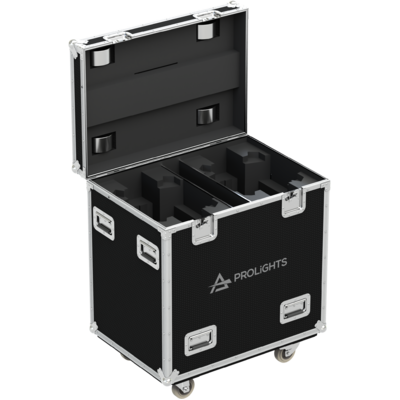

Flight case for 2 pcs of MUSEP70CTP

Order Code: FCLMUSEP70

Optional MP70FF

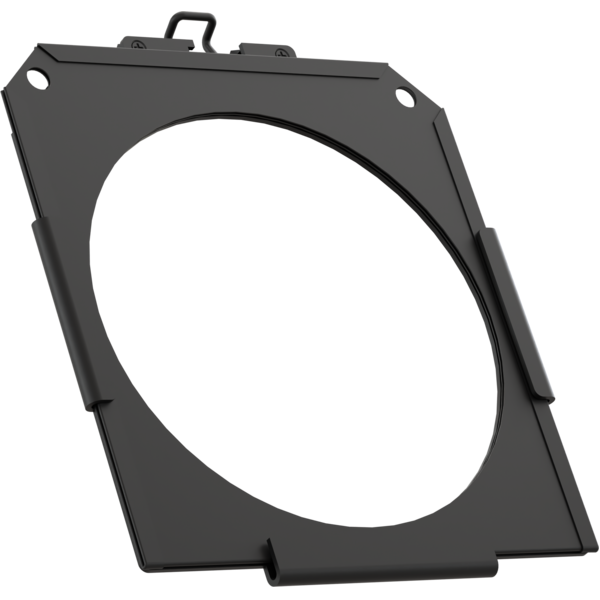

Holder and filter frame for MUSEP70CTP
