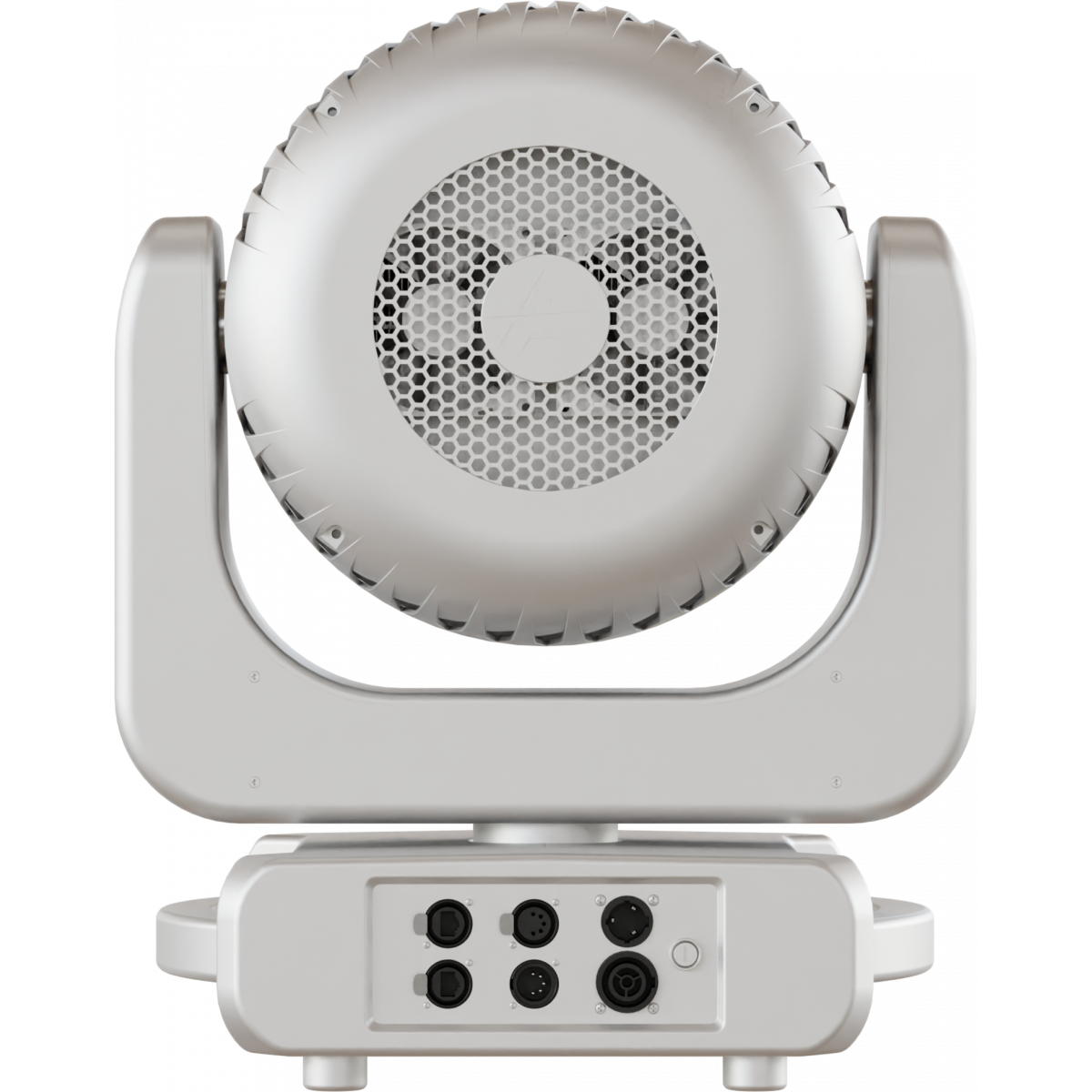

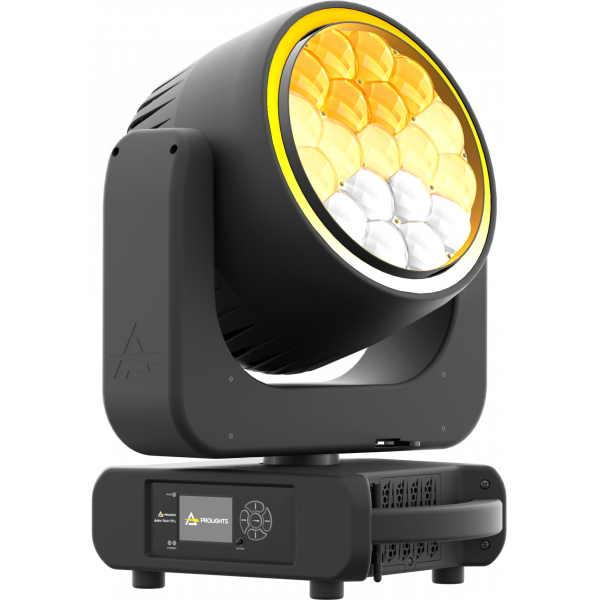

Astra Wash19Pix

19x40W RGBW moving wash light with 4°-54° zoom, pixel control and pixel ring

Astra Wash19Pix is an LED moving wash light, designed to be a workhorse for any touring, corporate and event applications, offering a superior level of brightness and advanced creative effect possibilities.
Based on a 40W Osram RGBW LED light source, plus the exterior pixel ring, this unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, making this luminaire extremely versatile for any application.
Astra Wash19Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

Main features:

  • Silent operation, smooth and fast movements
  • Zoom from 4° to 54° with high optical efficiency
  • Pixel and ring control, precise white CCT, multiple FX and colour features

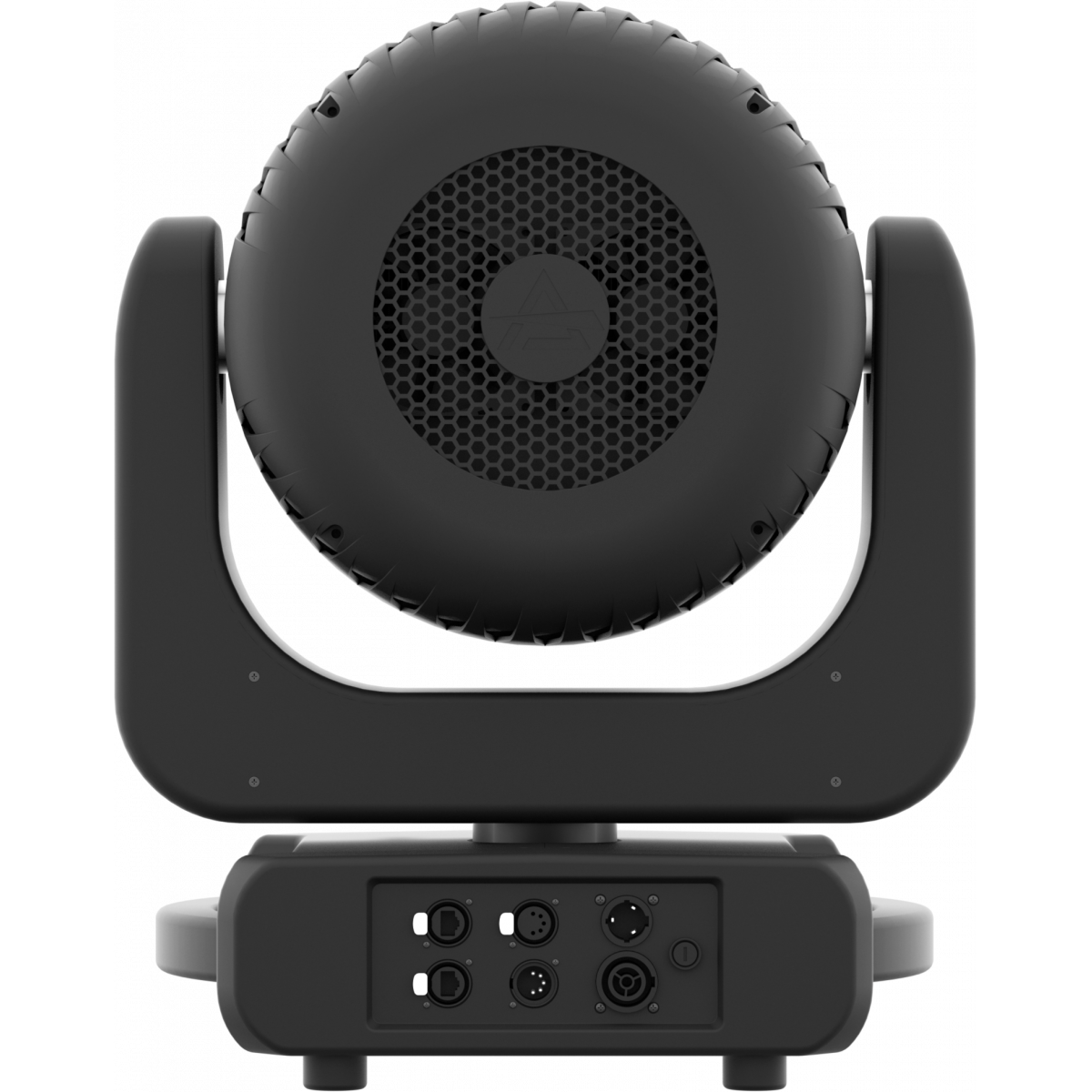

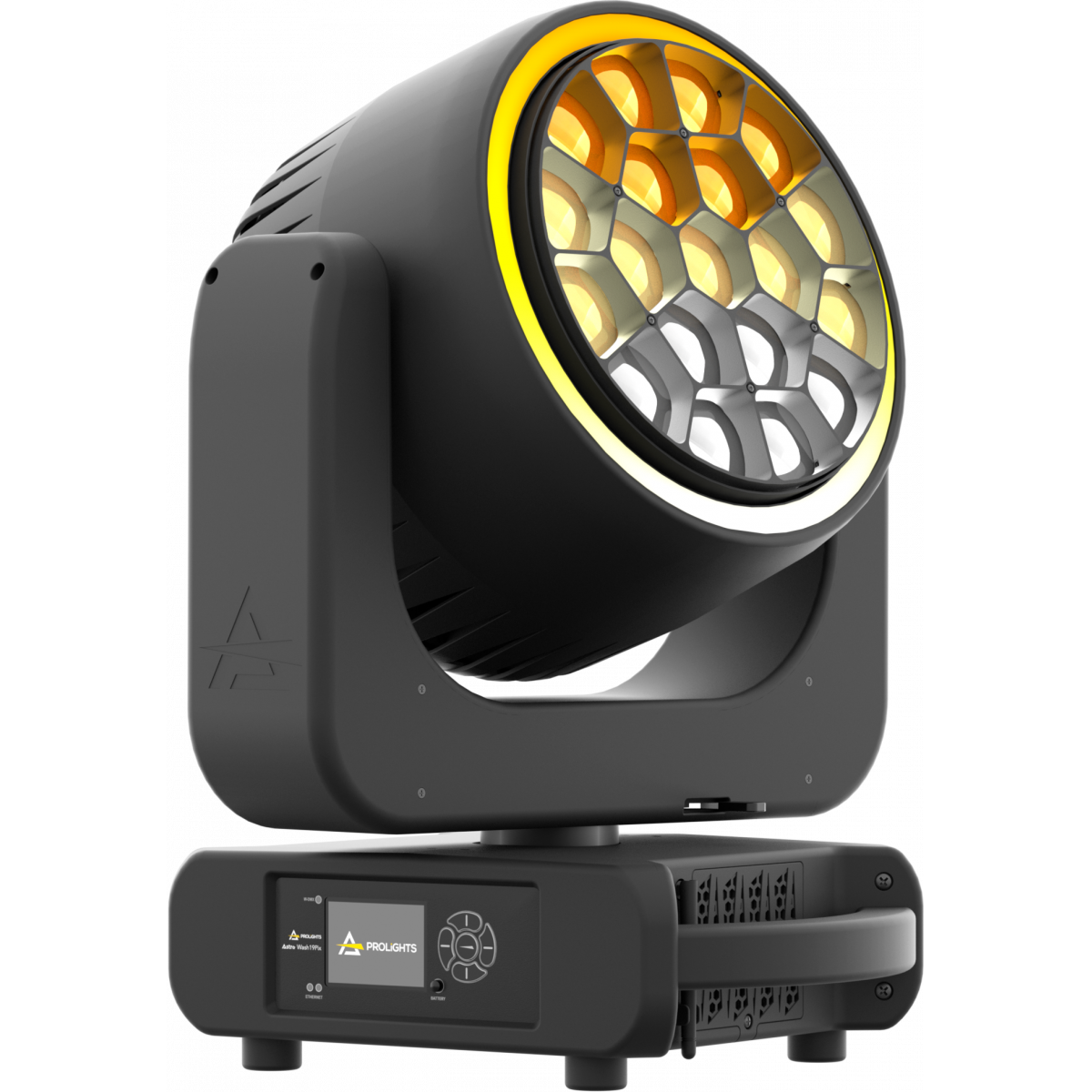

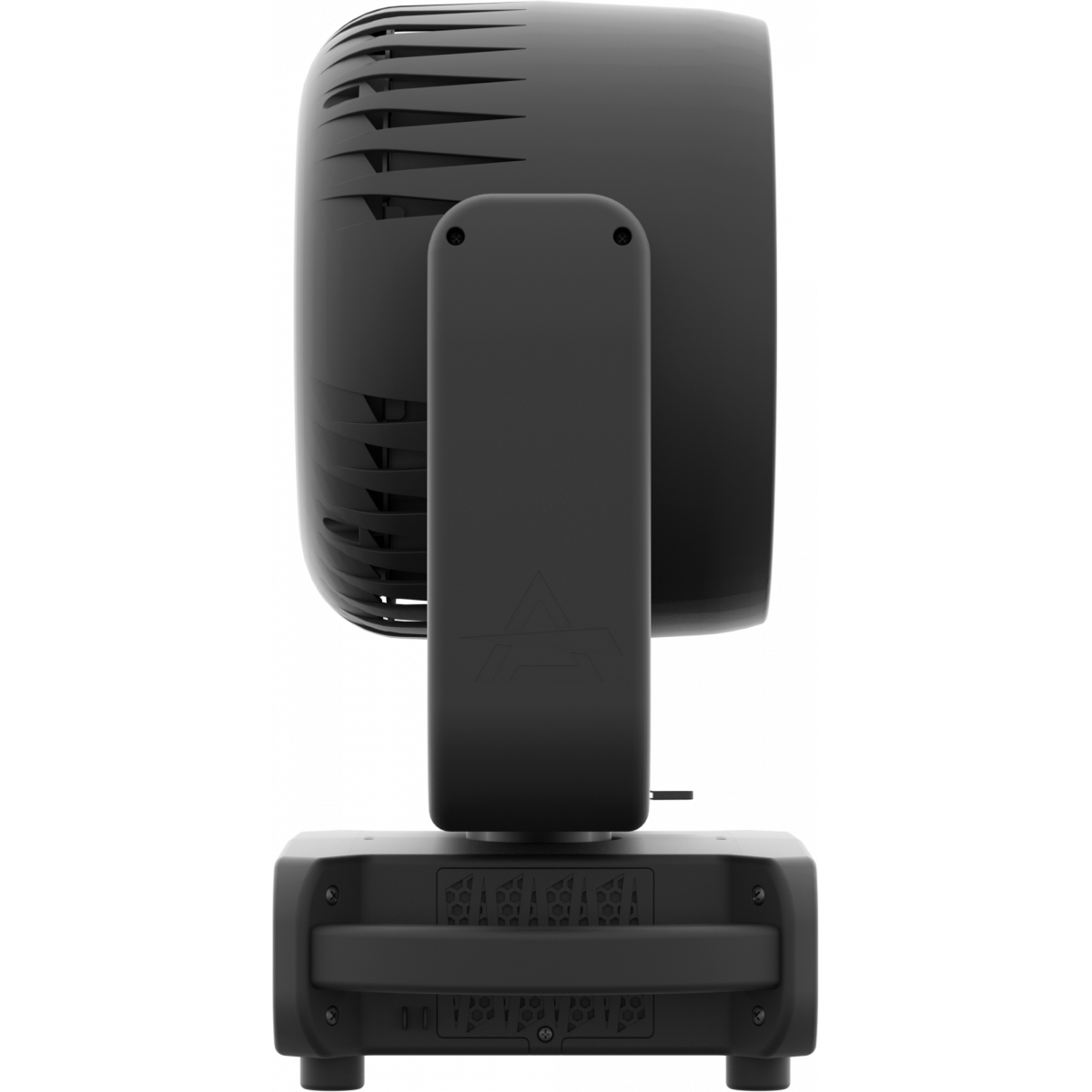

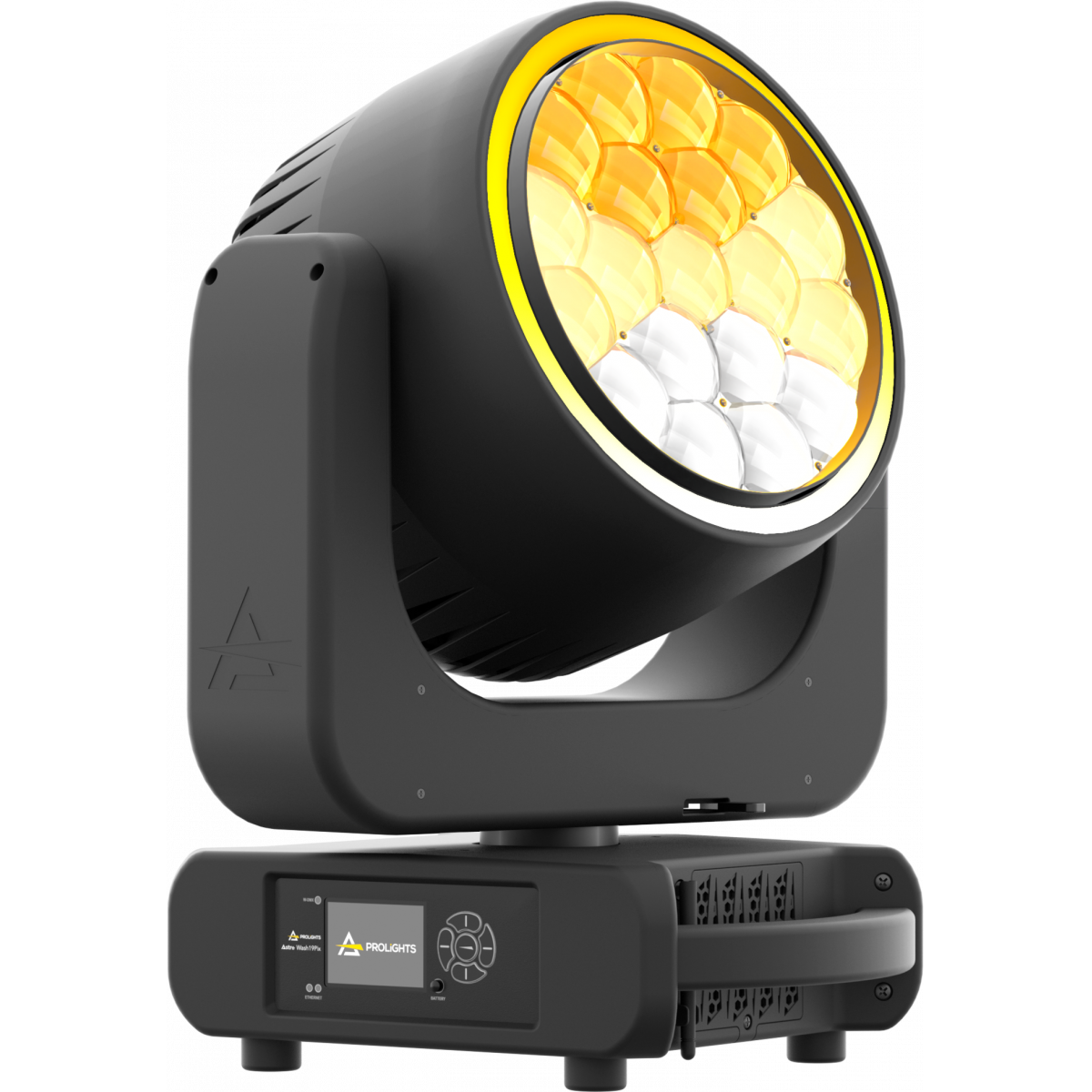

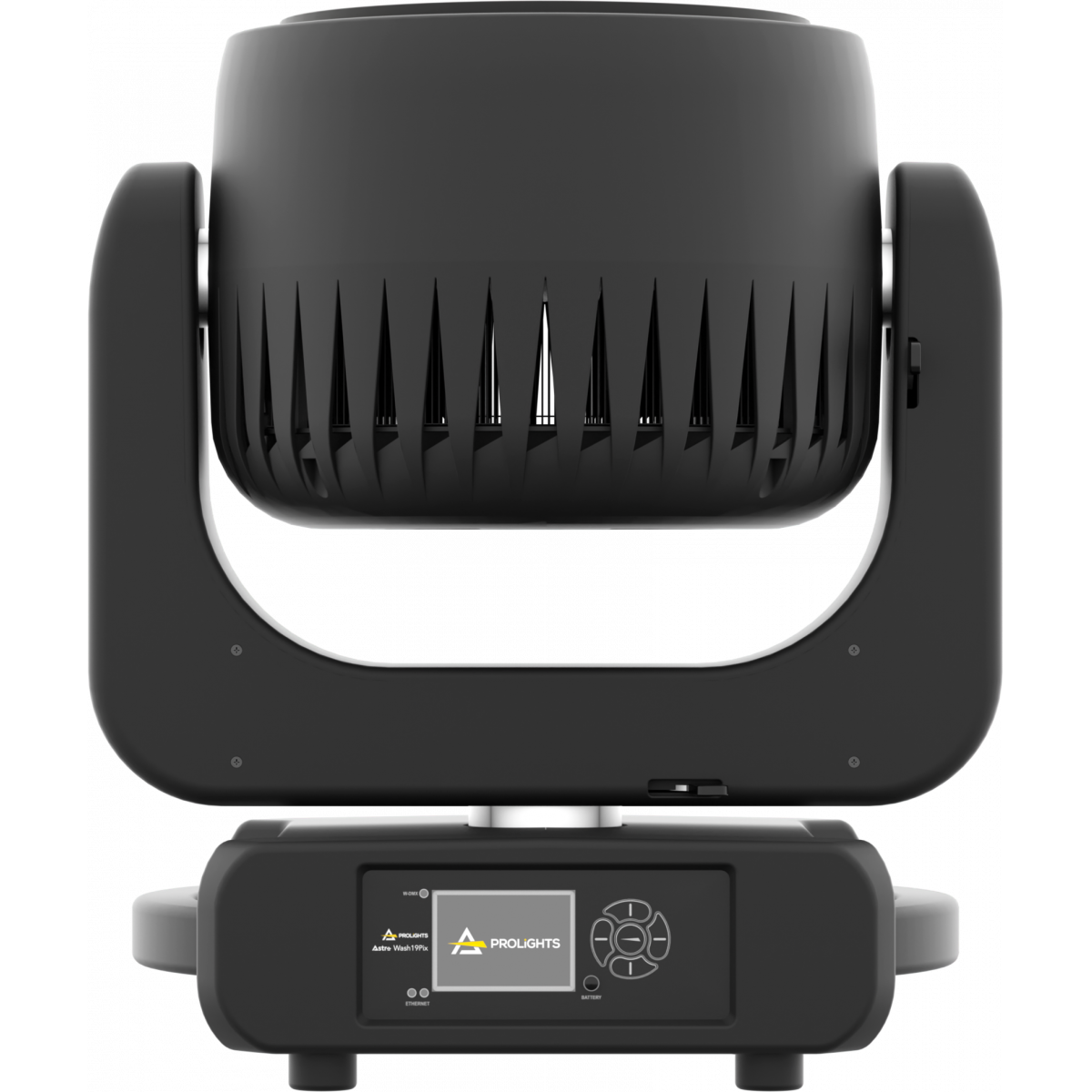

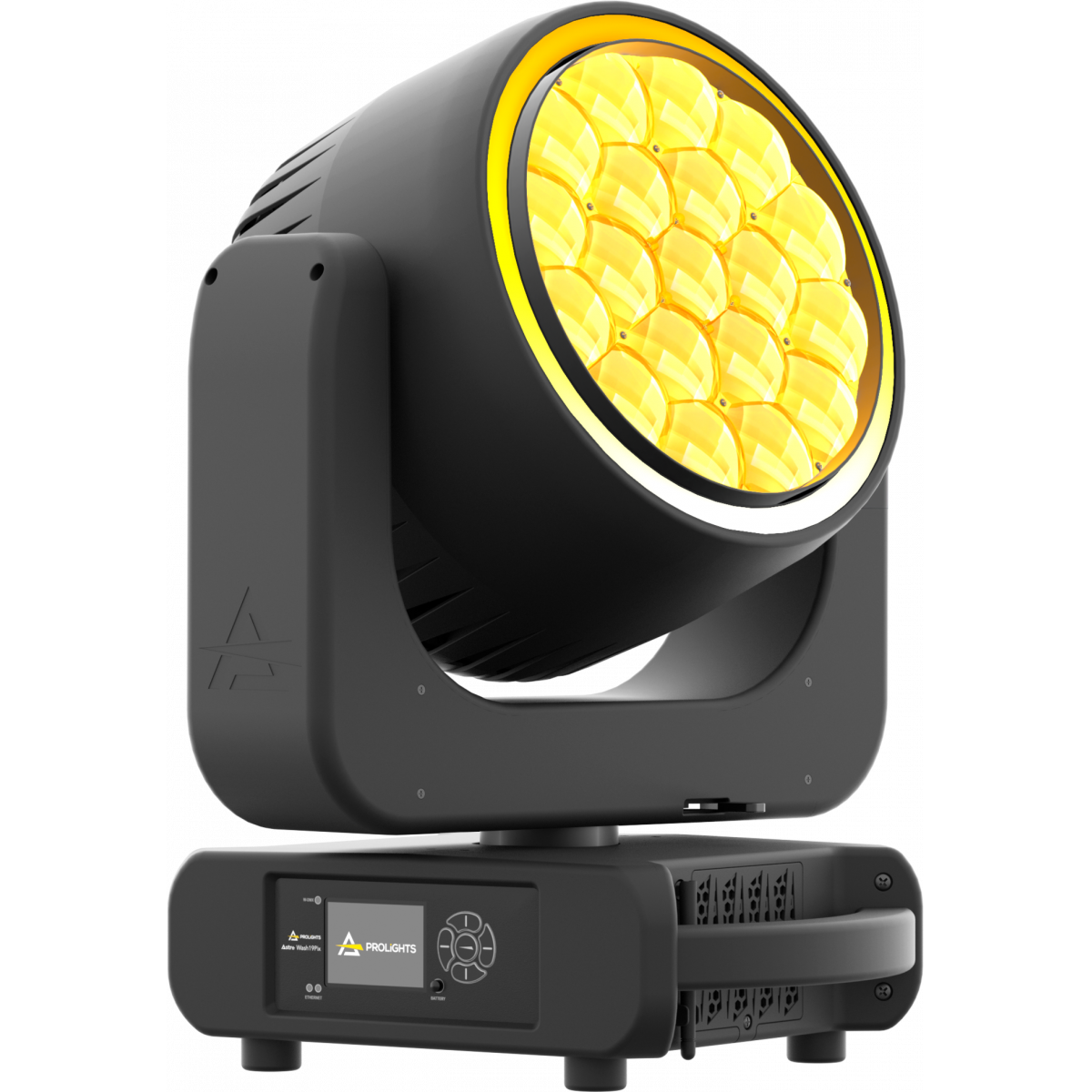

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 19x40W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 5'505 lm - (54°) 10'143lm @full
  • Lux: (4°) 45'146 lx - (54°) 1174lx @5 m full
  • Other: outer RGB pixel ring with frost film
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 4° - 54° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
  • Additional optics: diffuser on outer pixel ring
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: outer RGB, pixel ring with several built in FX macros and linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 233°
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: see variants
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
  • DMX channels: main personality 29 / 32 / 53channel
  • Pixel control: OFF, ring and pixel2pixel
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 620W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 410x514x250mm / 16.14''x20.24''x9.84''
  • Weight: 17,4kg / 38.36lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
RAL
ASTRAWASH19PIX
ASTRAWASH19PIX
Black
9004

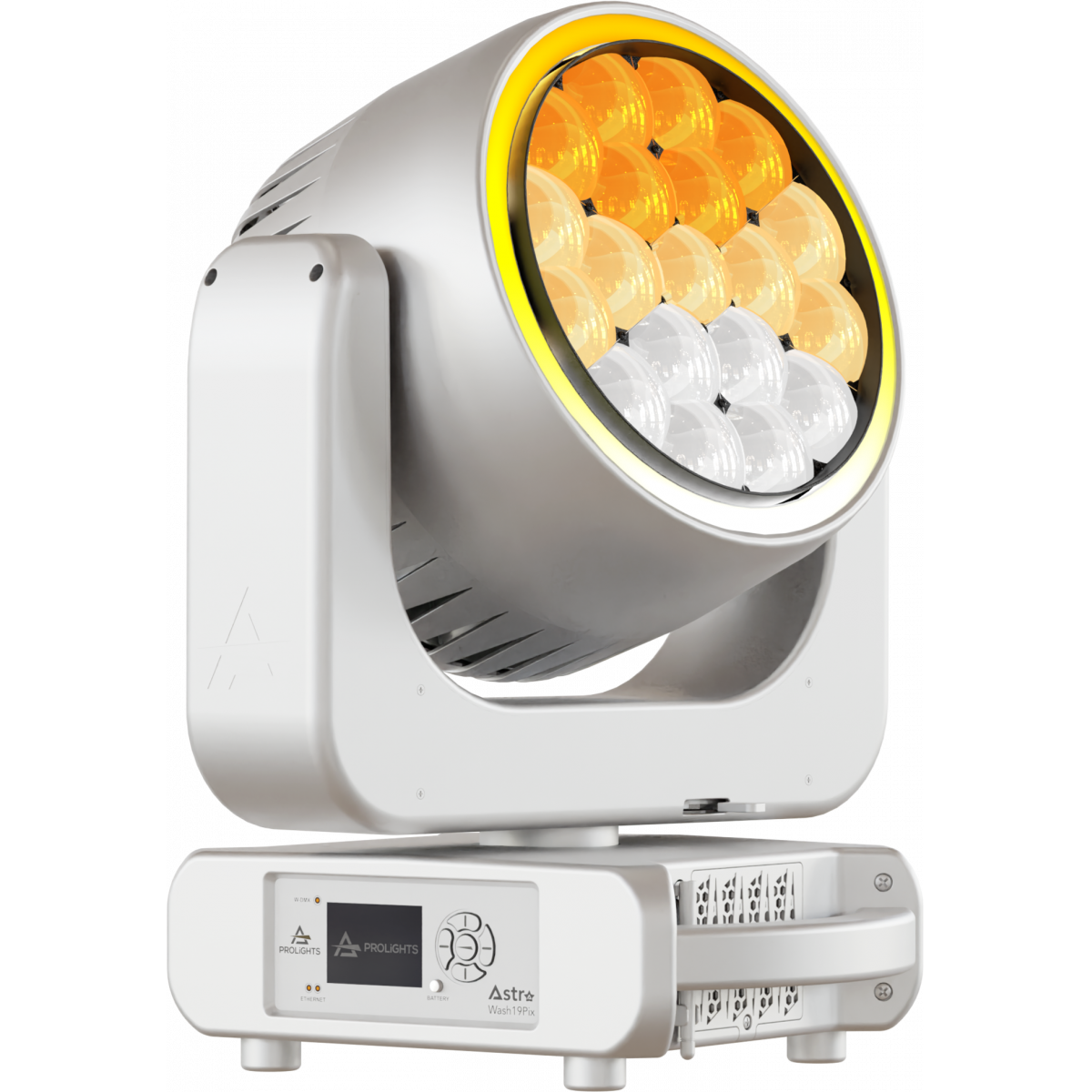

ASTRAWASH19PIXWH
ASTRAWASH19PIXWH
White
9010

Accessories & Related Products

9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

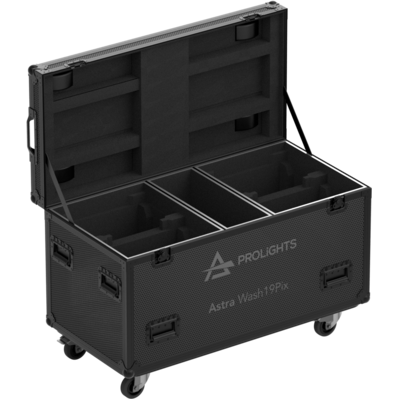

FCLASTRAW19PIX
FCLASTRAW19PIX
(optional)
Flight case for 4 pcs of ASTRAWASH19PIX and/or JETWASH19
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth

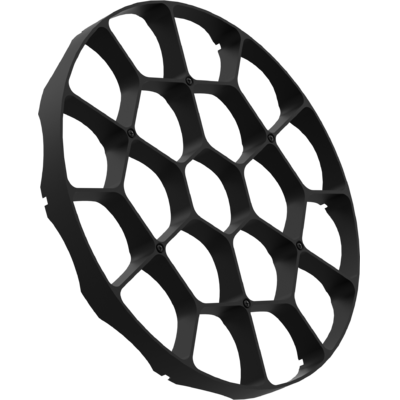

ASTRAW19PEC
ASTRAW19PEC
(optional)
Egg Crate for ASTRAWASH19PIX

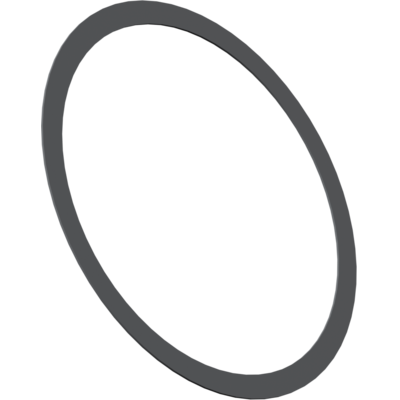

ASTRAW19MBCR
ASTRAW19MBCR
(optional)
Matt black cover for ring for ASTRAWASH19PIX and ASTRAWASH19PIXIP

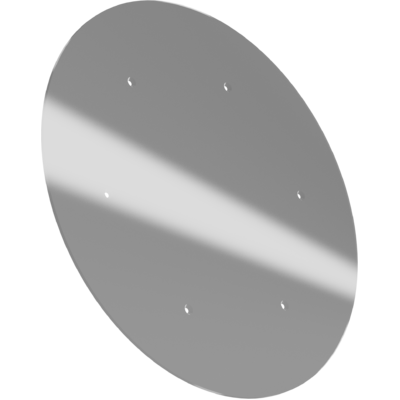

ASTRAW19PSF
ASTRAW19PSF
(optional)
Smooth filter for ASTRAWASH19PIX and ASTRAWASH19PIXIP
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Astrawash19pi_A4_DATASHEET_(EN).pdf 2MB
Letter datasheet Astrawash19pi_LETTER_DATASHEET_(EN).pdf 2MB
Tender Specification Astrawash19pi_TENDER_SPECIFICATION.pdf 5MB

User manual

File name File size Download
User manual Astrawash19pi_USER_MANUAL_EN.pdf 5MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Astrawash19pi_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Astrawash19pix_DMX_CHARTS.pdf 106KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 696KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
ASTRAWASH19PIX Firmware rev. 1.0.27
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_cb@astrawash_19@extended_no_px_cb.xmlDownload
prolights_cb@astrawash_19@fx_no_px_cb.xmlDownload
prolights_cb@astrawash_19@fx_ring_cb.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ASTRAWASH19PIX Firmware rev. 1.0.24
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_cb@astrawash_19@extended_no_px_cb.xmlDownload
prolights_cb@astrawash_19@fx_no_px_cb.xmlDownload
prolights_cb@astrawash_19@fx_ring_cb.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_astrawash19pix_ies files.zip 43KB
LDT prolights_astrawash19pix_ldt files.zip 23KB
PDF Photometrics Astrawash19pi_PHOTOMETRICS_REPORT.pdf 4MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Astrawash19pi_3D_SKETCHUP.skp 452KB
3D RFA Astrawash19pi_3D_REVIT.rfa 772KB
2D Astrawash19pi_2D.dwg 4MB
3D Astrawash19pi_3D.dwg 559KB
Technical drawing Astrawash19pi_TECHNICAL_DRAWING.pdf 593KB

Tech docs

File name File size Download
Pixel Numbering Document Astrawash19pi_PIXEL_NUMBERING.pdf 452KB
Noise Report Astrawash19pi_NOISE_REPORT.pdf 130KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.27 STABLE 08/11/2023 New Function:
  • Home Position has been added in Menu/Setup/Movement. It allows you to change the Home position of the Pan:
    • Standard : Pan is at 90° to the display when Pan@128dmx value like all Prolights fixtures.
    • Custom : Pan is at 0° to the display when Pan@128dmx value.
  • Add Home Position in Manufacturer Specific PID in RDM:
    • 0:STANDARD (default value)
    • 1:CUSTOM
Fixed bug:
  • Ring does not follow the Dimmer Speed setting.
