Diamond 7

7x15W moving LED wash with pixel effects

Diamond 7 is the most compact fixture of the stunning Diamond LED pixel wash family. As a wash light, the 6° - 66° zoom, even beam and fantastic colour range create a true workhorse fixture. For the next level, individual control of each LED pixel with switch system, tied with the Diamond’s clever optical design and its onboard effects provides 'eye candy' effects both to look at and in the air. Compact, consistent and clever, the Diamond 7 makes a statement, even when space is an issue.

Main features:

  • 7x15W Osram Ostar RGBW LEDs provide an extensive and consistent colour range
  • Individual control of pixels (on/off switch) with on-board FX generator for fast, precise effects
  • Liquid cooling system for efficient cooling with virtually no noise

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 7x15W RGBW Osram Ostar LEDs
  • Lux: (6°) 10'980 lx - (66°) 745lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 6° - 66° motorised linear zoom
  • Lens diameter: 126mm / 4.96''
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: Pixels controlled through On/Off switch for simplified control and budget friendly
BODY
  • Pan angle: 630°
  • Tilt angle: 265°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 18 / 19 / 20 / 26 / 50channel
  • Pixel control: pixel2pixel control through on/off switch
  • Wireless Control: optional, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 125W
  • Max power consumption (at 120V): 125W
  • Output (at 230V): 12 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 278x348x200mm / 10.94''x13.7''x7.87''
  • Weight: 6,4kg / 14.11lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
DIAMOND7BK
DIAMOND7BK (END OF LIFE)
Black
DIAMOND7WH
DIAMOND7WH (DISCONTINUED)
White
DIAMOND7CR
DIAMOND7CR (DISCONTINUED)
Chrome

Accessories & Related Products

9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

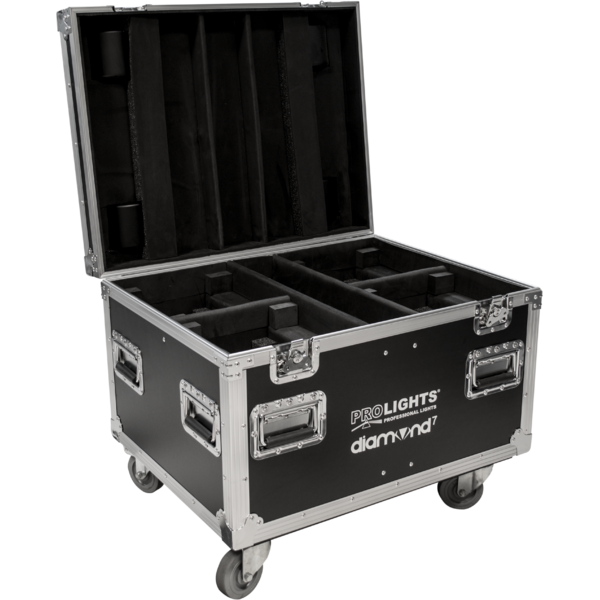

FCLDIAMOND7
FCLDIAMOND7
(optional)
Flight case for 4pcs of DIAMOND7
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Diamond7_A4_DATASHEET_(EN).pdf 169KB
Letter datasheet Diamond7_A4_DATASHEET_(IT).pdf 169KB

User manual

File name File size Download
User manual Diamond7_Mounting_Optional_Wireless_Boa.pdf 1MB
User manual Diamond7_USER_MANUAL_ITEN.pdf 3MB

DMX chart & personalities

File name File size Download
DMX chart Diamond7_DMX_CHARTS.pdf 58KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 504KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 502KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 497KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
DIAMOND7 Firmware rev. 3.1.00
manufacturer fixture library (Link) Link
prolights_diamond7.d4Download
manufacturer fixture library (Link) Link
prolights_diamond7_20ch.hedDownload
manufacturer fixture library (Link) Link
diamond7_18ch.fdfDownload
diamond7_19ch.fdfDownload
diamond7_20ch.fdfDownload
diamond7_26ch.fdfDownload
diamond7_50ch.fdfDownload
diamond7_ssl.zipDownload
diamond7_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@diamond_7@extended_1.xmlDownload
prolights@diamond_7@extended_2.xmlDownload
prolights@diamond_7@standard.xmlDownload
prolights@diamond_7@basic-8.xmlDownload
prolights@diamond_7@basic-16.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
diamond 7 basic-8.fix2Download
diamond 7 basic-16.fix2Download
diamond 7 extended 1.fix2Download
diamond 7 extended 2 control.fix2Download
diamond 7 extended 2 single pixel.fix2Download
diamond 7 extended 2.fix2Download
diamond 7 standard.fix2Download
manufacturer fixture library (Link) Link
DIAMOND7 Firmware rev. 2.2.00
manufacturer fixture library (Link) Link
prolights_diamond7.d4Download
manufacturer fixture library (Link) Link
prolights_diamond7_20ch.hedDownload
manufacturer fixture library (Link) Link
diamond7_18ch.fdfDownload
diamond7_19ch.fdfDownload
diamond7_20ch.fdfDownload
diamond7_26ch.fdfDownload
diamond7_50ch.fdfDownload
diamond7_ssl.zipDownload
diamond7_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@diamond_7@extended_1.xmlDownload
prolights@diamond_7@extended_2.xmlDownload
prolights@diamond_7@standard.xmlDownload
prolights@diamond_7@basic-8.xmlDownload
prolights@diamond_7@basic-16.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
diamond 7 basic-8.fix2Download
diamond 7 basic-16.fix2Download
diamond 7 extended 1.fix2Download
diamond 7 extended 2 control.fix2Download
diamond 7 extended 2 single pixel.fix2Download
diamond 7 extended 2.fix2Download
diamond 7 standard.fix2Download
manufacturer fixture library (Link) Link
DIAMOND7 Firmware rev. 1.0.04
manufacturer fixture library (Link) Link
prolights_diamond7.d4Download
manufacturer fixture library (Link) Link
prolights_diamond7_20ch.hedDownload
manufacturer fixture library (Link) Link
diamond7_18ch.fdfDownload
diamond7_19ch.fdfDownload
diamond7_20ch.fdfDownload
diamond7_26ch.fdfDownload
diamond7_50ch.fdfDownload
diamond7_ssl.zipDownload
diamond7_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@diamond_7@extended_1.xmlDownload
prolights@diamond_7@extended_2.xmlDownload
prolights@diamond_7@standard.xmlDownload
prolights@diamond_7@basic-8.xmlDownload
prolights@diamond_7@basic-16.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
diamond 7 basic-8.fix2Download
diamond 7 basic-16.fix2Download
diamond 7 extended 1.fix2Download
diamond 7 extended 2 control.fix2Download
diamond 7 extended 2 single pixel.fix2Download
diamond 7 extended 2.fix2Download
diamond 7 standard.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_diamond7_full_66°.ies 992KB
IES prolights_diamond7_full_6°.ies 992KB
PDF Photometrics Diamond7_PHOTOMETRICS.pdf 388KB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Diamond7_3D_SKETCHUP.skp 273KB
3D RFA Diamond7_3D_REVIT.rfa 4MB
2D Diamond7_2D.dwg 2MB
3D Diamond7_3D.dwg 520KB
Technical drawing Diamond7_TECHNICAL_DRAWING.pdf 337KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.1.00 STABLE 15/07/2018 Firmware for units with NEW motor zoom and NEW led tube.
Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx

Based on V3.0.00 Add the theatre mode in it.
Rev. 3
2.2.00 STABLE 14/07/2018 Firmware for units with NEW motor zoom and OLD led tube.
Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx

Based on V2.1.00 Add the theatre mode in it.
Rev. 2
1.0.04 STABLE 13/07/2018 Firmware for units with OLD motor Zoom and OLD Led tube.
Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx
Rev. 1

Info Request

News

30 November 2023
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
For its global premiere on the stage of Vienna's Ronacher Theater, the musical " Rock me Amadeus - The Falco Musical " was brilliantly...
24 November 2023
NicLen expands its inventory with Astra Hybrid330
NicLen expands its inventory with Astra Hybrid330
NicLen has expanded its rental park by acquiring the Astra Hybrid330 . Provided by Lightpower, PROLIGHTS distributor in Germany, this...
21 November 2023
Prolights products on the top of Europe
Prolights products on the top of Europe
PROLIGHTS products took part in the new interactive installation “Top of Europe” at the Jungfraujoch railway station, the highest...
16 November 2023
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023, hosted at the Constanța Masters in the City Park Mall, was illuminated by a lighting setup composed...
14 November 2023
Jet Wash7 illuminates the Vibes' Urban Garden room
Jet Wash7 illuminates the Vibes' Urban Garden room
PROLIGHTS' Jet Wash7 illuminated the Urban Garden room of the Vibes complex in Eindhoven. From a sports center to a location for corporate...
10 November 2023
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products illuminated the Marrageddon festival, an unprecedented celebration of Italian hip-hop, conceived and hosted by hip-hop...
07 November 2023
EclFresnel CT+ Series - Revolutionizing LED Fresnels
EclFresnel CT+ Series - Revolutionizing LED Fresnels
PROLIGHTS proudly introduces the EclFresnel CT+ series , an innovative range of LED Fresnel fixtures designed to redefine the standard...
03 November 2023
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
The PROLIGHTS EclPanel TWC series shone in a recent television commercial featuring the iconic Indian cricket player, Mr. MS Dhoni,...
30 October 2023
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College in Brisbane, Australia, has upgraded its auditorium with an all-LED lighting rig  including the Prolights...
26 October 2023
Prolights illuminates the new location of Science Park Towers
Prolights illuminates the new location of Science Park Towers
The grand unveiling of the new Science Park Towers headquarters within the Jonkoping Science Park showcased a state-of-the-art, innovative...
24 October 2023
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Belconnen Art Center has chosen Prolights' EclDisplay range as the main lighting system for its innovative and modern Window Gallery,...
19 October 2023
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family brilliantly illuminated the unforgettable "A Show Larger than Life" performance at the iconic Hamburger Börs...

Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter tiktok linkedin

Loading...
