DIGISTRIPIP100
PROLIGHTS


DigiStrip IP100

ORDER CODE: DIGISTRIPIP100

100 cm IP65 outdoor LED video pixel strip with 10 mm pixel pitch

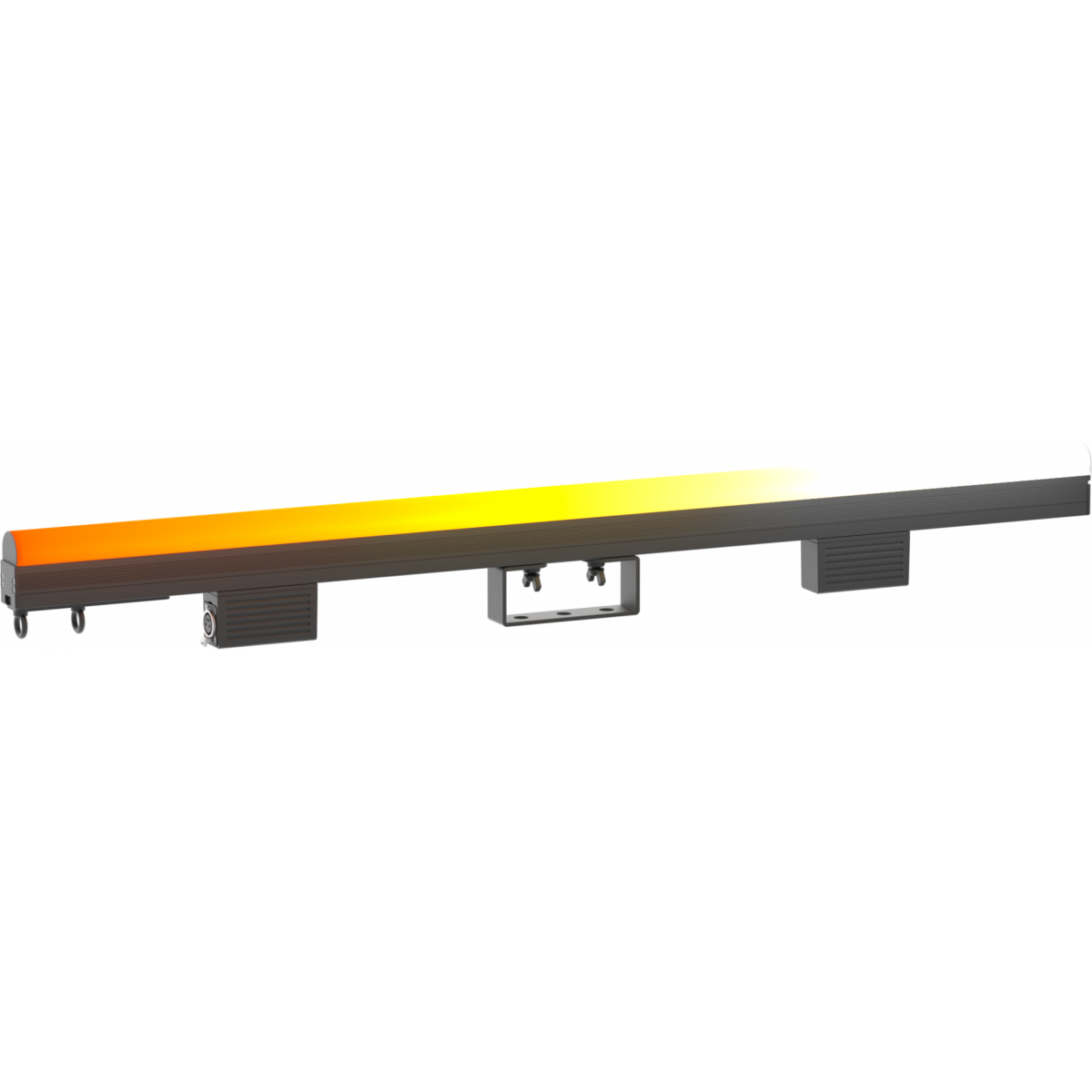

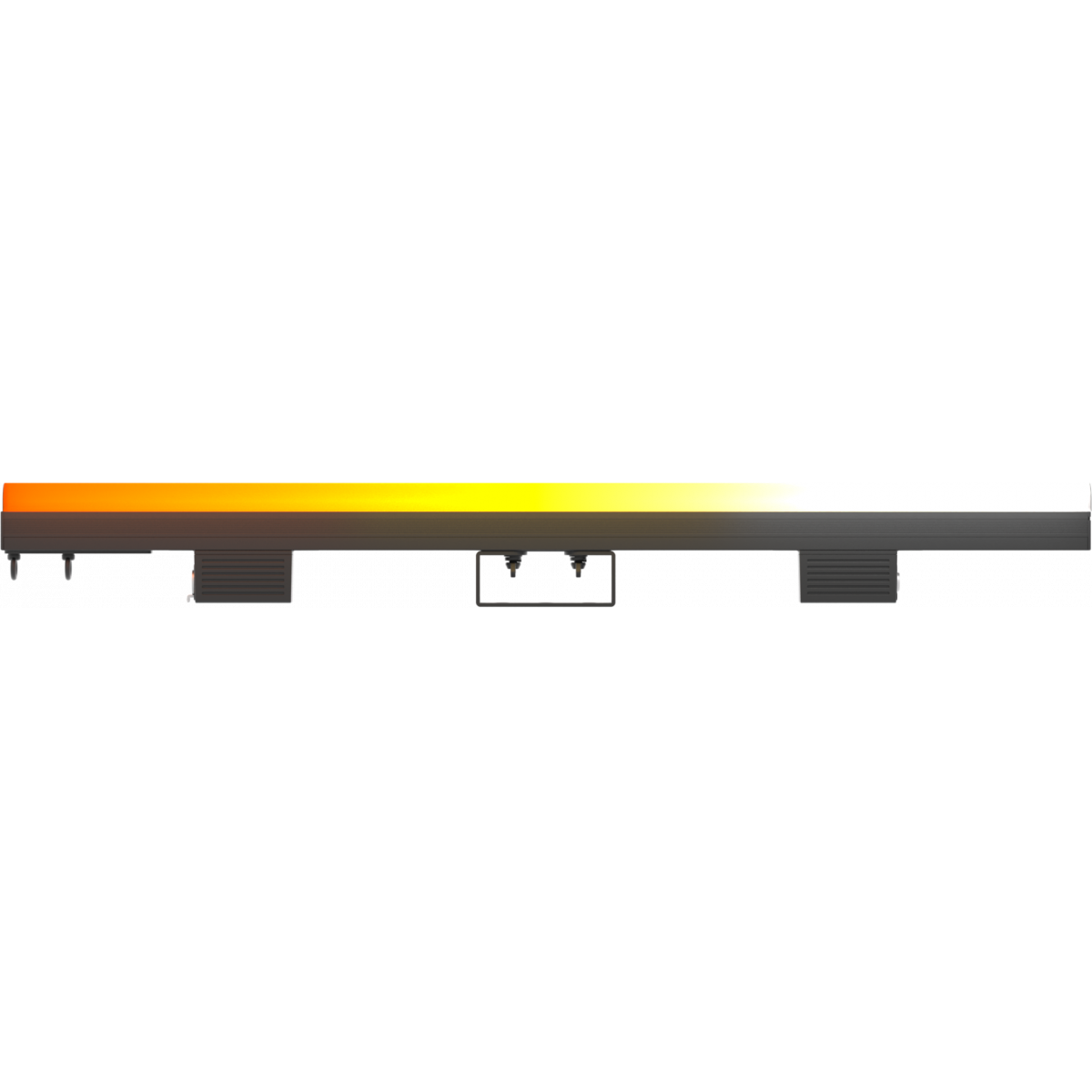

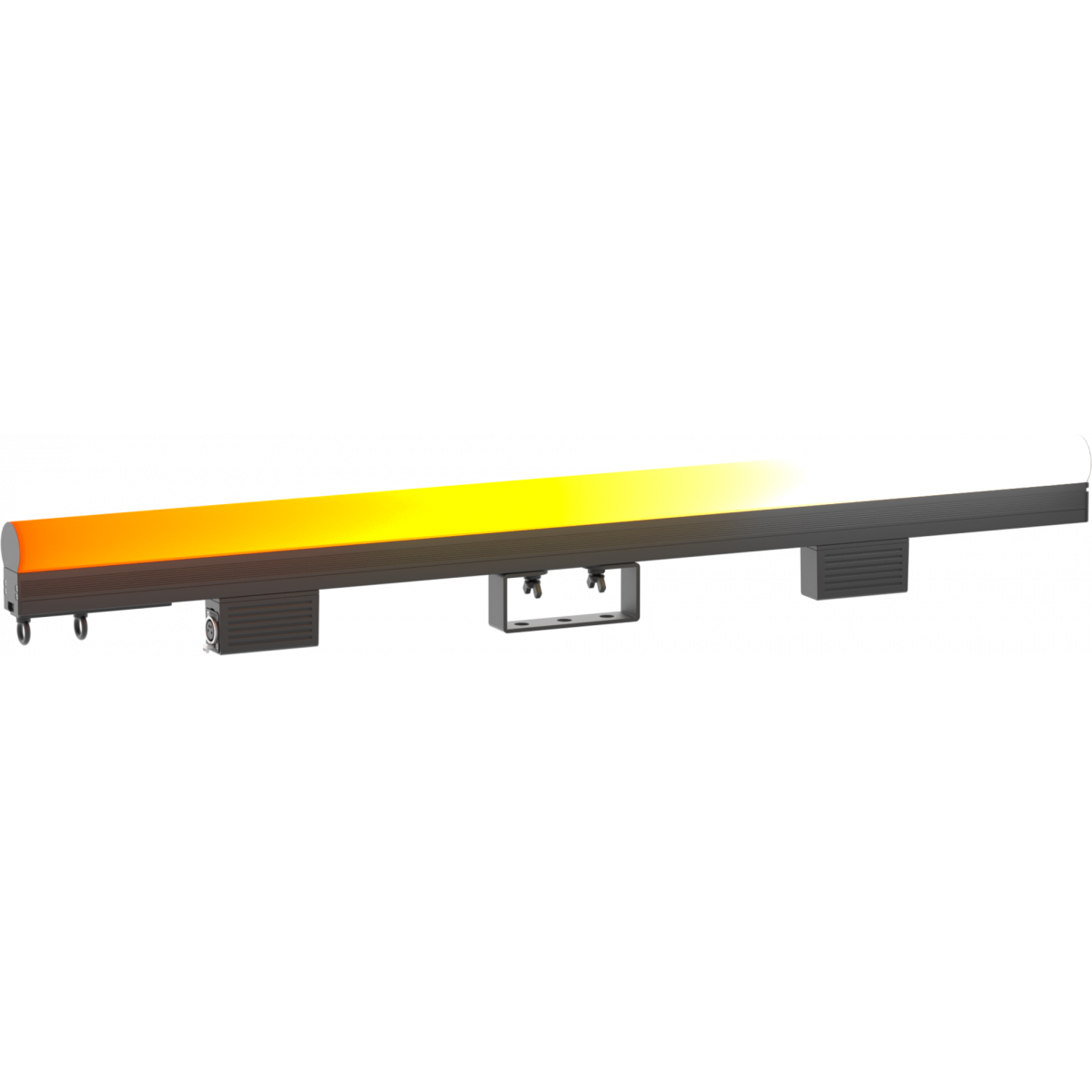

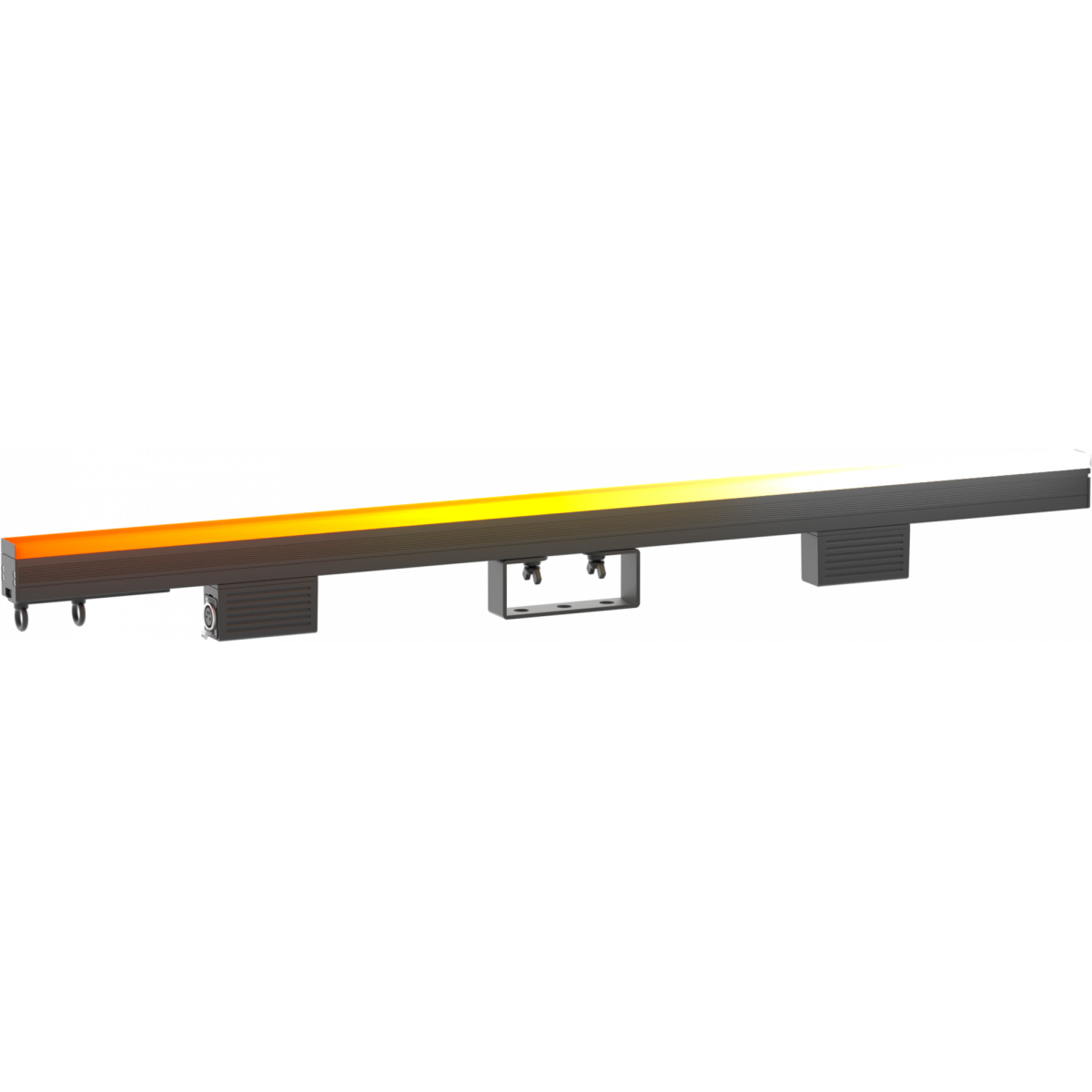

DigiStrip IP100 is a linear LED 10 mm pixel pitch video fixture for the rental market with an extensive range of optical accessories for a wide variety of looks (black and white and transparent). Each 1 meter long strip features 100 RGB / FC LEDs with individual pixel control and a 100° viewing angle. The mechanics of DigiStrip IP100 have been studied to grant greater mounting flexibility by adding sliding hardware on the back for truss application and on the side for multiple vertical linking. The external control unit DigiDriver IP is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 pole cable that provides greater stability and connection in a daisy chain (up to 20 DigiStrip IP100)

Main features:

  • High-resolution IP65 rated video pixel batten, featuring 100 LEDs in a row
  • Several optional optical filters delivering a wide range of different looks and finishes
  • Easy setup and wiring through the DigiDriver IP

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 100x0,25W RGB LEDs
  • Luminous flux: without cover: 542 lm - black cover: 81 lm - flat white cover: 319 lm - dome white cover: 351lm @full
  • Lux: without cover: 7 lx - black cover: 1 lx - flat white cover: 3 lx - dome white cover: 2lx @5 m full
  • Other: view angle 100° - driver chip MBI 5043
  • Source life expectancy: > 50.000 h
OPTICS
  • Pixel pitch: 10mm / 0.39''
  • Additional optics: black cover and white dome cover (included)
  • Other: flat white cover (included)
COLOUR SYSTEM
  • Colour mixing: RGB / FC
BODY

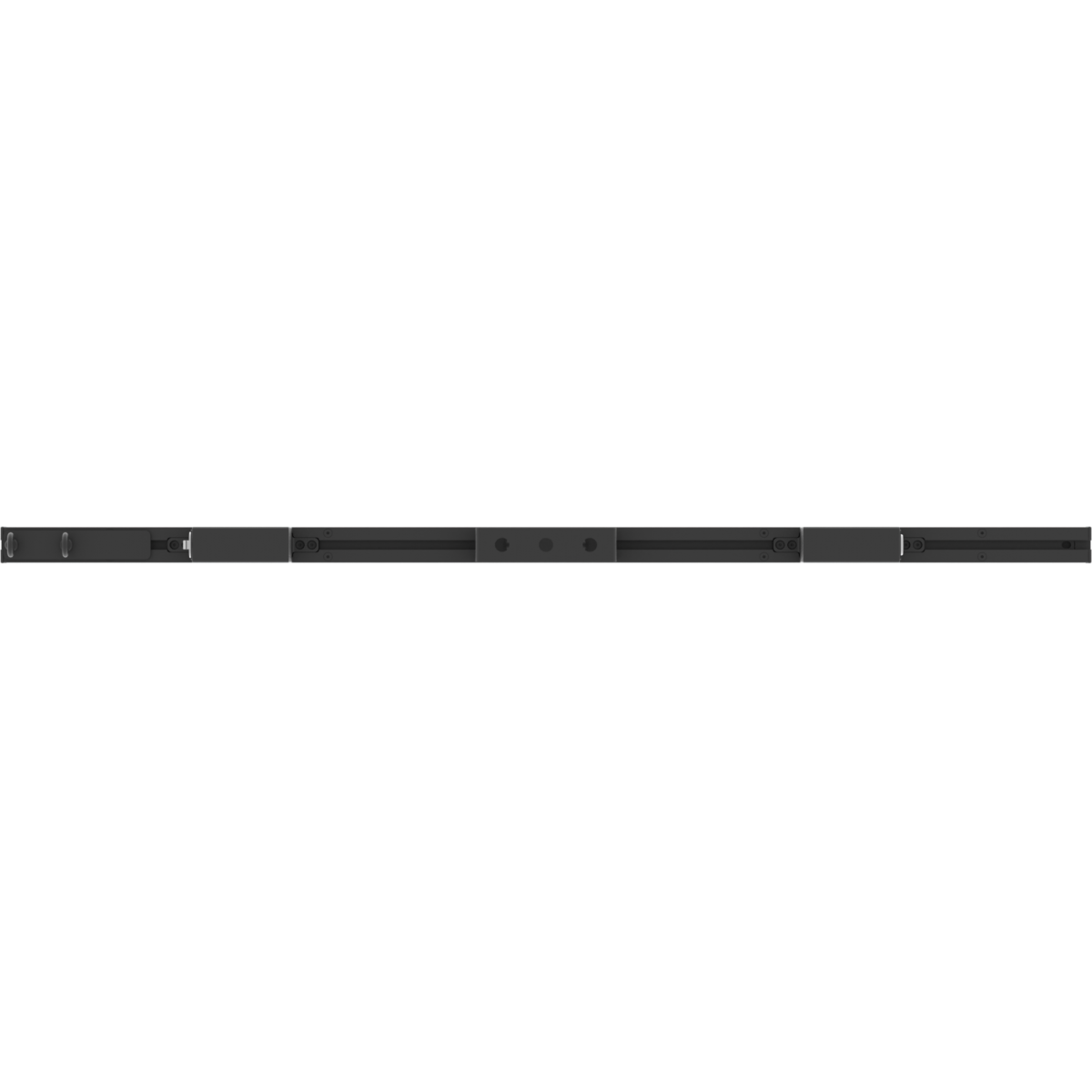

  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
  • Body: sturdy aluminum profile
  • Body colour: white optic and body black
CONTROL
  • Control units: 20 pcs power & signal under 1 pc DIGIDRIVERIP
  • Art-Net channels: 300ch
  • Protocols: Art-Net, Kling-Net, sACN
  • Pixel control: pixel2pixel control
ELECTRICAL
  • Mains power supply: DC 48V
  • Max power consumption: 25W
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Suspension and fixing: bracket for truss rigging and hardware for connection of more units

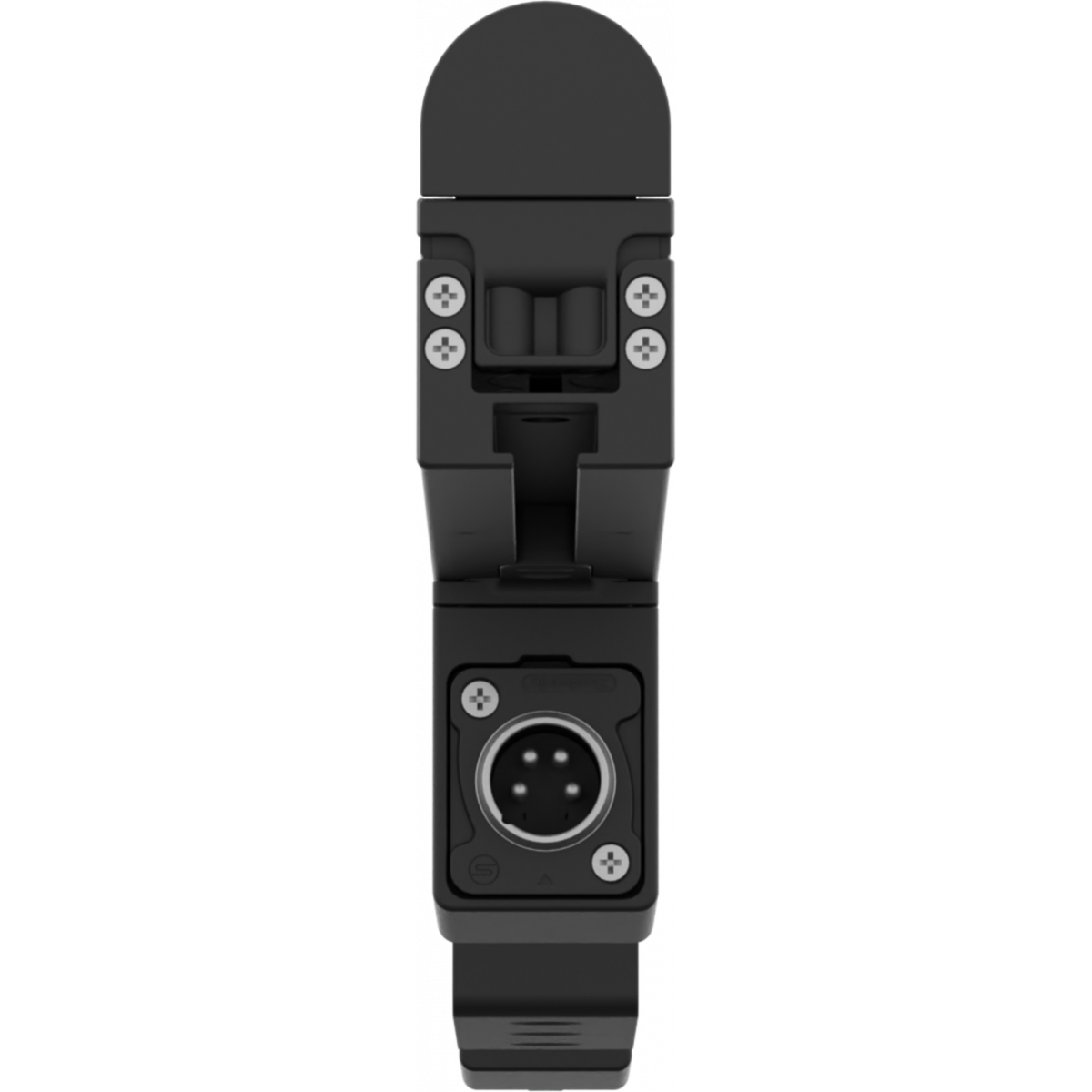

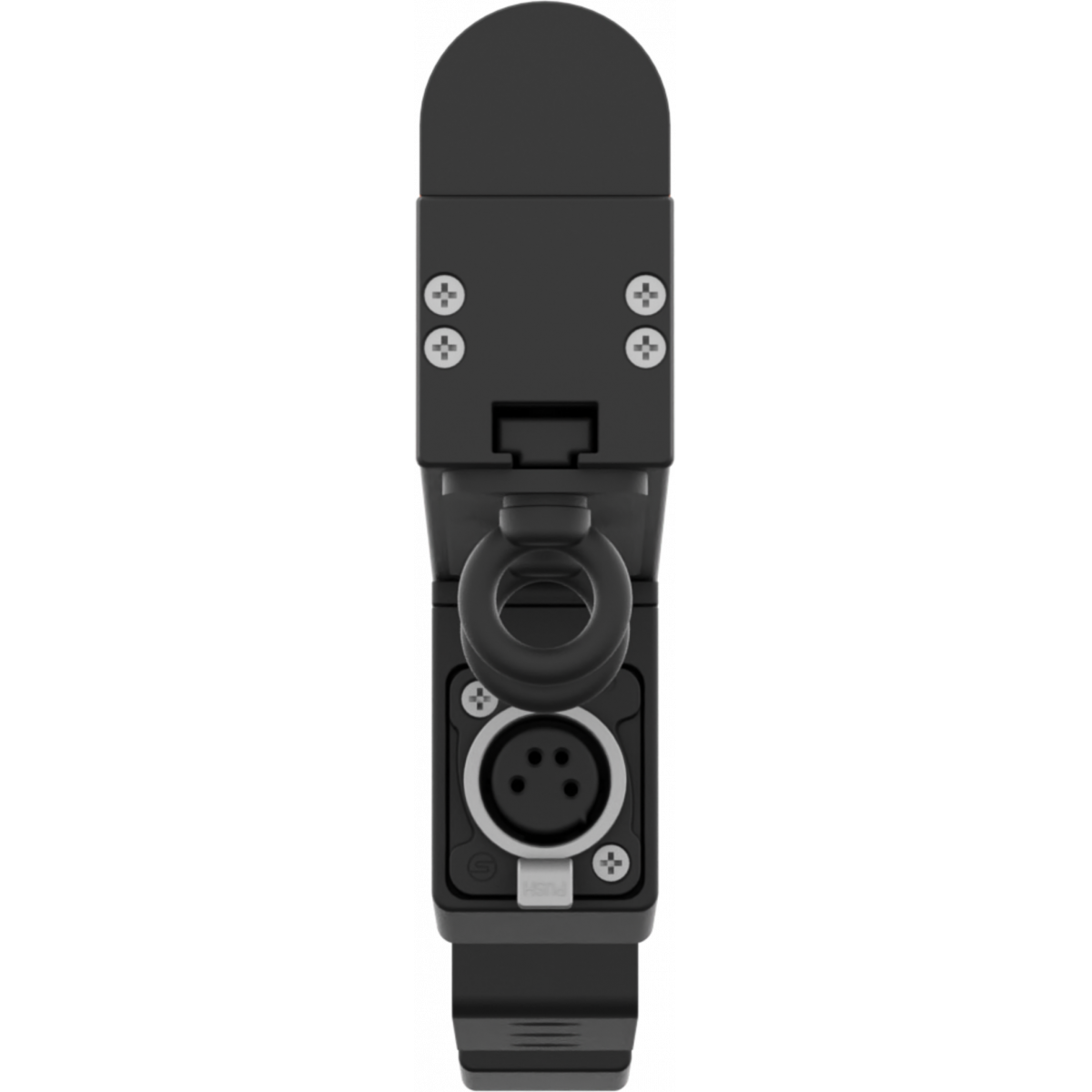

  • Signal connection: Seetronic XLR 4p IN/OUT connectors
  • Dimensions (WxHxD): 1.000x36x128mm / 0.04''x1.42''x5.04''
  • Weight: 2,7kg / 5.95lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

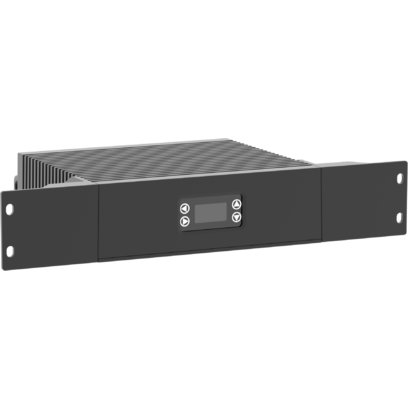

<b>DigiDriver</b> IP
DigiDriver IP
(optional)
Master driver for Digi IP series, Art-Net, Kling-Net, IP65, 550W,
DIGILINKIP
DIGILINKIP
(optional)
Digi IP series signal 4-pin cable

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Digistripip100_A4_DATASHEET_(EN).pdf 270KB
Letter datasheet Digistripip100_A4_DATASHEET_(IT).pdf 267KB

User manual

File name File size Download
User manual Digistripip100_USER_MANUAL_ITEN.pdf 971KB

DMX chart & personalities

File name File size Download
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 290KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
DIGISTRIPIP100 Firmware rev. 1.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_digistripip100_300ch.hedDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_digistripip100_ies files.zip 11KB
LDT prolights_digistripip100_ldt files.zip 10KB
PDF Photometrics Digistripip100_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Digistripip100_3D_REVIT.rvt 365KB
3D SKP Digistripip100_3D_SKETCHUP.skp 343KB
2D Digistripip100_2D.dwg 1MB
3D Digistripip100_3D.dwg 644KB
2D cad symbols Digistripip100_2DSYMBOLS.dwg 57KB
Technical drawing Digistripip100_TECHNICAL_DRAWING.pdf 271KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 25/05/2016 Rev. 1.0
