ECLEXPOFL150FC
PROLIGHTS


EclExpo Flood150FC new

150W Full Colour RGB+WarmWhite asymmetric LED floodlight

The EclExpo Flood150 is a compact, bright, and versatile floodlight that is designed to be a substitute for traditional CDM, HMI, and tungsten small floods in tradeshows, theaters, or as a work light. Just like its classic predecessors, but with a custom LED source, this unit features a linear light source combined with a reflector, which ensures a wide coverage of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

The EclExpo Flood150 is available in two source variants:
- FC, which utilizes RGB+WarmWhite calibrated LED with high Color Rendering.
- VW, which uses a bi-color Vari White LED source with a CCT range of 2,700K-6,500K.

This unit is incredibly user-friendly, offering immediate stand-alone access through the knobs or through wired DMX/RDM or Wireless CRM (optional). Timeless Elegance meets Green Innovation: The EclExpo Flood150 - Where Classic Beauty Embraces Modern Technology


Main features:

  • 150W calibrated RGB+WarmWhite source, with high CRI and TM30
  • Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
  • Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs
See variants

PHOTO GALLERY

EclExpo Flood150FC
EclExpo Flood150FC
EclExpo Flood150FC
EclExpo Flood150FC
EclExpo Flood150FC

Technical specifications

LIGHT SOURCE
  • Source: 150W RGB + Warm White LED
  • Luminous flux: 5'342lm @full
  • Lux: 65lx @5 m full
  • CRI: preliminary 92,8 @5'600K
  • R9: preliminary 94,7 @5'600K
  • TLCI: preliminary 92 @5'600K
  • TM30 Rf: preliminary 91,3 @5'600K
  • TM30 Rg: preliminary 106 @5'600K
  • Source life expectancy: > 20.000 h
OPTICS
  • Optics: asymmetrical beam reflector in pure aluminium 99,6%
  • Beam angle: (H) 100° x (V) 60°
  • Additional optics: 5° smooth filter on-board
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast magnesium body
  • Body colour: RAL 9004
  • Other: see available accessories
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: 2 rotatory knobs
  • DMX channels: 1/2/5/9/10/12/18channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 175W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 283x273x176mm / 11.14''x10.75''x6.93''
  • Weight: 3,2kg / 7.05lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLEXPOFL150FCBK
ECLEXPOFL150FCBK (NEW)
Black

Accessories & Related Products

FCLEXPOFL150
FCLEXPOFL150
(optional)
Flight case for 6 pcs of ECLEXPOFL150 series
ECLEXPOFL150FFBK
ECLEXPOFL150FFBK
(optional)

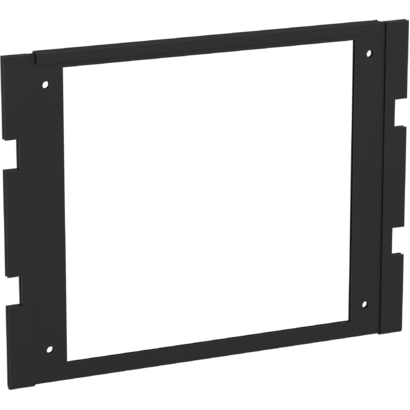

Filter frame for ECLEXPOFL150, black
ECLEXPOFL150BDBK
ECLEXPOFL150BDBK
(optional)

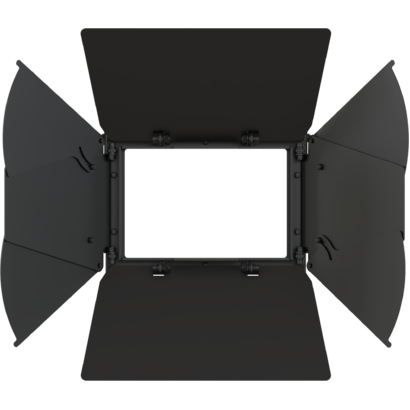

Barn door 8 directional flaps to adjust the light beam for ECLEXPOFL150, black
ECLEXPOFL150WKBK
ECLEXPOFL150WKBK
(optional)

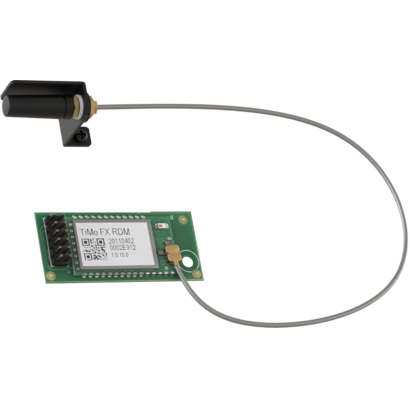

CRMX Timo Fx kit for ECLEXPOFL150, black
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclexpofl150fc_LETTER_DATASHEET_(EN).pdf 597KB
Letter datasheet Eclexpofl150fc_A4_DATASHEET_(EN).pdf 468KB
Letter datasheet Eclexpofl150fc_A4_DATASHEET_(IT).pdf 475KB
Tender Specification Eclexpofl150fc_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual Eclexpofl150fc_USER_MANUAL_EN.pdf 3MB
User manual Eclexpofl150fc_General_Safety_Information_EN.pdf 3MB

DMX chart & personalities

File name File size Download
DMX chart Eclexpofl150fc_DMX_CHARTS.pdf 240KB
VectorWorks VECTORWORKS.vwx 267KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
ECLEXPOFL150FC Firmware rev. 1.1.00.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_eclexpofl150fc_ldt_ies files.zip 732KB
PDF Photometrics Eclexpofl150fc_PHOTOMETRICS_REPORT.pdf 3MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Eclexpofl150fc_3D_SKETCHUP.skp 347KB
2D Eclexpofl150fc_2D.dwg 4MB
3D Eclexpofl150fc_3D.dwg 129KB
2D cad symbols Eclexpofl150fc_2DSYMBOLS.dwg 20KB
Technical drawing Eclexpofl150fc_TECHNICAL_DRAWING.pdf 601KB

Tech docs

File name File size Download
Noise Report Eclexpofl150fc_NOISE_REPORT.pdf 628KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 26/08/2023 First Stable Release. Rev. 1.0
