EclFresnel VW

250W Variable White LED Fresnel (2,700K - 5,600K), with manual zoom 17° - 64°

The EclFresnel VW is a powerful LED Fresnel lamp, designed as a replacement for a 1,000W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 250W LED source.
This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.
The EclFresnel VW has a manual zoom range from 17° to 64°, with precise focusing, and an 8-leaf barndoor (included).
This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

Main features:

  • Linear white CCT, from 2,700K to 5,600K
  • 250W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
  • Barndoor, 28 mm spigot and filter frame included
See variants

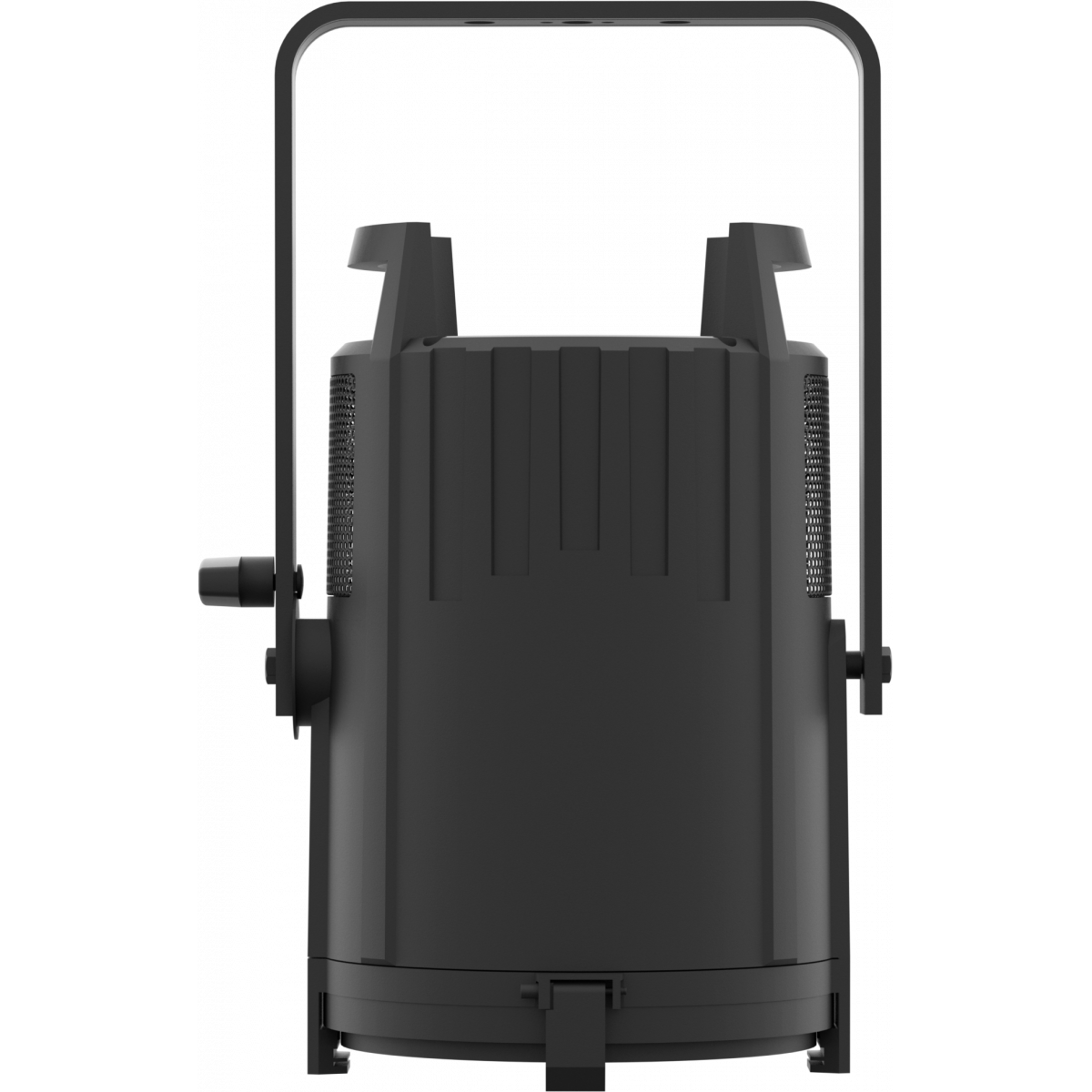

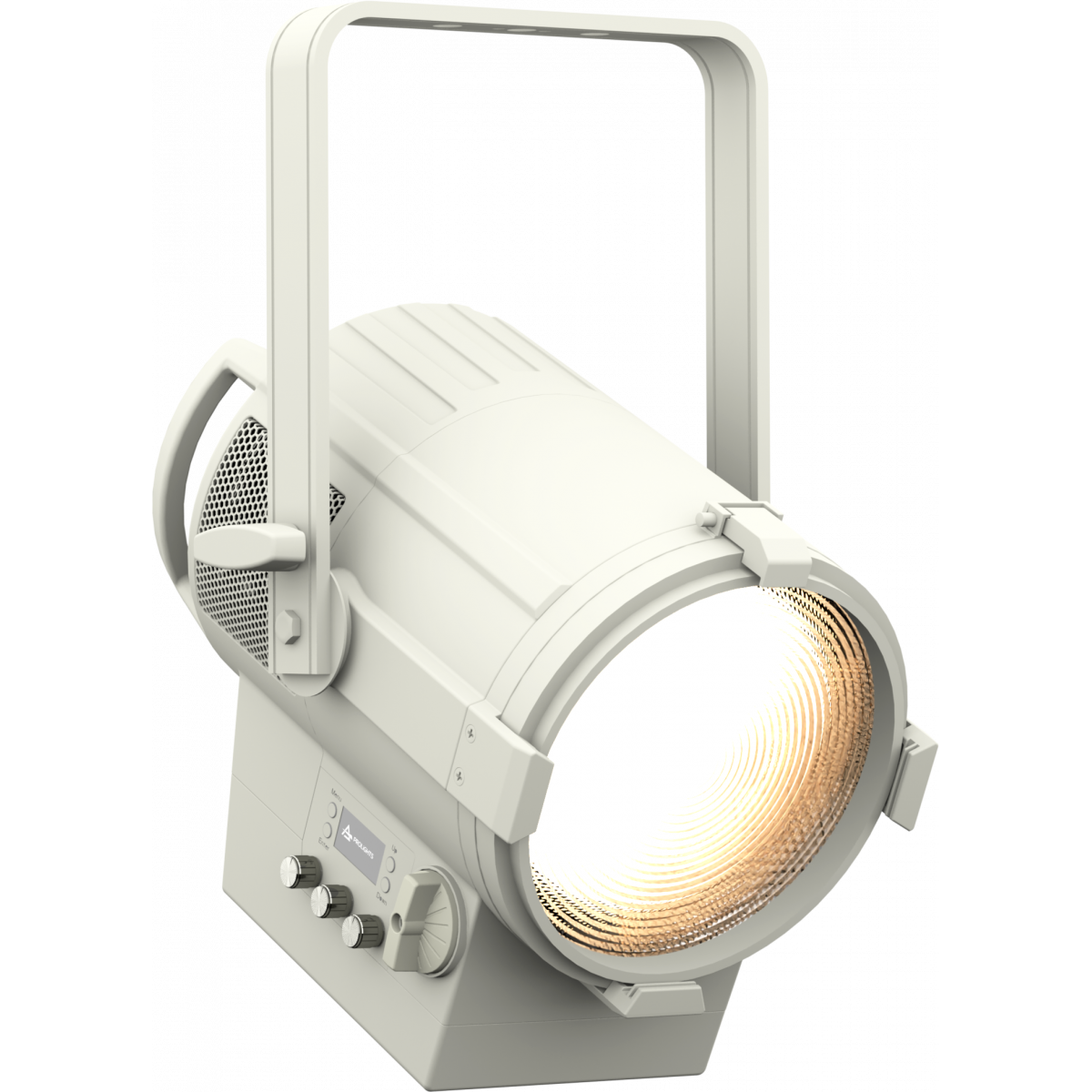

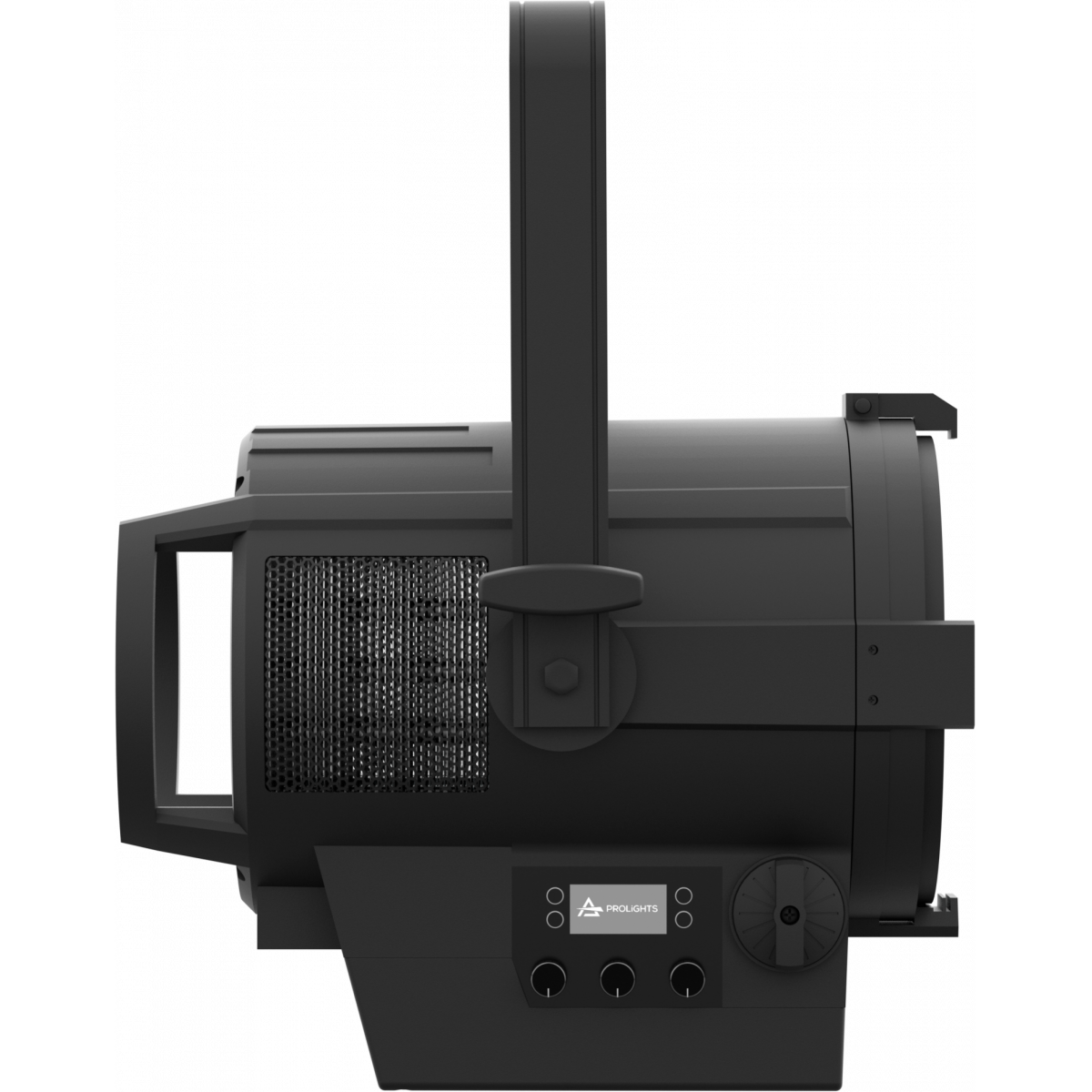

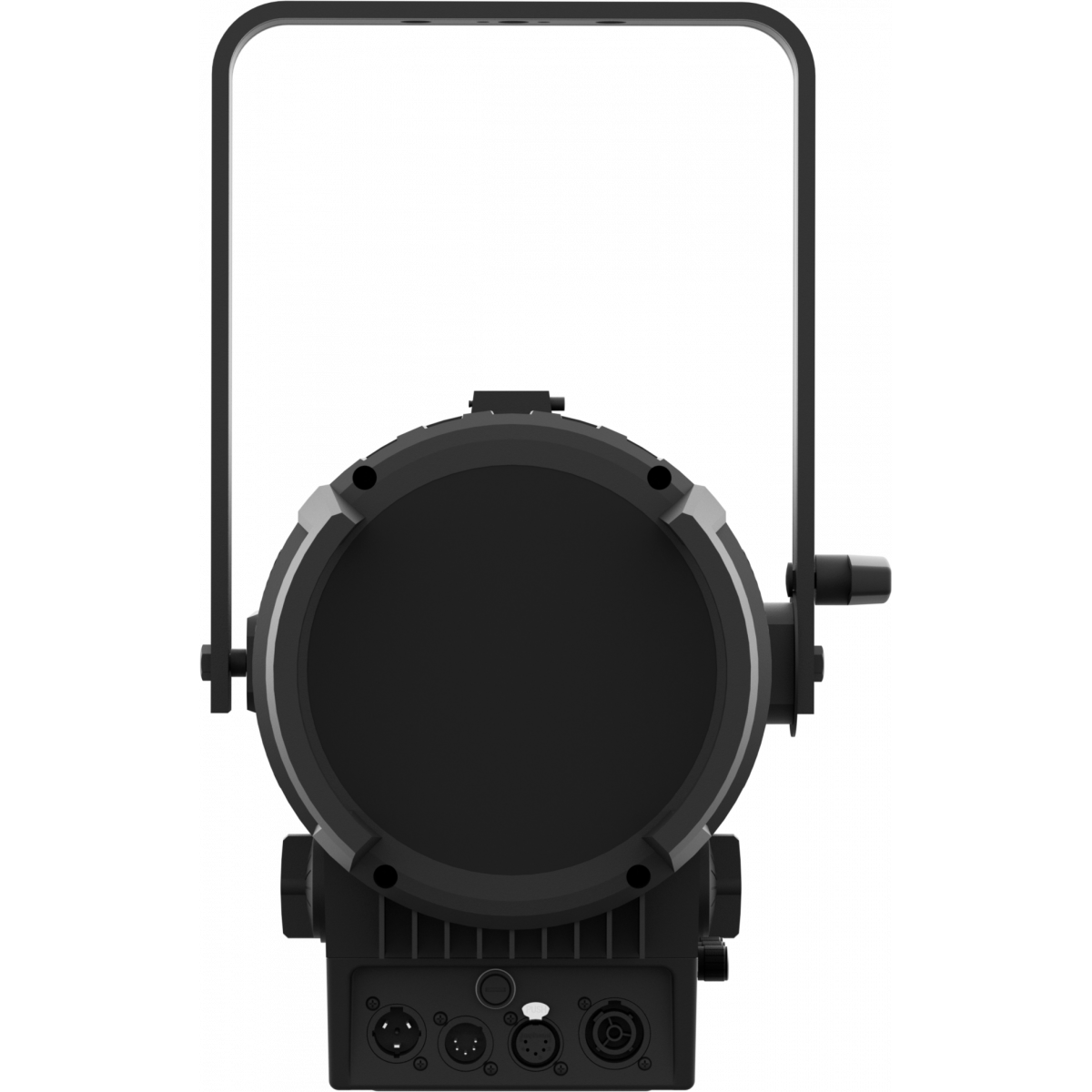

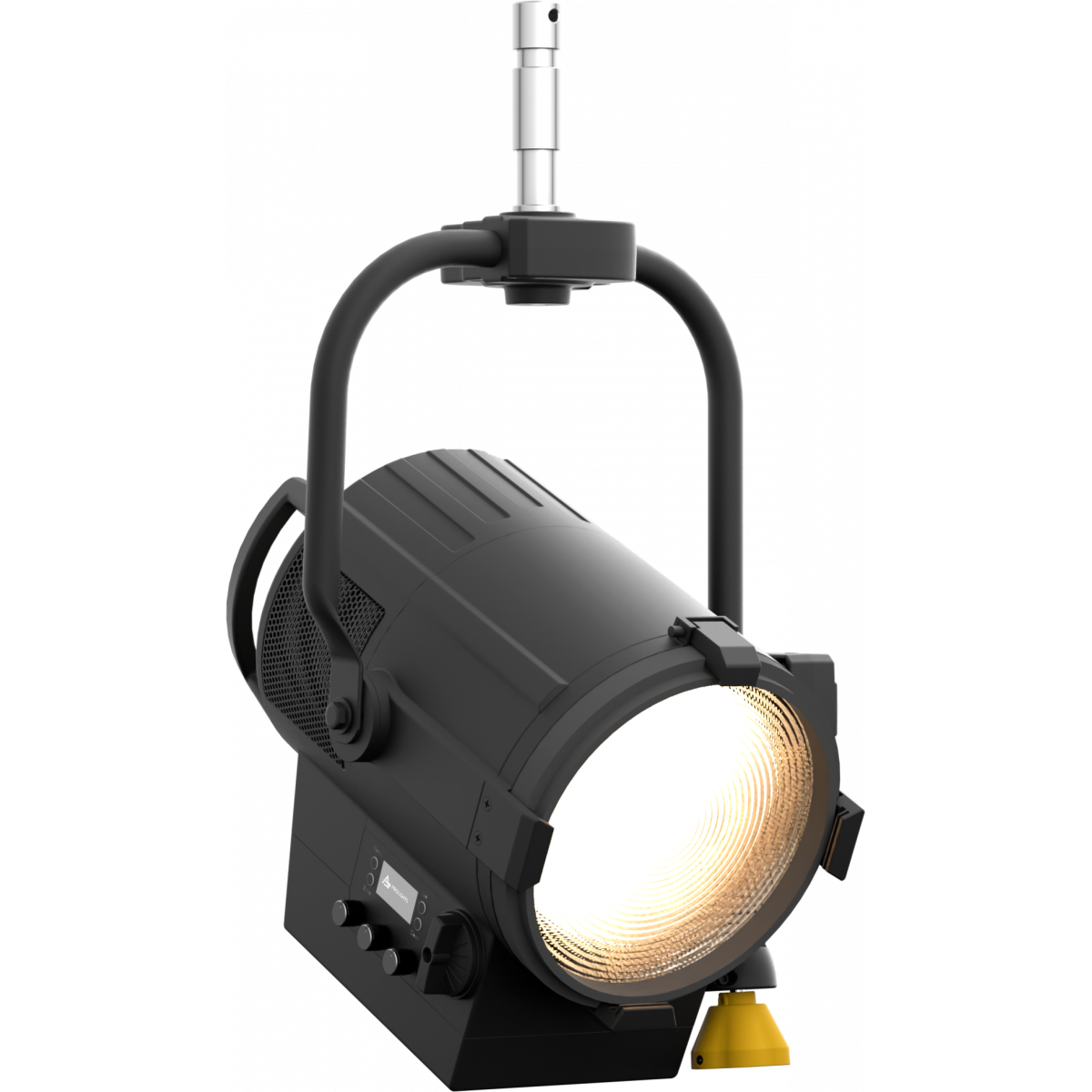

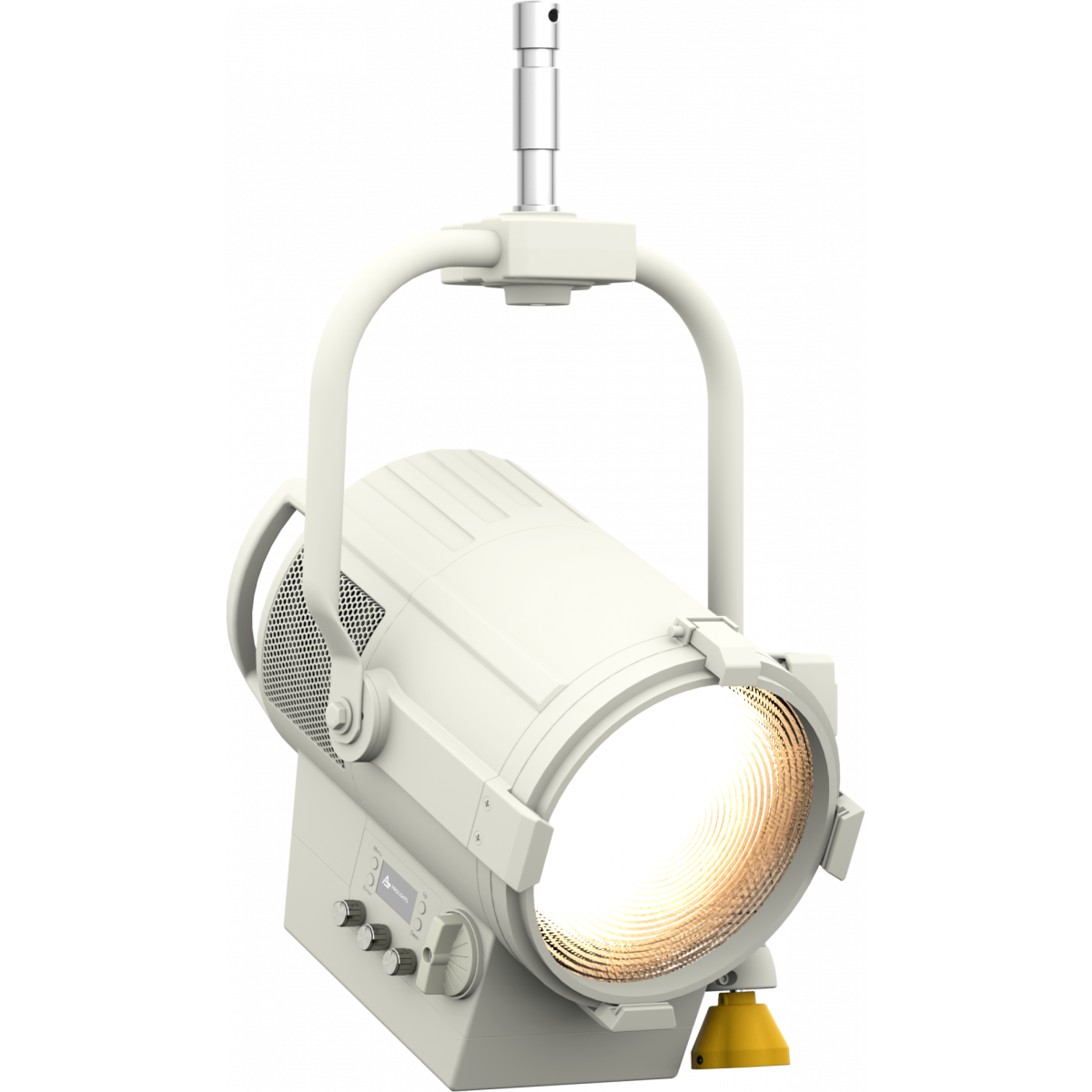

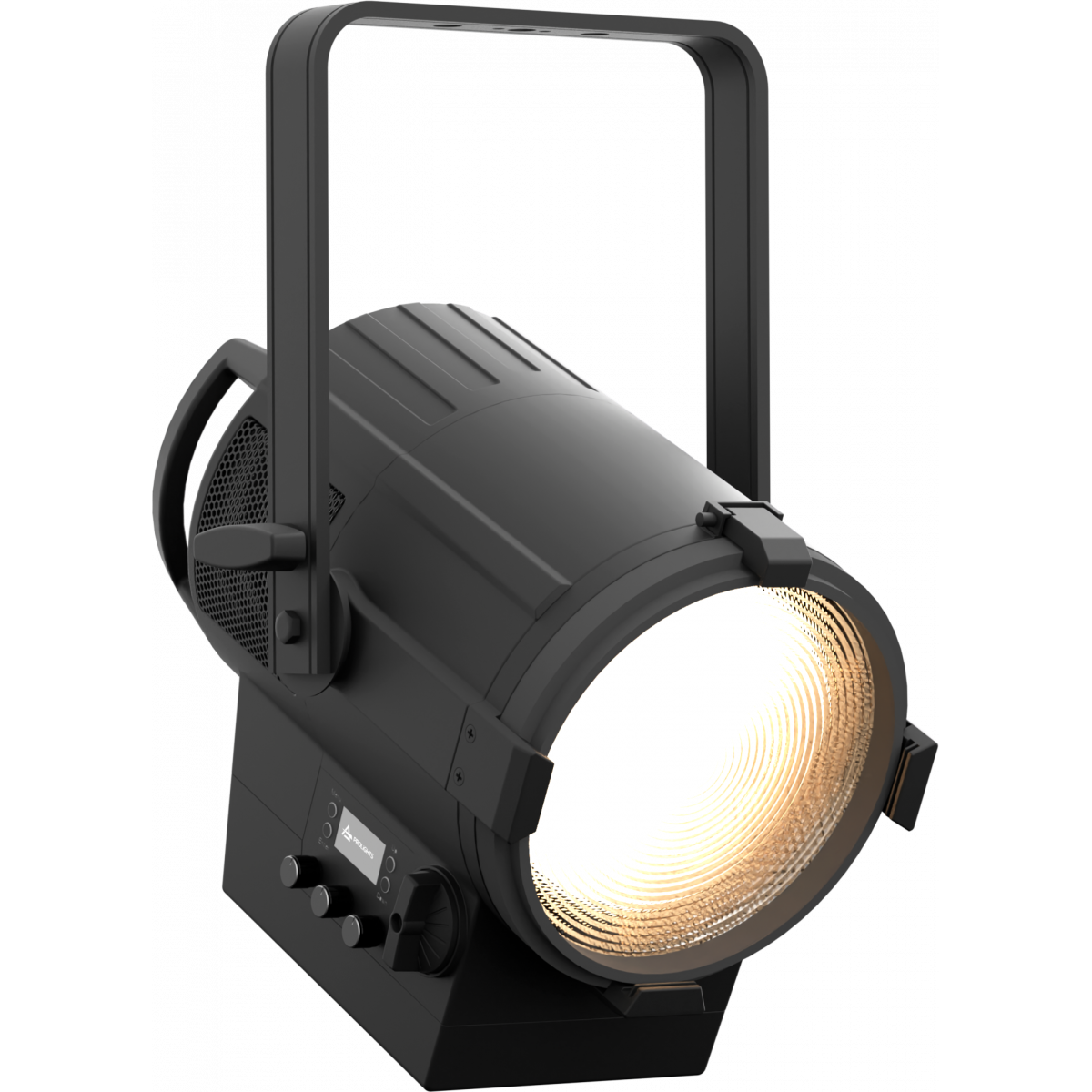

PHOTO GALLERY

EclFresnel VW
EclFresnel VW
EclFresnel VW
EclFresnel VW
EclFresnel VW
EclFresnel VW
EclFresnel VW

Technical specifications

LIGHT SOURCE
  • Source: 250W Variable White LED
  • CCT: 2.700 K - 5.600
  • Luminous flux: (17°) 8'693 lm - (64°) 10'955 @Full
  • Lux: (17°) 9'492 lx - (64°) 2'557lx @3 m full
  • CRI: 95 @WW; 95 @CW; 94 @full
  • R9: 97 @WW; 92 @CW; 81 @full
  • TLCI: 97 @WW; 98 @CW; 98 @full
  • TM30 Rf: >94 @WW; >92 @CW; >93 @full
  • TM30 Rg: >103 @WW; >103 @CW; >104 @full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 17° - 64° manual
  • Lens diameter: 8'' - 200mm / 0.31''
  • Lens type: fresnel zoom lens
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K - 5.600K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of intensity and CT from knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Pan range: (for pole operated version) 360° with manual regulation
  • Tilt range: (for pole operated version) 340° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • Stand Alone: 3 rotatory knobs
  • DMX channels: 1 / 2 / 4 / 5 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 240W
  • Standby power: 32,5 W
  • Output (at 230V): 17 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 283x440x343mm / 11.14''x17.32''x13.5''
  • Dimensions with PO system (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
  • Weight: 7,8kg / 17.2lbs
  • Weight with PO system: 10kg / 22.05lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
Yoke
Input
ECLFRESNELVWBK
ECLFRESNELVWBK
Black
M.O.
DMX
ECLFRESNELVWPOBK
ECLFRESNELVWPOBK
Black
P.O.
DMX
ECLFRESNELVWWH
ECLFRESNELVWWH
White
M.O.
DMX

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
ECLFRSBD
ECLFRSBD
(Included)
Barn door with directional flaps to adjust the light beam
FCLECLFRS
FCLECLFRS
(Optional)
Flight case for 4x ECLFRESNEL
ECLFRSTPG
ECLFRSTPG
(Included)
Filter frame for ECLFRESNEL series
EFSBUFDS
EFSBUFDS
(Optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfresnelvw_A4_DATASHEET_(EN).pdf479KB
Tender SpecificationEclfresnelvwbk_TENDER_SPECIFICATION.pdf4MB
Tender SpecificationEclfresnelvwwh_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclfresnelvw_DMX_CHARTS.pdf95KB
ECLFRESNELVW Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLFRESNELVW_3D_SKETCHUP.zip5MB
2DEclfresnelvw_CAD_2D.dwg23MB
3DECLFRESNELVW_3D.zip3MB
Technical drawingEclfresnelvw_TECHNICAL_DRAWING.pdf823KB
VectorWorksECLFRESNELVW_SYMBOLS.zip4MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download
Noise ReportEclfresnelvw_NOISE_REPORT.pdf610KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 27/12/2023 New function:
  • Added 20 Presets within the Stand Alone menu. It is possible to save Stand Alone configurations and recall them.
Improvement:
  • Improved RDM compliance.
  • Improved CCT management.
 Rev. 1.0
Rev. 1.2
