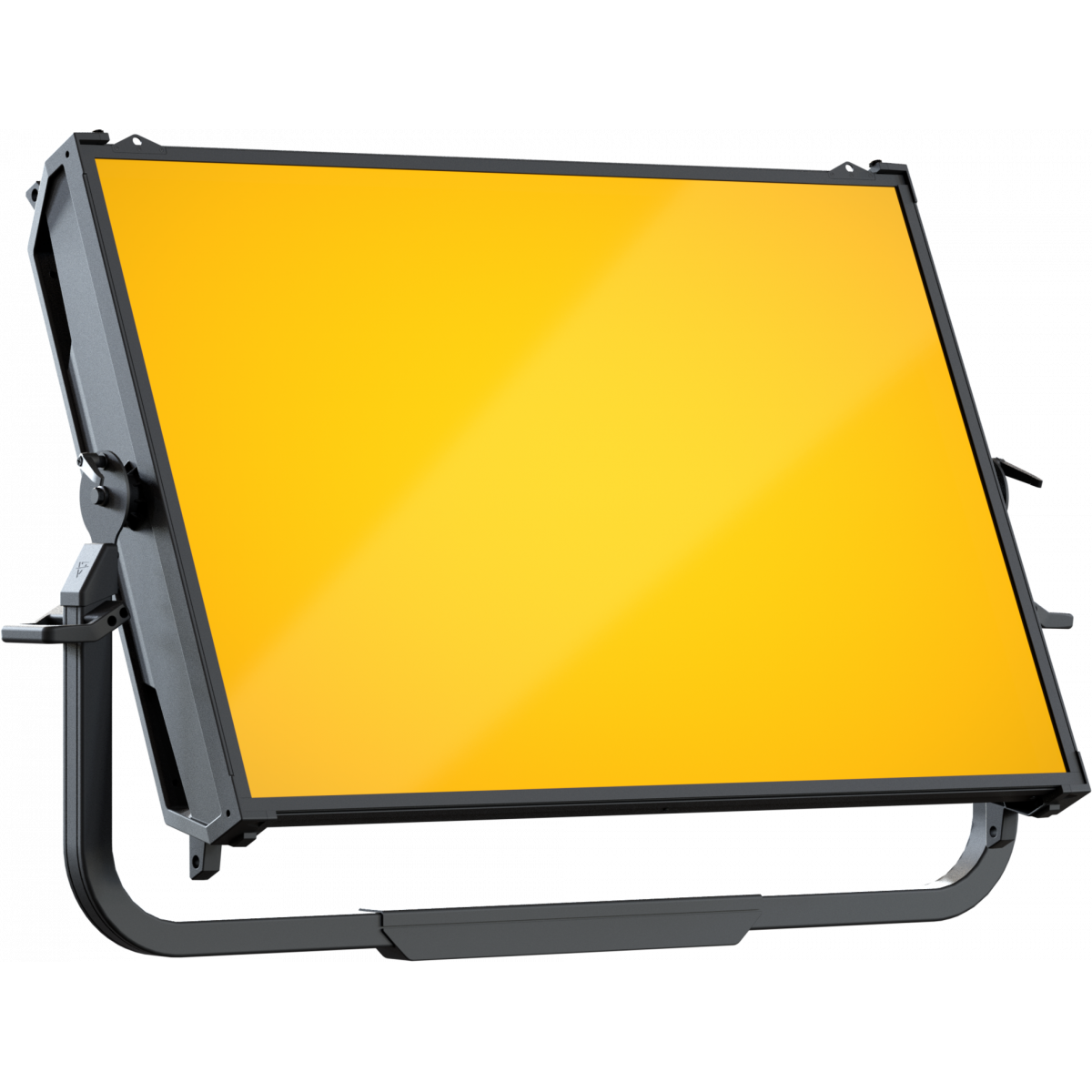

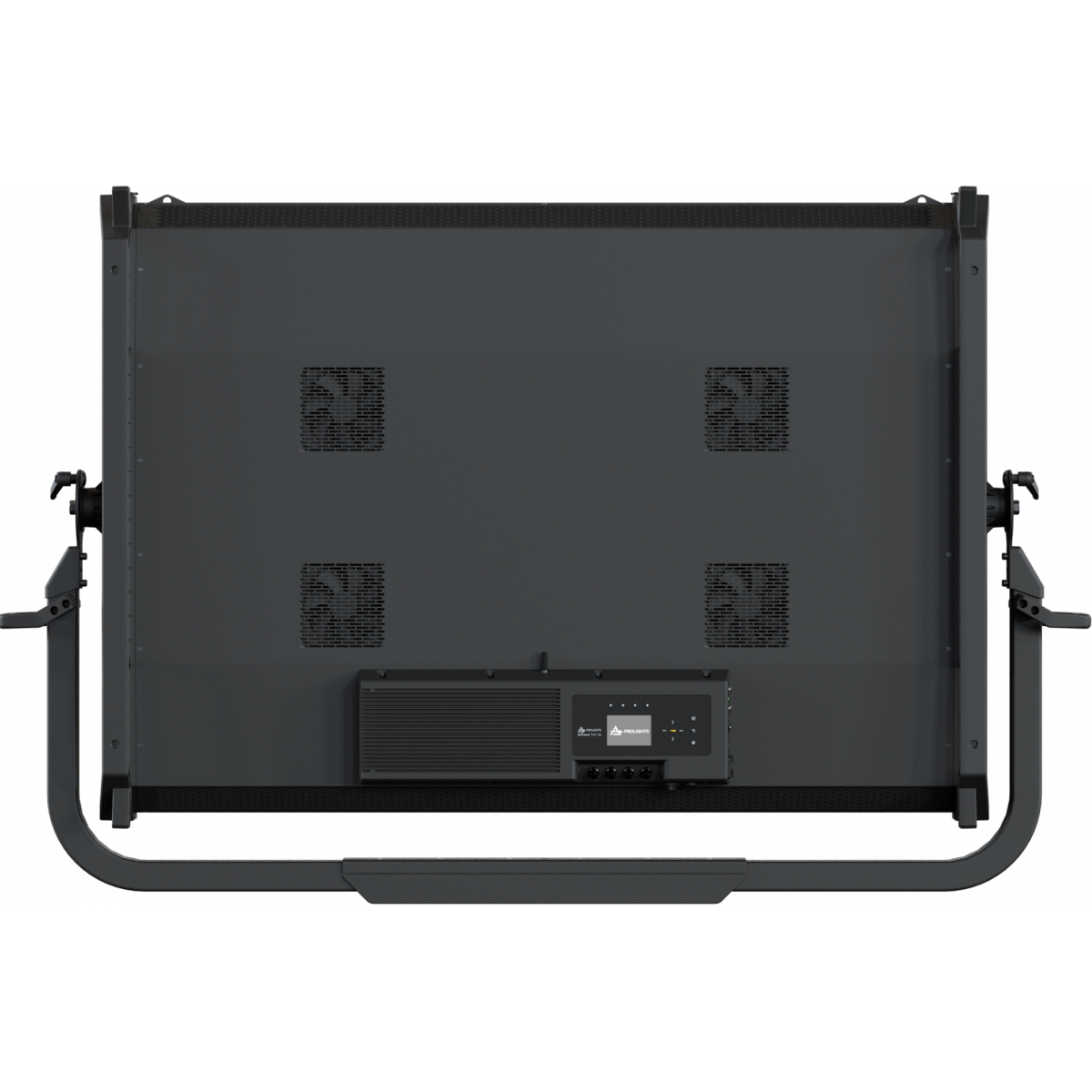

EclPanel TWCXL

ORDER CODE: ECLPANELTWCXL

1.500W Tuneable White and colourful LED soft light with pixels and lighting effects

The EclPanel TWCXL is an ultra-bright LED soft light engineered for large scale Film & TV productions that provides an outstanding soft source of powerful lighting. The PROLIGHTS EclPanel TWCXL comes with a full range of white tones, from daylight to tungsten, attaining a superior light quality with high CRI, TLCI, and TM-30 values. The EclPanel TWCXL allows for quick and accurate local control through 4 rotatory knobs with three fully-featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity and FX mode to access the pixel cinema effects. Each of the 48 sections has individual control to play the customisable cinema effects or by pixel mapping from an external controller. The unit has an onboard driver, a built-in power supply, a Wireless transceiver for remote DMX and RDM control, and network connectivity (Art-Net, sACN).

SPEKTRA

Main features:

  • 1.500W RGB + Warm White LED source
  • CRI >93; R9 >95; TLCI >93
  • 48 section pixel control and built-in lighting effects for cinema applications, colour gels matching
  • Silent operation with multiple fan modes
  • Wireless DMX and RDM for wireless control and communication, Ethernet connectivity
See variants

PHOTO GALLERY

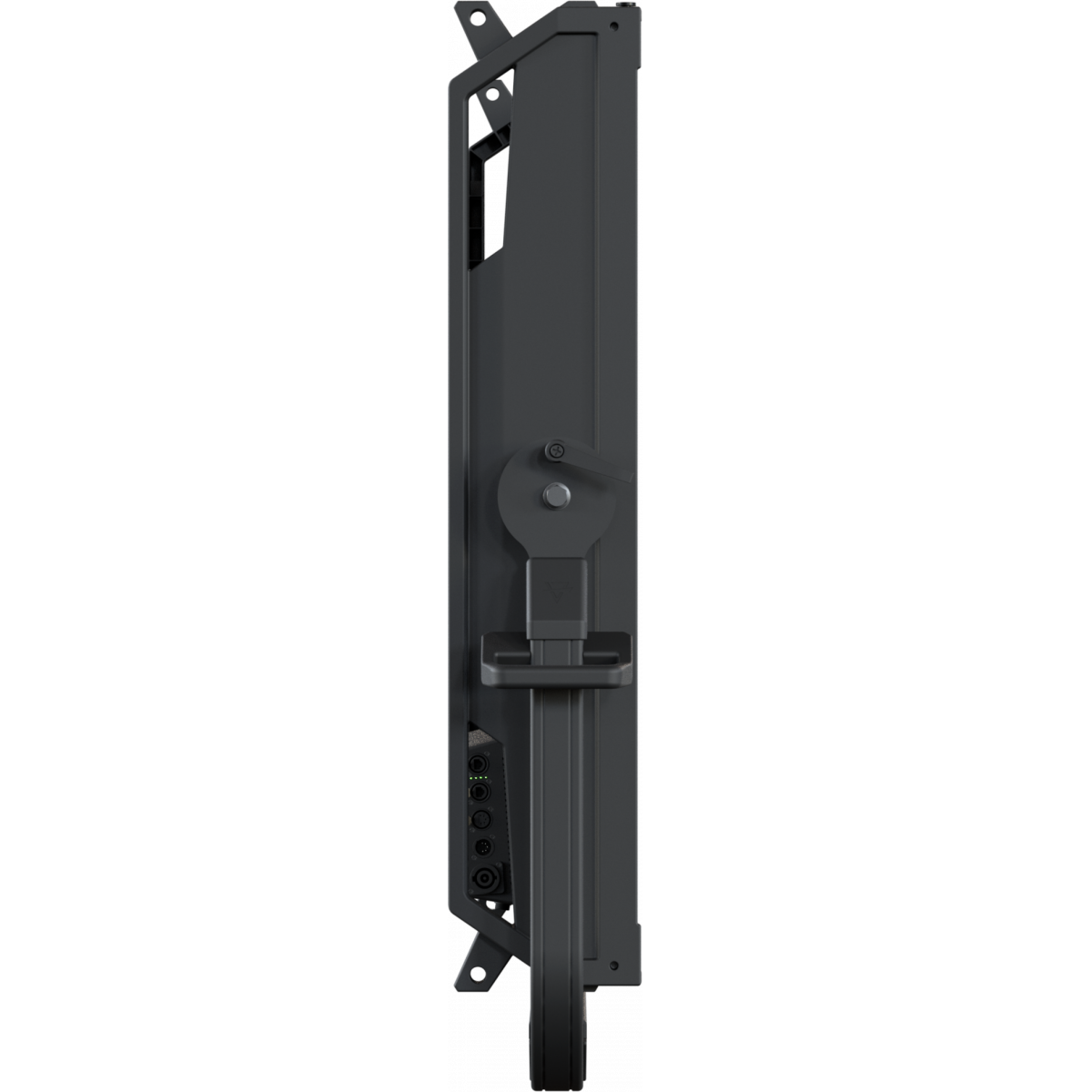

EclPanel TWCXL

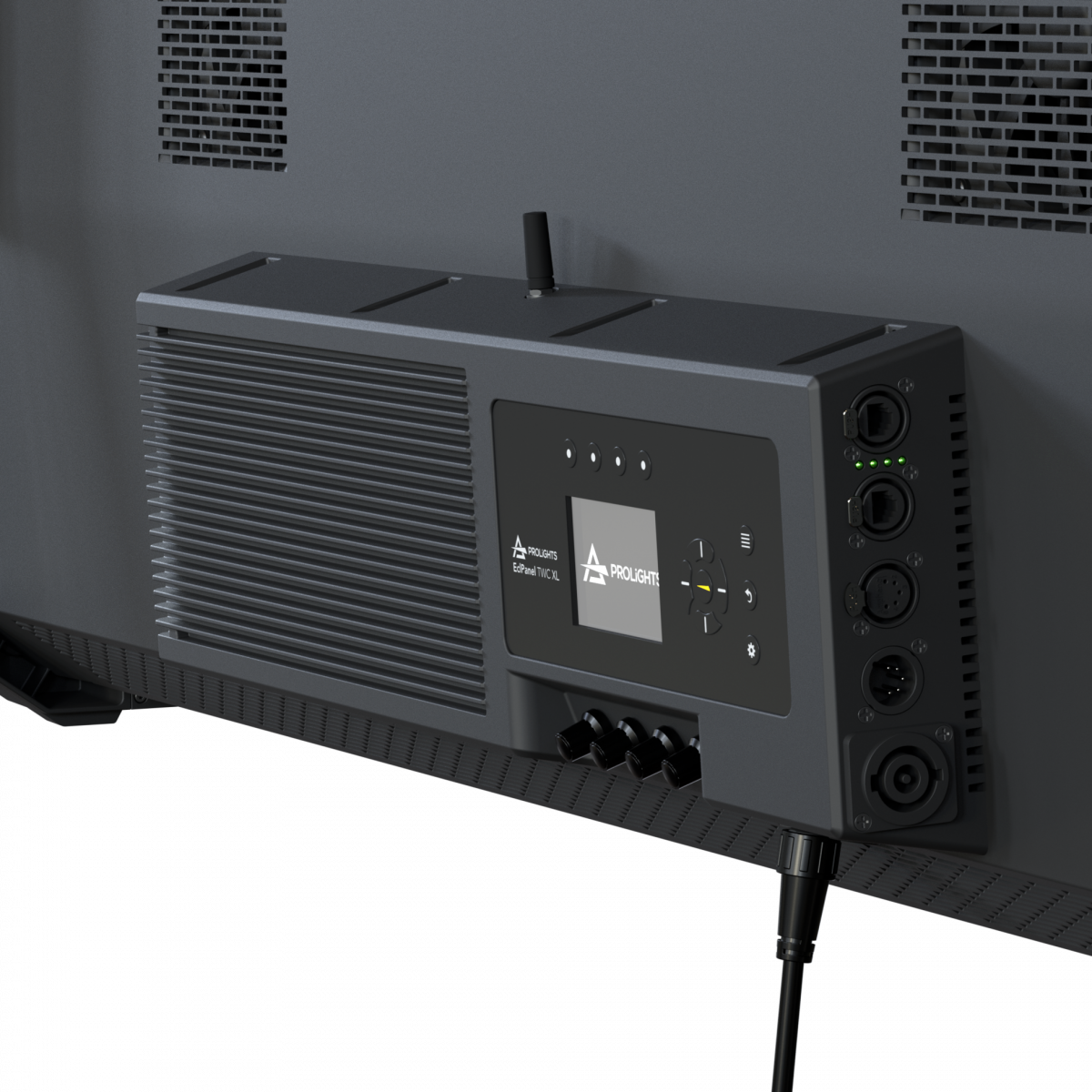

EclPanel TWCXL

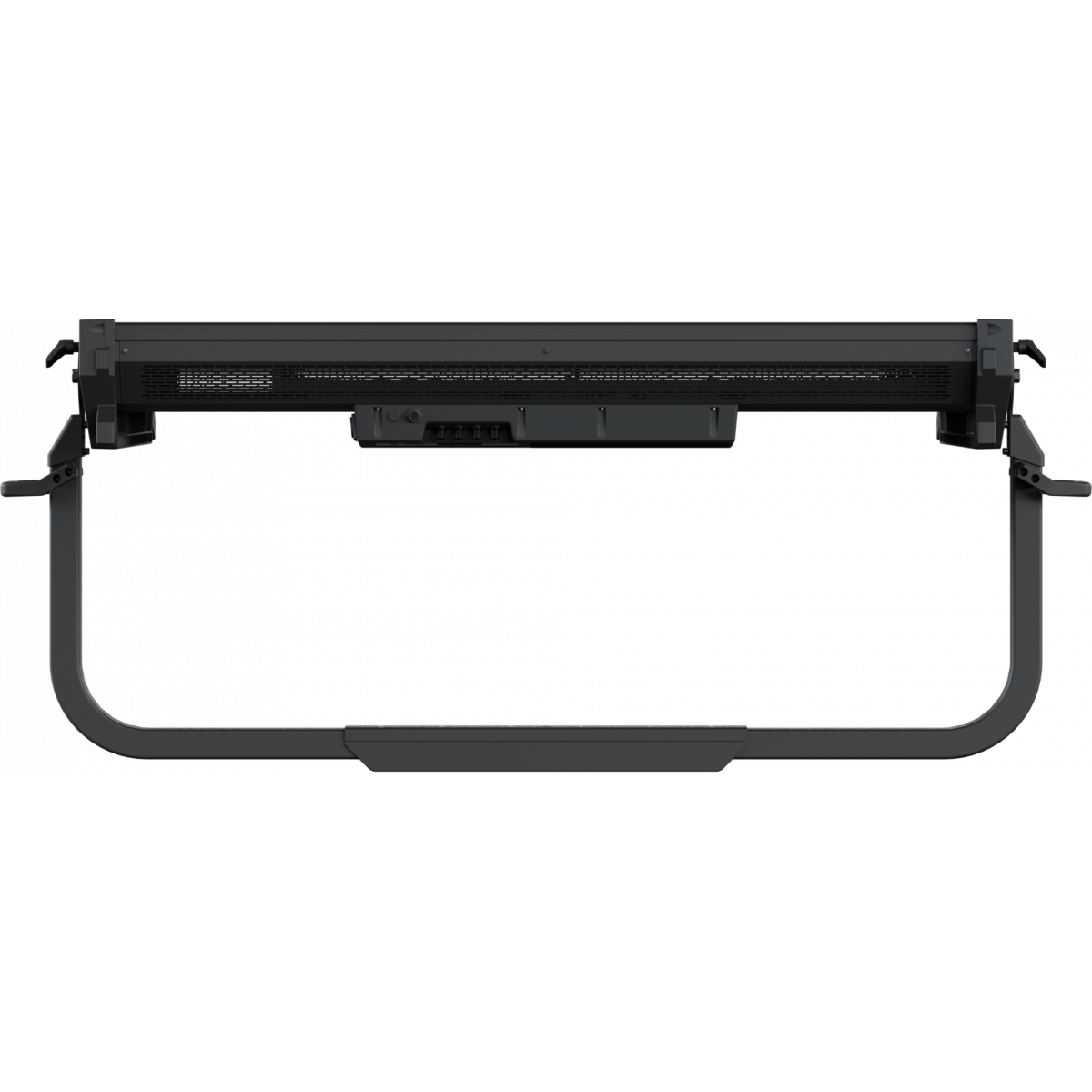

EclPanel TWCXL
EclPanel TWCXL
EclPanel TWCXL

Technical specifications

LIGHT SOURCE
  • Source: 1.500W RGB + Warm White LED
  • Luminous flux: 130'725 @3.200 K with LD filter
  • Lux: 2'442lx @5 m full
  • CRI: 93,4 @3.200 K; 95.4 @5.600 K
  • R9: 95.6 @3.200 K; 95,9 @5.600 K
  • TLCI: 93 @5.600 K
  • TM30 Rf: 91,9 @3.200 K; 90,3 @5.600 K
  • TM30 Rg: 103,5 @3.200 K; 102,5 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 109°
  • Field angle: 158°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: CCT control range from 1.800K to 20.000K, + / - green correction, tungsten emulation
  • White presets: 1.800 K - 20.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • Stand Alone: selectable mode through 4 RGB backlight push-encoders
  • Pixel control: 48 section control
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: 3.5" with new UI
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 1.600W
  • Standby power: 110VAC/21W, 230VAC/26W
  • Output (at 230V): 1 units on a single power line
  • Power factor: >0,98
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: 32A Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 1623x1201x186mm / 63.9''x47.28''x7.32''
  • Weight: 48,7kg / 107.36lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver

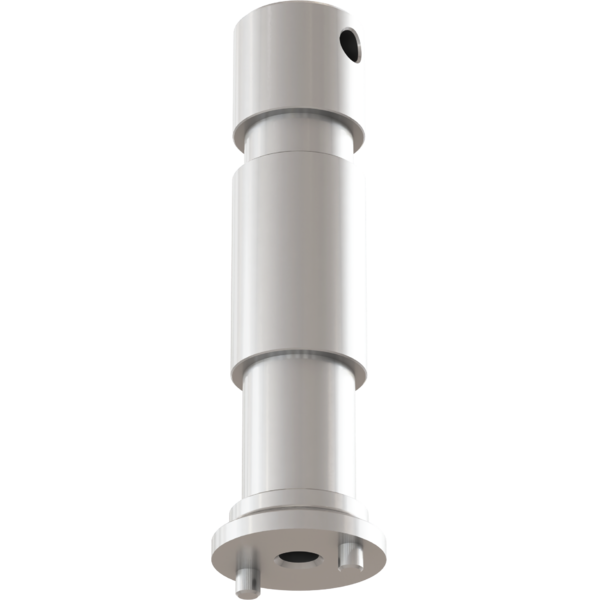

EPTWCXLSPG
EPTWCXLSPG
(Included)
Spigot for ECLPANELTWCXL
FCLPANELXL1U
FCLPANELXL1U
(Optional)

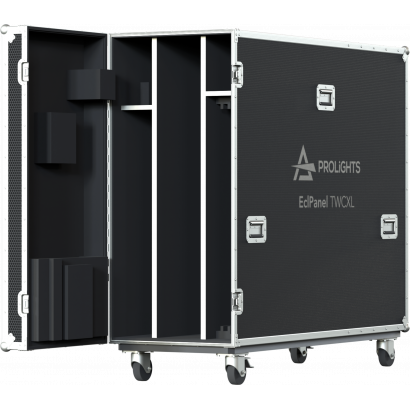

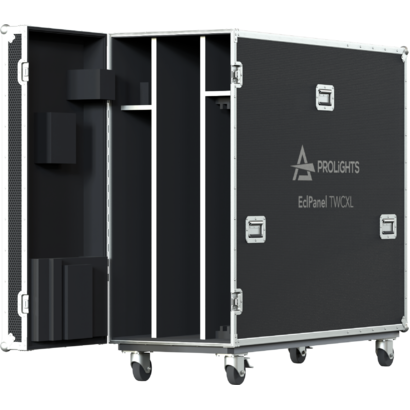

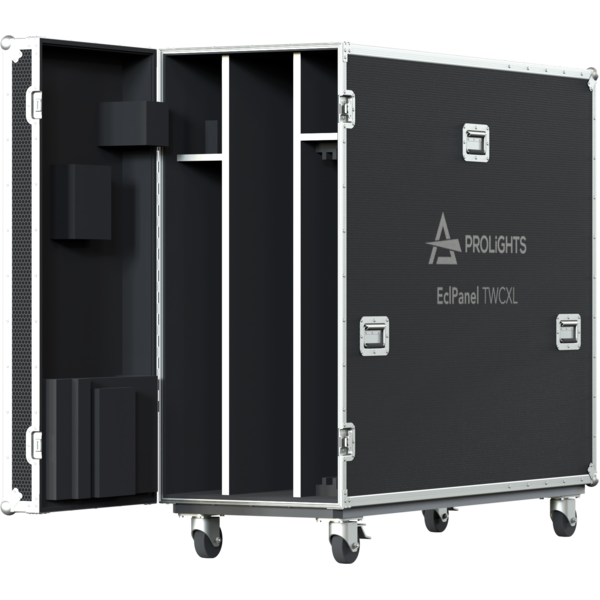

Flight case for 1 pc of ECLPANELTWCXL

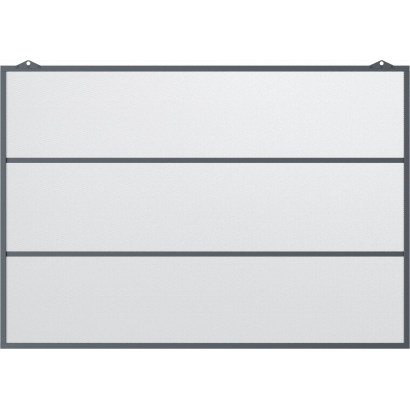

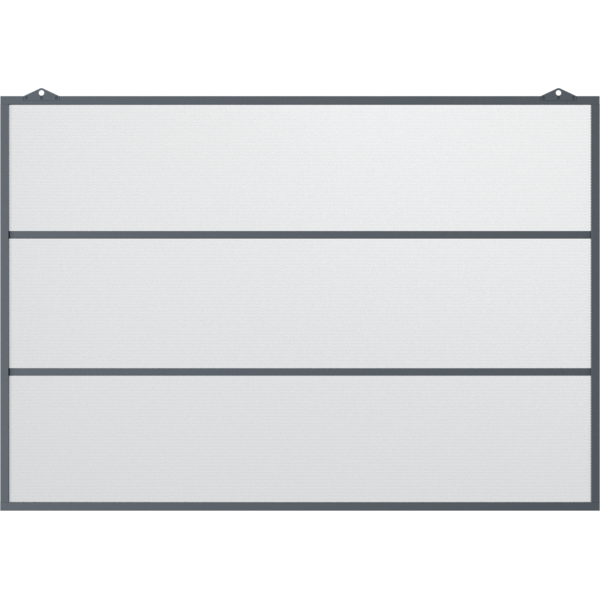

EPTWCXLFILTERINT
EPTWCXLFILTERINT
(Optional)
Front intensified diffusion filter for ECLPANELTWCXL

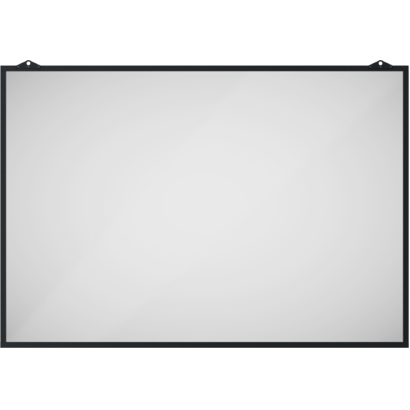

EPTWCXLFILTERHD
EPTWCXLFILTERHD
(Optional)
Front high diffusion filter (less output) for ECLPANELTWCXL

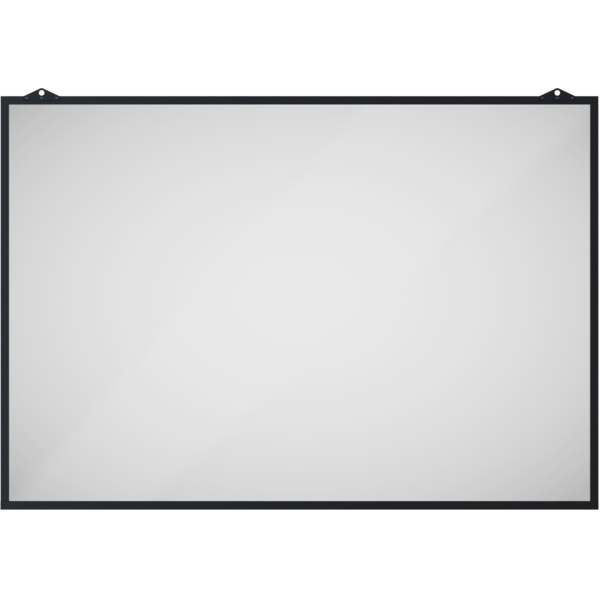

EPTWCXLFILTERMD
EPTWCXLFILTERMD
(Included)
Front medium diffusion filter for ECLPANELTWCXL

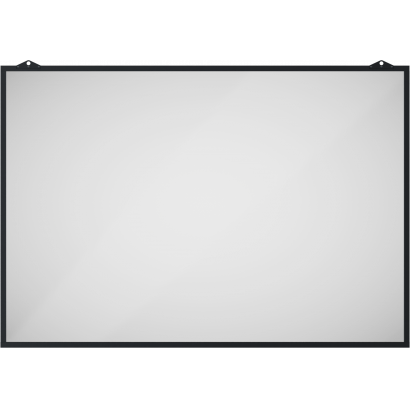

EPTWCXLFILTERLD
EPTWCXLFILTERLD
(Optional)
Front low diffusion filter (more output) for ECLPANELTWCXL

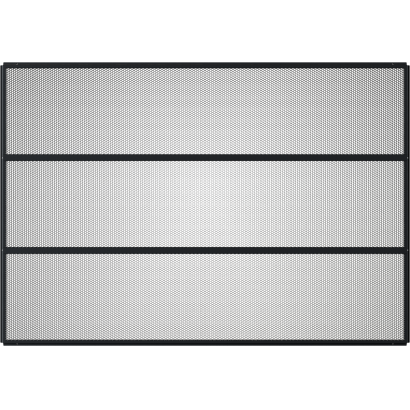

EPTWCXLEC30
EPTWCXLEC30
(Optional)

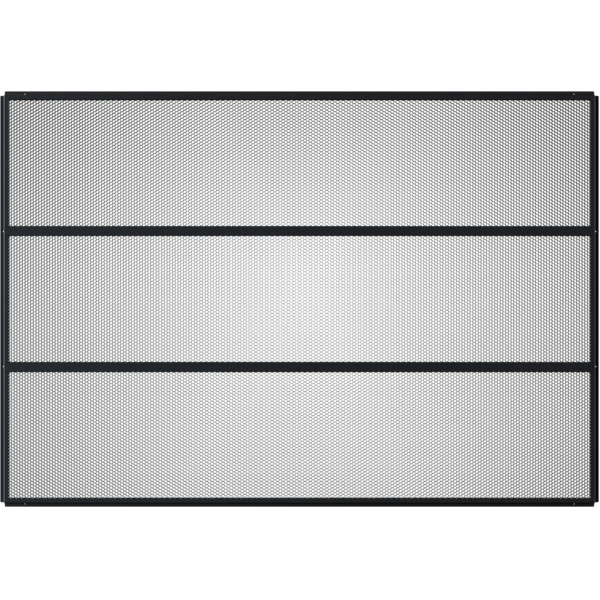

30 degree egg crate for ECLPANELTWCXL

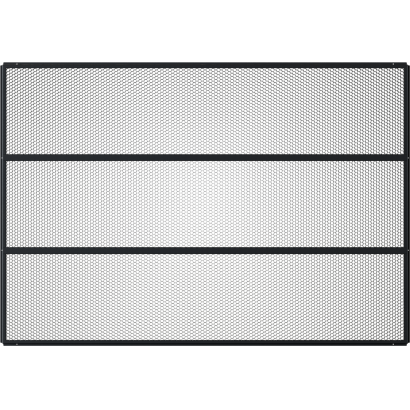

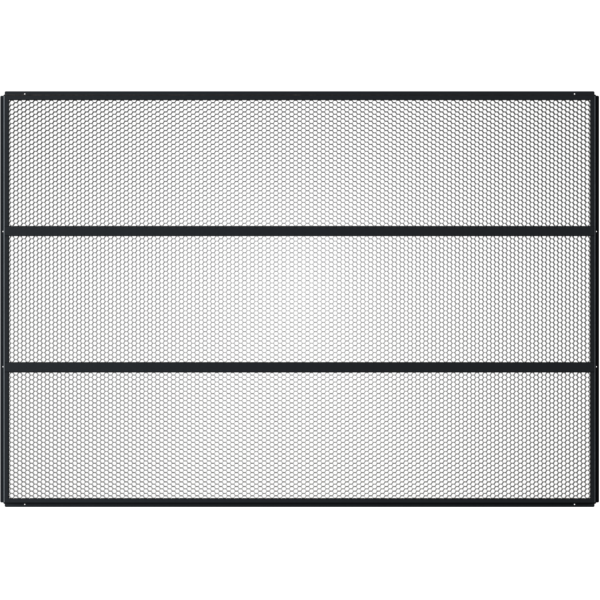

EPTWCXLEC60
EPTWCXLEC60
(Optional)
60 degree egg crate for ECLPANELTWCXL

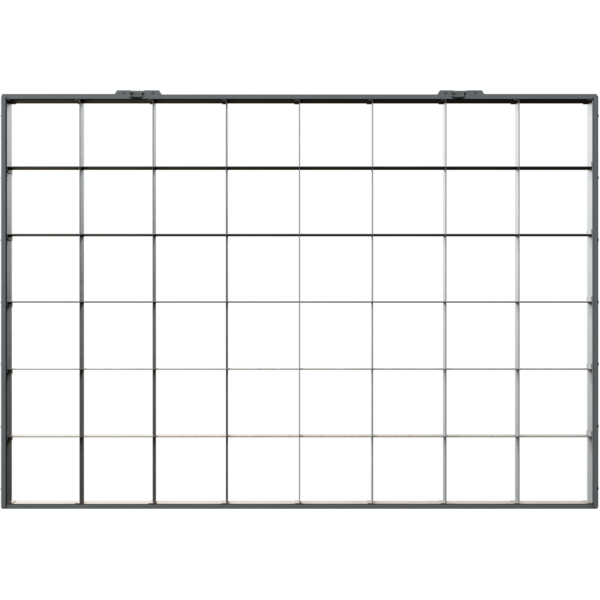

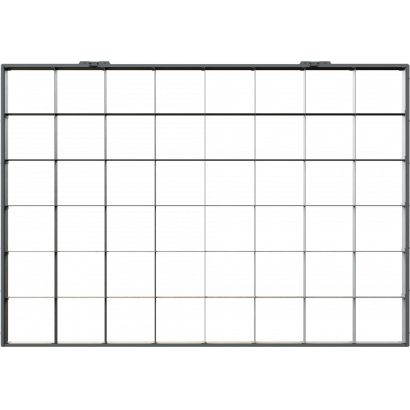

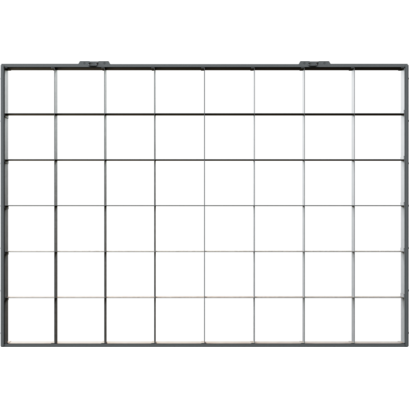

EPTWCXLEC48C
EPTWCXLEC48C
(Optional)
48 chambers egg crate for ECLPANELTWCXL

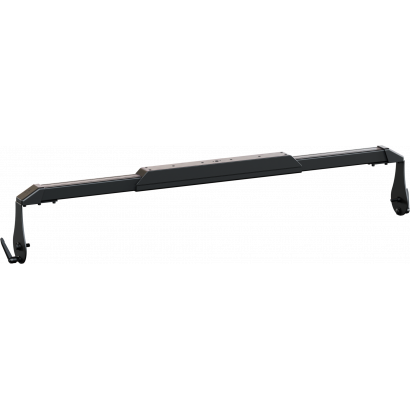

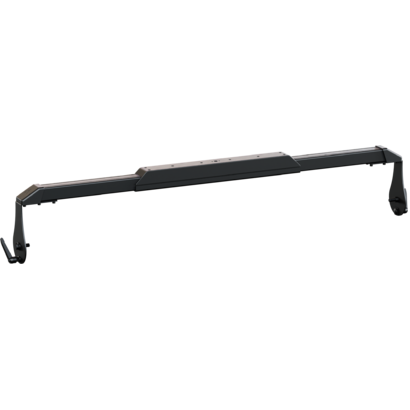

EPTWCXLSB
EPTWCXLSB
(Optional)
Short bracket for ECLPANELTWCXL

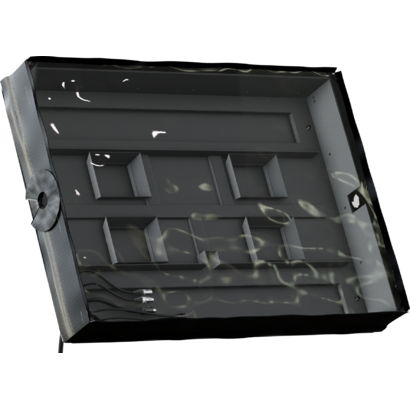

EPTWCXLRC
EPTWCXLRC
(Optional)
Rain Cover for ECLPANELTWCXL

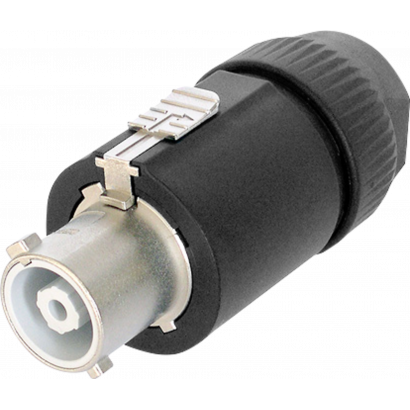

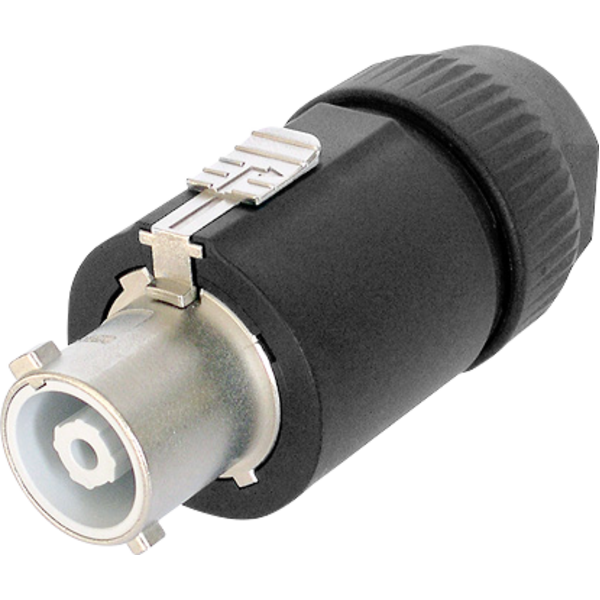

MENAC3FCHC
MENAC3FCHC
(Optional)

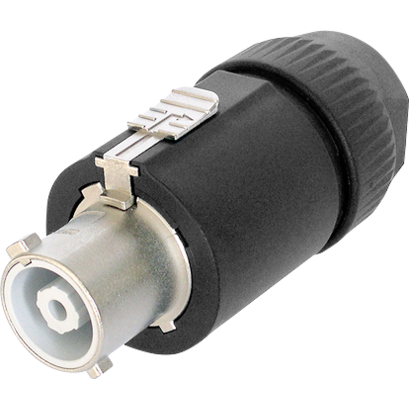

Power-con 32A cable mount straight connector, IN 32A (1P+N+E)

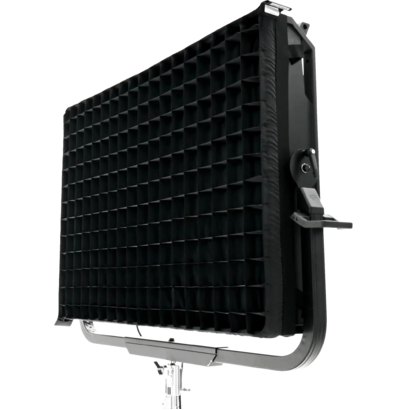

EPTWCXLSG40
EPTWCXLSG40
(Optional)

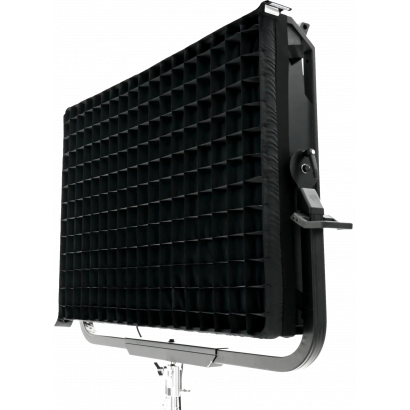

40° SnapGrid, for ECLPANELTWCXL by DoP choice

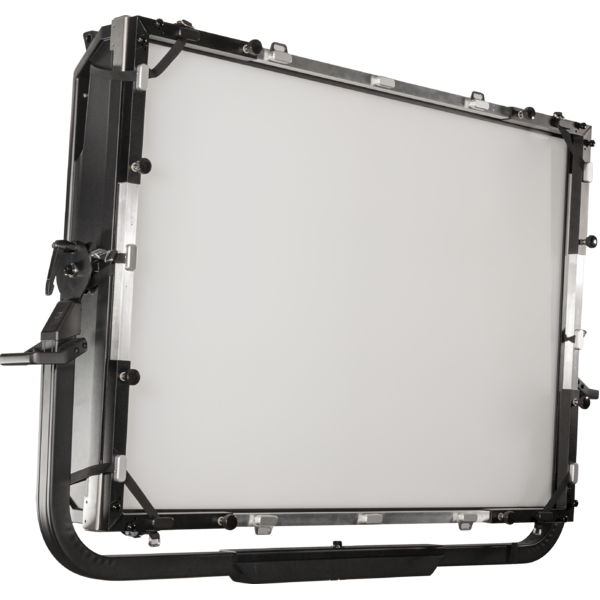

EPTWCXLSRXL
EPTWCXLSRXL
(Optional)

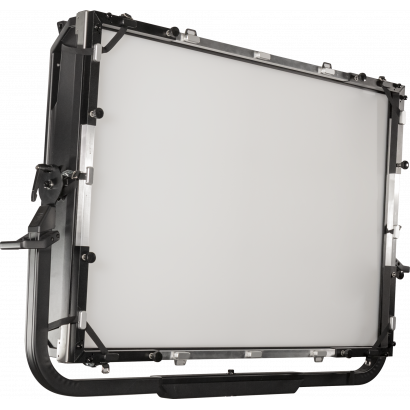

Fat-Rabbit for ECLPANELTWCXL by DoP choice
EPSRXLSBRED8
EPSRXLSBRED8
(Optional)

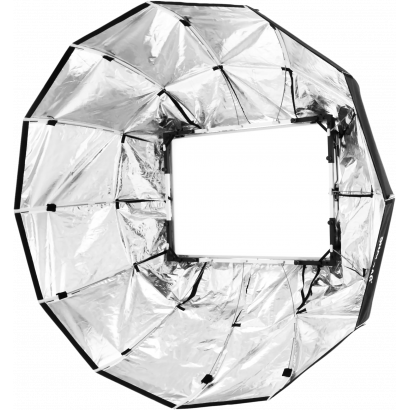

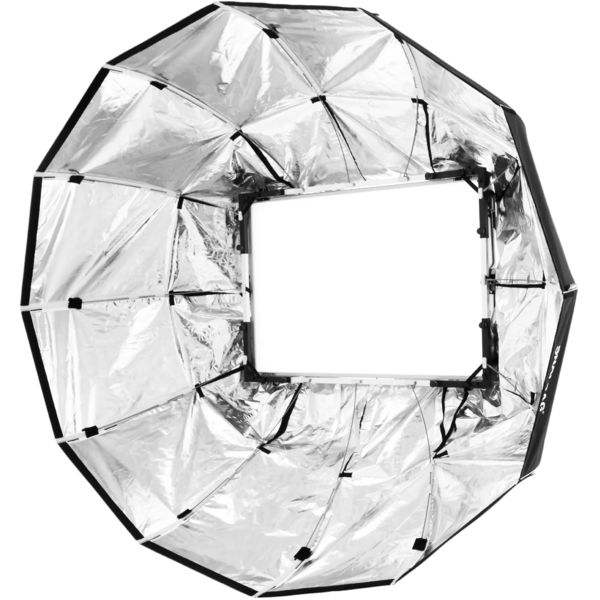

SNAPBAG 8ft DoubleHEX for ECLPANELTWC fat-rabbit (EPTWCXLSRXL)
EPSRXLSBRER65
EPSRXLSBRER65
(Optional)

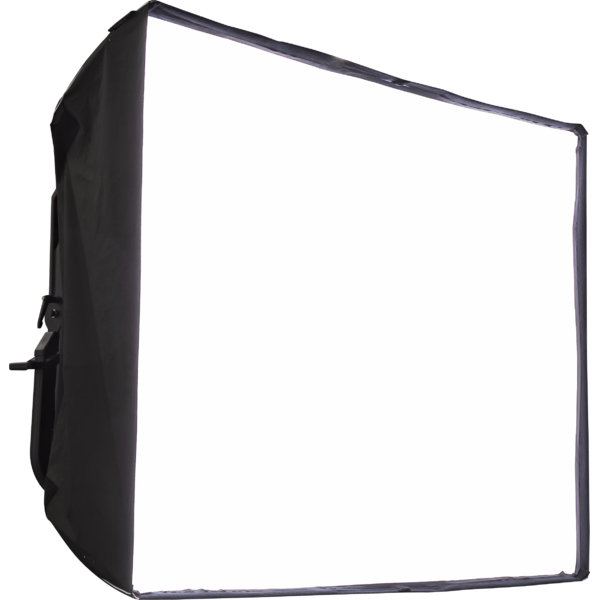

SNAPBAG 6' x 5' for ECLPANELTWC rabbit-ears (EPTWCXLSRXL)
EPSBRER65SG40
EPSBRER65SG40
(Optional)

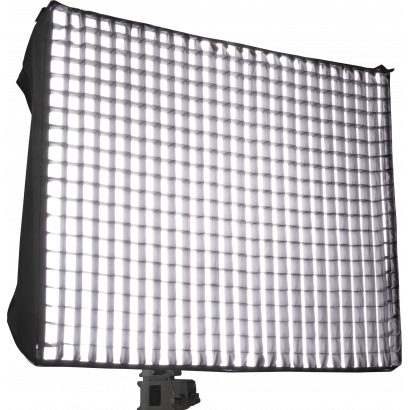

40° SnapGrid, to be mounted on SnapBag 6' x 5' (EPSRXLSBRER65)
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6040B
C6040B
(Optional)

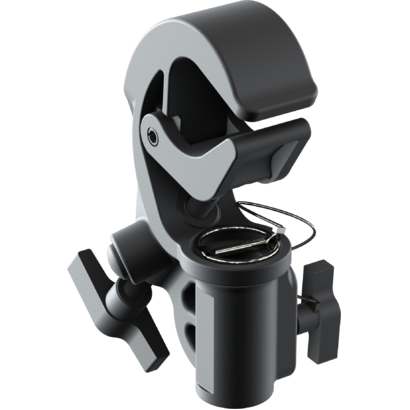

Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6044B
C6044B

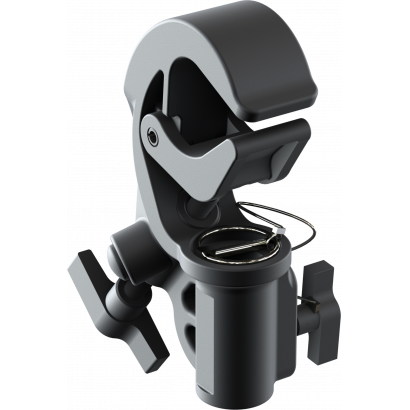

(Optional)

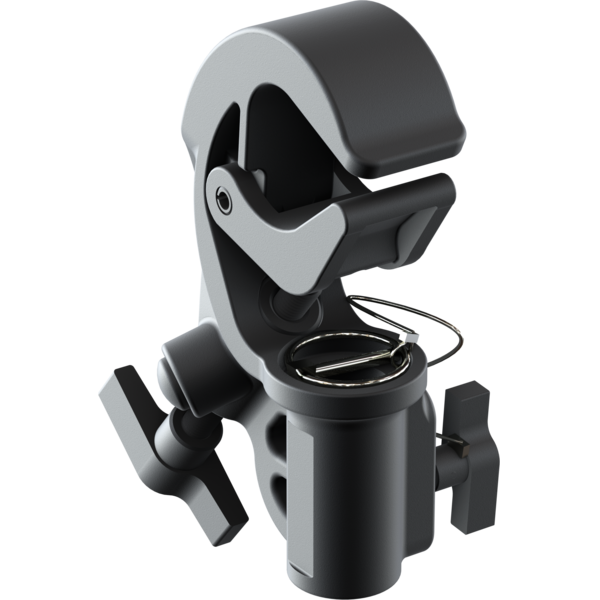

Selflock slim clamp for 28mm spigot, 100 kg load, 40-70 mm tubes, black
