LUMIPIX16H
PROLIGHTS

LumiPix 16H

ORDER CODE: LUMIPIX16H

16x12 W high power LED pixel batten with RGBWA + UV mixing

LumiPix 16H is a 100 cm linear LED batten. Designed for professional use utilising an innovative optical system combined with a new light source that performs: 6 primary colours - RGBWAP full colour - granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output, make LumiPix 16H a flexible and versatile solution for every type of application or for use in venues, as the architectural, cyclorama, wall-washer, pixel effect or blinder.

Main features:

  • LED batten with 16 individually controllable RGBAW + UV LEDs
  • Extensive colour palette and powerful output
  • Flicker-free operation for IMAG and broadcast
See variants

PHOTO GALLERY

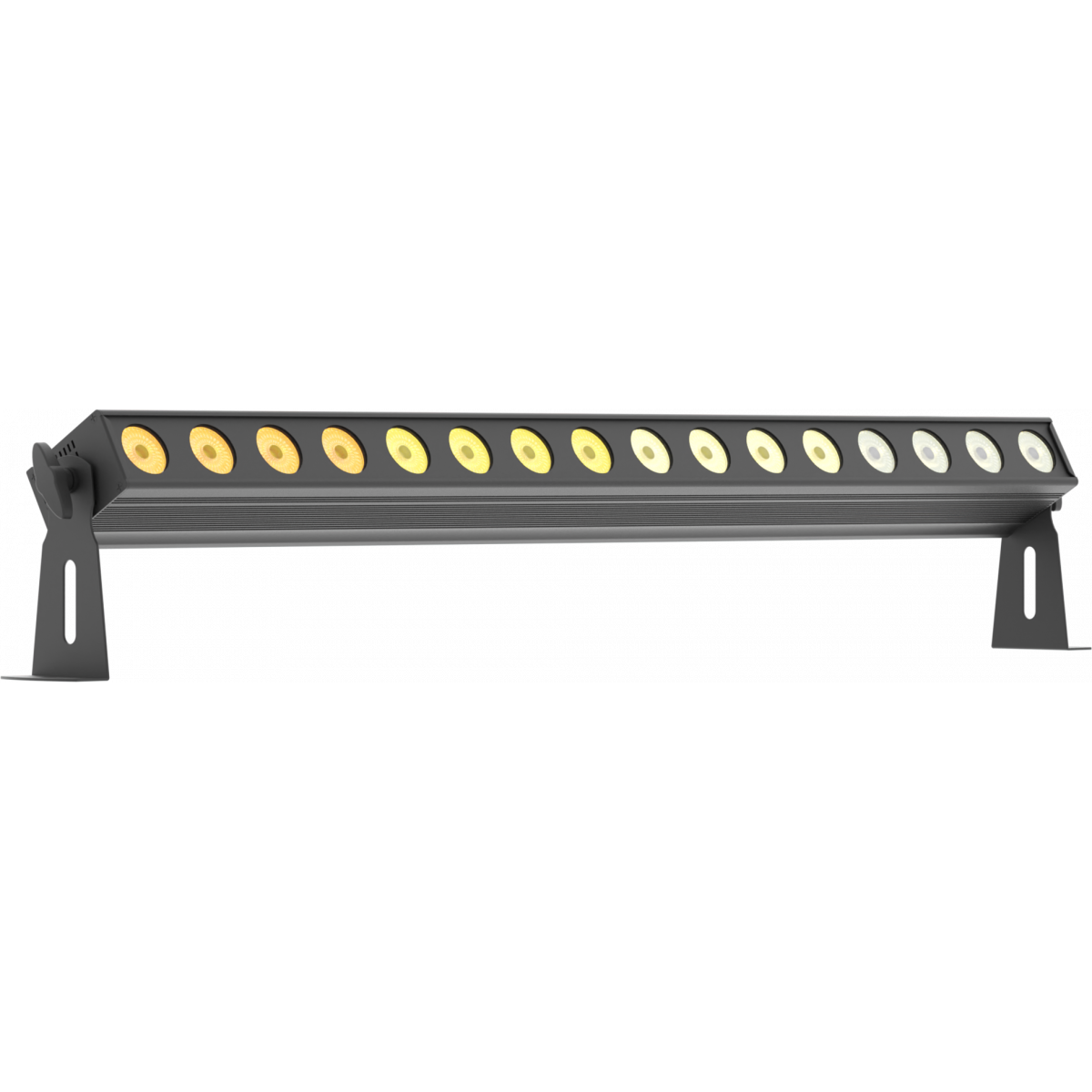

LumiPix 16H

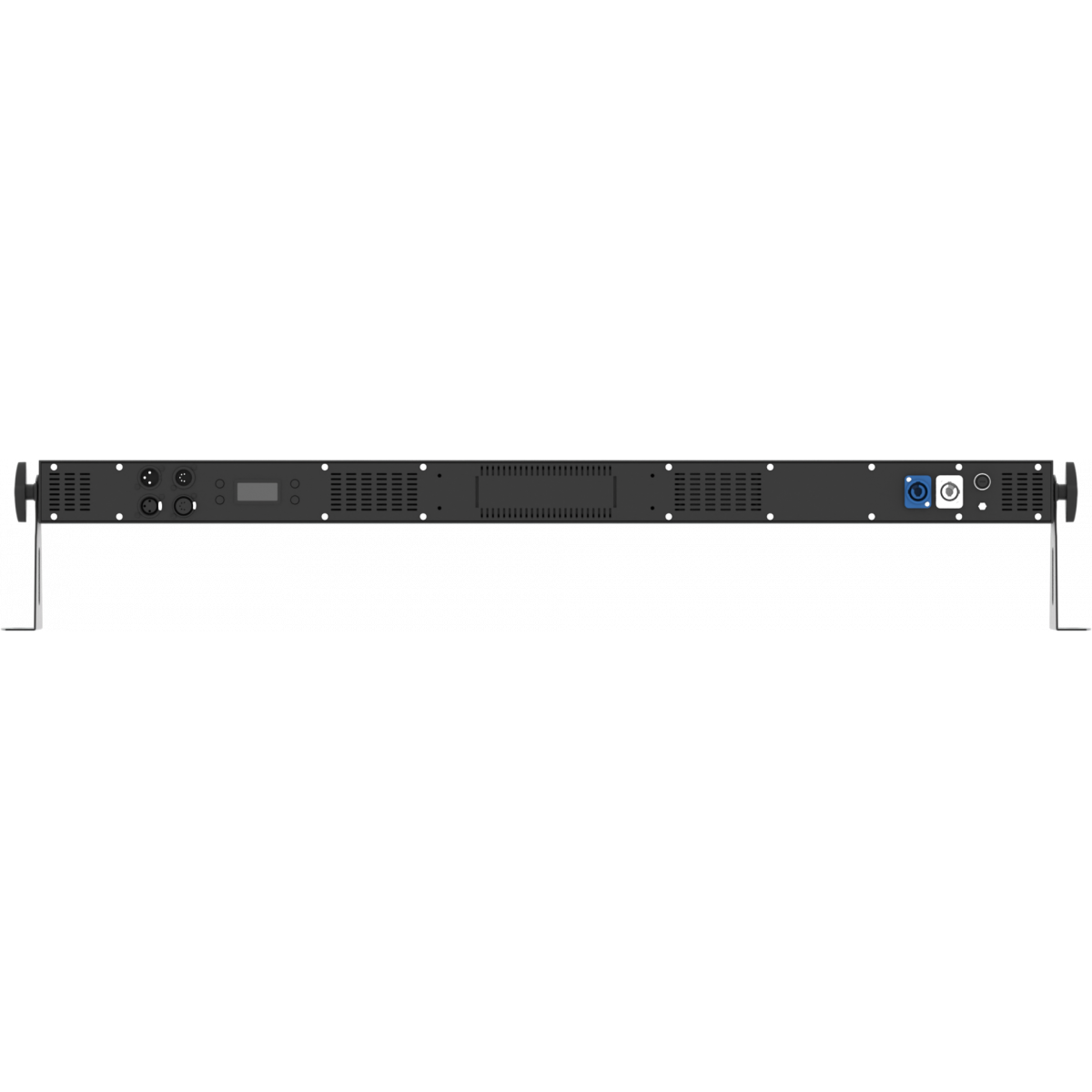

LumiPix 16H

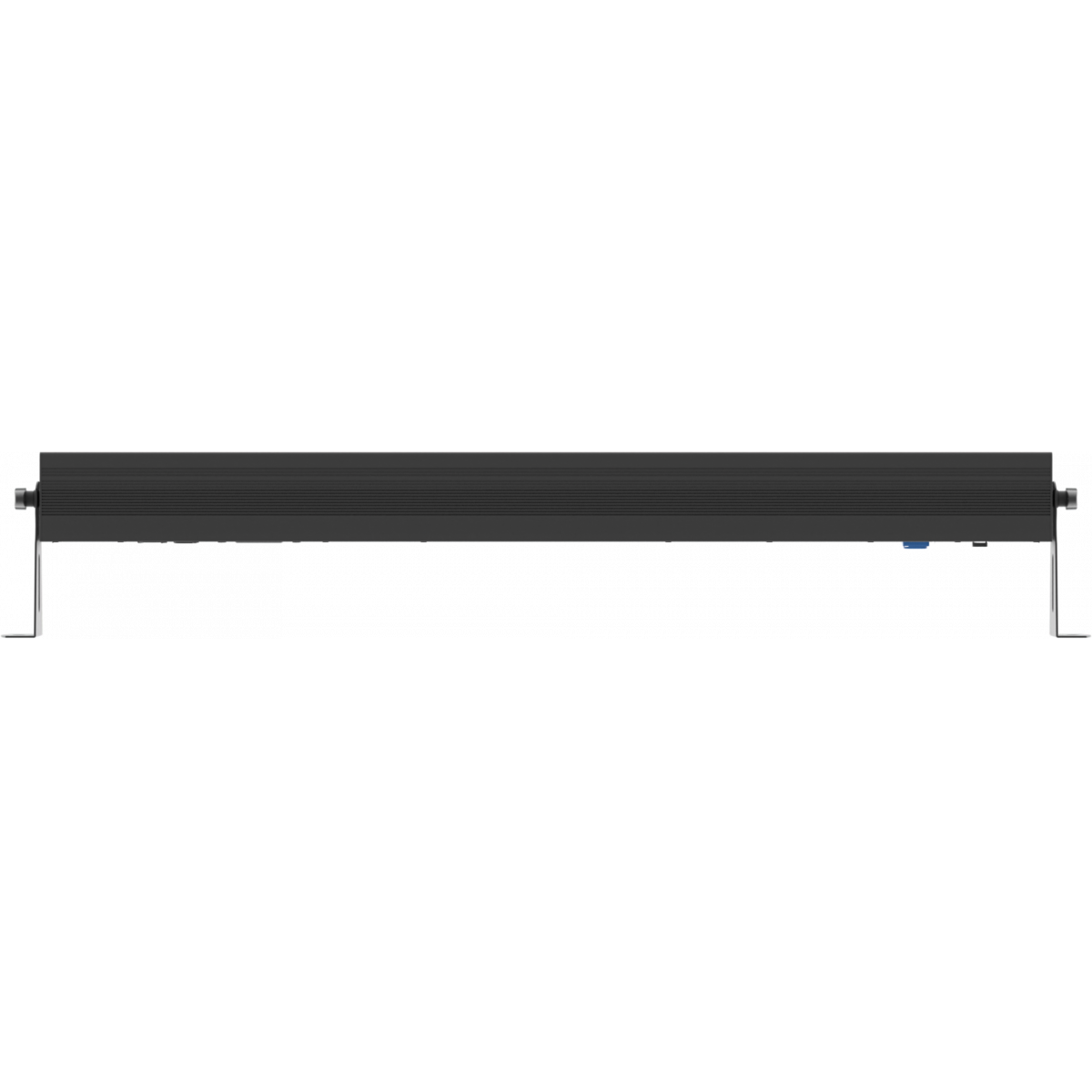

LumiPix 16H

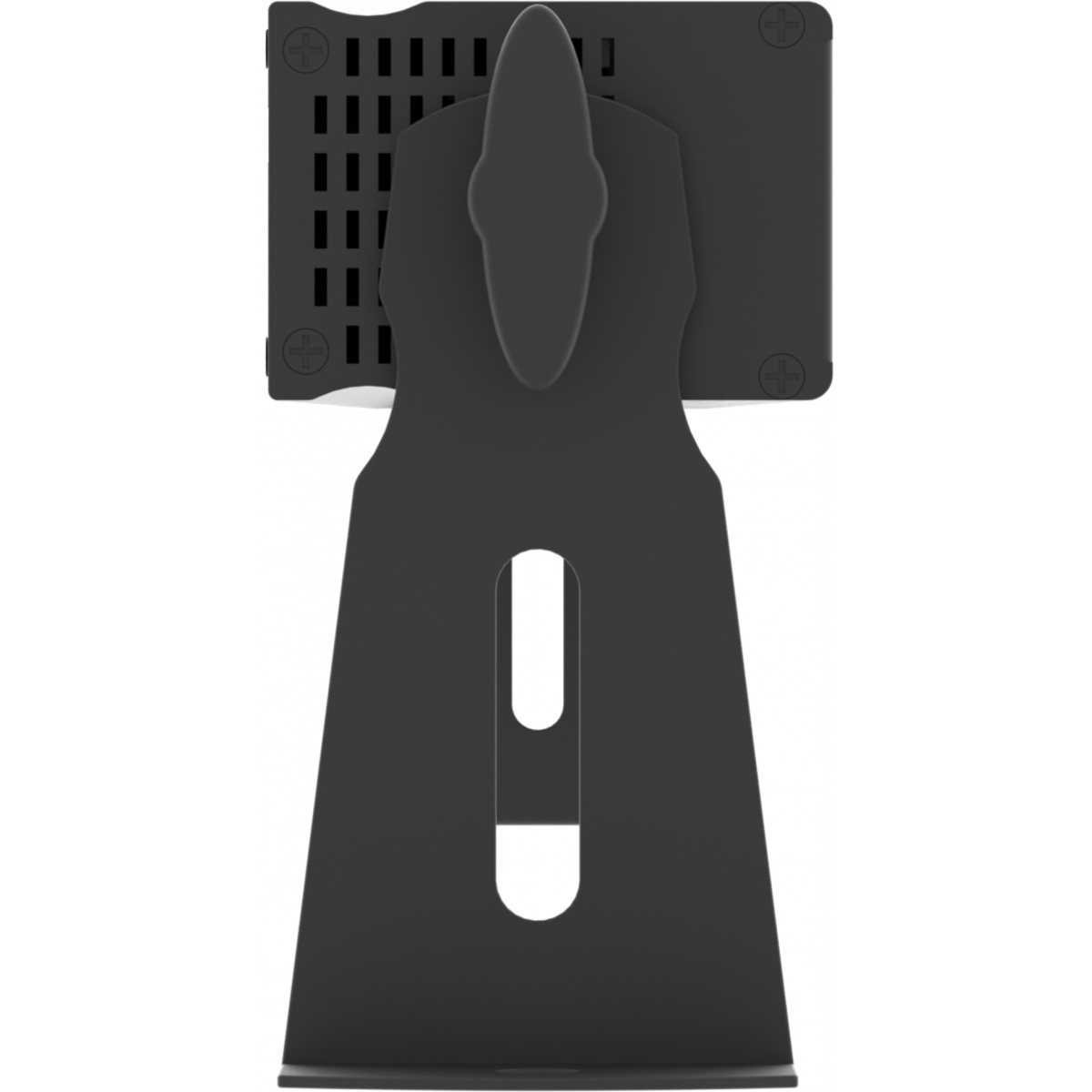

LumiPix 16H

Technical specifications

LIGHT SOURCE
  • Source: 16x12W RGBWAP LEDs
  • Luminous flux: 4'159
  • Lux: (22°) 2'692lx @3 m full
  • Lux: (25°) 1'907lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 22°
  • Field angle: 37°
  • Lens diameter: 42mm / 1.65''
  • Additional optics: 25° and 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBWAP / FC
  • White presets: 3.200 K -10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy aluminum profile
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 6 / 8 / 12 / 96 / 101channel
  • Pixel control: pixel2pixel control
  • Display: LCD display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-25 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 160W
  • Max power consumption (at 120V): 165W
  • Output (at 230V): 12 units on a single power line
  • Power factor: pF 0,95 @120 V - pF 0,90 @230 V
PHYSICAL
  • IP rating: 33
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 1.000x180x63mm / 0.04''x7.09''x2.48''
  • Weight: 5,1kg / 11.24lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
ARCLUMIL15D42
ARCLUMIL15D42
(Included)
Optic lens 22°, D.42mm
ARCLUMIL45D42
ARCLUMIL45D42
(Optional)
Optic lens 45°, D.42mm
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetLumipix16h_A4_DATASHEET_(IT).pdf165KB
Letter datasheetLumipix16h_A4_DATASHEET_(EN).pdf332KB

User manual

File name File size Download
User manualLumipix16h_USER_MANUAL_ITEN.pdf2MB

DMX chart & personalities

File name File size Download
DMX chartLumipix16h_DMX_CHARTS.pdf69KB
LUMIPIX16H Firmware rev. 1.3
manufacturer fixture library (Link) Link
prolights_lumipix16h.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
lumipix16h_3ch-1.fdfDownload
lumipix16h_3ch-2.fdfDownload
lumipix16h_6ch.fdfDownload
lumipix16h_8ch.fdfDownload
lumipix16h_12ch.fdfDownload
lumipix16h_96ch.fdfDownload
lumipix16h_101ch.fdfDownload
manufacturer fixture library (Link) Link
prolights_lumipix16h_ma2.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
lumipix 16h 6 channel.fix2Download
lumipix 16h 8 channel.fix2Download
lumipix 16h 12 channel.fix2Download
lumipix 16h 96 channel.fix2Download
lumipix 16h 101 channel.fix2Download
lumipix 16h hsi.fix2Download
lumipix 16h hsv.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFALumipix16h_3D.rfa2MB
3D SKPLumipix16h_3D.skp184KB
2DLumipix16h_CAD_2D.dwg1MB
3DLumipix16h_CAD_3D.dwg4MB
2D cad symbolsLumipix16h_CAD_2DSYMBOLS.dwg57KB
Technical drawingLumipix16h_TECHNICAL_DRAWING.pdf278KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx404KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 23/03/2023 Fixed bug:
  • The firmware version is different on the startup display and the version in the information inside the menu.
NOTE:
Firmware versions V1.4 and onward are not compatible with V1.3 and previous. For any firmware updates, please contact support@prolights.it
1.5 STABLE 23/03/2023 Fixed bug:
  • When the led frequency set to 600hz, the fixture cannot be powered on at all.
NOTE:
Firmware versions V1.4 and onward are not compatible with V1.3 and previous. For any firmware updates, please contact support@prolights.it
1.4 STABLE 17/03/2021 New Function:
  • Add Led Frequency 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25kHz.
NOTE:
Firmware versions V1.4 and onward are not compatible with V1.3 and previous. For any firmware updates, please contact support@prolights.it
1.3 STABLE 18/03/2018 Improved firmware functionality.

NOTE:
Firmware versions V1.4 and onward are not compatible with V1.3 and previous. For any firmware updates, please contact support@prolights.it
1.2 STABLE 17/09/2015 Improved HSV/HIS dmx mode.

NOTE:
Firmware versions V1.4 and onward are not compatible with V1.3 and previous. For any firmware updates, please contact support@prolights.it
1.1 STABLE 13/03/2015 Improved Auto program function.

NOTE:
Firmware versions V1.4 and onward are not compatible with V1.3 and previous. For any firmware updates, please contact support@prolights.it
