Mosaico XL

ORDER CODE: MOSAICOXL

540W IP66 zoomable LED image projector with CMY and framing shutter

Mosaico XL is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL offers a phenomenal output of 14'500 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6,6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.

Main features:

  • IP66 allowing long-lasting installation with minimal maintenance
  • Equipped with 6,6°- 50° linear zoom system to for both near and long throw installation
  • 540W White LED engine with 6.000 K CT delivering 14'500 lumens output
  • Extensive feature set including CMY and linear CTO, shutter frame and animation wheel
See variants GOBOS

PHOTO GALLERY

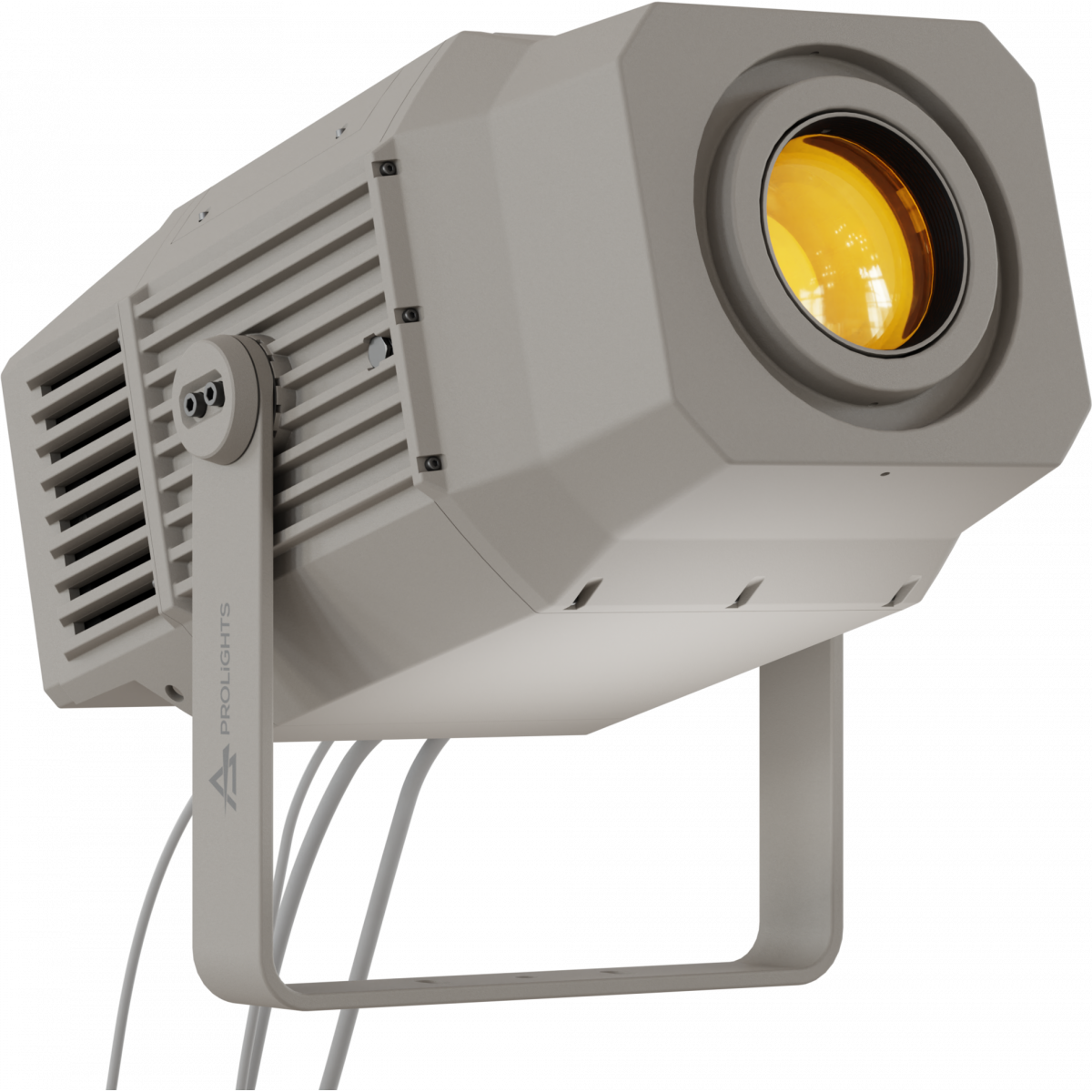

Mosaico XL

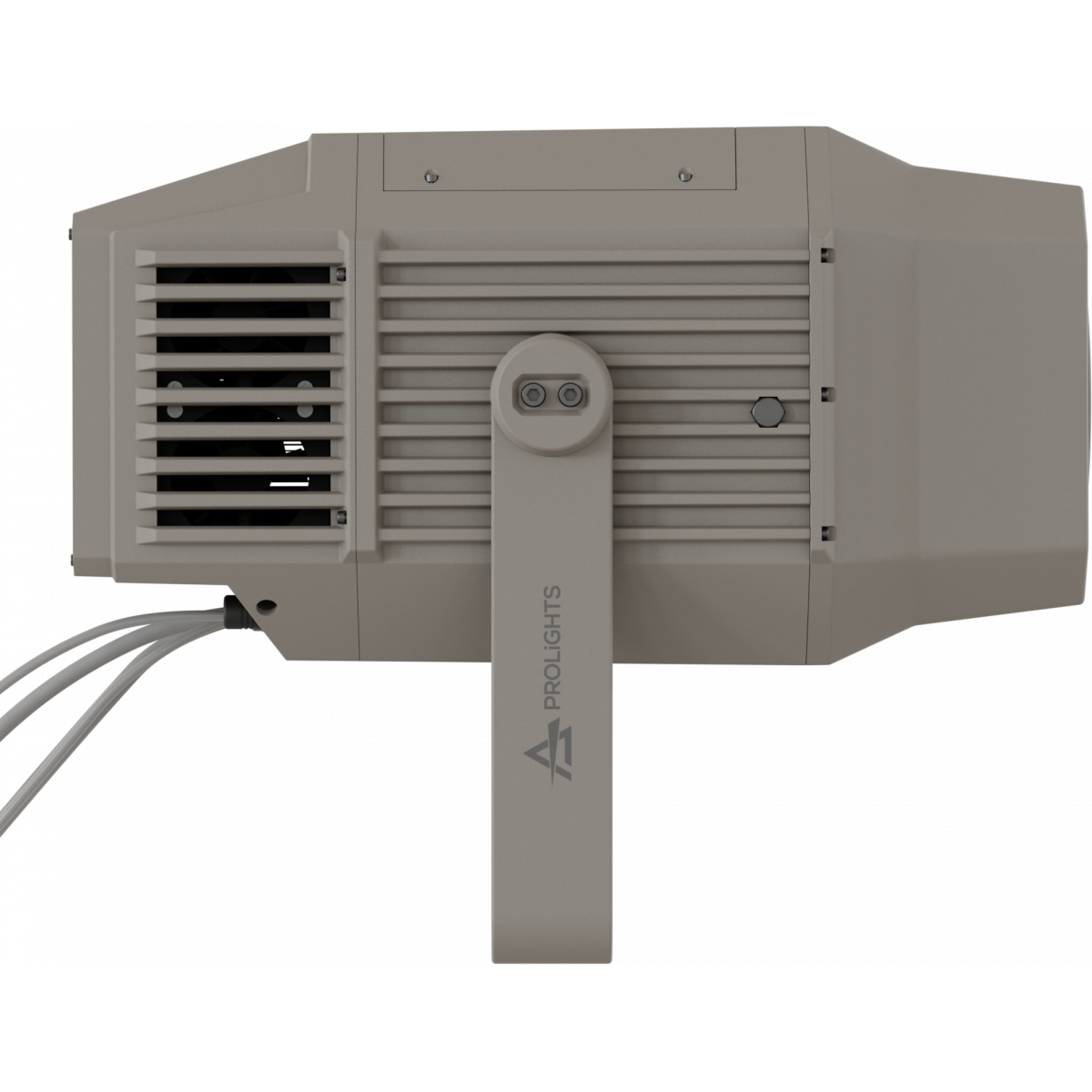

Mosaico XL

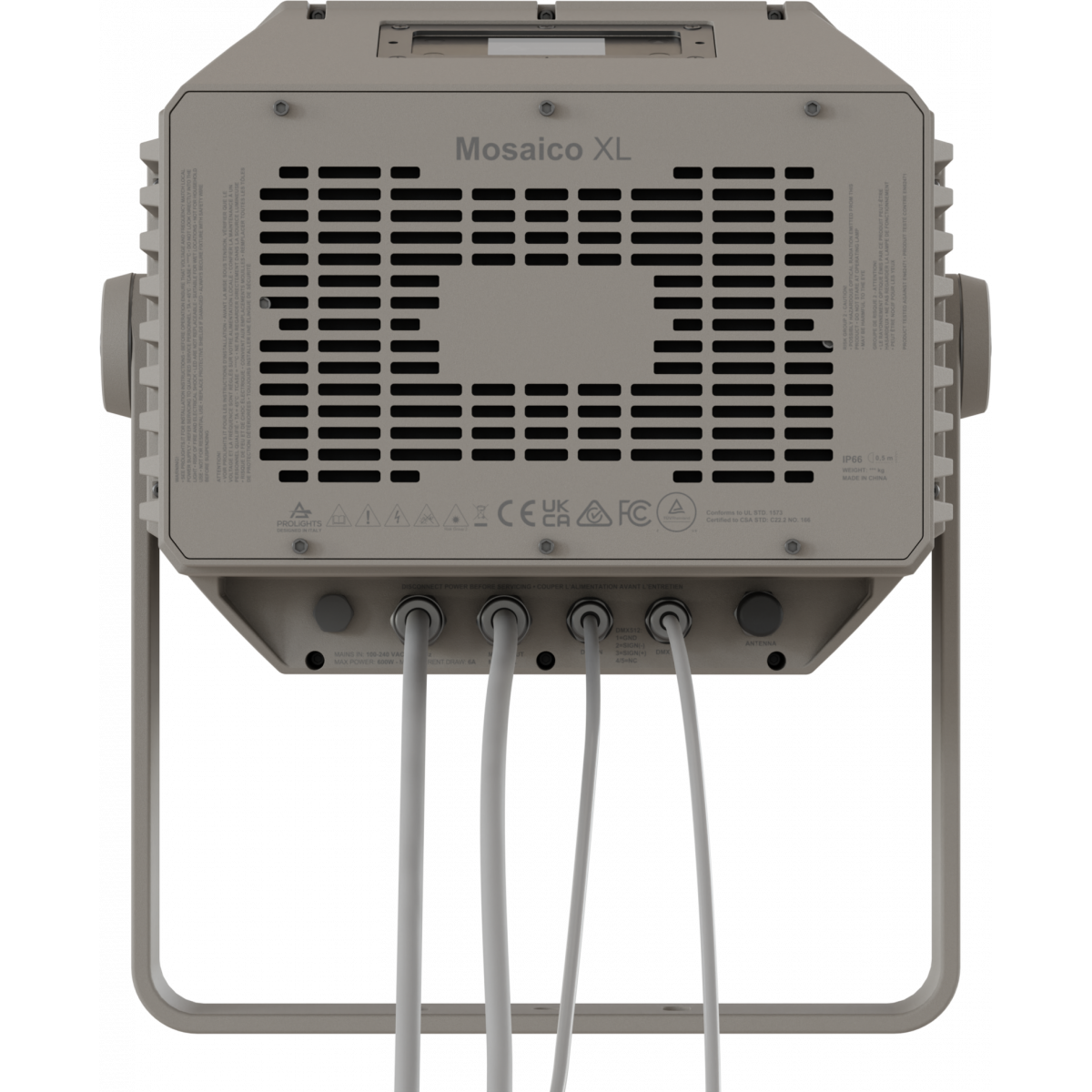

Mosaico XL

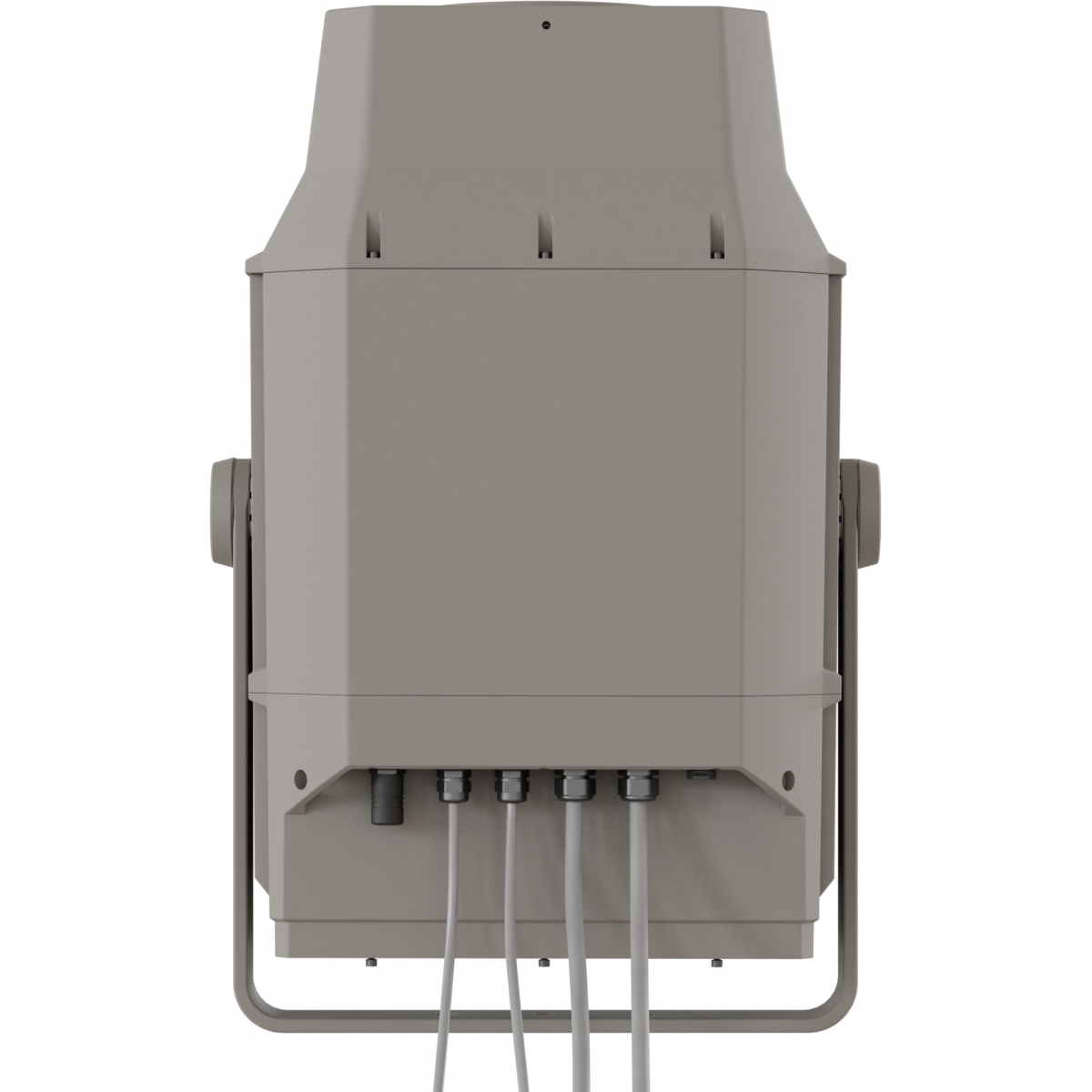

Mosaico XL

Technical specifications

LIGHT SOURCE
  • Source: 540W high-power white LED
  • CCT: 6.000
  • Luminous flux: (6,6°) 8'812 lm - (50°) 14'253lm
  • Lux: (6,6°) 33'138 lx - (50°) 1'138lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: 6,6° - 50° motorised linear zoom
  • Lens diameter: 119mm / 4.69''
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • Colour mixing: linear CMY
  • CCT: linear CTO correction 3.000 K ~ 6.000 K
  • Colour wheel: 6 colour filters
DYNAMIC EFFECTS
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size (BW): outer: 26,9 mm - image: 20,5 mm
  • Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
  • Circular prism: 4f with bi-directional rotation, indexing
  • Frost: dual frost filter, soft-edge and heavy
  • Iris: 5 ~ 100% motorised iris
BODY
  • Body: aluminium die-casting
  • Body colour: RAL 9006
  • Other: inspectable cover window for gobos replacement and maintenance and record scenes and create chases and shows throughout these scenes
CONTROL
  • Protocols: DMX512, RDM, W-DMX, Stand Alone programmer and playback
  • DMX channels: 28 / 30 / 35 / 44channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 600W
  • Power factor: >0,96
  • Inrush current: 230VAC/27.1A, 100VAC/25.2A
PHYSICAL
  • IP rating: 66 for outdoor installations
  • Cooling: active, with IP low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 403x462x565mm / 15.87''x18.19''x22.24''
  • Weight: 37kg / 81.57lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

RSR0670B
RSR0670B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth

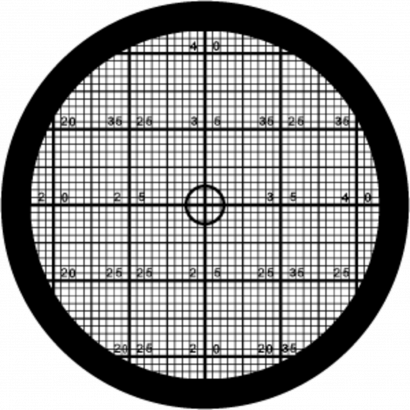

GBVMAP001
GBVMAP001
(optional)

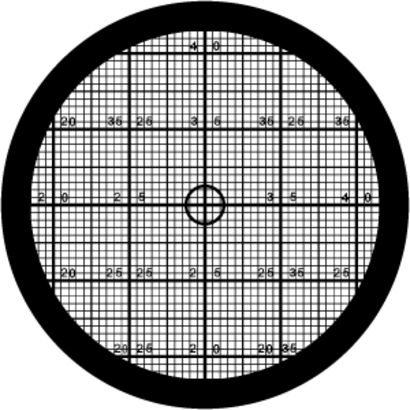

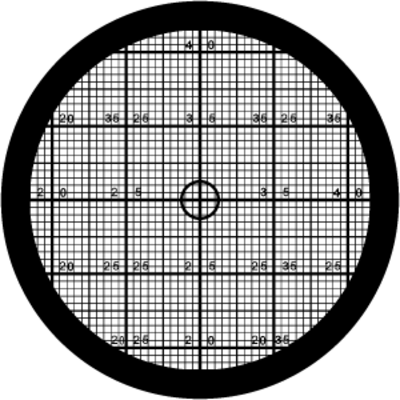

Gobo Mapping, F size, black and white

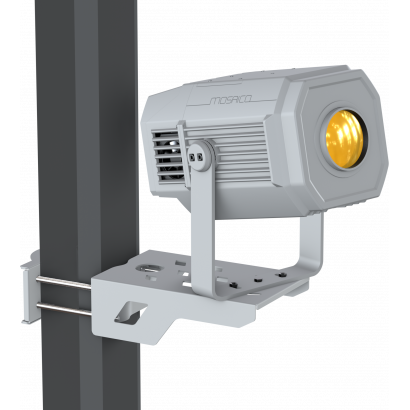

MOSBRACK
MOSBRACK
(optional)

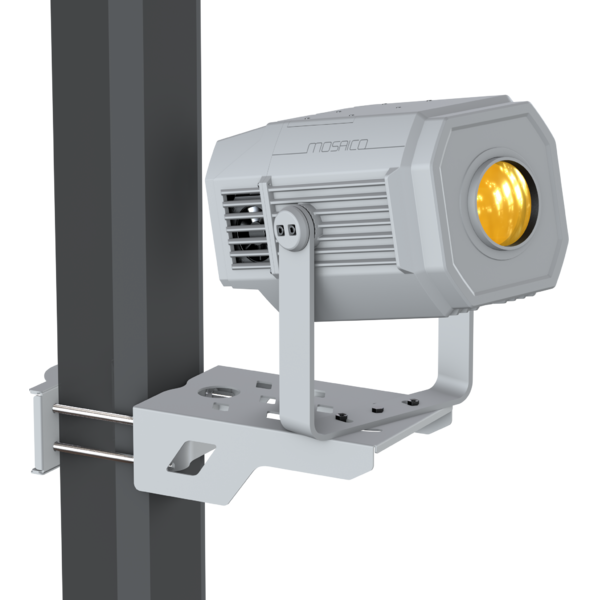

Bracket for MOSAICO series for wall mounting and suspension on poles
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
AWEXAC1L03
AWEXAC1L03
(optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m

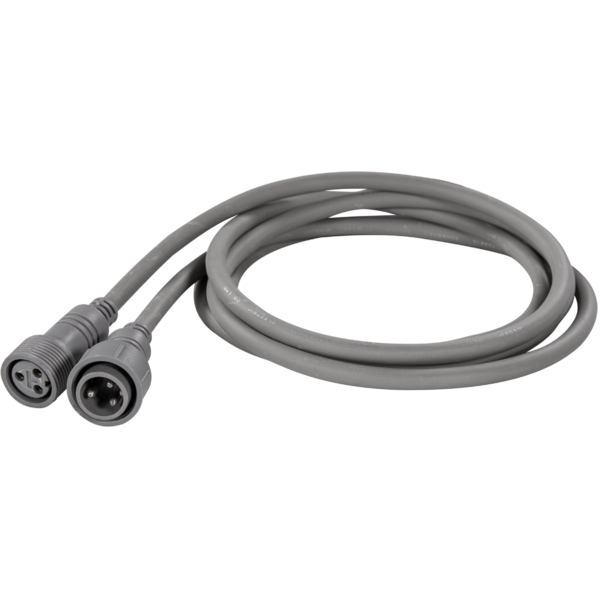

AWEXAC1L10
AWEXAC1L10
(optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m

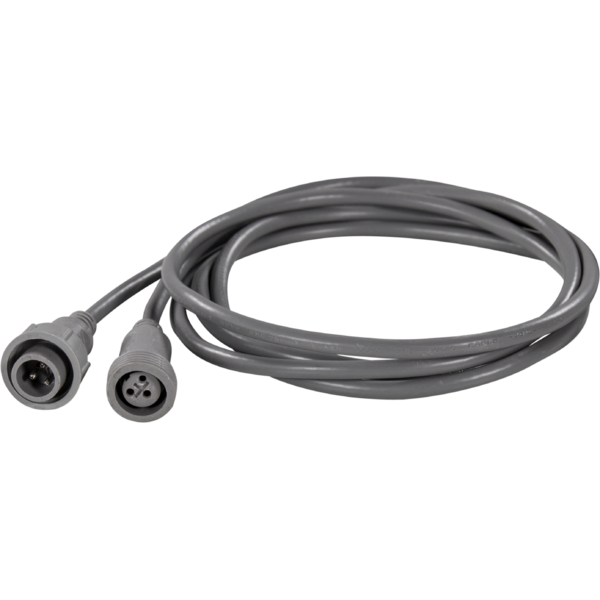

AWEXDC1L20
AWEXDC1L20
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Mosaicoxl_A4_DATASHEET_(EN).pdf 388KB
Letter datasheet Mosaicoxl_A4_DATASHEET_(IT).pdf 387KB
Letter datasheet Mosaicoxl_LETTER_DATASHEET_(EN).pdf 419KB
Tender Specification Mosaicoxl_TENDER_SPECIFICATION.pdf 5MB

User manual

File name File size Download
User manual Mosaicoxl_Custom_gobo_assembly_procedure.pdf 406KB
User manual Mosaicoxl_Tech_spec_for_custom_gobos.pdf 472KB
User manual Mosaicoxl_Replacing_animation_wheel.pdf 1MB
User manual Mosaicoxl_USER_MANUAL.pdf 7MB
User manual Mosaicoxl_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Mosaicoxl_DMX_CHARTS.pdf 65KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 438KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
MOSAICOXL Firmware rev. 2.3
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
mosaico_xl_28ch.fdfDownload
mosaico_xl_30ch.fdfDownload
mosaico_xl_35ch.fdfDownload
prolights@mosaicoxl@30ch.xmlDownload
mosaicoxl_44ch_hog4.zipDownload
MOSAICOXL Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
mosaico_xl_28ch.fdfDownload
mosaico_xl_30ch.fdfDownload
mosaico_xl_35ch.fdfDownload
prolights@mosaicoxl@30ch.xmlDownload
mosaicoxl_44ch_hog4.zipDownload

Photometrics

File name File size Download
IES prolights_ies files.zip 4KB
LDT prolights_ldt files.zip 3KB
PDF Photometrics Mosaicoxl_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Mosaicoxl_3D_REVIT.rfa 604KB
3D SKP Mosaicoxl_3D_SKETCHUP.skp 280KB
2D Mosaicoxl_2D.dwg 2MB
3D Mosaicoxl_3D.dwg 518KB
2D cad symbols Mosaicoxl_2DSYMBOLS.dwg 59KB
Technical drawing Mosaicoxl_TECHNICAL_DRAWING.pdf 325KB

Tech docs

File name File size Download
Color Document Mosaicoxl_COLOR.pdf 79KB
Gobos Document Mosaicoxl_GOBOS.pdf 271KB
General safety info Mosaicoxl_A4_GOBOS_CUSTOM_GUIDELINES(IT).pdf 5MB
General safety info Mosaicoxl_A4_GOBOS_CUSTOM_GUIDELINES(EN).pdf 5MB
General safety info Mosaicoxl_GOBO-MAPPING-DESIGN.pdf 228KB

Software

File name File size Download
Software Prolights Dialux Plug-In 0KB

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.3 STABLE 07/06/2023 New functions:
  • Added "Advanced Gobo Indexing" function, reduced missindexing while rotating in different directions.
  • Added "Advanced Focus Indexing" function, reduced missindexing while moving backward/forward. This function is disabled by default.
  • Added "Advanced Zoom Indexing" function, reduced missindexing while moving backward/forward. This function is disabled by default.
  • Added "Warm up" function, warms up the fixture before getting operative. Useful in low temperature enviroments during cold start. This function is disabled by default.
Improvements:
  • Adjusted RDM parameters to fit new functions and new naming.
  • Adjusted Control Channel to fit new functions as follows.
    • ADV Gobo Index On ( Control channel values 180-181 )
    • ADV Gobo Index Off ( Control channel values 182-183 )
    • ADV Focus Index On ( Control channel values 184-185 )
    • ADV Focus Index Off ( Control channel values 186-187 )
    • ADV Zoom Index On ( Control channel values 188-189 )
    • ADV Zoom Index Off ( Control channel values 190-191 )
    • Warm Up Low Temp On ( Control channel values 192-193 )
    • Warm Up Low Temp Off ( Control channel values 194-195 )
    • Warm Up Low Temp Value ( Control channel values 196-197 )
 Rev. 2
1.4 STABLE 07/06/2023 New functions:
  • Added "Advanced Gobo Indexing" function, reduced missindexing while rotating in different directions.
  • Added "Advanced Focus Indexing" function, reduced missindexing while moving backward/forward. This function is disabled by default.
  • Added "Advanced Zoom Indexing" function, reduced missindexing while moving backward/forward. This function is disabled by default.
  • Added "Warm up" function, warms up the fixture before getting operative. Useful in low temperature enviroments during cold start. This function is disabled by default.
Improvements:
  • Adjusted RDM parameters to fit new functions and new naming.
  • Adjusted Control Channel to fit new functions as follows.
    • ADV Gobo Index On ( Control channel values 180-181 )
    • ADV Gobo Index Off ( Control channel values 182-183 )
    • ADV Focus Index On ( Control channel values 184-185 )
    • ADV Focus Index Off ( Control channel values 186-187 )
    • ADV Zoom Index On ( Control channel values 188-189 )
    • ADV Zoom Index Off ( Control channel values 190-191 )
    • Warm Up Low Temp On ( Control channel values 192-193 )
    • Warm Up Low Temp Off ( Control channel values 194-195 )
    • Warm Up Low Temp Value ( Control channel values 196-197 )
 Rev. 1 Not noted on the label

Info Request

News

22 September 2023
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
Alpha Show 2, the concert of the hip-hop singer Noizy, was illuminated by PROLIGHTS fixtures. The event, hosted in the Mother Teresa...
19 September 2023
PROLIGHTS fixtures light up the second edition of
PROLIGHTS fixtures light up the second edition of "I Venerdì di Ercolano"
PROLIGHTS products illuminated the second edition of "I Venerdì di Ercolano," a culturally enriching initiative proudly promoted and...
14 September 2023
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
The exceptional sparkle and enchanting ambiance that characterised the 63rd annual TV Week Logie Awards has been further enhanced by...
12 September 2023
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS fixtures lit up Skënderbej Square in Tirana, setting the stage for the Ricky Martin Symphonic concert. This performance...
05 September 2023
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
PROLIGHTS introduces the EclExpo Flood150, a compact and bright floodlight designed to substitute traditional CDM, HMI, and tungsten...
04 September 2023
Ultimo chooses Prolights for his summer stadium tour
Ultimo chooses Prolights for his summer stadium tour
Prolights solutions lit up the stadium tour of Ultimo, a young Roman singer-songwriter and leading artist on the Italian music scene....
30 August 2023
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
The British Drivers Club has chosen PROLIGHTS solutions to illuminate the VIP locations during the prestigious British Grand Prix at...
25 August 2023
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS products illuminated the Innamorato Tour of Blanco, the young artist reigning over the Italian music scene. Following the...
21 August 2023
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights fixtures played a pivotal role in the concert titled "Dekada" by the Albanian singer Elvana Gjata. This event marked a significant...
11 August 2023
DRTCC choose Prolights fixtures for a major upgrade
DRTCC choose Prolights fixtures for a major upgrade
Dubbo Regional Theatre and Convention Centre features the Joyce Schneider Auditorium, a 500-seat theatre with state-of-the-art facilities...
08 August 2023
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS unveils its new series of LED screens - KappaPix, SigmaPix, and GammaPix. These meticulously engineered products are designed...
04 August 2023
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
Prolights Sunblast 3000FC transformed the arcades of Bologna, a worldwide symbol of the city and UNESCO heritage site, into a magnificent...
Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter linkedin
Loading...
