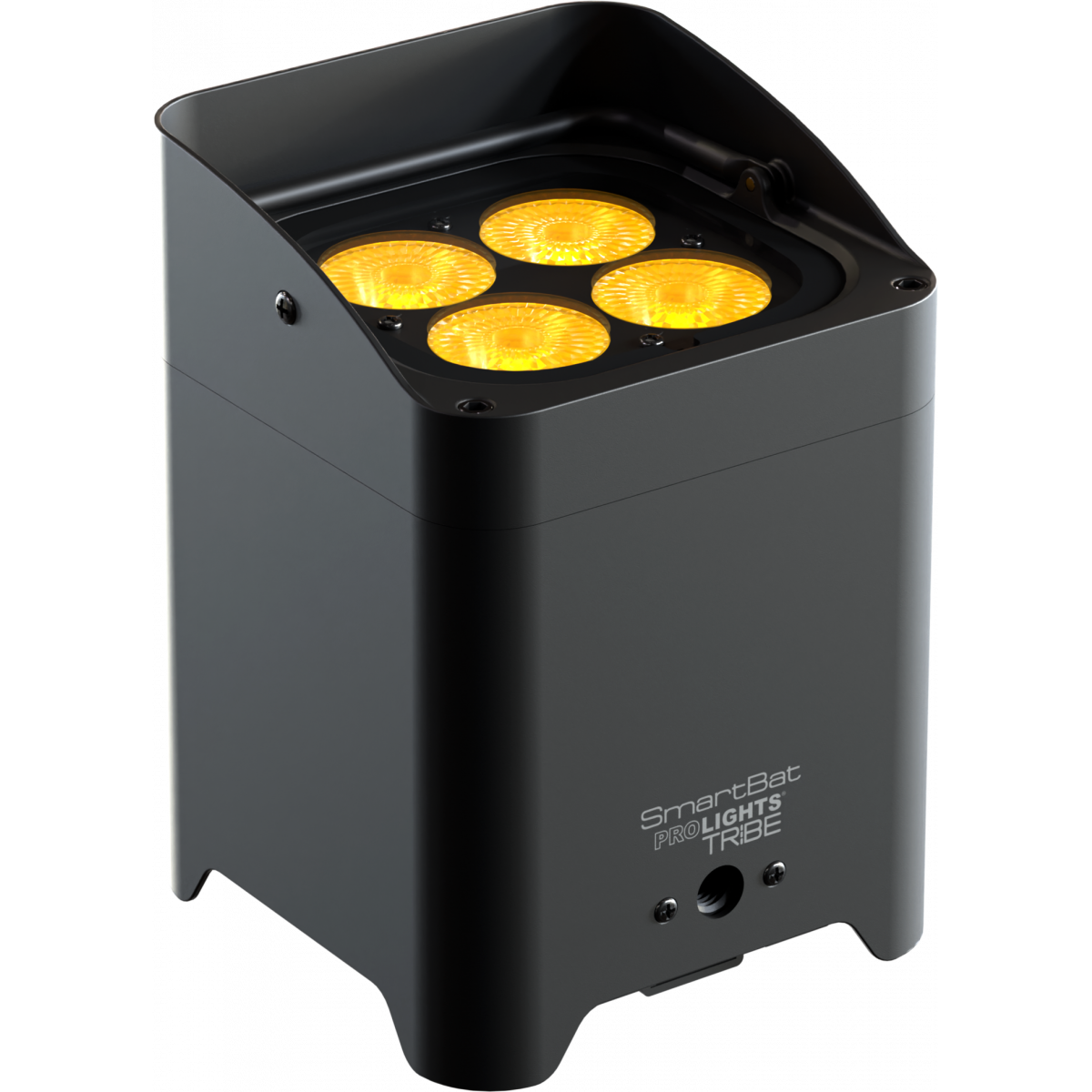

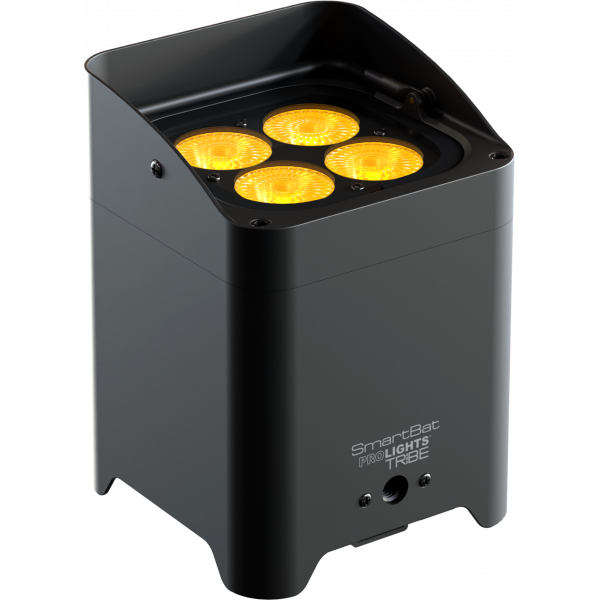

Smart Bat

Wireless battery operated portable uplighter, 4x8W RGBW/FC LEDs

Smart Bat is a wireless light designed to rewrite the rules for battery operated fixtures. Ensuring that high performance and good design all housed in a compact size and price that makes it affordable makes the Smart Bat ideal for every kind of event. It can be remotely controlled through proprietary wireless DMX protocol, the SmartColors app or through the IR controller - making it suitable for every level of user.

Main features:

  • Wireless operated: through proprietary wireless DMX protocol or SmartColors app for IOS and Android devices
  • Long lasting battery life: 12 h in colour changing mode / 8 h in full

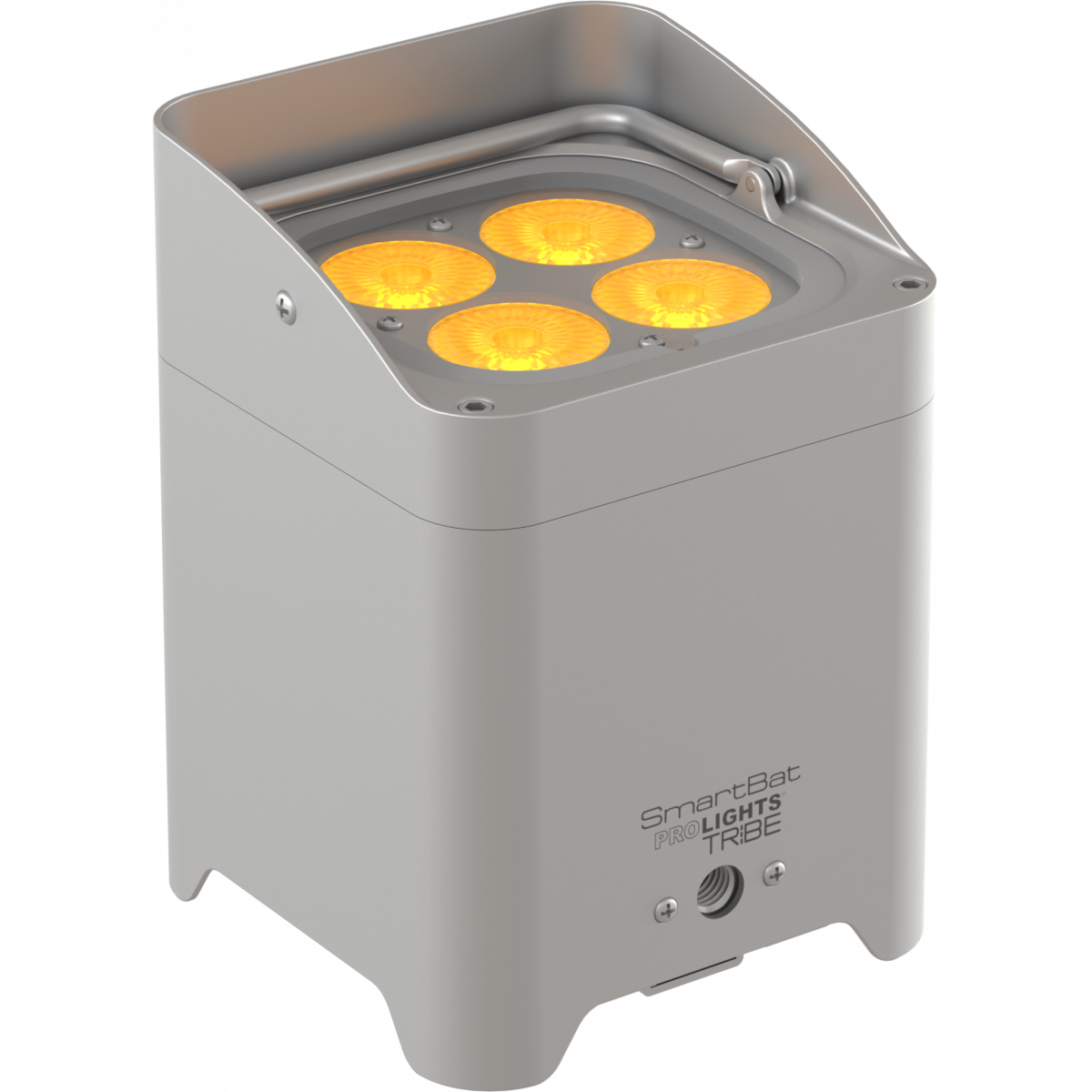

  • Available in black or white

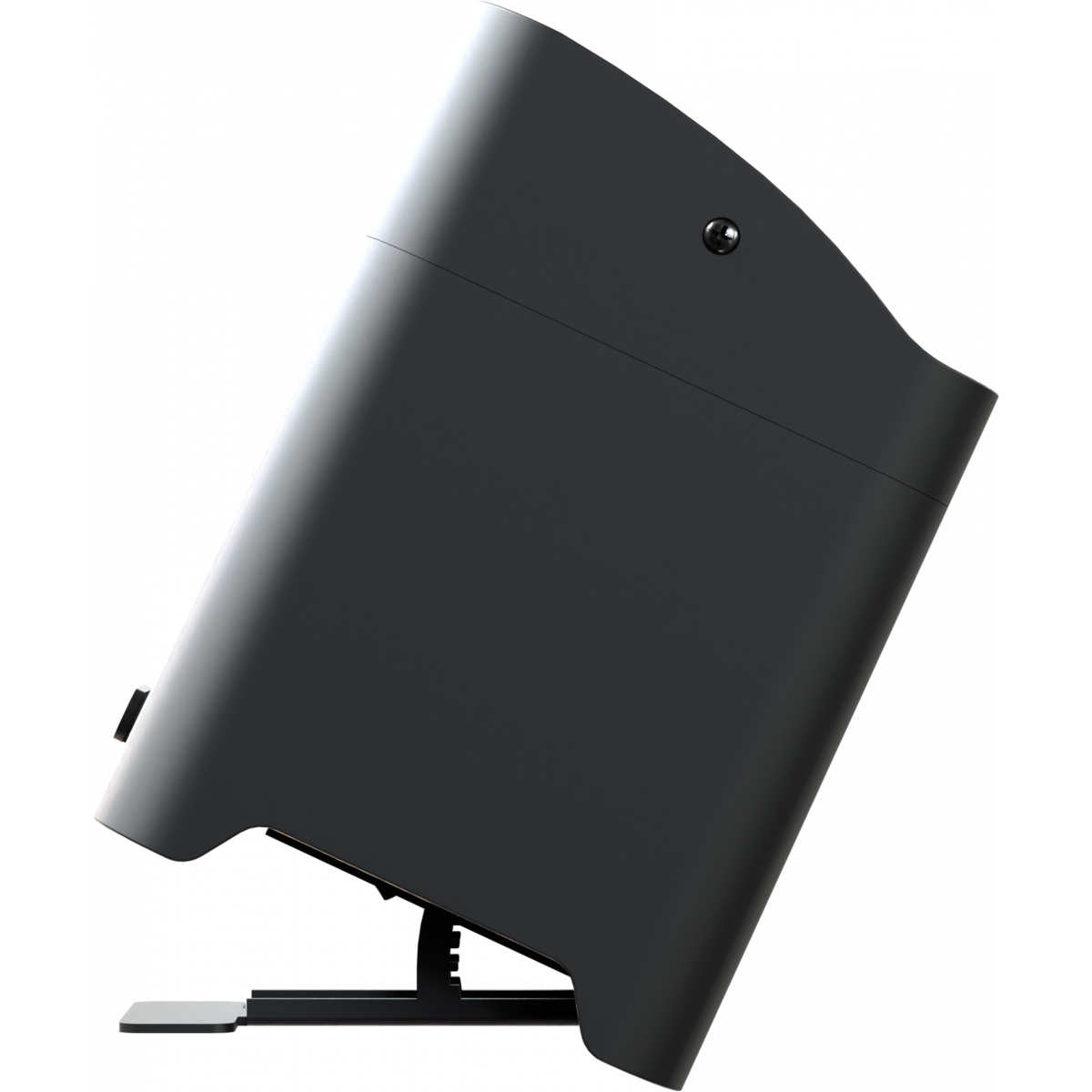

  • Adjustable foot support for tilt regulation (up to 20°)
See variants

PHOTO GALLERY

Smart Bat
Smart Bat
Smart Bat
Smart Bat
Smart Bat

Technical specifications

LIGHT SOURCE

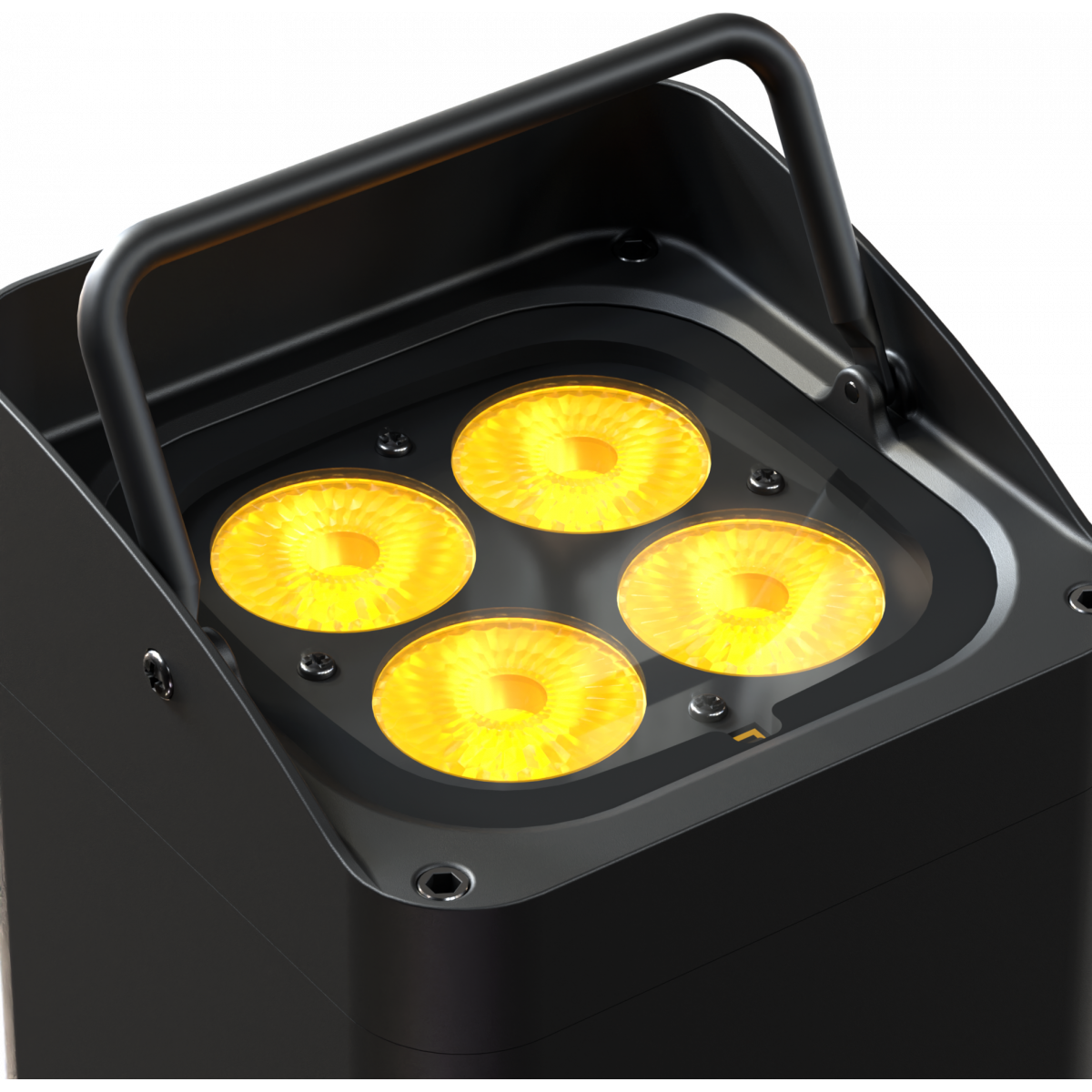

  • Source: 4x8W RGBW LEDs
  • Luminous flux: 1'127
  • Lux: 833lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 13°
  • Field angle: 30°
  • Lens diameter: 42mm / 1.65''
  • Additional optics: 25° and 45° optional
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Tilt angle: ° adjustable foot support for tilt regulation (up to 20°)
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512
  • DMX channels: 4 / 6 / 10channel
  • Wireless Control: integrated, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: 0° ~ +40°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 30W
  • Max power consumption (at 120V): 31W
BATTERY
  • Battery: 24V lithium
  • Estimated battery life in colour change mode up to: 12h
  • Estimated battery life in full-mode up to: 8h
  • Re-charge connection: power cable
  • Re-charge time: 5h/max
  • Battery status: LED battery status indicator
PHYSICAL
  • IP rating: 33
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: M12 threaded insert for easy clamp installation

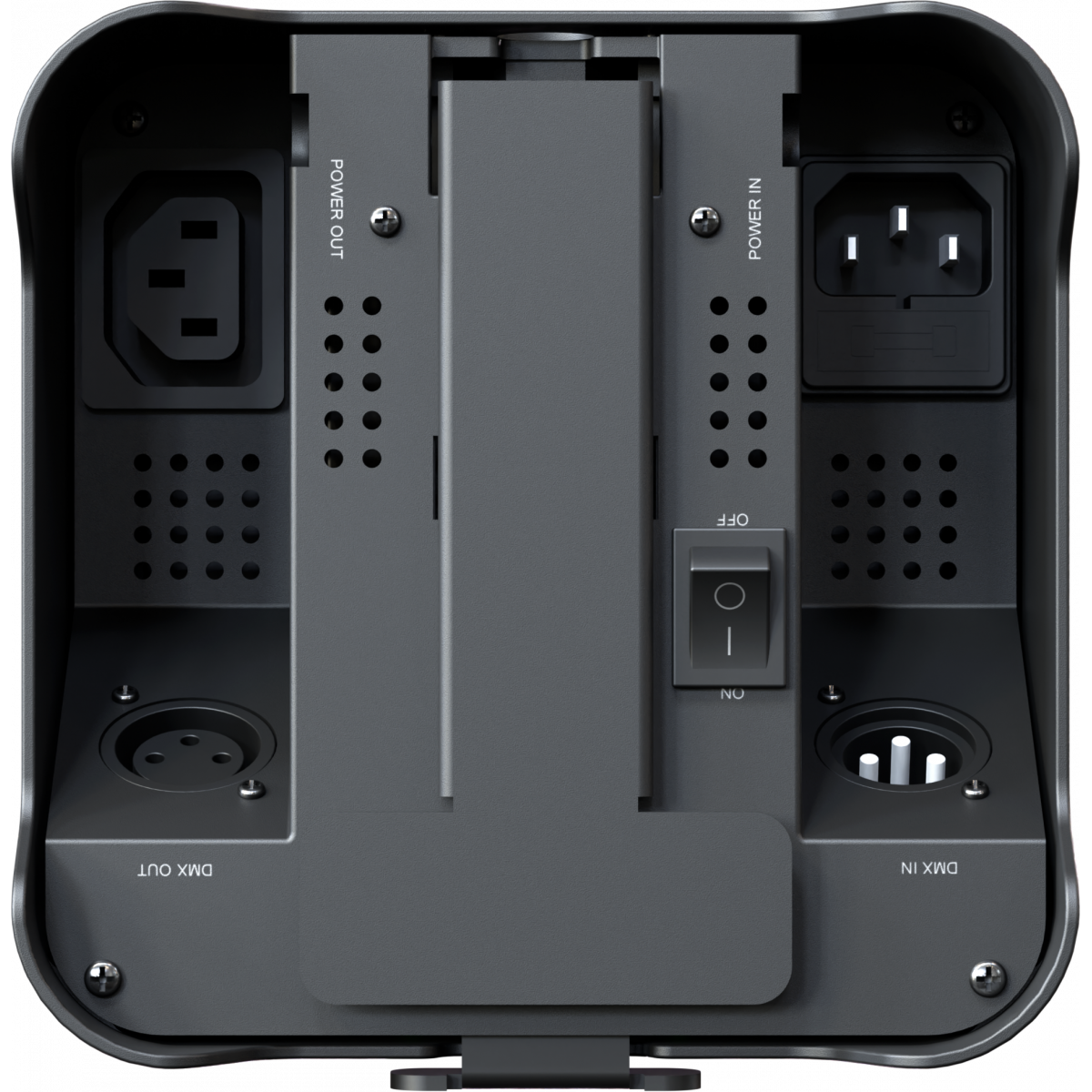

  • Signal connection: XLR 3p IN/OUT connectors
  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 138x184x145mm / 5.43''x7.24''x5.71''
  • Weight: 3,4kg / 7.5lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
SMARTBATBK
SMARTBATBK
Black
SMARTBATWH
SMARTBATWH
White

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
LUMIPARIRCH
LUMIPARIRCH
(included)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
C6018B
C6018B
(optional)
Selflock slim clamp, 200 kg load, 48-80 mm tubes, M12 bolt incl, black
<b>WIFI</b>-Box
WIFI-Box
(optional)
DMX controller interface, Wi-Fi/DMX IN, Wi-Fi / DMX OUT
<b>WD</b>-Box
WD-Box
(optional)
Wireless DMX Transceiver, IN/OUT 3-pin XLR, distance 200m, 2.4 GHz, 0.6 kg
FCLSMARTBAT
FCLSMARTBAT
(optional)
Flight case for 9 SMARTBAT, 613x480x507 mm, 22 kg
FCLSMARTBATE
FCLSMARTBATE
(optional)
Flightcase for 9x SMARTBAT, 626x364x481 mm, 19 kg
SMARTCOVERMR
SMARTCOVERMR
(optional)
Mirror housing for SMARTBAT projectors.
SMARTBATCOVER
SMARTBATCOVER
(optional)
Nylon rain-proof cover for SMARTBAT projector
SMARTBATBAGI
SMARTBATBAGI
(optional)
New nylon bag high resistance to contain 4 pcs SMARTBAT projectors.
ARCLUMIL25D42
ARCLUMIL25D42
(optional)
Optic lens 25°, D.42mm
ARCLUMIL45D42
ARCLUMIL45D42
(optional)
Optic lens 45°, D.42mm
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Smartbat_A4_DATASHEET_(EN).pdf 190KB
Letter datasheet Smartbat_A4_DATASHEET_(IT).pdf 187KB

User manual

DMX chart & personalities

File name File size Download
SMARTBAT Firmware rev. 1.9
manufacturer fixture library (Link) Link
prolights_smartbat.d4Download
manufacturer fixture library (Link) Link
prolight_smartbat_4ch.hedDownload
prolight_smartbat_6ch.hedDownload
prolight_smartbat_10ch.hedDownload
manufacturer fixture library (Link) Link
smartbat_4ch.fdfDownload
smartbat_6ch.fdfDownload
smartbat_10ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@smartbat@4_channel@initial.xmlpDownload
prolights@smartbat@6_channel@initial.xmlpDownload
prolights@smartbat@10_channel@initial.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
smartbat 4 channel.fix2Download
smartbat 6 channel.fix2Download
smartbat 10 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D RFA Smartbatbk_3D.rvt 387KB
3D SKP Smartbat_3D.skp 628KB
2D Smartbat_CAD_2D.dwg 816KB
3D Smartbat_CAD_3D.dwg 670KB
2D cad symbols Smartbatbk_CAD_2DSYMBOLS.dwg 142KB
Technical drawing Smartbat_TECHNICAL_DRAWING.pdf 106KB
VectorWorks SMARTBAT_SYMBOLS.zip 445KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 317MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.9 STABLE 08/05/2020 Improved Dimmer Mode functionalities Rev. 1.0
