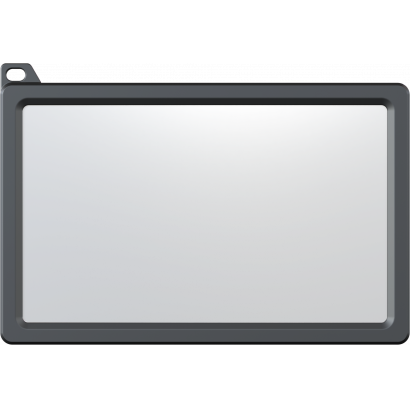

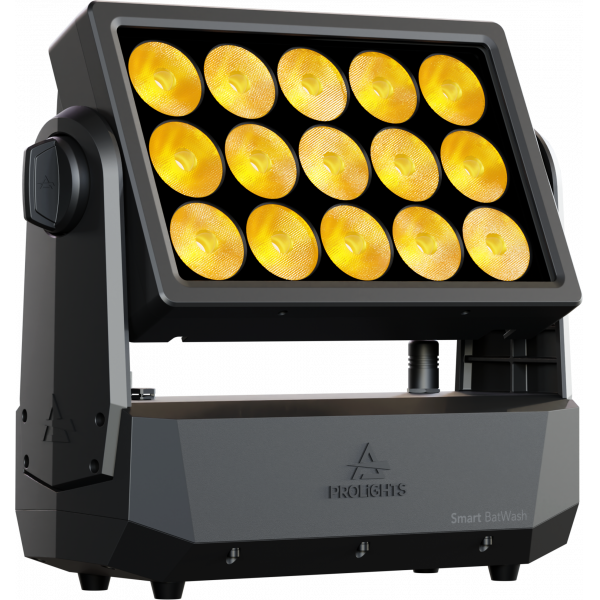

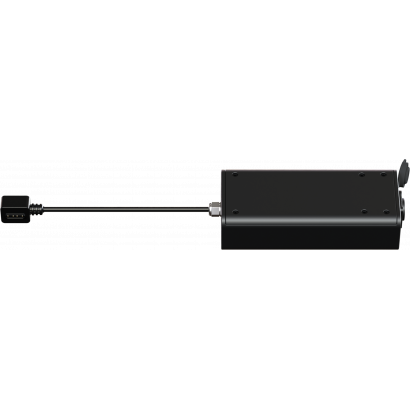

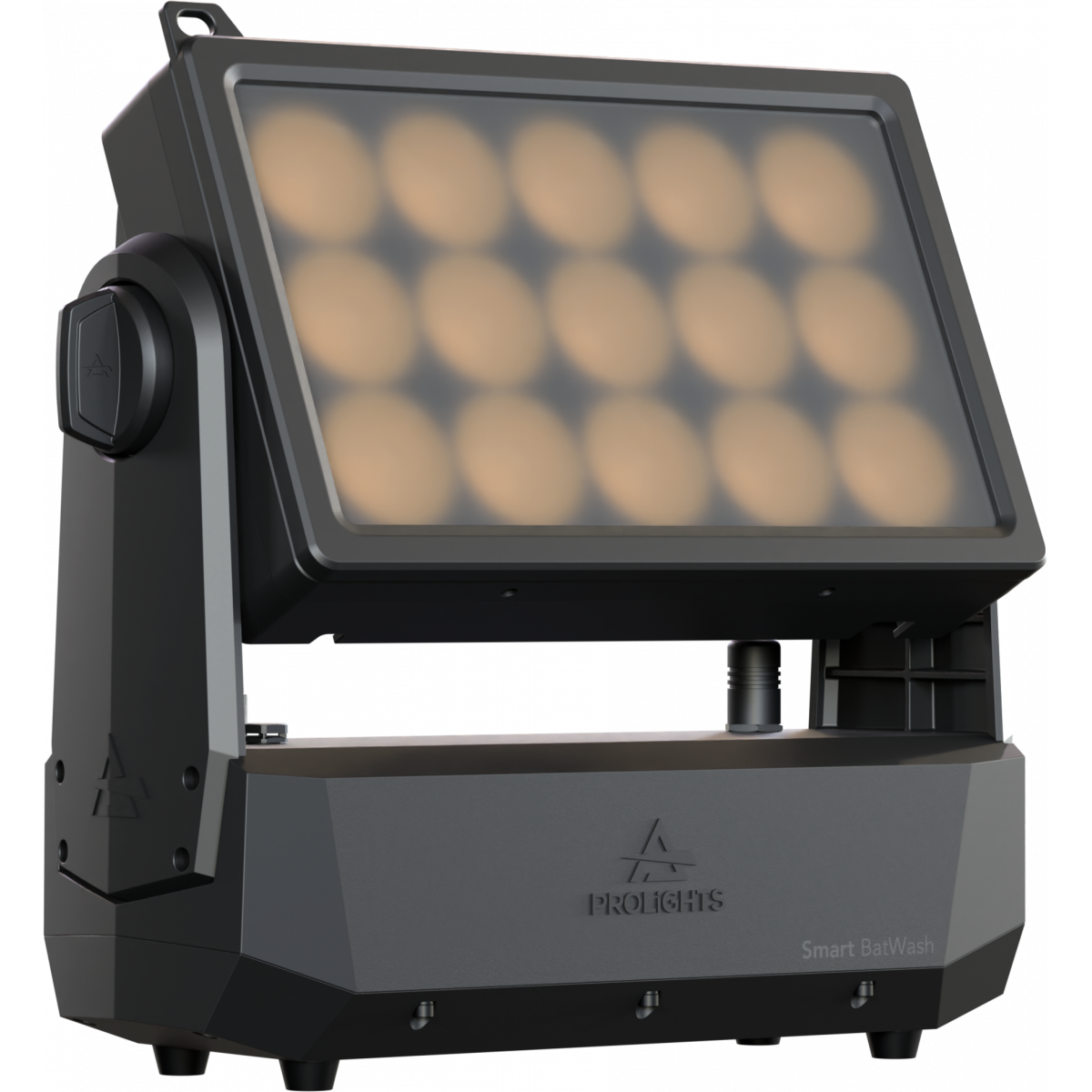

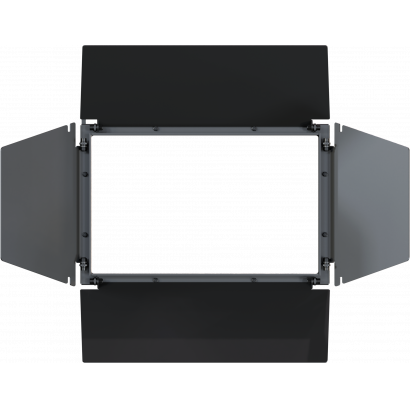

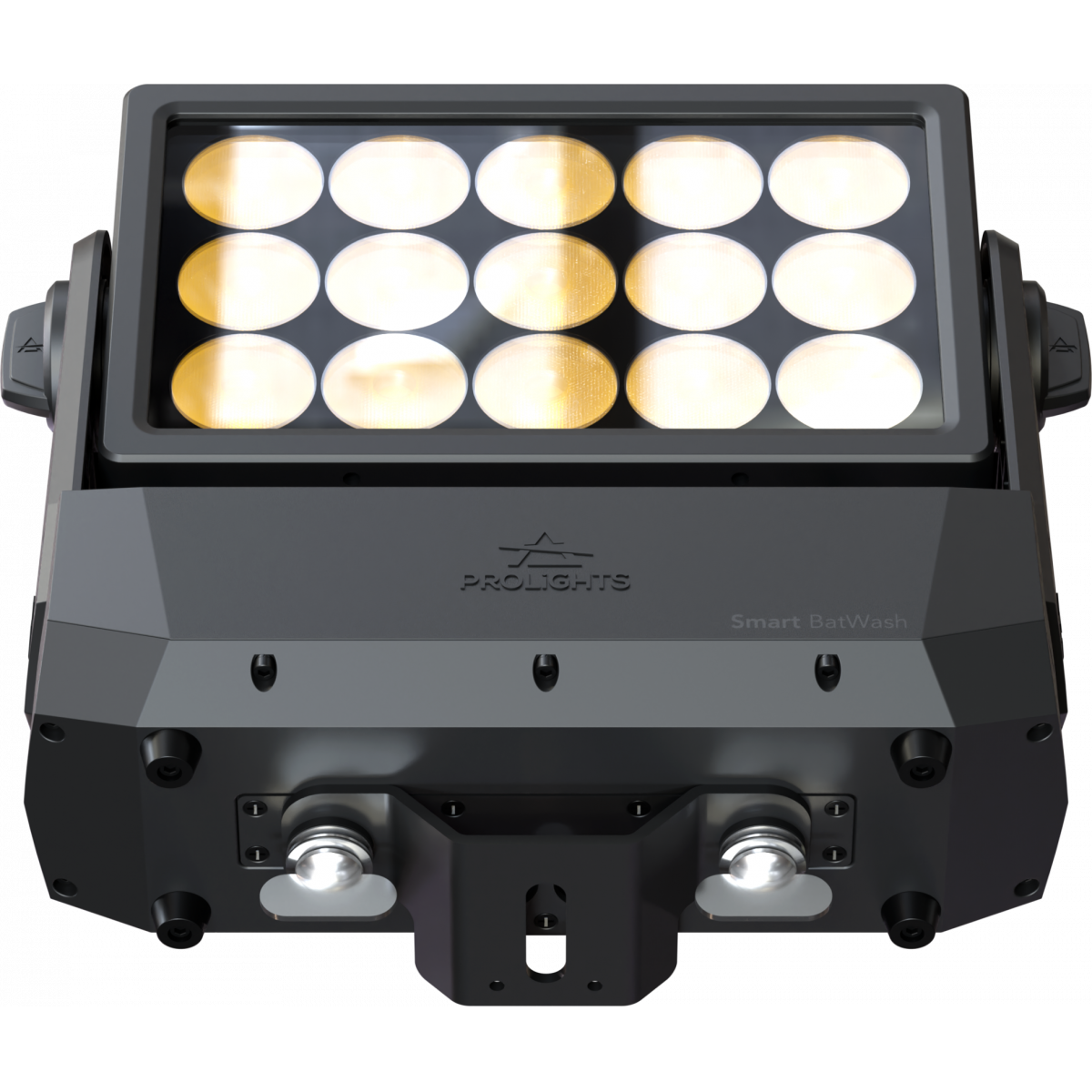

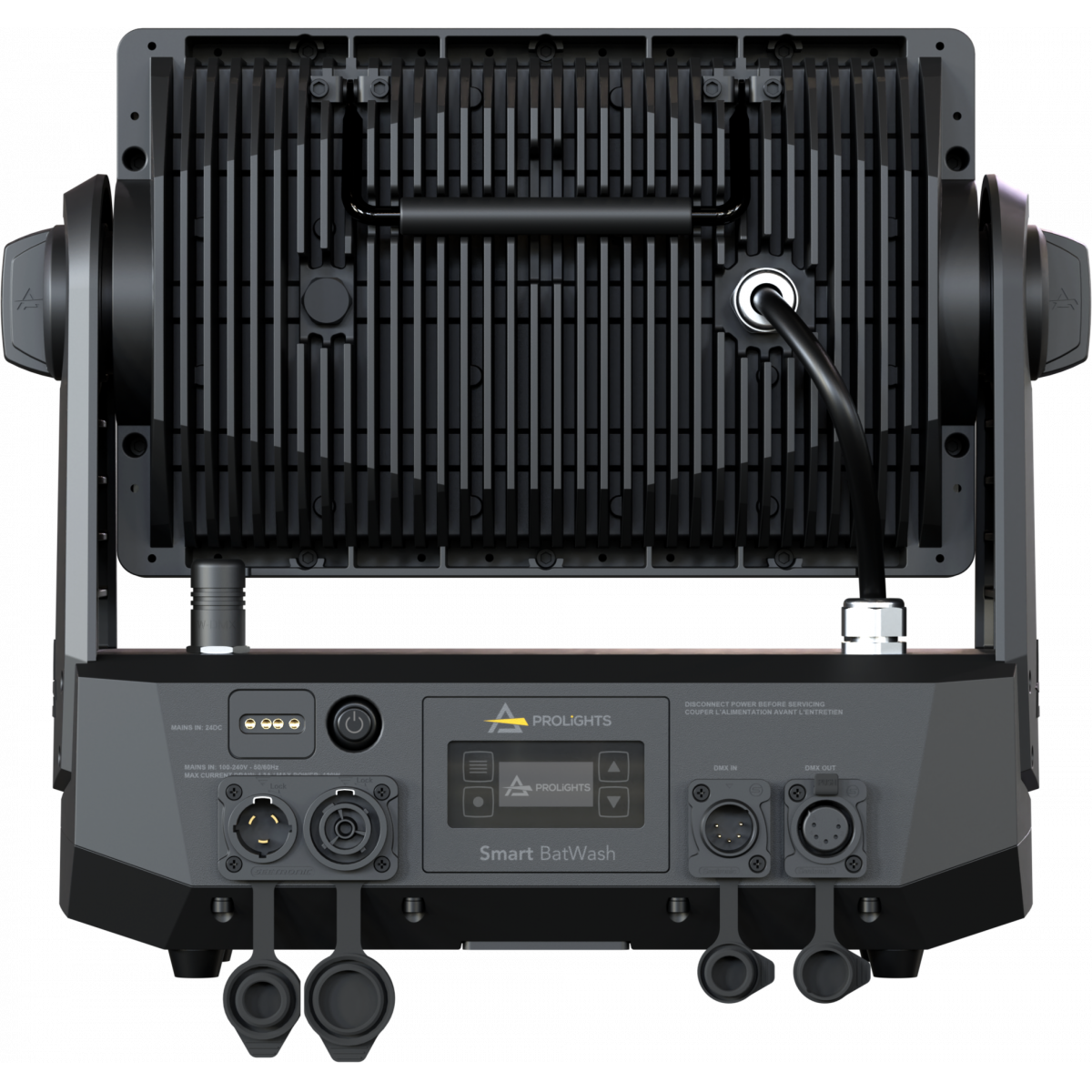

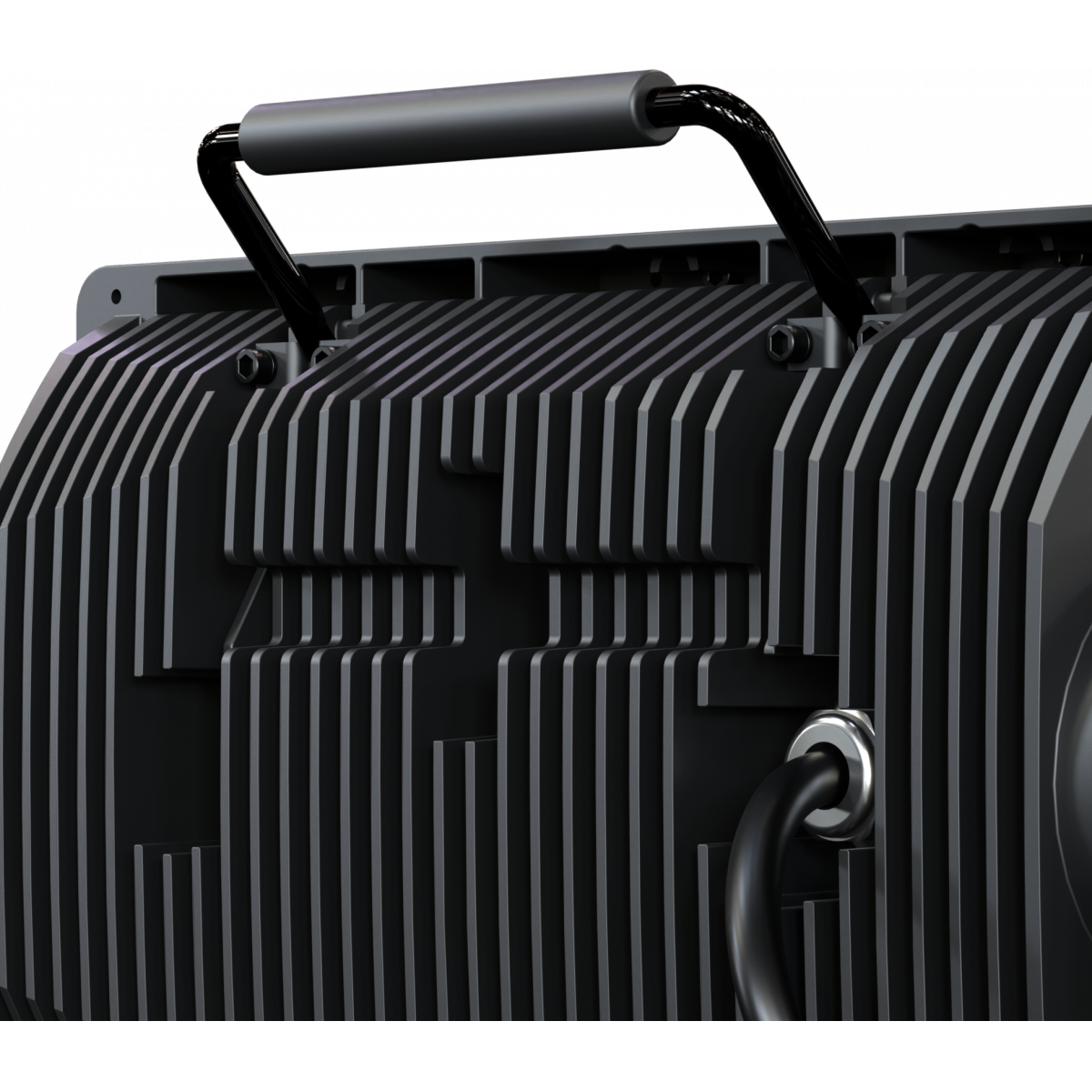

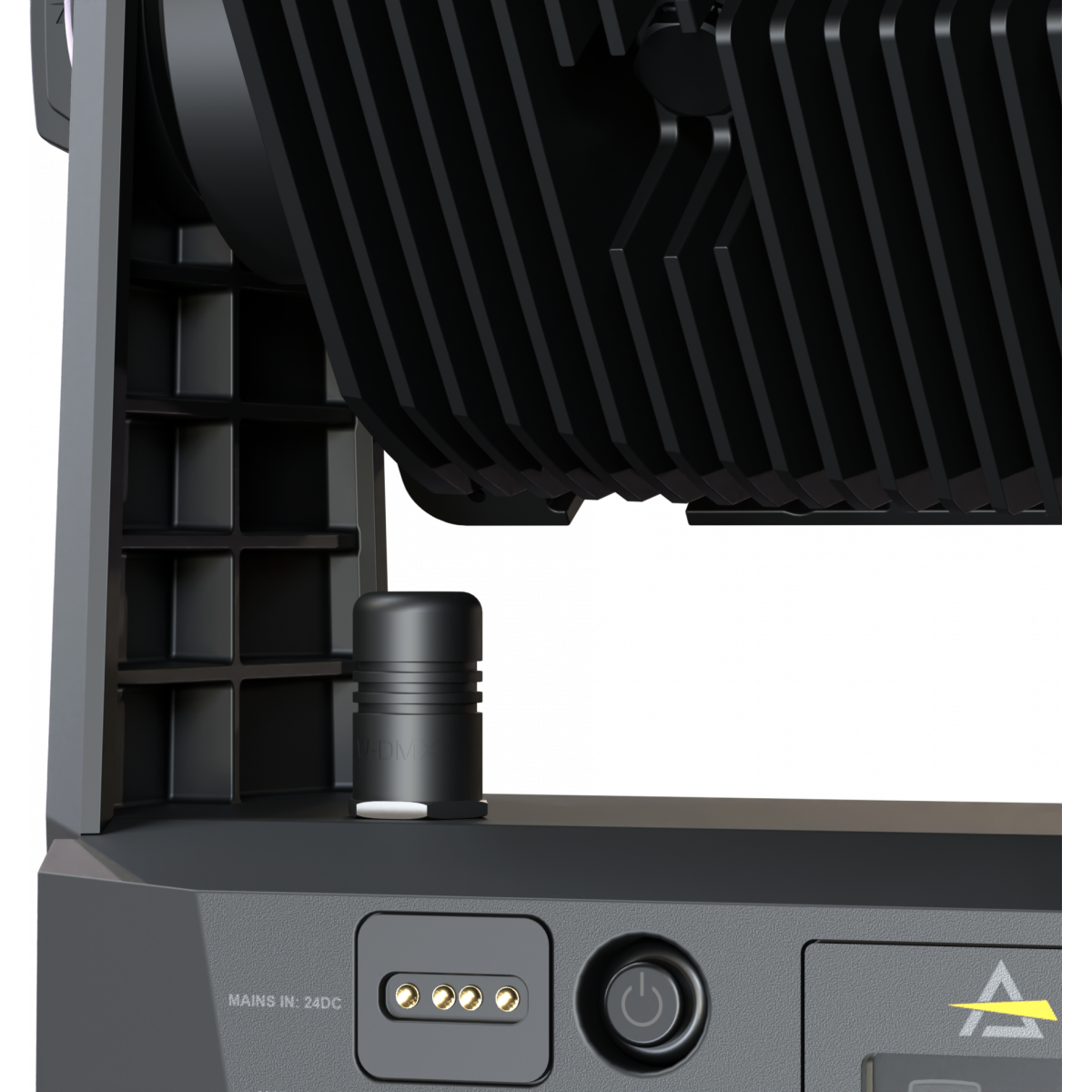

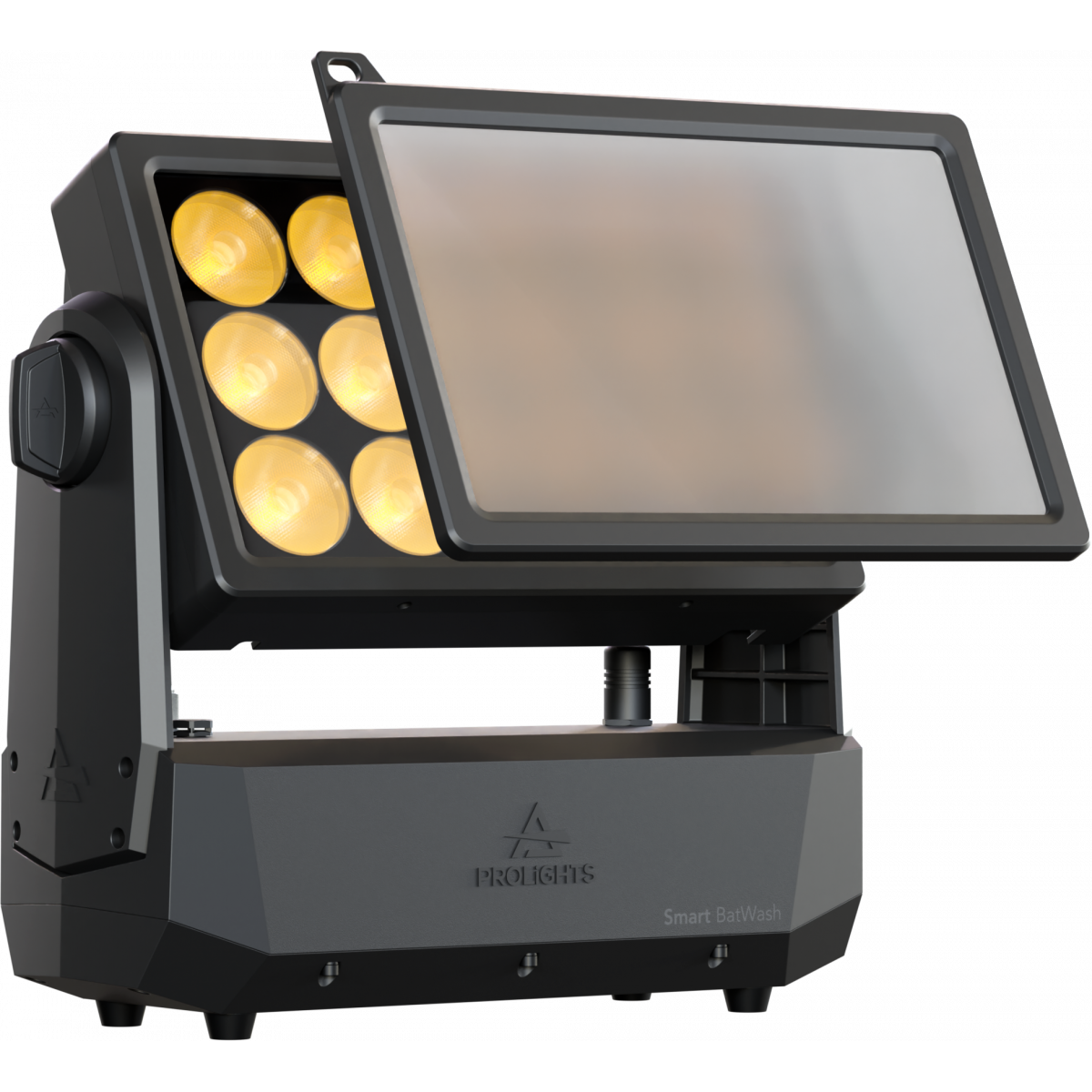

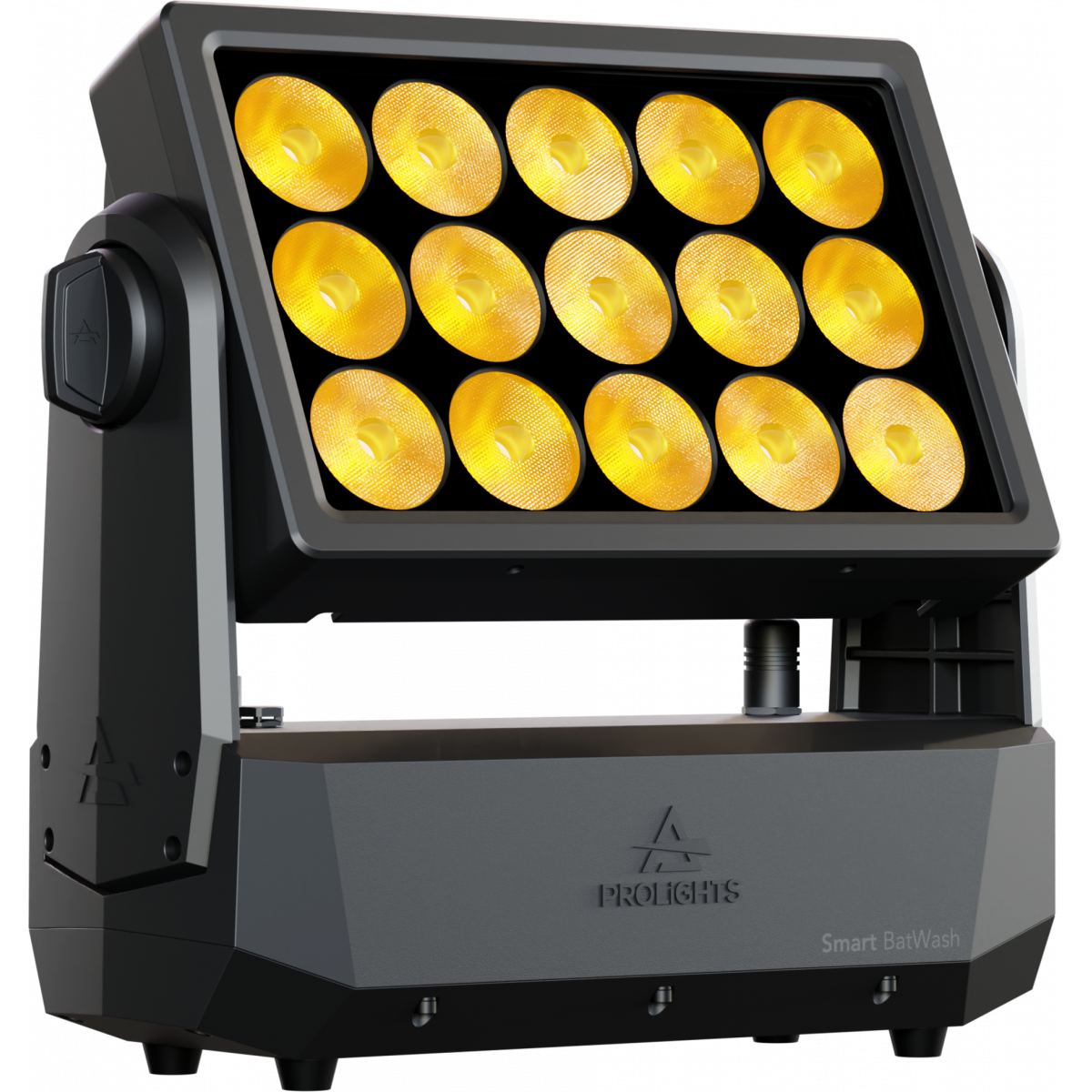

Smart BatWash

	File name	File size	Download
	Smartbatwash_A4_DATASHEET_(EN).pdf	690KB
	Smartbatwash_LETTER_DATASHEET_(EN).pdf	704KB
	Smartbatwash_TENDER_SPECIFICATION.pdf	3MB

	File name	File size	Download
	GENERAL_BATTERY_SAFETY_INFO.pdf	3MB
	Smartbatwash_USER_MANUAL_EN.pdf	3MB
	GENERAL_SAFETY_INFORMATION.pdf	10MB
	Smartbatwash_Wireless_Protocol_Compatibilit_EN.pdf	4MB

	File name	File size	Download
	Smartbatwash_DMX_CHARTS.pdf	116KB
	VECTORWORKS_SYMBOLS.vwx	692KB
	PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx	304MB
	PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx	444MB

	File name	File size	Download
	prolights_smartbatwash_ldt_ies files.zip	104KB
	Smartbatwash_PHOTOMETRICS_REPORT.pdf	26MB
	Download DIALux product catalogue	-

	File name	File size	Download
	SMARTBATWASH_3D_SKETCHUP.zip	3MB
	SMARTBATWASH_2D.zip	49MB
	SMARTBATWASH_3D.zip	2MB
	Smartbatwash_2DSYMBOLS.dwg	49KB
	SMARTBATWASH_TECHNICAL DRAWINGS.zip	3MB

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.

Update Tool: UPBOX1UP5
1.1.01.0 STABLE	24/02/2023	New functions: Power Mode selector replaces FIXTURE TYPE. Power Mode selector allows you to select between 3 options: BATTERY: If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged in, fixture will draw power from the mains and status of light output won't be affected (only max power will be higher than what available on battery). If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged out, fixture will draw power from the battery and status of light output won't be affected (only max power will be reduced) . Pressing Power button for 3 seconds without mains present --> fixture will turn on and follow its settings (Standalone or DMX/WDMX) Pressing Power button for 3 seconds while using without mains present --> fixture will turn off. Pressing Power button for 3 seconds while charging --> fixture will turn on and follow its settings (Standalone or DMX/WDMX), or would keep charging if nothing is setted/no signal received Pressing Power button for 3 seconds while using with mains present--> fixture will turn off and start charging. Plugging Mains power for 3 seconds while fixture is off --> fixture will start charghing. Plugging Mains power OFF for 3 seconds while fixture is charghing --> fixture will stop charging and turn off. AC: Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally. If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button for 3 seconds. If Battery recharge is disabled, battery won't be recharged. Fixture will turn off as soon as AC is plugged out. AC EMERGENCY: Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally. If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button. If Battery recharge is disabled, battery won't be recharged. Fixture will turn on at full power with 6000K White as soon as AC is missing. To turn off the fixture user can use control channel dedicated parameter or power button on the fixture. Spektra Calibration: new modes available ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced. PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output. OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.Spektra Calibration: new modes available Improvements: Power On/Off button requires 3 seconds to take effect. The transition from Power mode Emergency to DMX/WDMX signal is instantaneous and the fixture not produce any fade when it acquires the signal. Improved sync on Stand Alone Effects mode. Improved dimming performances. Jump prediction added to crossfade channel. Fixed bugs: After setting AC EMERGENCY and removing the AC power cable, the device enters the emergency mode correctly, but by setting power mode BATTERY afterwards, it remains in emergency mode switching off the light source. Even if Factory Reload is performed, it is not possible to exit EMERGENCY mode to return the device to default settings. It is necessary to power cycle the fixture. When the device is not connected to any data signal, passing from Stand Alone MANUAL COLORS to Stand Alone SLAVE, the light source switches off producing a fade. Power mode BATTERY, Battery recharge ENABLE: Connecting the data signal when the device is off and then connect the AC power cord, the device enters charging mode successfully. However, forcing the power on by pressing the power button, the fixture does not exit the charging mode and, consequently, does not turn on the light source based on the data signal. Note: In order to perform the update correctly, fixture needs to be on FW 1.1.00.0 or higher. If the fixture has FW release < 1.1.00.0, please update to 1.1.00.0 first.	Rev. 1.0

Update Tool: UPBOX1UP5 {CodiceUpBox}

Revision

Release date

Firmware changelog

HW Compatibility

1.1.01.0 STABLE

24/02/2023

New functions:

Power Mode selector replaces FIXTURE TYPE.
Power Mode selector allows you to select between 3 options:
- BATTERY:
  - If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged in, fixture will draw power from the mains and status of light output won't be affected (only max power will be higher than what available on battery).
  - If fixture is being used (Standalone or DMX/WDMX Active) and AC is plugged out, fixture will draw power from the battery and status of light output won't be affected (only max power will be reduced) .
  - Pressing Power button for 3 seconds without mains present --> fixture will turn on and follow its settings (Standalone or DMX/WDMX)
  - Pressing Power button for 3 seconds while using without mains present --> fixture will turn off.
  - Pressing Power button for 3 seconds while charging --> fixture will turn on and follow its settings (Standalone or DMX/WDMX), or would keep charging if nothing is setted/no signal received
  - Pressing Power button for 3 seconds while using with mains present--> fixture will turn off and start charging.
  - Plugging Mains power for 3 seconds while fixture is off --> fixture will start charghing.
  - Plugging Mains power OFF for 3 seconds while fixture is charghing --> fixture will stop charging and turn off.
- AC:
  - Fixture operates as a standard AC fixture. When AC is plugged in, fixture will turn on and operate normally.
  - If Battery recharge is enabled, battery will be recharged as soon as dimmer is = 0 or by pressing the power button for 3 seconds.
  - If Battery recharge is disabled, battery won't be recharged.
  - Fixture will turn off as soon as AC is plugged out.
- AC EMERGENCY:
Spektra Calibration: new modes available

- - ON: CCT and colors are fully calibrated, working in the common color space definition set by Spektra. This means that output of multiple fixtures will match with no visible differences. Color Saturation is slightly reduced.
  - PURE COLORS: CCT is calibrated, giving perfect white matching across multiple fixtures, but primary and secondary colors are calibrated to their native color space which allows maximum color saturation. The closer you move towards white, the more closely multiple fixtures will match each other's output. The further you move away from white and the closer you move towards saturated color, the less closely multiple fixtures will match each other's output.
  - OFF: CCT doesn't guarantee High CRI Values and color output of one fixture may or may not closely match that of other fixtures.Spektra Calibration: new modes available

Improvements:

Power On/Off button requires 3 seconds to take effect.
The transition from Power mode Emergency to DMX/WDMX signal is instantaneous and the fixture not produce any fade when it acquires the signal.
Improved sync on Stand Alone Effects mode.
Improved dimming performances.
Jump prediction added to crossfade channel.

Fixed bugs:

After setting AC EMERGENCY and removing the AC power cable, the device enters the emergency mode correctly, but by setting power mode BATTERY afterwards, it remains in emergency mode switching off the light source.
Even if Factory Reload is performed, it is not possible to exit EMERGENCY mode to return the device to default settings. It is necessary to power cycle the fixture.
When the device is not connected to any data signal, passing from Stand Alone MANUAL COLORS to Stand Alone SLAVE, the light source switches off producing a fade.
Power mode BATTERY, Battery recharge ENABLE: Connecting the data signal when the device is off and then connect the AC power cord, the device enters charging mode successfully. However, forcing the power on by pressing the power button, the fixture does not exit the charging mode and, consequently, does not turn on the light source based on the data signal.

Note: In order to perform the update correctly, fixture needs to be on FW 1.1.00.0 or higher.
If the fixture has FW release < 1.1.00.0, please update to 1.1.00.0 first.

Rev. 1.0
