ECLPARIPSVW

EclPar IPSVW

NEW

Order Code: ECLPARIPSVWBK

Source
60W Variable White LED
IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
2,8kg / 6.17lbs

Key Features

  • 60W Variable White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
  • IP65 & fan-free for exterior application

The EclPar IPSVW is an ultra compact and fan free IP-rated single source LED spotlight, tailored for accent lighting and nearfield projection which seamlessly integrates anywhere,

This fixture is powered by a 60W Variable White LED source, capable of producing up to 3,500 fixture lumens with high efficiency and advanced control.

EclPar IPSVW excels in delivering superior white light reproduction, boasting high CRI and TM30 values.

Its compact and fan-free design renders the EclPar IPSVW an indispensable tool for both indoor and outdoor venues, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

Read less
The EclPar IPSVW is an ultra compact and fan free IP-rated single source LED spotlight, tailored for accent lighting and nearfield projection which seamlessly integrates anywhere, This fixture is powe...

Product Video

Discover the EclPar IPSVW in action

Photo Gallery

ECLPARIPSVWBK
ECLPARIPSVWBK
ECLPARIPSVWBK
ECLPARIPSVWBK
ECLPARIPSVWBK

Specifications

LIGHT SOURCE
  • Source: 60W Variable White LED
  • Luminous flux: (15°) 3'438, (30°) 3'117, (60°) 3'258 @Full
  • Lux: (15°) 1'840, (30°) 458, (60°) 169lx @5 m full
  • CRI: 96,9 @full; 96,2 @3'200K; 98 @5'600K
  • R9: 91,2 @3'200K; 96,4 @5'600K
  • TLCI: 99 @full; 98 @3'200K; 99 @5'600K
  • TM30 Rf: 94,2 @full; 95,2 @3'200K; 93,4 @5'600K
  • TM30 Rg: 102,3 @full; 103,1 @3'200K; 100,5 @5'600K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 15° - (opt) 30°, 60°
  • Field angle: (on-board) 23°
  • Lens diameter: 100mm / 3.94''
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: (opt) 30°, 60°
  • Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 6.500K
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black

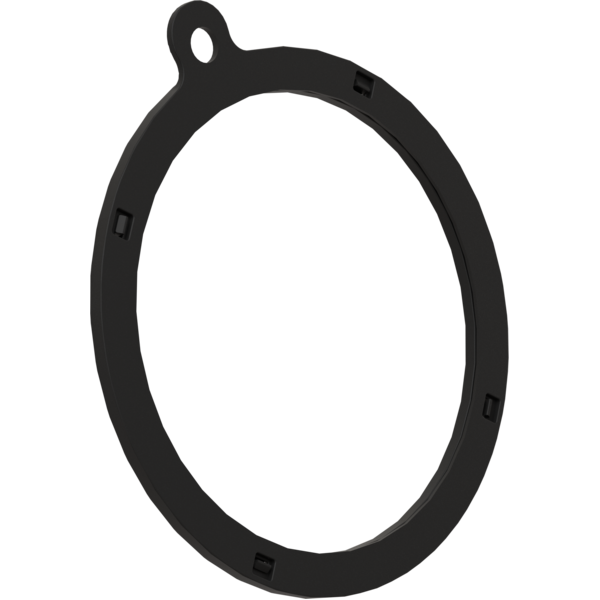

  • Other: Front mount holder for accessories as barn door, filter frame
CONTROL
  • Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: 1 / 2 / 4 / 5 / 9 / 11channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 65W
  • Standby power: 1,7 W
  • Power factor: > 0,93
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 211x284x248mm / 8.31''x11.18''x9.76''
  • Weight: 2,8kg / 6.17lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
  • 1 x ECLPARIPSVW
  • 1 x EPIPSLENS15
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
  • User Manual

Accessories & Related Products

Optional FCLECLPARIPS

Flight case for 8 pcs of ECLPARIPS series

Order Code: FCLECLPARIPS

Included EPIPSLENS15

ECLPARIPS series 15° lens

Order Code: EPIPSLENS15

Optional EPIPSLENS30

ECLPARIPS series 30° lens

Order Code: EPIPSLENS30

Optional EPIPSLENS60

ECLPARIPS series 60° lens

Order Code: EPIPSLENS60

Optional EPIPSFILT1020

Light diffusion filter for ECLPARIPS series, asymmetric 10°x20°

Order Code: EPIPSFILT1020

Optional EPIPSFILT1040

Light diffusion filter for ECLPARIPS series, asymmetric 10°x40°

Order Code: EPIPSFILT1040

Optional EPIPSFILT1060

Light diffusion filter for ECLPARIPS series, asymmetric 10°x60°

Order Code: EPIPSFILT1060

Optional EPIPSFILT3060

Light diffusion filter for ECLPARIPS series, asymmetric 30°x60°

Order Code: EPIPSFILT3060

Optional ECLPARIPSBDBK

Barn door with 8 directional flaps to adjust the light beam, ECLPARIPS, black

Order Code: ECLPARIPSBDBK

Optional EPIPSFSNOOTBK

Full snoot for ECLPARIPS series, black

Order Code: EPIPSFSNOOTBK

Optional EPIPSHLOUVREBK

Honeycomb louvre for ECLPARIPS series, black

Order Code: EPIPSHLOUVREBK

Optional EPIPSCLOUVREBK

Concentric louvre for ECLPARIPS series, black

Order Code: EPIPSCLOUVREBK

Optional ECLPARIPMWKBK

CRMX Timo Fx kit for ECLPARIP serie, black

Order Code: ECLPARIPMWKBK

Optional SPGM10

28mm spigot for fixtures, M10 bolt

Order Code: SPGM10

Optional SPGM12

28mm spigot for fixtures, M12 bolt

Order Code: SPGM12

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional 958215L03

3x1.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958215L03

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetEclparipsvwbk_A4_DATASHEET_(ITA).pdf(17/09/2025)378KB
Letter datasheetEclparipsvwbk_A4_DATASHEET_(EN).pdf(17/09/2025)374KB
Tender SpecificationEclparipsvw_TENDER_SPECIFICATION.pdf(05/08/2025)278KB

User manual User manual

File name File size Download
User manualEclparipsvw_USER_MANUAL_EN.pdf(24/07/2025)6MB
User manualEclparipsvw_General_Safety_Information.pdf(18/11/2025)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartEclparipsvw_DMX_CHARTS.pdf(10/07/2025)107KB

ECLPARIPSVW Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics Photometrics

File name File size Download
IESprolights_eclparipsvw_ies_files.zip(06/08/2025)107KB
LDTprolights_eclparipsvw_ldt_files.zip(06/08/2025)93KB
PhotometricsEclparipsvw_PHOTOMETRICS_REPORT.pdf(06/08/2025)7MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPEclparipsvw_3D.skp(13/06/2025)475KB
2DECLPARIPSVW_2D.zip7MB
3DEclparipsvw_CAD_3D.dwg(13/06/2025)275KB
2D cad symbolsEclparipsvw_ECLPARIPSVW_2DSYMBOLS.dwg(30/06/2025)20KB
Technical drawingECLPARIPSVW_TECHNICAL DRAWINGS.zip646KB
VectorWorksECLPARIPSVW_SYMBOLS.vwx(30/06/2025)725KB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 23/10/2025 Improvement:
  • Improved Stand Alone section.
  • Improved Stand Alone PIDs in RDM.
 Rev. 1.0
