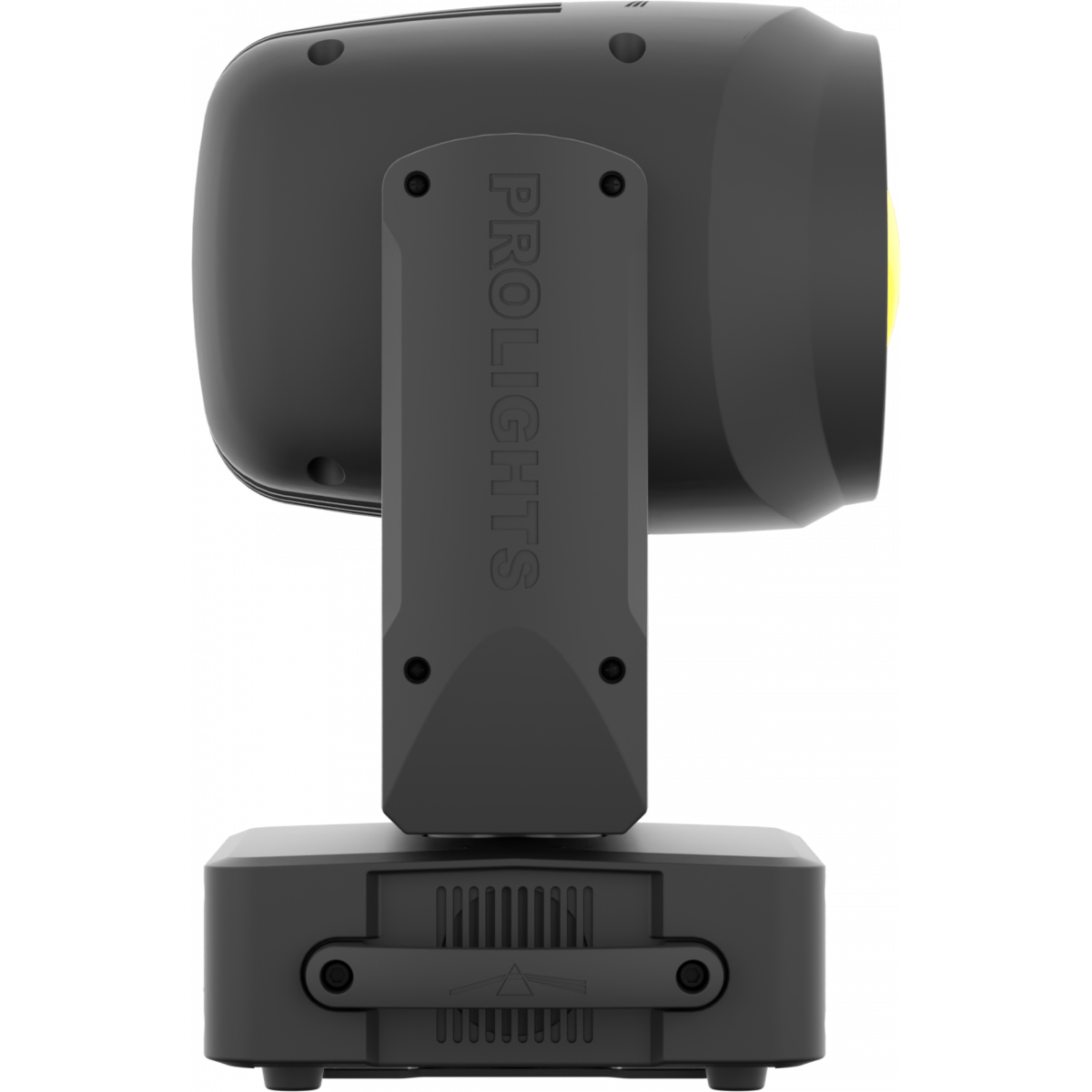

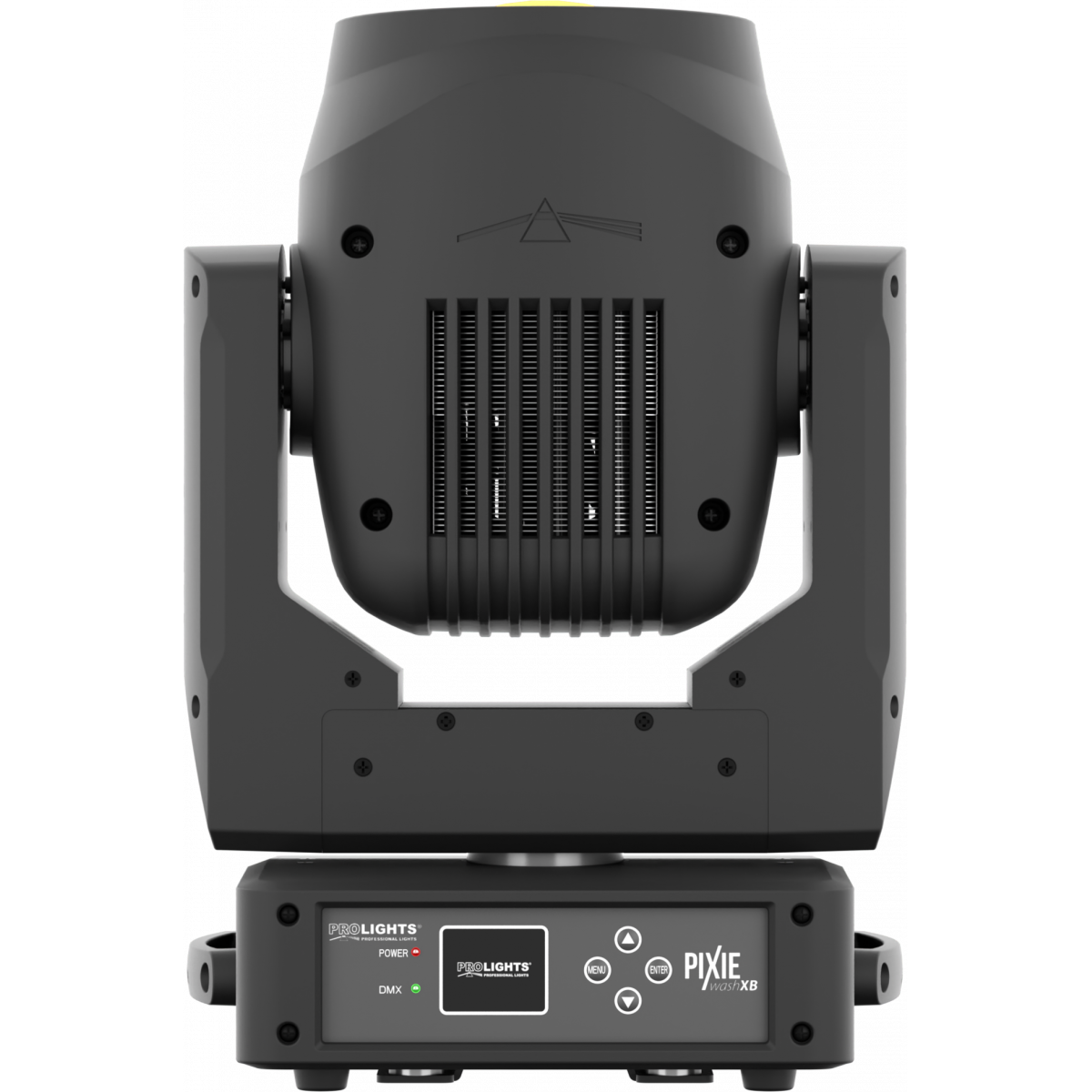

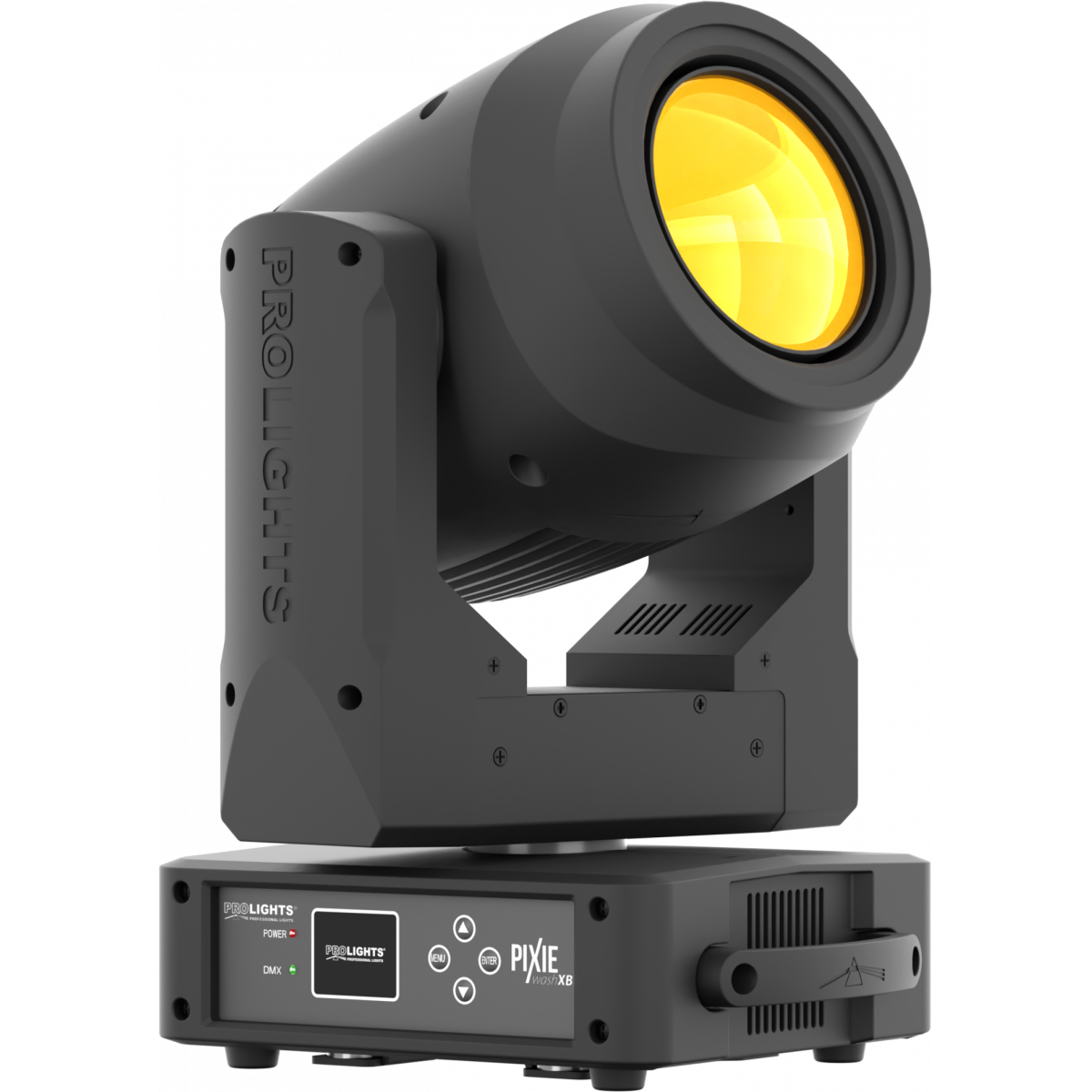

Pixie WashXB

ORDER CODE: PIXIEWASHXB

280W single lens RGB and warm white moving wash luminaire

Pixie WashXB reinvents the concept of the moving LED wash light, bringing together the classic styling of a traditional wash luminaire and applying the very latest innovations in the field of LED technology. The large frontal plano-convex lens delivers a stunning level of brightness and an exceptional zoom range with a 1:8 ratio, combined with a proprietary 280W RGB and warm white LED module delivering a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. Pixie WashXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being compact, fast and silent, the Pixie WashXB offers unprecedented flexibility and is ideal for use in theatres, TV, corporate and festivals.

Main features:

  • 280W proprietary RGB and warm white LED delivering high CRI, TLCI, TM30 values
  • 7,6° to 43° linear zoom with superior evenness
  • Art-net and WDMX on-board

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 280W RGB + Warm White LED
  • CCT: @full 6.000
  • Luminous flux: (7,6°) 2'888 lm - (43°) 3'038lm @full
  • Lux: (7,6°) 6'631 lx - (43°) 532lx @5 m full
  • CRI: 96 @3.200 K; 93 @5.600 K
  • R9: 92 @3.200 K; 92,7 @5.600 K
  • TLCI: 84 @3.200 K; 84 @5.600 K
  • TM30 Rf: 91 @3.200 K; 91 @5.600 K
  • TM30 Rg: 104 @3.200 K; 105 @5.600 K
  • Source life expectancy: > 70.000 h
OPTICS
  • Zoom: 7,6° - 43° motorised linear zoom
  • Lens diameter: 125mm / 4.92''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 8.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp included)
  • Pan angle: 540°
  • Tilt angle: 250°
  • Pan/Tilt resolution: 8/16bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium die-casting
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 13 / 15 / 16 / 18 / 22 / 23 / 27channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 240W
  • Output (at 230V): 8 units on a single power line
  • Power factor: >0,95
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets

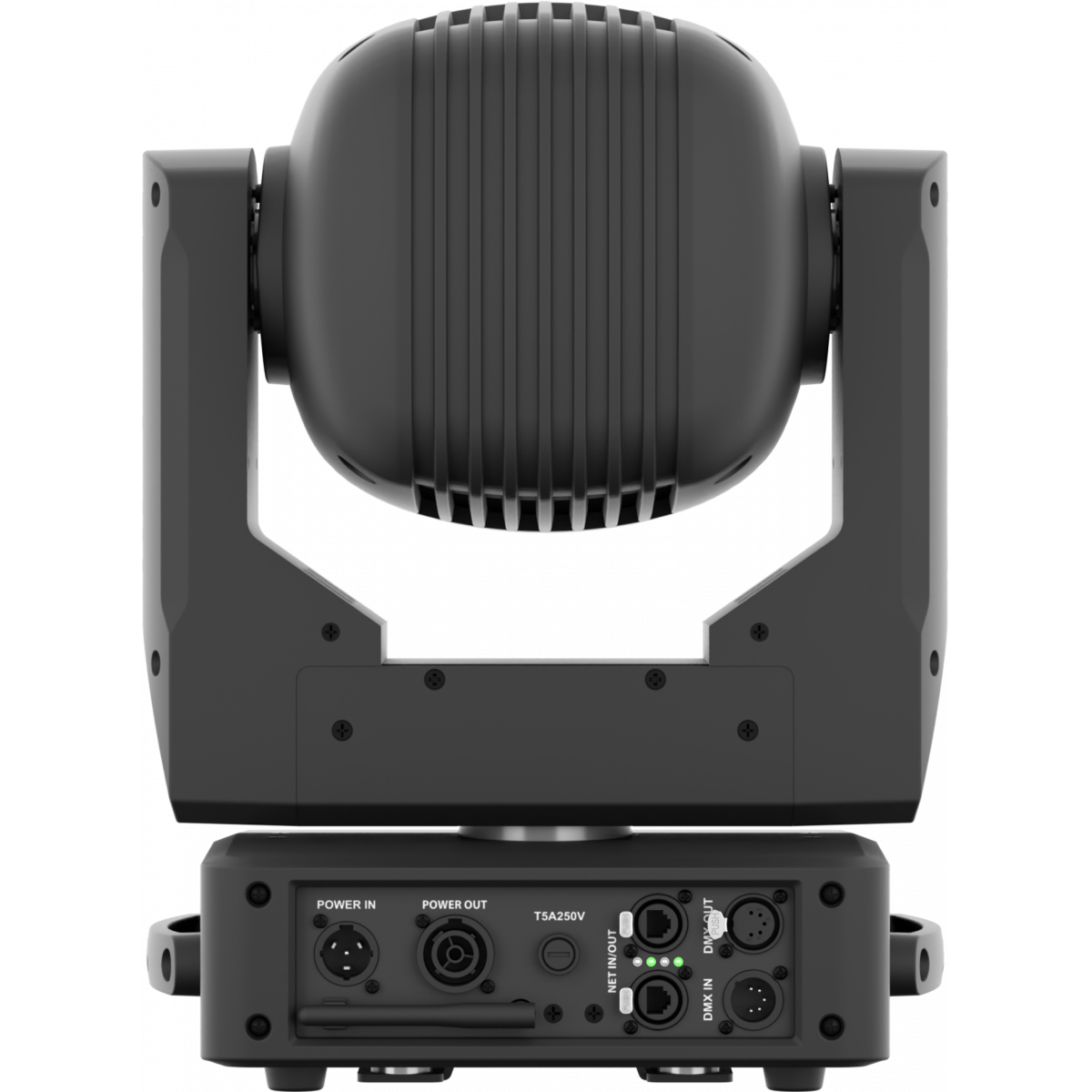

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 308x448x230mm / 12.13''x17.64''x9.06''
  • Weight: 13,6kg / 29.98lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
FCLPIXIEWASHXB
FCLPIXIEWASHXB
(optional)

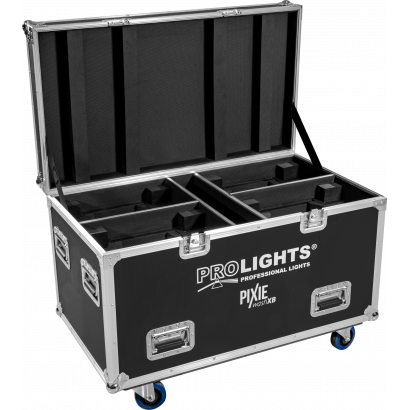

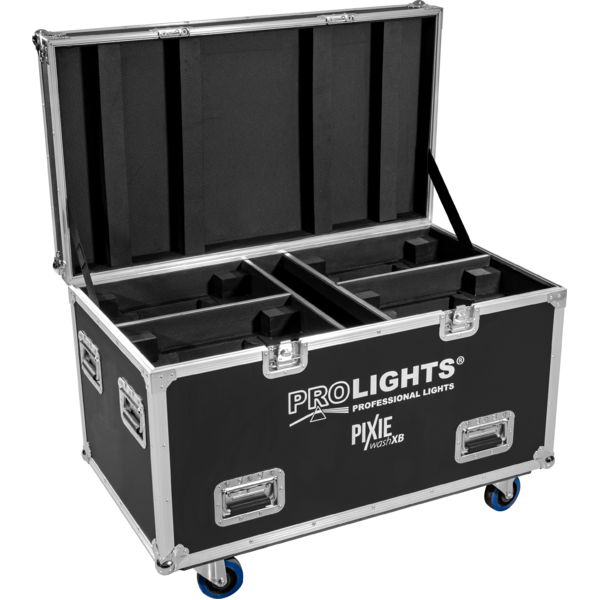

Flight case for 4 pcs of PIXIEWASHXB
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Pixiewashxb_A4_DATASHEET_(EN).pdf 436KB
Letter datasheet Pixiewashxb_A4_DATASHEET_(IT).pdf 423KB
Letter datasheet Pixiewashxb_LETTER_DATASHEET_(EN).pdf 435KB

User manual

File name File size Download
User manual Pixiewashxb_USER_MANUAL.pdf 7MB
User manual Pixiewashxb_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Pixiewashxb_DMX_CHARTS.pdf 58KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 575KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
PIXIEWASHXB Firmware rev. 2.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
pixiewashxb_27ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@pixiewash_xb_27ch@27ch.xmlDownload
prolights_cb@pixiewash_xb_22ch_cb@22ch_cb.xmlDownload
manufacturer fixture library (Link) Link
pixiewash xb 22ch_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_pixiewashxb_ies files.zip 16KB
LDT prolights_pixiewashxb_ldt files.zip 13KB
PDF Photometrics Pixiewashxb_PHOTOMETRICS_REPORT.pdf 4MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Pixiewashxb_3D_SKETCHUP.skp 5MB
3D RFA Pixiewashxb_3D_REVIT.rfa 936KB
2D Pixiewashxb_2D.dwg 8MB
3D Pixiewashxb_3D.dwg 2MB
2D cad symbols Pixiewashxb_2DSYMBOLS.dwg 95KB
Technical drawing Pixiewashxb_TECHNICAL_DRAWING.pdf 394KB

Tech docs

File name File size Download
Noise Report Pixiewashxb_NOISE_REPORT.pdf 130KB

Software

File name File size Download
Software Professional Uploader 0KB

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.0 STABLE 15/11/2023 Improvement:
  • Added Fan Mode on Control Channel as follows:
    • Fan Mode Auto (Control channel values 72-79)
    • Fan Mode Silent (Control channel values 80-87)
    • Fan Mode High (Control channel values 88-95)
    • Fan Mode Off (Control channel values 96-103)
NOTE: this and previous firmware version are NOT compatible with fixtures of US and CANADA market. For these products please download firmware from this link
Rev. 1.0
