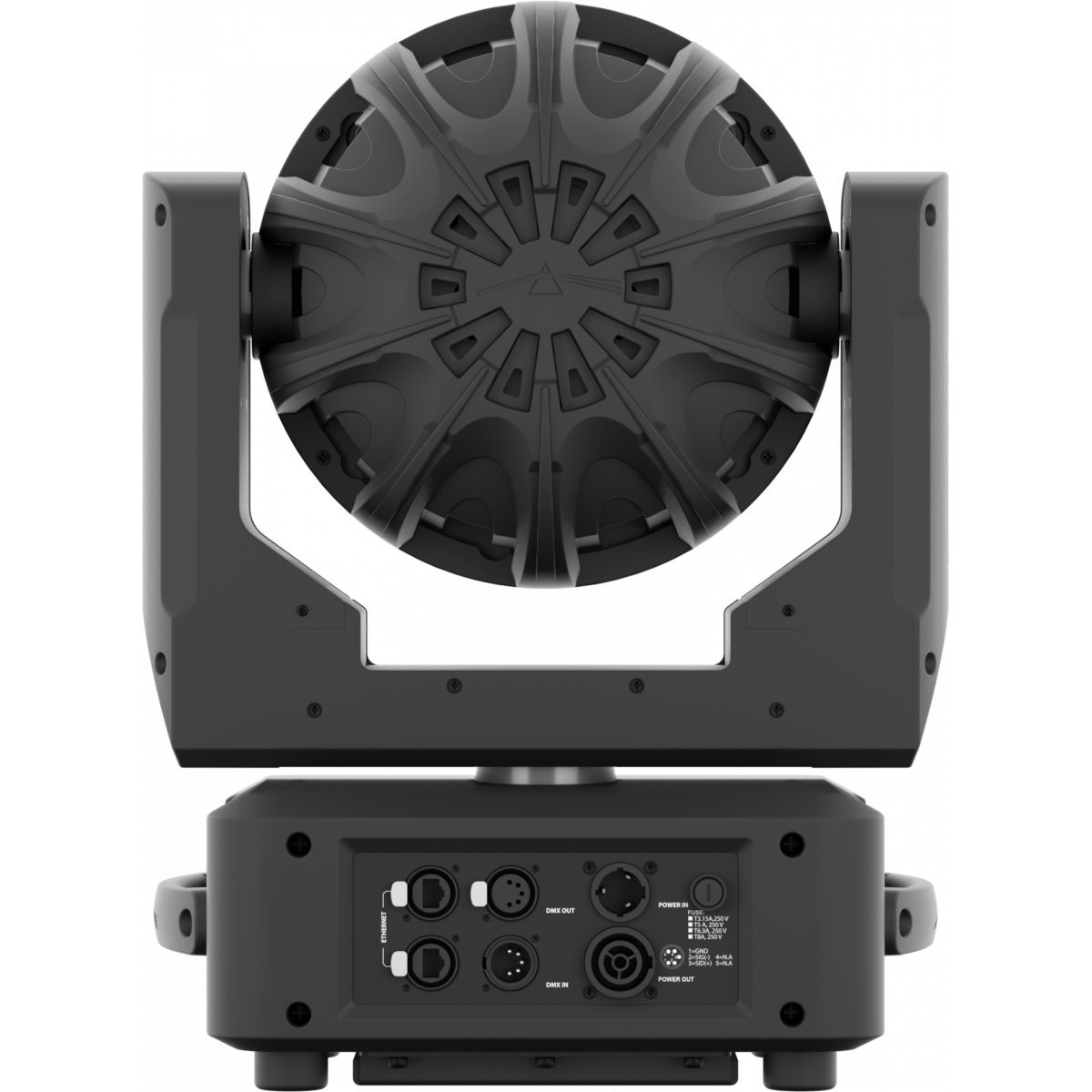

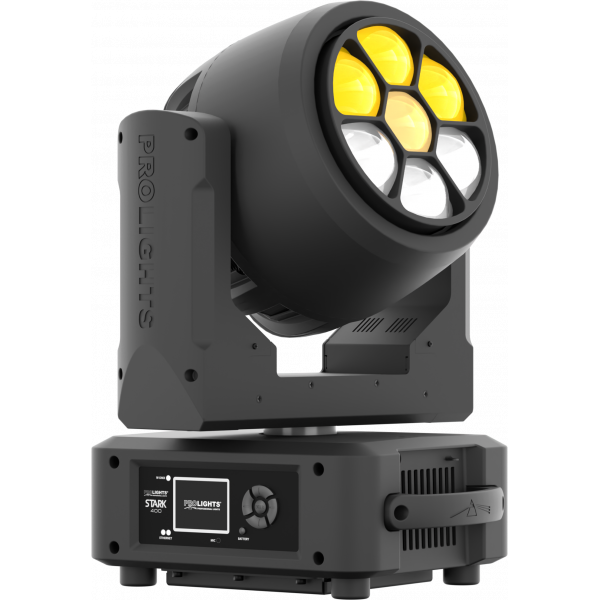

Stark 400

ORDER CODE: STARK400

7x40W high power LED wash/beam light with pixel mapping

Stark 400 is a new generation, high-output LED wash light designed to bring the workhorse LED wash light right up-to-date. Featuring 7 of Osrams new 40W RGBW Ostar LEDs it delivers a massive output for its size with a huge colour range and an extensive toolkit of effects.

Main features:

  • Massive 4,4° to 36° linear zoom range from beam to wash
  • Individual control of calibrated pixels with on-board FX generator for fast and precise effects
  • Liquid cooling system for efficient cooling with virtually no noise
See variants

PHOTO GALLERY

Stark 400
Stark 400
Stark 400
Stark 400

Technical specifications

LIGHT SOURCE
  • Source: 7x40W RGBW Osram Ostar LEDs
  • CCT: 2.000 K - 10.000
  • Luminous flux: (4°) 1'944 lm - (36°) 2'700lm @full
  • Lux: (4°) 15'584 lm - (36°) 848lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 4° - 36° motorised linear zoom
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
BODY
  • Pan angle: 540° / 630°
  • Tilt angle: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 16 / 26 / 27 / 32 / 50channel
  • Pixel control: pixel2pixel control
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 245W
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 338x452x239mm / 13.31''x17.8''x9.41''
  • Weight: 11kg / 24.25lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
OS24D13
OS24D13
(optional)
Quick-lock omega bracket, M12 hole
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
OS24
OS24
(included)
Quick-lock omega bracket, M10 hole
WSA40501
WSA40501
(included)
WDMX, antenna 2.4Ghz 2dBi omnidirectional, folding, SMA-male, indoor
FSHLW01
FSHLW01
(optional)
1U Foam shell compatible with DIAMOND19, STARK400
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Stark400_A4_DATASHEET_(EN).pdf 404KB
Letter datasheet Stark400_A4_DATASHEET_(IT).pdf 450KB
Letter datasheet Stark400_LETTER_DATASHEET_(EN).pdf 405KB

User manual

File name File size Download
User manual Stark400_USER_MANUAL_ITEN.pdf 3MB

DMX chart & personalities

File name File size Download
DMX chart Stark400_DMX_CHARTS.pdf 175KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 592KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
STARK400 Firmware rev. 2.2.00
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@stark400_26ch_fx(f.v._2.0)@.xmlDownload
prolights@stark_400@pix_fx@ma_library_update_v13.4.xmlpDownload
prolights@stark_400@wash@ma_library_update_v13.4.xmlpDownload
stark400_fx26ch (1).hog4showDownload
stark_400.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
stark 400 fx.fix2Download
stark 400 pix fx.fix2Download
stark 400 wash.fix2Download
manufacturer fixture library (Link) Link
STARK400 Firmware rev. 1.6.00
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@stark400_26ch_fx(f.v._2.0)@.xmlDownload
prolights@stark_400@pix_fx@ma_library_update_v13.4.xmlpDownload
prolights@stark_400@wash@ma_library_update_v13.4.xmlpDownload
stark400_fx26ch (1).hog4showDownload
stark_400.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
stark 400 fx.fix2Download
stark 400 pix fx.fix2Download
stark 400 wash.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_stark400_ies files.zip 32KB
LDT prolights_strak400_ldt files.zip 28KB
PDF Photometrics Stark400_PHOTOMETRICS_REPORT.pdf 5MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Stark400_3D_REVIT.rfa 816KB
3D SKP Stark400_3D_SKETCHUP.skp 2MB
3D Stark400_3D.dwg 533KB
2D cad symbols Stark400_2DSYMBOLS.dwg 178KB
Technical drawing Stark400_TECHNICAL_DRAWING.pdf 375KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.2.00 STABLE 05/11/2019 Firmware version for units with LED PCB type D.
Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx

  • Improved strobe and pattern sync between different fixtures.
 Rev. 2 Not noted on unit's label
1.6.00 STABLE 05/11/2019 Firmware version for units with LED PCB type C
Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx

  • Improved strobe and pattern sync between different fixtures.
 Rev. 1 Not noted on unit's label
