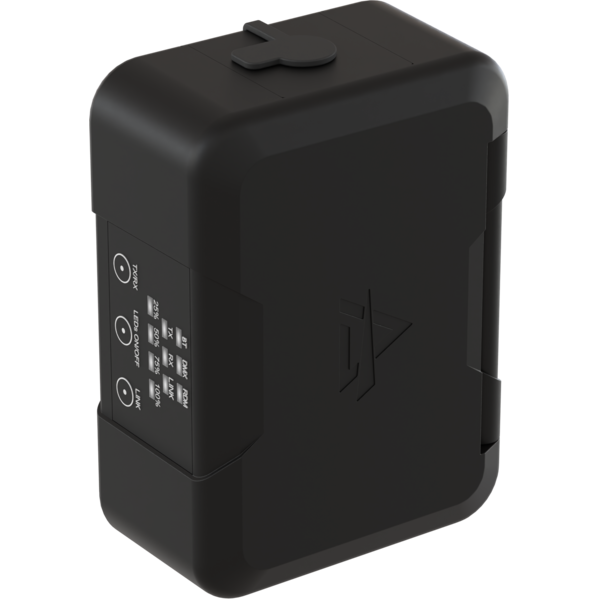

ÆtherBox LITE new

ORDER CODE: AETHERBOXLITE

1 Universe CRMX Wireless Transceiver

The AetherBox Lite is a versatile, single universe Wireless CRMX Transceiver, offering compatibility with both Lumen Radio CRMX and Wireless DMX G3 and G4S protocols.

This compact unit provides flexible power and signal processing options via chassis connectors or terminal blocks. Its design allows for track mounting, enabling the streaming of signals on tracks equipped with a data bus option.

The AetherBox Lite is an effective solution for small and medium-sized live events or installations, delivering reliable wireless control in various settings.

Main features:

  • Single Univers Wireless CRMX Transceiver unit
  • Power IN and DMX In/Out through chassis mount connectors and terminal blocks
  • Either LumenRadio CRMX and Wireless DMX G3 and G4S transmission option
See variants

PHOTO GALLERY

ÆtherBox LITE
ÆtherBox LITE
ÆtherBox LITE
ÆtherBox LITE
ÆtherBox LITE

Technical specifications

BODY
  • Hardware on-board: see available accessories
  • Body: sturdy policarbonate body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, CRMX + WDMX, Bluetooth
  • Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Other: 3 control buttons and status LEDs on-board
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 5W
  • Power factor: > 0,95
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Suspension and fixing: track-adapter option (track not included), for fixing in suspension
  • Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
  • Power connection: screw terminal block, Seetronic powerCON TRUE IN
  • Dimensions (WxHxD): 140x60x100mm / 5.51''x2.36''x3.94''
  • Weight: 0,4kg / 0.88lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products

NAKKT306007
NAKKT306007
(optional)
Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6002, black
C6002
C6002
(optional)

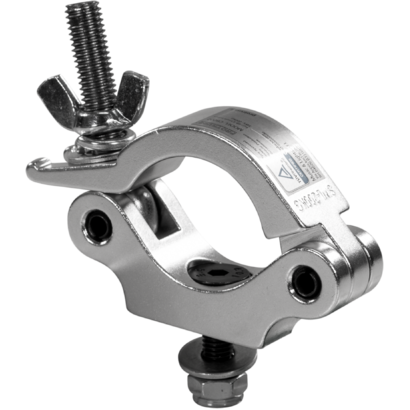

Slim aluminium clamp, 200 kg loading, 48-51 mm tubes, M10 bolt
C6016
C6016
(optional)

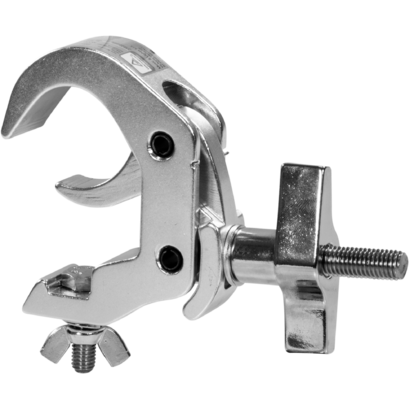

Selflock slim clamp, 250 kg load, 48-51 mm tubes, M10 bolt incl,
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Aetherboxlite_A4_DATASHEET_(EN).pdf 237KB
Tender Specification Aetherboxlite_TENDER_SPECIFICATION.pdf 190KB

User manual

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D SKP Aetherboxlite_3D.skp 361KB
2D Aetherboxlite_CAD_2D.dwg 730KB
3D Aetherboxlite_CAD_3D.dwg 70KB
Technical drawing Aetherboxlite_TECHNICAL_DRAWING.pdf 105KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 14/05/2024 First stable release.

Improvements:
  • Improved wireless protocol management.
  • Improved "Radio Mode" Manufacturer Specific PID
  • Eliminated PIDs relating to the Linking Key in RDM. Now it will be possible to set Linking Key, protocol and universe via the "CRMX Toolbox" app.
Fixed Bugs:
  • Linking Key does not work if setted via "CRMX Toolbox" app.
  • Non-compliant RDM.
  • At every Power On the device set itself on TX, even if before turning it off you set RX.
  • Changed PID name to "Receiver Reset" to "RX Reset".
 Rev. 1.0
