EclMini CC new

18W White LED gallery light, constant current. Connects to an external PSU and driver

The EclMini is a range of ultra-compact, low-profile LED spotlights, designed for galleries, retail or any hospitality venue. There are several control options, sources, and optics available to fit any application.
The EclMini CC connects to an external Constant Current PSU and driver (max 500mA/36V). PROLIGHTS accessories are available or, alternatively, the use any third-party compatible components is possible, leaving to system integrators to install these spotlights in venues with their own wiring distribution and control.
The EclMini CC includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it a multi-purpose fixture.

Main features:

  • Constant Current version, connects to an external PSU and driver (max 500 mA/36V)
  • 18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
  • Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15-30° or 25-50° wash optics
See variants CONFIGURATOR

PHOTO GALLERY

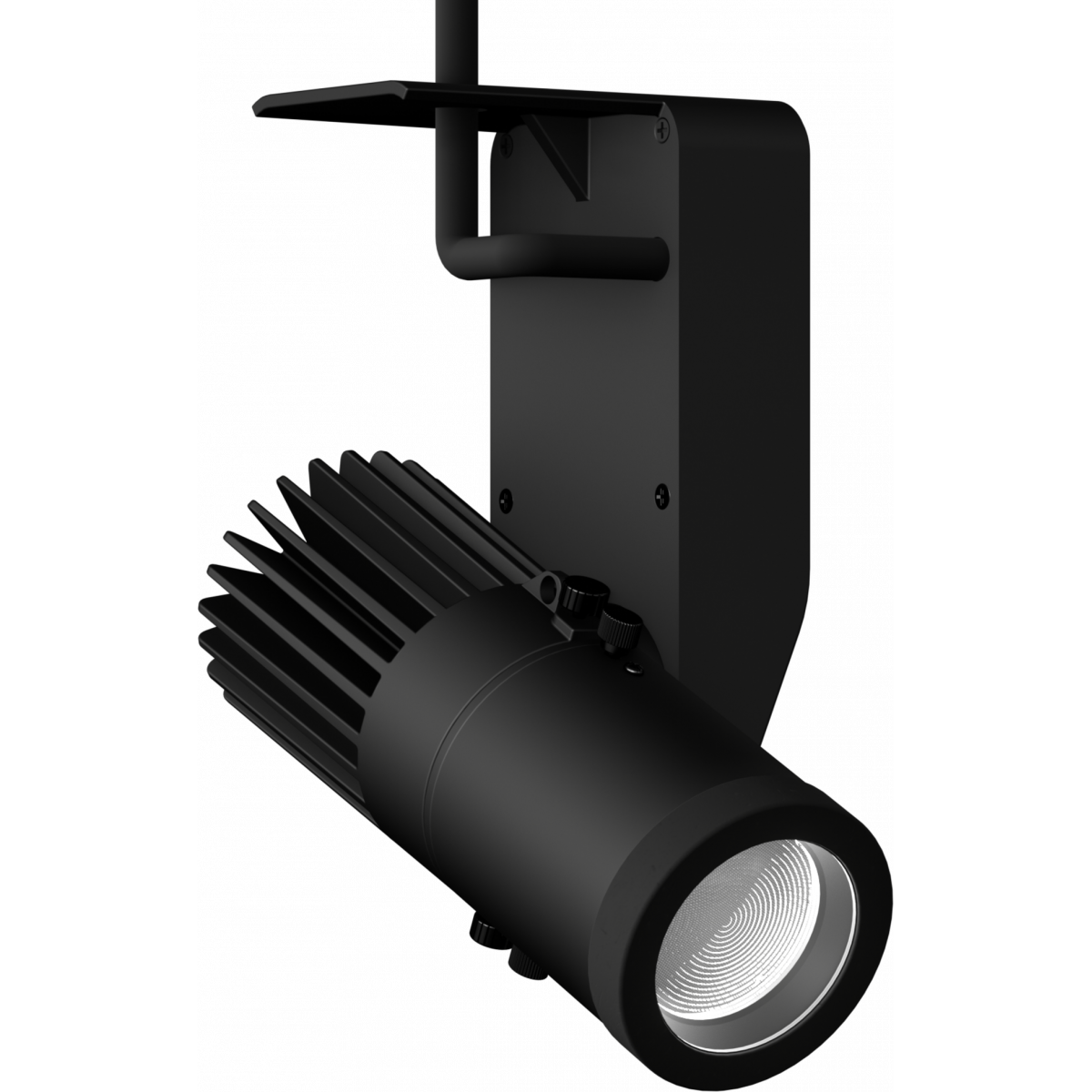

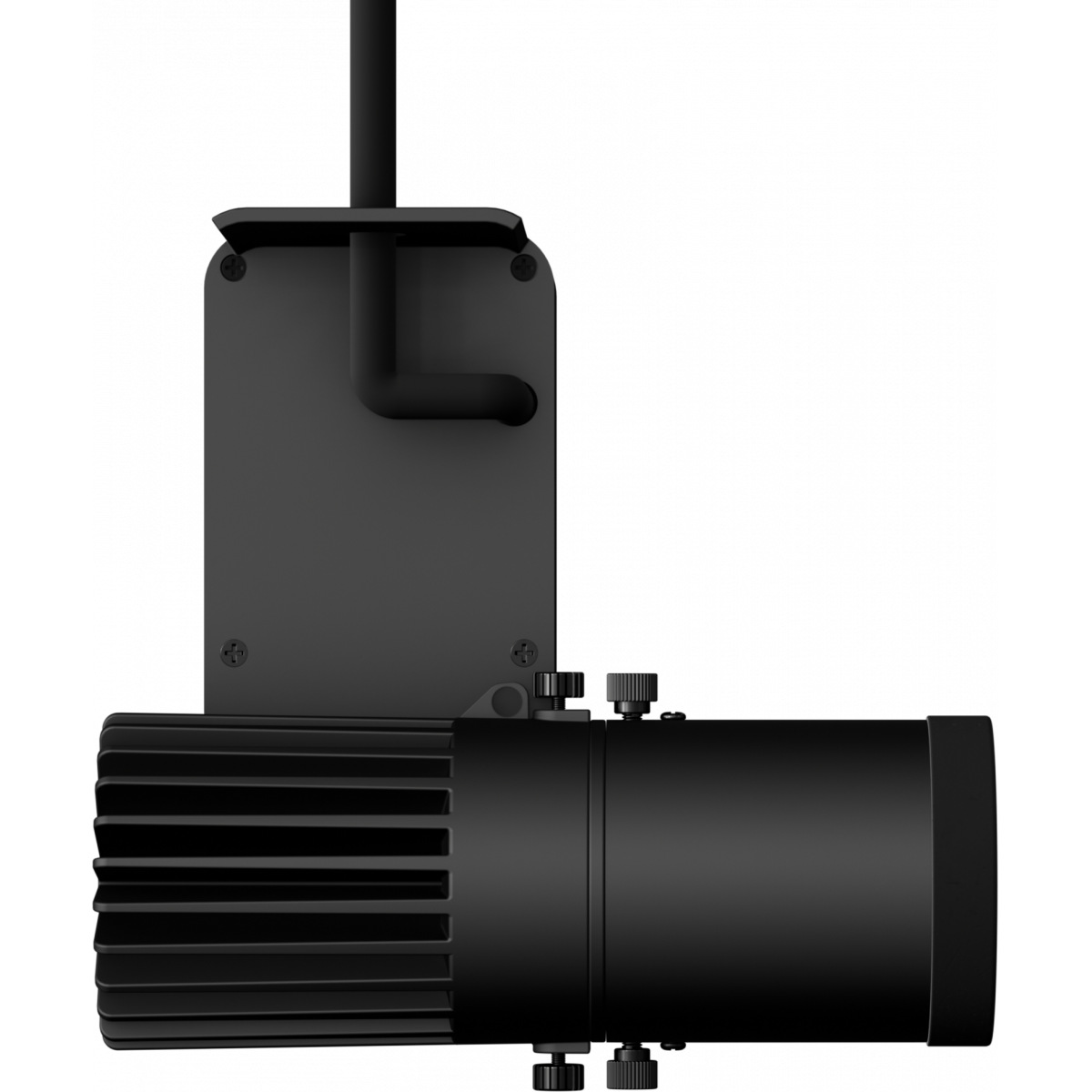

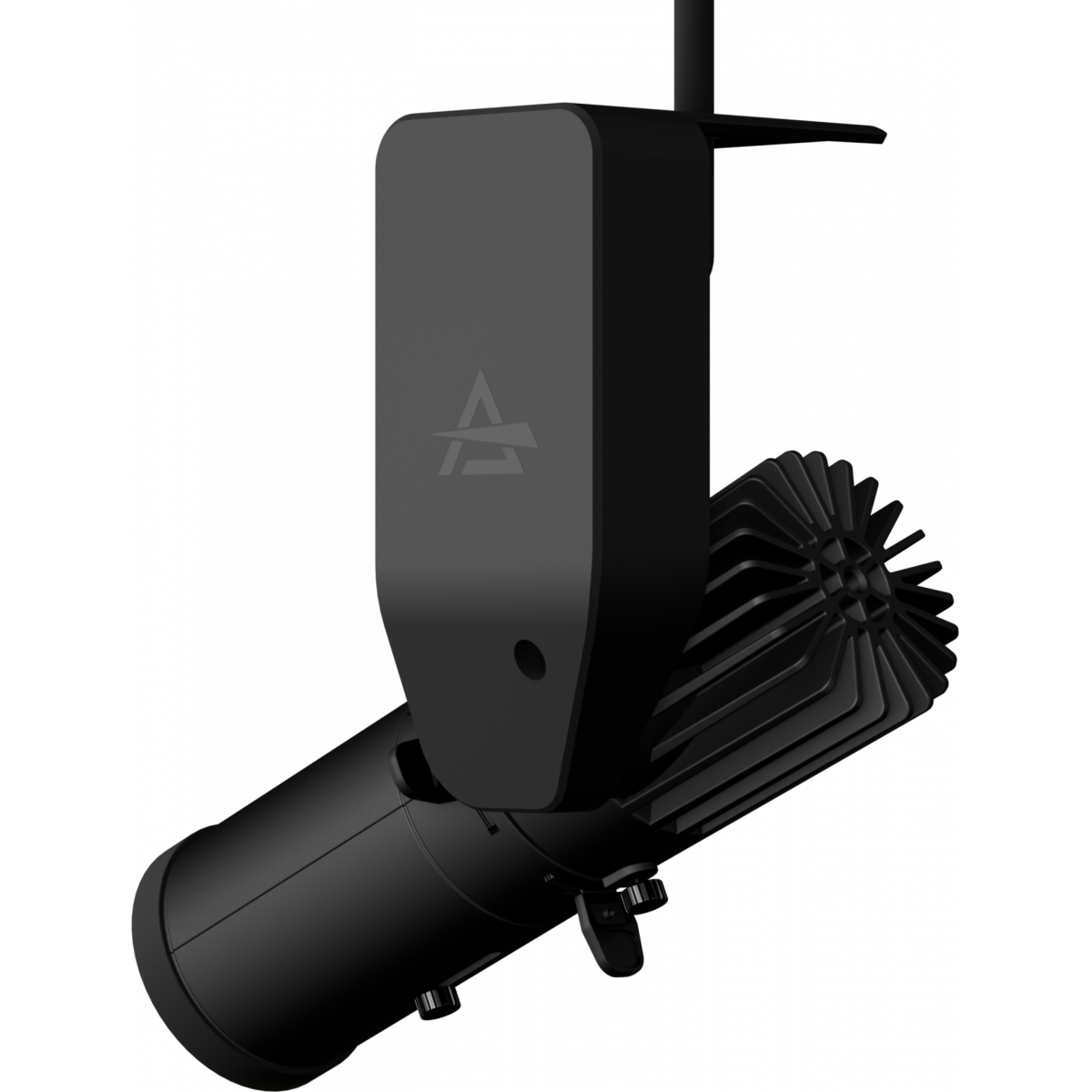

EclMini CC

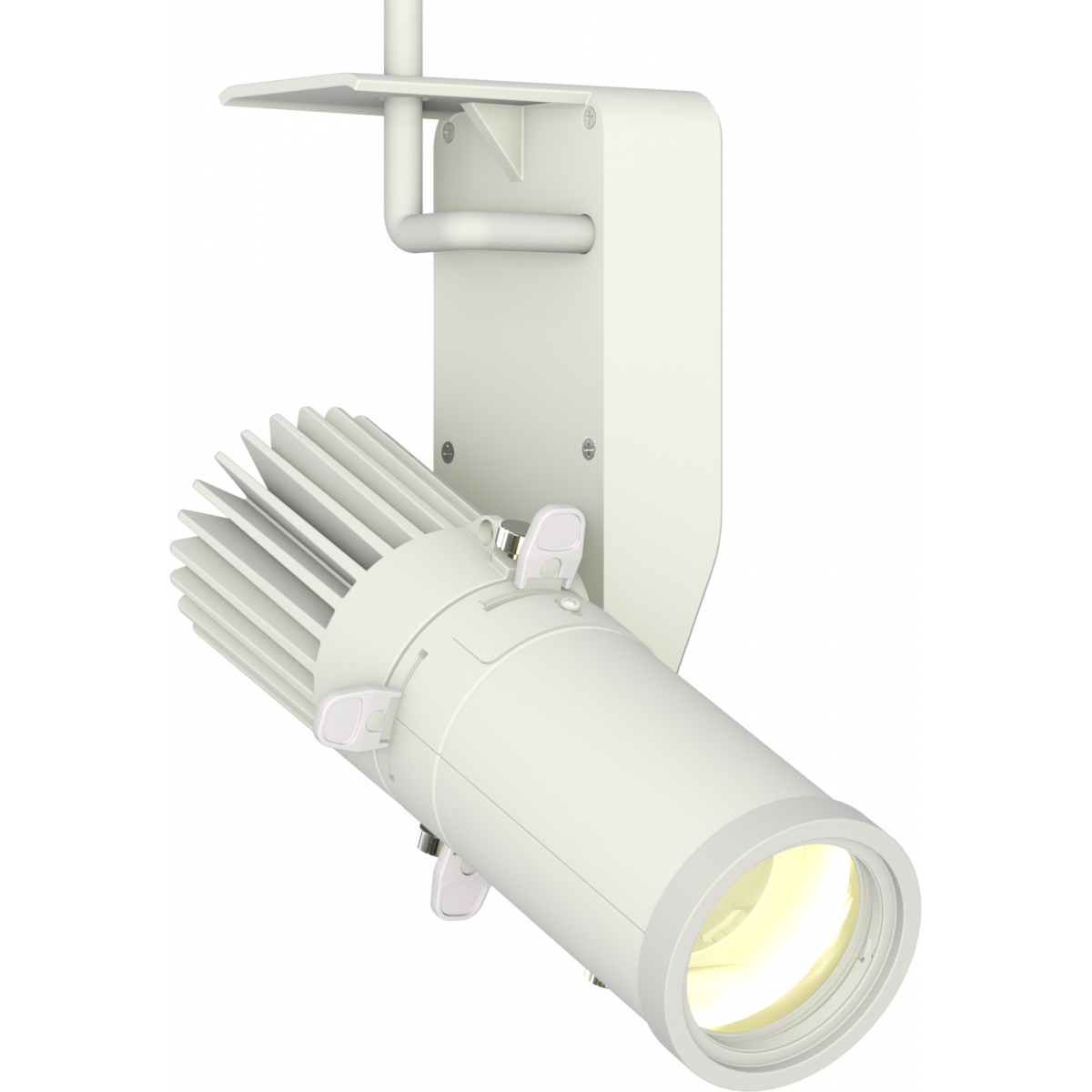

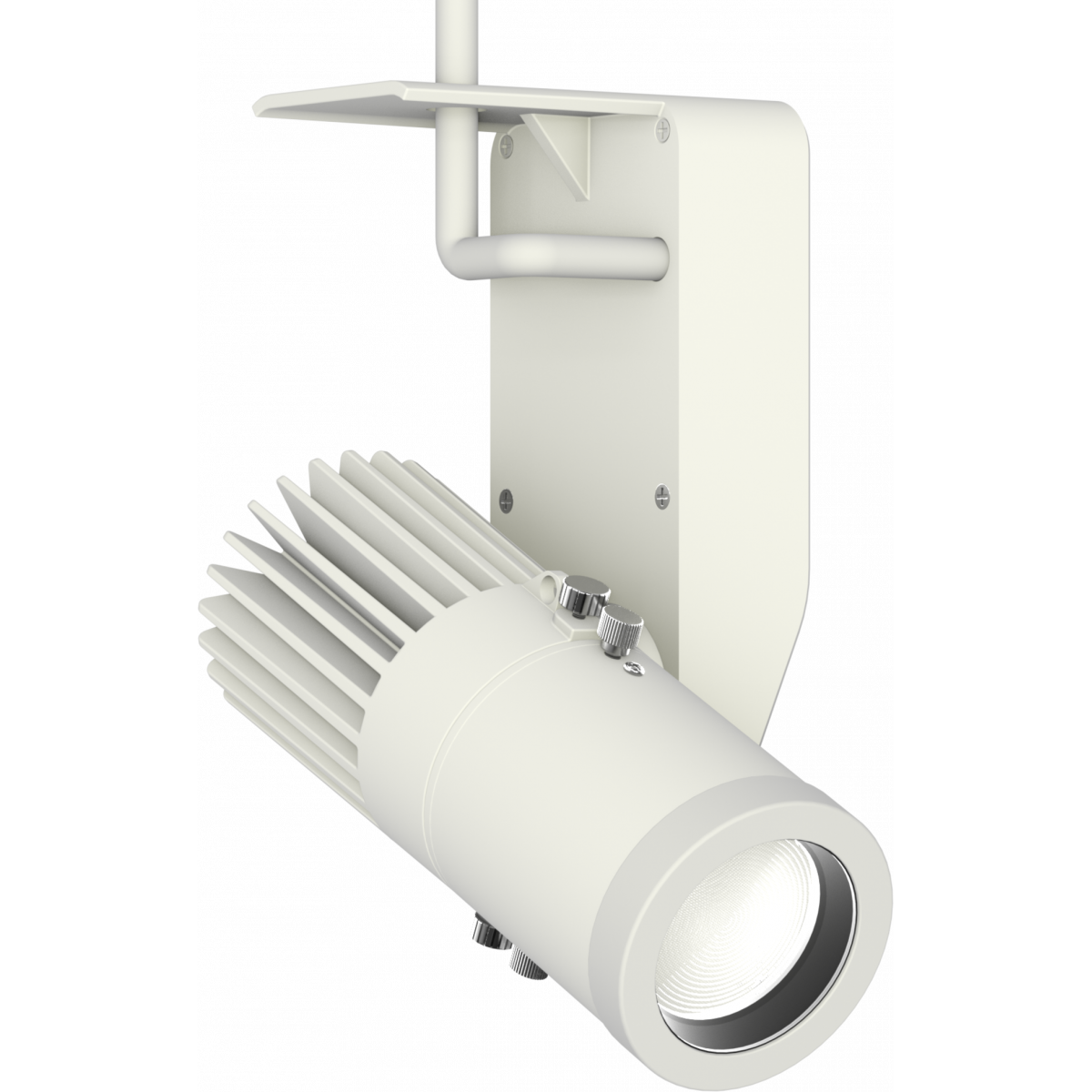

EclMini CC

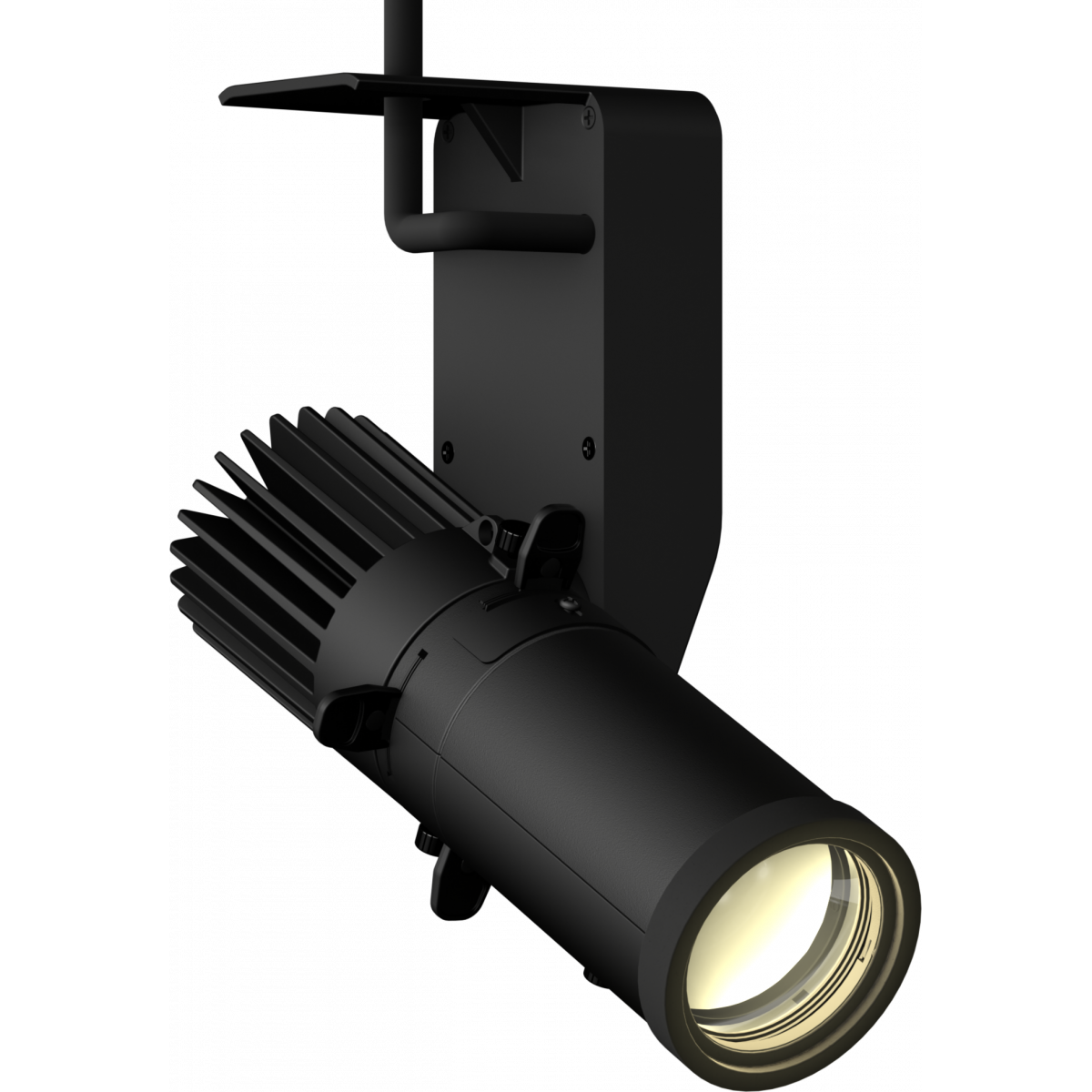

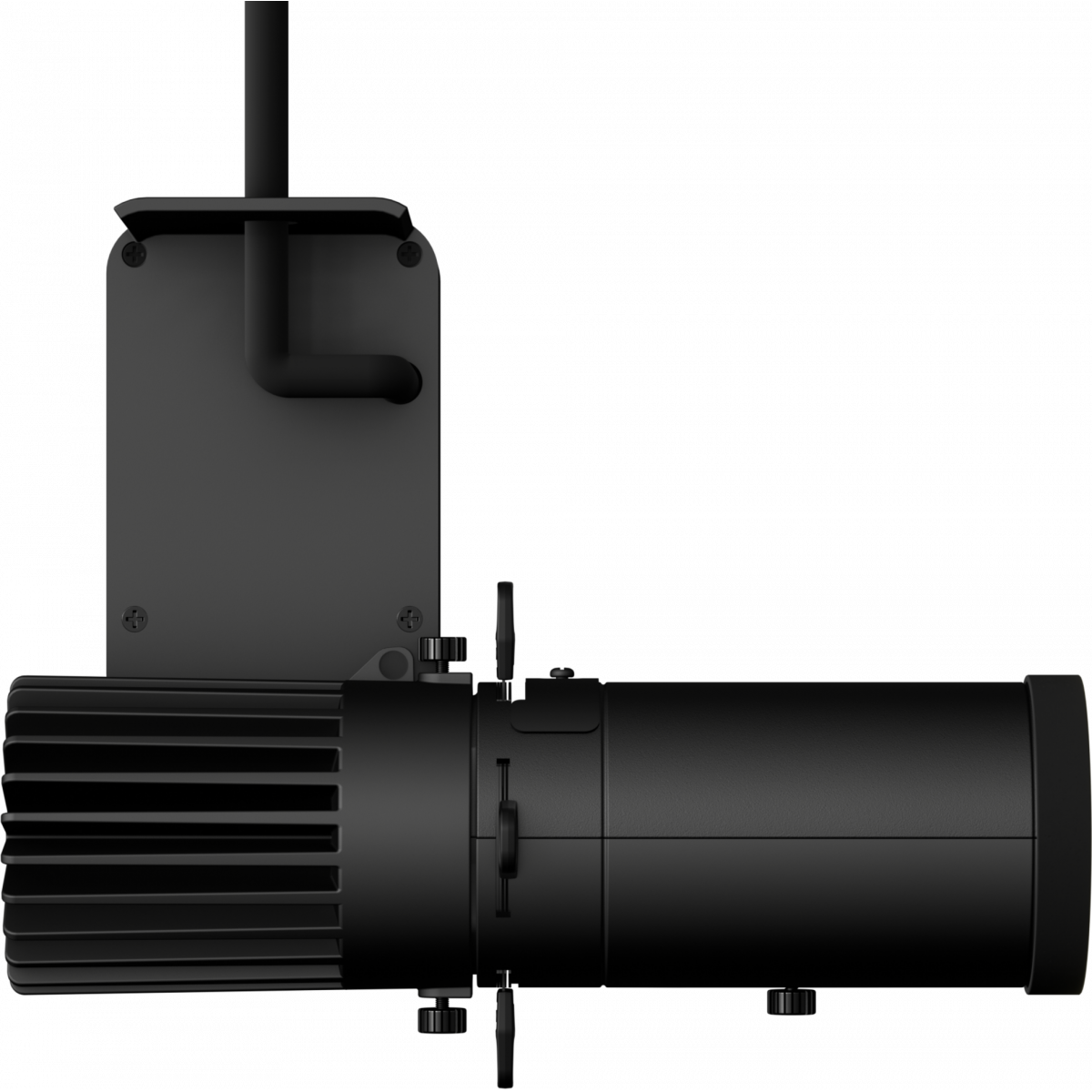

EclMini CC

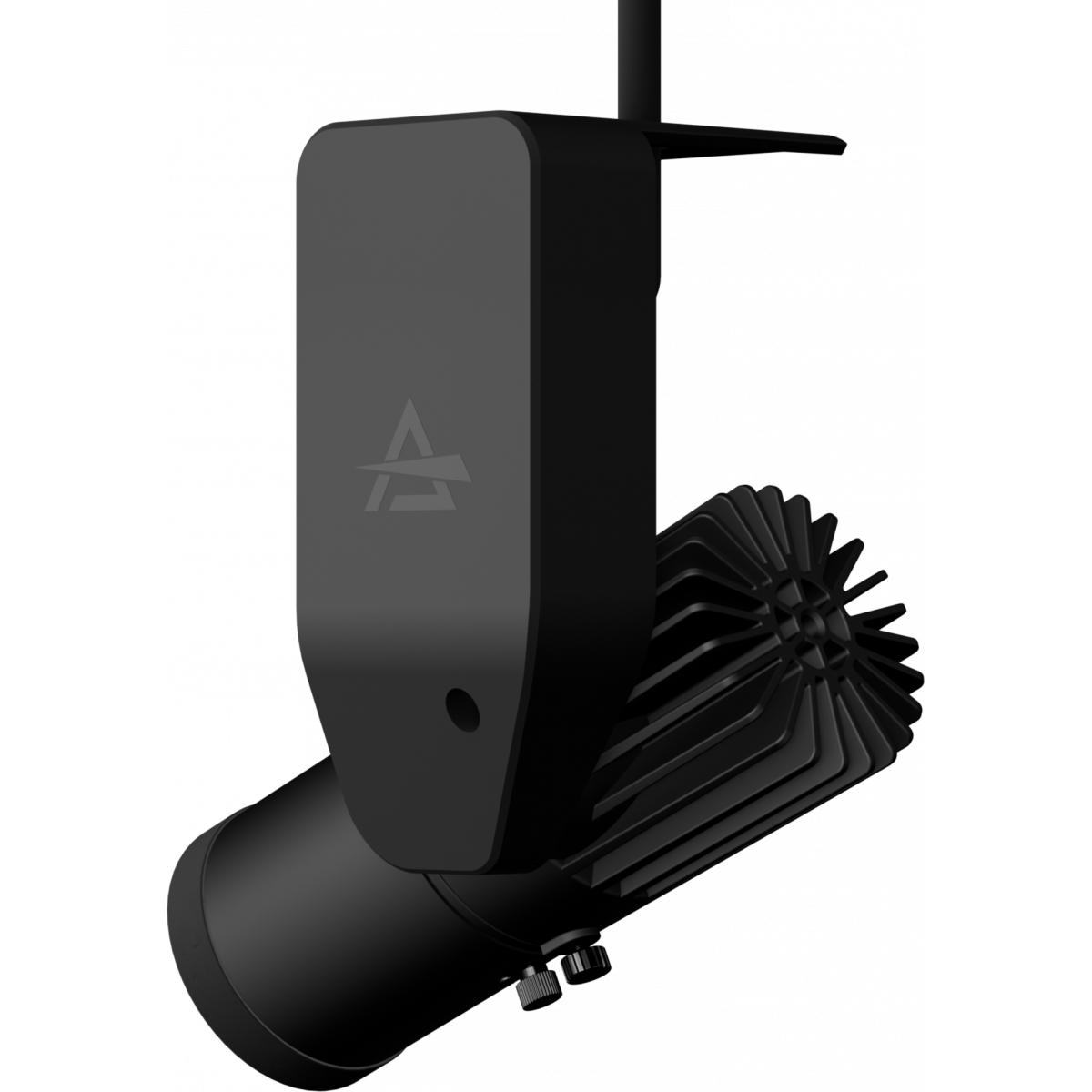

EclMini CC
EclMini CC
EclMini CC
EclMini CC
EclMini CC

Technical specifications

LIGHT SOURCE
  • Source: 18W White COB LED
  • CCT: 2.700K - 3.000K - 4.000K - 5.600
  • Luminous flux: (3.000K) (19°) 1.134 lm - (26°) 1.130 lm - (36°) 1.144 lm - (50°) 1.105lm
  • Luminous flux: (5.600K) (19°) 1.230 lm - (26°) 1.250 lm - (36°) 1.251 lm - (50°) 1.212 lm @full
  • Lux: (3.000K) (19°) 588 lx - (26°) 334 lx - (36°) 184 lx - (50°) 98lx
  • Lux: (5.600K) (19°) 632 lx - (26°) 363 lx - (36°) 193 lx - (50°) 105lx
  • CRI: 93 @2.700 K; 92 @3.000 K; 89@4.000 K; 93 @5.600 K
  • R9: TBD
  • TLCI: 84 @2.700 K; 87 @3.000 K; 89 @4.000 K; 95 @5.600 K
  • TM30 Rf: > 89 @2.700 K; 3.000 K; 4.000 K; > 93 @5.600 K
  • TM30 Rg: > 102 @2.700 K; 3.000 K; 4.000 K; 5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Optics: (profile lens - optional) 19°, 26°, 36°, 50° - gobo holder included
  • Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50°
  • Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens - optional) gobo holder size E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9003
  • Other: 1m cable included - Cable diameter range: 6 - 10 mm
ELECTRICAL
  • Constant Current mains: max 500mA/36V
  • Max power consumption: 18W
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Dimensions (WxHxD): 103X170x103mm / 4.06''x4.06''
  • Weight: 1kg / 2.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
CT
Finishing
Track adapter
Optics
ECLMINICC27KB
ECLMINICC27KB (NEW)
2700K
Black
Not included
Not included
ECLMINICC30KB
ECLMINICC30KB (NEW)
3000K
Black
Not included
Not included
ECLMINICC40KB
ECLMINICC40KB (NEW)
4000K
Black
Not included
Not included
ECLMINICC56KB
ECLMINICC56KB (NEW)
5600K
Black
Not included
Not included
ECLMINICC27KW
ECLMINICC27KW (NEW)
2700K
White
Not included
Not included
ECLMINICC30KW
ECLMINICC30KW (NEW)
3000K
White
Not included
Not included
ECLMINICC40KW
ECLMINICC40KW (NEW)
4000K
White
Not included
Not included
ECLMINICC56KW
ECLMINICC56KW (NEW)
5600K
White
Not included
Not included

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

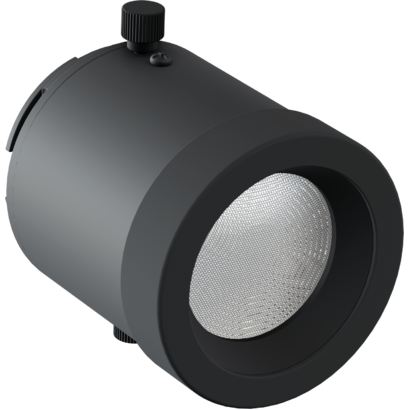

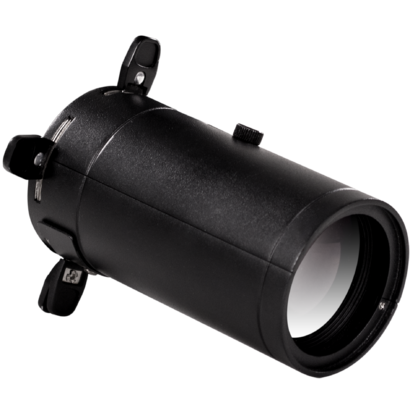

<b>EclMini</b> WashLens 15°- 30°
EclMini WashLens 15°- 30°
(optional)
Zoomable Wash Lens 15-30° for EclMini, black

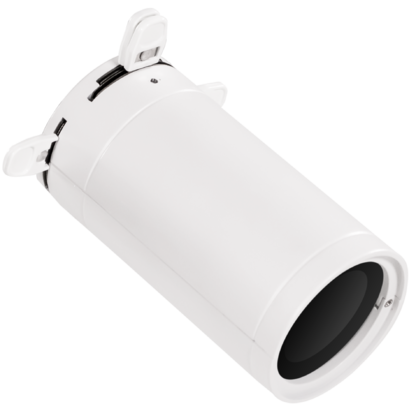

<b>EclMini</b> WashLens 15°- 30°
EclMini WashLens 15°- 30°
(optional)
Zoomable Wash Lens 15-30° for EclMini, white

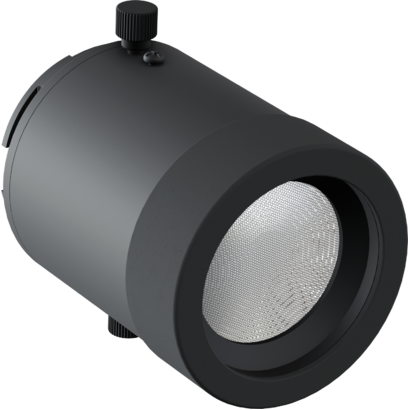

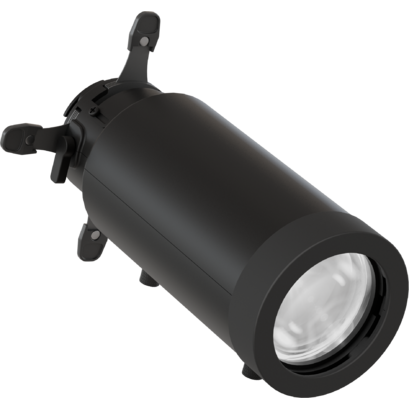

<b>EclMini</b> WashLens 25°- 50°
EclMini WashLens 25°- 50°
(optional)
Zoomable Wash Lens 25-50° for EclMini, black
<b>EclMini</b> WashLens 25°- 50°
EclMini WashLens 25°- 50°
(optional)
Zoomable Wash Lens 25-50° for EclMini, white

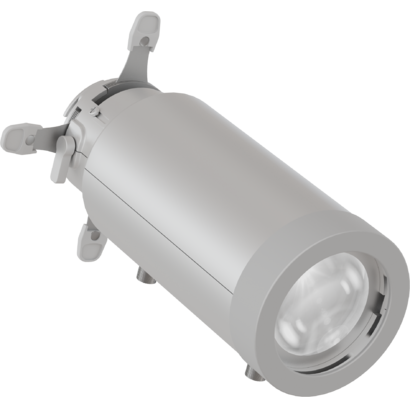

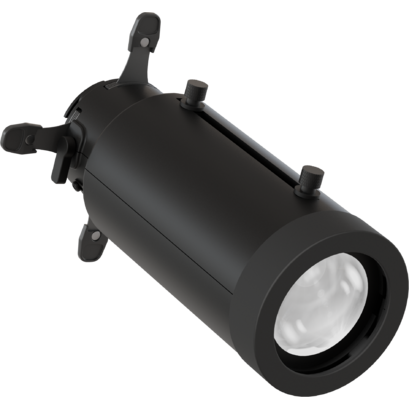

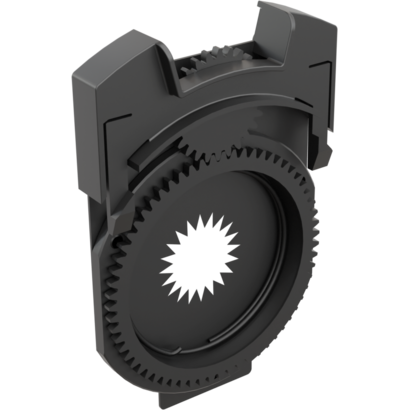

MINIECLL19
MINIECLL19
(optional)
Optics for MINIECL profiler, gobo holder included, 19° beam
MINIECLL26
MINIECLL26
(optional)
Optics for MINIECL profiler, gobo holder included, 26° beam
MINIECLL36
MINIECLL36
(optional)
Optics for MINIECL profiler, gobo holder included, 36° beam
MINIECLL50
MINIECLL50
(optional)
Optics for MINIECL profiler, gobo holder included, 50° beam
MINIECLTRL19
MINIECLTRL19
(optional)
Optics for MINIECLTR profiler, gobo holder included, 19° beam
MINIECLTRL26
MINIECLTRL26
(optional)
Optics for MINIECLTR profiler, gobo holder included, 26° beam
MINIECLTRL36
MINIECLTRL36
(optional)
Optics for MINIECLTR profiler, gobo holder included, 36° beam
MINIECLTRL50
MINIECLTRL50
(optional)
Optics for MINIECLTR profiler, gobo holder included, 50° beam

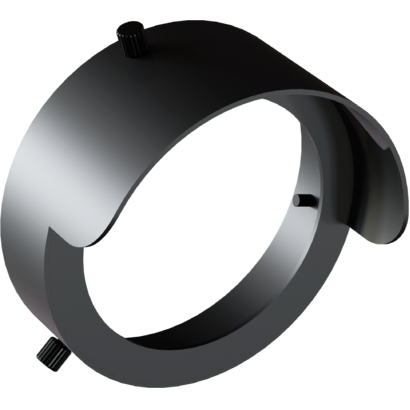

<b>EclMini</b> Half Snoot
EclMini Half Snoot
(optional)
Half Snoot for EclMini, black
<b>EclMini</b> Half Snoot
EclMini Half Snoot
(optional)
Half Snoot for EclMinix, white

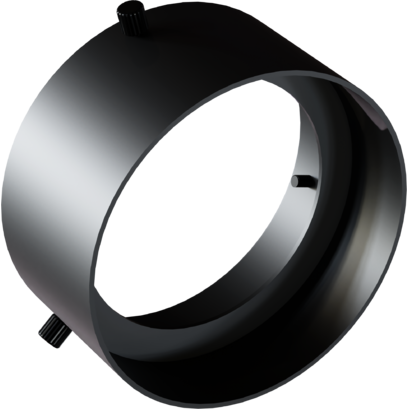

<b>EclMini</b> Full Snoot
EclMini Full Snoot
(optional)
Full Snoot for EclMini, black
<b>EclMini</b> Full Snoot
EclMini Full Snoot
(optional)
Full Snoot for EclMini, white

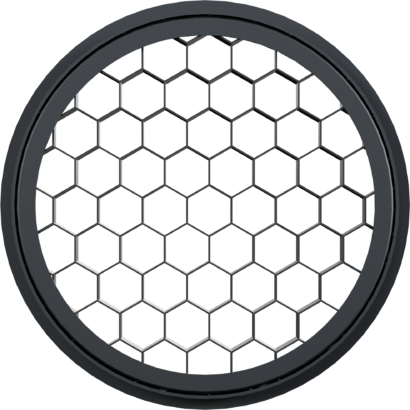

<b>EclMini</b> Louvre
EclMini Louvre
(optional)
Anti-glare louvre for EclMini, black
<b>EclMini</b> Louvre
EclMini Louvre
(optional)
Anti-glare louvre for EclMini, white

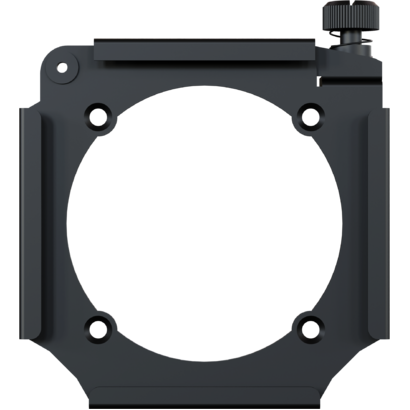

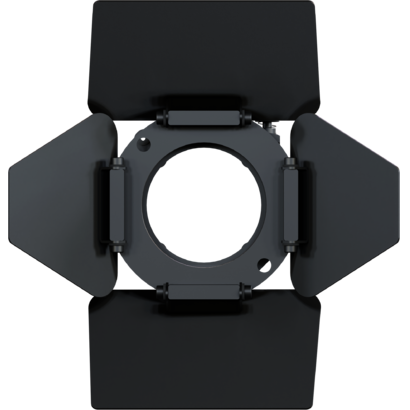

<b>EclMini</b> Barndoor+Frame
EclMini Barndoor+Frame
(optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclMini, black
ECLMINIHNFFB
ECLMINIHNFFB
(optional)
Holder and filter frame (compatible with Wash Lenses) for EclMini, black
ECLMINIHNFFW
ECLMINIHNFFW
(optional)
Holder and filter frame (compatible with Wash Lenses) for EclMini, white
<b>EclMini</b> Barndoor+Frame
EclMini Barndoor+Frame
(optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclMini, white

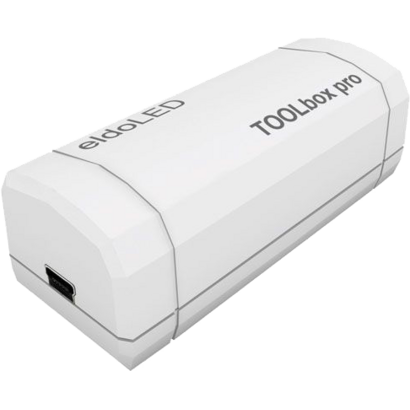

<b>ToolBox </b> Pro
ToolBox Pro
(optional)
TOOLbox pro

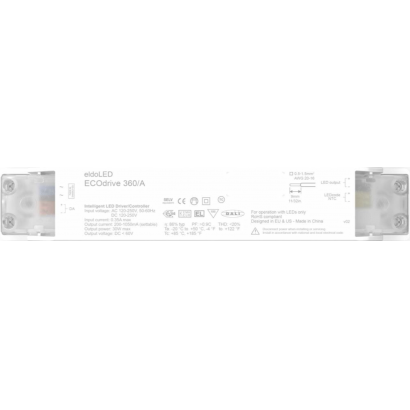

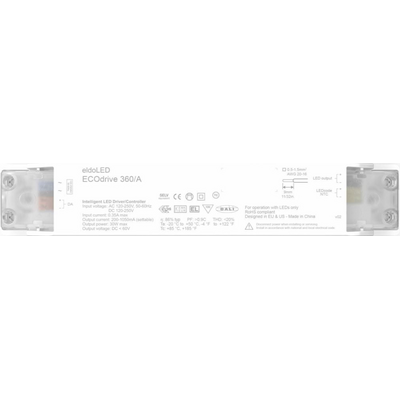

<b>EcoDrive</b> 360/A
EcoDrive 360/A
(optional)
ECOdrive, 30W, DALI-2, Pulse dimming, 1 control channel, con. cur., 1x55V output
NAXTSC61003
NAXTSC61003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000mm, white
NAXTSC62002
NAXTSC62002
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000mm, black
NAXTSC62003
NAXTSC62003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000mm, white
NAXTSC63002
NAXTSC63002
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000mm, black
NAXTSC63003
NAXTSC63003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000mm, white
NAXTSC64002
NAXTSC64002
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000mm, black
NAXTSC64003
NAXTSC64003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000mm, white
NAXTSC6112
NAXTSC6112
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black
NAXTSC6113
NAXTSC6113
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white
NAXTSC6122
NAXTSC6122
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black
NAXTSC6123
NAXTSC6123
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white
NAXTSC6142
NAXTSC6142
(optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, black
NAXTSC6212
NAXTSC6212
(optional)
Global Pulse XTS Connector 3-CCT DALI straight connector, black
NAXTSC6143
NAXTSC6143
(optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, white
NAXTSC6232
NAXTSC6232
(optional)
Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black
NAXTSC6213
NAXTSC6213
(optional)
Global Pulse XTS Connector 3-CCT DALI straight connector, white
NAXTSC6233
NAXTSC6233
(optional)
Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white
NAXTSNC6342
NAXTSNC6342
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black
NAXTSNC6343
NAXTSNC6343
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white
NAXTSNC6352
NAXTSNC6352
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black
NAXTSNC6353
NAXTSNC6353
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white
NAXTSNC6362
NAXTSNC6362
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black
NAXTSNC6363
NAXTSNC6363
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white
NAXTSNC6372
NAXTSNC6372
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black
NAXTSNC6373
NAXTSNC6373
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white
NAXTSNC6382
NAXTSNC6382
(optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, black
NAXTSNC6383
NAXTSNC6383
(optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, white
NAXTSNC6392
NAXTSNC6392
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black
NAXTSNC6393
NAXTSNC6393
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white
NAXTSNC6402
NAXTSNC6402
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black
NAXTSNC6403
NAXTSNC6403
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white
NAXTS412
NAXTS412
(optional)
Global Pulse XTS Connector 3-CCT DALI END cap, black
NAXTS413
NAXTS413
(optional)
Global Pulse XTS Connector 3-CCT DALI END cap, white

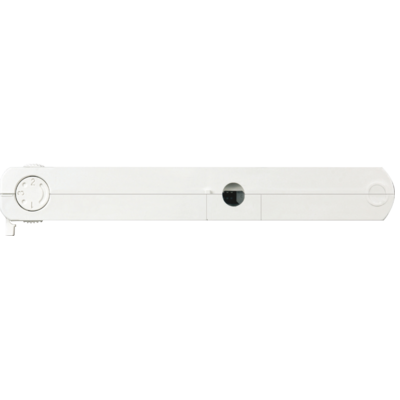

NAGA0172
NAGA0172
(optional)
Global Pulse 3-Circuit Adapter-Driver, 200-700mA, 8,8-31W, black

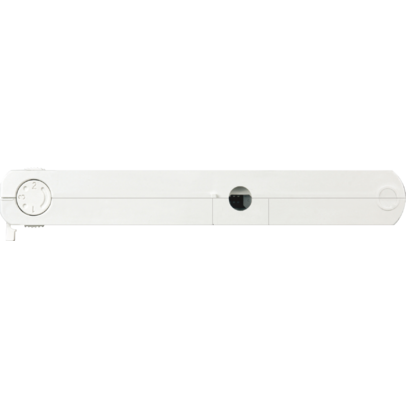

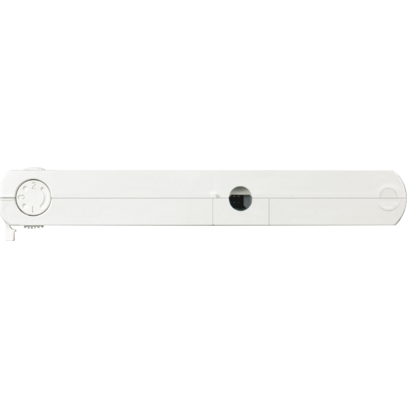

NAGA0173
NAGA0173
(optional)
Global Pulse 3-Circuit Adapter-Driver, 200-700mA, 8,8-31W, white
NAGAC6162
NAGAC6162
(optional)
Global Pulse DALI 3-Circuit Adapter-Drivers, 300-1050mA, 12,6-40W, black

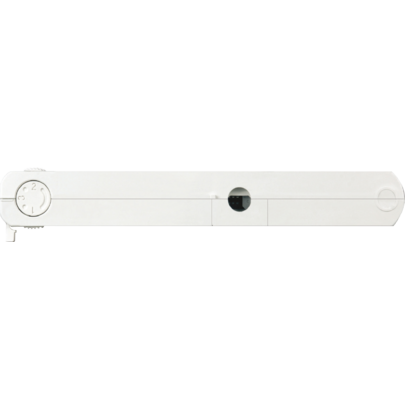

NAGAC6163
NAGAC6163
(optional)
Global Pulse DALI 3-Circuit Adapter-Drivers, 300-1050mA, 12,6-40W, white

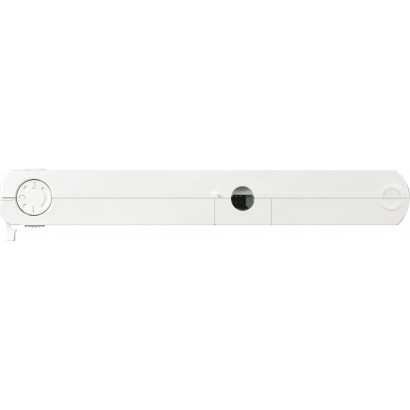

NAGAW0162
NAGAW0162
(optional)
Global Pulse CASAMBI 3-Circuit Adapter-Drivers, black

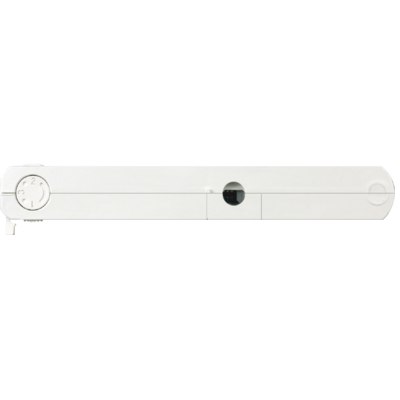

NAGAW0163
NAGAW0163
(optional)
Global Pulse CASAMBI 3-Circuit Adapter-Drivers, white
NASPW12SK215M
NASPW12SK215M
(optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, black
NASPW12SK25M
NASPW12SK25M
(optional)
Global Pulse Track clip wire suspension set 5m, 150N, black
NASPW12SK315M
NASPW12SK315M
(optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, white
NASPW12SK35M
NASPW12SK35M
(optional)
Global Pulse Track clip wire suspension set 5m, 150N, white
NAXTSA55129
NAXTSA55129
(optional)
Global Pulse Rotating Nipples 3-Circuit Adapters, M13, H 12mm, D 9mm
NAGAM139
NAGAM139
(optional)

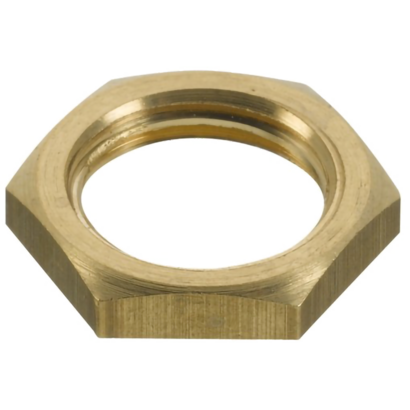

Global Pulse Nut M13 for NAXTSA55129
NASKB122
NASKB122
(optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, black
NASKB123
NASKB123
(optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, white

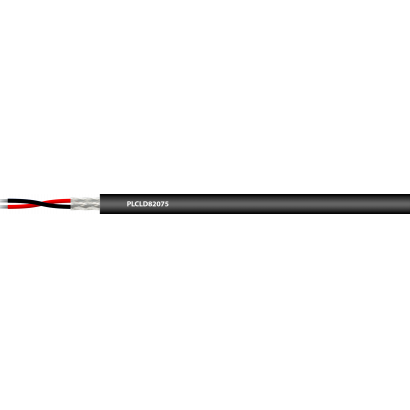

PLCLD82075
PLCLD82075
(optional)
LED Driver PVC cable black 2x0,75 mmq D=6,5mm (BLACK-RED), 1 meter lenght

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclminicc_A4_DATASHEET_(EN).pdf 433KB
Letter datasheet Eclminicc_LETTER_DATASHEET_(EN).pdf 190KB
Tender Specification Eclminicc_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual Eclminicc_USER_MANUAL_EN.pdf 3MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB

DMX chart & personalities

File name File size Download
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
VectorWorks ECLMINICC27KB+L1530B_VW_SYMBOLS.vwx 478KB
VectorWorks ECLMINICC27KB+L2550B_VW_SYMBOLS.vwx 466KB
VectorWorks ECLMINICC27KB+L19_VW_SYMBOLS.vwx 602KB
VectorWorks ECLMINICC27KB+L26_VW_SYMBOLS.vwx 600KB
VectorWorks ECLMINICC27KB+L36_VW_SYMBOLS.vwx 602KB
VectorWorks ECLMINICC27KB+L50_VW_SYMBOLS.vwx 601KB
VectorWorks ECLMINICC27KW+L1530W_VW_SYMBOLS.vwx 473KB
VectorWorks ECLMINICC27KW+L2550W_VW_SYMBOLS.vwx 481KB
VectorWorks ECLMINICC27KW+TRL19_VW_SYMBOLS.vwx 610KB
VectorWorks ECLMINICC27KW+TRL26_VW_SYMBOLS.vwx 612KB
VectorWorks ECLMINICC27KW+TRL36_VW_SYMBOLS.vwx 615KB
VectorWorks ECLMINICC27KW+TRL50_VW_SYMBOLS.vwx 617KB
VectorWorks ECLMINICC30KB+L1530B_VW_SYMBOLS.vwx 479KB
VectorWorks ECLMINICC30KB+L2550B_VW_SYMBOLS.vwx 462KB
VectorWorks ECLMINICC30KB+L19_VW_SYMBOLS.vwx 604KB
VectorWorks ECLMINICC30KB+L26VW_SYMBOLS.vwx 612KB
VectorWorks ECLMINICC30KB+L36_VW_SYMBOLS.vwx 602KB
VectorWorks ECLMINICC30KB+L50_VW_SYMBOLS.vwx 602KB
VectorWorks ECLMINICC30KW+L1530W_VW_SYMBOLS.vwx 477KB
VectorWorks ECLMINICC30KW+L2550W_VW_SYMBOLS.vwx 481KB
VectorWorks ECLMINICC30KW+TRL19_VW_SYMBOLS.vwx 609KB
VectorWorks ECLMINICC30KW+TRL26_VW_SYMBOLS.vwx 614KB
VectorWorks ECLMINICC30KW+TRL36_VW_SYMBOLS.vwx 606KB
VectorWorks ECLMINICC30KW+TRL50_VW_SYMBOLS.vwx 621KB
VectorWorks ECLMINICC40KB+L1530B_VW_SYMBOLS.vwx 480KB
VectorWorks ECLMINICC40KB+L2550B_VW_SYMBOLS.vwx 466KB
VectorWorks ECLMINICC40KB+L19_VW_SYMBOLS.vwx 602KB
VectorWorks ECLMINICC40KB+L26_VW_SYMBOLS.vwx 612KB
VectorWorks ECLMINICC40KB+L36_VW_SYMBOLS.vwx 599KB
VectorWorks ECLMINICC40KB+L50_VW_SYMBOLS.vwx 601KB
VectorWorks ECLMINICC40KW+L1530W_VW_SYMBOLS.vwx 477KB
VectorWorks ECLMINICC40KW+L2550W_VW_SYMBOLS.vwx 479KB
VectorWorks ECLMINICC40KW+TRL19_VW_SYMBOLS.vwx 606KB
VectorWorks ECLMINICC40KW+TRL26_VW_SYMBOLS.vwx 612KB
VectorWorks ECLMINICC40KW+TRL36_VW_SYMBOLS.vwx 615KB
VectorWorks ECLMINICC40KW+TRL50_VW_SYMBOLS.vwx 621KB
VectorWorks ECLMINICC56KB+L1530B_VW_SYMBOLS.vwx 482KB
VectorWorks ECLMINICC56KB+L2550B_VW_SYMBOLS.vwx 470KB
VectorWorks ECLMINICC56KB+L19_VW_SYMBOLS.vwx 601KB
VectorWorks ECLMINICC56KB+L26_VW_SYMBOLS.vwx 604KB
VectorWorks ECLMINICC56KB+L36_VW_SYMBOLS.vwx 602KB
VectorWorks ECLMINICC56KB+L50_VW_SYMBOLS.vwx 600KB
VectorWorks ECLMINICC56KW+L1530W_VW_SYMBOLS.vwx 485KB
VectorWorks ECLMINICC56KW+L2550W_VW_SYMBOLS.vwx 480KB
VectorWorks ECLMINICC56KW+TRL19_VW_SYMBOLS.vwx 609KB
VectorWorks ECLMINICC56KW+TRL26_VW_SYMBOLS.vwx 615KB
VectorWorks ECLMINICC56KW+TRL36_VW_SYMBOLS.vwx 618KB
VectorWorks ECLMINICC56KW+TRL50_VW_SYMBOLS.vwx 622KB

Photometrics

File name File size Download
IES prolights_eclmini_dat_cc_profile_ies files.zip 17KB
LDT prolights_eclmini_dat_cc_profile_ldt files.zip 16KB
IES prolights_eclmini_dat_cc_wash_ies files.zip 19KB
LDT prolights_eclmini_dat_cc_wash_ldt files.zip 18KB
PDF Photometrics Eclminicc_WASH_LENS_PHOTOMETRIC_REPORT.pdf 5MB
PDF Photometrics Eclminicc_PROFILE_LENS_PHOTOMETRIC_REPORT.pdf 4MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup ECLMINICC_3D_SKETCHUP.zip 11MB
2D ECLMINICC_2D.zip 10MB
3D ECLMINICC_3D.zip 17MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Info Request

News

22 September 2023
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
Alpha Show 2, the concert of the hip-hop singer Noizy, was illuminated by PROLIGHTS fixtures. The event, hosted in the Mother Teresa...
19 September 2023
PROLIGHTS fixtures light up the second edition of
PROLIGHTS fixtures light up the second edition of "I Venerdì di Ercolano"
PROLIGHTS products illuminated the second edition of "I Venerdì di Ercolano," a culturally enriching initiative proudly promoted and...
14 September 2023
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
The exceptional sparkle and enchanting ambiance that characterised the 63rd annual TV Week Logie Awards has been further enhanced by...
12 September 2023
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS fixtures lit up Skënderbej Square in Tirana, setting the stage for the Ricky Martin Symphonic concert. This performance...
05 September 2023
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
PROLIGHTS introduces the EclExpo Flood150, a compact and bright floodlight designed to substitute traditional CDM, HMI, and tungsten...
04 September 2023
Ultimo chooses Prolights for his summer stadium tour
Ultimo chooses Prolights for his summer stadium tour
Prolights solutions lit up the stadium tour of Ultimo, a young Roman singer-songwriter and leading artist on the Italian music scene....
30 August 2023
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
The British Drivers Club has chosen PROLIGHTS solutions to illuminate the VIP locations during the prestigious British Grand Prix at...
25 August 2023
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS products illuminated the Innamorato Tour of Blanco, the young artist reigning over the Italian music scene. Following the...
21 August 2023
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights fixtures played a pivotal role in the concert titled "Dekada" by the Albanian singer Elvana Gjata. This event marked a significant...
11 August 2023
DRTCC choose Prolights fixtures for a major upgrade
DRTCC choose Prolights fixtures for a major upgrade
Dubbo Regional Theatre and Convention Centre features the Joyce Schneider Auditorium, a 500-seat theatre with state-of-the-art facilities...
08 August 2023
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS unveils its new series of LED screens - KappaPix, SigmaPix, and GammaPix. These meticulously engineered products are designed...
04 August 2023
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
Prolights Sunblast 3000FC transformed the arcades of Bologna, a worldwide symbol of the city and UNESCO heritage site, into a magnificent...
Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter linkedin
Loading...
