EclProfile FWVW

High quality Variable White LED ellipsoidal, with linear CCT 2,700 K - 5,600 K

EclProfile FWVW is the Variable White version of the new generation of Ecl Profile LED ellipsoidals, offering linear CCT control  from 2,700 K to 5,600 K.
The EclProfile FWVW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on whites, offering a superior evenness and crisp focus of the new EclProfile range.
The LED source  has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

Main features:

  • Linear CCT control 2,700 K - 5,600 K.
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30).
  • Silent operation and compatible with industry standard accessories.

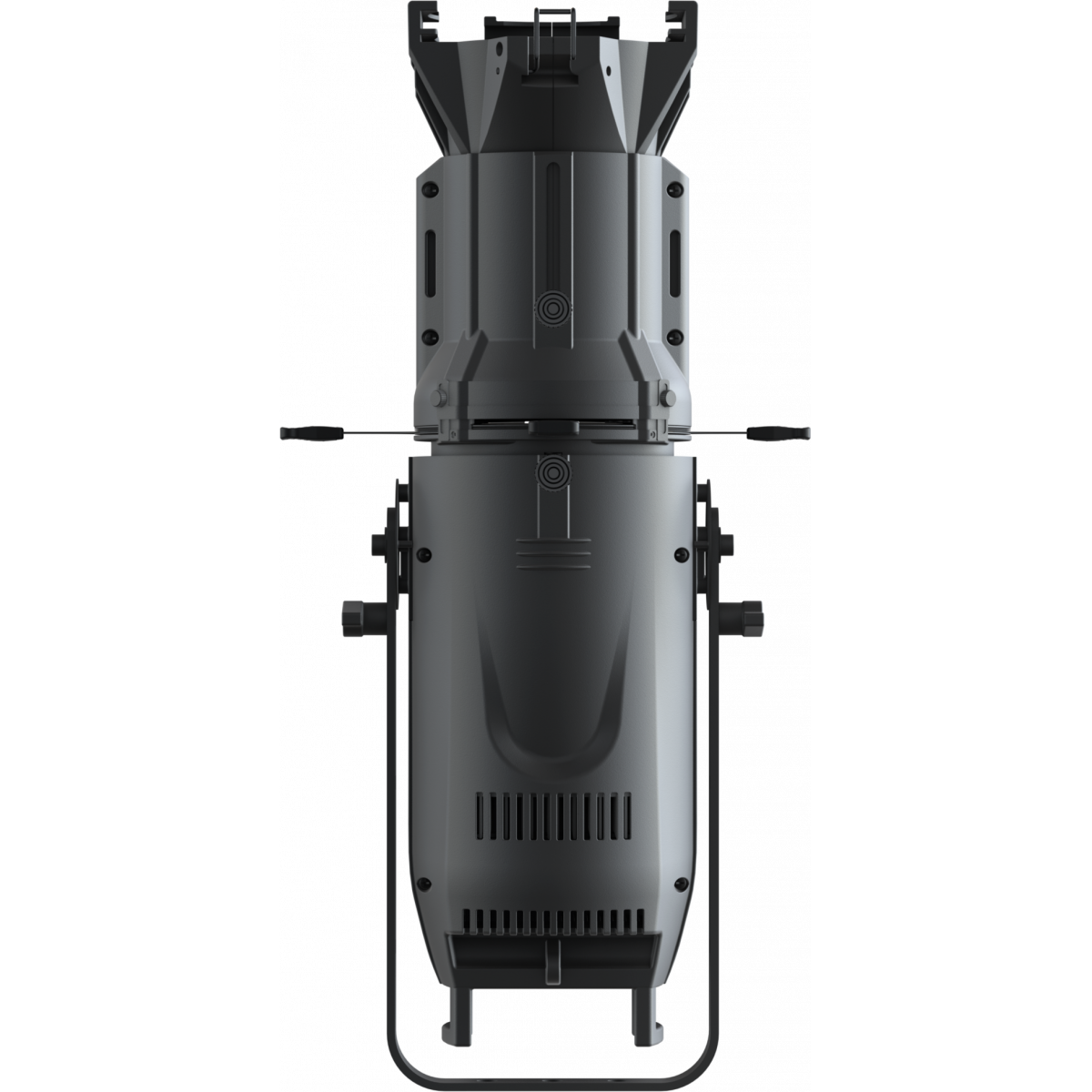

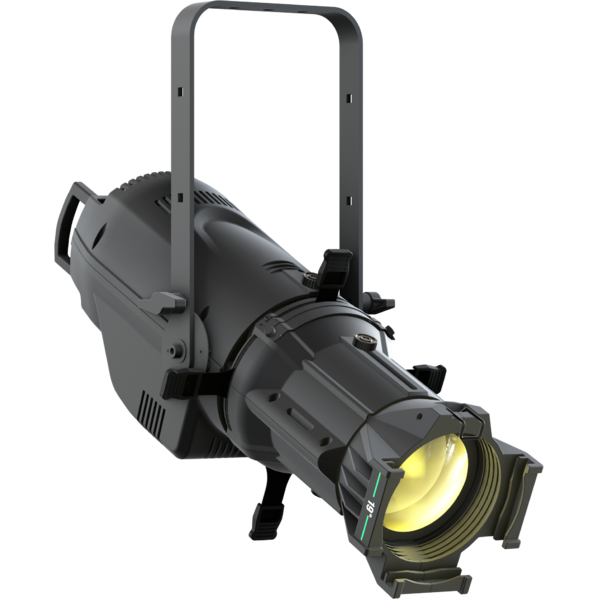

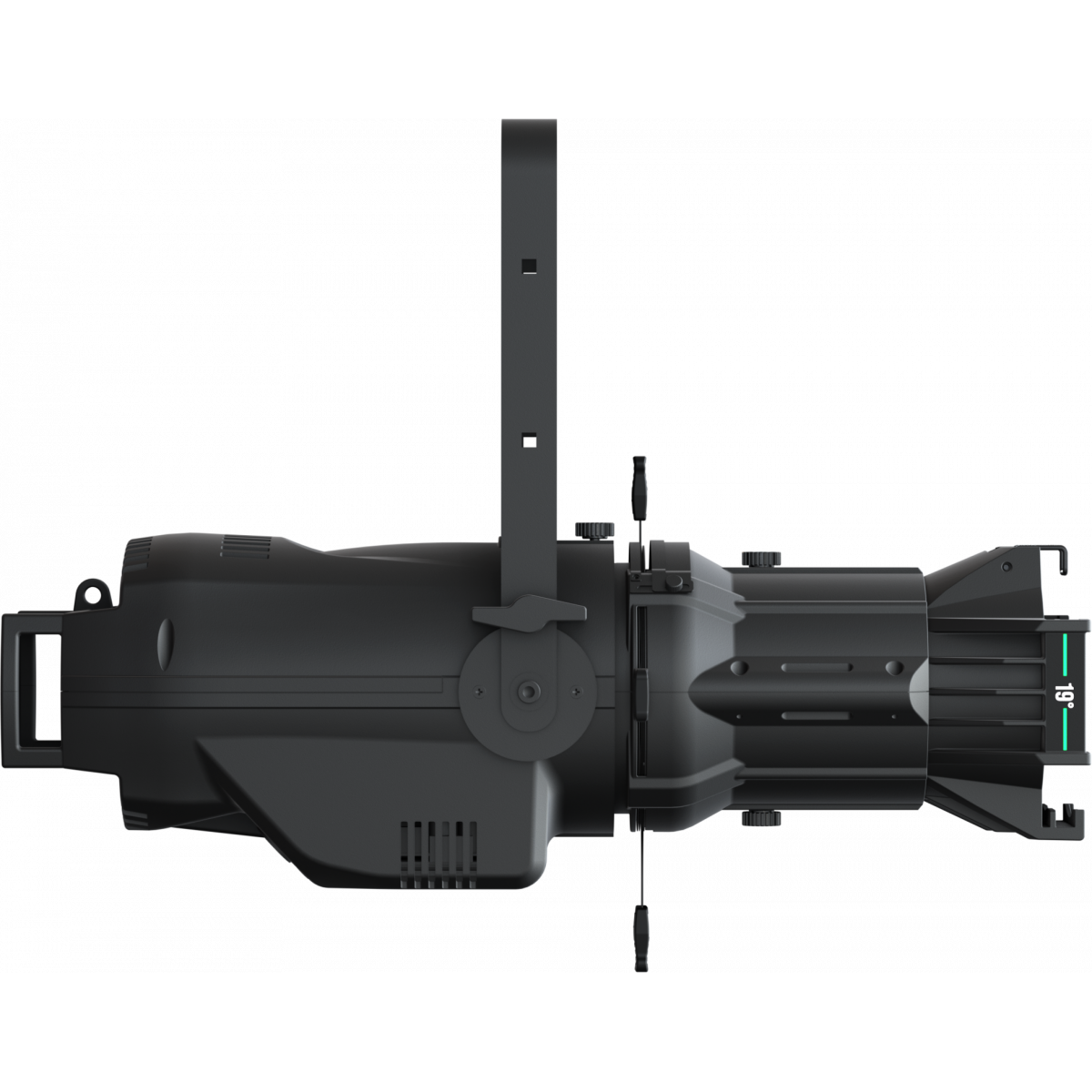

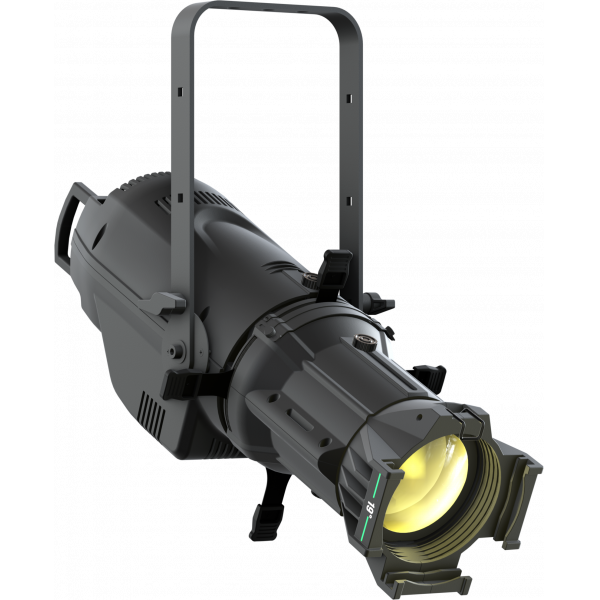

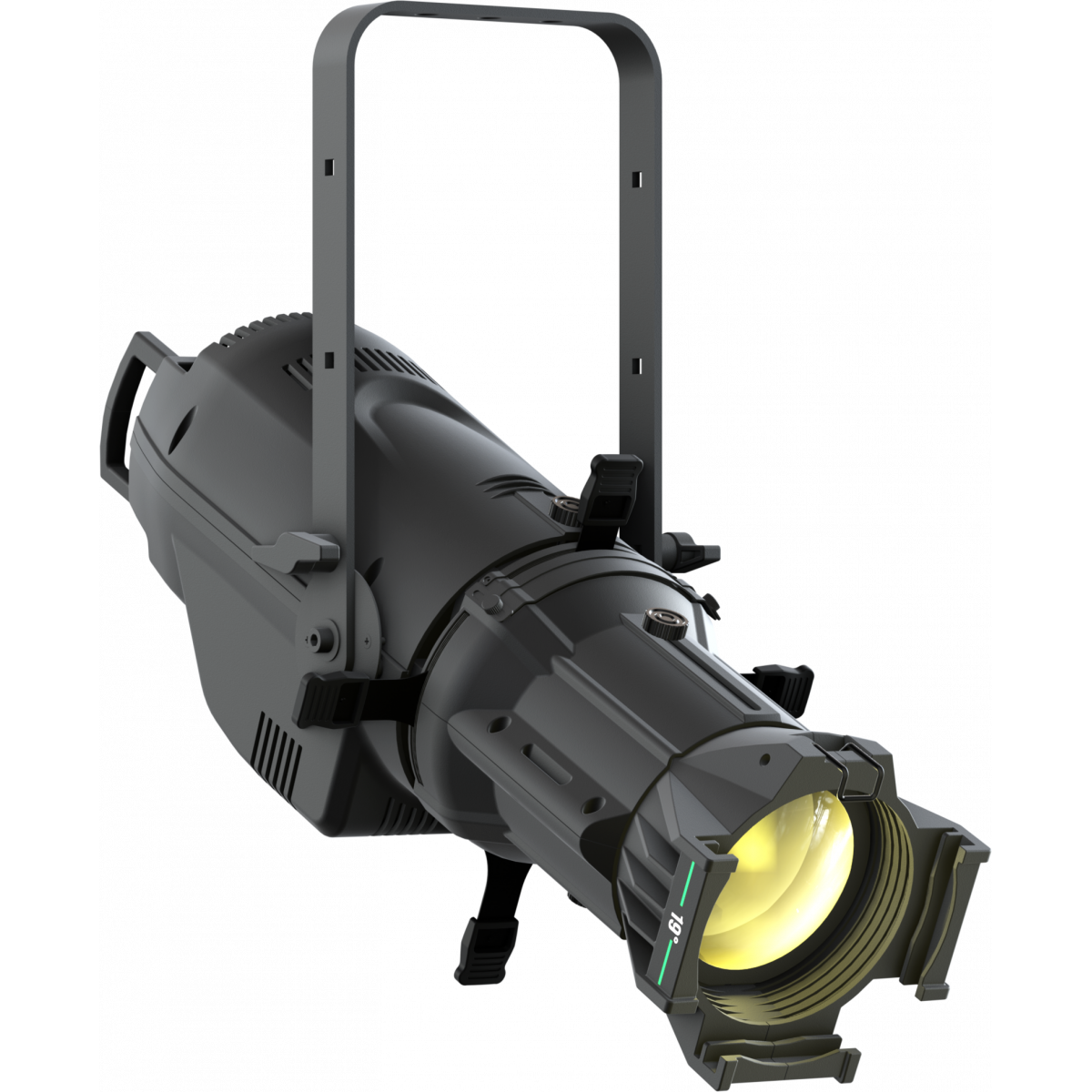

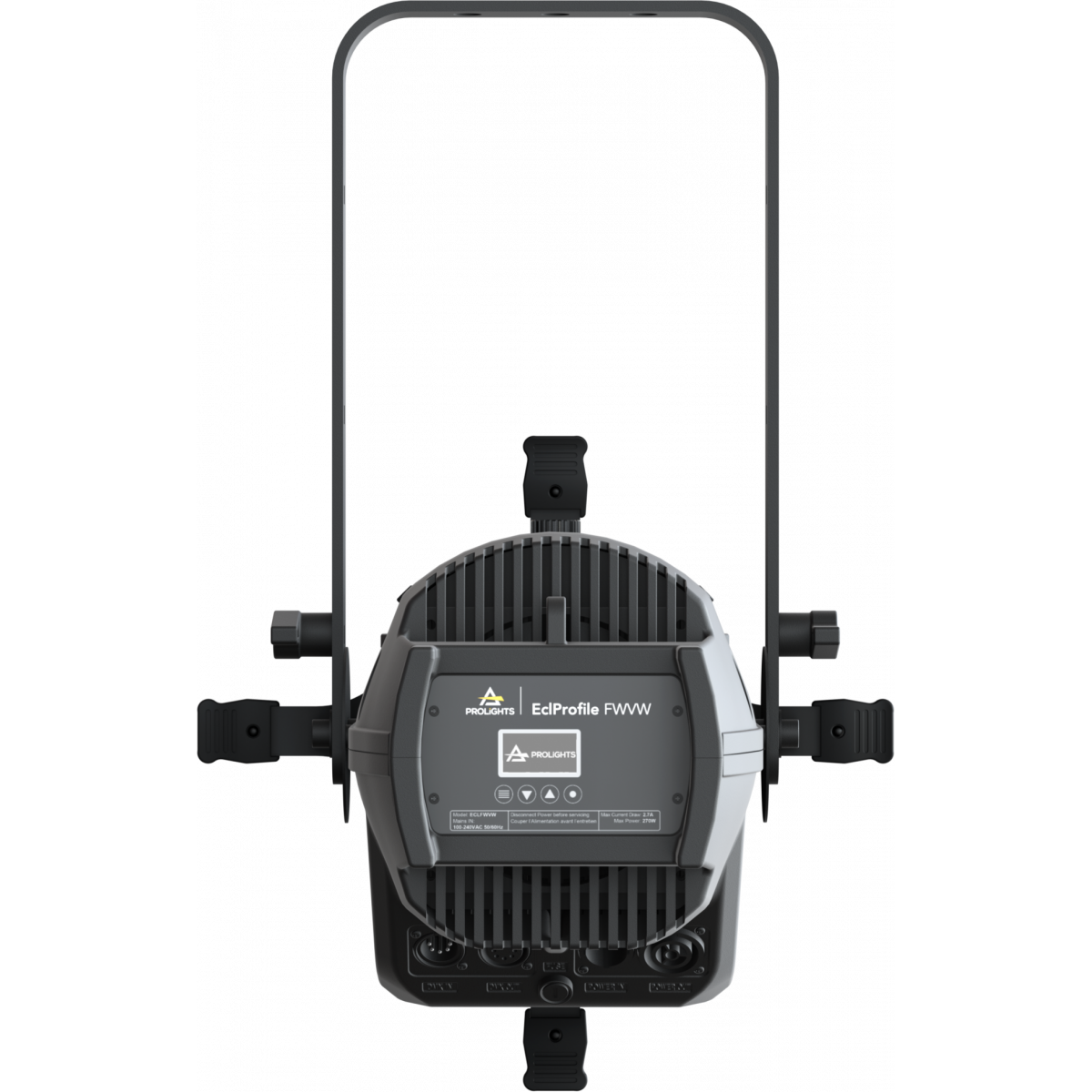

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 91x3W high-power white LED
  • CCT: from 2,700K to 5,600
  • Luminous flux: (26° only TU) 3'696 lm; (26° only DY) 4'406 lm; (26°) 7'951lm @full
  • Lux: (26° only TU) 1'289 lx; (26° only DY) 1'524 lx; (26°) 2'759lx @5 m full
  • CRI: (only TU) 97; (only DY) 97,4; (@full) 95,4
  • R9: (only TU) 91; (only DY) 96,2; (@full) 86,4
  • TLCI: (only TU) 98; (only DY) 98; (@full) 98
  • TM30 Rf: (only TU) >95,5; (only DY) >91,7; (@full) >93,2
  • TM30 Rg: (only TU) <102,4; (only DY) <100,8; (@full) <103,2
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°°
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: manual
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: warm white + cold white
DYNAMIC EFFECTS
  • Shutter system: 3 layers blades system and fast rehabilitation of blade in case of out of frame blade
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: HIGH mode, AUTO mode and SILENT mode fan management
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 5 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 265W
  • Output (at 230V): 11 units on a single power line
  • Power factor: 0,97
PHYSICAL
  • IP rating: 20
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 265x259x540mm / 10.43''x10.2''x21.26''
  • Weight: 7,3kg / 16.09lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLFWVWBK
ECLFWVWBK
Black

Accessories & Related Products

9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
FCLECLPR
FCLECLPR
(optional)
Flightcase to contain 8 pcs ECLFS,ECLFW or ECLCTPLUS with lenses 19°,26°,36°,50°
FCLECLPRLZ
FCLECLPRLZ
(optional)
Flightcase to contain 8 ECLPRLZ zoom lenses
ECLPRL05BK
ECLPRL05BK
(optional)
5° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL10BK
ECLPRL10BK
(optional)
10° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL14BK
ECLPRL14BK
(optional)
14° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL19BK
ECLPRL19BK
(optional)
19° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL26BK
ECLPRL26BK
(optional)
26° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL36BK
ECLPRL36BK
(optional)
36° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL50BK
ECLPRL50BK
(optional)
50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL70BK
ECLPRL70BK
(optional)
70° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL90BK
ECLPRL90BK
(optional)
90° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(optional)
Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing
ECL LZ
ECL LZ
(optional)
Optics for ECLFC/HD profiler, TPG incl., zoom 15°-30°
ECL LZ
ECL LZ
(optional)
Optics for ECLFC/HD profiler, TPG incl., zoom 25°-50°
<b>EclPrl</b> Zoom
EclPrl Zoom
(optional)
Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRTPG
ECLPRTPG
(optional)
Gel filter frame for ECL Profile PRL lens barrel, comp. with 19°,26°,36° and 50°
ECLPRGH
ECLPRGH
(optional)
Gobo holder for ECL Profile fixtures, B size
ECLPRGHA
ECLPRGHA
(optional)
Gobo holder for ECL Profile fixtures, A size
ECLPRIRIS
ECLPRIRIS
(optional)
Iris accessory for ECL Profile fixtures
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
ECLPRSEF1
ECLPRSEF1
(optional)
Soft edge filter and holder kit for ECL Profile fixtures
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclfwvw_LETTER_DATASHEET_(EN).pdf 512KB
Letter datasheet Eclfwvw_LETTER_DATASHEET_(EN).pdf 510KB
Tender Specification Eclfwvw_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Eclfwvw_USER_MANUAL_EN.pdf 8MB

DMX chart & personalities

File name File size Download
DMX chart Eclfwvw_DMX_CHARTS.pdf 59KB
VectorWorks +Eclprl05_SYMBOLS.vwx 779KB
VectorWorks +Eclprl10_SYMBOLS.vwx 510KB
VectorWorks +Eclprl19_SYMBOLS.vwx 543KB
VectorWorks +Eclprl14_SYMBOLS.vwx 518KB
VectorWorks +Eclprl26_SYMBOLS.vwx 563KB
VectorWorks +Eclprl36_SYMBOLS.vwx 718KB
VectorWorks +Eclprl50_SYMBOLS.vwx 559KB
VectorWorks +Eclprl70_SYMBOLS.vwx 561KB
VectorWorks +Eclprlz1530_SYMBOLS.vwx 551KB
VectorWorks +Eclprlz2550_SYMBOLS.vwx 561KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
ECLFWVW Firmware rev. 1.1.01
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclfwvw_basic.fdfDownload
prolights_eclfwvw_duo.fdfDownload
prolights_eclfwvw_extended.fdfDownload
prolights_eclfwvw_standard.fdfDownload
prolights_eclfwvw_uno.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLFWVW Firmware rev. 1.0.06
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_eclfwvw_ies files.zip 45KB
LDT prolights_eclfwvw_ldt files.zip 32KB
PDF Photometrics Eclfwvwbk_PRL15-30_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwwh_PRL15-30_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwbk_PRL70_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwwh_PRL70_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwbk_PRL50_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwwh_PRL50_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwbk_PRL36_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwwh_PRL36_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwbk_PRL26_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwwh_PRL26_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwbk_PRL19_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwwh_PRL19_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwbk_PRL14_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwwh_PRL14_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwbk_PRL10_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwwh_PRL10_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwbk_PRL5_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwwh_PRL5_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwbk_PRL2550_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwvwwh_PRL2550_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup ECLFWVW_3D_SKETCHUP.zip 19MB
3D revit ECLFWVW_3D_REVIT.zip 21MB
2D ECLFWVW_2D.zip 117MB
3D ECLFWVW_3D.zip 15MB
Technical drawing ECLFWVW_TECHNICAL DRAWINGS.zip 5MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01 STABLE 08/08/2022 Improvements:
  • Dimmer linearity improved.
1.0.06 STABLE 19/07/2021
  • First stable firmware release

Info Request

News

22 September 2023
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
Alpha Show 2, the concert of the hip-hop singer Noizy, was illuminated by PROLIGHTS fixtures. The event, hosted in the Mother Teresa...
19 September 2023
PROLIGHTS fixtures light up the second edition of
PROLIGHTS fixtures light up the second edition of "I Venerdì di Ercolano"
PROLIGHTS products illuminated the second edition of "I Venerdì di Ercolano," a culturally enriching initiative proudly promoted and...
14 September 2023
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
The exceptional sparkle and enchanting ambiance that characterised the 63rd annual TV Week Logie Awards has been further enhanced by...
12 September 2023
PROLIGHTS Illuminates  the Ricky Martin Symphonic concert
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS fixtures lit up Skënderbej Square in Tirana, setting the stage for the Ricky Martin Symphonic concert. This performance...
05 September 2023
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
PROLIGHTS introduces the EclExpo Flood150, a compact and bright floodlight designed to substitute traditional CDM, HMI, and tungsten...
04 September 2023
Ultimo chooses Prolights for his summer stadium tour
Ultimo chooses Prolights for his summer stadium tour
Prolights solutions lit up the stadium tour of Ultimo, a young Roman singer-songwriter and leading artist on the Italian music scene....
30 August 2023
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
The British Drivers Club has chosen PROLIGHTS solutions to illuminate the VIP locations during the prestigious British Grand Prix at...
25 August 2023
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS products illuminated the Innamorato Tour of Blanco, the young artist reigning over the Italian music scene. Following the...
21 August 2023
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights fixtures played a pivotal role in the concert titled "Dekada" by the Albanian singer Elvana Gjata. This event marked a significant...
11 August 2023
DRTCC choose Prolights fixtures for a major upgrade
DRTCC choose Prolights fixtures for a major upgrade
Dubbo Regional Theatre and Convention Centre features the Joyce Schneider Auditorium, a 500-seat theatre with state-of-the-art facilities...
08 August 2023
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS unveils its new series of LED screens - KappaPix, SigmaPix, and GammaPix. These meticulously engineered products are designed...
04 August 2023
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
Prolights Sunblast 3000FC transformed the arcades of Bologna, a worldwide symbol of the city and UNESCO heritage site, into a magnificent...

Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter linkedin

Loading...
