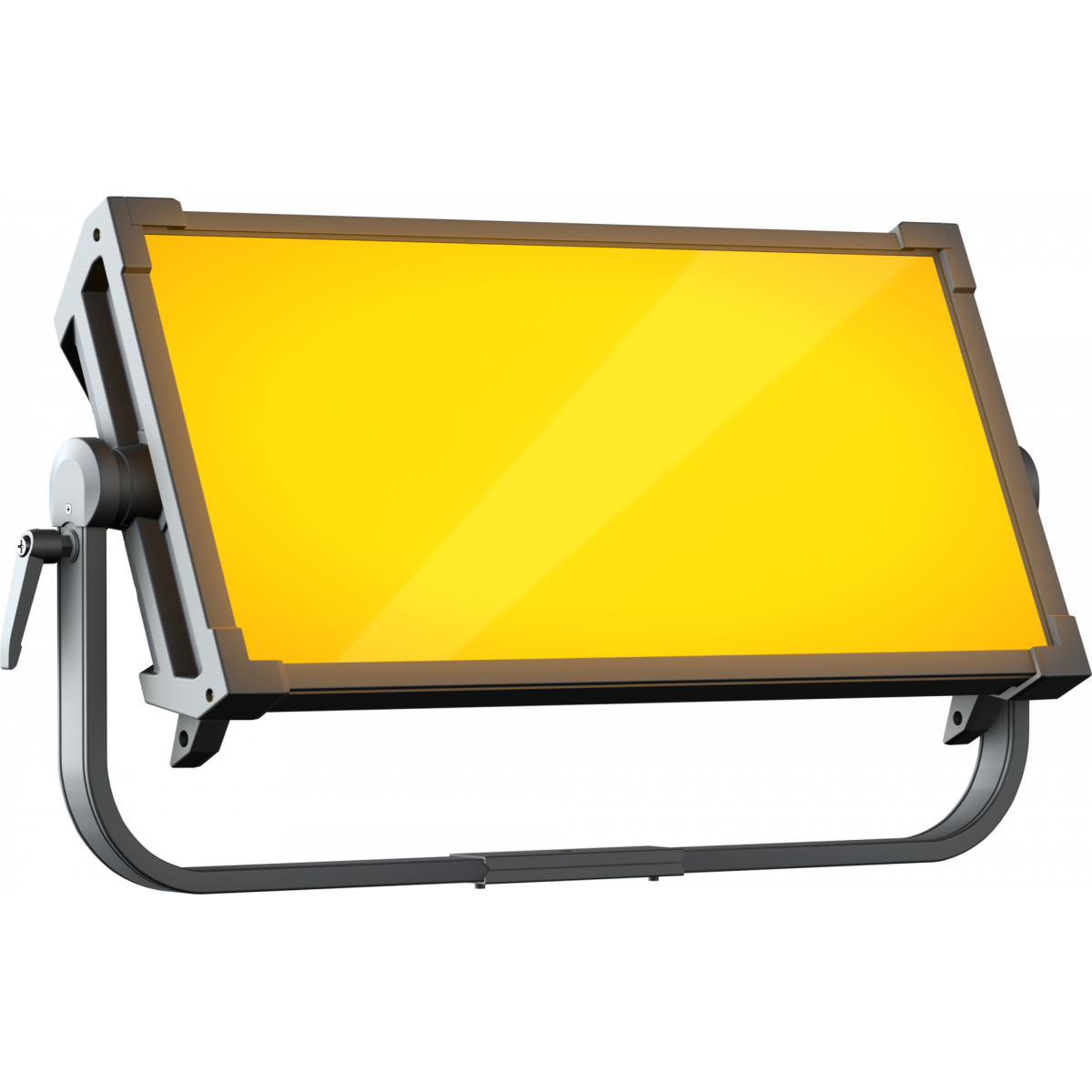

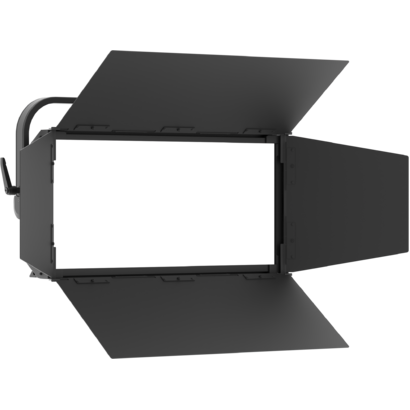

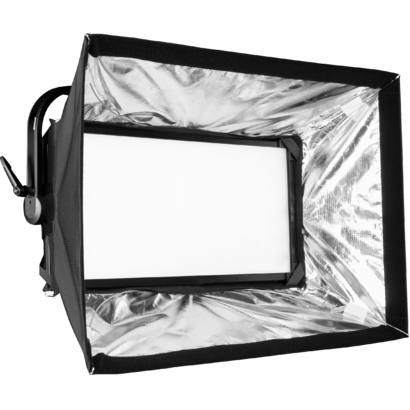

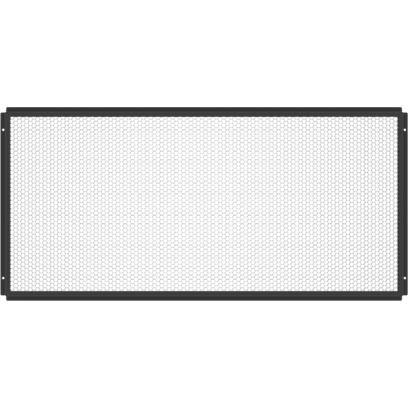

EclPanel TWC

ORDER CODE: ECLPANELTWC

Softlight LED da 740W bianco variabile e colori, con controllo pixel ed effetti (pilotato a 430W)

EclPanel TWC è un softlight LED compatto di formato 2x1, concepito per una riproduzione di luce bianca ad altà qualità dalle tonalità Tungsten a Daylight mantenendo un elevato scoring in CRI, TLCI e TM-30, ed allo stesso tempo permette l'accesso ad una gamma cromatica FullSpectrum. EclPanel TWC consente un rapido e preciso controllo anche in modalità Stand Alone attraverso le 3 manopole rotatorie a bordo con tre modalità di funzionamento selezionabili: CCT, con +/- green, HSI per il pieno controllo di colore, saturazione e intensità, FX con accesso agli effetti pixel cinematografici pre-impostati a bordo. L'unità può anche essere controllata in otto sezioni indipendenti, per consentire la riproduzione di effetti personalizzati integrati, o personalizzabili da qualsiasi lighting desk con un ampia scelta di effetti speciali concepiti per applicazioni cinema. Il proiettore è progettato con alimentatore e driver di controllo integrato nell'housing , e la sua semplicità d'uso rende EclPanel un illuminatore ideale per applicazioni in Studio, Cinema o Corporate.

SPEKTRACaratteristiche principali:

  • Sorgente LED 740W con sistema RGB + Warm White (pilotato a 430W)

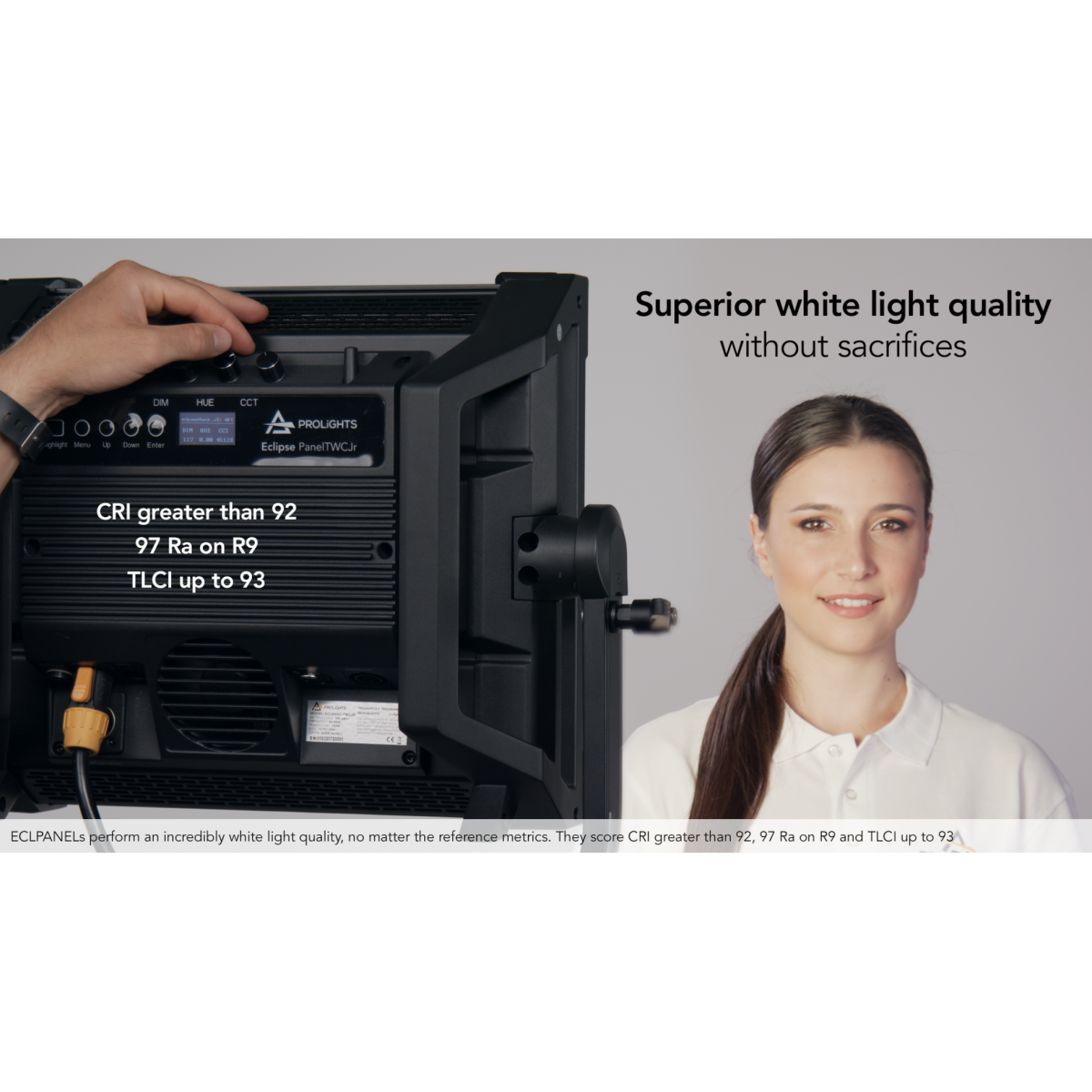

  • CRI > 95,5; R9 > 92; TLCI > 92

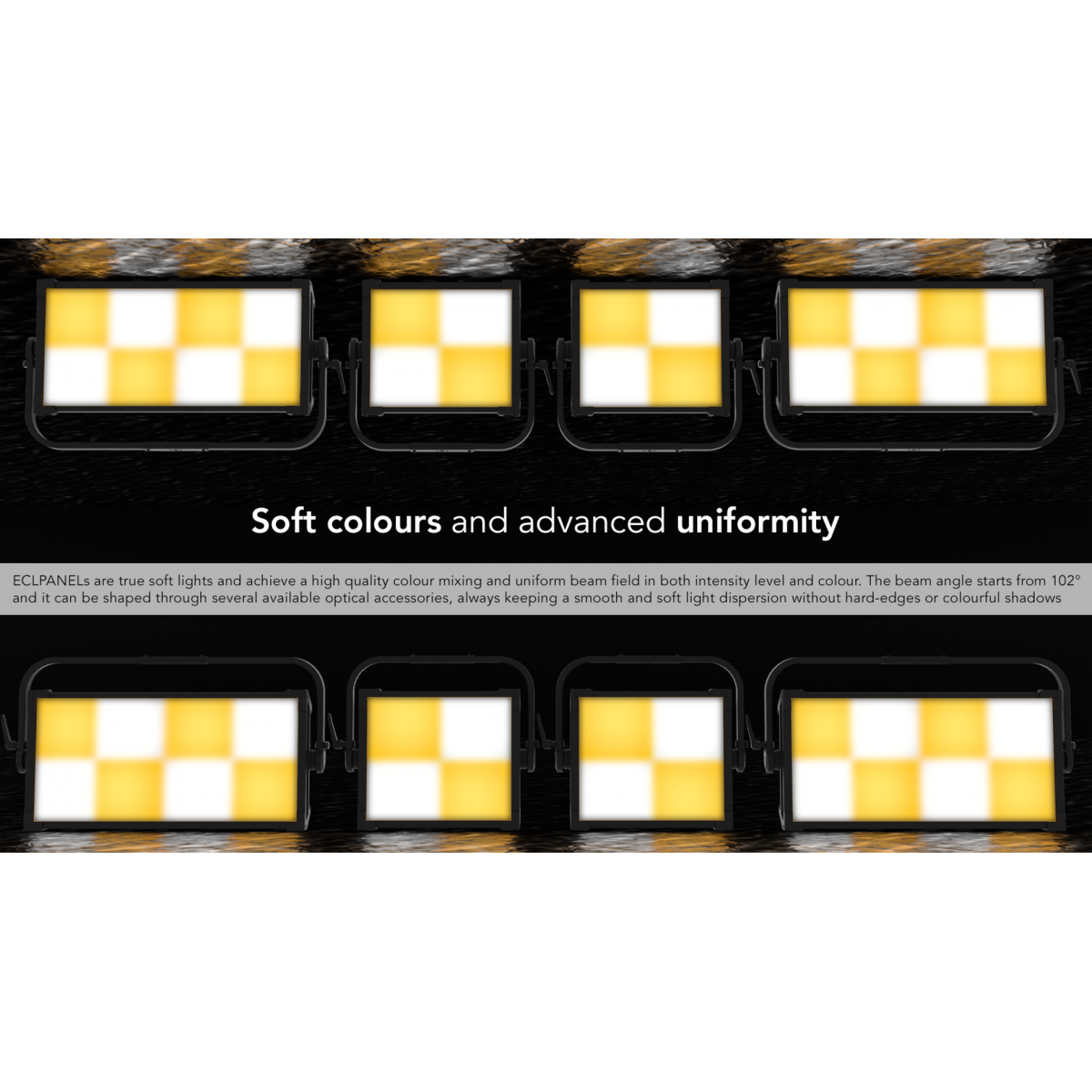

  • Controllo pixel in 8 sezioni del proiettore con effetti luce pre-impostati per applicazioni Cinema
  • Silenzioso, e con molteplici modalità di settaggio ventole

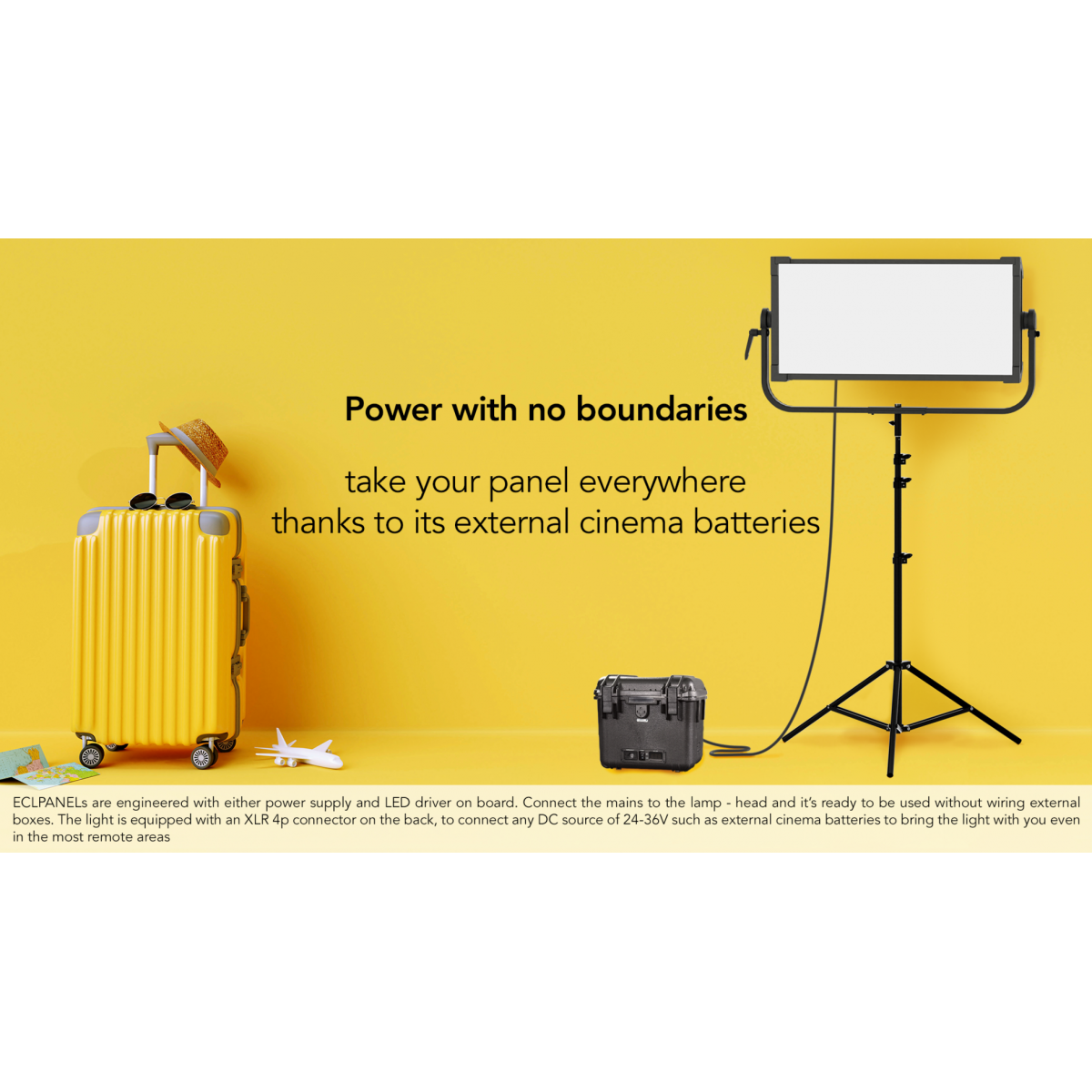

  • Connessione a bordo per il collegamento di una batteria opzionale secondo standard disponibili (XLR4p 24-36V)

PHOTO GALLERY

Specifiche tecniche

SORGENTE LUMINOSA
  • Sorgente luminosa:
  • Sorgente: 740W LEDs RGB + Bianco Caldo (pilotato a 430W)
  • Flusso luminoso: 34'236 @4.000 K with MD filter
  • Lux: @4000K, 517lx @5 m
  • CRI: 94,6 @3.200 K; 95,5 @5.600 K
  • R9: 97 @3.200 K; 92 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 92 @3.200 K; 89,5 @5.600 K
  • TM30 Rg: 103 @3.200 K; 102,4 @5.600 K
  • Durata media sorgente: > 50.000 h
OTTICA
  • Angolo di proiezione: 102°
  • Angolo di campo: 159°
  • Tipo lente: Medium Density filtro diffusore (intercambiabile)
  • Ottiche aggiuntive: consulta accessori disponibili
SISTEMA COLORE
  • Controllo colore: XY, CCT, RGBW, Gel, HSI, Source Emulation, Color Macros, CTO on colors

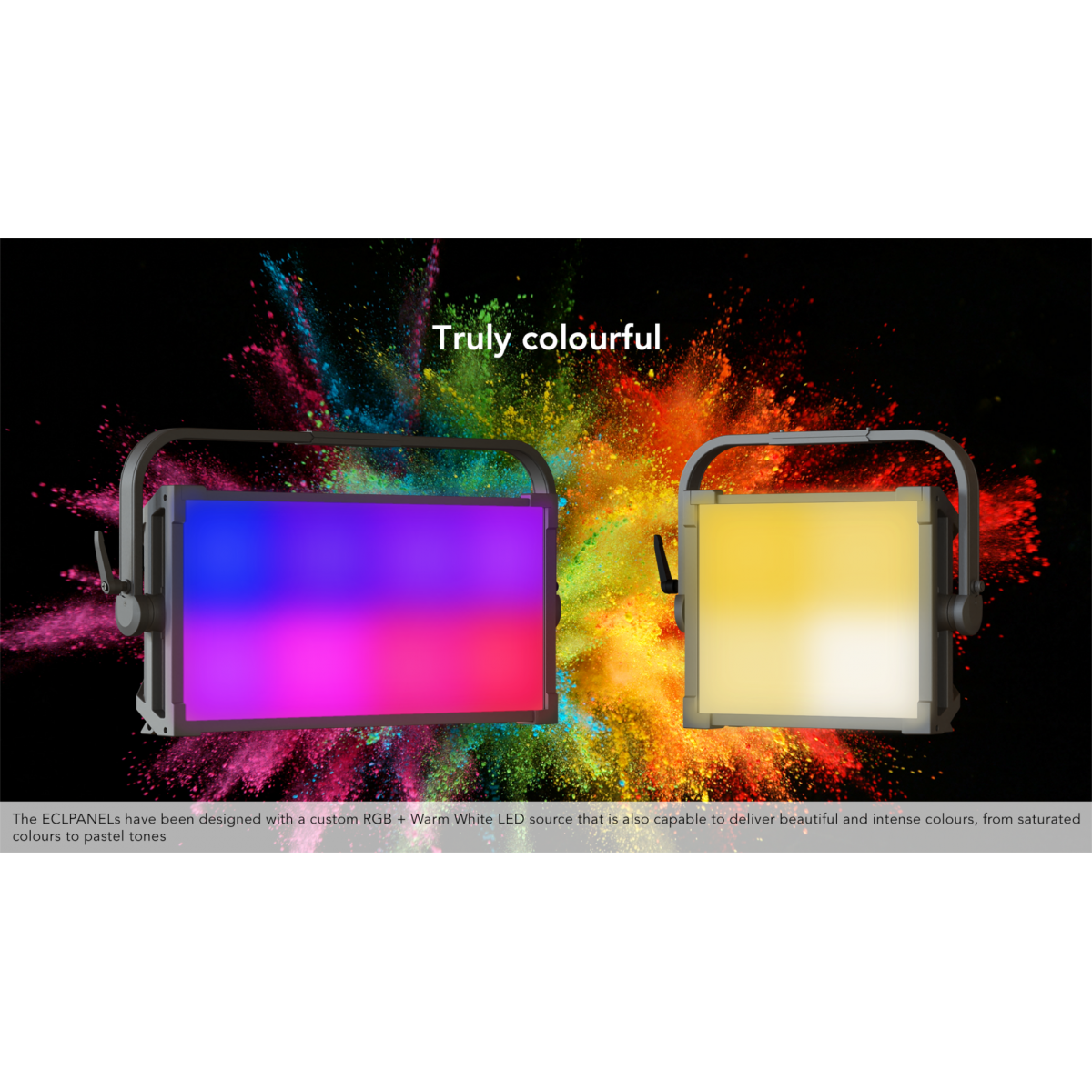

  • Miscelazione del colore: RGB + Warm White

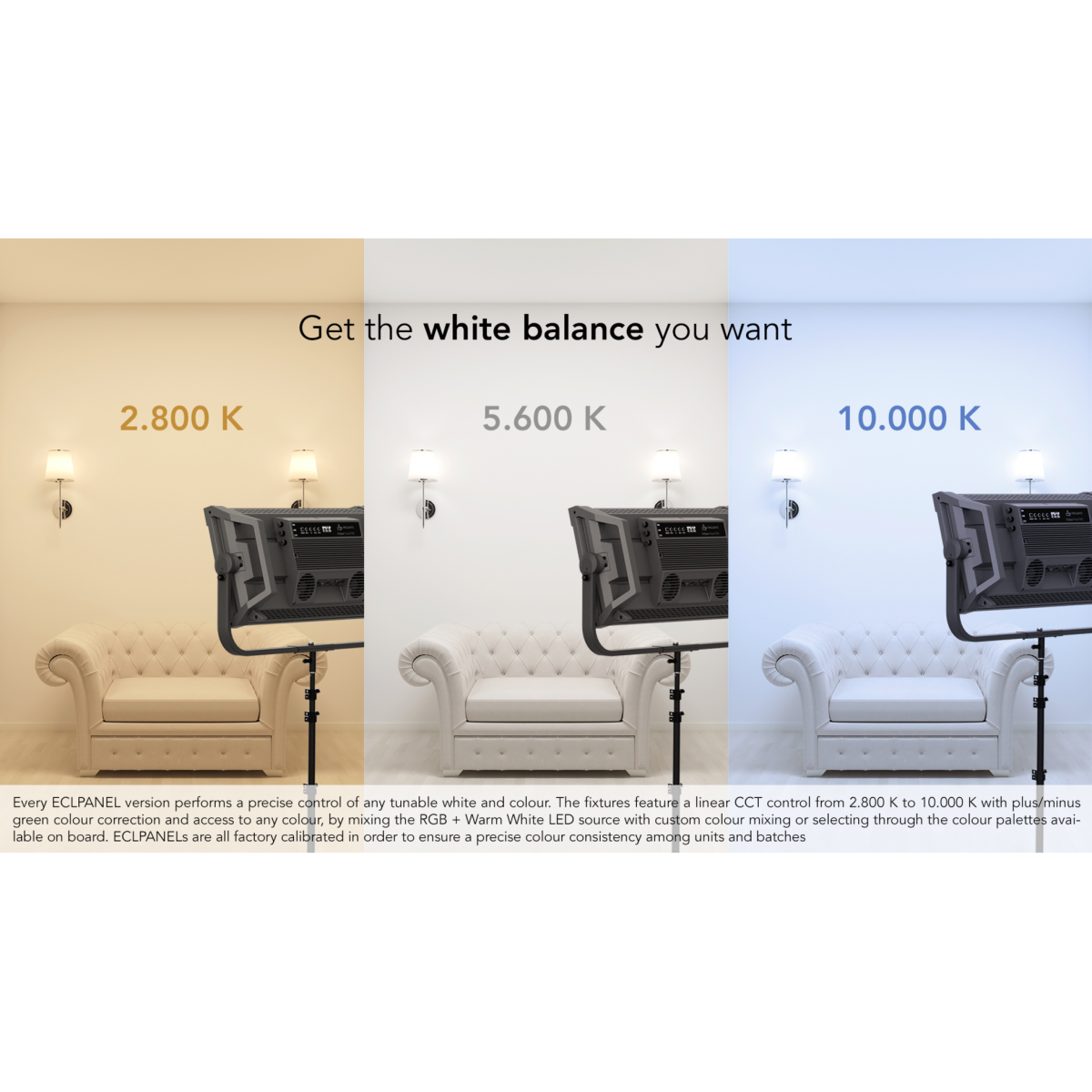

  • CCT: controllo CCT range da 2200K a 15000K, correzione +/- green, emulazione tungsten
  • Preset bianchi: 2.800K - 10.000K con risoluzione 28 K
  • Ruota colori: ruota colori virtuale con macro
  • Macros: Libreria gelatine integrata
EFFETTI DINAMICI
  • Risoluzione di controllo: 16-bit dimmer, colori

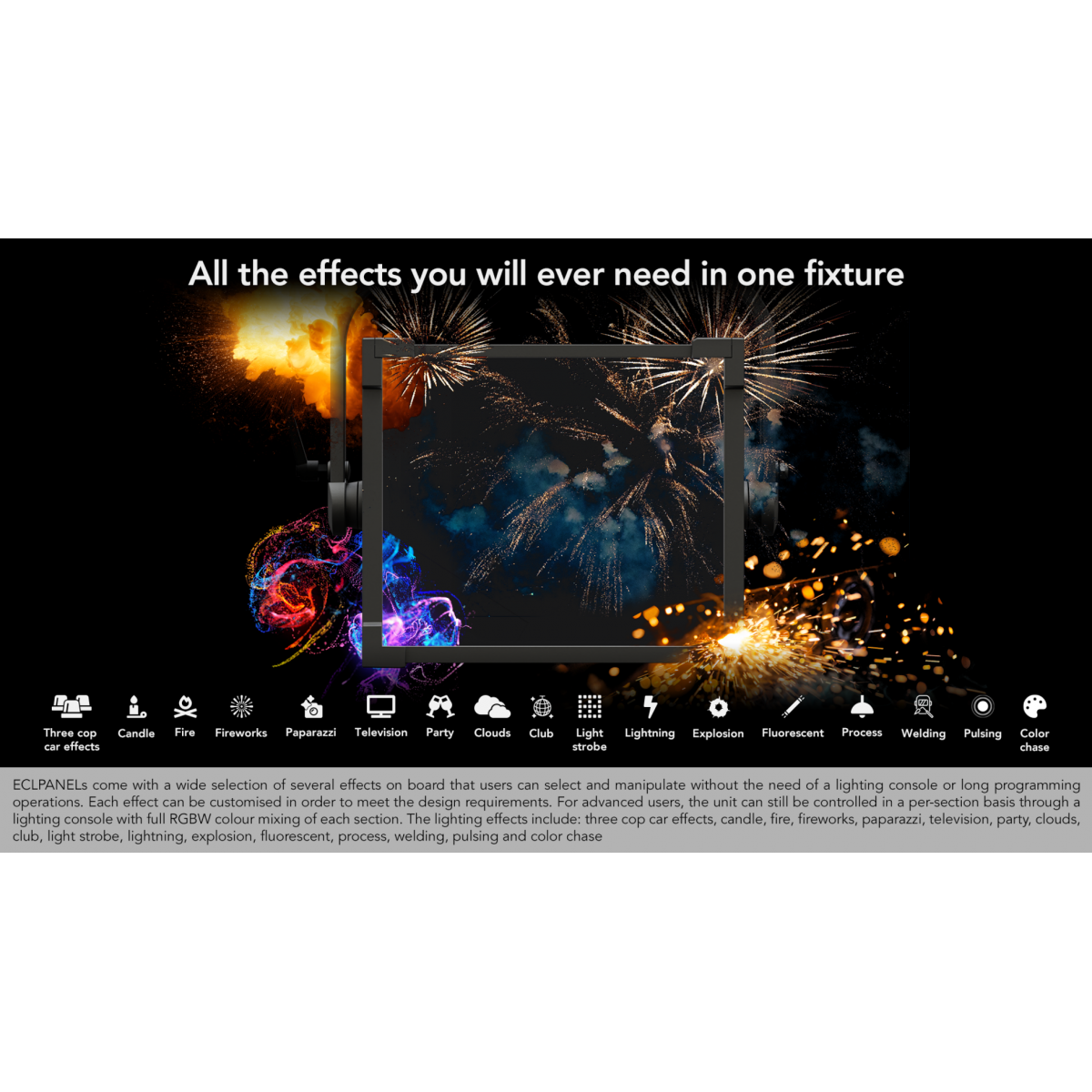

  • Pixel pattern: macro pixel pre impostate con effetti cinema
  • Caratteristiche speciali: canale crossfade lineare per fade da qualsiasi white macro ad un qualsiasi colore; CTO virtuale sui colori
CORPO
  • Corpo: corpo in alluminio pressofuso ad alta resistenza
  • Colore: nero

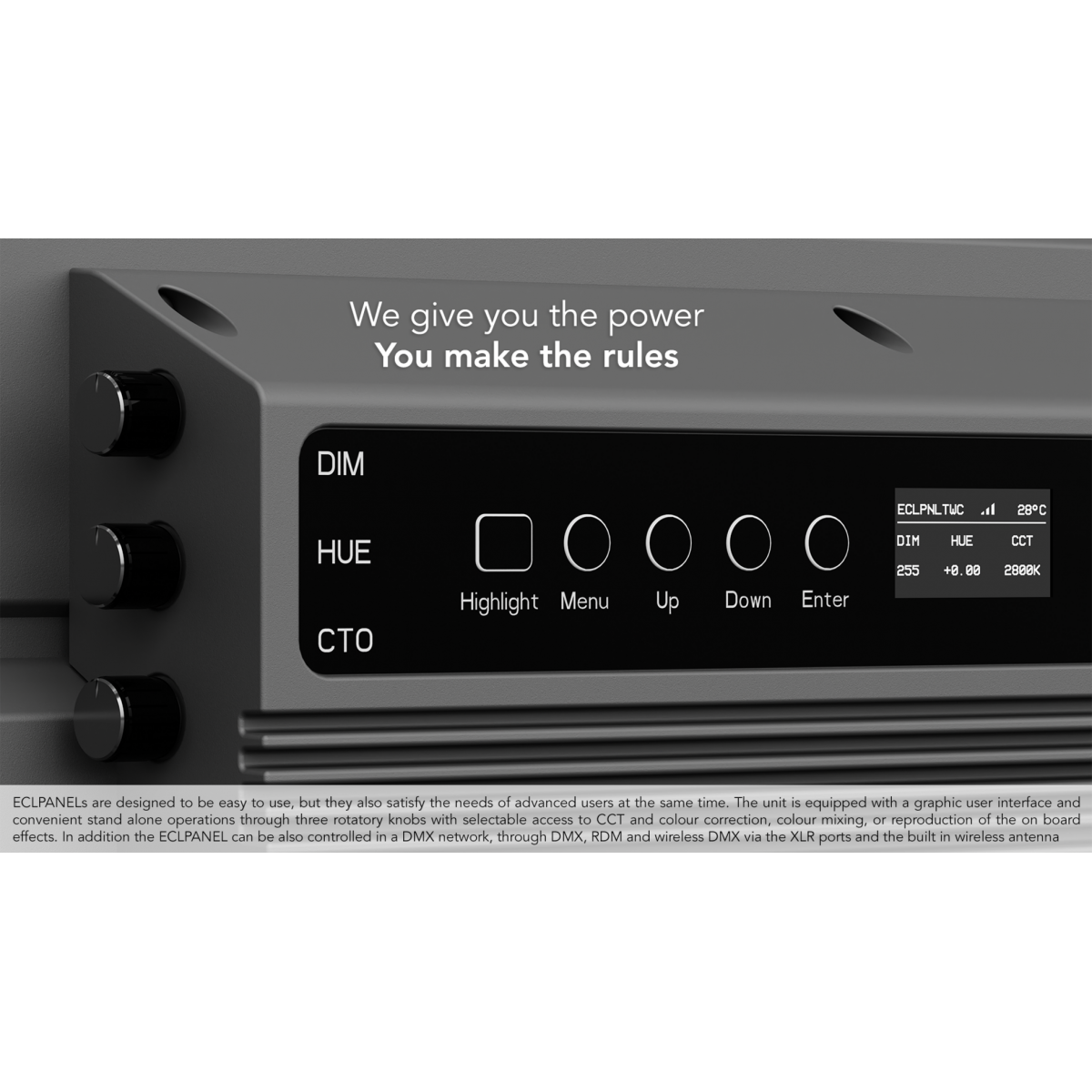

CONTROLLO
  • Protocolli: DMX512, RDM, W-DMX, rotatory knob

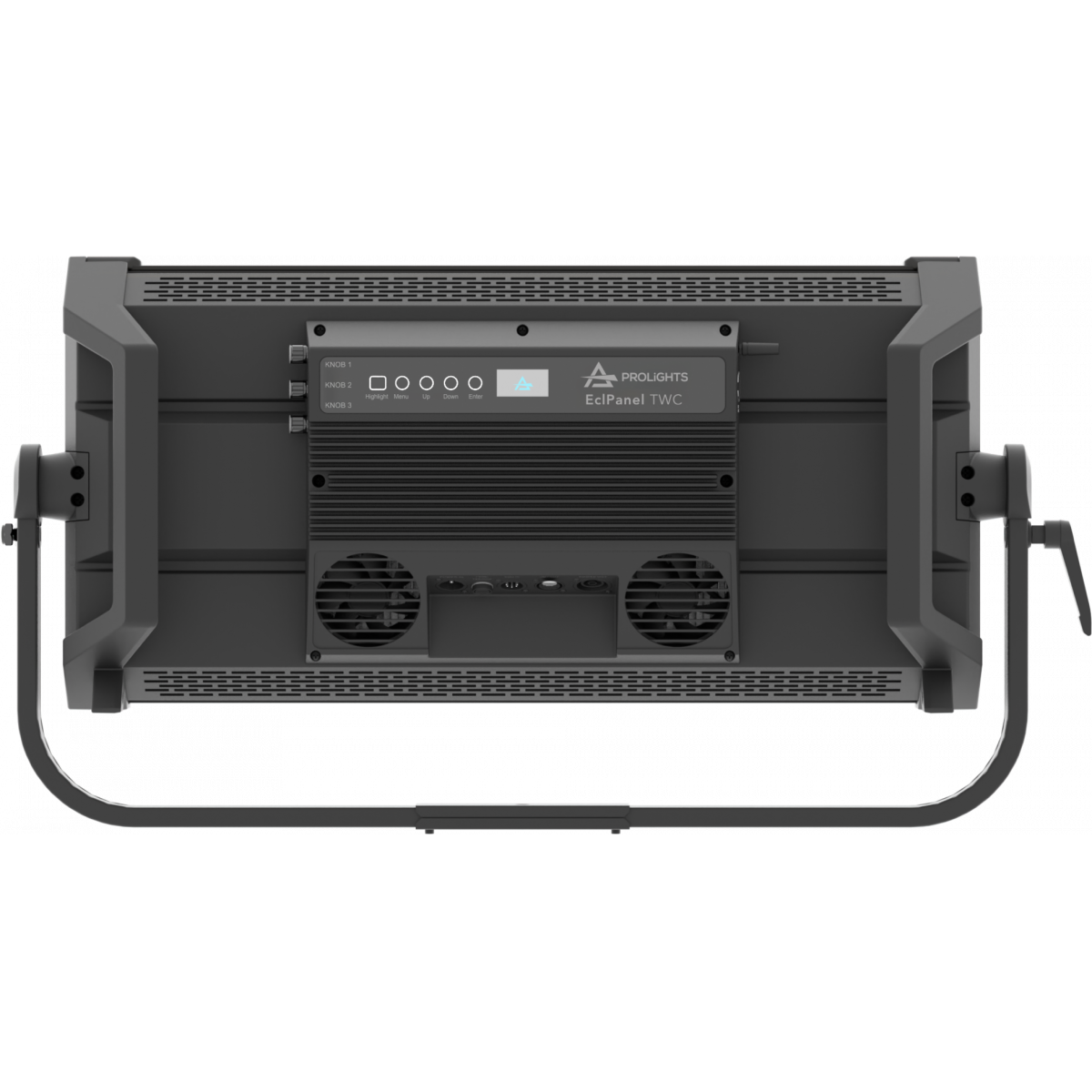

  • Stand Alone: selectable mode through 3 pomelli rotativi
  • Pixel control: 8 controllo a sezioni
  • Controllo Wireless: integrato, CRMX + WDMX TRX
  • RDM: RDM per controllo e impostazioni remote della fixture
  • Display: Graphic User Interface
  • Aggiornamento firmware: si, con interfaccia USB - DMX (UPBOXPRO/UPBOX1) non inclusa
ELETTRONICA
  • Dimmer: 0 ~ 100% lineare, elettronico
  • Curve dimmer: 4 curve dimmer selezionabili
  • Strobo / shutter: 1 - 30 Hz, elettronico
  • Temperatura d'esercizio: -10° ~ +45°
  • Controllo LED: frequenza senza flicker con PWM regolabile
  • PWM selezionabile: 600 ~ 36.000 Hz
ALIMENTAZIONE
  • Alimentazione elettrica: 100-240V - 50/60Hz
  • Alimentazione a bassa tensione DC: 24-36V
  • Potenza massima assorbita: 460W
  • Output (a 230V): 5 unità connesse in serie
  • Fattore di potenza: >0,94
  • Corrente di spunto: 110VAC/22.5A, 230VAC/20.5A
CARATTERISTICHE FISICHE
  • Grado IP: 20
  • Raffreddamento: attivo, funzionamento silenzioso

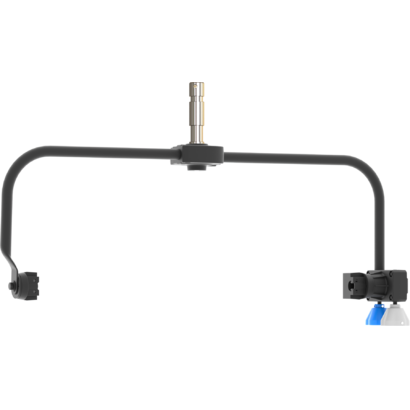

  • Sospensione e fissaggio: staffa per il fissaggio in sospensione e per il posizionamento

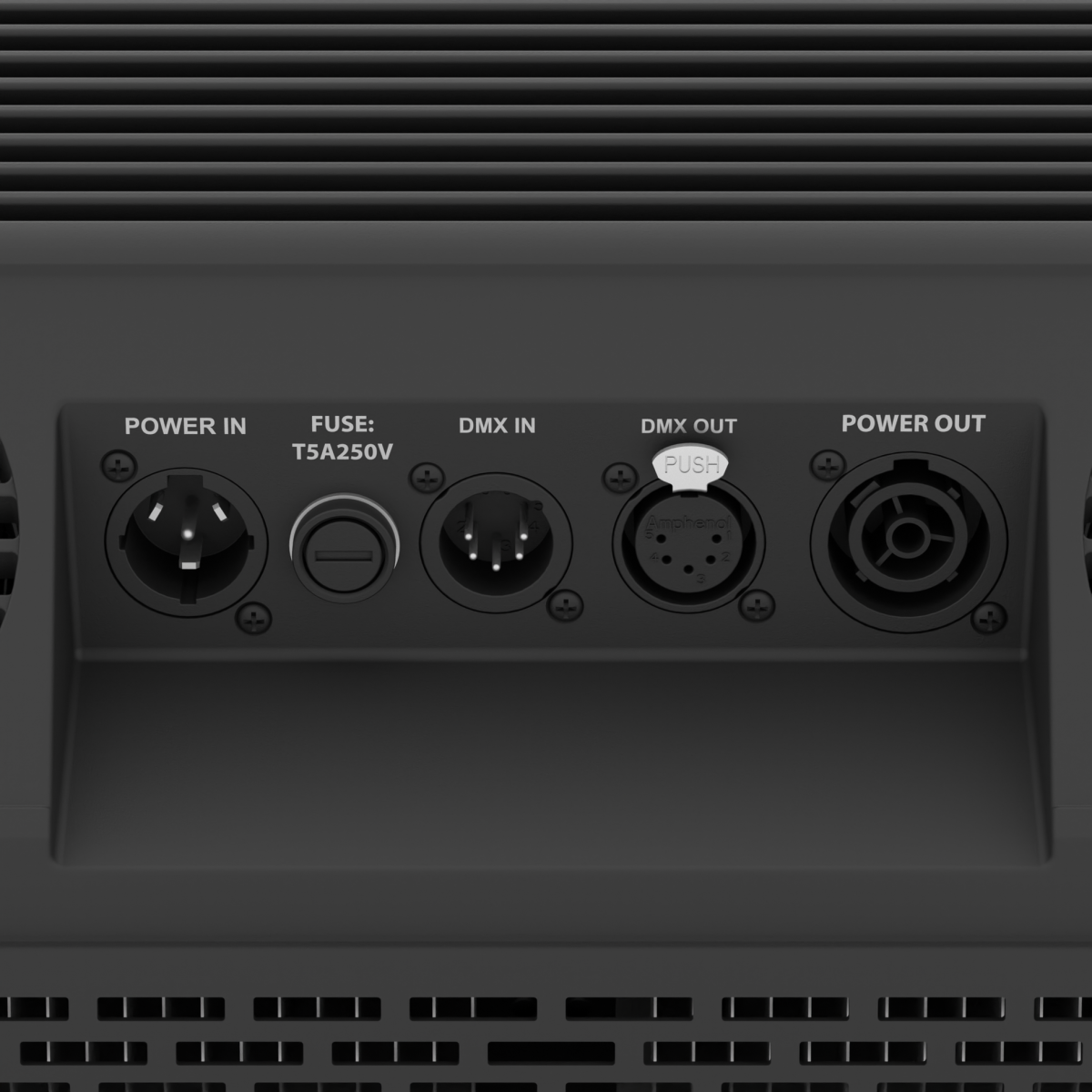

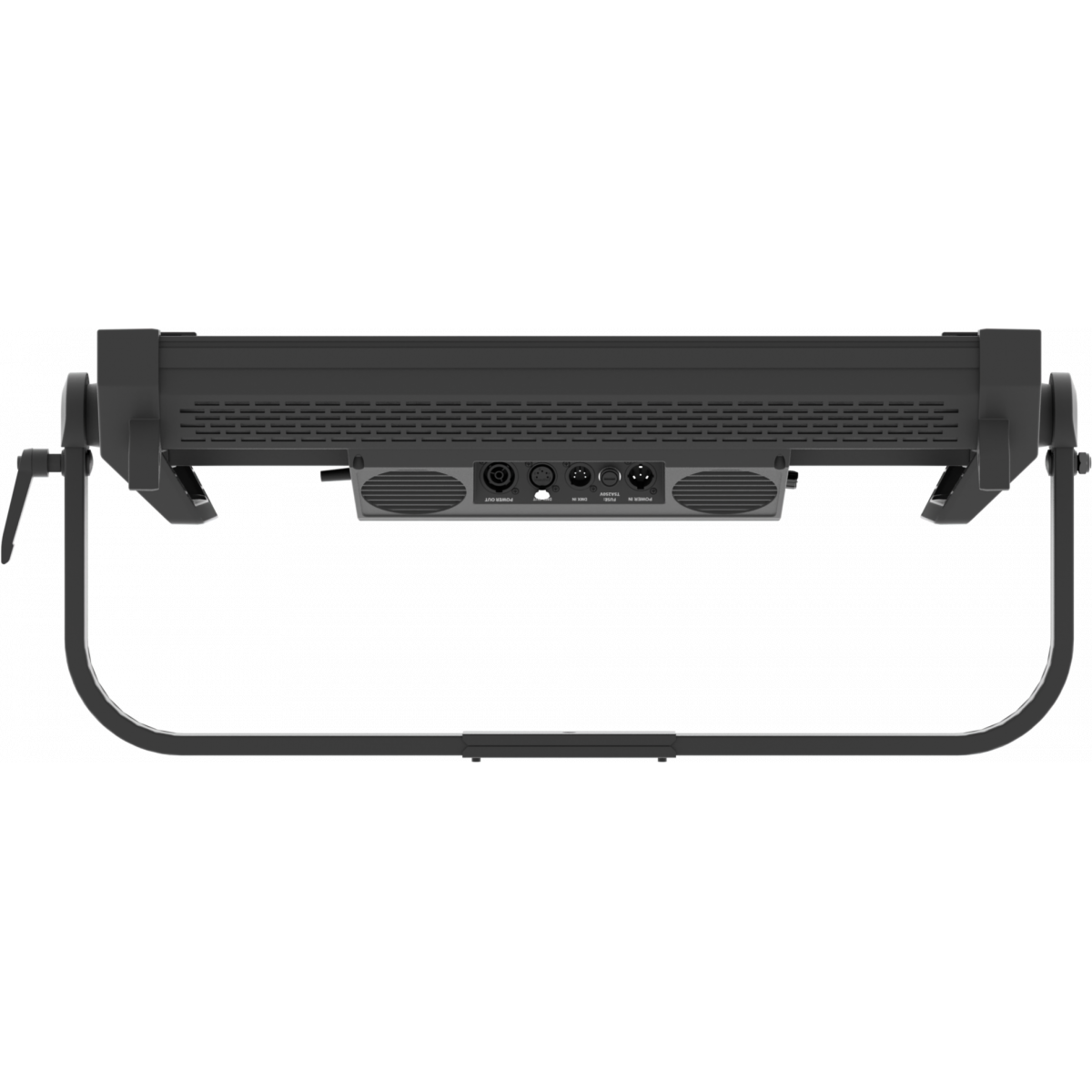

  • Connessione di segnale: Amphenol XLR 5p IN/OUT connectors
  • Connessione di alimentazione: Neutrik powerCON TRUE1 IN/OUT connectors

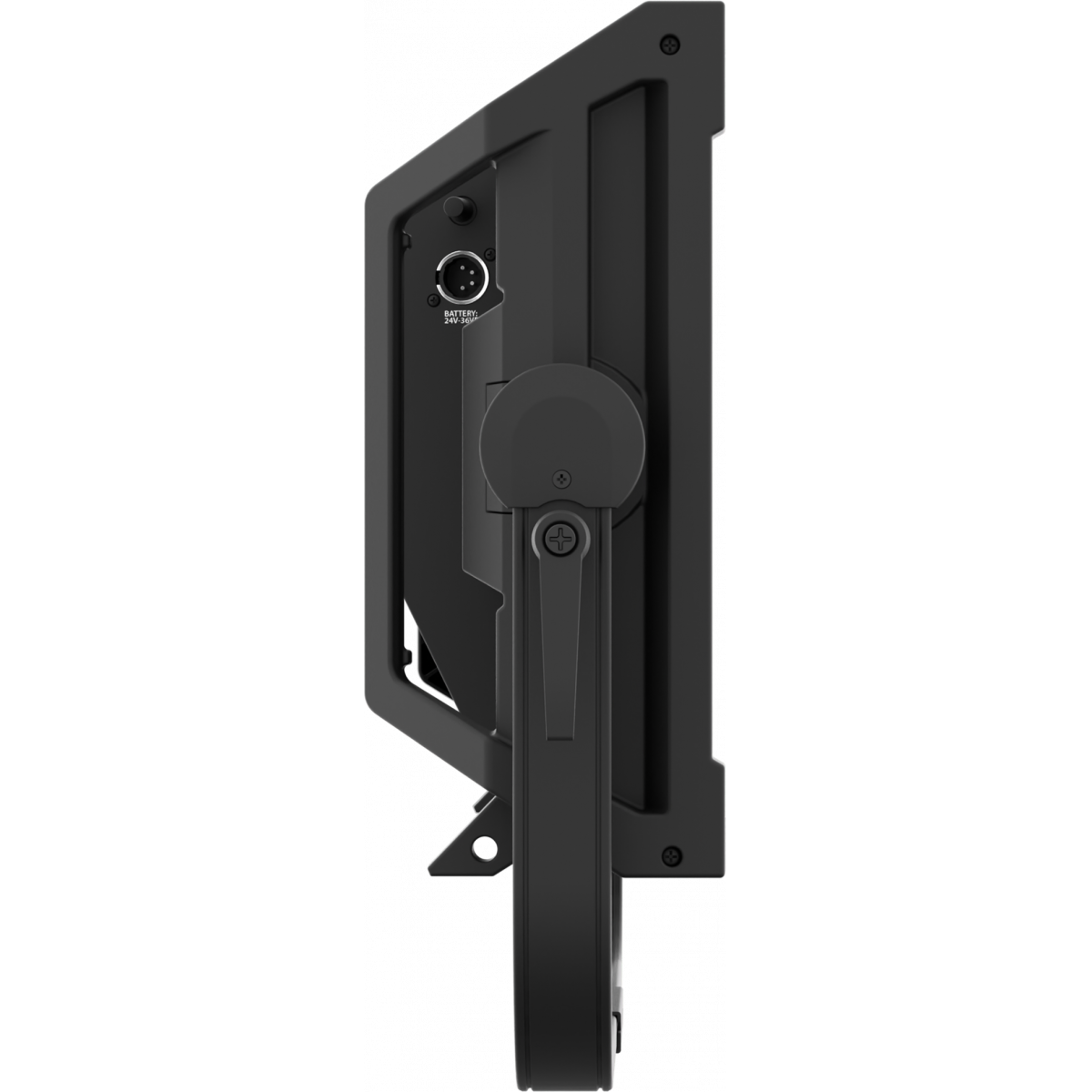

  • Connettore di alimentazione a bassa tensione DC: XLR 4p
  • Dimensioni (LxAxP): 819x431x144mm / 32.24''x16.97''x5.67''
  • Dimensioni con sistema PO (LxAxP): 836x431x144mm / 32.91''x16.97''x5.67''
  • Peso: 15,3kg / 33.73lbs
  • Peso con sistema PO: 17,1kg / 37.7lbs
CERTIFICAZIONI / APPROVAZIONI
  • certificazioni / Approvazioni: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Varianti

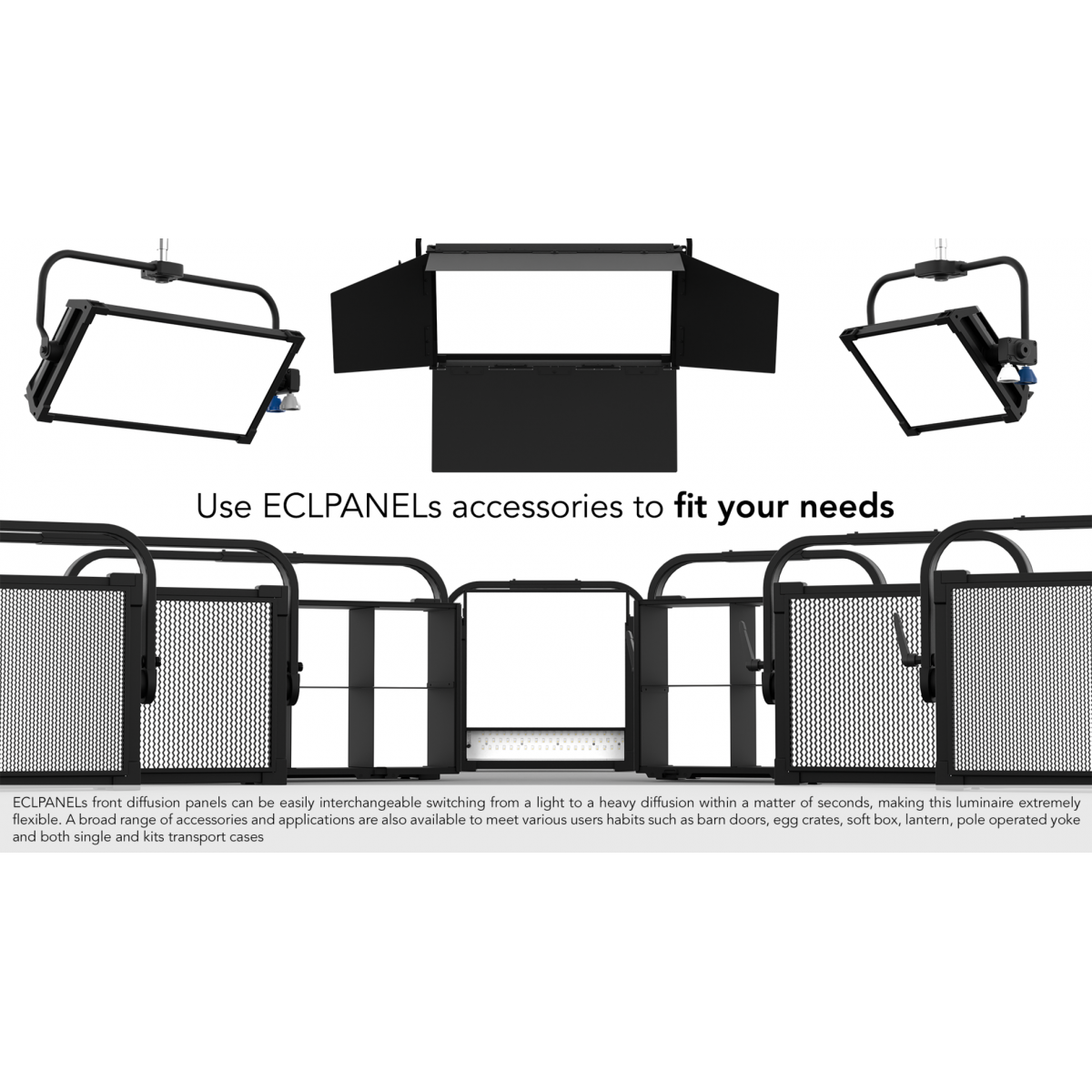

Accessori e prodotti correlati

UPBOXPRO
UPBOXPRO
(optional)
Interfaccia aggiornamento firmware, USB IN, connettore XLR DMX OUT 5-pin
<b>Upbox</b> 1
Upbox 1
(optional)
Interfaccia aggiornamento firmware, USB IN, 5p XLR DMX OUT, USB OUT

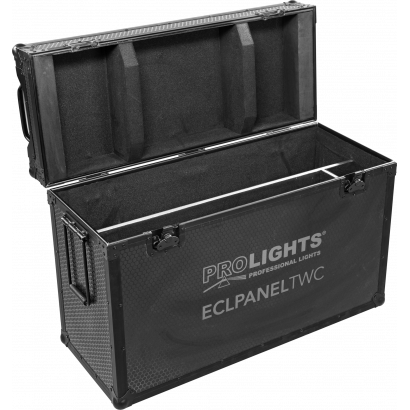

FCLPANEL1U
FCLPANEL1U

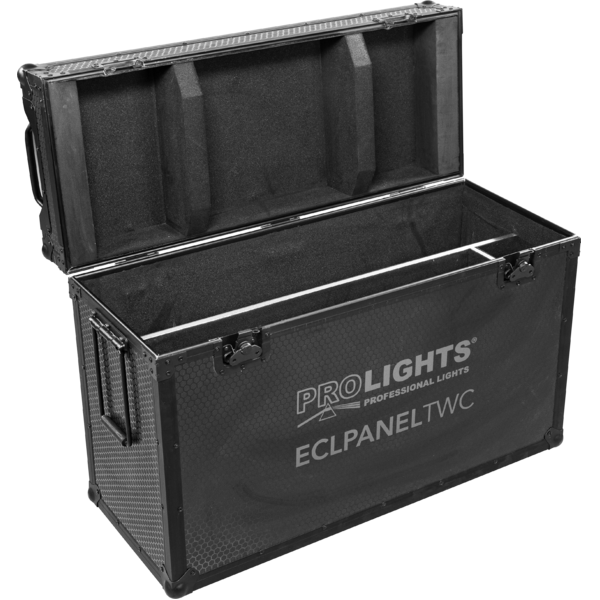

(optional)
Flight-case per contenere 1 pc ECLPANELTWC
FCLPANEL3U

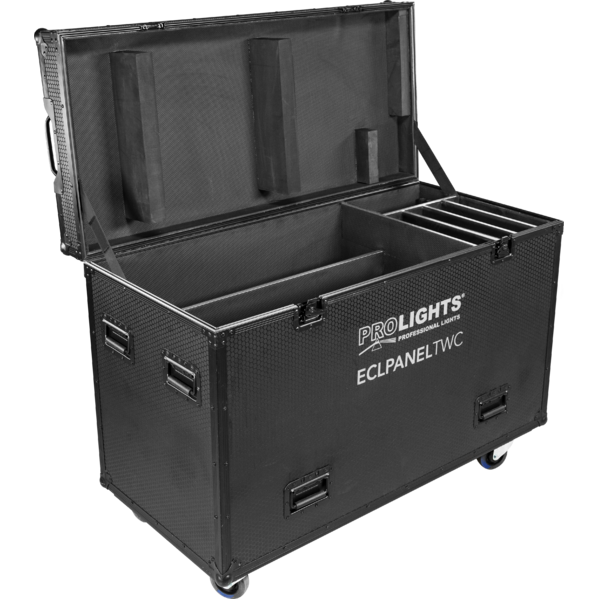

FCLPANEL3U
(optional)

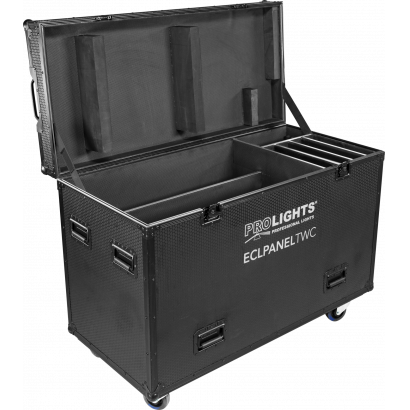

Flight-case per contenere 3 pcs ECLPANELTWC
EPTWCBAG1U
EPTWCBAG1U
(optional)

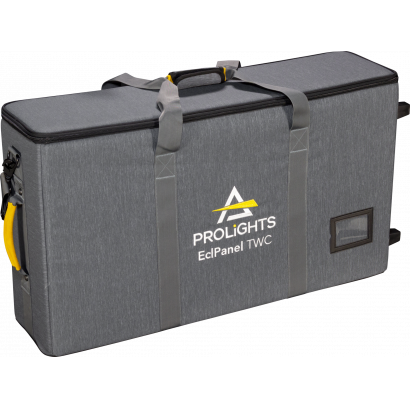

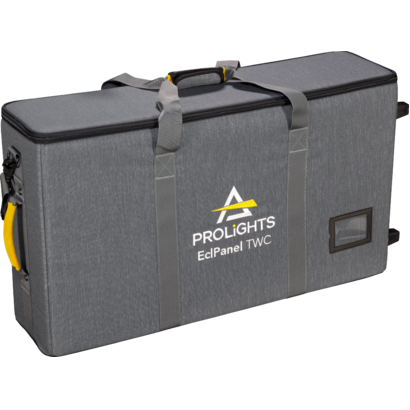

Trolley bag per contenere 1 pc ECLPANELTWC
EPTWCBHEAD
EPTWCBHEAD
(optional)
Giunto a testa sferica per staffa a montaggio centrale serie EPTWCBRK

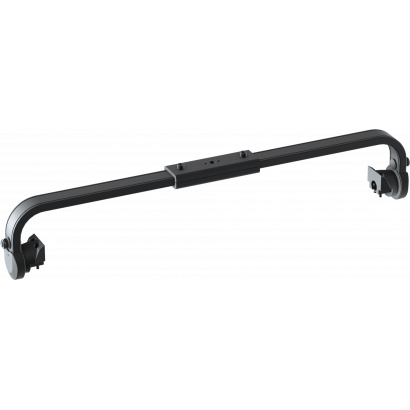

EPTWCBRKL
EPTWCBRKL
(optional)

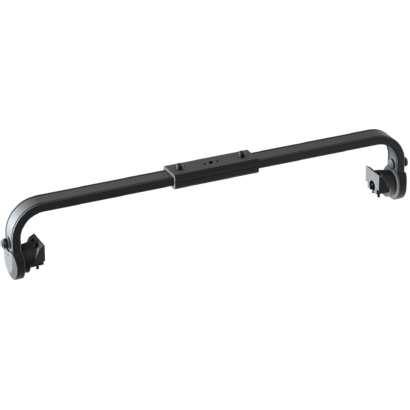

Staffa a montaggio centrale per ECLPANELTWC ed ECLPANELTWCJR4X1

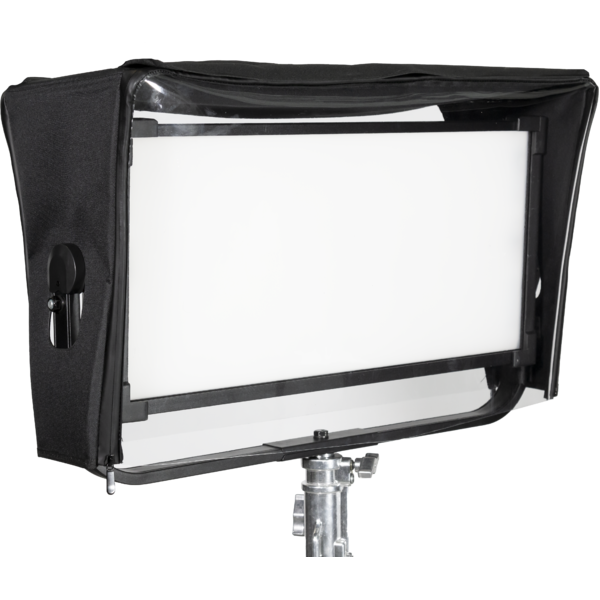

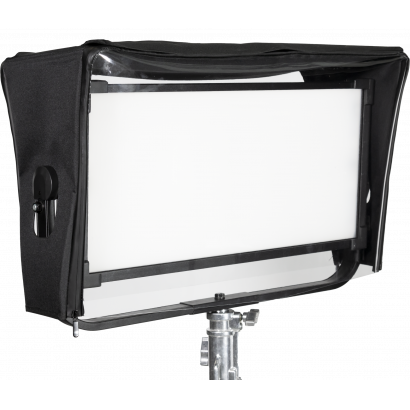

EPTWCRC
EPTWCRC
(optional)
Rain Cover per ECLPANELTWC

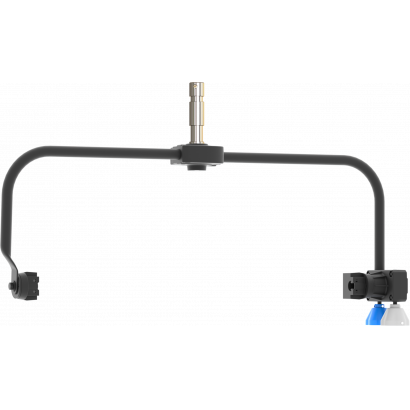

ECLPANELPOYO
ECLPANELPOYO
(optional)

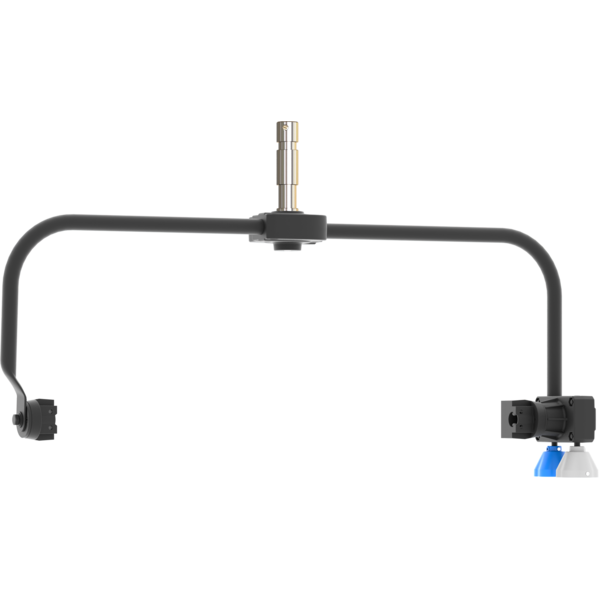

Staffa pole operated in alluminio per ECLPANELTWC

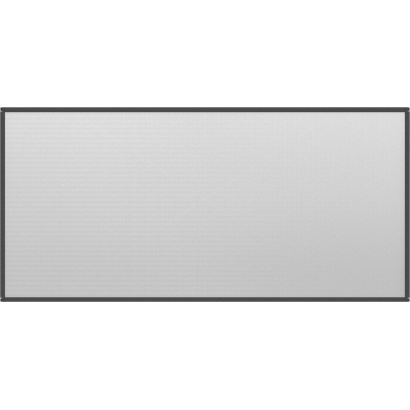

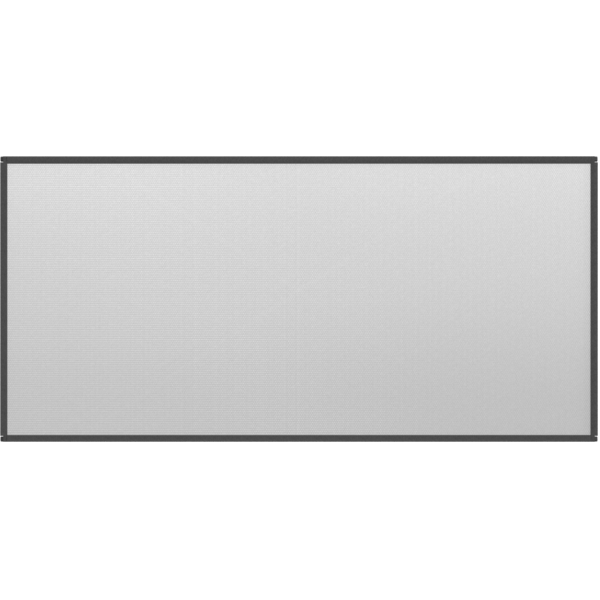

EPTWCFILTERINT
EPTWCFILTERINT
(optional)

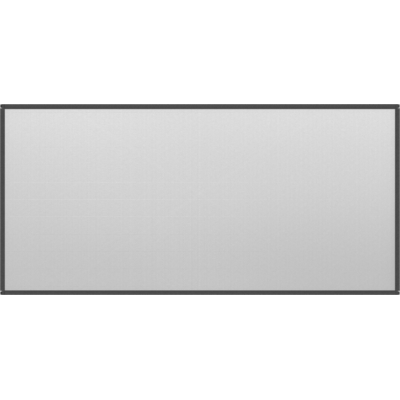

Filtro frontale a diffusione intensificata per ECLPANELTWC

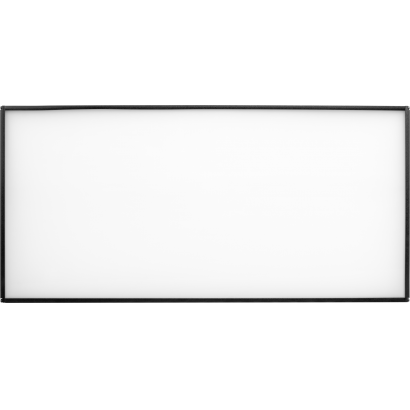

EPTWCFILTERHD
EPTWCFILTERHD
(optional)
Filtro frontale a alta diffusione (minore intensità luminosa) per ECLPANELTWC

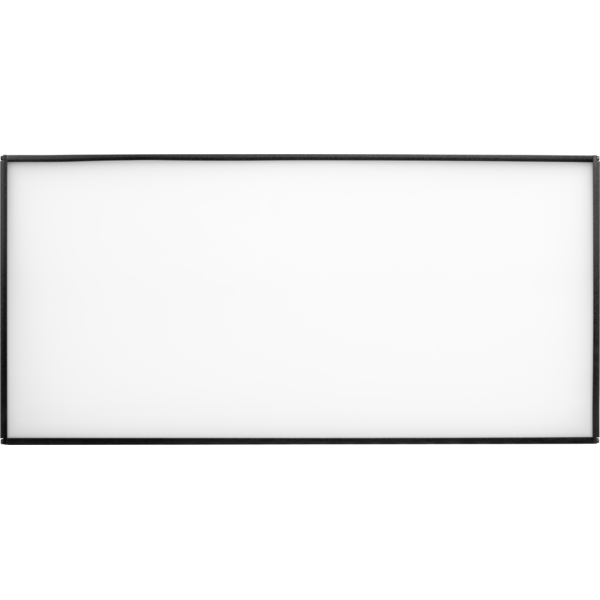

EPTWCFILTERMD
EPTWCFILTERMD
(included)
Filtro frontale a media diffusione per ECLPANELTWC
EPTWCFILTERLD
EPTWCFILTERLD
(optional)
Filtro frontale a bassa diffusione (maggiore intensità luminosa) per ECLPANELTWC
ECLFRSPG
ECLFRSPG
(included)
Spigot per fixtures PROLIGHTS

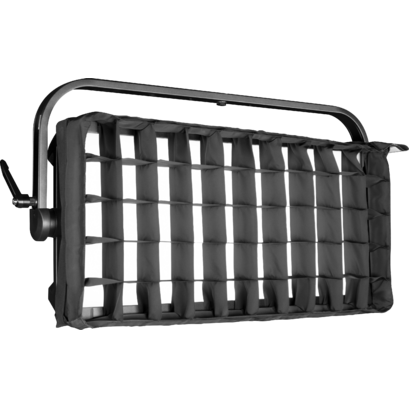

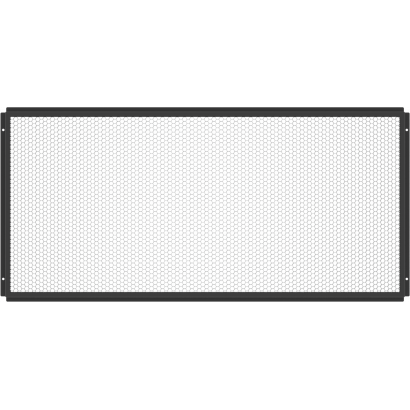

EPTWCEC30
EPTWCEC30

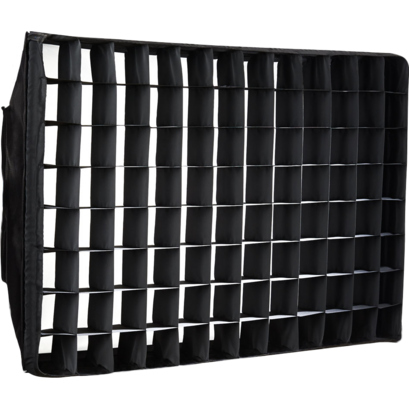

(optional)

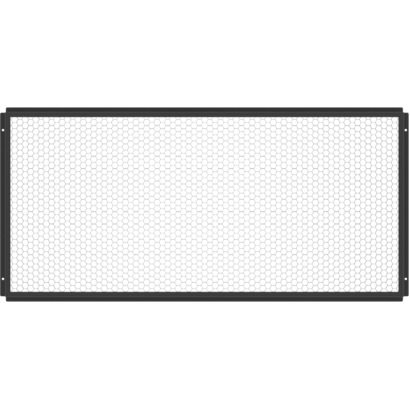

Egg crate a 30 gradi per ECLPANELTWC

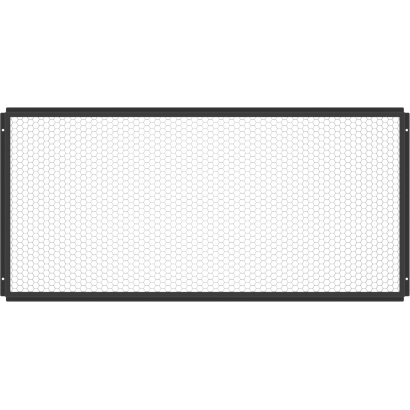

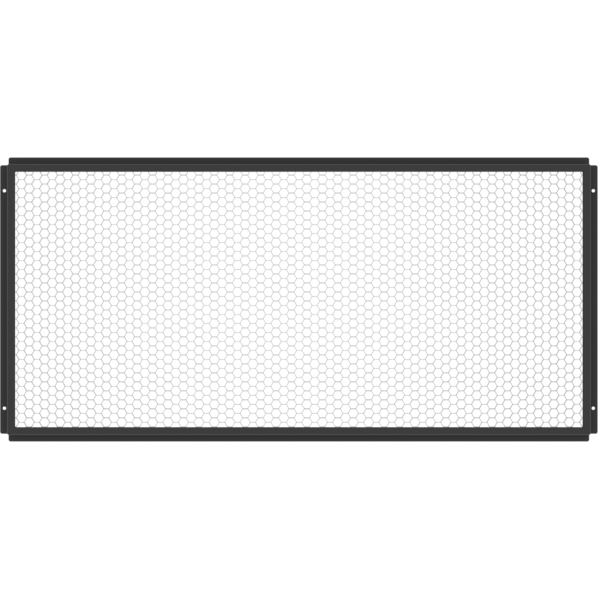

EPTWCEC60
EPTWCEC60
(optional)
Egg crate a 60 gradi per ECLPANELTWC

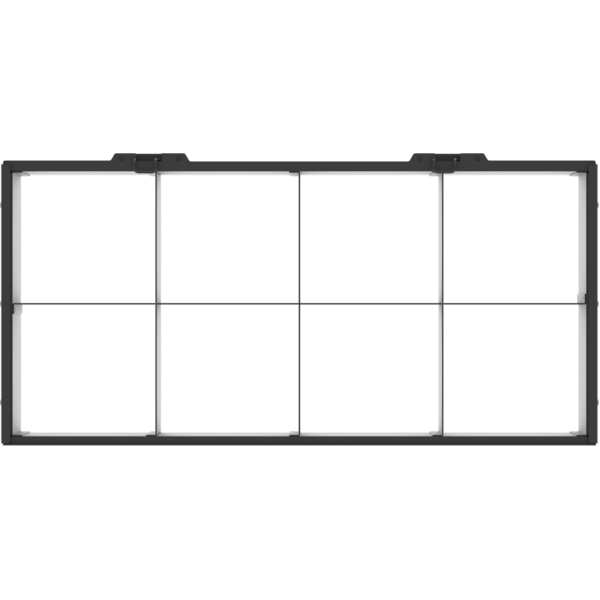

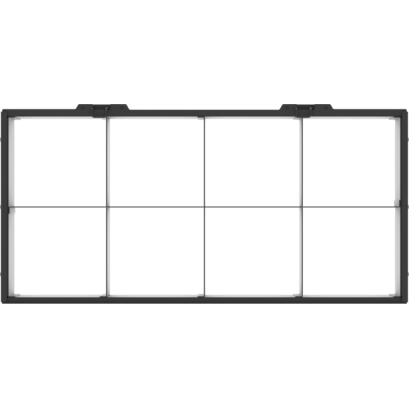

EPTWCEC8C
EPTWCEC8C
(optional)

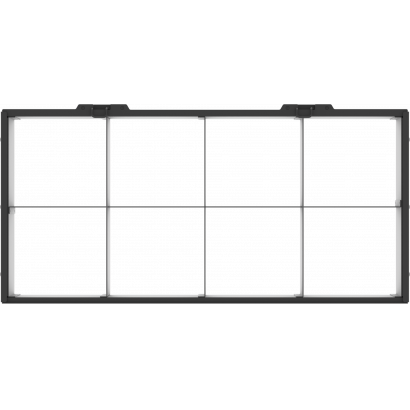

Egg crate a 8 cavità per ECLPANELTWC

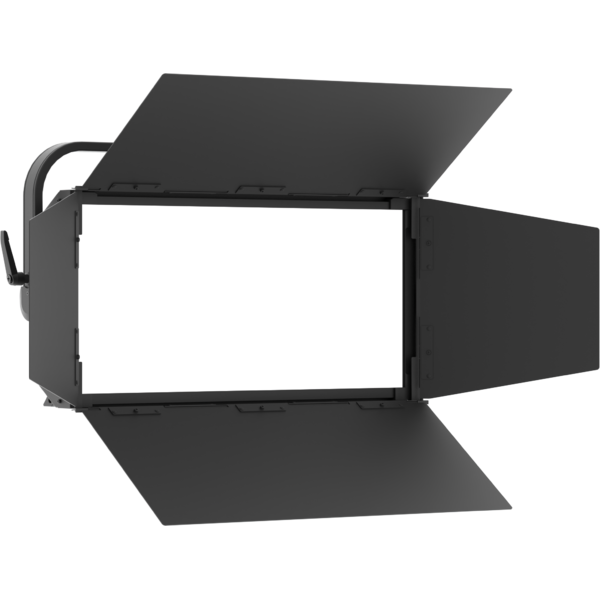

EPTWCBDR2
EPTWCBDR2

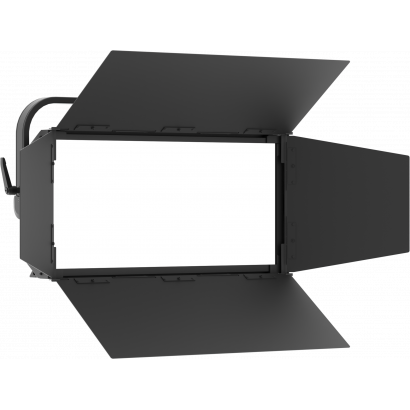

(optional)
4 alette per la regolazione del fascio di luce

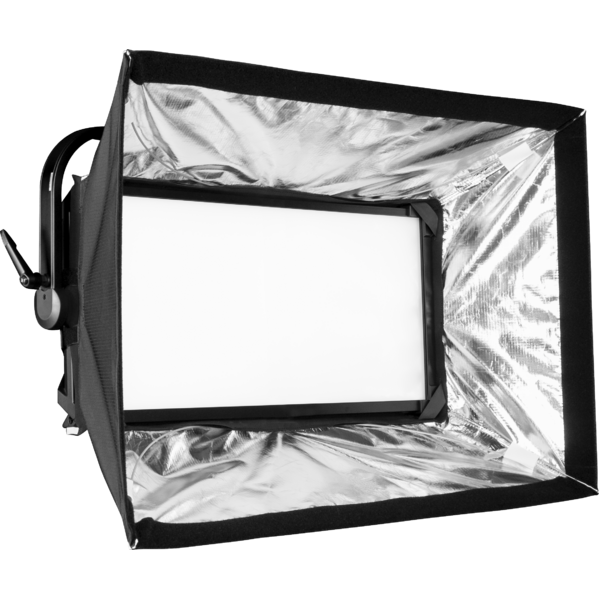

EPTWCSB21
EPTWCSB21
(optional)

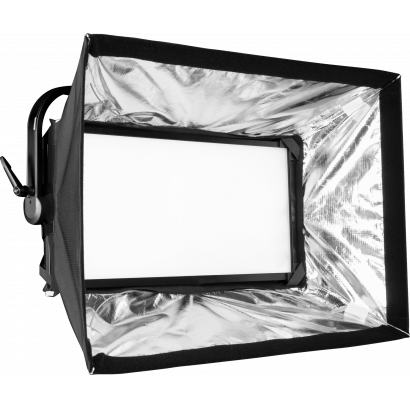

SnapBag 2x1 per ECLPANELTWC by DoP choice

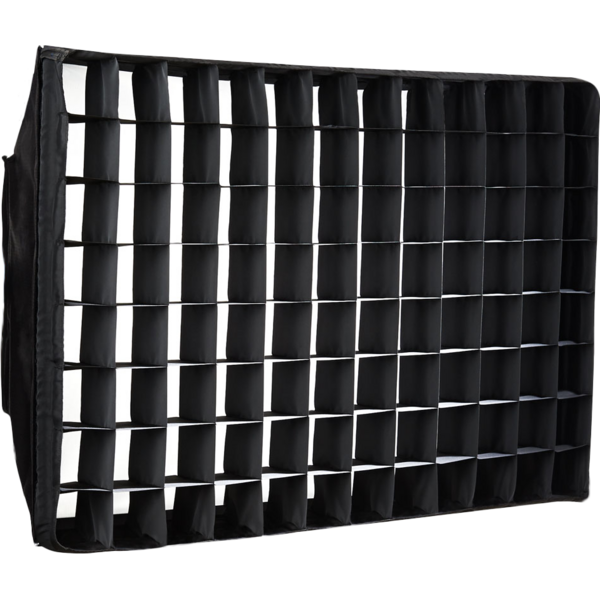

EPTWCSG4SB2140
EPTWCSG4SB2140
(optional)

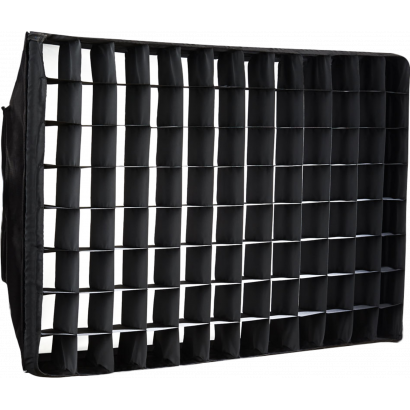

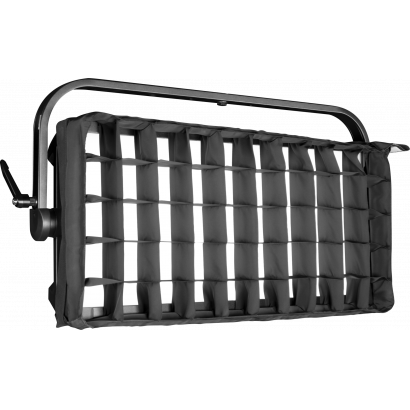

SnapGrid a 40° per SnapBag, 2x1 per ECLPANELTWC by DoP choice
EPTWCSG2140
EPTWCSG2140
(optional)
SnapGrid a 40°, 2x1 per ECLPANELTWC by DoP choice

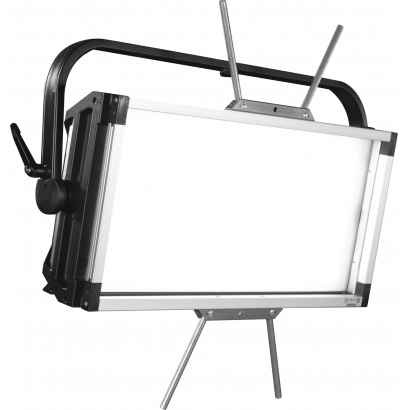

EPSRER
EPSRER
(optional)

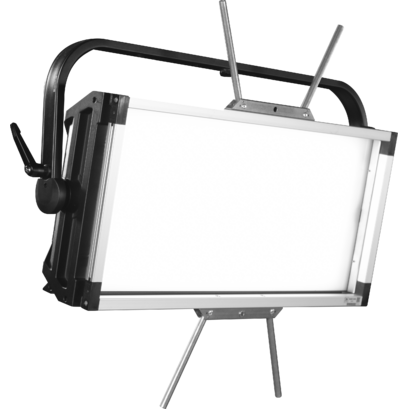

Rabbit-Ears 2x1 Rettangolare per ECLPANELTWC by DoP choice
EPSBRL3
EPSBRL3

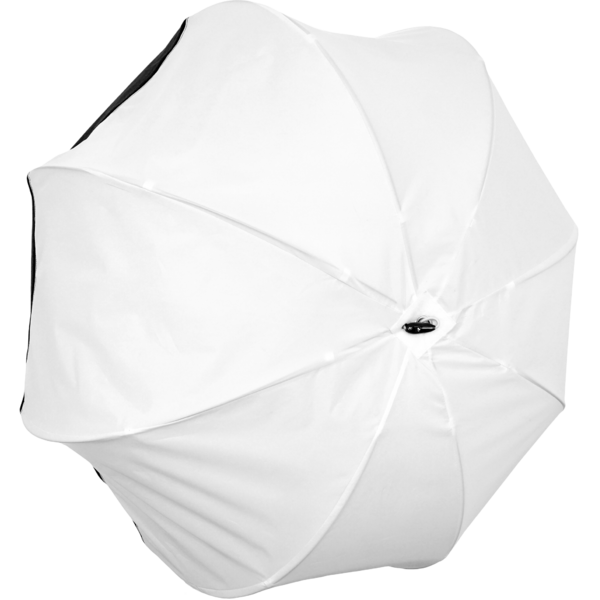

(optional)
Snapbag Lantern 3' per Rabbit-Ears by DoP. Incl. Lantern, Carry Bag

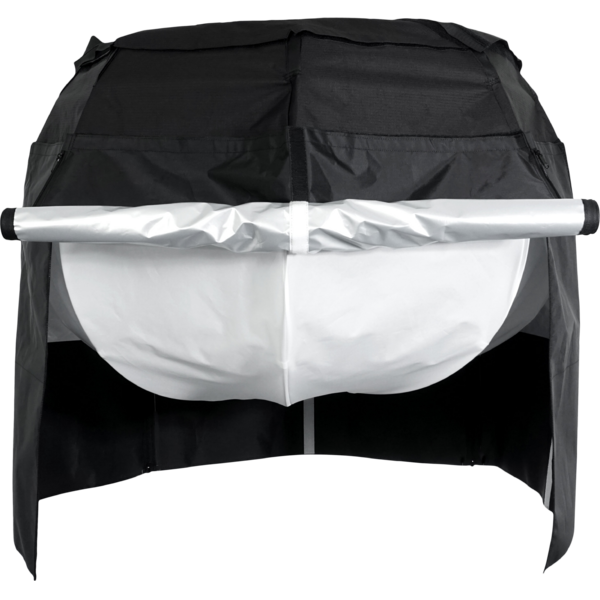

EPSBRL3C4
EPSBRL3C4
(optional)
Cover per Snapbag Lantern 3' (EPSBRL3) by DoP choice; 4 lati, reg. con cerniera

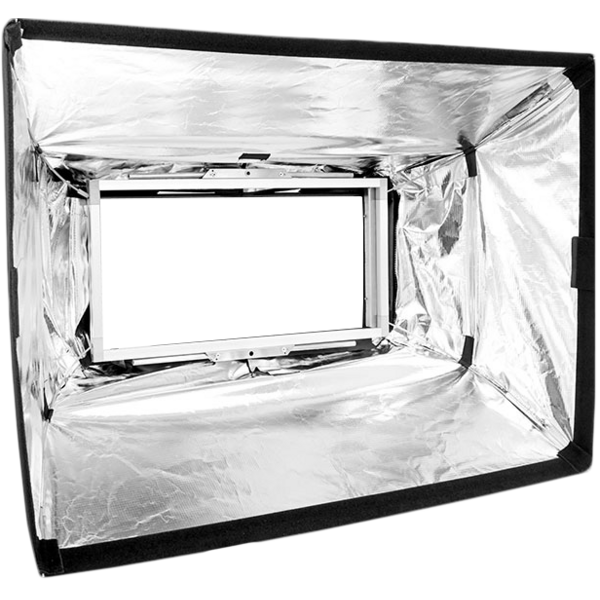

EPSBRM
EPSBRM
(optional)
SnapBag Medium per il montaggio su Rabbit Ears by DoP.

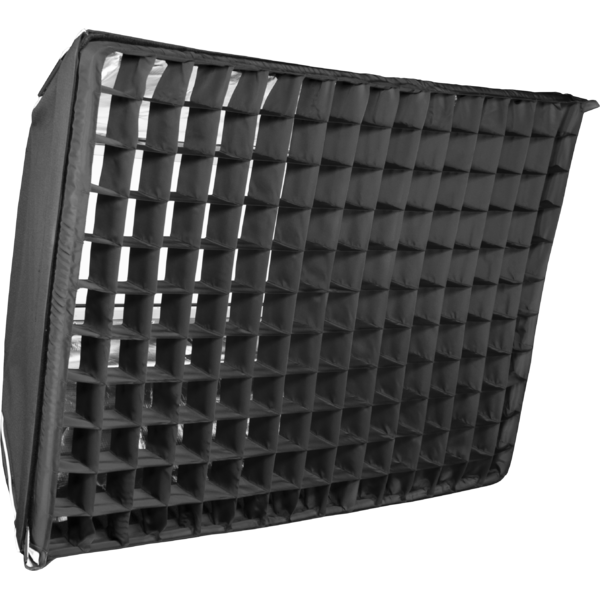

EPSGCM40
EPSGCM40
(optional)
SnapGrid a 40°, per il montaggio su Snap Bag Medium (EPSBRM)

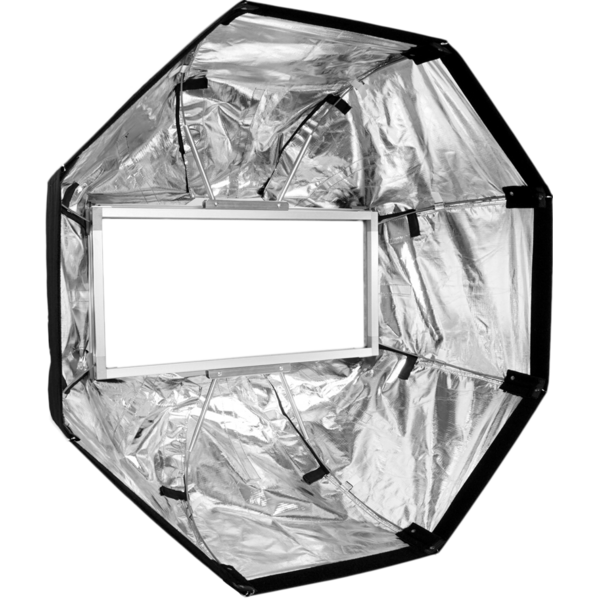

EPSBRO3
EPSBRO3
(optional)

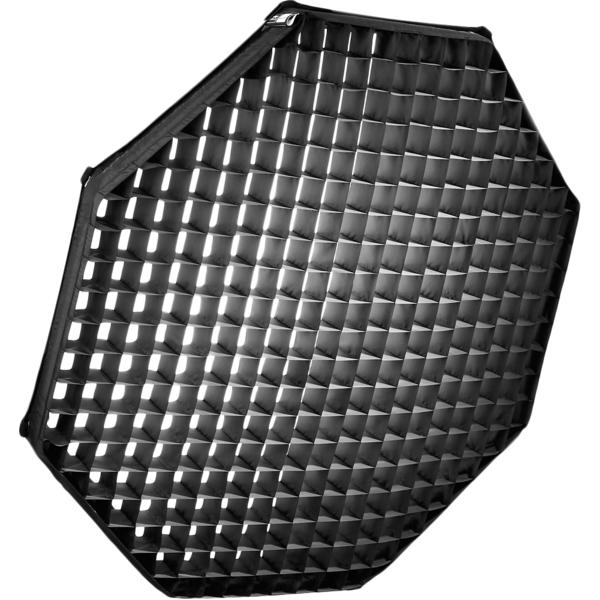

Snapbag Octa 3' per il montaggio su Rabbit-Ears by DoP.
EPSGC3W40
EPSGC3W40
(optional)

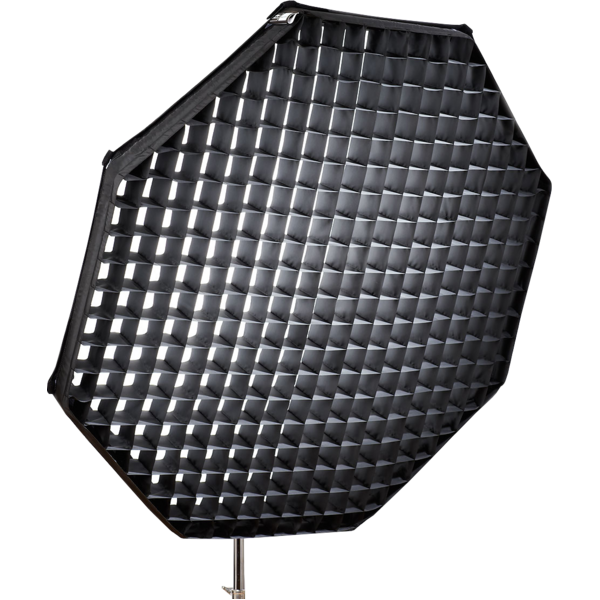

SnapGrid a 40°, per il montaggio su Snap Bag Octa 3' (EPSBRO3)

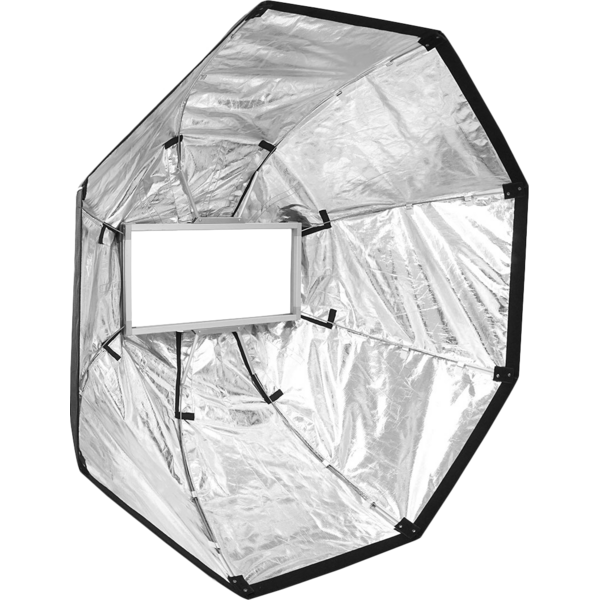

EPSBRO5
EPSBRO5
(optional)
Snapbag Octa 5' per il montaggio su Rabbit-Ears by DoP.
EPSGC5W40
EPSGC5W40
(optional)

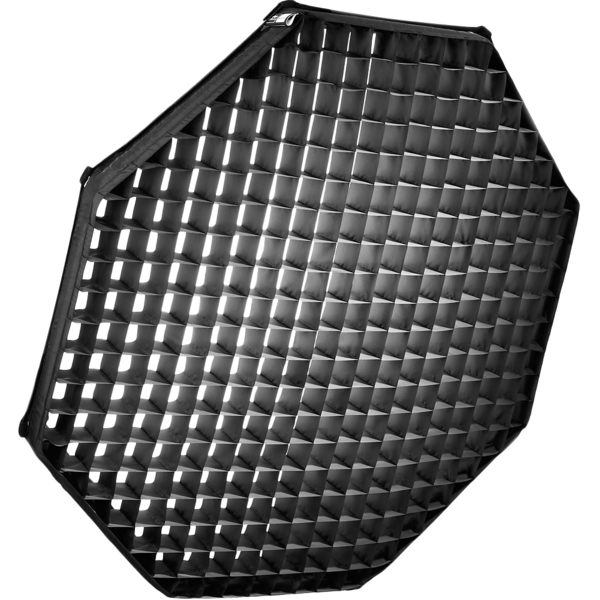

SnapGrid a 40°, per il montaggio su Snap Bag Octa 5' (EPSBRO5)

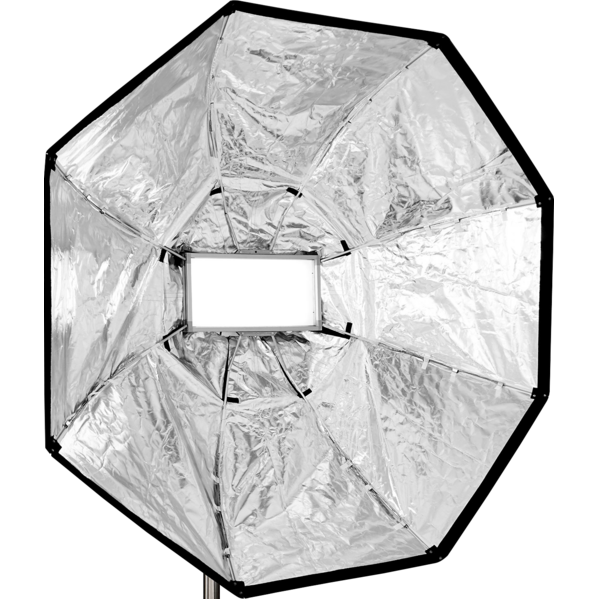

EPSBRO7
EPSBRO7
(optional)
Snapbag Octa 7' per il montaggio su Rabbit-Ears by DoP.
EPSGC7W40
EPSGC7W40
(optional)
SnapGrid a 40°, per il montaggio su Snap Bag Octa 7' (EPSBRO7)
EPSBCFNSM
EPSBCFNSM
(optional)
Diffusion MAGIC cloth per Snapbag 60x90cm (EPTWCSB21) by DoP choice
EPSBCFNSF
EPSBCFNSF
(optional)
Diffusion FULL Grid cloth per Snapbag 60x90cm (EPTWCSB21) by DoP choice
EPSBCFNSH
EPSBCFNSH
(optional)
Diffusion HALF Grid cloth per Snapbag 60x90cm (EPTWCSB21) by DoP choice

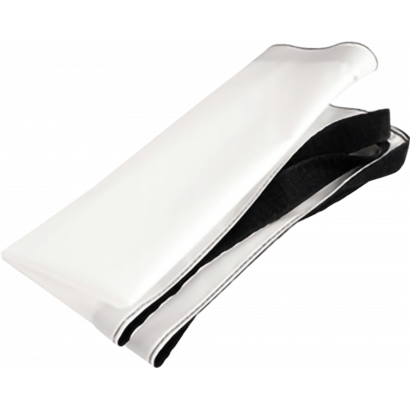

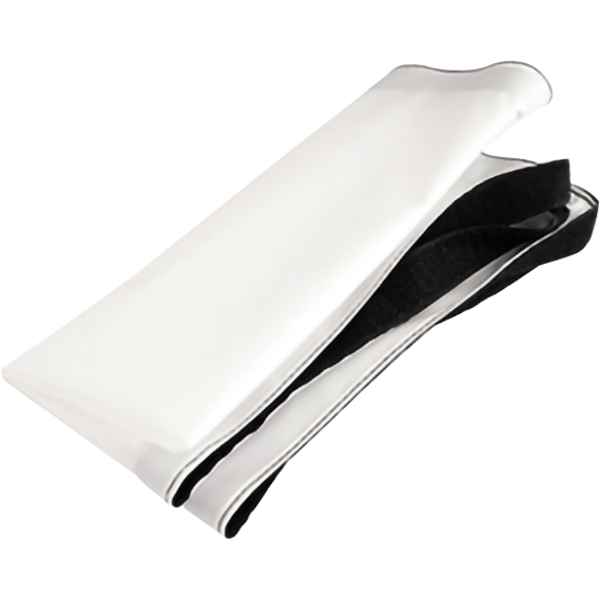

EPSBCFNSQ
EPSBCFNSQ
(optional)
Diffusion QUARTER Grid cloth per Snapbag 60x90cm (EPTWCSB21) by DoP choice
EPSBCFNSQFM
EPSBCFNSQFM
(optional)
Diffusion cloth SET(1/4,1/1,MAGIC) per Snapbag 60x90cm (EPTWCSB21) by DoP choice
EPSBCFNSQHF
EPSBCFNSQHF
(optional)
Diffusion cloth SET (1/4, 1/2,1/1) per Snapbag 60x90cm (EPTWCSB21) by DoP choice

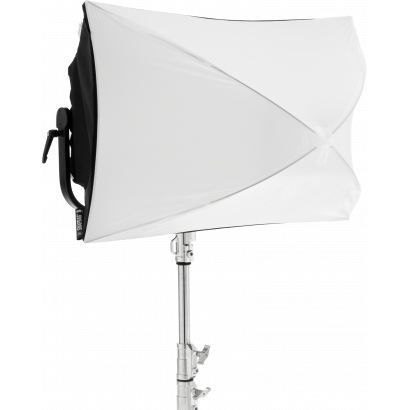

EPTWCLANT21
EPTWCLANT21
(optional)

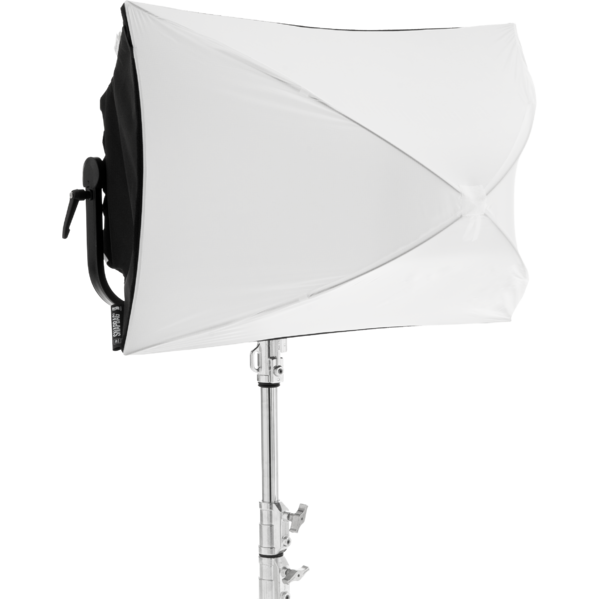

Snapbag Lantern per ECLPANELTWC by DoP. Incl. Lantern, Backcovers, Carry Bag
SPGM12
SPGM12
(optional)
Spigot 28mm per fixtures, perno M12
SPGM10
SPGM10
(optional)
Spigot 28mm per fixtures, perno M10
9513FXWL03
9513FXWL03
(optional)
Cavo Ass. TH07 3x2.5mm, spina CEE 3p 16A 230V, presa MENAC3FXW, L.3 m
9533FXWL03
9533FXWL03
(optional)
Cavo Ass. TH07 3x2.5mm, spina SCHUKO, presa MENAC3FXW, L.3 m
RSR0630B
RSR0630B
(optional)
Cavo di sicurezza acciaio per corpi sospesi, moschettone inox, L=60 cm, nero
C6002B
C6002B
(optional)
Clamp in alluminio Slim, port.200Kg, tubi 48-51mm, perno M10, Black
C6040B
C6040B
(optional)
Clamp in alluminio per spigot 28mm, port.200Kg, tubi 48-51mm, nero
LRLUNA
LRLUNA
(optional)
Ricetrasmettitore DMX Single Universe con Bluetooth
TOUR53415L03
TOUR53415L03
(optional)
Cavo Dmx assembl. HC5340, CANC5MXX XLR 5p -> CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
Cavo TH07 3x2.5mm, PwCon MXW 3p 16A, PwCon FXW 3p 16A, L. 3m
