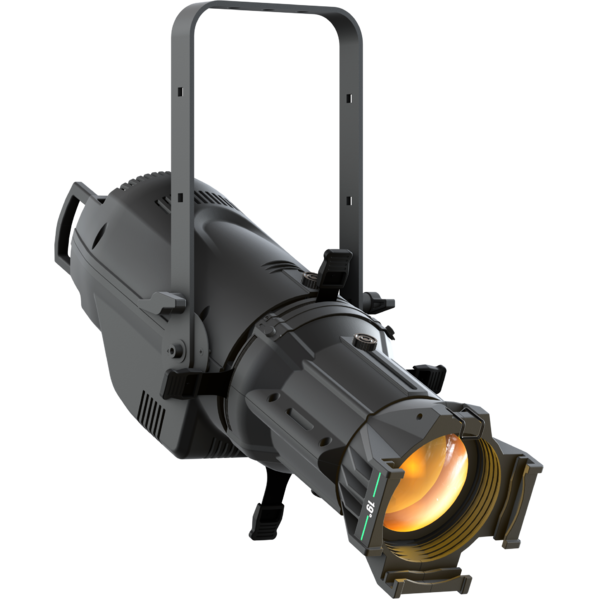

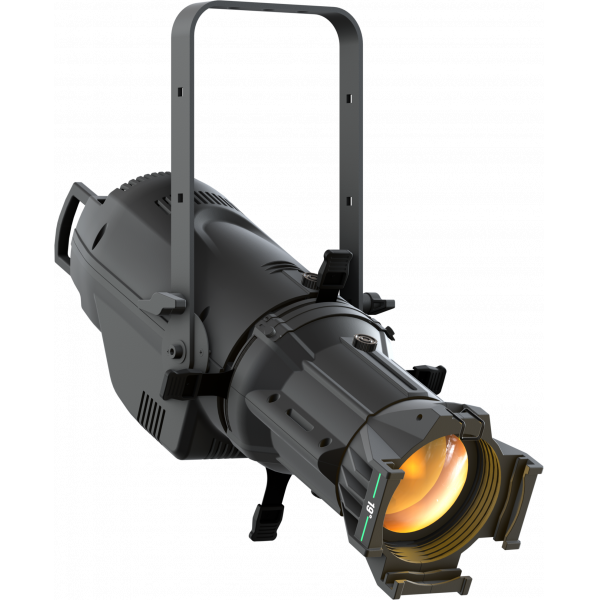

EclProfile FS

High power RGBL full spectrum ellipsoidal LED

EclProfile FS is a full colour elipsoidal LED, designed to deliver a full range of pastels, saturates and whites, both with or without gobos. The EclProfile FS' RGB + Lime LED engine has been specially engineered to provide a full spectrum and full output in the most discerning environments, regardless of which role the EclProfile FS is playing.

Main features:

  • RGB + Lime ellipsoidal LED with HD dimming and extensive colour palette
  • High definition optics for sharp focus and gobo projection
  • Accepts industry standard accessories
See variants

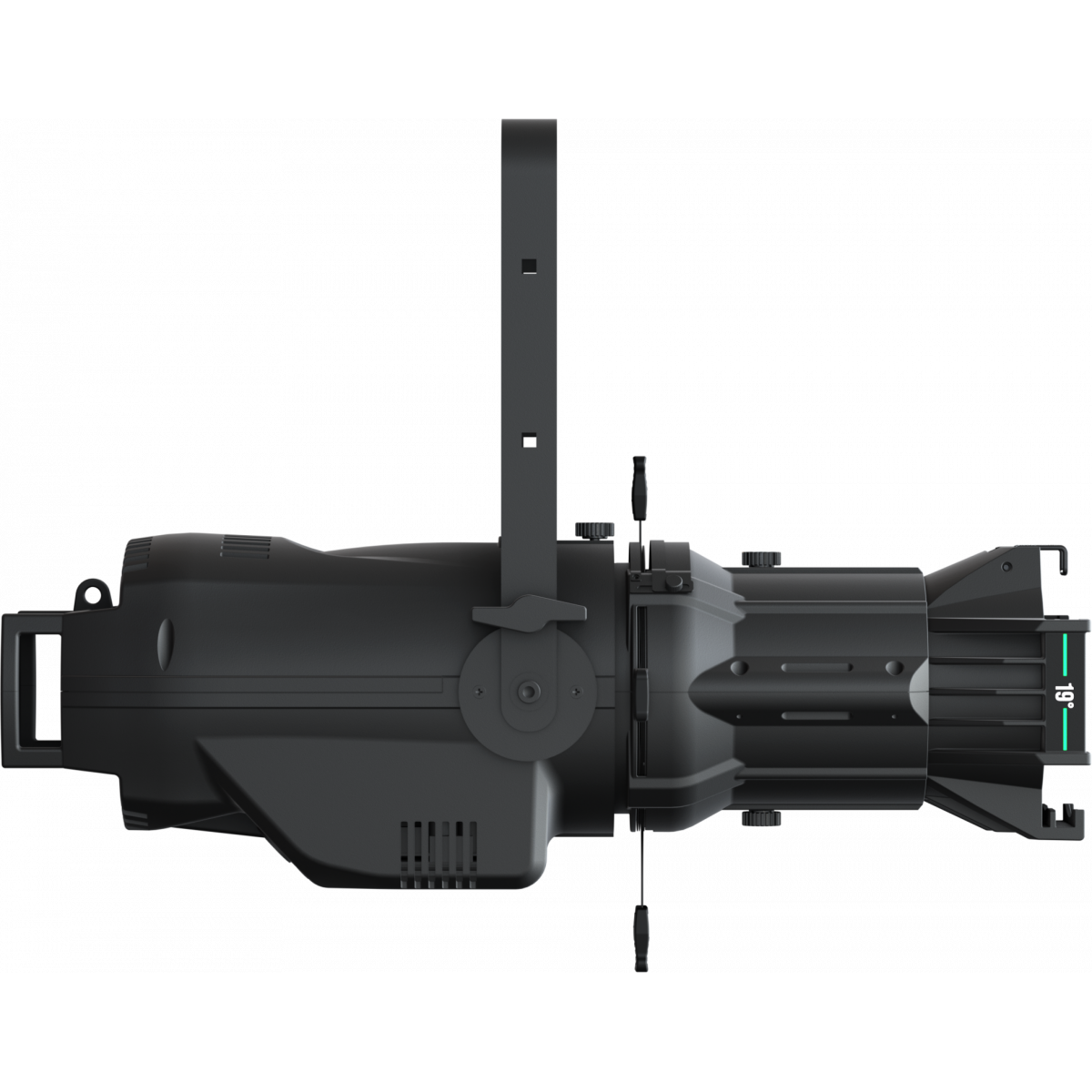

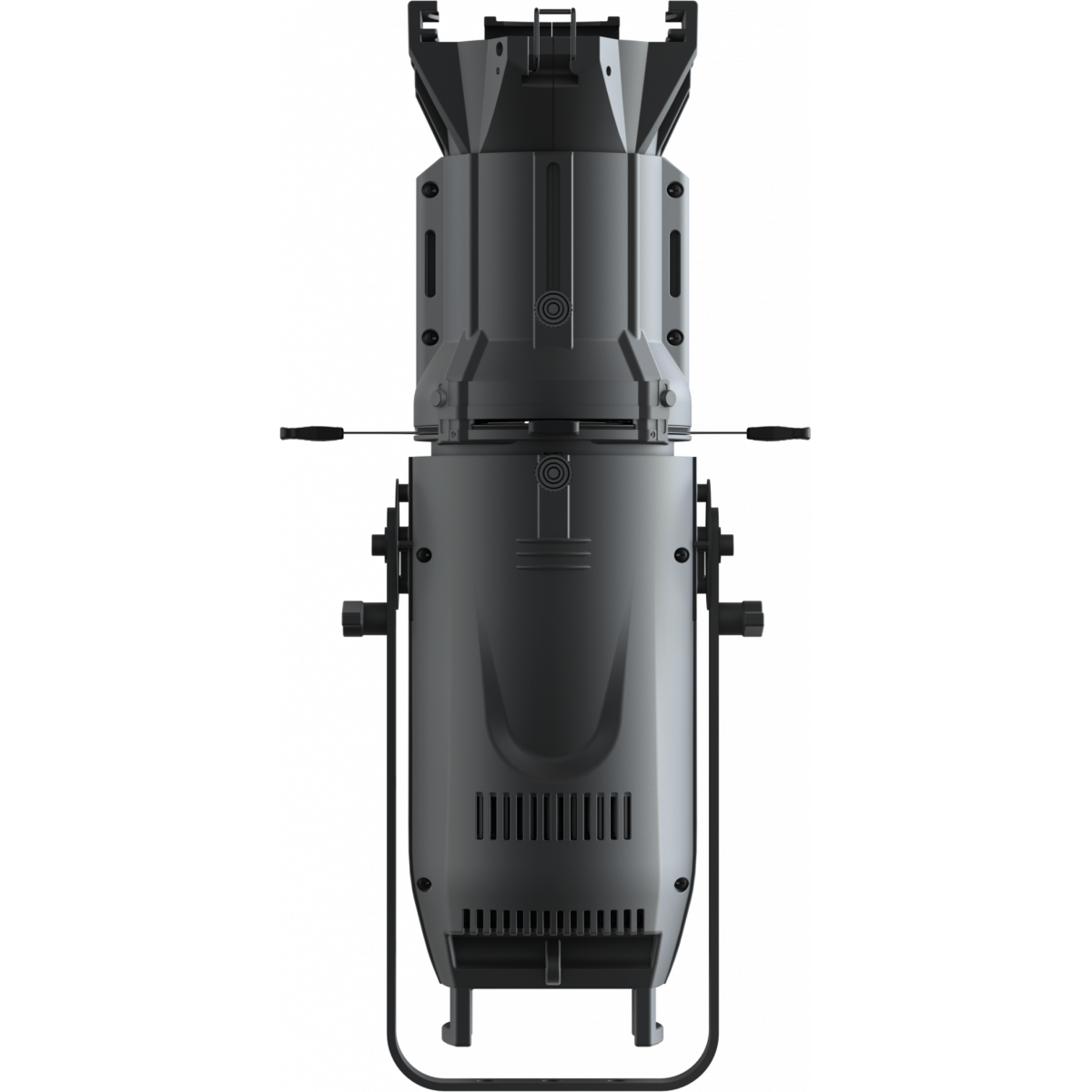

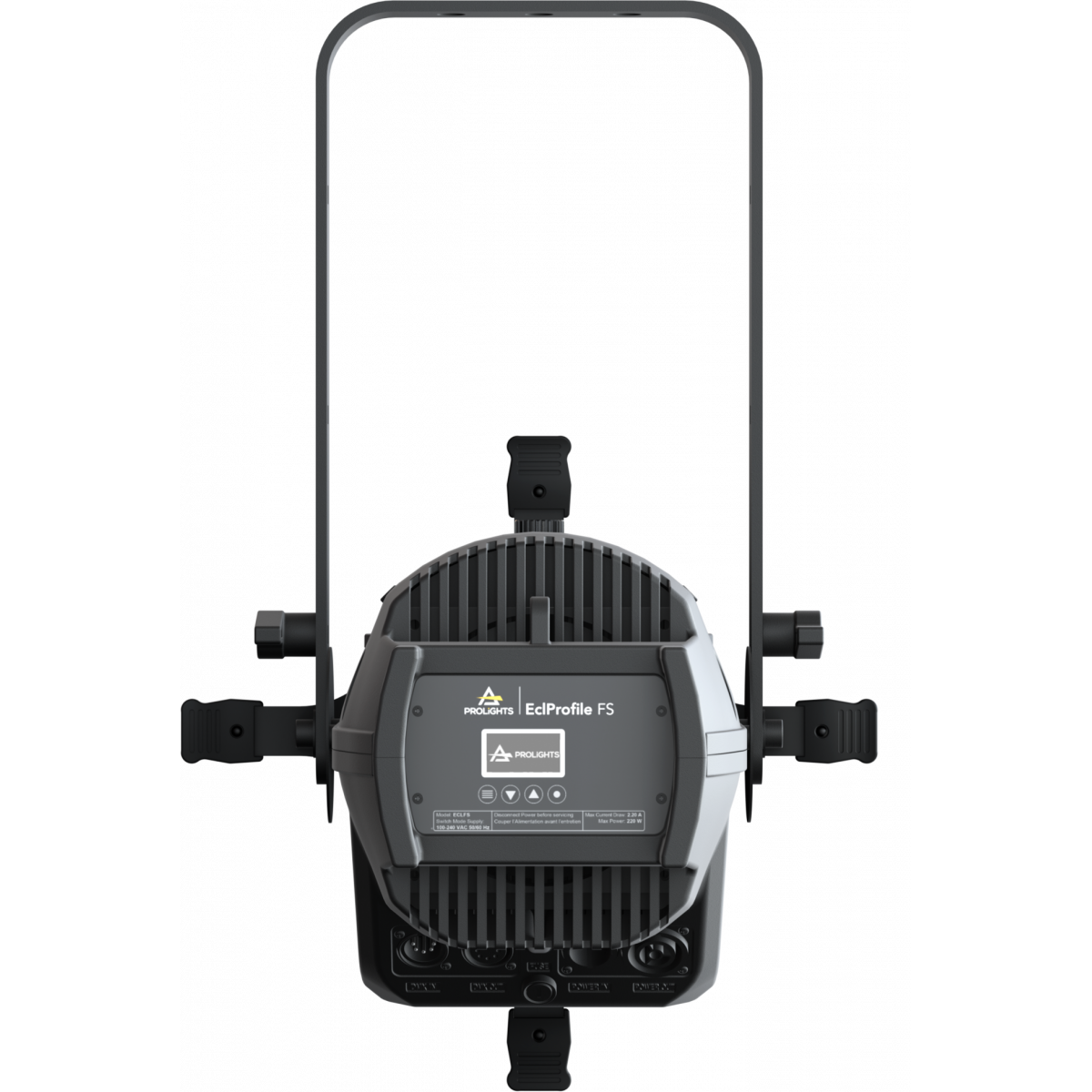

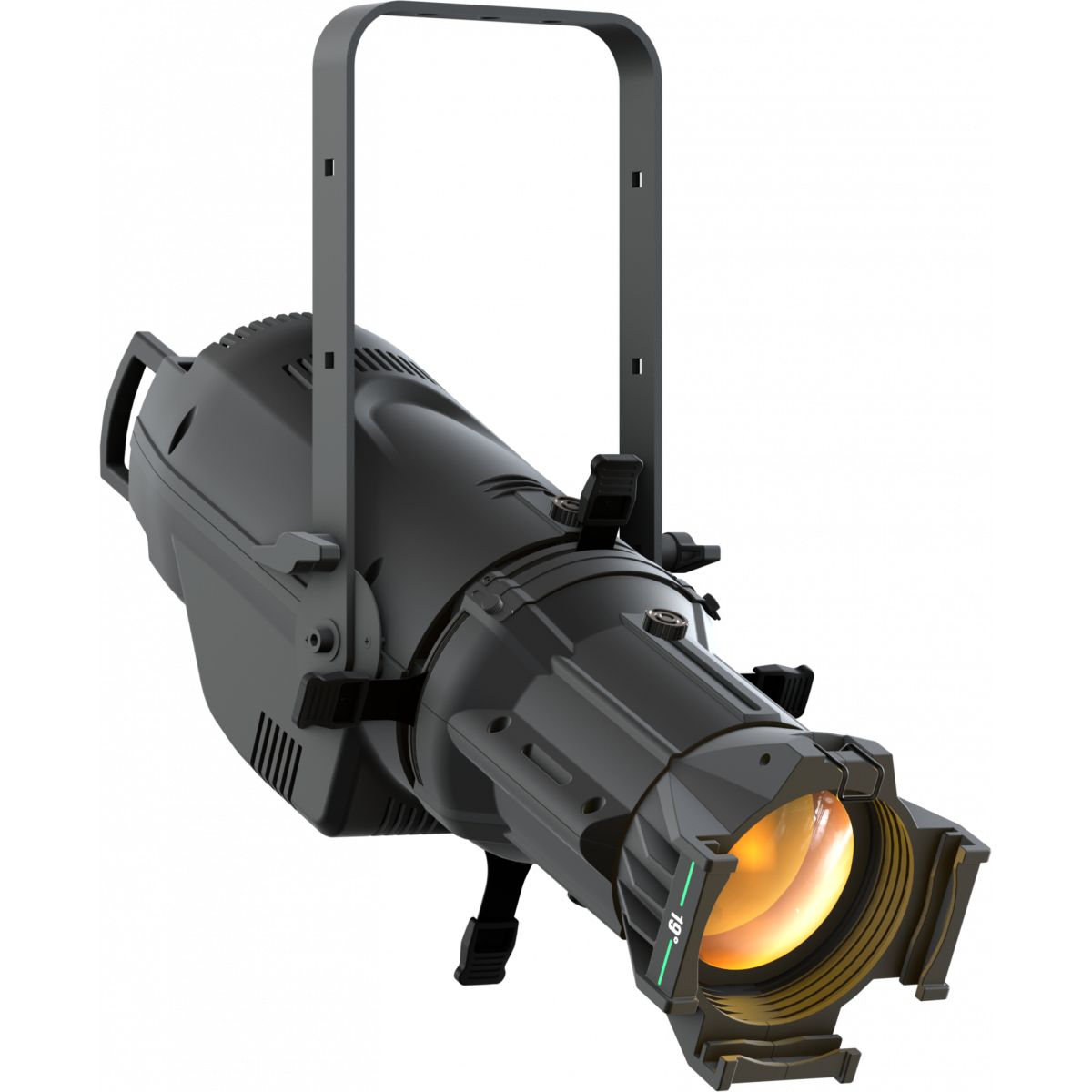

PHOTO GALLERY

EclProfile FS
EclProfile FS
EclProfile FS
EclProfile FS

Technical specifications

LIGHT SOURCE
  • Source: 91x3W RGB + lime LEDs
  • CCT: @full 5.000
  • Luminous flux: (5°) TBD; (10°) TBD; (14°) 4'619 lm; (19°) 5'133 lm; (26°) 6'100 lm; (36°) 5'970 lm; (50°) 5'596 lm; (70°) TBD @Full
  • Lux: (5°) TBD; (10°) TBD; (14°) 4'321 lx; (19°) 2'567 lx; (26°) 1'711 lx; (36°) 873 lx; (50°) 462 lx; (70°) TBDlx @5 m full
  • CRI: 86 @3.200 K; 85 @5.600 K
  • TLCI: 82 @5.600 K
  • TM30 Rf: 84 @3.200 K
  • TM30 Rg: 109 @3.200 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Lens type: high-quality glass lens optics
  • Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50
  • Focus: manual
COLOUR SYSTEM
  • Colour mixing: RGB + lime / full colour
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: different presets for fan mode and output management
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3RGB / 4RGBL / 5RGBL / 3 / 4 / 5 / 8 / 13 ch - Tungsten / 3.200 K / 5.400 K / 6.500 Kchannel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 220W
  • Standby power: 5 W
  • Output (at 230V): 10 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 20
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 265x259x540mm / 10.43''x10.2''x21.26''
  • Weight: 7,3kg / 16.09lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Housing
ECLFSBK
ECLFSBK
Black

Accessories & Related Products

FCLECLPR
FCLECLPR
(Optional)
Flightcase to contain 8 pcs ECLFS,ECLFW or ECLCTPLUS with lenses 19°,26°,36°,50°
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
FCLECLPRLZ
FCLECLPRLZ
(Optional)
Flightcase to contain 8 ECLPRLZ zoom lenses
<b>EclPrl</b> Smooth filter
EclPrl Smooth filter
(Optional)
Smooth/homogenizer filter with aluminium frame and magnets for Ecl Profile fixtu
<b>EclPrl</b> Pole Operated Yoke
EclPrl Pole Operated Yoke
(Optional)
Pole operated yoke for ECL Profile fixtures
ECLLB05BK
ECLLB05BK
(Optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLPRL05BK
ECLPRL05BK
(Optional)
5° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL10BK
ECLPRL10BK
(Optional)
10° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL14BK
ECLPRL14BK
(Optional)
14° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL19BK
ECLPRL19BK
(Optional)
19° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL26BK
ECLPRL26BK
(Optional)
26° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL36BK
ECLPRL36BK
(Optional)
36° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL50BK
ECLPRL50BK
(Optional)
50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL70BK
ECLPRL70BK
(Optional)
70° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(Optional)
Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 15°-30°
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 25°-50°
<b>EclPrl</b> Zoom
EclPrl Zoom
(Optional)
Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRGH
ECLPRGH
(Optional)
Gobo holder for ECL Profile fixtures, B size
ECLPRGHA
ECLPRGHA
(Optional)
Gobo holder for ECL Profile fixtures, A size
ECLPRIRIS
ECLPRIRIS
(Optional)
Iris accessory for ECL Profile fixtures
ECLPRSEF1
ECLPRSEF1
(Optional)
Soft edge filter and holder kit for ECL Profile fixtures
ECLLZLLKA
ECLLZLLKA
(Optional)
Hexagonal head screw, to adapt ECLLZ lenses on ECLCTPLUS, ECLFW and ECLFS
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfs_A4_DATASHEET_(IT).pdf418KB
Letter datasheetEclfs_A4_DATASHEET_(EN).pdf450KB
Tender SpecificationEclfs_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclfs_DMX_CHARTS.pdf56KB
ECLFS Firmware rev. 2.0.04
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D revitECLFS_3D_REVIT.zip8MB
3D sketchupECLFS_3D_SKETCHUP.zip19MB
2D cad symbolsEclfs_CAD_2DSYMBOLS.dwg76KB
2DECLFS_2D.zip117MB
3DECLFS_3D.zip15MB
Technical drawingECLFS_TECHNICAL DRAWINGS.zip5MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx1MB

Tech docs

File name File size Download
Noise ReportEclfs_NOISE_REPORT.pdf1MB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.0.04 STABLE 15/02/2021 New functions:
  • Added Theatre 20 CH  DMX mode.
