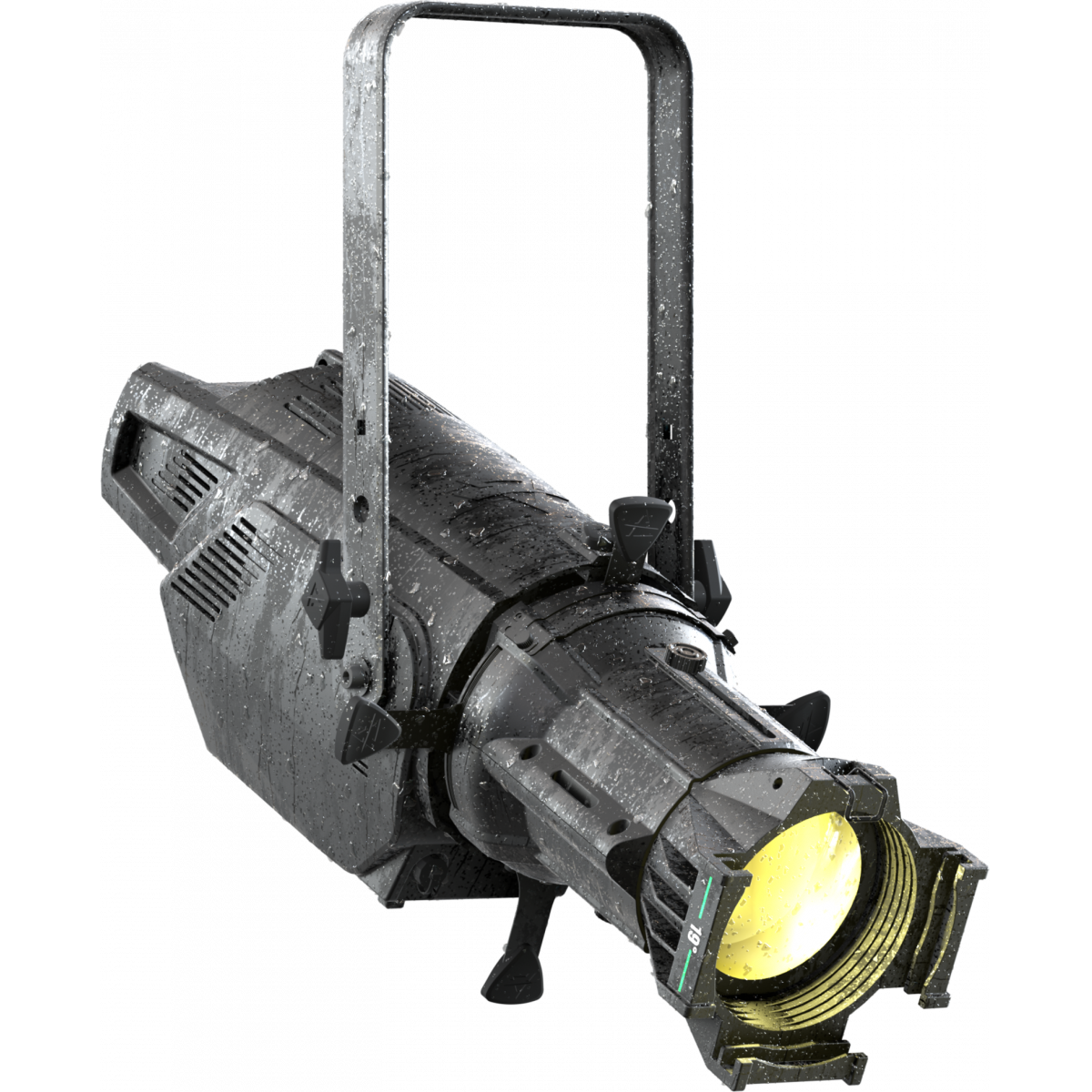

EclProfile FWIPVW

Waterproofed High quality Variable White LED ellipsoidal, with linear CCT 2,700 K - 5,600 K

EclProfile FW IP VW is the IP Full White version of the new generation of Ecl Profile LED ellipsoidals with Variable White source variants. The EclProfile FW IP VW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

Main features:

  • IP rated for exterior applications
  • Rotating gobo IP65 (optional)
  • Linear white CCT from 2,700 K to 5,600 K.
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30).
  • Silent operation and compatible with industry standard accessories.

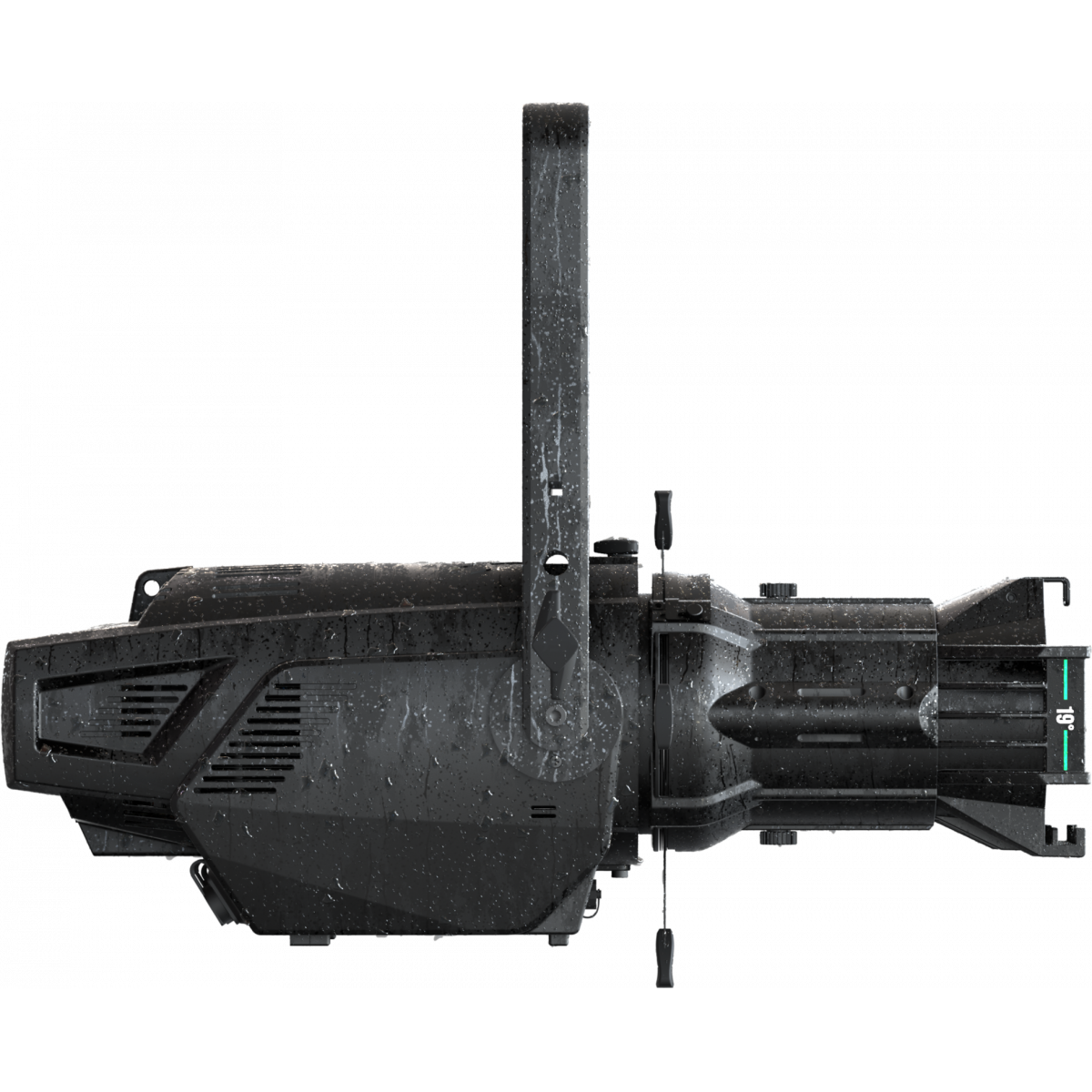

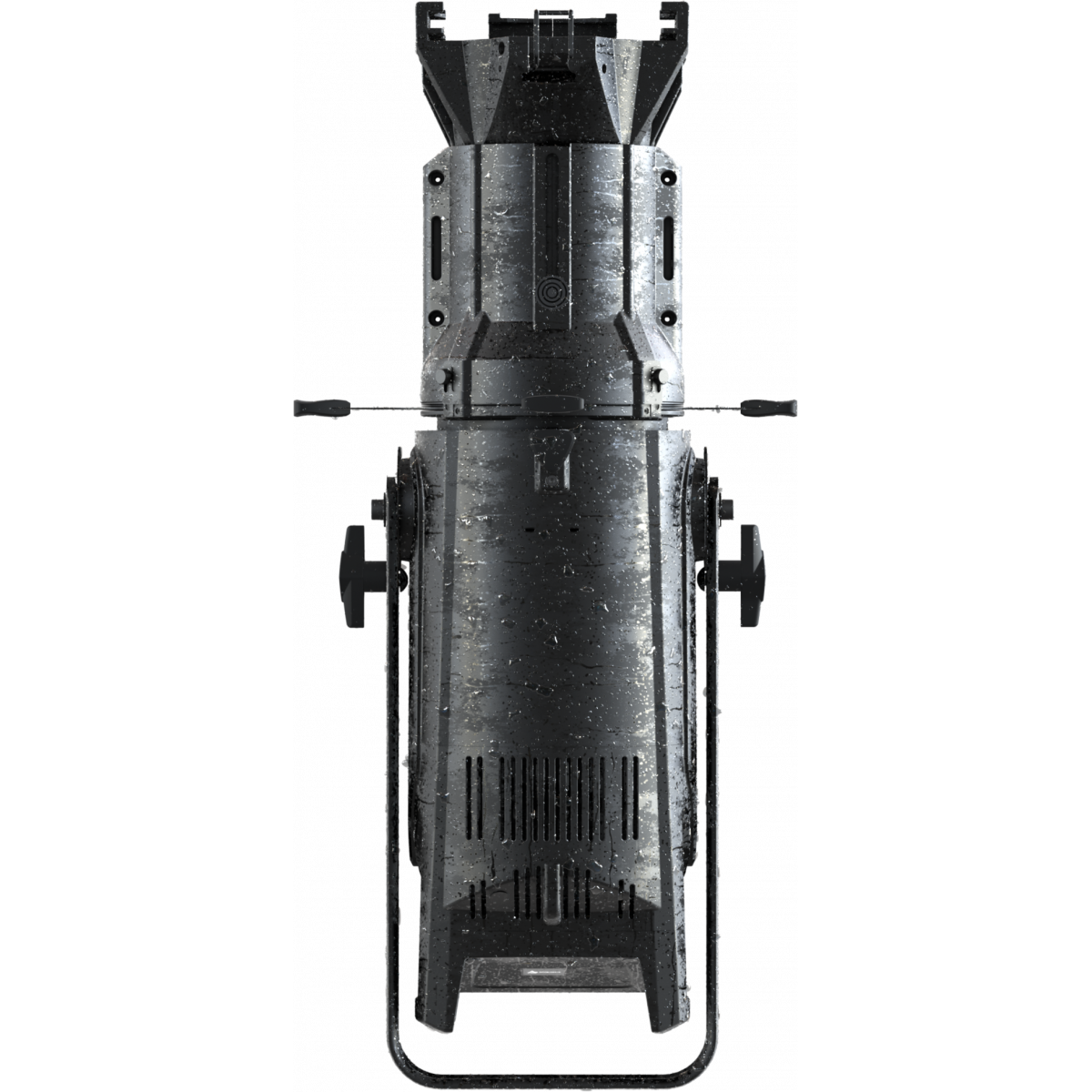

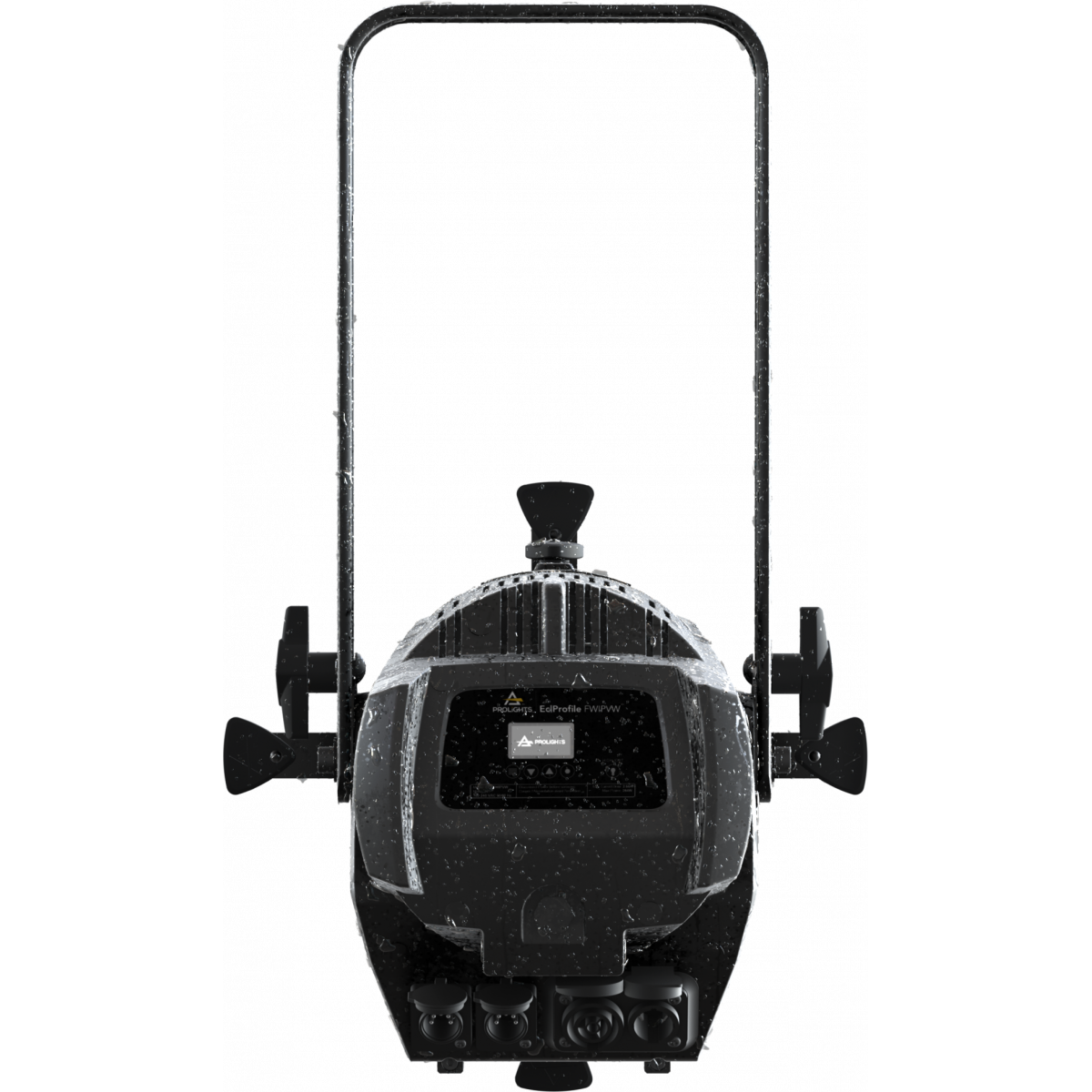

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 91x3W high-power white LED
  • CCT: from 2.700K to 6.500
  • Luminous flux: (26° only TU) 3'696 lm; (26° only DY) 4'406 lm; (26°) 7'951lm @full
  • Lux: (26° only TU) 1'289 lx; (26° only DY) 1'524 lx; (26°) 2'759lx @5 m full
  • CRI: (only TU) 97,7; (only DY) 95,7; (@full) 96.3
  • R9: (only TU) 86,2; (only DY) 90,9; (@full) 90,5
  • TLCI: (only TU) 97; (only DY) 97; (@full) 98
  • TM30 Rf: (only TU) >92; (only DY) >90; (@full) >92
  • TM30 Rg: (only TU) >96; (only DY) >99; (@full) <102
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°°
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: manual
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: warm white + cold white
  • White presets: 2.700K - 5.600K
DYNAMIC EFFECTS
  • Rotating gobos: optional, see available accessories
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: HIGH mode, AUTO mode and SILENT mode fan management
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 2 / 3 / 4 / 6 / 12channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 264W
  • Output (at 230V): 11 units on a single power line
  • Power factor: 0,97
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 324x540x660mm / 12.76''x21.26''x25.98''
  • Weight: 10kg / 22.05lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLFWIPVWBK
ECLFWIPVWBK
Black

Accessories & Related Products

<b>EclProfile </b> Rotating Gobo
EclProfile Rotating Gobo
(optional)
Rotating gobo assembly for ECL Profile fixtures, black
FCLECLPRIP
FCLECLPRIP
(optional)
Flightcase to contain 6 pcs ECLFWIP / ECLCTPLUS with lenses 19°, 26°, 36°, 50°
FCLECLPRLZ
FCLECLPRLZ
(optional)
Flightcase to contain 8 ECLPRLZ zoom lenses
<b>EclPrl</b> Pole Operated Yoke
EclPrl Pole Operated Yoke
(optional)
Pole operated yoke for ECL Profile fixtures
ECLLB05BK
ECLLB05BK
(optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLPRL05BK
ECLPRL05BK
(optional)
5° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL10BK
ECLPRL10BK
(optional)
10° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL14BK
ECLPRL14BK
(optional)
14° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL19BK
ECLPRL19BK
(optional)
19° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL26BK
ECLPRL26BK
(optional)
26° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL36BK
ECLPRL36BK
(optional)
36° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL50BK
ECLPRL50BK
(optional)
50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL70BK
ECLPRL70BK
(optional)
70° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL90BK
ECLPRL90BK
(optional)
90° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(optional)
Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(optional)
Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRTPG
ECLPRTPG
(optional)
Gel filter frame for ECL Profile PRL lens barrel, comp. with 19°,26°,36° and 50°
ECLPRGH
ECLPRGH
(optional)
Gobo holder for ECL Profile fixtures, B size
ECLPRGHA
ECLPRGHA
(optional)
Gobo holder for ECL Profile fixtures, A size
ECLPRIRIS
ECLPRIRIS
(optional)
Iris accessory for ECL Profile fixtures
ECLPRSEF1
ECLPRSEF1
(optional)
Soft edge filter and holder kit for ECL Profile fixtures
ECLLZLLKA
ECLLZLLKA
(optional)
Hexagonal head screw, to adapt ECLLZ lenses on ECLCTPLUS, ECLFW and ECLFS
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclfwipvw_A4_DATASHEET_(EN).pdf 652KB
Letter datasheet Eclfwipvw_LETTER_DATASHEET_(EN).pdf 649KB
Tender Specification Eclfwipvw_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Eclfwipvw_USER_MANUAL_EN.pdf 11MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Eclfwipvw_USER_MANUAL_FR.pdf 11MB

DMX chart & personalities

File name File size Download
DMX chart Eclfwipvw_DMX_CHARTS.pdf 73KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks +Eclprl05_VECTORWORKS_SYMBOLS.vwx 716KB
VectorWorks +Eclprl10_VECTORWORKS_SYMBOLS.vwx 691KB
VectorWorks +Eclprl14_VECTORWORKS_SYMBOLS.vwx 645KB
VectorWorks +Eclprl19_VECTORWORKS_SYMBOLS.vwx 645KB
VectorWorks +Eclprl26_VECTORWORKS_SYMBOLS.vwx 656KB
VectorWorks +Eclprl36_VECTORWORKS_SYMBOLS.vwx 628KB
VectorWorks +Eclprl50_VECTORWORKS_SYMBOLS.vwx 640KB
VectorWorks +Eclprl70_VECTORWORKS_SYMBOLS.vwx 695KB
VectorWorks +Eclprlz1530_VECTORWORKS_SYMBOLS.vwx 726KB
VectorWorks +Eclprlz2550_VECTORWORKS_SYMBOLS.vwx 759KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
ECLFWIPVW Firmware rev. 1.44.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLFWIPVW Firmware rev. 1.43.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLFWIPVW Firmware rev. 1.40.2338
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_eclfwipvw_ies files.zip 45KB
LDT prolights_eclfwipvw_ldt files.zip 32KB
PDF Photometrics Eclfwipvwbk_PRL2550_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwwh_PRL2550_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwbk_PRL1530_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwwh_PRL1530_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwbk_PRL70_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwwh_PRL70_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwbk_PRL50_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwwh_PRL50_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwbk_PRL36_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwwh_PRL36_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwbk_PRL26_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwwh_PRL26_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwbk_PRL19_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwwh_PRL19_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwbk_PRL14_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwwh_PRL14_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwbk_PRL10_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwwh_PRL10_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwbk_PRL5_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfwipvwwh_PRL5_PHOTOMETRICS_REPORT.pdf 2MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup ECLFWIPVW_3D_SKETCHUP.zip 13MB
2D ECLFWIPVW_2D.zip 141MB
3D ECLFWIPVW_3D.zip 9MB
2D cad symbols ECLFWIPVW_2DSYMBOLS.zip 864KB
Technical drawing ECLFWIPVW_TECHNICAL DRAWINGS.zip 6MB

Tech docs

File name File size Download
Noise Report Eclfwipvw_NOISE_REPORT.pdf 1MB

Software

File name File size Download
Software ECLFWIP/CT+ Firmware Updater 0KB

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.44.1 STABLE 27/03/2023 Improvements:
  • Minor improvements to display management.
Rev. 1.0

Info Request

News

30 November 2023
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
For its global premiere on the stage of Vienna's Ronacher Theater, the musical " Rock me Amadeus - The Falco Musical " was brilliantly...
24 November 2023
NicLen expands its inventory with Astra Hybrid330
NicLen expands its inventory with Astra Hybrid330
NicLen has expanded its rental park by acquiring the Astra Hybrid330 . Provided by Lightpower, PROLIGHTS distributor in Germany, this...
21 November 2023
Prolights products on the top of Europe
Prolights products on the top of Europe
PROLIGHTS products took part in the new interactive installation “Top of Europe” at the Jungfraujoch railway station, the highest...
16 November 2023
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023, hosted at the Constanța Masters in the City Park Mall, was illuminated by a lighting setup composed...
14 November 2023
Jet Wash7 illuminates the Vibes' Urban Garden room
Jet Wash7 illuminates the Vibes' Urban Garden room
PROLIGHTS' Jet Wash7 illuminated the Urban Garden room of the Vibes complex in Eindhoven. From a sports center to a location for corporate...
10 November 2023
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products illuminated the Marrageddon festival, an unprecedented celebration of Italian hip-hop, conceived and hosted by hip-hop...
07 November 2023
EclFresnel CT+ Series - Revolutionizing LED Fresnels
EclFresnel CT+ Series - Revolutionizing LED Fresnels
PROLIGHTS proudly introduces the EclFresnel CT+ series , an innovative range of LED Fresnel fixtures designed to redefine the standard...
03 November 2023
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
The PROLIGHTS EclPanel TWC series shone in a recent television commercial featuring the iconic Indian cricket player, Mr. MS Dhoni,...
30 October 2023
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College in Brisbane, Australia, has upgraded its auditorium with an all-LED lighting rig  including the Prolights...
26 October 2023
Prolights illuminates the new location of Science Park Towers
Prolights illuminates the new location of Science Park Towers
The grand unveiling of the new Science Park Towers headquarters within the Jonkoping Science Park showcased a state-of-the-art, innovative...
24 October 2023
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Belconnen Art Center has chosen Prolights' EclDisplay range as the main lighting system for its innovative and modern Window Gallery,...
19 October 2023
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family brilliantly illuminated the unforgettable "A Show Larger than Life" performance at the iconic Hamburger Börs...

Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter tiktok linkedin

Loading...
