EclMiniFresnel FC

ORDER CODE: MINIECLFRFC

LED Fresnel FC and Tunable White, to replace a 300W lamp

EclMiniFresnel FC is an advanced LED replacement for the traditional 300W Fresnel lamps. Offering 4 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 8.000 K with extensive colour reproduction. The optical system harnesses the power of a 70W custom LED with 4 colours to create an even projection, beautiful colours and precise whites. Featuring HDL dimming and tuning from 2.800 K to 8.000 K version, the EclMiniFresnel FC delivers the performance and quality of output demanded from this level of light.

Main features:

  • Tunable white 2.800 K - 8.000 K with extensive colour reproduction
  • RGB + lime full colour mixing to achieve any colour palette
  • Silent operation for studio and stage use
See variants

PHOTO GALLERY

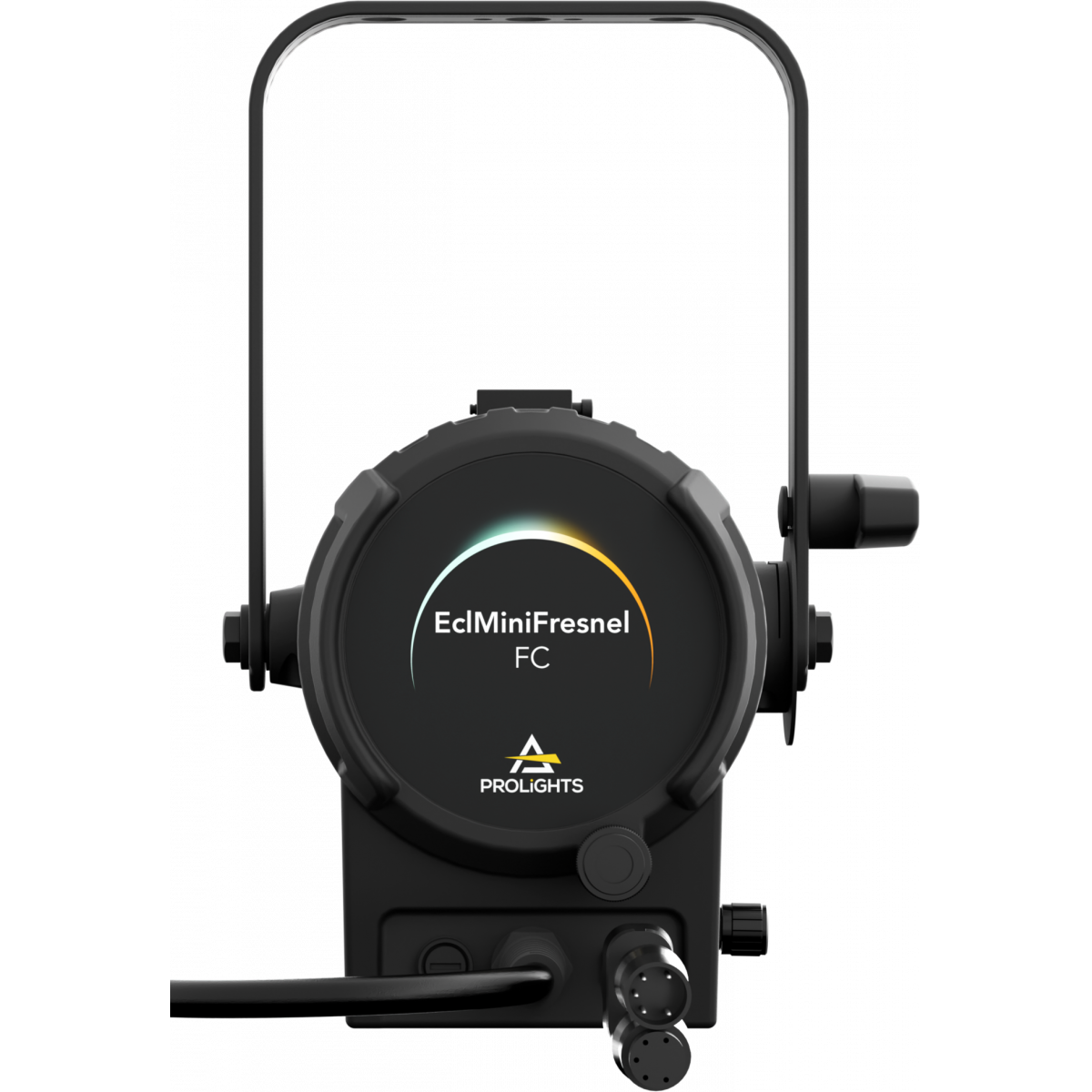

EclMiniFresnel FC

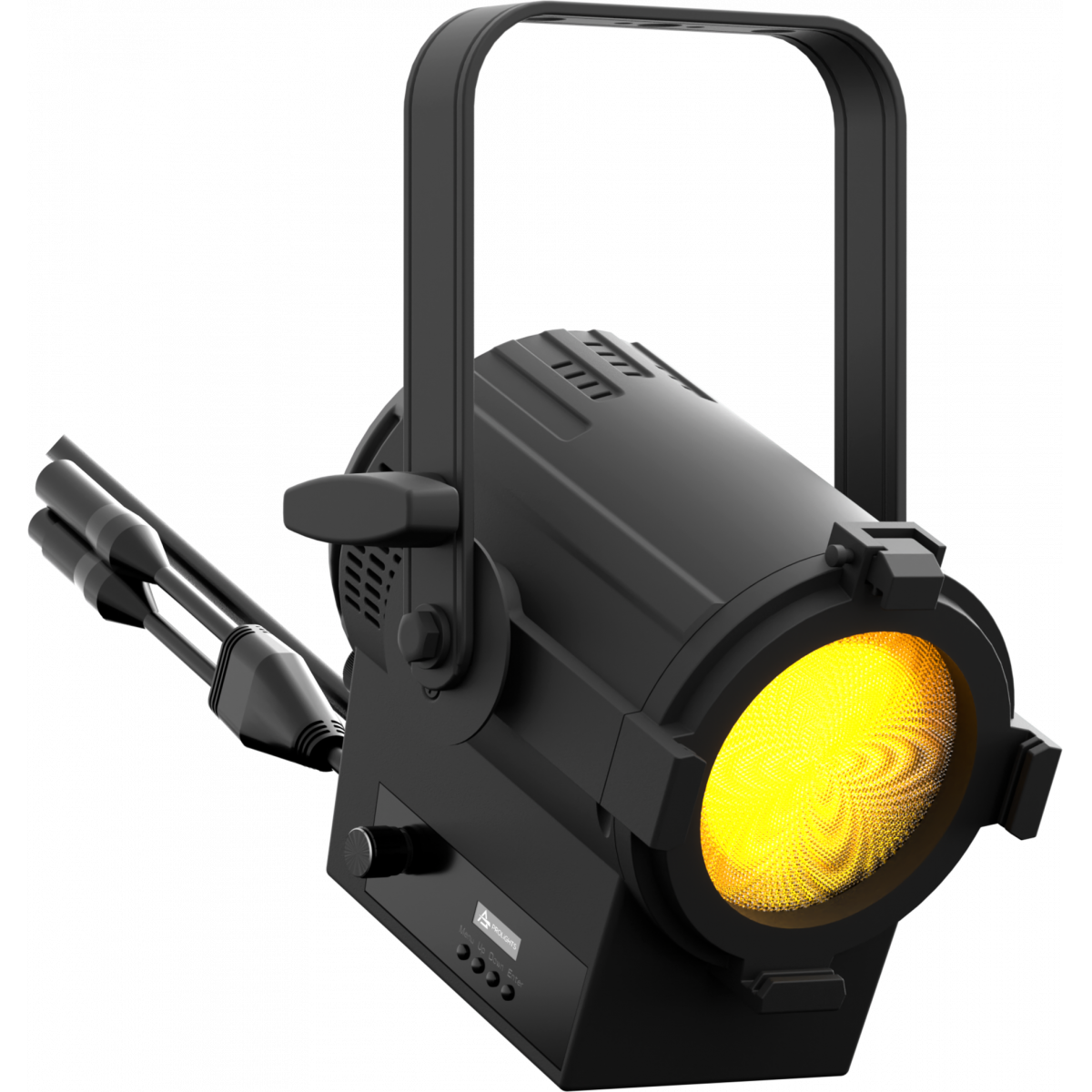

EclMiniFresnel FC

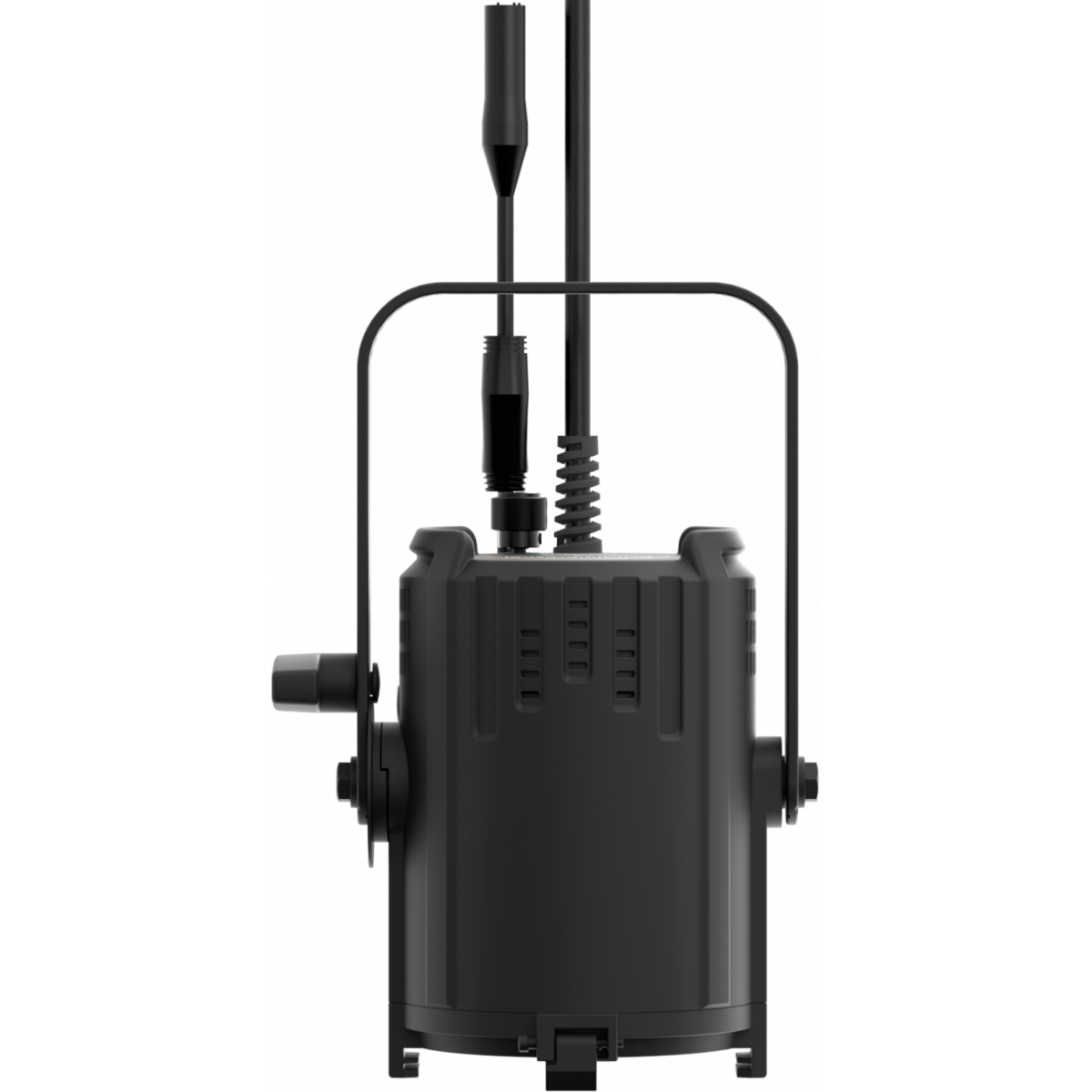

EclMiniFresnel FC

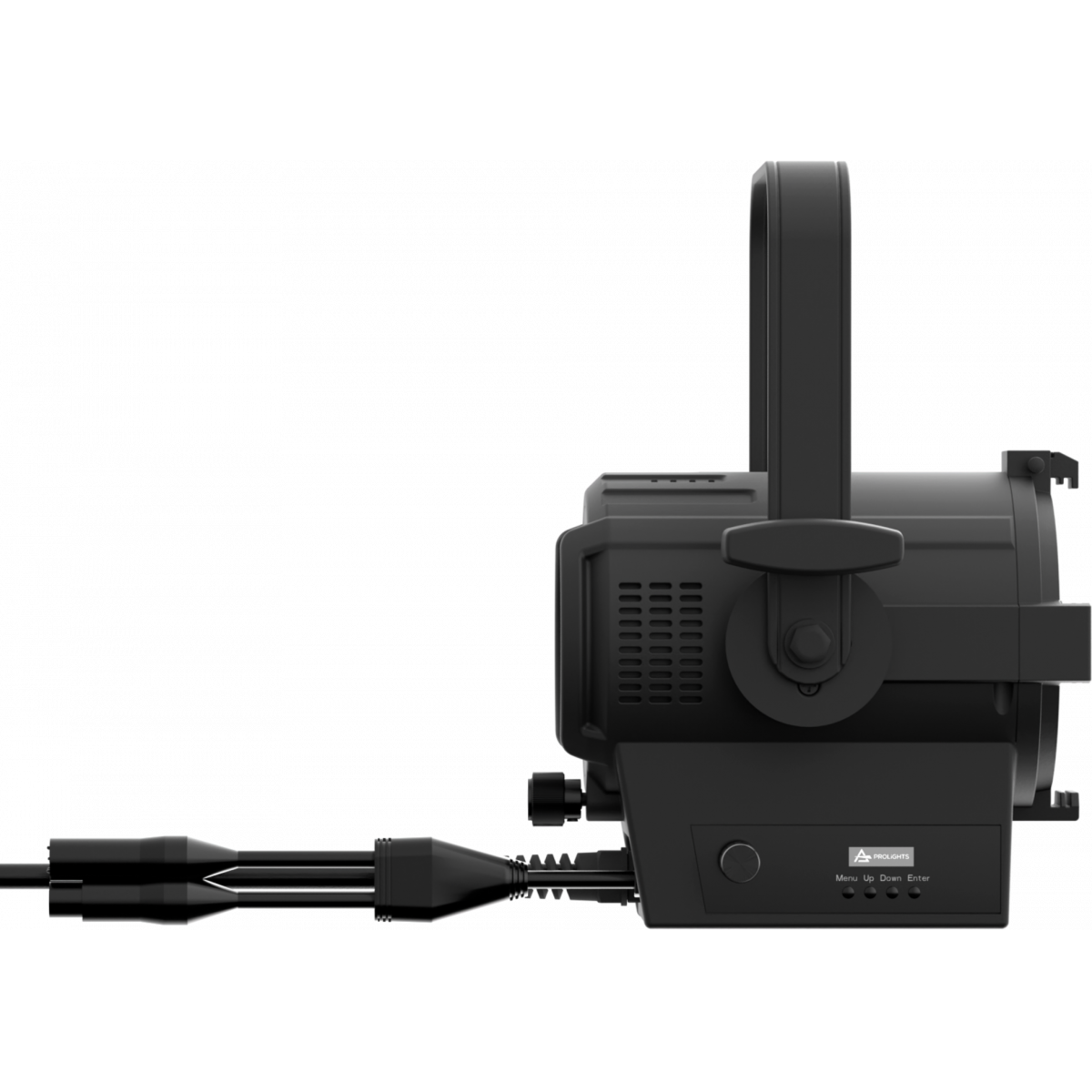

EclMiniFresnel FC

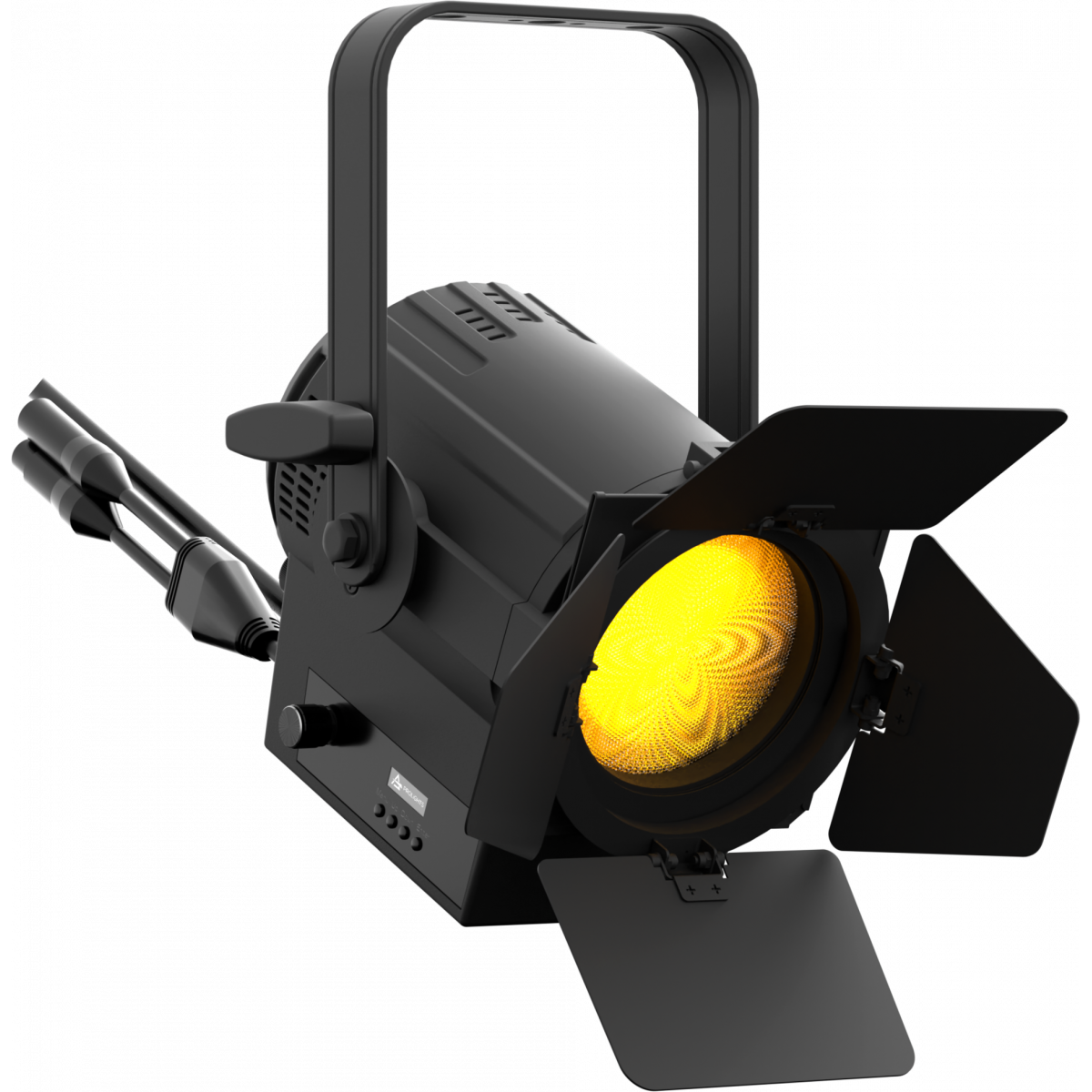

EclMiniFresnel FC

Technical specifications

LIGHT SOURCE
  • Source: 70W RGB+Lime LEDs (driven @ 30W)
  • CCT: 2.800 K - 8.000
  • Luminous flux: (24°) 151 lm - (113°) 732 @Full
  • Lux: (24°) 27 lx - (113°) 18lx @5 m full
  • CRI: 81 @6.000 K
  • R9: 91 @6.000 K
  • TLCI: 80 @6.000 K
  • TM30 Rf: 80 @6.000 K
  • TM30 Rg: 104 @6.000 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 24° - 113° manual
  • Lens diameter: 3.93'' - 100mm / 0.15''
  • Lens type: Fresnel zoom lens
  • Additional optics: 20° filter on board
  • Other: spigot not included; gel frame and barndoors included
COLOUR SYSTEM
  • Colour mixing: RGBL
  • CCT: CCT control through dedicated DMX channel and amber shift activation by DMX
  • White presets: 2.800 K - 8.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 / 3 / 4-1 / 4-2 / 5 / 9 / 6 / 7 / 9-1 / 9-2 / 12 / 14 / 17channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +40° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 30W
  • Output (at 230V): 35 units on a single power line
  • Power factor: >0,55
PHYSICAL
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: DMX 5p IN/OUT
  • Power connection: bare end connection
  • Dimensions (WxHxD): 191x281x203mm / 7.52''x11.06''x7.99''
  • Weight: 2,52kg / 5.56lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECLFRSPG
ECLFRSPG
(Optional)
Spigot for PROLIGHTS fixtures
MINIECLFRBD
MINIECLFRBD
(Included)
Black&White& White barn door 4 directional flaps to adjust the light beam, black
MINIECLFRTPG
MINIECLFRTPG
(Included)
Filter frame for MINIECLFR series
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetMinieclfrfc_A4_DATASHEET_(EN).pdf423KB
Tender SpecificationMinieclfrfc_MINIECLFRFC_Tender_Specificati.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartMinieclfrfc_DMX_CHARTS.pdf102KB
MINIECLFRFC Firmware rev. 1.3
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_minieclfrfc_1ch.hedDownload
prolights_minieclfrfc_2ch.hedDownload
prolights_minieclfrfc_3ch.hedDownload
prolights_minieclfrfc_4ch1.hedDownload
prolights_minieclfrfc_4ch2.hedDownload
prolights_minieclfrfc_5ch.hedDownload
prolights_minieclfrfc_6ch.hedDownload
prolights_minieclfrfc_7ch.hedDownload
prolights_minieclfrfc_9ch1.hedDownload
prolights_minieclfrfc_9ch2.hedDownload
prolights_minieclfrfc_12ch.hedDownload
prolights_minieclfrfc_14ch.hedDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPMinieclfrfc_3D.skp421KB
3D RFAMinieclfrfc_3D.rfa824KB
2DMinieclfrfc_CAD_2D.dwg5MB
3DMinieclfrfc_CAD_3D.dwg592KB
2D cad symbolsMinieclfrfc_CAD_2DSYMBOLS.dwg59KB
Technical drawingMinieclfrfc_TECHNICAL_DRAWING.pdf343KB
VectorWorksVECTORWORKS_SYMBOLS.vwx747KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 24/07/2019 Added 17ch mode: Hue control channel, CTO on Colors channel and Crossfade channel for linear crossfade between CTO and colors. Added Amber Shift on and dimmer mode for 1ch mode; Added menù choise of the color temperature for 2ch mode; Rev. 1.0
