JADE
PROLIGHTS

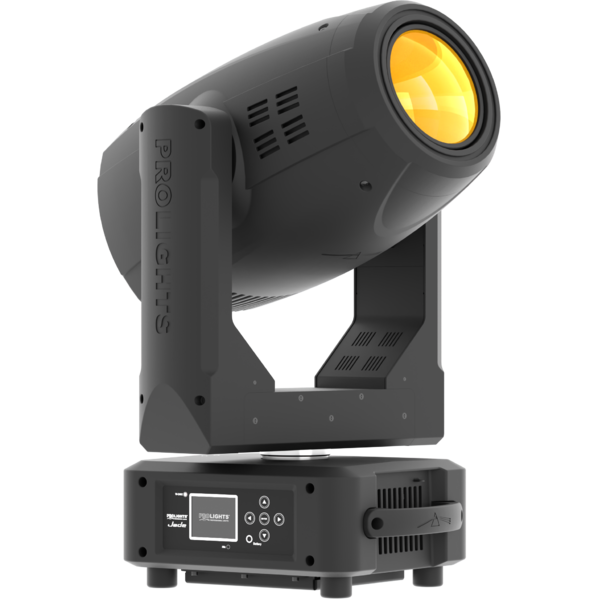

Jade

ORDER CODE: JADE

280W hybrid beam / spot moving light

Jade is a hybrid moving light delivering a full toolkit for designers in a single, compact fixture. Harnessing the power of the 280W discharge source with a custom optical system, it provides a punchy beam, even wash and crisp spot - all from a single unit.

Main features:

  • Massive 2° to 23° zoom range with beam and spot modes
  • 13 position colour wheel including CTC filters
  • Extensive effects including: rotating gobo wheel, static gobo wheel, dual prisms and linear frost
See variants

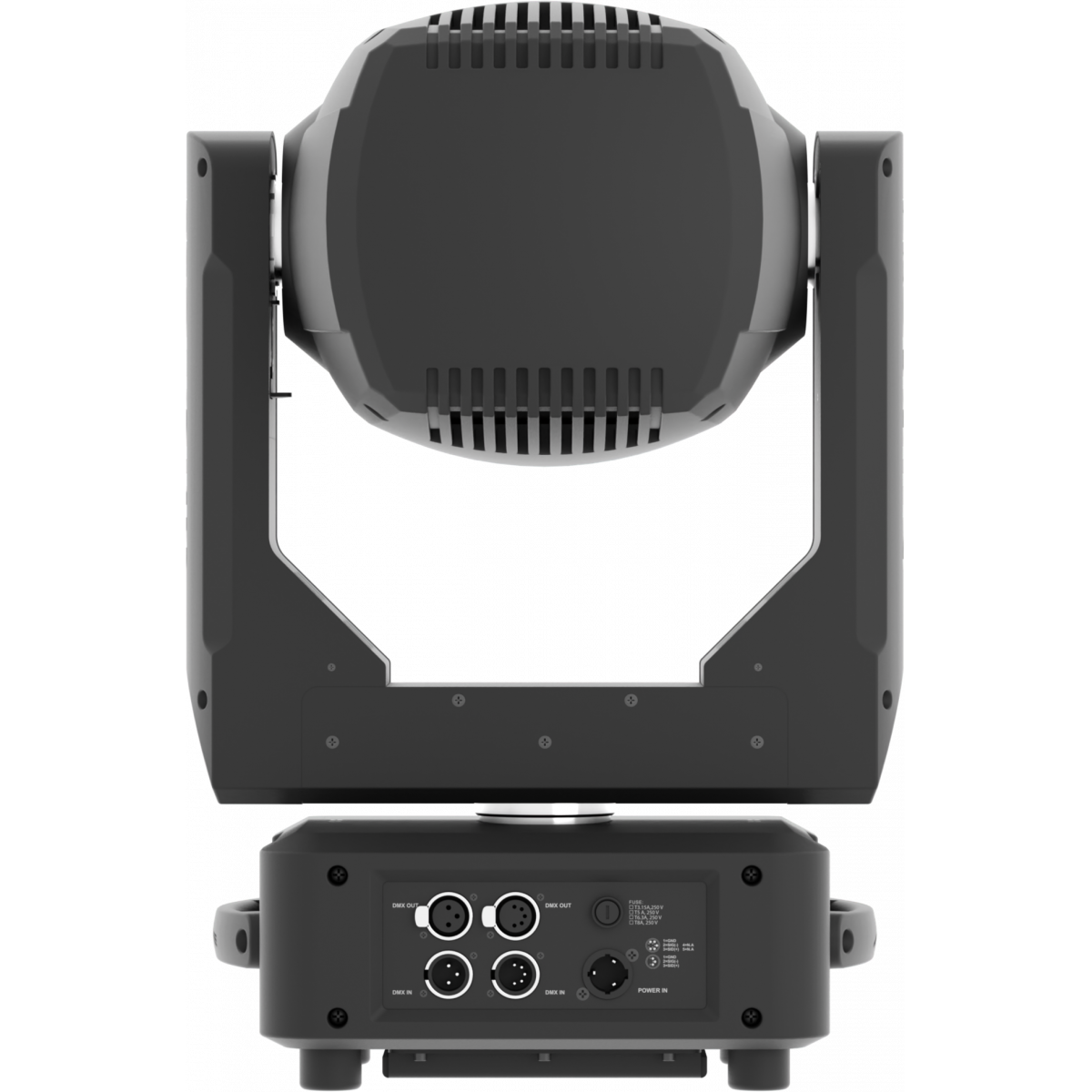

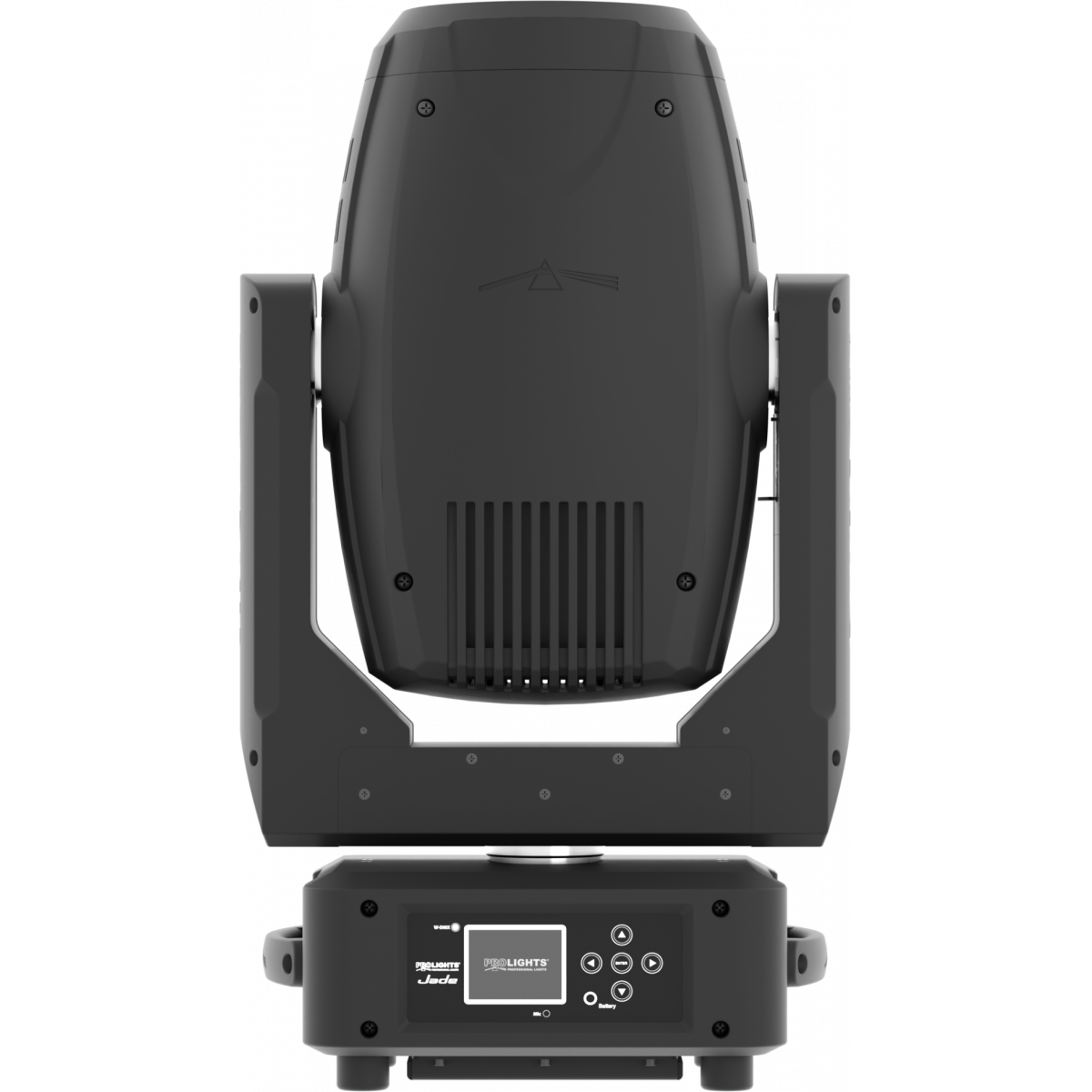

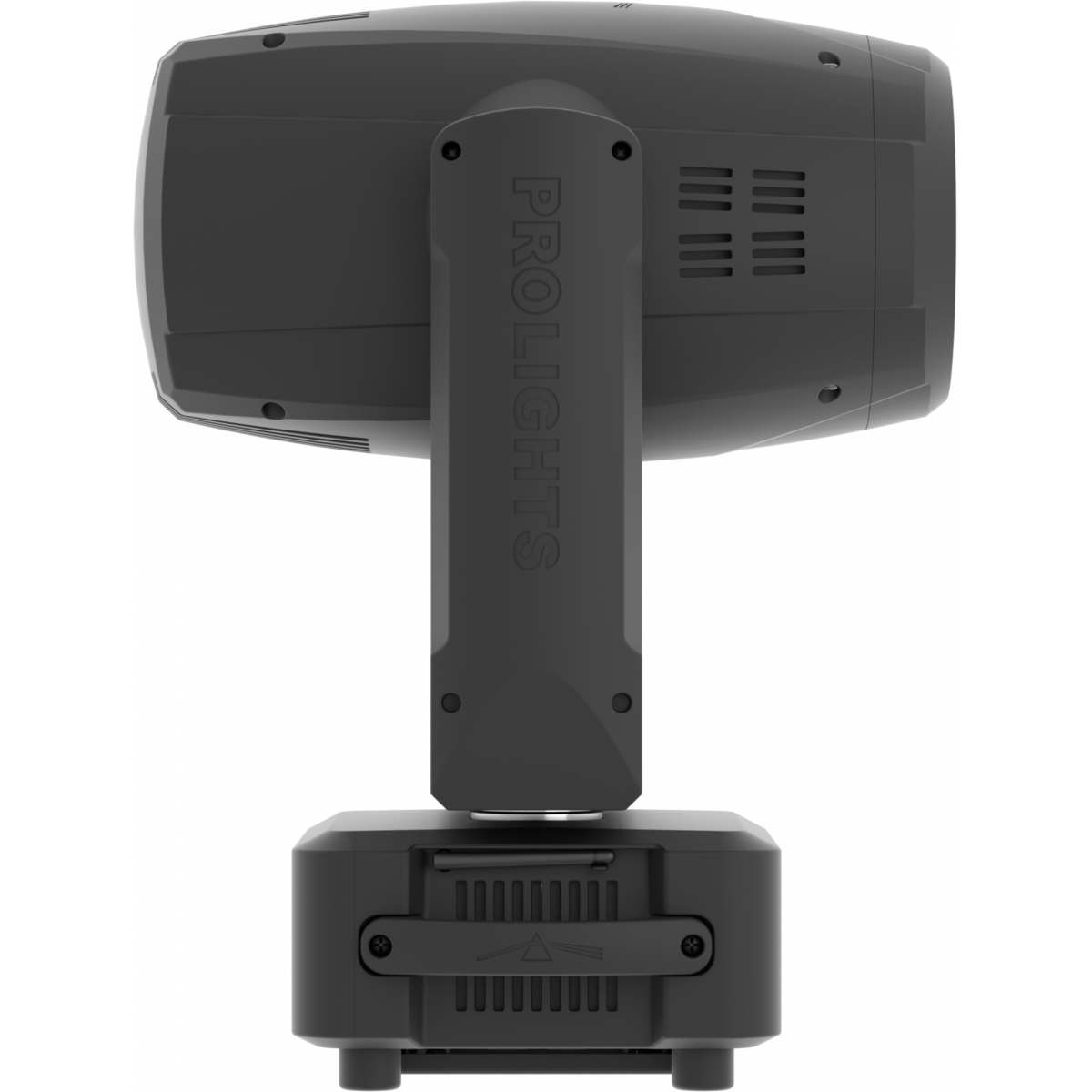

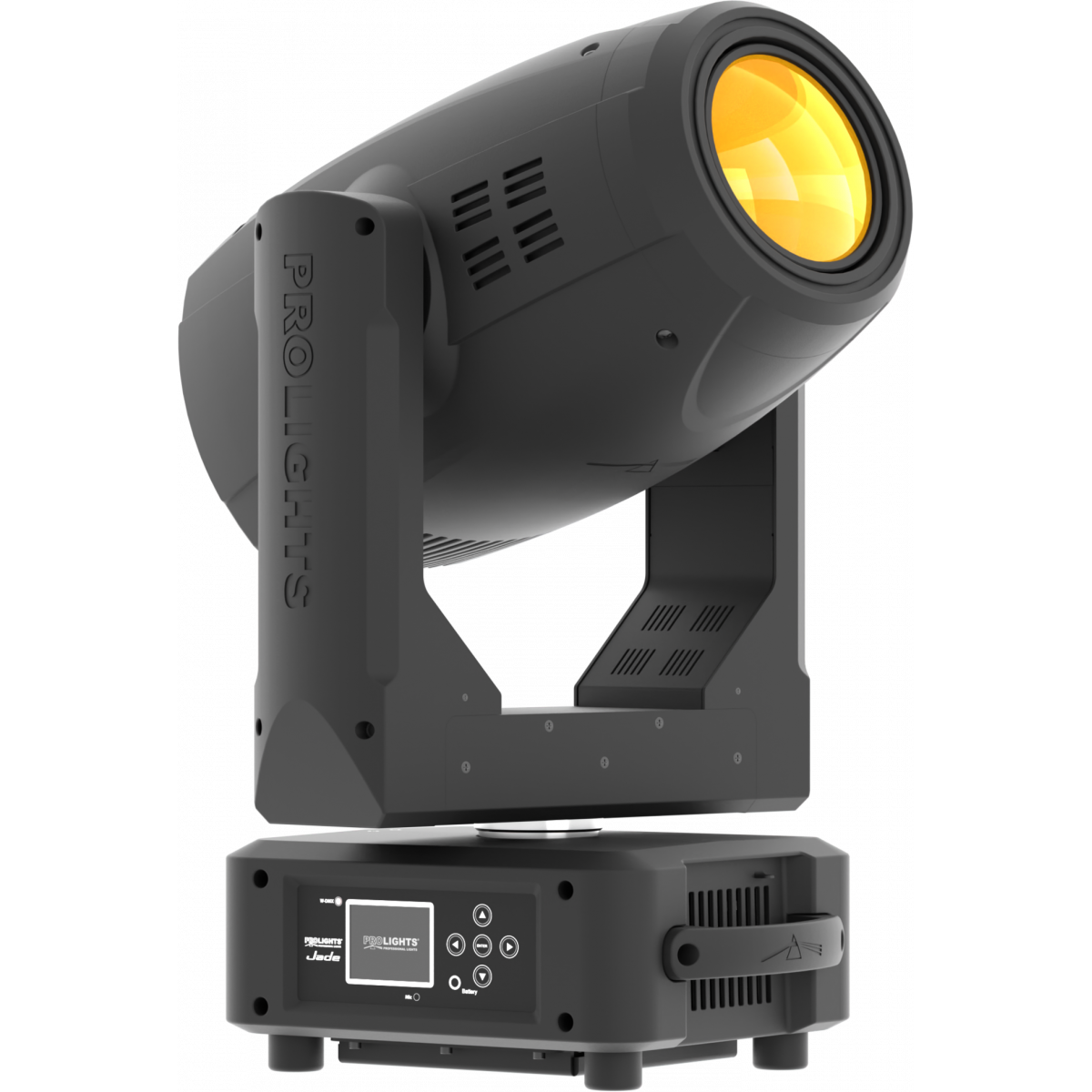

PHOTO GALLERY

Jade
Jade
Jade
Jade

Technical specifications

LIGHT SOURCE
  • Source: 280W S Osram Sirius HRI
  • CCT: 7.800
  • Luminous flux: 8'866
  • Lux: (1.5°) 288'031lx @5 m full
  • Lux: (4.5°) 42'264lx @5 m
  • Source life expectancy: 2.000 h
OPTICS
  • Zoom range: beam: 2° - 10° / spot: 5,5° - 23° motorised linear zoom
  • Lens diameter: 117mm / 4.61''
  • Lens type: high-quality glass lens optics
  • Additional optics: heat filter to switch from beam to spot modes
  • Focus: motorised with auto-focus
COLOUR SYSTEM
  • CCT: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 13 colour filters
  • Macros: linear, half colours, colour bounce
DYNAMIC EFFECTS
  • Rotating gobos: 9 rotating gobos + open, interchangeable
  • Gobo size: outer: 15,7 mm - image: 12 mm - thickness: 1,1 mm
  • Fixed gobos: 14 fixed gobos + open
  • Circular prism: 8f with bi-directional rotation, indexing
  • Linear prism: 6f with bi-directional rotation, indexing
  • Frost: frost unit to soften the beam edge
BODY
  • Pan range: 630° - 540°
  • Tilt range: 265°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, W-DMX
  • DMX channels: 14 / 16 / 22 / 23channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Hibernation: power safe mode when lost DMX
ELECTRONICS
  • Dimmer: linear 0 ~ 100% mechanical dimmer
  • Strobe / shutter: 1 - 25 flash(s), mechanical
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 423W
  • Max power consumption (at 120V): 423W
  • Standby power: 53.3W
  • Power factor: 0,99
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 355x619x235mm / 13.98''x24.37''x9.25''
  • Weight: 17kg / 37.48lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
OS24D13
OS24D13
(Included)
Quick-lock omega bracket, M12 hole

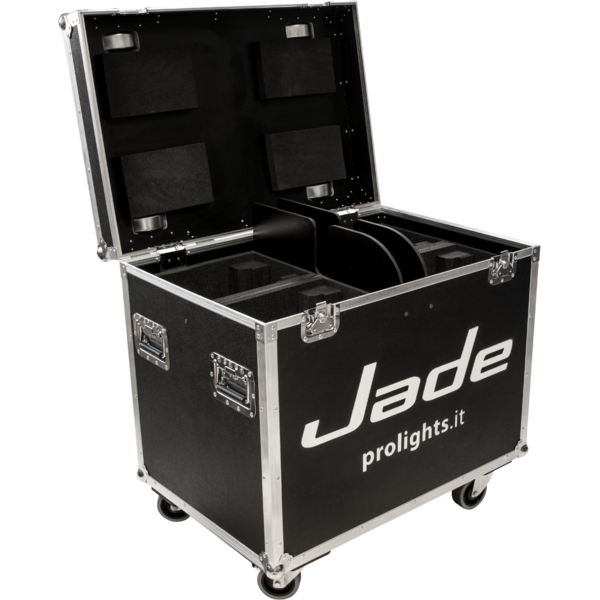

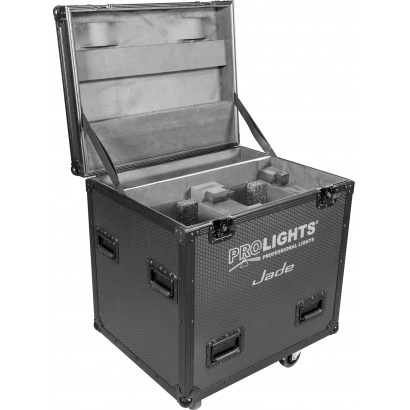

FCLJADE4E
FCLJADE4E
(Optional)
Flight case for 4pcs of JADE, made in UE
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetJade_A4_DATASHEET_(IT).pdf481KB
Letter datasheetJade_A4_DATASHEET_(EN).pdf413KB

User manual

File name File size Download
User manualJade_USER_MANUAL_ITEN.pdf5MB

DMX chart & personalities

File name File size Download
DMX chartJade_DMX_CHARTS.pdf56KB
JADE Firmware rev. 1.4.00
manufacturer fixture library (Link) Link
prolights_jade.d4Download
manufacturer fixture library (Link) Link
prolights_jade_bas1.hedDownload
prolights_jade_bas2.hedDownload
prolights_jade_ext.hedDownload
prolights_jade_std.hedDownload
manufacturer fixture library (Link) Link
jade_14ch.fdfDownload
jade_16ch.fdfDownload
jade_22ch.fdfDownload
jade_23ch.fdfDownload
jade ssl.zipDownload
jade ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@jade@ba1@initial.xmlpDownload
prolights@jade@ba2@initial.xmlpDownload
prolights@jade@extended@initial.xmlpDownload
prolights@jade@standard@initial.xmlpDownload
manufacturer fixture library (Link) Link
jade hog3.zipDownload
jade_stnd.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
jade - basic 16 bit mode.fix2Download
jade - extended mode.fix2Download
jade ba1.fix2Download
jade ba2.fix2Download
jade extended.fix2Download
jade standard.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAJade_3D.rfa692KB
3D SKPJade_3D.skp2MB
2DJade_CAD_2D.dwg1MB
3DJade_CAD_3D.dwg1MB
2D cad symbolsJade_CAD_2DSYMBOLS.dwg346KB
Technical drawingJade_TECHNICAL_DRAWING.pdf347KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx904KB

Tech docs

File name File size Download
Color DocumentJade_COLOR.pdf592KB
Gobos DocumentJade_GOBOS.pdf720KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4.00 STABLE 28/11/2018 Improved Dimmer Function. Rev. 1
Rev. 2
