Astra Beam260IP

ORDER CODE: ASTRABEAM260IP

IP65 moving beam light with a 260W PRO long life lamp (6.000 hours)

Astra Beam260IP is a compact outdoor IP65 beam moving head with a long lamp life source, engineered to produce a sharp and parallel beam of light with a boosted light output, thanks to its brand new 260W Osram SIRIUS HRI PRO arc lamp. Astra Beam260IP is smaller, brighter and faster than any other IP pure beamlight on the market, and when compared to indoor alternatives it requires less maintenance time and extra costs, due to the sealed housing and outstanding long lamp life (6.000 hours). In addition, with its compact size and at an attractive price point, this luminaire is ideal even for indoor applications.

Main features:

  • IP65 design, compact size and fast movements
  • 260W PRO Osram SIRIUS HRI long life (6.000 hours) lamp
  • Two overlapping prism to create spectacular aerial effects
See variants

PHOTO GALLERY

Astra Beam260IP
Astra Beam260IP
Astra Beam260IP
Astra Beam260IP

Technical specifications

LIGHT SOURCE
  • Source: 260W PRO OSRAM SIRIUS HRI Lamp
  • CCT: 7.800
  • Lux: 1'984'000lx @5 m
  • Source life expectancy: 6.000 h
OPTICS
  • Beam angle: 2°
  • Lens diameter: 140mm / 5.51''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised
COLOUR SYSTEM
  • CCT: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 10 colour filters
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Fixed gobos: 15 fixed gobos + open
  • FX generator: 2 prisms overlap for spectacular aerial effects
  • Circular prism: 8f with bi-directional rotation, indexing
  • Linear prism: 6f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 230°
  • Pan/Tilt resolution: 16bit
  • Feedback: automatic repositioning after accidental movement
  • Body: weatherproof IP65 construction
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 17channel
  • Wireless Control: included, Wireless Solution transceiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% mechanical dimmer
  • Strobe / shutter: 1 - 28 flash(s), mechanical
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45°
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 345W
  • Output (at 230V): 7 units on a single power line
  • Power factor: 0,96
  • Inrush current: ＜30A @115VAC /＜50A @230VAC
PHYSICAL
  • IP rating: 65 (*)
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD): 385x603x271mm / 15.16''x23.74''x10.67''
  • Weight: 28,6kg / 63.05lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
RSR1235B
RSR1235B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

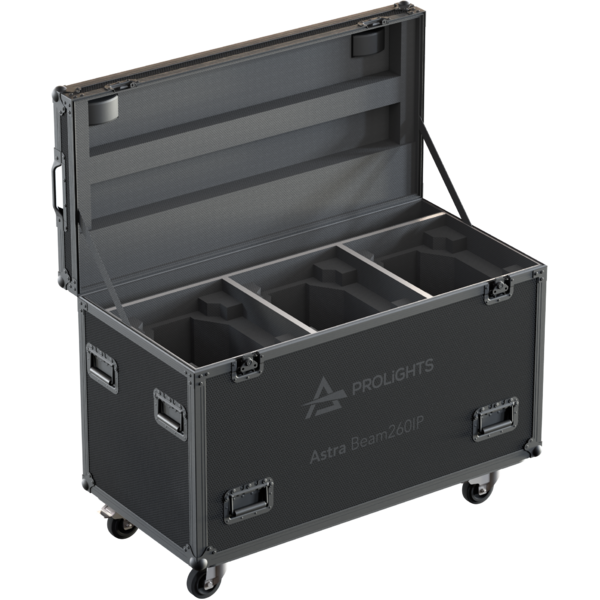

FCLASTRAB260IP
FCLASTRAB260IP
(optional)
Flight case for 3 pcs of ASTRABEAM260IP
OSIP
OSIP
(included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M10 hole
OSIPD13
OSIPD13
(included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Astrabeam260ip_A4_DATASHEET_(EN).pdf 2MB
Letter datasheet Astrabeam260ip_LETTER_DATASHEET_(EN).pdf 2MB
Tender Specification Astrabeam260ip_TENDER_SPECIFICATION.pdf 4MB

User manual

DMX chart & personalities

File name File size Download
DMX chart Astrabeam260ip_DMX_CHARTS.pdf 180KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 463KB
VectorWorks PROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx 310MB
VectorWorks PROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx 478MB
ASTRABEAM260IP Firmware rev. 1.0.23
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
astra beam 260ip.dfixDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_cb@astrabeam_260ip@standard_cb.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKP Astrabeam260ip_3D_SKETCHUP.skp 700KB
3D RFA Astrabeam260ip_3D_REVIT.rfa 784KB
2D Astrabeam260ip_2D.dwg 5MB
3D Astrabeam260ip_3D.dwg 535KB
2D cad symbols Astrabeam260ip_2DSYMBOLS.dwg 81KB
Technical drawing Astrabeam260ip_TECHNICAL_DRAWING.pdf 286KB

Tech docs

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.23 STABLE 26/10/2022 Improvements:
  • Improved internal bus communication.
